Motors & ESCs & Accessories

• Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.
• ALLOWED IN SOME TT01E EURO TRUCK CLASSES AS REPLACEMENT FOR TORQUE TUNED TAMIYA MOTOR
  - 21 Turns especially designed for F2 Stock Cars and Bangers etc
  - Approved by the BRCA for F2 Stock Cars.

• Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

Great replacement for Tamiya TT01 & TT02 etc

FITS ON MOST 1/10 CAR AND IS FOUND TO BE THE ONLY FAN HEATSINK UNIT TO FIT THE TAMIYA TT01E EURO TRUCK.  FIT AND TILD IT AT 120DEG FOR FITMENT.

FOR 540 Brushed / 3650 Brushless Motors

Powered via a JST plug from the Receiver

Introducing the Hobbywing 1/12th Brushed Speed Control for 1S LiPo or 4 Cell NiMh.

Note: To turn on and off, you must remove battery plug. Button is for ESC Programming only. ESC comes set as standard with no brakes. You must turn on brakes and changed from Zero brake force to min of 25% for them to work. Standard setup is for Banger cars for instant reverse.

A collaboration between Schumacher Racing and Hobbywing !

Easy Operation
This ESC is specially designed to be easy to use, it not only carries forward the outstanding quality of HOBBYWING products but is simple in operation.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the 1060 WP 1S Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and further settings can be adjusted using the LED Program Box HW30501003.

Wide Application
This ESC is designed for 1/12th Scale cars using 1S LiPo batteries or 4 Cell NiMH.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the 1060 WP Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

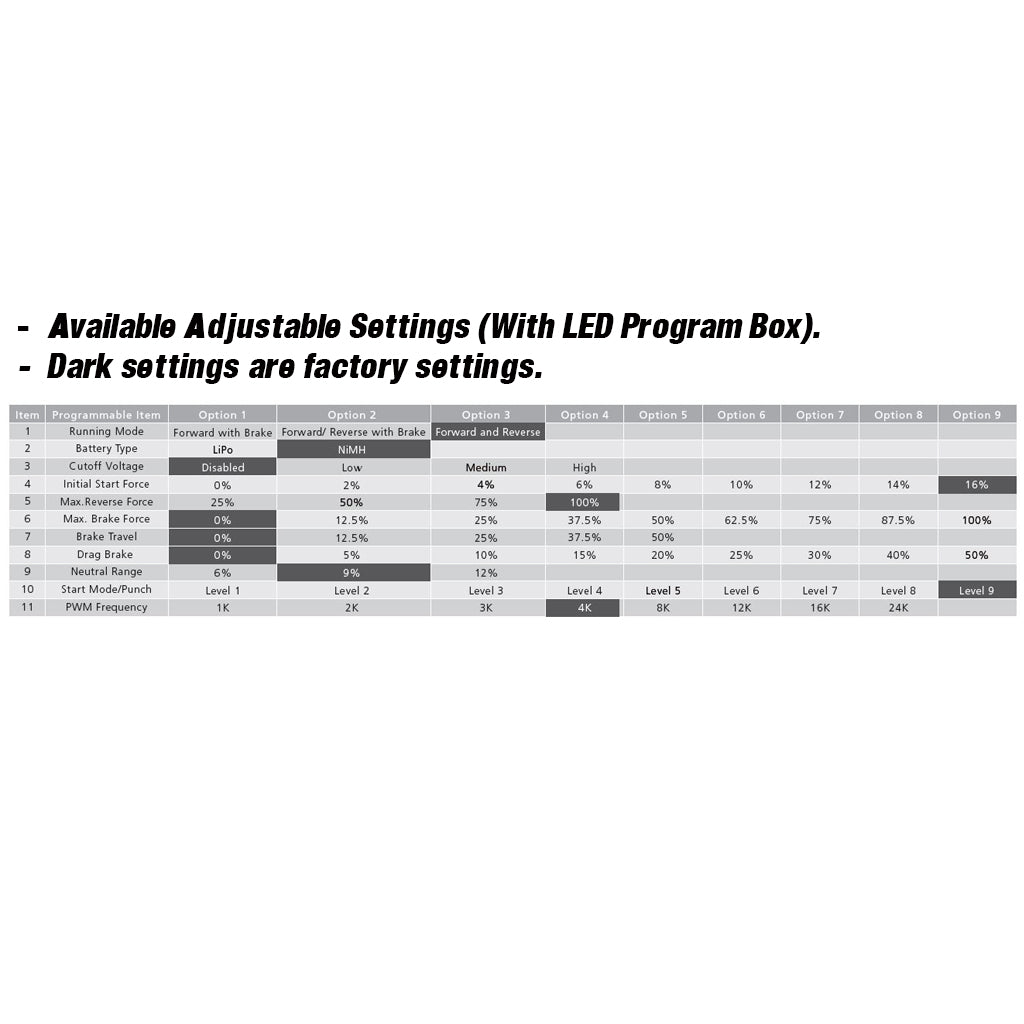

See image for factory default settings.

Instant reverse is a standard setting, highly suitable for 1/12th Stock Car class.

Specifications

Current Rating - 60A
Input Voltage - 1S LiPo or 4 Cell NiMh
Motor - Brushed Motors： ≥15T
Applications - 1/12th Racing
BEC Output - 6V，3A
Parameter Setting Method - LED Program Box HW30501003
Connectors - T Plug & 4mm Bullets.

Introducing the CORE 20 Silver Can Brushed 540 Motor.

- 20 Turns especially designed for the 1/12th Mini class.
- Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
- Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
- Supplied with leads for easy connection in RTR cars.
- Includes internal cooling fan.

w/PROTECTIVE SLEEVE

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

(2024 VERSION)

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

asy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - Big-sized TAMIYA Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

w/PROTECTIVE SLEEVE

Introducing the Hobbywing Justock Combo 'JS2' with XR10 G3S speed control, paired with the Hobbywing  G2.1 25.5T fixed timing brushless motor.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.


Speed Control Features.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

-------------------------------------------------------------

Motor Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

(TAMIYA PLUG FITTED - FOR OTHER PLUG'S, PLEASE SEE ADAPTOR LEADS OR CONNECTORS)

SUPPLIED WITH MOST TAMIYA KITS (SAME AS WP1060)

(TT01E Euro Truck Racing Stock Spec)

(BLACK VERSION)

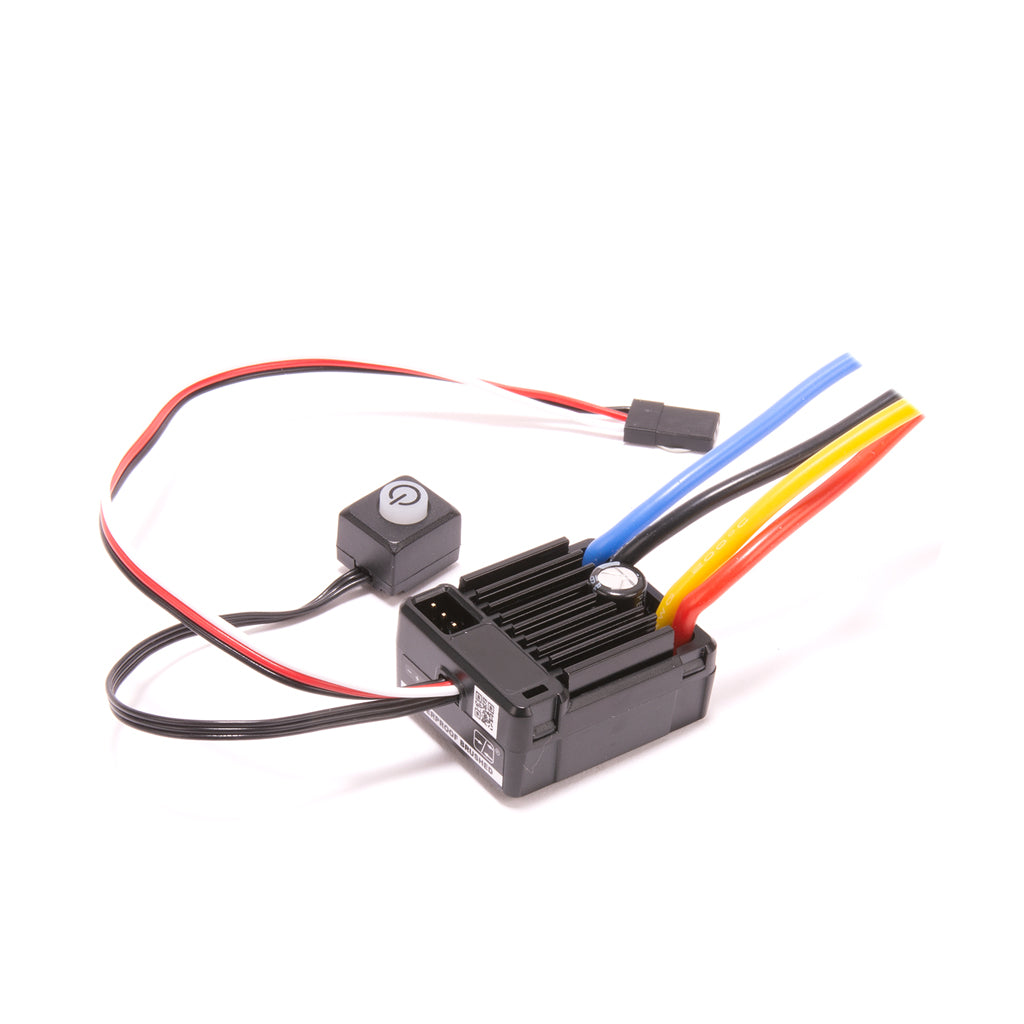

One of the most popular Hobbywing brushed speed controls, the WP1060

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1

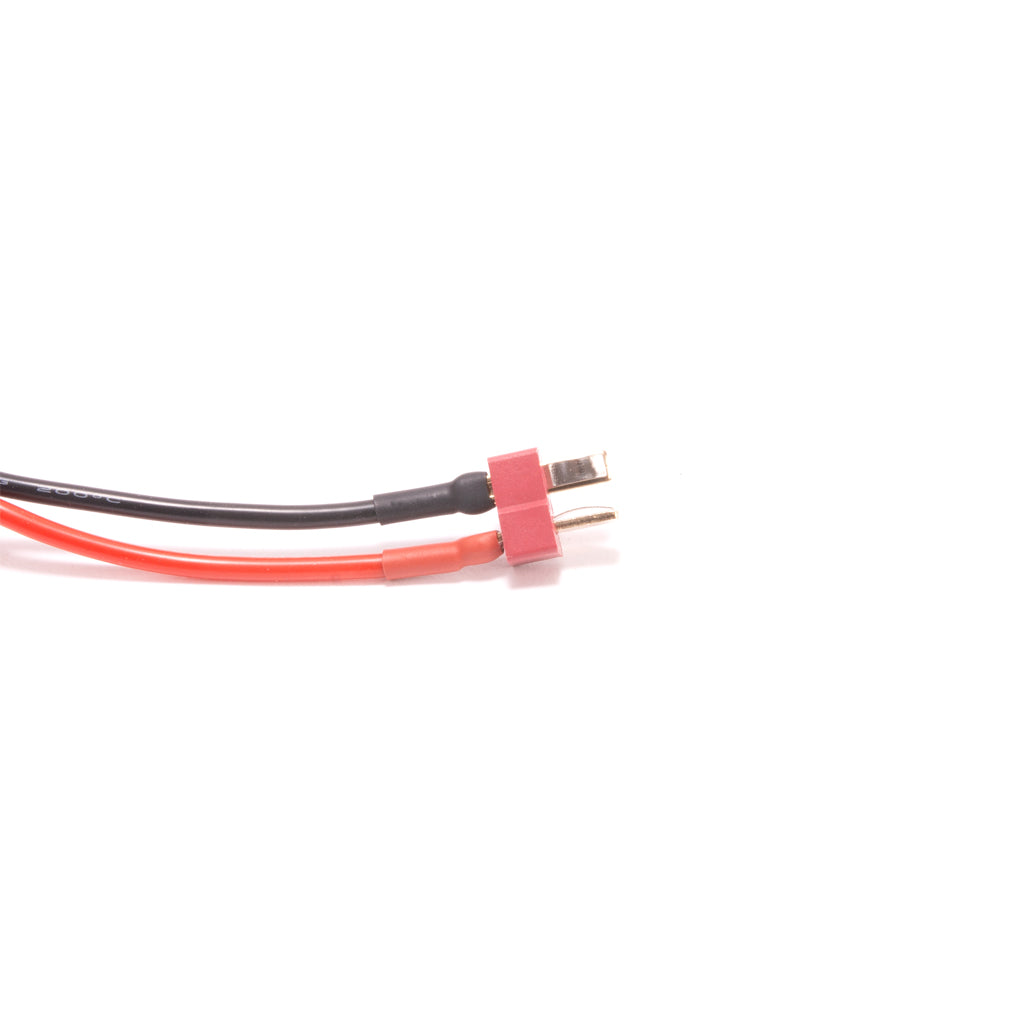

- Input Connectors - T Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

• - Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

15Turns is faster than a 21Turn - Please make sure the ESC used can handle.

Install a 370 or 380 size motor onto your 540 sized motor mount! Sometimes you want slower speed and with a smaller motor this is the perfect way to achieve that! Included is a sleeve adaptor for you to use your normal sized pinions!

Feature:

• For: 370 380 Motor
• Material: Aluminum
• Color: Black

Include:

• Adaptor Plate (1 pc)
• Pinion Sleeve (1 pc)

14awg SILICONE WIRE ORANGE

SOLDERING REQUIRED

PIN 1/8TH

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2
