Tamiya RC Car M-Chassis Kits

Mini Coopers have been automotive fan favourite machines for decades! This 1/10 scale radio control model kit recreates the version of the Mini Cooper built by the British Motor Corporation (BMC) as it existed between 1959 until the year 2000. Original Minis were built for four decades without model changes. It had a front-wheel drive layout which was rare at that time, and it featured compact mechanics and maximum interior space. With its design featuring the necessary bare minimum features, it helped contribute to this car’s iconic status. The recreated R/C version comes on the MB-01 chassis in the short wheelbase and front motor / front-wheel drive (FF) configuration layout.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and a front- or rear- wheel drive system. Without removing battery pack, motor, and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

About the Model

• 1/10 scale R/C model assembly kit
• Length: 315mm, width: 167mm, height: 140mm.
• Wheelbase: 210mm (Short)
• Features updated markings for the body
• The form of the Mini Cooper Racing body is authentically recreated in lightweight polycarbonate
• Features 8-spoke wheels paired with 60D radial tyres
• Includes ESC (electronic speed controller)

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Body
1) Stickers are used for white stripes, racing numbers, bonnet pin and more.
2) 8-spoke wheels are paired with treaded 60D radial tyres.
3) The bumperless rear features depictions of rectangular tail lamps and the large rear windscreen.

Photos of the Chassis
1) The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.
2) The four-wheel double wishbone suspension uses symmetrical arms.
3) This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.

This R/C kit recreates the classic Lotus Europa Special. The polycarbonate body is paired with the RWD M-06 chassis. The Lotus Europa debuted in 1966, showcasing what was then a revolutionary midship engine layout, with a lightweight FRP body. In 1972 perhaps the finest model – Lotus Europa Special - in the series was released with 1.6-litre inline-4 engine (big valve twin-cam engine) capable of 126hp which was the largest maximum output among the Lotus Europa series. The Tamiya R/C kit faithfully captures this classic car down to the rear wing as seen in the SPECIAL variant of the Europa.

M-06 Chassis
The M-06 chassis features a rear-mounted motor, rear-drive setup and has a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low centre of gravity. 4-wheel double wishbone suspension uses grey coloured wheels, equipped with 60D radial tyres at the front and 60D super grip tyres at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

About The Model

• 1/10 scale R/C model assembly kit. Length: 390mm, width: 176mm, height: 114mm
• Polycarbonate body. Separate parts depict side mirrors, light cases, and rear wing
• The M-06 chassis features a rear-mounted motor, and a longitudinally-mounted battery pack with R/C units positioned on either side for optimum balance and a low centre of gravity
• This model utilises the 225mm wheelbase M-06M chassis
• Dedicated stickers are included to recreate gold body pinstripes inspired by the Lotus car which flourished in Formula One
• Includes marking stickers, and window masking stickers for use during the paint process
• A variety of Hop-Up Option parts are available to customize the chassis
• Includes 540-type brushed motor

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminium swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fibre damper stays are paired with M-Chassis big bore aluminium dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

Featured Drivetrain Components

• Full ball bearings
• Ball differential (52T)
• 33mm lightweight aluminium swing shafts
• Cross joint for LF assembly type universal shafts
• 06 module fluorine coated 20T pinion gear
• M-08 Concept aluminium shafts
• M-Chassis reinforced freewheel axles
• 5mm clamp-type wheel hubs
• Suspension
• Carbon fibre damper stays (front/rear)
• Reinforced D parts (suspension arms)
• Aluminium turnbuckle shafts
• Titanium coated suspension shafts
• 5x5mm, 5x11mm hard hex head ball connectors
• M-Chassis big bore aluminium dampers+
• 3x 1.3mm-hole pistons
• 4mm aluminium serrated wheel nuts (blue)
• 5mm reinforced open face adjusters

Chassis

• Carbon fibre battery holder
• Carbon fibre body mount base
• Reinforced K parts (gearbox)
• Chassis balance weight (20g)
• Hi-torque servo saver
• Aluminium ball connectors (blue)
• Hex head screws

Specifications

• Scale is 1:10
• Length: 319mm (with 225mm wheelbase), width: 165mm
• Alterable wheelbase: 210mm, 225mm, 239mm
• Monocoque frame with separate front and rear sections
• Midship motor, rear-wheel drive
• Ball differential
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• M-Chassis big bore aluminium dampers+
• Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
• Electronic speed controller (ESC) is sold separately.

Separately Required Items

• Body
• Type 540 motor (brushless is recommended)
• Tyres
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

Photos of the Chassis

This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fibre battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminium cup joints, hard-coated aluminium pinion gear and more.

Featured Components

• Carbon fibre battery holder (dedicated component)
• Rear stabilizer
• TRF special dampers (hard black coating)
• Double-cardan drive shafts (33mm)
• High-traction lower deck
• Reinforced C parts (uprights)
• Reinforced D parts (suspension arms)
• 3x106mm aluminium turnbuckle shafts
• Aluminium joint cups
• Clamp-type aluminium wheel hubs (5mm)
• 2.6mm diameter titanium-coated shafts
• 46mm titanium-coated shafts
• 06 module aluminium pinion gear (20T)
• Full ball bearings
• Hi-torque servo saver (black)

Specifications

• Scale is 1:10
• Length: 332mm (including bumper)
• Width: 164mm
• Wheelbase: 225mm or 239mm (Selectable)
• Monocoque Frame
• Front-Midship Motor, Front-Wheel Drive
• Oil-Filled Gear Differential
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Special Dampers
• Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
• Requires an Electronic Speed Controller (sold separately)

Separately Required Items

• Compatible body
• 2-Channel R/C System w/ESC
• R6/AA/UM3 batteries for transmitter
• Type 540 Motor
• Battery Pack & Charger

The MF-01X is a compact chassis set to revolutionize the M-Chassis genre, and the all-important first model on this platform recreates the legendary Japanese off-roader, the Suzuki Jimny. The Jimny, of course, has been on sale as one variant or another since 1970, gaining numerous fans thanks to its versatility and toughness. The JB23 depicted by this model is one of the 3rd generation Jimnys introduced in 1998 which had a modernized, rounded body design. It featured a feisty little fuel injected, turbocharged 658cc engine and was a popular car in the domestic Japanese market.

Key Design Points
Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.

The MF-01X has a three-section make-up; changing the central spacer section enables short (210mm), middle (225mm), and long (239mm) wheelbases. Item 58614 uses a middle wheelbase; option parts Item 54654 is needed to change to a short wheelbase, and Item 54655 when changing to a long wheelbase.

About The Model

• Length: 347mm, Width: 170mm, Height: 215mm
• Wheelbase: 225mm (M)
• Tyre Width/Diameter (Front & Rear): 27/69mm
• Tread (Front & Rear): 138mm
• Monocoque Frame
• Shaft-Driven 4WD
• 3-Bevel Differential Gears
• 2-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front & Rear Friction Dampers
• Gear Ratio = 9.5:1
• Type 540 Motor

Separately Required Items

• Two-channel radio, electronic speed controller (ESC), steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

This TAMIYA R/C model assembly kit depicts the 1st-generation (T1) variant of the Volkswagen Type 2 van, which was introduced in 1950 and also known as the Volkswagen Bus to many of its legions of fans. Production of the actual van continued through until 1967. The iconic body is paired with the rear-wheel drive M-06 chassis for realistic fun driving just like the real RR Type 2 T1.

M-06 Chassis
The M-06 chassis features a Rear-Mounted Motor, Rear-Drive setup and features a longitudinally-mounted battery pack, with R/C radio gear positioned on either side for optimum balance and low center of gravity. 4-wheel double wishbone suspension is equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

• 1/10 scale R/C model assembly kit.
• Polycarbonate body with separate molded plastic parts included to create bumper, light cases and side mirrors.
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C radio gear positioned on either side for optimum balance and a low center of gravity.
• 239mm wheelbase M-06L chassis.
• Metal-plated dish type wheels.
• Includes 540 motor.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Requires: 2-channel radio, steering servo, 7.2-volt battery pack & charger, and Tamiya PS paint.

This R/C kit recreates the Alpine A110 with an orange Jägermeister livery on top of the proven and fun-to-drive M-06 chassis. The Alpine A110 was a French compact coupe featuring a lightweight FRP body based upon a steel backbone, rear-wheel drive chassis with the rear-mounted inline-4 engine positioned longitudinally. Production continued from its debut year 1963 until 1977, and the A110 attained fame after victory in the 1971 rally in Monte Carlo. In 1973, this car became the first World Rally champion and its Jägermeister orange livery version achieved a class victory in German circuit races.

Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and has a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low centre of gravity. 4-wheel double wishbone suspension uses dish design wheels, equipped with 60D radial tires at the front and 60D super radial (hard) tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

About the Model

• 1/10 scale R/C model assembly kit. Length: 395mm, width: 168mm, height: 121mm. Wheelbase: 210mm
• 1.0mm thick polycarbonate body
• Separate ABS plastic parts authentically depict headlights, front/rear bumpers and side mirrors
• The model is based upon the rear-wheel drive M-06 chassis (210mm wheelbase setup) featuring a rear-mounted motor
• Dish wheels moulded in silver are paired with 60D radial tires (Item 50683) at front and 60D super radial tires (Item 54999) at rear
• Stickers are included to recreate sponsor logos, race numbers and more.
• Window Masking stickers included to help aid the painting process of the body
• Type 540 motor and ESC included

Separately Required Items

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Body

Tamiya Release Date: 20/08/2023

The 1980’s was the decade of the hot hatch back in automotive circles! One of the many automakers that made hatchbacks popular was Volkswagen, and their MK2 GTI 16V was a favourite among automotive fans. Tamiya has faithfully recreated the MK2 GTI as a rally race car as seen in A7 class competition. The body is based on the MF-01 chassis as it’s at home on both asphalt and flat dirt running!

MF-01X - Compact 4WD At Home on a Range of Surfaces
Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis centre secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers.

• 1/10 scale R/C model assembly kit. Length: 397mm, width: 170mm, height: 142mm. Wheelbase: 239mm (L-size wheelbase spec). Lightweight polycarbonate body.
• Separately moulded plastic components recreate light cases, bumper, and side mirrors.
• The MF-01X chassis is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
• Polycarbonate light cases are compatible with separately sold 5mm LEDs.
• Stickers are included to recreate body details.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Includes 540 Torque Tuned motor and ESC.
• Requires 2-channel radio, steering servo, 7.2volt battery with compatible charger and Tamiya PS paint to complete.

This radio-controlled model assembly kit recreates the Volkswagen Golf II GTI 16valve. The kit is based on the beginner-friendly and highly customizable BT-01 chassis, which allows hobbyists to grow as their driving and building skills develop. Like the full-size car it depicts, the chassis configuration on the MB-01 chassis is set up in the front motor, front drive configuration for unparalleled realism.

About the Golf II 16V
The FF drivetrain Golf is one of Volkswagen’s most iconic cars. From its first appearance in 1974, Volkswagen Golf continued to develop and lead the worldwide compact car class. In 1986, the Golf II GTI 16V was added to the second-generation model Golf II line up which had made its debut in 1983. With a 1,781cc inline-4 DOHC 16-valve engine, a tuned car took part in global rally races, and in the U.S. became a fan favourite hatchback of the 1980s era.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and a front- or rear- wheel drive system. Without removing battery pack, motor, and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

About the Model

• 1/10 scale R/C model assembly kit. Length: 383mm, width: 170mm, height: 138mm
• Wheelbase: 239mm (Long)
• Polycarbonate body
• Separate plastic parts moulded in black realistically depict side mirrors and bumpers
• Separate transparent parts capture headlights and taillights
• Porous dish wheels are paired with radial tyres
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Chassis
1) The compact MB-01 chassis. For this model, it is assembled with a long wheelbase: 239mm.
2) The servo is installed in the front-left of the model.
3) The sub-deck spacer makes the chassis wheelbase 239mm.

Photos of the Body
1) The iconic Golf form is captured in style.
2) Dish wheels are paired with treaded 60D radial tyres. Stickers recreate black fender arches.
3) Headlights can be lit up with separately sold LEDs. The front bumper is a separately moulded part.

This R/C assembly kit recreates the Citroën DS which made its debut in 1955 and caught people’s attention with its innovative structure and style. Over 1,450,000 were sold up to 1975, and it became one of the better-known cars of the 20th century. This car was used as the official car for the President of France and achieved the overall championship in 1966 global rallies. The version recreated in this assembly kit recreates the early-period model featuring two rounded headlights. The polycarbonate body sits on top of the MB-01 chassis configured in the long wheelbase and front motor / front-wheel drive (FF) configuration.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a front-wheel drive setup. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance. What is more, without removing battery pack, motor and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars.

About The Model

• Length: 412mm, width: 197mm, height: 137mm
• Wheelbase: 239mm (Long)
• Tread: 148mm (front), 140mm (rear)
• Tire width/diameter: 25/59mm (front & rear)
• Bathtub type chassis
• Front-midship motor, front-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• ESC included

Separately Required Items

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

Tamiya Release Date: 22/12/2023

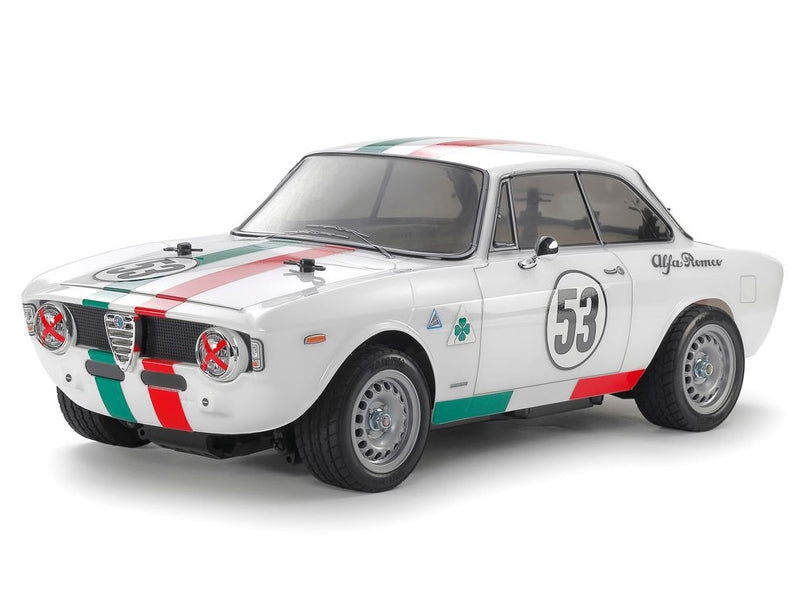

The Alfa Romeo Giulia Sprint GTA Club Racer makes an appearance on the new and versatile MB-01 chassis platform. This time around the MB-01 is configured to be the middle wheelbase with midship rear motor/rear wheel drive (MR) specification. The Alfa Romeo Giulia Sprint GTA was developed as the lightweight, tuned race version of the 2-door coupe Giulia Sprint GT and released in 1965. 500 units were produced and in the late 1960s the works car became class champion several times in the European Touring Car Championship; also run by other racing teams, it caught a lot of attention at the racetrack!

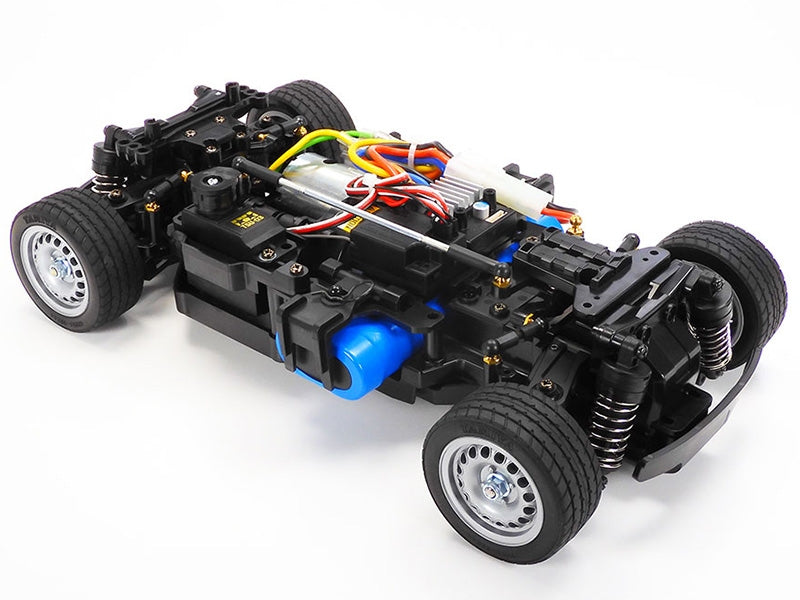

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor, and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

• 1/10 scale R/C model assembly kit. Length: 385mm, width: 167mm, height: 132mm. Wheelbase: 225mm (Middle wheelbase).
• The form of the Alfa Romeo Giulia Sprint GTA Club Racer is recreated in lightweight polycarbonate.
• Features 60mm front and rear tires.
• This kit includes livery stickers to create a design inspired by the numerous amateur club racers.
• Includes 540-Type brushed motor and ESC.
• Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

Here is another R/C kit with the MB-01 chassis – this time, long wheelbase and midship rear motor / rear wheel drive (MR). The Opel Kadett GT/E released in 1975 was a high-spec version of the Opel Kadett, a car which enjoyed great popularity in Europe in the 1970s. The GT/E had a 2-door coupe body, a high-spec 1.9 litre engine and reinforced suspension; the works Opel Eurohändler team, satellite teams and privateers took part in rally races with modified versions of this car, and in 1976 it secured second place in the manufacturer’s championship in global rally races.

About the Model

• This is a 1/10 scale R/C model assembly kit. Length: 417mm, width: 174mm, height: 138mm. Wheelbase: 239mm (Long wheelbase).
• The form of the Opel Kadett GT/E is authentically recreated in lightweight polycarbonate, and the colour scheme of the works Opel Eurohändler team is employed.
• Features 60mm front and rear tires. Use 60D tires when changing tires.

About the MB-01 chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. Without removing battery pack, motor and R/C equipment setups from the centre frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

Tamiya Release Date: Due early August 2023

The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!

The new MB-01 chassis continues that tradition and allows six setups by choosing from three types of wheelbases, and front- or rear- wheel drive system. Its first body recreates the Fiat Abarth 1000 TCR Berlina Corse which was a car developed with high level tune-ups based upon the compact 2-door Fiat 600.

MB-01 Chassis Features

• Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth uses the LONG wheelbase setup).
• The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
• Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
• Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
• The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
• While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
• Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
• Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
• Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
• Includes 540 motor and ESC.
• Requires 2-channel radio, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

This R/C model assembly kit recreates the classic Ford Escort Mk.II in rally racing form. It was a RAC Rally Champion from 1975-1979. The pre-painted body sits on top the Tamiya MF-01X chassis that is capable both on asphalt and flat dirt surfaces.

MF-01X Chassis
Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis centre secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tyres with width/diameter of 27/69mm are also included.

About the Model

• 1/10 scale R/C model assembly kit.
• Length: 414mm. Width: 172mm. Height: 135mm
• Wheelbase: 239mm (L)
• Tyre Width/Diameter (Front & Rear): 26/60mm
• Tread (Front & Rear): 138mm
• Polycarbonate body pre-painted in White.
• Separately moulded plastic components are included to recreate bumper, side mirrors and fog lamps.
• Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
• Stickers are included to recreate blue livery sections, sponsor logos and more.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
• Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Tamiya Torque Tuned Motor included.

Separately Required Items

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

Photos of the Model
1) The iconic boxy form of this two-door legend is rendered artfully in polycarbonate, pre-painted white.
2) Eight-spoke light blue wheels are paired with 60mm-diameter, 26mm-width rally block tyres for great grip.
3) Plenty of separately moulded parts up the realism - spotlights, headlight cases, bumper and side mirrors.

1) A slimline three-piece monocoque forms the centrepiece of the MF-01X chassis, and the propeller shaft is positioned to the right.
2) This chassis features highly capable 4-wheel independent double wishbone suspension, with friction dampers front and rear.
3) Why not employ the separately sold Tamiya LED Light Unit to add even more realism to your Escort Mk.II Rally?

Tamiya is no stranger to recreating classic cars from different eras! This specific kit recreates a true classic in the form of the Volkswagen Karmann Ghia. The Karmann Ghia was a stylish coupé based upon the same platform as the legendary Beetle. Its body was designed by Italian firm Ghia and manufactured by the German company Karmann. The polycarbonate body in this replica sits on top of the Tamiya RWD M-06 chassis.

Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

• 1/10 scale R/C model assembly kit. Length: 410mm, width: 182mm, height: 125mm.
• Lightweight and durable polycarbonate. Separate plated parts depict side mirror, bumpers and light cases.
• Includes marking stickers, and window masking stickers for use during the painting process.
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C units positioned on either side for optimum balance and a low center of gravity.
• This model utilizes the 239mm wheelbase M-06L chassis.
• Metal-plated wheels paired with front radial and rear super grip radials for superior stability and sharp handling.
• A host of Hop-Up Option parts are available to customize the chassis to your driving needs.
• Includes Tamiya 540-motor.
• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Required Items: 2-Channerl radio, steering servo, 7.2volt battery pack with compatible charger, and Tamiya PS paint.

This R/C model assembly kit recreates the classic Volkswagen Beetle in rally racing form. Thanks to its superlative reliability and uncomplicated upkeep, it was a fixture on the global rally circuit from the 1950s through to the 1980s, and this model is inspired by such rallying Beetles. The VW body sits atop Tamiya’s proven shaft-driven 4WD MF-01X chassis, which is at home on a range of surfaces from road to flat dirt.

• 1/10 scale R/C model assembly kit. Length: 397mm, width: 163mm.
• The model uses the 239mm L wheelbase.
• Body is made of polycarbonate. Bumpers and side mirrors are recreated using separate metal-plated parts.
• Front light pods and rally-style stickers included. Includes Rally block tyres.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
•  Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front.
• The chassis can be assembled into S and M wheelbases using separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Requires: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS Paint.

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Featured Components:

Monocoque frame chassis (with detachable lower section)
Long suspension arms
CVA oil dampers
Full ball bearings
Gear differential unit
Universal drive shafts
Hi-torque servo saver

• 1/10 scale R/C chassis assembly kit. Length: 332mm, width: 164mm.
• The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro. It is designed to offer excellent rigidity with easy maintenance.
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction.
• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components. Rear toe can be adjusted simply using spacers.
• 4-wheel double wishbone suspension is fitted with CVA oil shocks.
• The TA06 oil-filled gear differential is used to drive the M-07. It is paired with universal drive shafts and full ball bearings.
• Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs.
• Compatible with Low-Profile servos.
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack.
• Body mounts have a new reinforced design for more secure body attachment.
• The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact.
