Carson

• Description

  Features:
  1. Two gradually adjustable, fully-proportional channels
  2. Servo reverse (reverses the direction of travel) and trim function
  3. Trimming function for acceleration and steering
  4. Dual rate for both channels (travel limiting of the servos)
  5. Battery status display via LED
  6. Failsafe

  Technical data:
  • Operating voltage of the transmitter 4.8 – 6V
  • Powering of receiver (without BEC) 11 V possible
  • Uni connector system Futaba/Graupner-J/R



  4x AAA batteries sold separately

This will remove all X and XF paint, AS and TS spray paints, PC and PS Lexan colours and many other paint systems up to 2-component paints. These paints are removed without attacking the substrate such as plastic, Lexan, Resin, metal or model glazings. Trials have shown that even 10-year-old tamiya colour can be effortlessly removed. Acrylic Paint paints from tanks, planes or similar models are all possible. This means that annoying paint misadventures from the past can be easily retouched. Of course, older polycarbonate paints can be removed as well.

NOT TO BE USED BY CHILDREN! MUST BE USED IN VENTED AREA - TOXIC AND FLAMABLE!

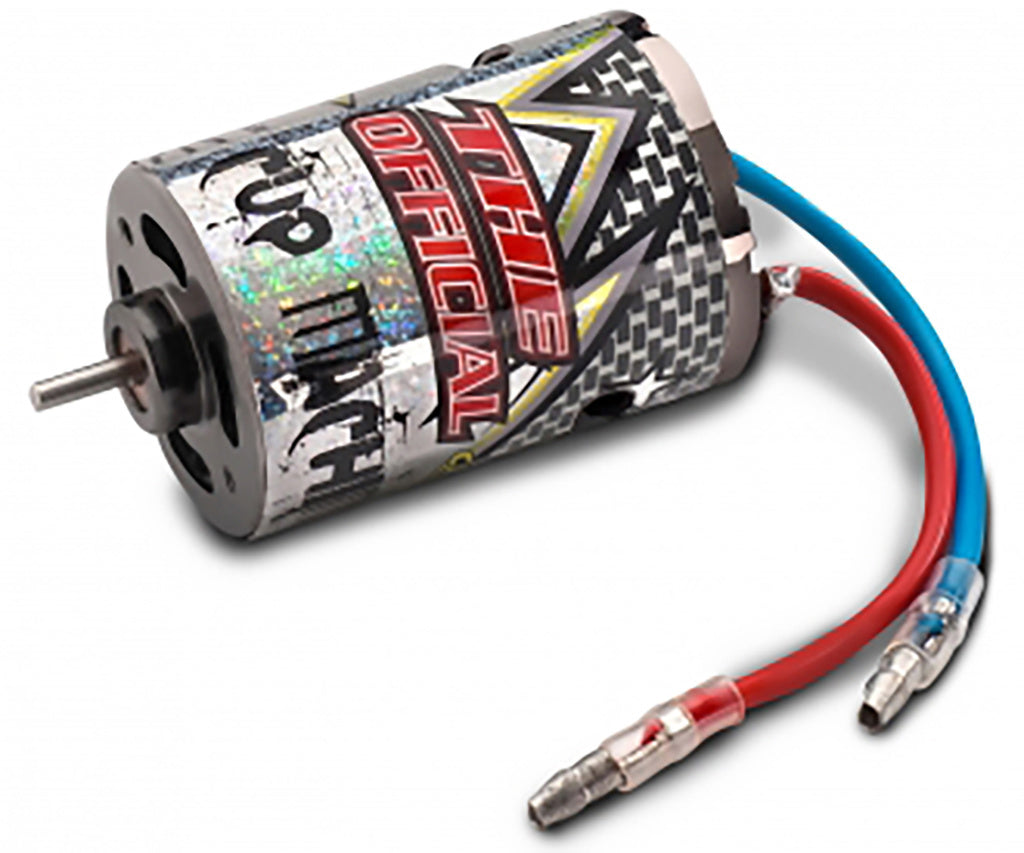

This motor is similar in spec to Tamiya's 53068 Sport Tune motor but with a 16400 RPM speed at typical voltage.

It has been engineered to work with all Tamiya speed controllers without needing any changes other than swapping the motor over - most other brands of motor require you to change the speed controller at the same time.

It gives a moderate speed and torque increase over the standard kit motor, without making any significant effect to the run time per battery.

Nominal voltage 6 V
Voltage range 4,8-8,4 V
Rotational speed 28.000 rpm
Current consumption 1.95 A with max. efficiency: efficiency 61.1 % .

Rotational speed 16.400 rpm
Torque 1.69 Ncm
Current consumption 8.7 A
Output 28.8 W

This excellent value ESC comes with a Deans-style connector and a Deans-Style-To-Tamiya adaptor lead, so is suitable for use in almost any brushed motor application.  These are branded Tamiya-Carson as they are ESCs that are currently arriving in some Tamiya kits (due to Tamiya not being able to source their own ESC due to chip shortages).

SPECIFICATION AS FOLLOWS
Forward: Continues/Peak current 70A/360A
Backward: Continues/Peak current 40A/180A
Battery type: 2-3s Li-Po, 5-9 cells NiMH
Type of Model: 1:10 / 1:12 / 1/16 - ON Road, OFF Road, Boat
2s Lipo or 6 cells NimH: 540, 550 motor lowest 18 turn with 30000 rpm @ 7.2v
BEC Output Voltage: 3A/6v
Size: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
Mode: Boat, Forward/Backward, Crawler
Sealing: Waterproof (Splash, Rain)

This ESC appears to be a Hobbywing 1060 unit rebranded.

DESIGNED FOR 0.6 MOD VEHICLES

DOES NOT COME WITH THE GRUB SCREW - FIT YOUR OWN.

GOLD IN COLOUR

Designed to replace the brass bearings on the double wheeled axles of the US (Twin Axle) Trailers.

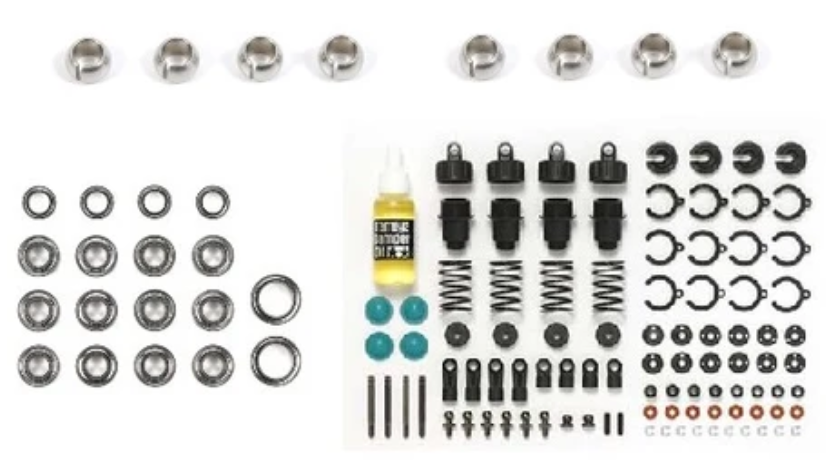

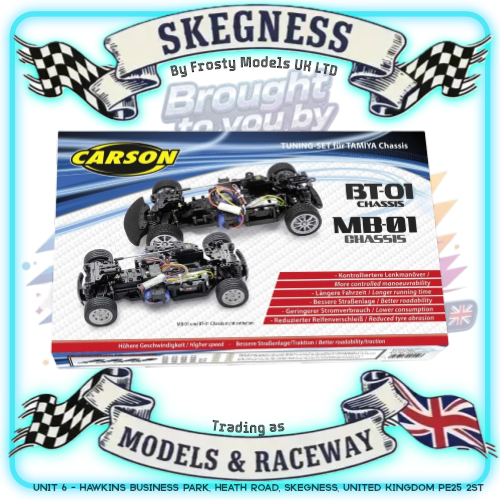

Tuning kit MB-01/BT-01 from Carson transforms Tamiya chassis into a more agile, smoother-running vehicle.

The set contains four short oil pressure shock absorbers, an 18-piece ball bearing set and two sets of low-friction wishbone balls.

Result: more controlled steering maneuvers, higher speed, longer driving time, better road holding, lower power consumption and reduced tire wear.

Scope of delivery

• 18-pieces ball bearing set
• 4 short C.V.A. Oil-pressure shock absorber
• 2 set of control arm balls low friction
