ESC Program Modules

Supports all ORCA “OE” ESC’s;

• OE1
• OE101
• OE101S
• OE1-1S
• OE1-1S Mk2 Pro
• OE1 Mk2 Pro
• OE1 WLEB
• OE1.2
• TOTEM 1S
• TOTEM 2S

Does NOT work with “RunPlus” or “800 Series” speed controllers

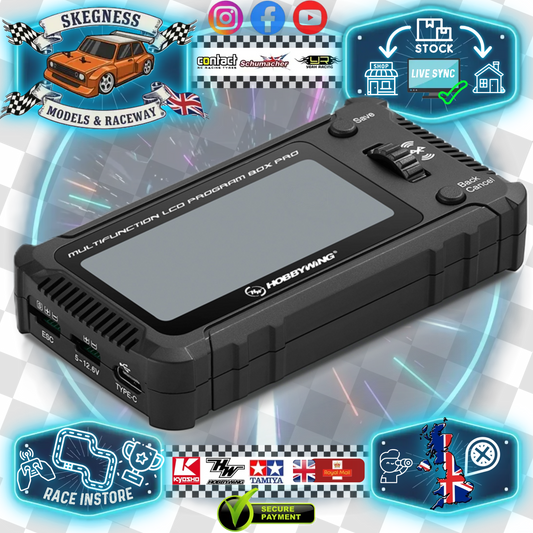

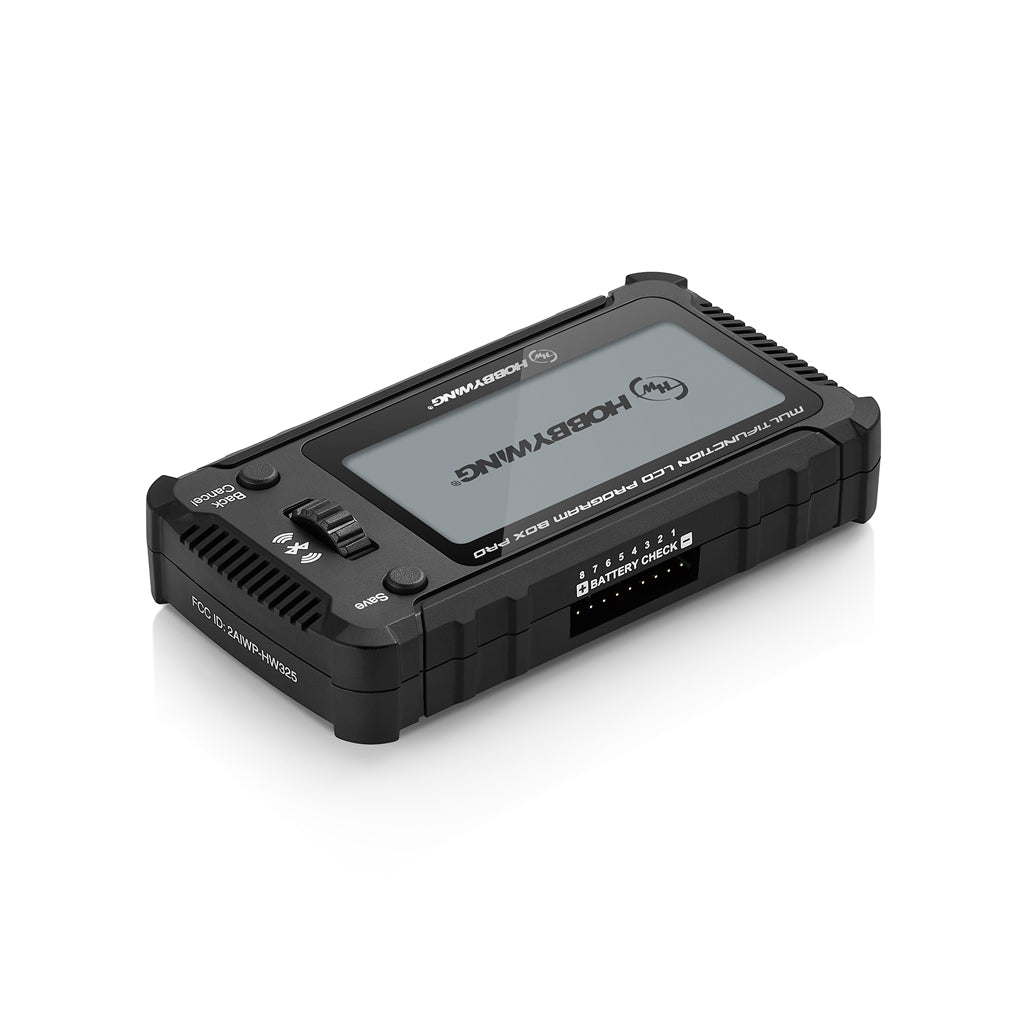

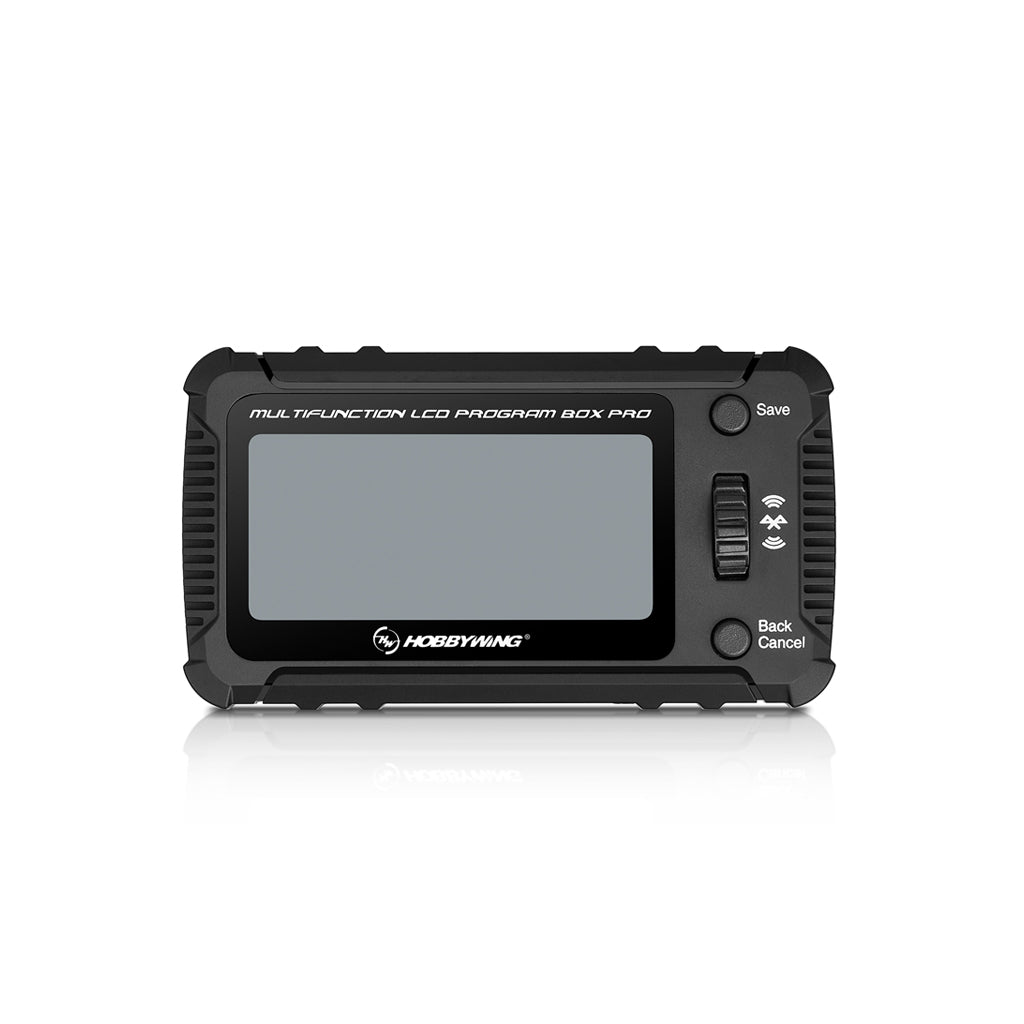

Introducing the new Hobbywing LCD Program Box Pro.

An independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

Large Screen is easier to read than ever.
Equipped with a 2.8-inch display.
Double the characters and screen information over the previous LCD Program Box, the new display is a welcomed upgrade.
Support brightness adjustment to meet the needs of viewing in various brightness environments.

Roller helps to improve quality of life.
Simplified operation and control using the single roller interface. Navigating a speed controls settings is easier then ever.

Import and Export ESC profiles
Import and Export your favorite profiles with ease. You can bring in your ESC settings, save them and export them to a new ESC.
This makes profile sharing simple and easy.

OTA parameter adjustment and firmware update
The built-in Bluetooth module functions as an OTA Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box.
The HW Link V2 app can be used to adjust the ESC and update the Firmware.

Supports updates to the OTA parameter adjustment and firmware update.

Built-in Sound
Built in audio to make settings save confirmations easy. The sound can of course be turned off as well.

Battery Voltage Tester is built in.
Supports 1-8S battery voltage detection.

Specifications

Size - 105.6x59x24.4mm（LxWxH）

Weight - 85g

Input Voltage - 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

Interface - TYPE-C USB， ESC interface(Futaba plug), Power supply interface（Futaba plug）

Display Screen - LCD

Introducing the all-new ORCA Blucon onboard programming module. Now all ORCA speed controllers can be configured in an ultra easy user-friendly and modern way.

All adjustable parameters can be conveniently selected and set using the “ORCA Blucon App”.

With this upgrade, ORCA offers ambitious racing drivers the opportunity to configure their controller easily and efficiently on their smartphone or tablet for every track and to read out the data during the race or Training.

Find the App Download here:

• Apple – ORCA Blucon on the App Store
• Android –  ORCA Blucon on the Google Play store

The Blucon is fully compatible with all ORCA ESCs that are currently using the ORCA OE1 programming box.

• BP1001 Blinky Pro
• OE1
• OE1 Mark II
• OE1 WLE World Limited Edition
• OE1.2 2-4cells
• OE101
• OE101S (1S)
• OE1-1S
• OE1-1S Mark II
• Totem
• Totem-1S

he ORCA Totem 1S 1/12 brushless esc is ORCA’s latest stock spec speed Controller developed for 1/12th LMP12 and GT12 pan cars.
It features a continuos current rate of 100A, which is enough for up to 10.5T motors while using the included fan mounted on top of the esc.
The 23.5g light Totem 1S esc comes with reverse polarity protection and integrated capacitors for a even smaller footprint that is just 25.8mm wide.
Centrally located cable outputs at the rear of the ESC.

Specifications:

Dimensions: 25.8mm x 33.6mm x 17.6mm

Weight: 23.5g

Voltage Input: 3-4.35V

Peak Current: 380A

Continous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 3A | 6V-7V

Multi Protection System: Yes

LCD Program Card for the PACE 95R Speed Control.

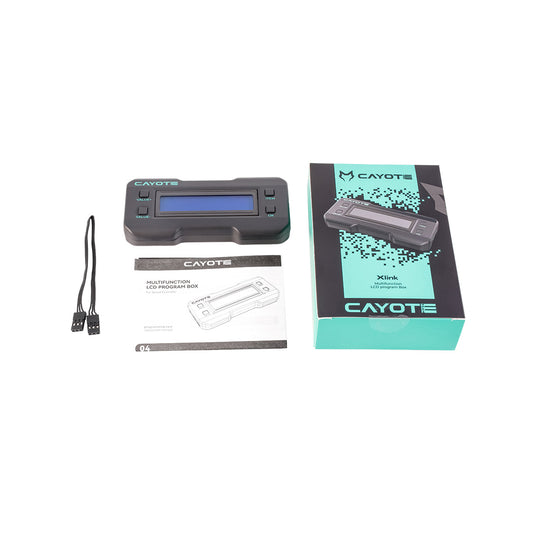

Xlink
With a user-friendly LCD interface, our Team Cayote Xlink system ensures that programming your ESC is now a quick and hassle-free job. Fine-tune your settings effortlessly, whether you’re at the track or in your workshop. Compact and portable, it’s your ultimate companion trackside.

Specifications

Brand: Cayote
Size: 115x55x18.5mm
Weight: 73.5g
ESC Port: Futaba Socket
Power Port: Futaba Socket
Input Voltage: 5-12.6V

Introducing the CORE RC PACE 100RM 1S Mini Brushless Competition Speed Control.

With a huge range of features the PACE 100RM is suitable for a wide range of 1S racing classes including LMP12, and GT12.

Is Mini size at just 31.5x25x16mm is ultra small, perfect for the tight spaces in chassis for these classes.

Fully programmable with the CR886 CORE RC Bluetooth Set Up Module and app based technology.

BRCA 'Blinky' Legal.

Features

• PACE 100RM - Brushless 100 Amp E.S.C.
• Supports 1s LiPo's or 3 Cell NiCd/NiMh Battery Packs.
• Forward/Brake/Reverse, Forward/Brake or Forward/Reverse Options.
• Bluetooth Set up Module available.
• Full aluminium case and heat sink design.
• Plenty of adjustable parameters allows adjustment of settings for most types of racing classes.
• 32-bit microprocessor supports more powerful processing and more accurate motor output.
• Enhanced throttle response, excellent acceleration, linearity and drive ability.
• Multiple protection features for low voltage cut-off, over-heat and throttle signal loss.

Specification

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0,7.4v7A
Size(L*W*H) - 31.5x25x16mm
Weight - 48g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No
Car Applicable - 1/12th On-Road

Or use 2S (7.4v) 8.4V ESC, remove voltage protection, then use 1S (3.2v) 4.2V lipo instead via this module, still giving 6v to the receiver. Or in applications where the ESC has no 6V BEC output.

1S DC-DC BOOSTERs, DC-DC power booster modules which can draw power from the 1S LiPo battery then boost it to the voltage level (6V) suits the receiver & servo and provide the continuous output current up to 3A, are mainly applied in 1/12 RC vehicles. Nowaday 1/12 cars usually use 1S LiPo batteries, and BECs in ordinary ESCs are step-down. In that case, the BEC output voltage will be lower than 4.2 V that cannot meet the power demand of the receiver & servo. Therefore, 1/12 cars have to run with purpose-built 1S ESCs installed in or external receiver batteries connected if speed controllers are common. No other solutions. However, things will be different after adopted this booster. Then the receiver battery can be abandoned and users can be free from charging and maintaining batteries.

Hobbywing OTA Programmer allows the ESC to be wirelessly connected to smartphone.

Using the Hobbywing HW Link APP to clearly display and adjust all parameters of ESC. The interface is simple to operate.
1.App of IOS version:Search HW Link or Hobbywing in Apple store.
2.App of Android version: Search HW Link or Hobbywing in Google Play.
You can also directly click the Android icon on this page to download.

Intuitive Interface

When use app to adjust parameter, the graphical man-machine interaction interface of drop-down list box and scroll bar make the parameter adjustment more flexible and easier to operate.

Real-time data recording function

OTA programmer supports real-time data recording function and storesthe data in its memory. It can be opened by HW Link to know the running status of power system. The real-time data can be checked by connecting smartphone HW Link App within effective distance (0-3m).
*The real-time data function needs to be supported by the ESC. Please refer to the manual of ESC for details.

Simple and Convenient for Firmware Update

Compared with LCD programming box, it is no need to connect the computer to upgrade the firmware of ESC.
The firmware of ESC can be upgraded only by using HW Link App on the smartphone. More simple and easy to operate.

Bluetooth transmission and does not affect network of smartphone

OTA Programmer uses Bluetooth to communicate. It does not affect Wi-Fi and cellular data network of smartphone and network requirements of other Apps.

Compact Design

This OTA Programmer is smaller and lighter. It’s only 1/6 of HOBBYWING LCD program box in size and weight.

One-touch Factory Reset

Users can promptly factory reset their OTA Programmer via the Reset button on it.

Wide Application

This module is suitable for some brushless ESC of XERUN, EZRUN, PLATINUM and SEAKING series;
* Whether the ESC supports or not, please refer to the manual or the technical parameters on official website.

Specifications

Working Voltage: - 5-12.6V

Supported Bluetooh Version - = 4.0

Effective Range - 0-3m (Open Field)

Size - 30.0x25.5x8.5mm (LxWxH)

Weight - 10.2g

Applications

- Some of XERUN series & EZRUN series of car ESCs.
- Some of PLATINUM series of aircraft ESCs.
- Some of SEAKING series of boat ESCs.

* For details, please refer to ESC manual to ensure if the ESC can work with OTA Programmer.

Bluetooth Set Up Module for the CORE RC PACE 100R speed control.

After installing Bluetooth APP, the user can monitor the ESC data in real time, set the ESC parameters, and upgrade the firmware of the ESCs, etc, on the cell phone.

It  allows you to program the following;

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

This LED program box is for programming HobbyWing brushless ESCs. Its friendly interface makes ESC programming easy and quick. It’s compact, portable and very applicable for field use.

Applications:

• Platinum V1/V2 series & FlyFun V5 SkyWalker V2 Series of brushless aircraft ESCs
• XeRun series (most), EzRun series & QuicRun series of brushless car ESCs
• SeaKing series of brushless boat ESCs

Specifications:

• Size: 88x58x14mm
• Weight: 40g
• Input Voltage: 4.8-6V
• Instruction and Lead included

NOTE: If the ESC doesnt have a built-in BEC, you will need to use an additional 6.0V battery to supply power to the program box.

Introducing the CORE RC PACE 100R 1S Lipo competition speed control.

With a huge range of features the PACE 100R is suitable for a wide range of 1S racing classes including LMP12, GT12 and F1 Stock cars.

Its programmable instant reverse option is especially important for the F1 Stock car class!

Fully programmable with the CR886 Core RC Bluetooth Setup Module and app based technology.

--------------- BRCA Approved ---------------

- Full aluminium case and heat sink design, with highly efficient heat dissipation system.
- Huge range of variable parameters allows adjustment of the settings for most 1S racing classes. These including Modified, Stock, Zero Timing (Blinky) and Drifting etc etc.
- 32-bit microprocessor can support more powerful processing capability and more accurate motor output.
- Enhanced throttle response, excellent acceleration, linearity and drive ability.
- Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection.
- Uses Bluetooth module to allow programming the parameter settings and firmware upgrades via app (supports real time programming, no need to restart the esc).
Data logging for real-time maximum ESC temperature, Motor RPM, Voltage and Adv. Timing and so on.

Specifications

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0-7.4V/5A
Size(L*W*H) - 37.0*38.2*17mm
Weight - 83g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No

Programmable Items

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

Includes; speed control, instructions, external switch. Does not include sensor lead or fan.
