Brushless ESC's

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed control.

Intelligent Freewheeling for Lower Heat and Enhanced Performance
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.

BEC Upgrade Compared to the G1 ESC
The BEC’s continuous current has been upgraded from 1A to 2A.
A peak current of up to 4A
The output voltage can be switched between 6V and 7.4V.

Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.

High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods
Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.

Exceptional Value for Money
Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.

Perfect Match for QuicRun 2030 G2/2435 G3 Motors
The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.

Wide Compatibility
The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.

Specifications

Type
Scale - 1/16th, 1/18th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Specifications
Cont./Peak Current - 30A/100A
Input Voltage - 2-3S LiPo
BEC Output - 6V/7.4V@2A

Cables and Plugs
Power Cord - Black-16AWG-75mm*1,Red-16AWG-75mm*1
Output Line - Black-16AWG-60mm*3
Power Plug - XT60
Output Plug - 3.5MM gold female plug

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
OTA Programmer - Not Supported
Program Port - Shared with Throttle Wire

Data Recording
Extreme value records - Not Supported
Real-time Data - Not Supported
Historical Data (line graph) - Not Supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 33.4*26.8*15.1mm
Weight - 38.5g( Included wires & connectors)

Applications
Supported motor types - Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
Applicable models - 1/16th、1/18th On-Road & Off-Road
Applicable motor - QUICRUN 2435 G2

Current - 30A/180A
Input - 4-9 Cells NiMH, or 2-3S Lipo
BEC Output - 6V/1A (Linear Mode)
Resistance - 0.002_x001f_
Motor Supported - Sensorless Brushless Motor (compatible with sensored motor but
not in sensored operating mode)
Cooling Fan - No cooling fan
Weight - 38g
Size - 36(L)X28(W)X16(H)mm

Motor Limit - For 2S Lipo or 6 cells NiMH
On-road: 2435-size or smaller motor with the KV 8000
Off-road/Buggy/Monster: 2435-size or smaller
motor with the KV 5000
For 3S Lipo or 9 cells NiMH:
On-road: 2435-size or smaller motor with the
KV ;5500
Off-road/Buggy/Monster: 2435-size or smaller
motor with the KV 3500.
Car Applicable - 1:18 ; 1:16 On-road/Off-road/Buggy/Monster

Feature:

• For 1/10th RC Blinky racing
• Material: Metal
• Color: Black
• New Variable PWM firmware (Variable PWM for Throttle & Brake)
• No +/- Reverse Protection
• 15F Super Capacity (Special designed for Stock racing)
• 12AWG High Quality Copper Power Cable

Included:

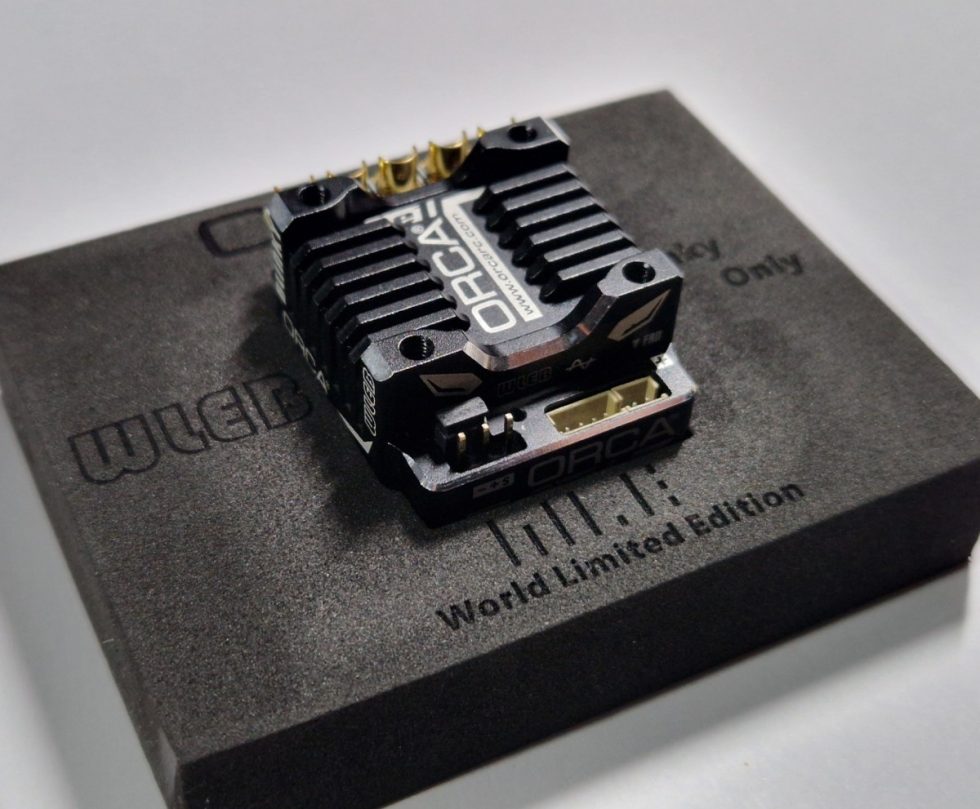

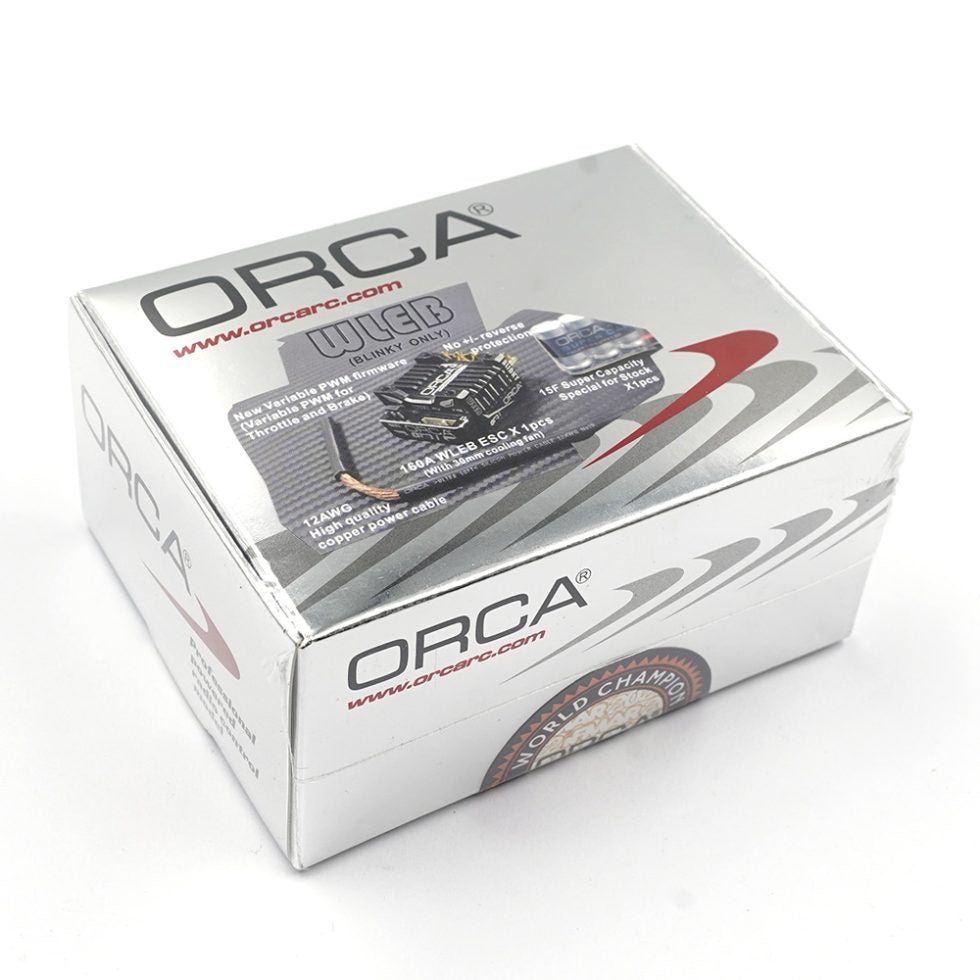

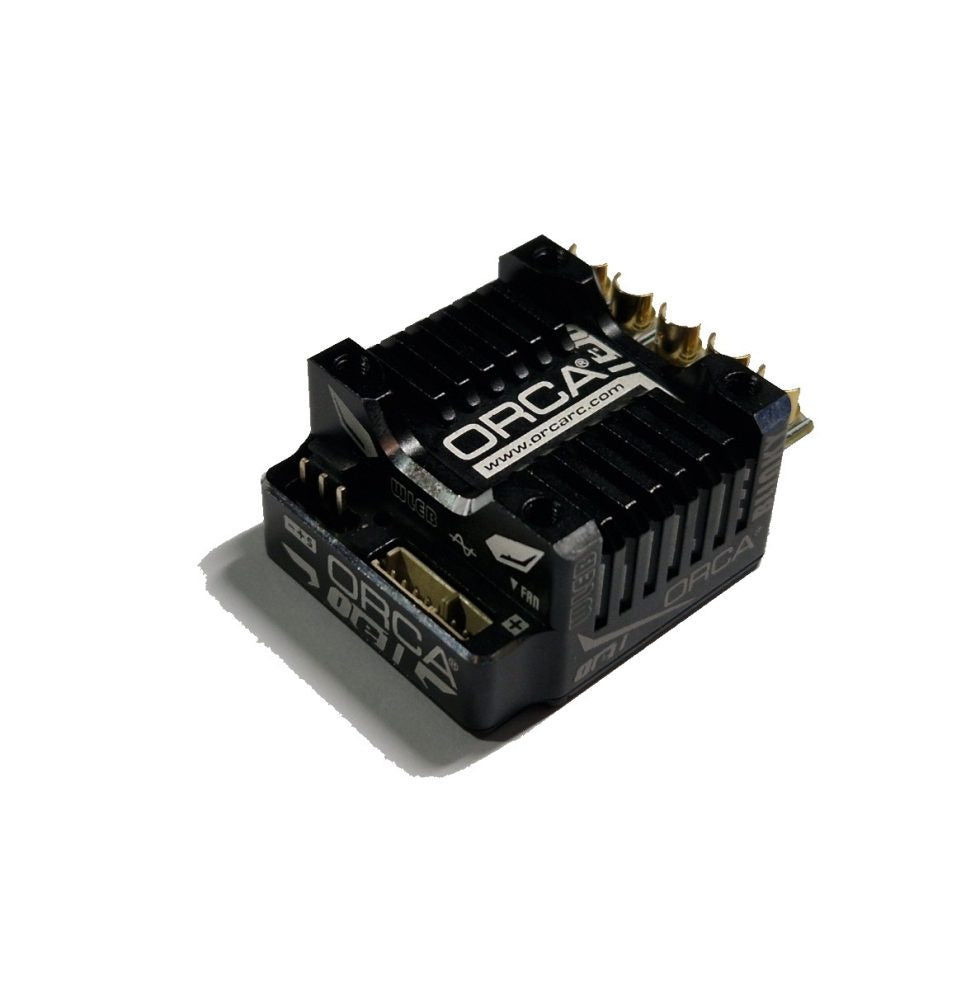

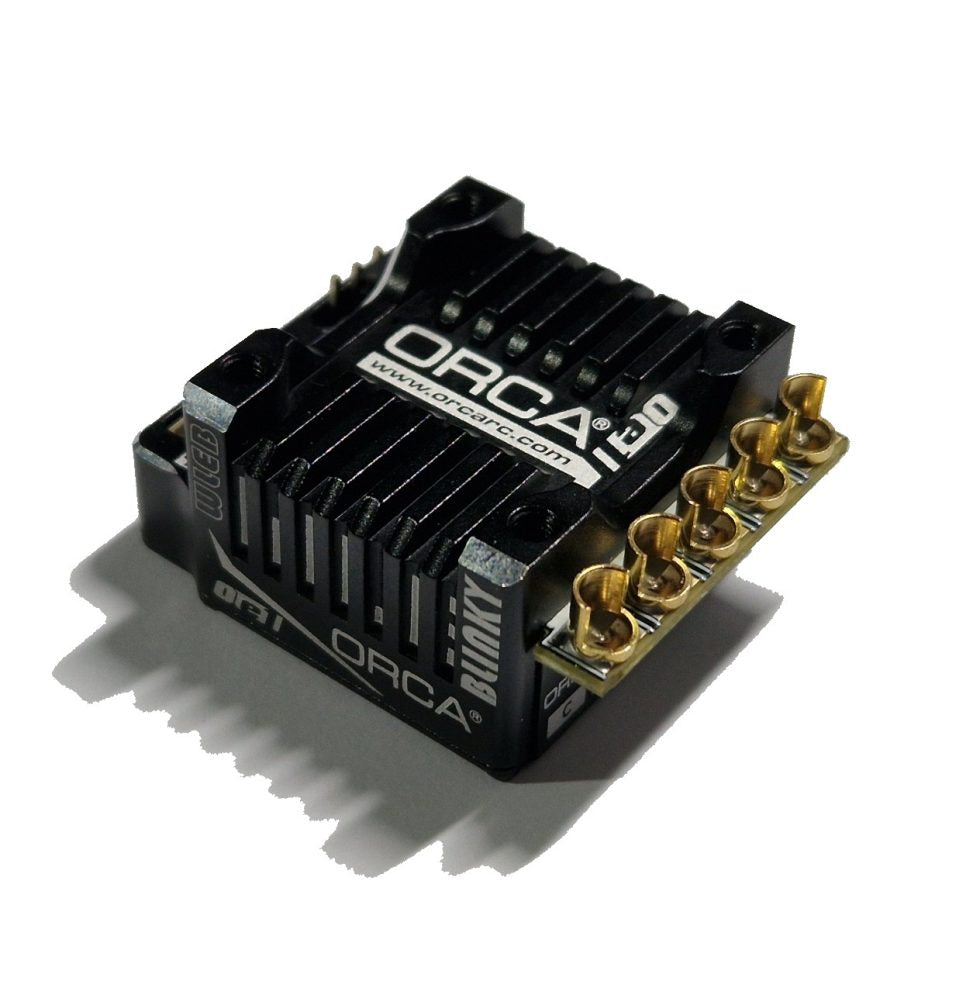

• ORCA 160A OE1 WLEB Open Box Blinky ESC
• 15F Super Capacity
• 12 gauge wire
• 30mm Cooling fan

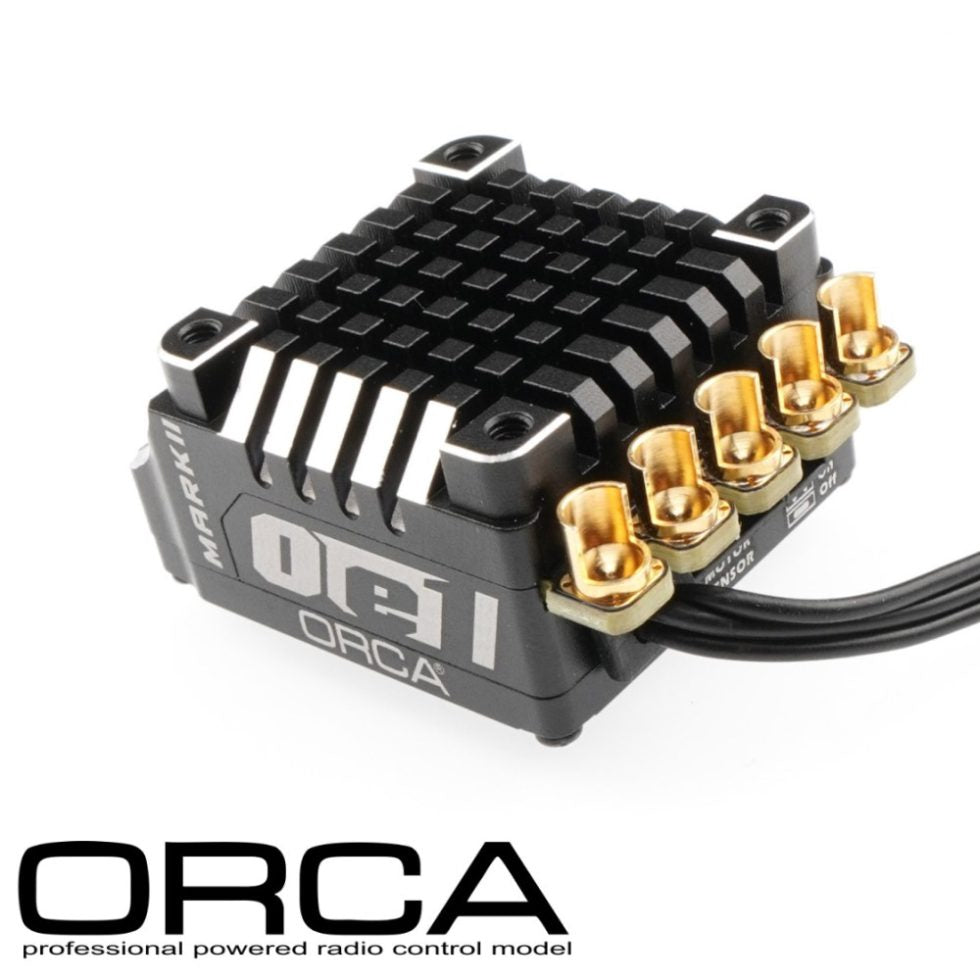

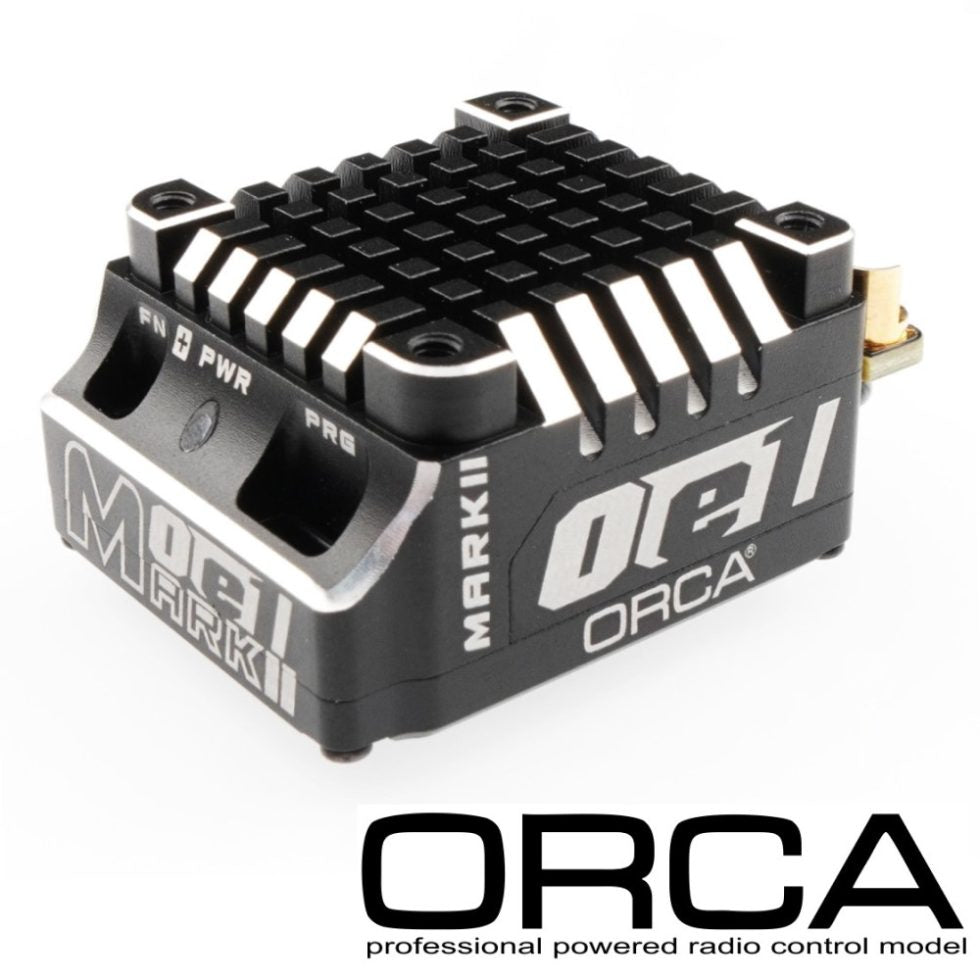

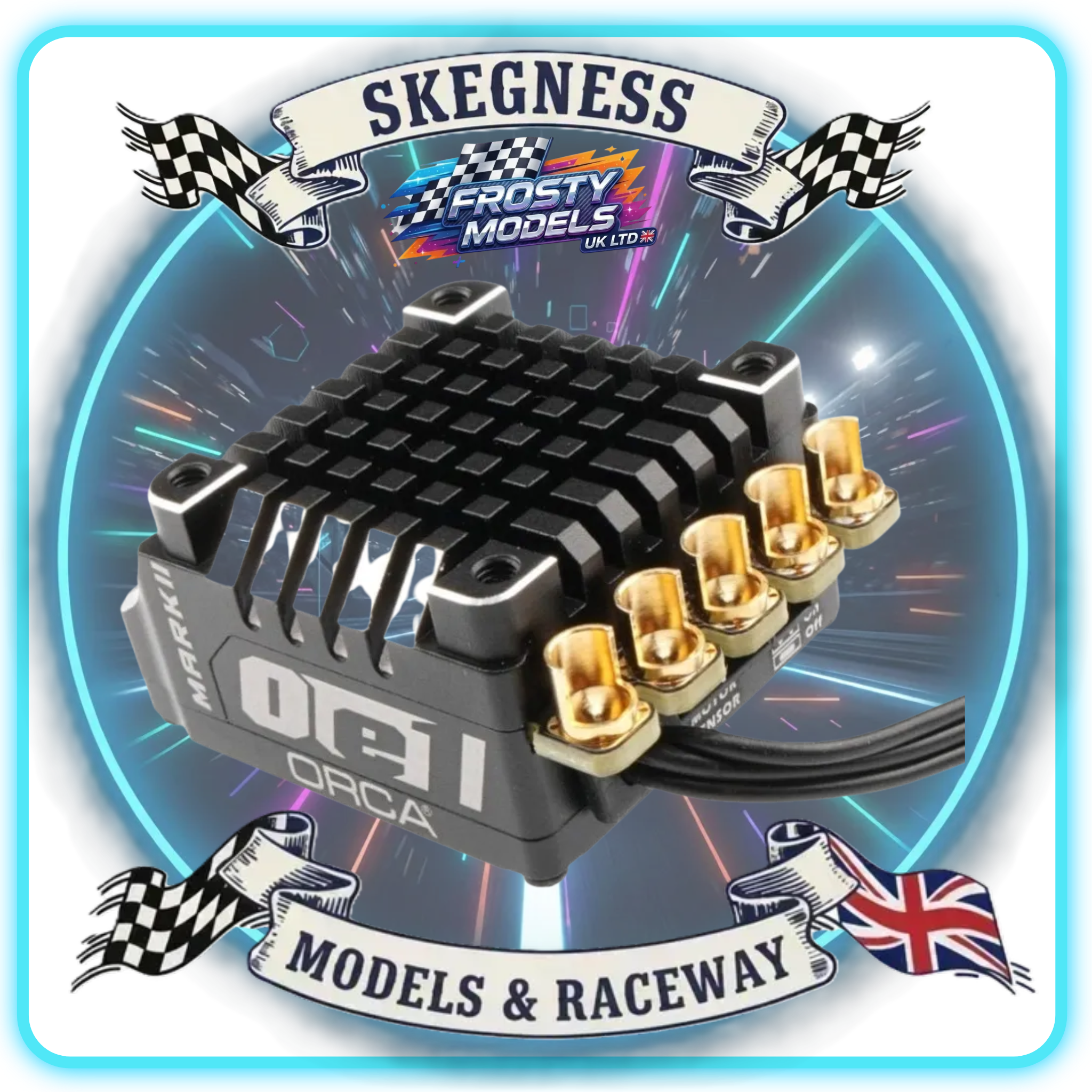

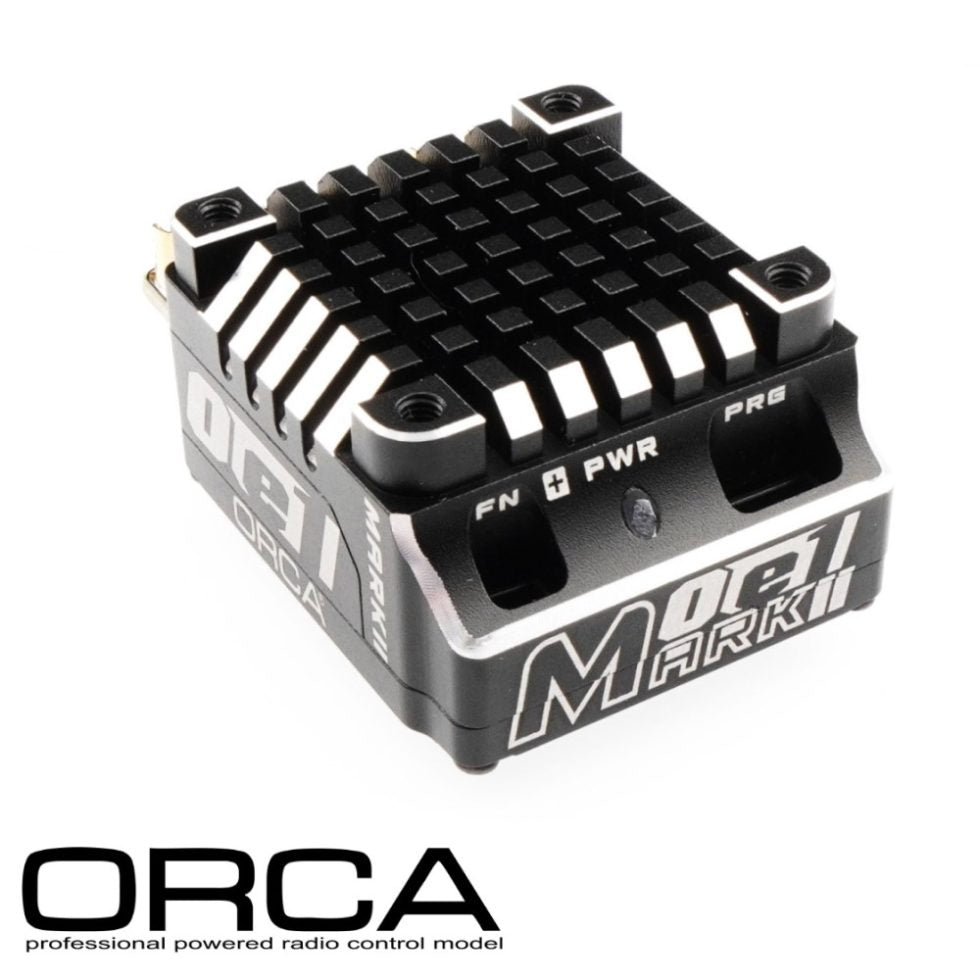

Introducing the ORCA OE1 MK2 PRO ESC For 1/10th RC Cars.

With the OE1 Mk2 Brushless Pro ESC, ORCA has developed one of the very most advanced ESC’s in the RC market today. The OE1 Mk2 allows multiple parameters to be set (with ESC Programme Card or the new ORCA Blucon Bluetooth module to connect a smartphone for programming, sold separately).

Equipped with a powerful 32-bit processor and ultra high performance FETs with low internal resistance for the ultimate in smooth sensitive control. Capacitors and reverse polarity protection are all integrated in the housing. This means the OE1 Mk2 is ready to dominate straight from the box.

Features:

• For: 1/10 RC Car

• Motor Limited > 3.5T

• Material: Aluminium

• Color: Black

• Polarity Reverse Protection

• Built-In Internal Capacitor

• Detachable on/off switch, ESC is always on when on/off switch disconnected

• New CPU, Newly Design Circuit Board and Lower IR MOSFET’s

• Ultimate Brushless System

• 32 bit Processor

• Multiple Adjustable Parameters (adjusted by an optional Blucon module via Android / iOS smart phone or by an optional OE1 Program card)

Specification:

• BEC : 8A 6V / 7.2V

• Peak Current 760A

• Continuous Current 160A

• Motor limit 3.5T

• Motor Type: Brushless sensored 540 size Motor

• Voltage input : DC 6V – 9V

• Dimensions : 31(L) x 35(W) x 19.8(H) mm

• Weight : 43.3g excluding wires

Introducing the ORCA OE1-1S MK2 PRO ESC For 1/12 RC Car.

With the OE1 -1S Mk2 Brushless Pro 1S ESC, ORCA has developed one of the very most advanced ESC’s in the RC market today. The OE1-1S Mk2 allows multiple parameters to be set (with ESC Programme Card or the new ORCA Blucon Bluetooth module to connect a smartphone for programming, sold separately).

Equipped with a powerful 32-bit processor and ultra high performance FETs with low internal resistance for the ultimate in smooth sensitive control. Capacitors and reverse polarity protection are all integrated in the housing. This means the OE1-1S Mk2 is ready to dominate straight from the box.

Features:

• For: 1/10 or 1/12 RC Car

• Motor Limited > 4.5T

• Material: Aluminium

• Color: Black

• Polar Reverse Protection

• Built-In Internal Capacitor

• Detachable on/off switch, ESC is always on when on/off switch disconnected

• Detachable receiver cable , ESC comes with 200mm wire, optional 105mm and 300mm BEC wires also available seperately

• New CPU, Newly Design Circuit Board and Lower IR MOSFET’s

• Ultimate Brushless System

• 32 bit Processor

• Multiple Adjustable Parameters (adjusted by an optional Blucon module via Android / iOS smart phone or by an optional OE1 Program card)

Specification:

• BEC : 8A 6V / 7.2V

• Peak Current 760A

• Continuous Current 160A

• Motor limit 3.5T

• Motor Type: Brushless sensored 540 size Motor

• Voltage input : DC 3.7V – 4.4V

• Dimensions : 30.54(L) x 34(W) x 13.75(H) mm

• Weight : 29.3g excluding wires

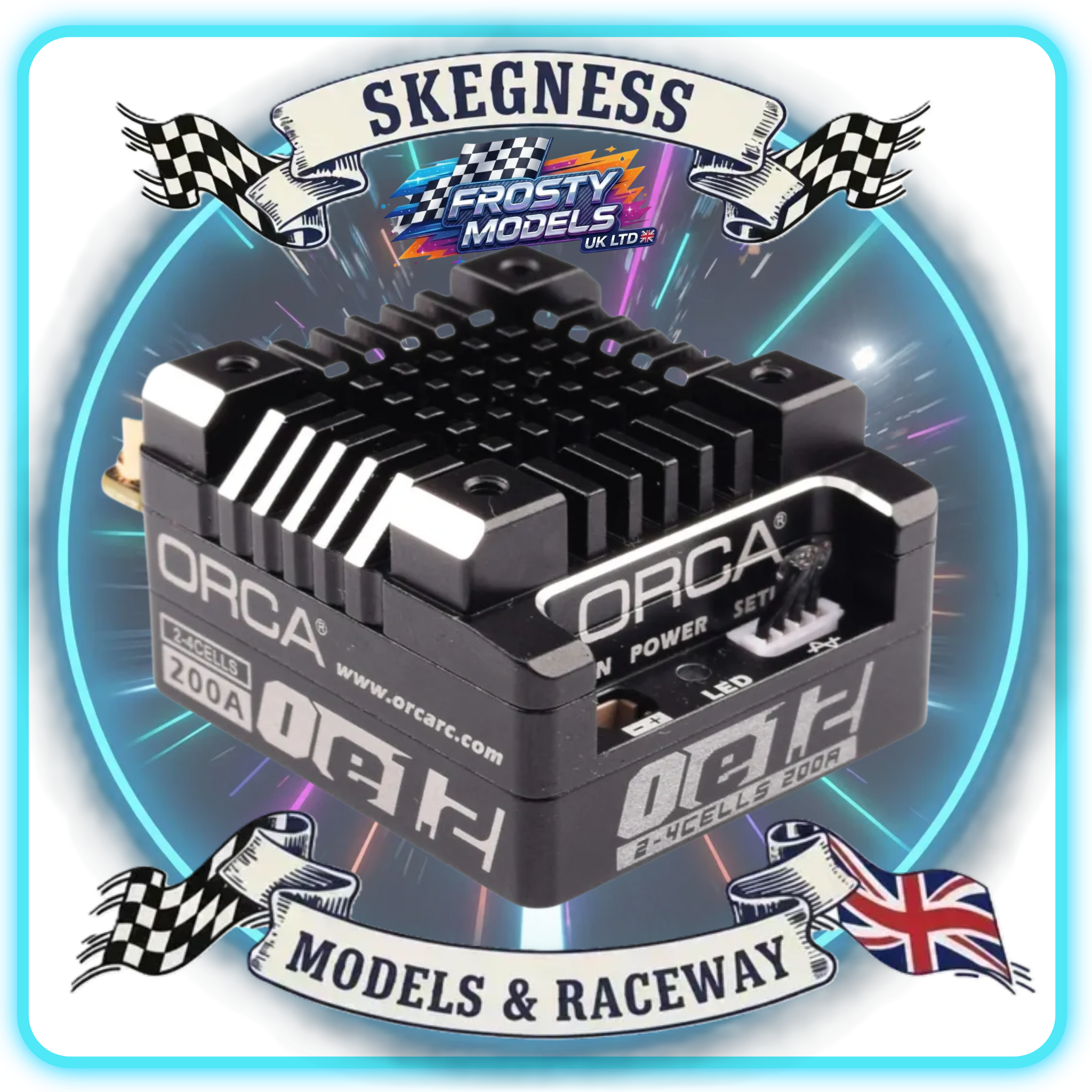

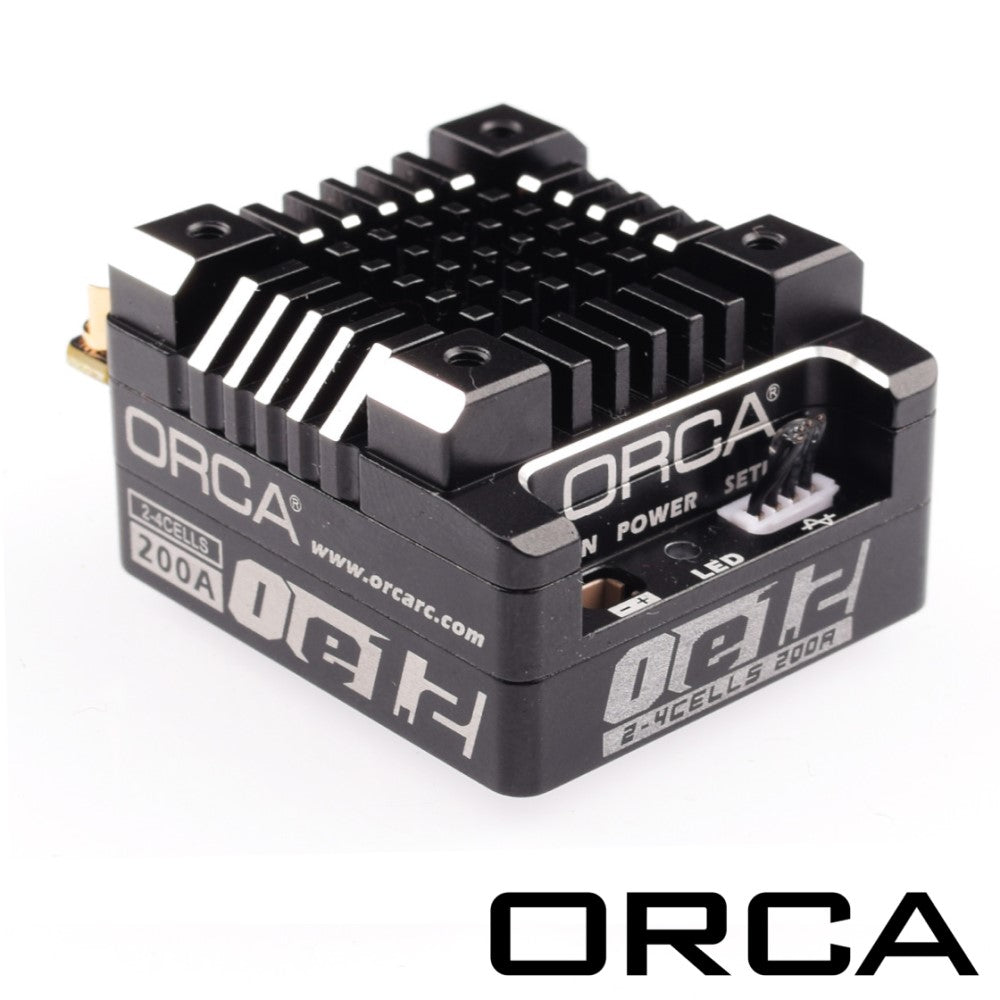

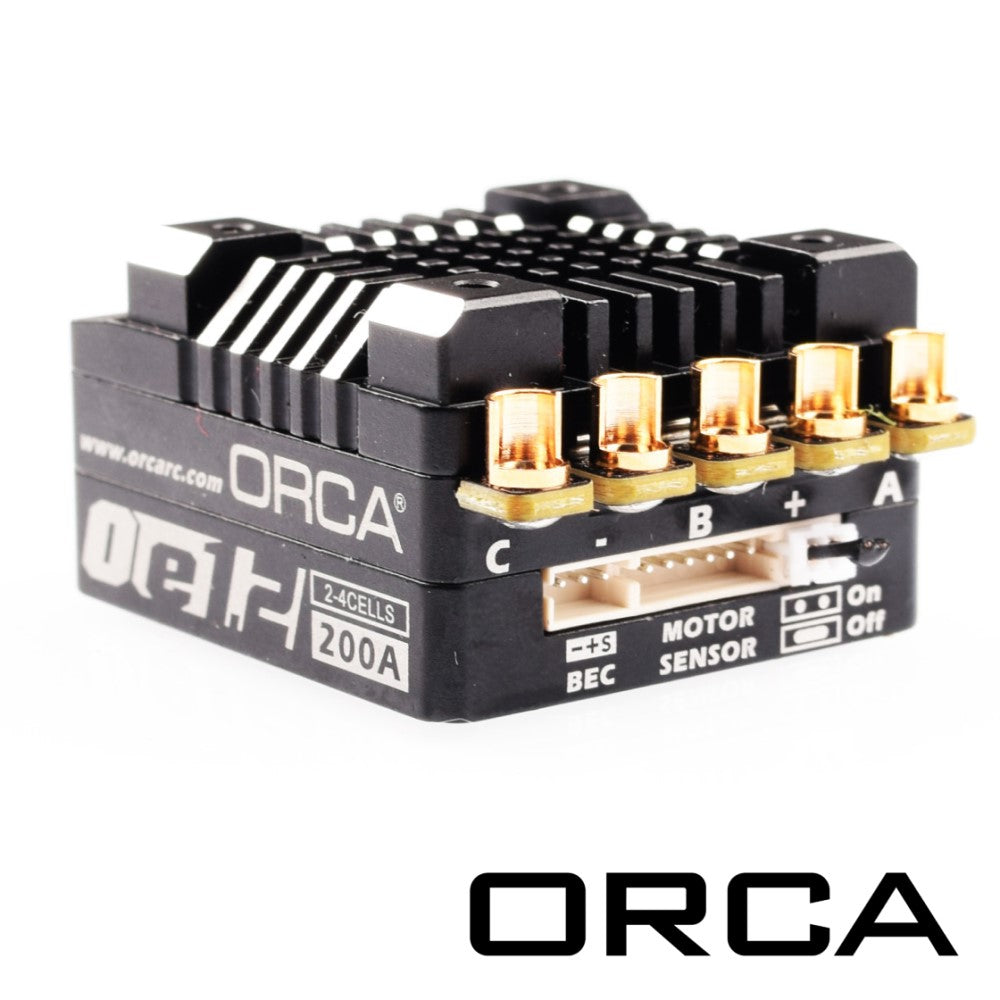

The latest ORCA high end ESC, the OE1.2 is a 2-4S capable brushless speed controller, developed especially for high load applications.

Featuring  a mighty 200A continuous current rating makes it perfect for the likes of 1/8 off-road, drag racing, touring car applications and more where power is essential.

The small footprint of just 25.5 x 39.4 x 23mm make this speed controller a comfortable fit in most 1/8th cars while still being capable of handling motors up to 2400kV.

Specifications:

Dimensions: 35.5 x 39.4 x 23mm

Weight: 59g

Input Voltage: 7.4-14.8V | 2-4S LiPo

Peak Current: 950A

Motor Limit: Over 3.5T (@ 2S LiPo) | Under 2400kV (@ 4S LiPo)

BEC: 5A | 6V / 7.2V

Introducing the all-new ORCA Blucon onboard programming module. Now all ORCA speed controllers can be configured in an ultra easy user-friendly and modern way.

All adjustable parameters can be conveniently selected and set using the “ORCA Blucon App”.

With this upgrade, ORCA offers ambitious racing drivers the opportunity to configure their controller easily and efficiently on their smartphone or tablet for every track and to read out the data during the race or Training.

Find the App Download here:

• Apple – ORCA Blucon on the App Store
• Android –  ORCA Blucon on the Google Play store

The Blucon is fully compatible with all ORCA ESCs that are currently using the ORCA OE1 programming box.

• BP1001 Blinky Pro
• OE1
• OE1 Mark II
• OE1 WLE World Limited Edition
• OE1.2 2-4cells
• OE101
• OE101S (1S)
• OE1-1S
• OE1-1S Mark II
• Totem
• Totem-1S

he ORCA Totem 1S 1/12 brushless esc is ORCA’s latest stock spec speed Controller developed for 1/12th LMP12 and GT12 pan cars.
It features a continuos current rate of 100A, which is enough for up to 10.5T motors while using the included fan mounted on top of the esc.
The 23.5g light Totem 1S esc comes with reverse polarity protection and integrated capacitors for a even smaller footprint that is just 25.8mm wide.
Centrally located cable outputs at the rear of the ESC.

Specifications:

Dimensions: 25.8mm x 33.6mm x 17.6mm

Weight: 23.5g

Voltage Input: 3-4.35V

Peak Current: 380A

Continous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 3A | 6V-7V

Multi Protection System: Yes

ORCA’s latest stock spec Speed Controller – the Totem 2S.

Featuring a continuous 100A current rate, which is enough for up to 10.5 turn motors while using the included fan mounted to top of the ESC.
The Totem is light too, weighing in at just 23.5g, it comes with reverse polarity protection and integrated capacitors for a even smaller chassis footprint.

Specifications:

Dimensions: 23.8 x 33.6 x 17.6mm

Weight: 23.5g

Voltage Input: 6 – 8.7V

Peak Current: 380A

Continuous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 4A | 6V-7V

Introducing the FuriaX Supa 60A Brushless ESC from SKY RC.

used unit - no plugs on motor wires. Rest looks good as new

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.
Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Introducing the FuriaX Supa 60A Brushless Combo set from SKY RC.

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.

Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Motor Details

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
4000 KV
<12V
Voltage
2.0A
No-load Current
75A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*16
Rotor（mm）

Introducing the Hobbywing QuicRun WP 10BL120 G2 and Quickrun 3650SD 13.5T G2 motor combo.

Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 120A/760A
Input Voltage - 2-2S LiPo
BEC Output - 6V/7.4V@4A

Wires & Connectors
Input Wires -Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1
Output Connectors - Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size -43*36.8*32.3mm
Weight -101.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor

Vehicles -1/10^th Touring Cars/Buggies/Drift Cars
KV Rating/T Count -2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor - The main feature of these motors is the fixed timing and easy to use solder joints, making it an excellent motor for controlled classes.

Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this motor and improve its operating efficiency.
- This motor is perfectly matched with a Hobbywing ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

Introducing the FuriaX Supa 60A Brushless ESC from SKY RC.

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.
Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Introducing the CORE RC PACE 100RM 1S Mini Brushless Competition Speed Control.

With a huge range of features the PACE 100RM is suitable for a wide range of 1S racing classes including LMP12, and GT12.

Is Mini size at just 31.5x25x16mm is ultra small, perfect for the tight spaces in chassis for these classes.

Fully programmable with the CR886 CORE RC Bluetooth Set Up Module and app based technology.

BRCA 'Blinky' Legal.

Features

• PACE 100RM - Brushless 100 Amp E.S.C.
• Supports 1s LiPo's or 3 Cell NiCd/NiMh Battery Packs.
• Forward/Brake/Reverse, Forward/Brake or Forward/Reverse Options.
• Bluetooth Set up Module available.
• Full aluminium case and heat sink design.
• Plenty of adjustable parameters allows adjustment of settings for most types of racing classes.
• 32-bit microprocessor supports more powerful processing and more accurate motor output.
• Enhanced throttle response, excellent acceleration, linearity and drive ability.
• Multiple protection features for low voltage cut-off, over-heat and throttle signal loss.

Specification

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0,7.4v7A
Size(L*W*H) - 31.5x25x16mm
Weight - 48g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No
Car Applicable - 1/12th On-Road

Introducing the Hobbywing QuicRun 10BL120 G2 - Brushless Electronic Speed Controller.

Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BRUSHLESS ONLY
Sensored/Sensorless - SENSORED
Waterproof - No

Specifications
Cont./Peak Current - 120A/760A
Input Voltage - 1-2S LiPo
BEC Output - 6V/7.4V@4A

Wires & Connectors
Input Wires -Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1
Output Connectors - Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

(No battery plug fitted - not included)

ESC Programming via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size -43*36.8*32.3mm
Weight -101.5g (Included wires&connectors)

Applications
Motors -Sensorless or Sensored Brushless Motor

Vehicles -1/10^th Touring Cars/Buggies/Drift Cars
KV Rating/T Count -2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor

Introducing the QuicRun WP 8BL150 G2 speed control.

For 1/8th Scale Vehicles - No Battery Terminals Included (Use your own type)

Innovative intelligent freewheeling technology.
High efficiency and low temperature rise. The innovative intelligent freewheeling technology enables the ESC to have higher driving efficiency and lower operating temperature. The stability and reliability of the ESC is improved.

Upgraded BEC
The BEC has been upgraded from the previous generation from 6V/3A to 6V/7.4V and is fully-adjustable. It is equipped with a continuous current of 6A, and up to a maximum current of 12A. It supports most high-voltage servos on the market.

Exceptional protection and operation
Equipped with excellent waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments. The protection level of the ESC reaches IP67.
Note: The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use,
but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not
soak in water for a long time, otherwise the product may be damaged.

Efficient cooling system
The internal power board of the ESC is covered with a patented copper heat conduction bus bar to help facilitate the rapid conduction of internal heat to the radiator. Additionally, a fan is added to dissipate heat. These constitute to a highly reliable cooling system to ensure that the ESC is always in a safe operating temperature.

Durable electronic switch
The upgraded electronic power switch solves the corrosion and impact damage that occurs frequently in traditional mechanical switches in dusty and humid environments.
Accidental shutdowns are no longer an issue. he life-span of the switch is 50000 times longer. Waterproof, dustproof, impact-resistant.

Capacitor overheating protection function
Capacitor overheating protection feature can effectively prevent exploding customers due to overload usage. This helps to eliminate damages to the ESC.

Super large built-in capacitor
The built-in capacitor capacity of the ESC is as high as 2040 uF, and eliminates the need for external capacitors.

Specification

Scale 1/8th
Brushed/Brushless - Brushless
Sensored/Sensorless - Sensorless
Waterproof - Waterproof

Current
Continuous: 150A
Burst: 950A

Input
2-6S LiPo

BEC Output
Switch Mode 6V/7.4V @6A

Wires
Input Wires - Black-10AWG-150MM / Red-10AWG-150MM
Output Connectors - 6.5mm Gold (female)

ESC Programming via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box G2 - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port

Firmware Upgrade - Supported

Motor Supported
Sensored and sensorless brushless motor

Suitable Car
1/8th Truck. Monster Truck.

KV Rating/T Count
With 4S Lipo: KV ≤ 3000
With 6S Lipo: KV ≤ 2400 4274 size motor

Size
64mm(L) * 48mm(W) * 40.4mm(H)

Weight
169.5g (Including Wires

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2

Introducing from Hobbywing the XR10 G3 Competition Speed Control.

HW30112619 - XERUN XR10 Pro Black G3  - Black Case / 13AWG Wire / Reverse Polarity Protection / Smoother power delivery and ideal for MODIFIED classes.

(OTHER OPTIONS AVAILABLE HW30112620 XERUN XR10 Pro Grey G3 X  - Titanium Grey Case / 12AWG wire / NO Reverse Polarity Protection / More punch feeling and ideal for STOCK classes)

Built-in data logging function
The XR10 Pro G3 features a built-in data recording module capable of storing up to 19 groups of 20-minute data sessions, totalling 380 minutes of storage. No need to keep the OTA Bluetooth module connected during operation.

OTA Programmer
The OTA or LCD Program box pro is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.

Historical Record Data (displayed as a curve graph)
Connecting to the App allows the review of the stored Data Logs after a run, (as a graph) as well as the Real Time Data output to check operational status.

Freewheeling function, lower temperature
Freewheeling effects deceleration and overall operational efficiency to help reduce temperature. Compared to the previous XR10 Pro G2S ESC, the temperature theoretically drops by around 15 deg during operation, improving overall consistency and reliability. This significant temperature reduction is especially beneficial under higher load applications.

The RPM decrease rate setting offers faster deceleration off throttle, enhancing control in corners.
Note: A higher RPM decrease rate results in faster deceleration when the throttle is released with Freewheeling enabled.

Disc Brake Mode
Using an innovative close loop brake control (disc brake mode) creates a brake output that is more accurate , and more linear. This allows the feel of your brakes to be completely linear at all speeds. This mode completely solves the problem of non-linear braking force, which is often caused by traditional braking methods due to the influence of vehicle speed.

Disc Brake Mod also supports the Brake Force Curvature, to fine tune the brake bias feeling. Of course, the normal Linear/Traditional braking nodes are still available.

Durable frameless fan
The frameless fan blades are made from special materials, significantly increasing their rigidity. As a result, the fans are more durable, and the reliability of the ESC is improved.

Smart fan start-stop function
This allows the fan to be off when the ESC does not need it, and automatically activate when the ESC’s temperature rises and colling is required. The Smart Fan Start stop function ensures the ESC stays within it’s operational temperature range and reduces power usage and noise when the fan is not needed.
Note: The smart start-stop function can be disabled through the parameter settings.

Dual parameter setting mode
24 Parameters (Basic)
44 Parameters (Advanced)
Two levels of of parameter adjustments allows drivers to simplify some of the more common tuning items, while still having complete access to all the ESC settings when needed. You can keep it as simple, or option packed as you need.

Extensive programmable parameter options
It contains more than 44 programmable parameters that are designed allow a wide range of tuning to suit any driver’s needs. Of these settings, notable update include which are new throttle/brake curvature, freewheeling, disc brake, drag, brake frequency, boost timing, turbo timing and many others.

Softening 2.0 technology
The ESC is equipped with an optimized Softening 2.0 technology. The new softening 2.0 parameter enhances the driving force in the initial phase, significantly improving the drivability of high power vehicles without losing overall speed.

Low center of gravity design
The ESC fan assembly features an improved lower center of gravity design compared to the previous XR10 Pro G2S ESC. The overall height of the ESC is reduced by 2mm, effectively lowering the center of gravity and aiding in the car balance.

The fan assembly is also detachable to further reduce the ESC’s center of gravity when an ESC cooling fan is not required.

Optimized cable output for easier wiring
The ESC layout has been optimized for simplicity in wiring for on-road applications while also accommodating off-road vehicle layouts. Plus, the ESC also includes one set of U-type connectors, which can easily meet various wiring requirements, such as flat and diagonal soldering.

Built-in reverse polarity protection circuit
The standard version of the G3 ESC includes a built-in reverse connection protection circuit, effectively preventing damage to the ESC caused by accidental reverse connections.

Note:
Only the non-polarity capacitor option is able to provide reverse polarity protection for the entire power system. The standard capacitor in the ESC does not offer reverse connection protection. While reverse connection of the battery will damage the capacitor, the ESC itself will remain undamaged.

The G3X version of the XR10 Pro, does NOT offer any internal Reverse Voltage Protection and will be damaged if connected incorrectly.

Dual version options
The ESC offers two options:the standard G3 (black) and the G3X (titanium grey).
Note： The G3 version comes standard with 13AWG wire, while the G3X version comes standard with 12AWG wire,and does not have Reverse Voltage Protection.

Built-in BEC supports high-voltage servos
An adjustable BEC is integrated in the ESC to provide an output current with a peak of 10A. The output voltage has continuous adjustability ranging from 5.0V to 7.4V,settable at 0.1V per step in this range.

All this meets the power requirements without any issues for both high-torque and high-voltage servos.

Specification

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SD

Waterproof - No

Cont./Peak Current - 160A/1200A

Input Voltage - 2S LiPo

BEC Output - Switch Mode 5V-7.4v 6A

Input Wires - Black-13AWG-200mm*2

Output Wires - Black-13AWG-200mm*3

Input Connectors - No

Output Connectors - No

Fan

Type - Frameless Fan

Data Recording

Extreme Value - Supported

Real-Time Data - Supported

Historical Data (Graph) - Supported

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Not Supported

LCD G2 Program Box - Supported

LCD Pro - Supported

OTA Programmer - Supported

Program Port - Separate

Firmware

Firmware Upgrade - Supported

Size - 35X33.6X30.3mm

Weight - 93g (Included wires&connectors)

Applications - SD BL Motors

Vehicles - 1/10th Touring car and Buggy, 1/10th Drift, F1, Rally.

KV Rating/T Count - XERUN V10 G4R/G3 Bandit G4

Introducing the CORE RC PACE 100R 1S Lipo competition speed control.

With a huge range of features the PACE 100R is suitable for a wide range of 1S racing classes including LMP12, GT12 and F1 Stock cars.

Its programmable instant reverse option is especially important for the F1 Stock car class!

Fully programmable with the CR886 Core RC Bluetooth Setup Module and app based technology.

--------------- BRCA Approved ---------------

- Full aluminium case and heat sink design, with highly efficient heat dissipation system.
- Huge range of variable parameters allows adjustment of the settings for most 1S racing classes. These including Modified, Stock, Zero Timing (Blinky) and Drifting etc etc.
- 32-bit microprocessor can support more powerful processing capability and more accurate motor output.
- Enhanced throttle response, excellent acceleration, linearity and drive ability.
- Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection.
- Uses Bluetooth module to allow programming the parameter settings and firmware upgrades via app (supports real time programming, no need to restart the esc).
Data logging for real-time maximum ESC temperature, Motor RPM, Voltage and Adv. Timing and so on.

Specifications

Sensored/Sensorless - Sensored
Cont. Current - 100A
Burst Current - 360A
Input Voltage - 1S LiPo
BEC Output - 6.0-7.4V/5A
Size(L*W*H) - 37.0*38.2*17mm
Weight - 83g
ESC Programming Via - Mobile Phone APP
Firmware Upgrade - Supported
Waterproof - No

Programmable Items

Throttle Response-Coast-Neutral Range-Min. Throttle-Minus-Minus Range-Max. Forward force

Brake Response-Min. Brake Force-Max. Brake Force-Fwd. Drag Brake Force-Fwd. Drag Brake Response-Rev. Drag Brake Force-Rev. Drag Brake Response-PWM Freq.

Boost Timing-Trigger-RPM Threshold-Initial Angle-Angle Inc. Rate-Angle Dec. Rate

Turbo Timing-Angle Inc. Rate-Angle Dec. Rate-Turbo Delay-Delay Reload

Motor Rotation-Motor Poles-Running Mode-Drive PWM Freq.-CutOFF Voltage-CutOFF Thermal-BEC-Output-A/C Swap

Includes; speed control, instructions, external switch. Does not include sensor lead or fan.

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC,and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction
of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
2-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red-12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programming via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor

(PLEASE PURCHASE BATTERY CONNECTOR SOLD SEPERATELY - FEMALE XT60 OR T-PLUG RECOMMENDED)

Ideal Vehicles - 1/10th Short course truck, Monster truck, Truggies & Buggies

(SENSORLESS = LESS THINGS TO GO WRONG! HOWEVER NOT AS SMOOTH AS SENSORED VERSIONS. YOU WILL ONLY NOTICE WHEN STOPPED ON AN INCLINE - YOU MAY EXPERIENCE 'COGGING' WHERE YOU WILL NEED TO REVERSE, IN ORDER TO REINGADGE FORWARD MOVEMENT.)

Introducing QuicRun WP 10BL60 G2 Brushless Speed Control - SENSORLESS VERSION

Intelligent freewheeling technology effectively reduces heat generation
The intelligent freewheeling technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature.
It further improves on the stability and reliability of the ESC.

Small and compact
The new QuicRun WP 10BL60 ESC is more compact than its predecessor
It is shorter in length by 2.5mm
The width is reduced by 1.5mm
Overall, it makes the layout and wiring convenient

Efficient cooling system
The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling.
The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.

Capacitor overheating protection
The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may degrade due to daily wear and aging. Do not submerge in water for a long time, otherwise the product may be damaged.

A vast variety of programming methods
It supports three programming methods:
Multi-function LCD programming box PRO, LED programming box, and SET key, making it easy for users to choose their favourite programming method for parameter adjustment.

Great value for money
Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!

Specifications

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SL

Waterproof - Yes

Cont./Peak Current - 60A/360A

Input Voltage - 2-3S LiPo

BEC Output - Switch Mode 6V @3A

Input Wires - Black-14AWG-150mm*1 Red-14AWG-150mm*1

Output Wires - Black-14AWG-60mm*3

Input Connectors - No

Output Connectors - 4.0MM Gold (female)

Fan

Size - 30.0x30.0x10.0mm

Voltage Range - 6V

Powered by BEC

ESC Programming via

SET Button on ESC - Supported

LED Program Box - Supported

LCD G2 Program Box - Supported

OTA - Not Supported

Programming Port - Shared with fan port

Firmware Upgrade - Not Supported

Data Recording - Not Supported

Size - 46x36.5x34.3mm

Weight - 82.6g(w/Wires)

Applications - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles - 1/10th On-road, Buggy, Short course truck

KV Rating/T Count - 2S LiPo:KV≤6000；3S LiPo:KV≤3500（3652/3660 size motor）

High performance but low price, users can own this reliable race-ready ESC at an affordable cost.

COMPACT DESIGN

IDEAL FOR: Car Applicable - 1/10 & 1/12 On-road / Off-road /
F1 / Drift car race Street race for fun /
Club racing / Daily practice /
STOCK race with 0 timing / Drift car race

Auto identification system can recognize sensored / sensorless brushless motors automatically. Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions. 8 steps of timing adjustment greatly increase the output power of the motor, and unlock its maximum potential. Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment. 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the portable Digital LED Program Card, especially convenient for outdoor use.

Current - 60A, Burst: 380A
Input - 4-9 cells NiMH or 2-3S Lipo
BEC Output - 6V@2A (Linear Mode)
Resistance - 0.0008
Motor Supported - Sensored and Sensorless Brushless Motor
Cooling Fan - 6V (The cooling fan gets its power supply from the built-in BEC)
Weight - 59g (with wires, without cooling Fan)
Size - 33(L)X28(W)X31.5(H, with cooling fan)mm

Motor Limit - 4-6 cells NiMH/ 2S Lipo
8.5T(1/10 On-road), 13.5T(1/10 Off-road)
8-9 cells NiMH/ 3S Lipo
13.5T(1/10 On-road), 17.5T(1/10 Off-road)

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

(2024 VERSION)

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor
