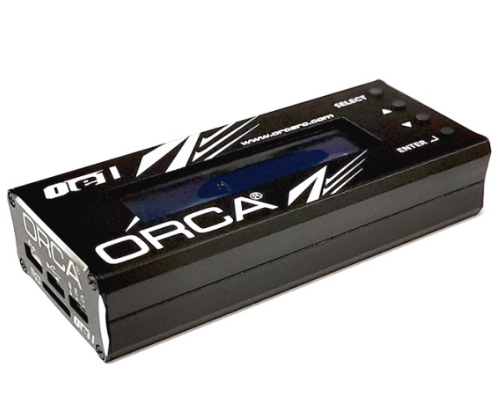

Brushed ESC's

Supports all ORCA “OE” ESC’s;

• OE1
• OE101
• OE101S
• OE1-1S
• OE1-1S Mk2 Pro
• OE1 Mk2 Pro
• OE1 WLEB
• OE1.2
• TOTEM 1S
• TOTEM 2S

Does NOT work with “RunPlus” or “800 Series” speed controllers

asy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - Big-sized TAMIYA Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

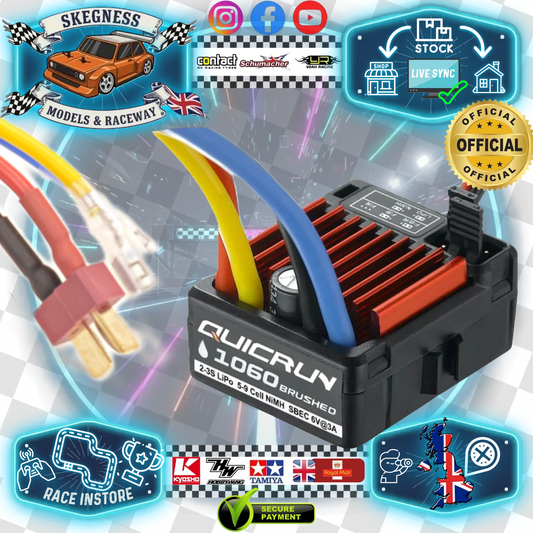

One of the most popular Hobbywing brushed speed controls, the WP1060 is now available with a XT60 Plug from Yikong

- A great alternative to Tamiya for those who prefer this plug style.

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - XT60
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

One of the most popular Hobbywing brushed speed controls, the WP1060 is now available with a XT60 Plug from Yikong

- A great alternative to Tamiya for those who prefer this plug style.

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - XT60
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

Introducing the ORCA RunPlus Brushless/Brushed ESC with Program Card, the perfect addition to your r/c car or truck. Measuring at just 29.5mm x 29.7mm x 17.6mm, this ESC is very compact and extremely lightweight, making it the ideal choice for those looking for a easy-to-use ESC.

With its attached power wires, this ESC is incredibly easy to install, making it a great choice for beginners and experienced hobbyists alike. Plus, with a 80A continuous current limit, it can handle all 540-size brushless motors up to 13.5 turns/3600kv, Brushless 380 or 390 sized motors up to 10.5 turns/4600kv as well as Brushed motors over 12 turns too.

Included with this ESC is an LED program card, which allows you to fine-tune your settings.

Specification;

Dimensions: 29.5mm x 29.7mm x 17.6mm

Weight: 22g (excluding wires)

Voltage Input: 6-12.6V (LiPo 2-3 Cells)

Peak Current: 310A

Continuous Current: 80A

Motor Limit (Brushless): Over 10.5T

Motor Type: 540 Sizes Brushless and Brushed motors – 380 sized Brushless motors

BEC: 4A 6V/7V

Non-updateable firmware – ideal for spec races

Includes both Blinky Mode and Turbo functions

LED program card with 15 adjustable parameters

Suitable for on-road, off-road, crawlers and all recreational vehicle type

This is ORCA 800 Series V2.0 80A Water-Resistent Brushed ESC with Programmer has received a make-over and update to its spec

Features:

• ESC Brushed Motor System
• Same Small Footprint and size
• Aluminium lower case
• Water-Resistent
• 80A High Current Output
• LED Program Card with 14 programmable parameters
• **NEW** – BEC current now 5 amp
• **NEW** – Output current can now be adjusted between 6v and 7.2v
• **NEW** – Built-In touch type power switch
• **NEW** – Optimized software resulting in even better performance

Included In Box:

• ORCA 800 Series 80A Brushed ESC (1 pc)
• LED Programmer

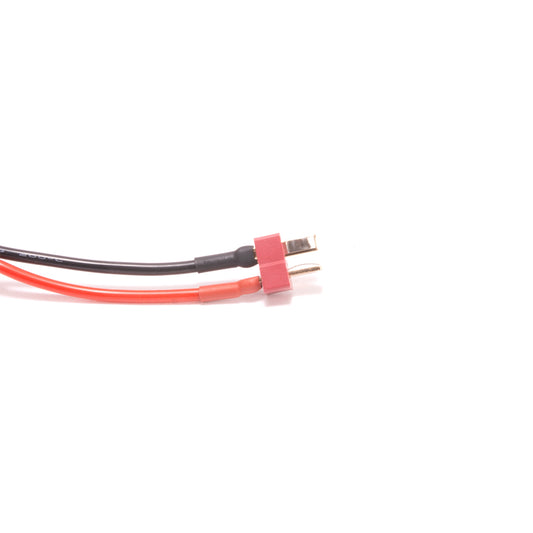

Introducing the Hobbywing 1/12th Brushed Speed Control for 1S LiPo or 4 Cell NiMh.

Note: To turn on and off, you must remove battery plug. Button is for ESC Programming only. ESC comes set as standard with no brakes. You must turn on brakes and changed from Zero brake force to min of 25% for them to work. Standard setup is for Banger cars for instant reverse.

A collaboration between Schumacher Racing and Hobbywing !

Easy Operation
This ESC is specially designed to be easy to use, it not only carries forward the outstanding quality of HOBBYWING products but is simple in operation.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the 1060 WP 1S Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and further settings can be adjusted using the LED Program Box HW30501003.

Wide Application
This ESC is designed for 1/12th Scale cars using 1S LiPo batteries or 4 Cell NiMH.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the 1060 WP Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

See image for factory default settings.

Instant reverse is a standard setting, highly suitable for 1/12th Stock Car class.

Specifications

Current Rating - 60A
Input Voltage - 1S LiPo or 4 Cell NiMh
Motor - Brushed Motors： ≥15T
Applications - 1/12th Racing
BEC Output - 6V，3A
Parameter Setting Method - LED Program Box HW30501003
Connectors - T Plug & 4mm Bullets.

FTX VANTAGE / CARNAGE / OUTLAW / BANZAI ESC WATERPROOF BRUSHED

An affordable brushed ESC that is used in the FTX Vantage/Carnage/Outlaw and Banzai.

This ESC is setup in a simple way for ease of operation. When the ESC is switched on it automatically searches for the neutral point. When the automatic setup is finished the motor sends out “Do” “Re” “Me” indicating the neutral point is set and it is ready to be operated.

The ESC has 2 programmable running modes and a Low voltage protection mode that can be enabled for LiPo batteries.

FTX Vantage/Carnage/Outlaw/Banzai Brushed WP ESC Features:

• Waterproof protection
• 5-6 cell NiMH compatibility
• 7.2-7.4V 2S Li-Po compatibility
• Li-Po Safety cut off when less than 6V
• Thermal Protection: When more than 90°C
• BEC Output: 5.6V 2A
• Small foot print for easy mounting
• Dimensions: 30mm x 28mm x 22mm
• Weight: 38g

This excellent value ESC comes with a Deans-style connector and a Deans-Style-To-Tamiya adaptor lead, so is suitable for use in almost any brushed motor application.  These are branded Tamiya-Carson as they are ESCs that are currently arriving in some Tamiya kits (due to Tamiya not being able to source their own ESC due to chip shortages).

SPECIFICATION AS FOLLOWS
Forward: Continues/Peak current 70A/360A
Backward: Continues/Peak current 40A/180A
Battery type: 2-3s Li-Po, 5-9 cells NiMH
Type of Model: 1:10 / 1:12 / 1/16 - ON Road, OFF Road, Boat
2s Lipo or 6 cells NimH: 540, 550 motor lowest 18 turn with 30000 rpm @ 7.2v
BEC Output Voltage: 3A/6v
Size: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
Mode: Boat, Forward/Backward, Crawler
Sealing: Waterproof (Splash, Rain)

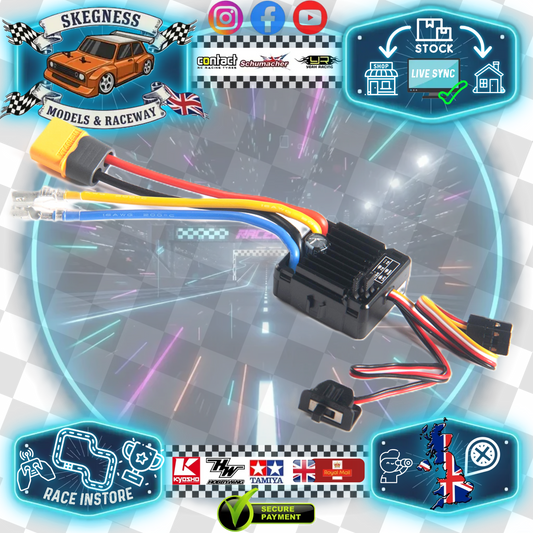

This ESC appears to be a Hobbywing 1060 unit rebranded.

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design. It owns these outstanding features. Small size with built-in capacitor module. The Forward/Reverse/Brake running mode fits for sport races of various vehicles. Great current endurance capability. Automatic throttle range calibration, easy to use. Easy to set the ESC parameters with jumpers. Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.

Fwd. Cont. / Peak Current - 25A /100A
Rev. Cont. / Peak Current - 25A /100A
Resistance - Fwd 0.003, Rev 0.003
Input - 2-3S Lipo or 5-9 NiMH
BEC Output - 1A/5V (Linear Mode)
Motor Limit - 2S Lipo or 6 NiMH
280 370 or 380 Size Motor RPM<30000 @7.2V
3S Lipo or 9 NiMH
280 370 or 380 Size Motor RPM<20000 @7.2V

PWM Frequency - 1KHz
Cooling Fan - Without cooling fan
Weight - 23.5g
Size - 34(L)X24(W)X14(H)mm
Running Modes - Forward/Reverse/Brake
Car Applicable - 1/18 & 1/16
Touring Car, Buggy, Monster, Truggy

From Hobbywing, designed for smaller scale crawling vehicles the Quickrun WP - MINI24

The software, hardware, and structure of the QuicRun WP Mini24 are tailor-made for small-scale crawling vehicles. It has a large torque at low-speed, and operates smoothly. The QuicRun WP Mini24 is the ideal choice for crawling vehicles for 1/16th, 1/18th and 1/24th scale models.

Adjust drag brake force in real time

The ESC programming port has an AUX function. Connect the signal cable (standard 2pin cable) to an open channel on the receiver to adjust the drag brake force in real time. Adjusting drag brake force on the fly can be achieved to meet various application environments.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

Note:
The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Built-in BEC supported for high-voltage servo
The powerful switch mode BEC has a maximum current of 6A. The output voltage is switchable between 6V/7.4V and is suitable various standard/high-voltage servos on the market.

Waterproofing switch
The QuicRun WP Mini24 has a built-in waterproof switch with waterproof, dustproof, and impact-resistant. Completely solved the traditional mechanical switch in dusty, humid and other harsh environments frequent jamming, contact corrosion, impact (such as falling to the ground) and lead to the mechanical switch automatically shut down and other problems.

Easy to install
The QuicRun WP Mini24 uses a PH 2.0-3PIN female connector. Plug and play with HW motors or another brand of motors with the same plug. The input end uses a PH 2.0-2PIN female connector.
Other models such as SCX24 are able to plug and play. The common connector saves the trouble of re-soldering plugs.
Note:
In addition, the ESC comes standard with a brushed adapter cable for easy operation.

Support brushed and brushless modes
The QuicRun WP Mini24 supports both brushed and brushless motors with great compatibility.
Note:
The factory default is brushless mode. If you are connecting to a brushed motor, please connect the A/C line and set the ESC to "Brushed Motor", otherwise the ESC may be damaged.

Support various LED/LCD programming boxes
The ESC not only supports simple LED programming boxes, but also supports high-end products like the LCD programming boxes with a more complete display.

A vast variety of parameters
The QuicRun WP Mini24 has a vast variety of parameters for adjustment. A total of 13 adjustable parameters are available. It includes commonly used parameters such as drag brake force and drag brake acceleration. It is able to adjust accurately the power requirements to meet various application setting needs.

Specifications

Scale - 1/24th, 1/18th,1/16th

Brushed/Brushless - Brushless,Brushed

Sensored/Sensorless - Sensorless

Waterproof - Yes

Cont./Peak Current - 25A/60A

Input Voltage - 2-3S Lipo

BEC Output - 6V/7.4V adjustable, continuous current 2A (Switch mode)

Wires & Connectors

Input Wires

Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1

Output Wires

Black-12AWG-200mm*3 Black-14AWG-200mm*3

Input Connectors - PH2.0-2PIN Female Connector

Output Connectors - PH2.0-3PIN Female Connector

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Supported

LCD G2 Program Box/LCD PRO - Supported

OTA Programmer - Supported

Program Port

Independent programming cable

Firmware

Firmware Upgrade - Not Supported

Size & Weight

Size - 28*17.8*13mm

Weight - 13.5g（including wires&connectors）

Motors - Sensorless brushless motor, and brushed motor.

Vehicles - 1/24thVehicles，1/18th、1/16thCrawlers

Applicable motors - QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.

(No power input plug - sold separately - Deans, Tamiya, XT60 or others.

Two Sets of Output Wires

Two sets of output wires for simultaneously connecting to two motors. It’s very convenient for vehicles which are driven by two motors.
Notes: the two sets of output wires are connected in parallel and can only be used to drive motors synchronously, the driving directions should be the same when connecting to two motors.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QuicRun WP-880 Dual Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Excellent Brake Functions

Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Multiple Programmable Items

The QuicRun WP-880 Dual Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

QuicRun WP 880 Dual Brushed
Brushed ESC
Product Number: 30120301
Current: 80A
Input: 2-4S LiPo/5-12 Cell NiMH
Applications: Various 1/10^th & 1/8^th Vehicles

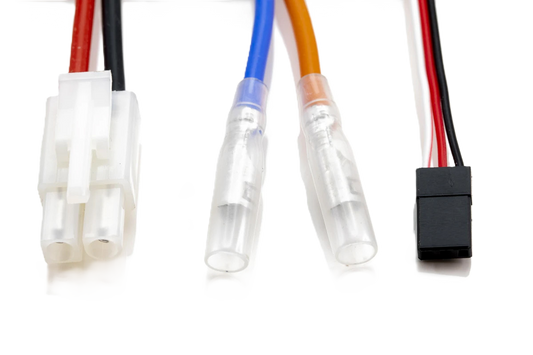

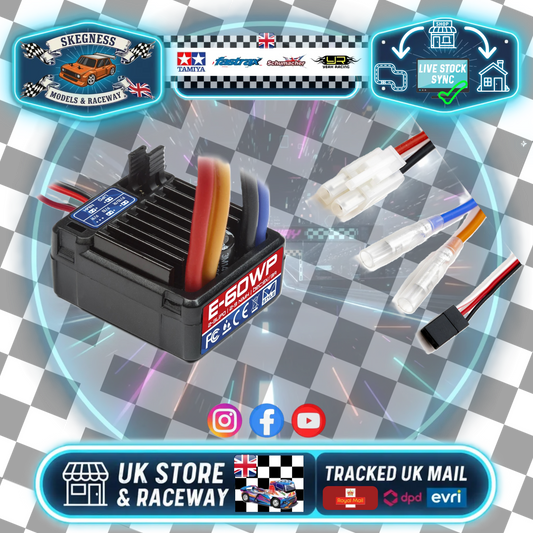

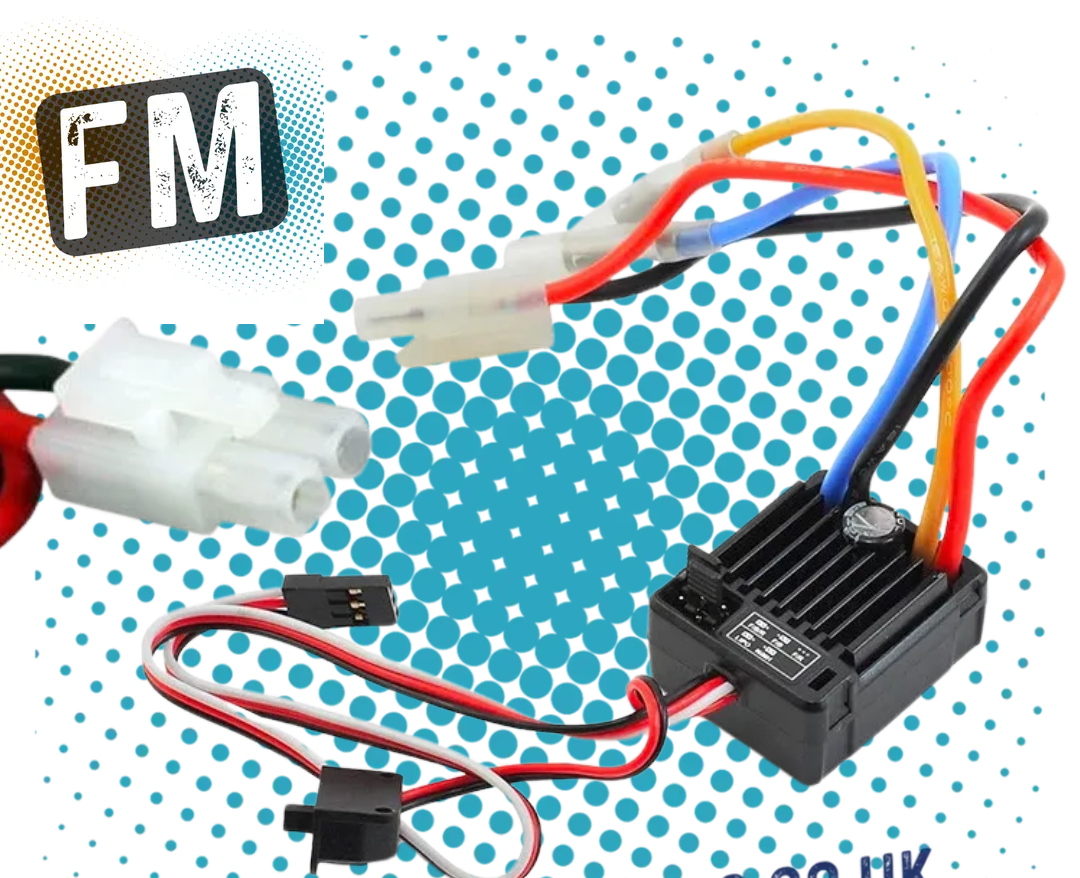

(TAMIYA PLUG FITTED - FOR OTHER PLUG'S, PLEASE SEE ADAPTOR LEADS OR CONNECTORS)

SUPPLIED WITH MOST TAMIYA KITS (SAME AS WP1060)

(TT01E Euro Truck Racing Stock Spec)

(BLACK VERSION)

One of the most popular Hobbywing brushed speed controls, the WP1060

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - T Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers
