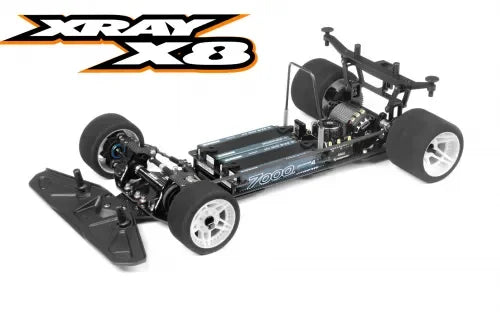

The XRAY X8 26 2026 Edition (part number XR340501) refines performance with a revamped chassis concept that lowers the centre of gravity and simplifies fine-tuning. Batteries now sit directly on the chassis, while the motor and steering hardware are positioned to optimise balance and responsiveness across a wide range of track conditions.

Overview

A new independent front suspension with adjustable flex, a flexible rear suspension mounting system, and a revised drivetrain layout headline the update. A smaller spur gear and maximised rear motor placement push weight rearwards, while a removable electronic plate and directly mounted steering servo streamline setup. Stability is further enhanced by a longer wheelbase, longer drive belt and a wider rear suspension stance, with ride height adjustments available front and rear.

Key Features

• Revamped chassis with batteries mounted directly to the chassis for a super low CG.
• Updated independent front suspension using bushings and rubber O-rings to tune suspension flex.
• Rear suspension mounted with adjustable flex to refine handling balance.
• Motor positioned as far back as possible, just ahead of the rear suspension.
• New 35T hard-anodised aluminium pulley supports larger front tyres for extra traction and sharper steering on bumpy tracks.
• Versatile battery holders accommodate Long, Medium or Short batteries without moving the electronic plate.
• Steering servo mounted directly to the chassis behind the front suspension; cable routed in a central milled channel.
• HUDY hard-anodised aluminium servo saver mounted directly on the servo for precise control.
• Removable electronic plate to influence rear-end flex characteristics.
• New hard-coated one-way front axle enhances performance.
• Reinforced, lightweight, hard-coated rear solid axle for durability.
• Improved car holder and mount for easier handling and added protection for the body top.
• Smaller spur gear enables the most rearward motor position towards the drive shaft.
• Adjustable ride height via carbon spacers up front and eccentric bushings at the rear.
• Extended wheelbase with a longer drive belt for added stability.
• Wider rear suspension layout to boost on-track composure.
• Super-easy assembly with straightforward access to flex and handling adjustments.

Together, these updates make the XRAY X8 26 a highly tunable platform that rewards precise setup. From battery layout to axle choice and chassis flex, each element is designed to let you tailor responsiveness, traction and stability for your driving style and track conditions.

The XRay GTXE27 is a 1:8 scale electric on-road GT car from XRay, supplied under part number XR350606. Positioned within XRay’s GT range, it provides a dedicated on-road platform in the 1:8 electric category.

At A Glance

• Scale: 1:8
• Power: Electric
• Category: On-road GT
• Model: XRay GTXE27
• Brand: XRay
• Part Number: XR350606

This concise identification is intended to help with searching and cataloguing. For full specifications, setup options and any required components, please refer to official XRay materials associated with the GTXE27.

XRAY GTXEā€™24 - 1/8 LUXURY ELECTRIC ON-ROAD GT CAR

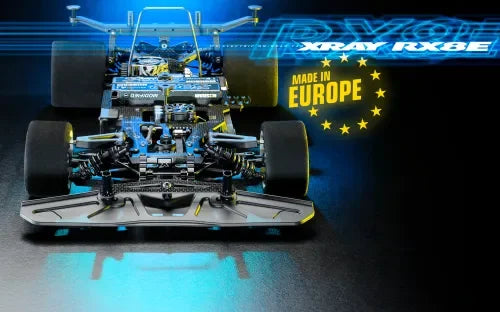

The XRAY RX8E 2026 (part number XR340154) delivers a comprehensive update focused on flex characteristics, lower centre of gravity and reduced rotating mass. With widespread M4 hardware for secure assembly and serviceability, plus refinements across the drivetrain, steering and suspension, this platform is engineered for precision and reliability.

All-New Features

• Redesigned chassis with new flex characteristics and lowered centre of gravity
• M4 screws used throughout the chassis for fast, reliable assembly and maintenance
• Lightened rear solid axle and front one-way outdrives to reduce drivetrain rotational mass
• Hard-coated front aluminium one-way axle for improved durability and reliability
• CVD rear driveshafts matched to lightweight aluminium wheel axles and super lightweight rear solid axle
• Strategically lightened, heat-treated rear gear shaft to reduce rotating mass and maximise lifespan
• All-new three ball-bearing front belt tensioner increases reliability and helps prevent belt skipping
• Front left aluminium bulkhead with stronger M4 set-screw muffler mount for added security
• Aluminium second-speed shaft stand allows attachment of a carbon plate for the middle belt tensioner
• Aluminium rear lower arm holder now uses M4 screws for a more secure installation
• New carbon radio plate with a unique flex system offering two flex alternatives
• Laydown steering servo configuration on the radio plate to lower the centre of gravity
• One-piece aluminium servo holder ensures reliable servo mounting to the radio plate
• Servo saver stand uses a steel washer and centring bushing to fine-tune front flex
• Front middle shaft holder with integrated, ball-bearing belt tensioners for the front belt
• Extended rear upper arm for improved ball joint support
• One-piece carbon downstop limiters mounted directly to the front arm for precise downstop adjustment and lower unsprung weight
• Redesigned carbon shock mounts are super lightweight to reduce unsprung mass
• Reworked upper arm holder includes a guide for the ball-bearing body holder
• Rear body holder now ball-bearing equipped for near frictionless operation
• Carbon rear shock absorber holder with new shock positions to improve stability
• Front carbon upper bracket mounts to the centre stand, allowing the bumper holder to move independently and resist deformation in crashes
• Lightweight, strong carbon steering plates reduce unsprung mass and improve reliability
• Tighter aluminium anti-roll bar collar fitment in the bearings for more precise anti-roll operation
• Improved front and rear anti-roll bar ball joints for finer response
• Aluminium D-shaped clamp enables collision-free anti-roll bar movement on the front axle
• Shock absorbers use shorter lower ball joints to move shocks closer to the wheels for improved stability
• Redesigned motor mount uses M4 screws for greater stability and supports a top-mounted 40mm cooling fan
• Larger gear carrier minimises gear protrusion from the motor mount for better protection and integration
• Super lightweight aluminium pulley adapter reduces rotating mass
• Extended rear layshaft offsets the centre belt for medium-size batteries and is lightened to lower rotating mass
• Extended front layshaft offsets the centre belt to suit medium-size battery setups
• Aluminium spacer bushings included for the extended front and rear layshafts to ensure proper fitment

From its refined belt management to lighter rotating assemblies and a lower CG, the RX8E 2026 by XRAY focuses on efficiency, consistency and ease of maintenance for demanding track conditions.

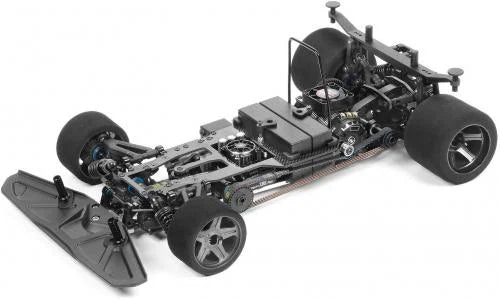

XRAY RX8E'23 - 1/8 LUXURY ELECTRIC ON-ROAD CAR
