Xray 1/18 On-road RC KITS

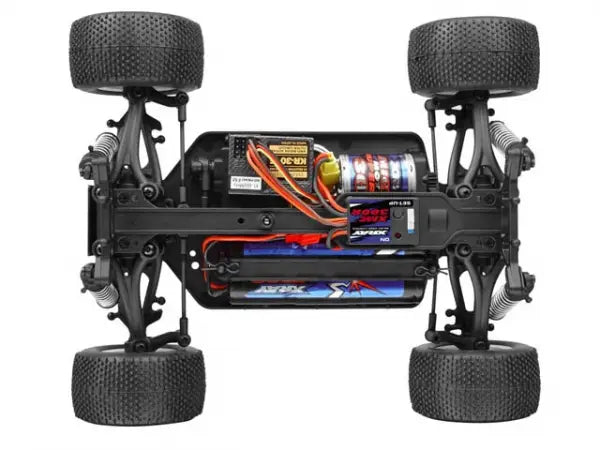

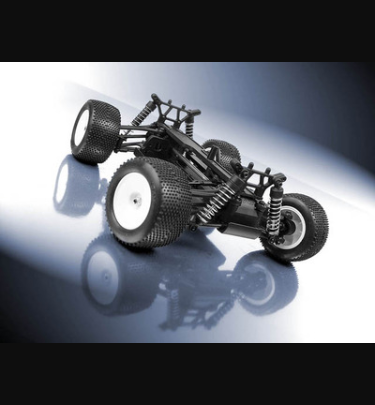

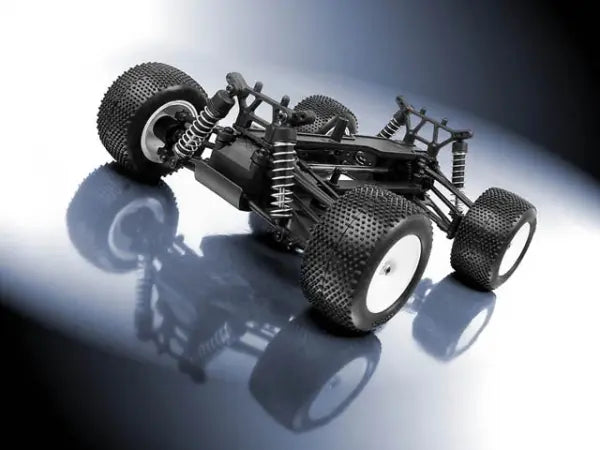

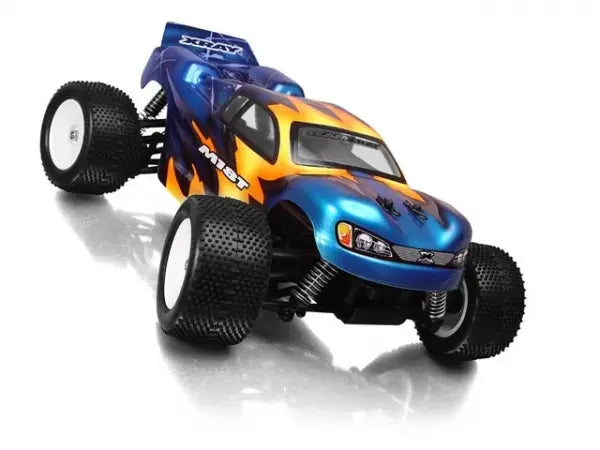

The XRay M18T Kit (XR380500) is a 1/18 scale, shaft-driven 4WD micro truck engineered for high-load competition and everyday fun. It combines a balanced chassis with fully independent suspension, oil-filled coil-over shocks and a 22-bearing drivetrain for smooth, efficient performance.

Designed by the XRay team, the M18T can be run as a lightweight racer or transformed with an optional monster conversion. Tuning is straightforward thanks to adjustable turnbuckles, front and rear adjustable ball differentials, a servo saver and multiple shock positions. The chassis accommodates 5- or 6-cell battery packs to suit your preferred setup.

The thoughtful design also allows the addition of four extra oil-filled shocks (for a total of eight) and 30% larger tyres with a traditional monster tread pattern, giving the M18T the traction and control to jump and climb with confidence.

Main Features

• 1/18 professional 4WD high-load competition shaft-driven micro truck
• Optional conversion set transforms the truck into a monster truck
• Maximum-efficiency drivetrain with 22 high-speed ball bearings
• Fully independent front and rear suspension
• Oil-filled coil-over shocks
• Servo saver included
• Adjustable turnbuckles
• Front and rear adjustable ball differentials
• Adjustable shock positions for damping adjustment
• Easily adjustable motor mount
• Chassis accommodates 5- or 6-cell battery packs
• Extensive line of micro electronics and optional parts from XRay

What's Included

• Set of low-pin rubber tyres and wheels
• 1/18 micro racing truck body
• Pinion set
• HUDY Phillips screwdriver for assembly

Required To Complete

• Radio system (transmitter and receiver)
• Micro speed controller
• Micro motor
• Micro battery pack
• Micro servo
• Lexan paint
• CA glue

Technical Specifications

• Length (without body): 211 mm
• Wheelbase: 150 mm
• Front width (outside rims): 178 mm
• Rear width (outside rims): 180 mm
• Front caster: 12.3°
• Weight: approx. 295 g
• Internal gear ratio: 2.5

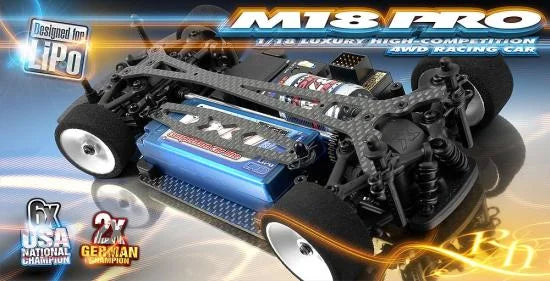

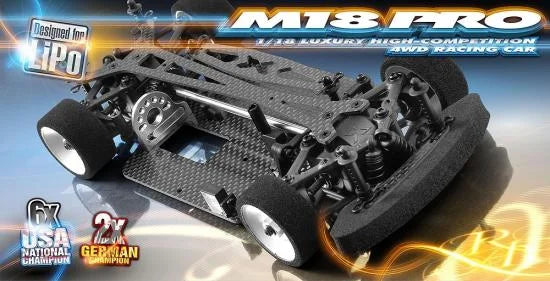

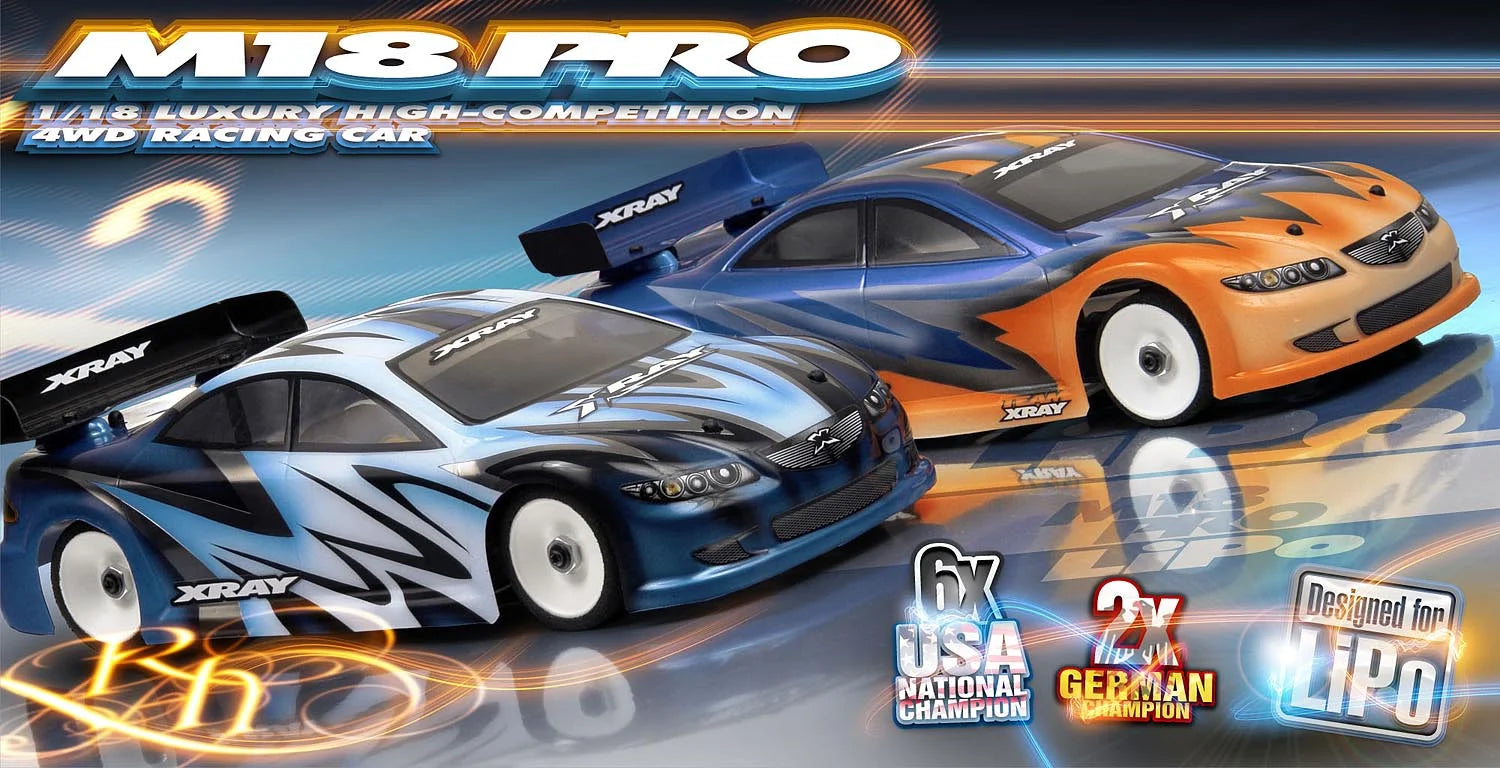

The XRAY M18 PRO LiPo (XR380003) evolves the iconic 1/18 micro platform with a focus on high-level racing and modern LiPo battery technology. Built around a new carbon fibre (graphite) chassis, redesigned top deck and dedicated LiPo battery holder, this micro racer delivers precise handling, durability and adjustability in a compact, competition-ready kit.

Key Features

• All-new 1.6mm CNC-machined carbon fibre chassis, top deck and LiPo battery holder system for performance and durability.
• XRAY Multi-Flex Technology (MFT) top deck with front and rear flex points for rapid, track-specific handling changes.
• Touring car-style hex wheel hub and one-piece wheel mounting for secure, accurate power transfer and easier maintenance.
• Revised suspension geometry: 6° front caster and 2.5° rear toe-in for sharper response and improved steering.
• Externally adjustable ball differentials (factory assembled) paired with an ultra-efficient, inline single driveshaft AWD drivetrain.
• Lightweight composite drive shafts and reinforced steering components for strength with minimal weight.
• Precision-moulded spur gears with 36T and 42T options included; pinion assortment for flexible gearing.
• Coil-over shocks with multiple mounting positions to fine-tune grip and balance.
• Graphite top deck with height-adjustable body mounts; compact front foam bumper and reinforced composite lower bumper.
• Premium XRAY engineering, 20 high-speed ball bearings and a detailed, full-colour instruction manual.

Included In The Kit

• Premium foam tyres: Front 50sh, Rear 35sh.
• 36T and 42T spur gears plus an assortment of pinion gears.
• 20 high-speed ball bearings (lightly oiled).
• Factory-assembled, externally adjustable front and rear ball differentials.
• Aluminium wheel nuts and an easy-to-use wheel nut driver.
• Adjustable front and rear turnbuckles and adjustable downstops.
• Front and rear coil-over shocks.
• Front foam bumper, composite lower bumper and graphite upper brace.
• CNC-machined carbon battery holder with aluminium posts and multiple position options.

High performance. Micro size. Undeniably XRAY. The M18 PRO LiPo refines a proven race-winning concept with modern materials, smarter adjustability and the secure hex-hub wheel system, making it a formidable choice for competitive 1/18 on-road racing.
