Hobbywing

Introducing the Hobbywing 1/12th Brushed Speed Control for 1S LiPo or 4 Cell NiMh.

Note: To turn on and off, you must remove battery plug. Button is for ESC Programming only. ESC comes set as standard with no brakes. You must turn on brakes and changed from Zero brake force to min of 25% for them to work. Standard setup is for Banger cars for instant reverse.

A collaboration between Schumacher Racing and Hobbywing !

Easy Operation
This ESC is specially designed to be easy to use, it not only carries forward the outstanding quality of HOBBYWING products but is simple in operation.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the 1060 WP 1S Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and further settings can be adjusted using the LED Program Box HW30501003.

Wide Application
This ESC is designed for 1/12th Scale cars using 1S LiPo batteries or 4 Cell NiMH.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the 1060 WP Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

See image for factory default settings.

Instant reverse is a standard setting, highly suitable for 1/12th Stock Car class.

Specifications

Current Rating - 60A
Input Voltage - 1S LiPo or 4 Cell NiMh
Motor - Brushed Motors： ≥15T
Applications - 1/12th Racing
BEC Output - 6V，3A
Parameter Setting Method - LED Program Box HW30501003
Connectors - T Plug & 4mm Bullets.

Introducing the Hobbywing Justock Combo 'JS2' with XR10 G3S speed control, paired with the Hobbywing  G2.1 25.5T fixed timing brushless motor.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.


Speed Control Features.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

-------------------------------------------------------------

Motor Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

(TAMIYA PLUG FITTED - FOR OTHER PLUG'S, PLEASE SEE ADAPTOR LEADS OR CONNECTORS)

SUPPLIED WITH MOST TAMIYA KITS (SAME AS WP1060)

(TT01E Euro Truck Racing Stock Spec)

(BLACK VERSION)

One of the most popular Hobbywing brushed speed controls, the WP1060

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - T Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

This LED program box is for programming HobbyWing brushless ESCs. Its friendly interface makes ESC programming easy and quick. It’s compact, portable and very applicable for field use.

Applications:

• Platinum V1/V2 series & FlyFun V5 SkyWalker V2 Series of brushless aircraft ESCs
• XeRun series (most), EzRun series & QuicRun series of brushless car ESCs
• SeaKing series of brushless boat ESCs

Specifications:

• Size: 88x58x14mm
• Weight: 40g
• Input Voltage: 4.8-6V
• Instruction and Lead included

NOTE: If the ESC doesnt have a built-in BEC, you will need to use an additional 6.0V battery to supply power to the program box.

Manufacturer	Hobbywing
Part Number	HW30501003
EAN	5051294137410
Electric Accessories	ESC Programmers

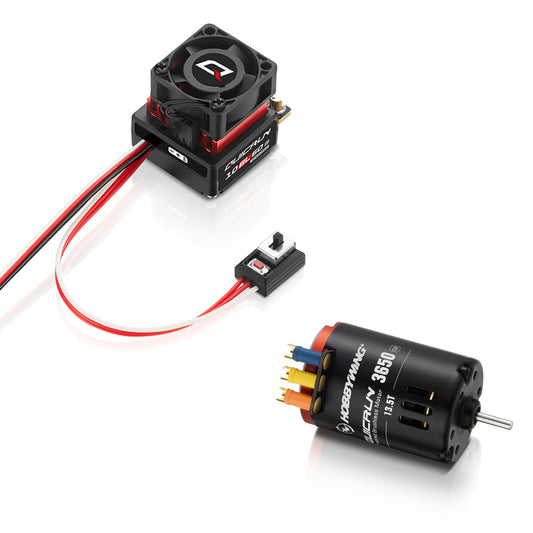

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2


-------

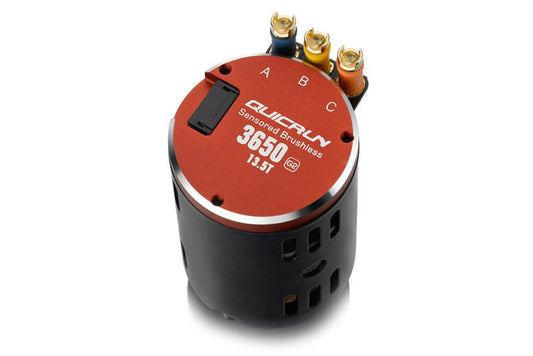

Motor

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design
The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

(2024 VERSION)

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th 550
Brushed/Brushless - Brushed

Relevant Parameters

RPM@7.4v - 17000
Input Voltage - ≥10v
Slot - 5

Size & Weight

O.D.(mm) - 36
Length (mm) - 58.5
Shaft Diameter (mm) - 3.175
Weight (g) - 193

1/10th Crawler / Short course truck / Monster truck

Hobbywing OTA Programmer allows the ESC to be wirelessly connected to smartphone.

Using the Hobbywing HW Link APP to clearly display and adjust all parameters of ESC. The interface is simple to operate.
1.App of IOS version:Search HW Link or Hobbywing in Apple store.
2.App of Android version: Search HW Link or Hobbywing in Google Play.
You can also directly click the Android icon on this page to download.

Intuitive Interface

When use app to adjust parameter, the graphical man-machine interaction interface of drop-down list box and scroll bar make the parameter adjustment more flexible and easier to operate.

Real-time data recording function

OTA programmer supports real-time data recording function and storesthe data in its memory. It can be opened by HW Link to know the running status of power system. The real-time data can be checked by connecting smartphone HW Link App within effective distance (0-3m).
*The real-time data function needs to be supported by the ESC. Please refer to the manual of ESC for details.

Simple and Convenient for Firmware Update

Compared with LCD programming box, it is no need to connect the computer to upgrade the firmware of ESC.
The firmware of ESC can be upgraded only by using HW Link App on the smartphone. More simple and easy to operate.

Bluetooth transmission and does not affect network of smartphone

OTA Programmer uses Bluetooth to communicate. It does not affect Wi-Fi and cellular data network of smartphone and network requirements of other Apps.

Compact Design

This OTA Programmer is smaller and lighter. It’s only 1/6 of HOBBYWING LCD program box in size and weight.

One-touch Factory Reset

Users can promptly factory reset their OTA Programmer via the Reset button on it.

Wide Application

This module is suitable for some brushless ESC of XERUN, EZRUN, PLATINUM and SEAKING series;
* Whether the ESC supports or not, please refer to the manual or the technical parameters on official website.

Specifications

Working Voltage: - 5-12.6V

Supported Bluetooh Version - = 4.0

Effective Range - 0-3m (Open Field)

Size - 30.0x25.5x8.5mm (LxWxH)

Weight - 10.2g

Applications

- Some of XERUN series & EZRUN series of car ESCs.
- Some of PLATINUM series of aircraft ESCs.
- Some of SEAKING series of boat ESCs.

* For details, please refer to ESC manual to ensure if the ESC can work with OTA Programmer.

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC,and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction
of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
2-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red-12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programming via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor

asy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - Big-sized TAMIYA Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design. It owns these outstanding features. Small size with built-in capacitor module. The Forward/Reverse/Brake running mode fits for sport races of various vehicles. Great current endurance capability. Automatic throttle range calibration, easy to use. Easy to set the ESC parameters with jumpers. Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.

Fwd. Cont. / Peak Current - 25A /100A
Rev. Cont. / Peak Current - 25A /100A
Resistance - Fwd 0.003, Rev 0.003
Input - 2-3S Lipo or 5-9 NiMH
BEC Output - 1A/5V (Linear Mode)
Motor Limit - 2S Lipo or 6 NiMH
280 370 or 380 Size Motor RPM<30000 @7.2V
3S Lipo or 9 NiMH
280 370 or 380 Size Motor RPM<20000 @7.2V

PWM Frequency - 1KHz
Cooling Fan - Without cooling fan
Weight - 23.5g
Size - 34(L)X24(W)X14(H)mm
Running Modes - Forward/Reverse/Brake
Car Applicable - 1/18 & 1/16
Touring Car, Buggy, Monster, Truggy

(No power input plug - sold separately - Deans, Tamiya, XT60 or others.

Two Sets of Output Wires

Two sets of output wires for simultaneously connecting to two motors. It’s very convenient for vehicles which are driven by two motors.
Notes: the two sets of output wires are connected in parallel and can only be used to drive motors synchronously, the driving directions should be the same when connecting to two motors.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QuicRun WP-880 Dual Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Excellent Brake Functions

Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Multiple Programmable Items

The QuicRun WP-880 Dual Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

QuicRun WP 880 Dual Brushed
Brushed ESC
Product Number: 30120301
Current: 80A
Input: 2-4S LiPo/5-12 Cell NiMH
Applications: Various 1/10^th & 1/8^th Vehicles

Keep your wiring super neat with this CORE RC flat sensor wire. Cool black look.

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller and QUICRUN QR10BL120 G2 & 3660SL 3150KV G2 Combo.

Shaft Size 5mm

ESC

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
1-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red--12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor


Motor

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 5400KV
LiPo - 2-4s
No-load Current(A) - 6.8A
O.D. (mm) - 36
Length (mm) - 52
Shaft Diameter (mm) - 3.175
Weight (g) - 224g
Front Bearing - D13*D5*T4
Rear Bearing - D13*D5*T4

Motor

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 3150KV
LiPo - 2-3s
No-load Current(A) - 5.4A
O.D. (mm) - 36
Length (mm) - 60
Shaft Diameter (mm) - 5
Weight (g) - 273g
Front Bearing - D16*D5*T4
Rear Bearing - D16*D5*T4
Applications - 1/10th Truck, Monster Truck

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th
Brushed/Brushless - Brushed
Turns - 30T

Relevant Parameters

RMP@7.4v - 10500
Input Voltage - ≥12.6v
Slot - 3

Size & Weight

O.D.(mm) - 36
Length (mm) - 53.2
Shaft Diameter (mm) - 3.175
Weight (g) - 168

Applications - 1/10thOn-road / Buggy / Crawler & 2WD Truck

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2


-------


Motor

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design
The end bell can easily be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

QuicRun 3652 SL G2 Sensorless Brushless Motor

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 3700KV
LiPo - 2-3s
No-load Current(A) - 6.5A
O.D. (mm) - 36
Length (mm) - 60
Shaft Diameter (mm) - 5
Weight (g) - 278g
Front Bearing - D16*D5*T4
Rear Bearing - D16*D5*T4
Applications - 1/10th Truck, Monster Truck

This excellent value ESC comes with a Deans-style connector and a Deans-Style-To-Tamiya adaptor lead, so is suitable for use in almost any brushed motor application.  These are branded Tamiya-Carson as they are ESCs that are currently arriving in some Tamiya kits (due to Tamiya not being able to source their own ESC due to chip shortages).

SPECIFICATION AS FOLLOWS
Forward: Continues/Peak current 70A/360A
Backward: Continues/Peak current 40A/180A
Battery type: 2-3s Li-Po, 5-9 cells NiMH
Type of Model: 1:10 / 1:12 / 1/16 - ON Road, OFF Road, Boat
2s Lipo or 6 cells NimH: 540, 550 motor lowest 18 turn with 30000 rpm @ 7.2v
BEC Output Voltage: 3A/6v
Size: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
Mode: Boat, Forward/Backward, Crawler
Sealing: Waterproof (Splash, Rain)

This ESC appears to be a Hobbywing 1060 unit rebranded.

Motor brushes to suit Hobbywing's QUICRUN 540 and 555 brushed motors (#'s below) plus many other brushed motors on the market.

From Hobbywing, designed for smaller scale crawling vehicles the Quickrun WP - MINI24

The software, hardware, and structure of the QuicRun WP Mini24 are tailor-made for small-scale crawling vehicles. It has a large torque at low-speed, and operates smoothly. The QuicRun WP Mini24 is the ideal choice for crawling vehicles for 1/16th, 1/18th and 1/24th scale models.

Adjust drag brake force in real time

The ESC programming port has an AUX function. Connect the signal cable (standard 2pin cable) to an open channel on the receiver to adjust the drag brake force in real time. Adjusting drag brake force on the fly can be achieved to meet various application environments.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

Note:
The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Built-in BEC supported for high-voltage servo
The powerful switch mode BEC has a maximum current of 6A. The output voltage is switchable between 6V/7.4V and is suitable various standard/high-voltage servos on the market.

Waterproofing switch
The QuicRun WP Mini24 has a built-in waterproof switch with waterproof, dustproof, and impact-resistant. Completely solved the traditional mechanical switch in dusty, humid and other harsh environments frequent jamming, contact corrosion, impact (such as falling to the ground) and lead to the mechanical switch automatically shut down and other problems.

Easy to install
The QuicRun WP Mini24 uses a PH 2.0-3PIN female connector. Plug and play with HW motors or another brand of motors with the same plug. The input end uses a PH 2.0-2PIN female connector.
Other models such as SCX24 are able to plug and play. The common connector saves the trouble of re-soldering plugs.
Note:
In addition, the ESC comes standard with a brushed adapter cable for easy operation.

Support brushed and brushless modes
The QuicRun WP Mini24 supports both brushed and brushless motors with great compatibility.
Note:
The factory default is brushless mode. If you are connecting to a brushed motor, please connect the A/C line and set the ESC to "Brushed Motor", otherwise the ESC may be damaged.

Support various LED/LCD programming boxes
The ESC not only supports simple LED programming boxes, but also supports high-end products like the LCD programming boxes with a more complete display.

A vast variety of parameters
The QuicRun WP Mini24 has a vast variety of parameters for adjustment. A total of 13 adjustable parameters are available. It includes commonly used parameters such as drag brake force and drag brake acceleration. It is able to adjust accurately the power requirements to meet various application setting needs.

Specifications

Scale - 1/24th, 1/18th,1/16th

Brushed/Brushless - Brushless,Brushed

Sensored/Sensorless - Sensorless

Waterproof - Yes

Cont./Peak Current - 25A/60A

Input Voltage - 2-3S Lipo

BEC Output - 6V/7.4V adjustable, continuous current 2A (Switch mode)

Wires & Connectors

Input Wires

Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1

Output Wires

Black-12AWG-200mm*3 Black-14AWG-200mm*3

Input Connectors - PH2.0-2PIN Female Connector

Output Connectors - PH2.0-3PIN Female Connector

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Supported

LCD G2 Program Box/LCD PRO - Supported

OTA Programmer - Supported

Program Port

Independent programming cable

Firmware

Firmware Upgrade - Not Supported

Size & Weight

Size - 28*17.8*13mm

Weight - 13.5g（including wires&connectors）

Motors - Sensorless brushless motor, and brushed motor.

Vehicles - 1/24thVehicles，1/18th、1/16thCrawlers

Applicable motors - QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.

(PLEASE PURCHASE BATTERY CONNECTOR SOLD SEPERATELY - FEMALE XT60 OR T-PLUG RECOMMENDED)

Ideal Vehicles - 1/10th Short course truck, Monster truck, Truggies & Buggies

(SENSORLESS = LESS THINGS TO GO WRONG! HOWEVER NOT AS SMOOTH AS SENSORED VERSIONS. YOU WILL ONLY NOTICE WHEN STOPPED ON AN INCLINE - YOU MAY EXPERIENCE 'COGGING' WHERE YOU WILL NEED TO REVERSE, IN ORDER TO REINGADGE FORWARD MOVEMENT.)

Introducing QuicRun WP 10BL60 G2 Brushless Speed Control - SENSORLESS VERSION

Intelligent freewheeling technology effectively reduces heat generation
The intelligent freewheeling technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature.
It further improves on the stability and reliability of the ESC.

Small and compact
The new QuicRun WP 10BL60 ESC is more compact than its predecessor
It is shorter in length by 2.5mm
The width is reduced by 1.5mm
Overall, it makes the layout and wiring convenient

Efficient cooling system
The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling.
The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.

Capacitor overheating protection
The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may degrade due to daily wear and aging. Do not submerge in water for a long time, otherwise the product may be damaged.

A vast variety of programming methods
It supports three programming methods:
Multi-function LCD programming box PRO, LED programming box, and SET key, making it easy for users to choose their favourite programming method for parameter adjustment.

Great value for money
Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!

Specifications

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SL

Waterproof - Yes

Cont./Peak Current - 60A/360A

Input Voltage - 2-3S LiPo

BEC Output - Switch Mode 6V @3A

Input Wires - Black-14AWG-150mm*1 Red-14AWG-150mm*1

Output Wires - Black-14AWG-60mm*3

Input Connectors - No

Output Connectors - 4.0MM Gold (female)

Fan

Size - 30.0x30.0x10.0mm

Voltage Range - 6V

Powered by BEC

ESC Programming via

SET Button on ESC - Supported

LED Program Box - Supported

LCD G2 Program Box - Supported

OTA - Not Supported

Programming Port - Shared with fan port

Firmware Upgrade - Not Supported

Data Recording - Not Supported

Size - 46x36.5x34.3mm

Weight - 82.6g(w/Wires)

Applications - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles - 1/10th On-road, Buggy, Short course truck

KV Rating/T Count - 2S LiPo:KV≤6000；3S LiPo:KV≤3500（3652/3660 size motor）

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller and QUICRUN QR10BL120 G2 & 3652SL 5400KV G2 Combo.

Shaft Diameter - 3.175mm

(5400KV WORK OUT TO BE AROUND (9TURNS) SENSORLESS MOTOR)

SENSORED ESC WITH SENSORLESS MOTOR BUNDLE

IDEAL FOR 1/10 Short Course Trucks. BUGGIES AND TRUCKS

ESC

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SENSORLESS COMBO (ESC IS ABLE TO TAKE SENSORED MOTORS - IF A SENSOR WIRE IS ATTACHED TO A SENSORED MOTOR AND MODE CHANGED)
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
2-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red--12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor


Motor

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 5400KV
LiPo - 2-4s
No-load Current(A) - 6.8A
O.D. (mm) - 36
Length (mm) - 52
Shaft Diameter (mm) - 3.175
Weight (g) - 224g
Front Bearing - D13*D5*T4
Rear Bearing - D13*D5*T4

High performance but low price, users can own this reliable race-ready ESC at an affordable cost.

COMPACT DESIGN

IDEAL FOR: Car Applicable - 1/10 & 1/12 On-road / Off-road /
F1 / Drift car race Street race for fun /
Club racing / Daily practice /
STOCK race with 0 timing / Drift car race

Auto identification system can recognize sensored / sensorless brushless motors automatically. Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions. 8 steps of timing adjustment greatly increase the output power of the motor, and unlock its maximum potential. Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment. 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the portable Digital LED Program Card, especially convenient for outdoor use.

Current - 60A, Burst: 380A
Input - 4-9 cells NiMH or 2-3S Lipo
BEC Output - 6V@2A (Linear Mode)
Resistance - 0.0008
Motor Supported - Sensored and Sensorless Brushless Motor
Cooling Fan - 6V (The cooling fan gets its power supply from the built-in BEC)
Weight - 59g (with wires, without cooling Fan)
Size - 33(L)X28(W)X31.5(H, with cooling fan)mm

Motor Limit - 4-6 cells NiMH/ 2S Lipo
8.5T(1/10 On-road), 13.5T(1/10 Off-road)
8-9 cells NiMH/ 3S Lipo
13.5T(1/10 On-road), 17.5T(1/10 Off-road)

Introducing the Hobbywing Justock Combo 'JS2' with XR10 G3S speed control, paired with the Hobbywing  G2.1 21.5T fixed timing brushless motor.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class.  Control products for that class are HW30112003, HW38020321, HW30408011

Speed Control Features.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

-------------------------------------------------------------

Motor Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

One of the most popular Hobbywing brushed speed controls, the WP1060 is now available with a XT60 Plug from Yikong

- A great alternative to Tamiya for those who prefer this plug style.

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - XT60
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

One of the most popular Hobbywing brushed speed controls, the WP1060 is now available with a XT60 Plug from Yikong

- A great alternative to Tamiya for those who prefer this plug style.

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - XT60
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller and QUICRUN QR10BL120 G2 & 3652SL 4000KV G2 Combo.

Shaft Diameter - 3.175mm

ESC - fitted with XT60 Plug

1/10th Motor Size is: 3652

KV Rating is higher the KV, the faster the model will go, but more heat is created and less acceleration.

Confirmed can handle 2-4S Lipo Batteries.

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC,and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - Brushless
Sensored/Sensorless - Sensorless
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
2-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red--12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor


Motor

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 4000KV
LiPo - 2-4s
No-load Current(A) - 5.3A
O.D. (mm) - 36
Length (mm) - 52
Shaft Diameter (mm) - 3.175
Weight (g) - 224g
Front Bearing - D13*D5*T4
Rear Bearing - D13*D5*T4
