1/10 Car Brushed Motors

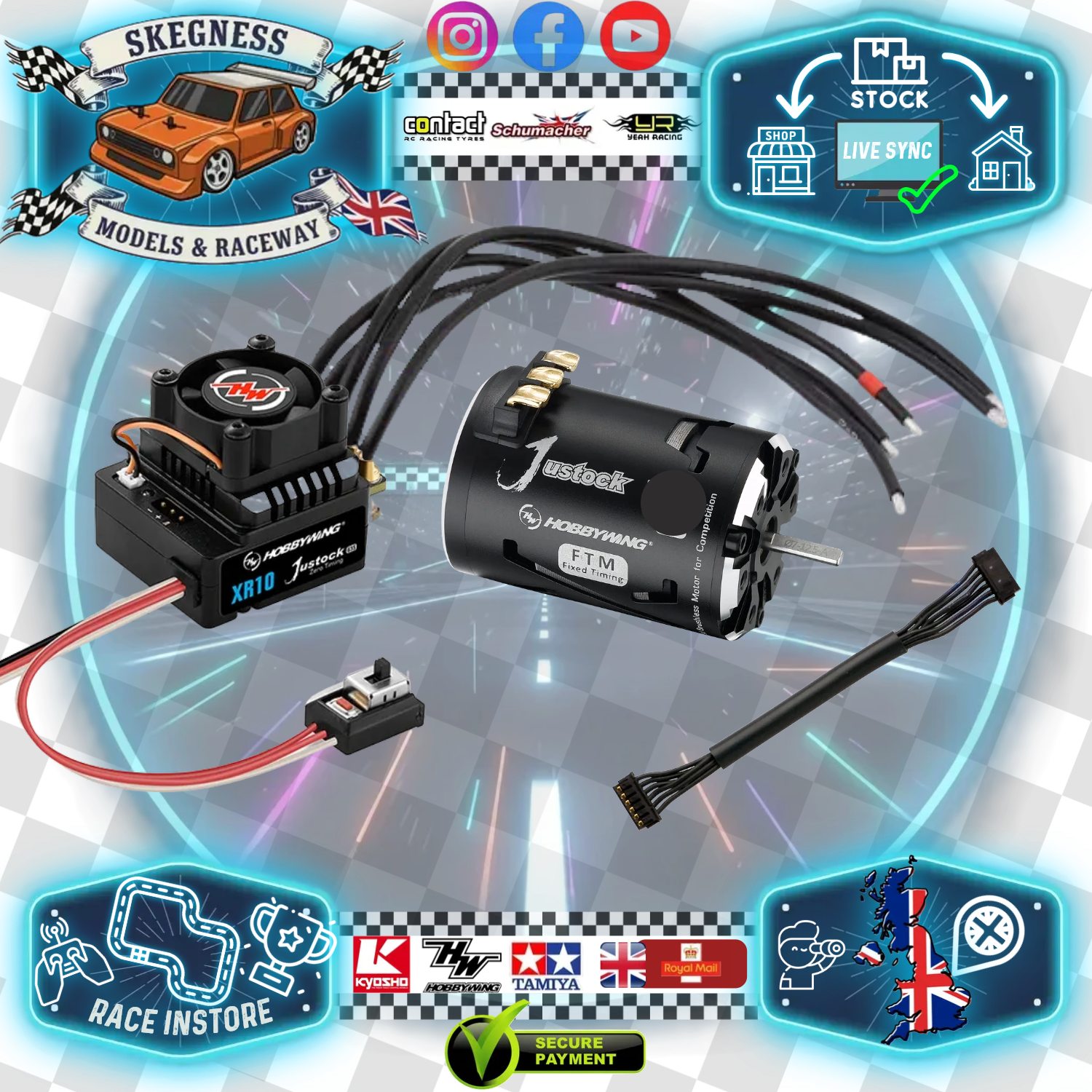

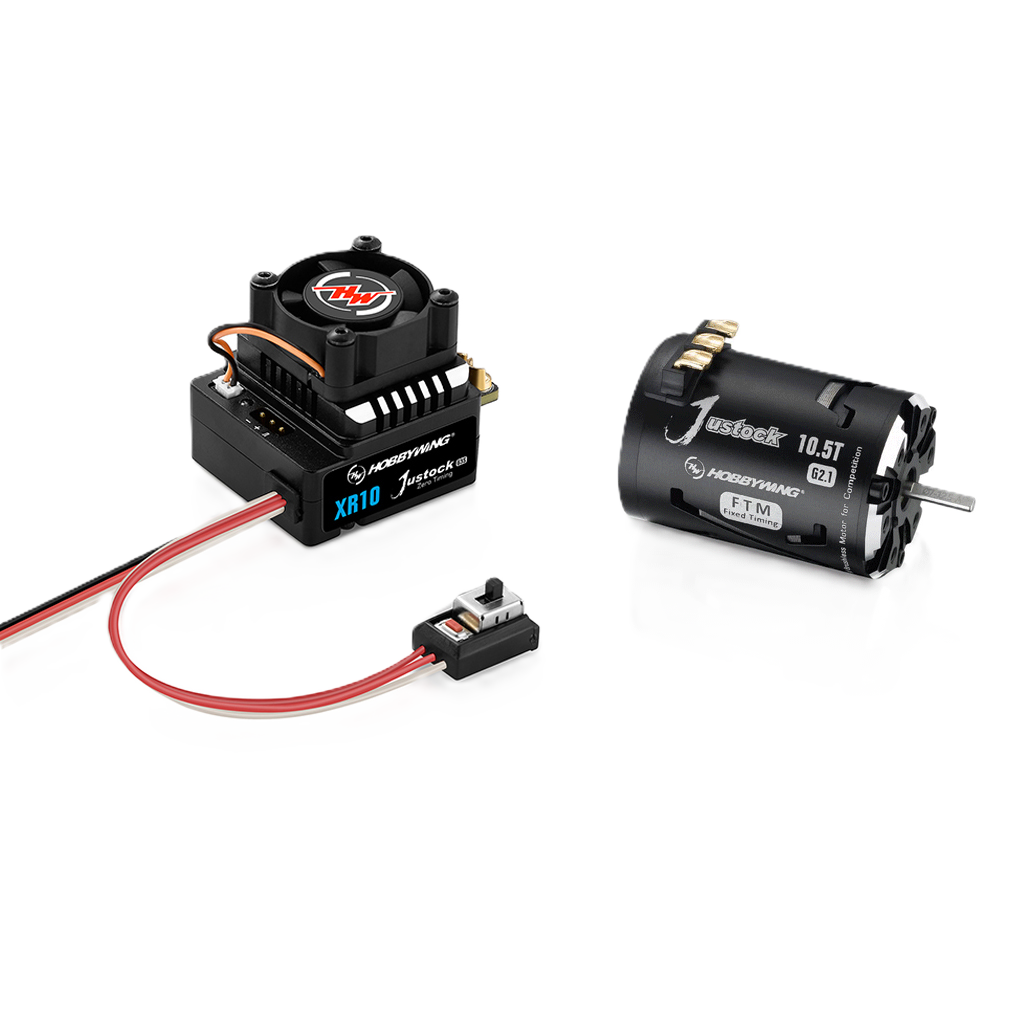

Introducing the Hobbywing Justock Combo 'JS2' with XR10 G3S speed control, paired with the Hobbywing  G2.1 fixed timing brushless motor.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.


Speed Control Features.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

-------------------------------------------------------------

Motor Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

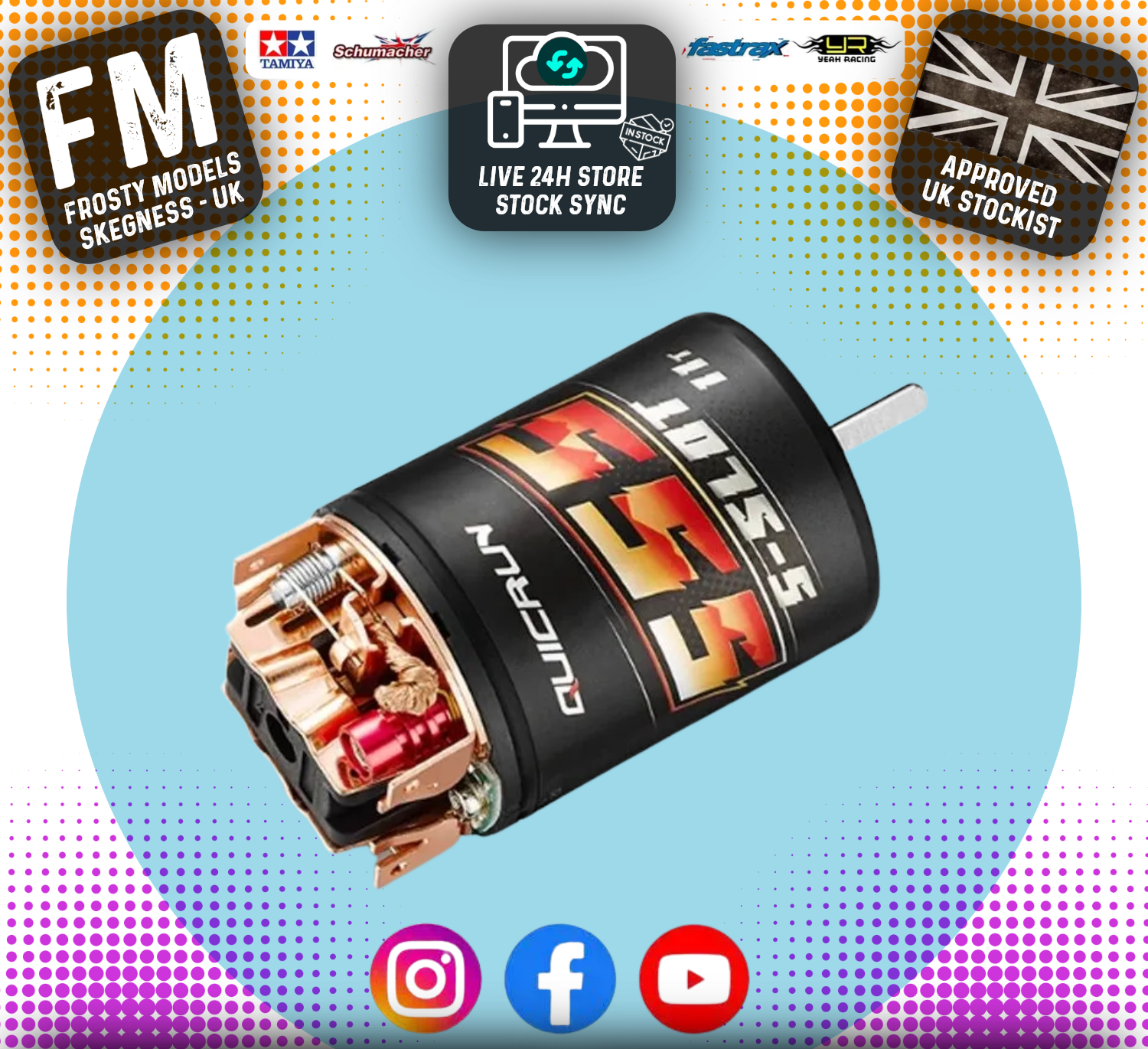

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th 550
Brushed/Brushless - Brushed

Relevant Parameters

RPM@7.4v - 17000
Input Voltage - ≥10v
Slot - 5

Size & Weight

O.D.(mm) - 36
Length (mm) - 58.5
Shaft Diameter (mm) - 3.175
Weight (g) - 193

1/10th Crawler / Short course truck / Monster truck

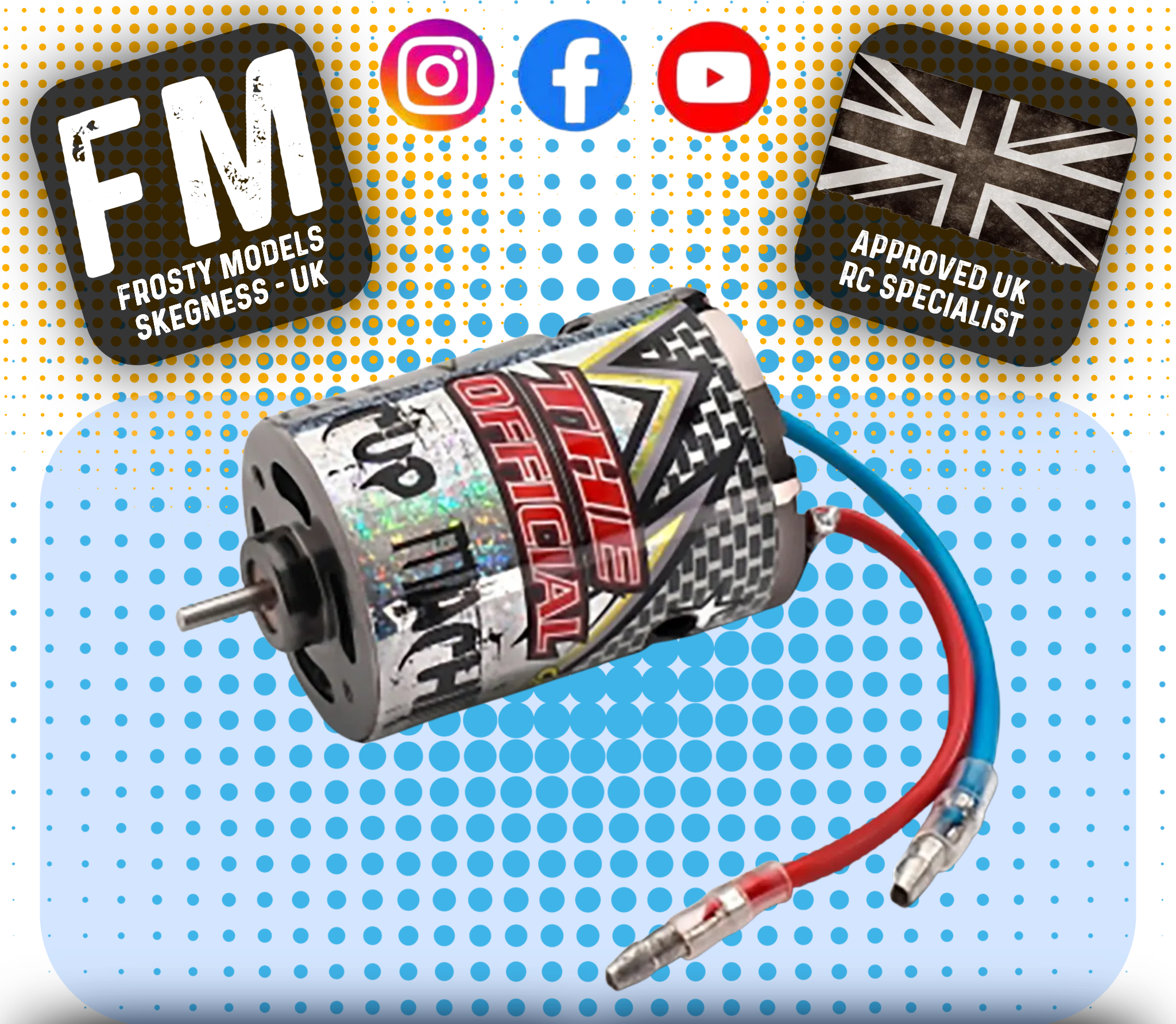

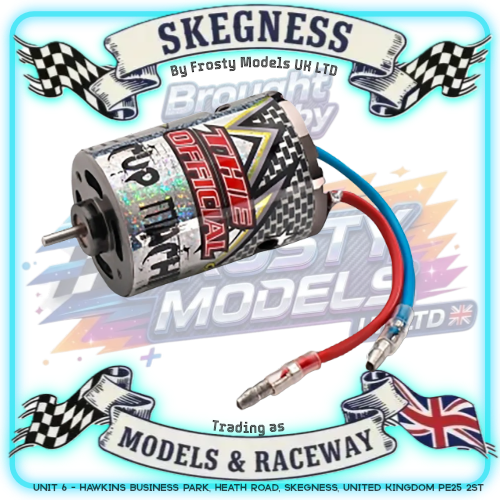

This motor is similar in spec to Tamiya's 53068 Sport Tune motor but with a 16400 RPM speed at typical voltage.

It has been engineered to work with all Tamiya speed controllers without needing any changes other than swapping the motor over - most other brands of motor require you to change the speed controller at the same time.

It gives a moderate speed and torque increase over the standard kit motor, without making any significant effect to the run time per battery.

Nominal voltage 6 V
Voltage range 4,8-8,4 V
Rotational speed 28.000 rpm
Current consumption 1.95 A with max. efficiency: efficiency 61.1 % .

Rotational speed 16.400 rpm
Torque 1.69 Ncm
Current consumption 8.7 A
Output 28.8 W

• Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.
• ALLOWED IN SOME TT01E EURO TRUCK CLASSES AS REPLACEMENT FOR TORQUE TUNED TAMIYA MOTOR

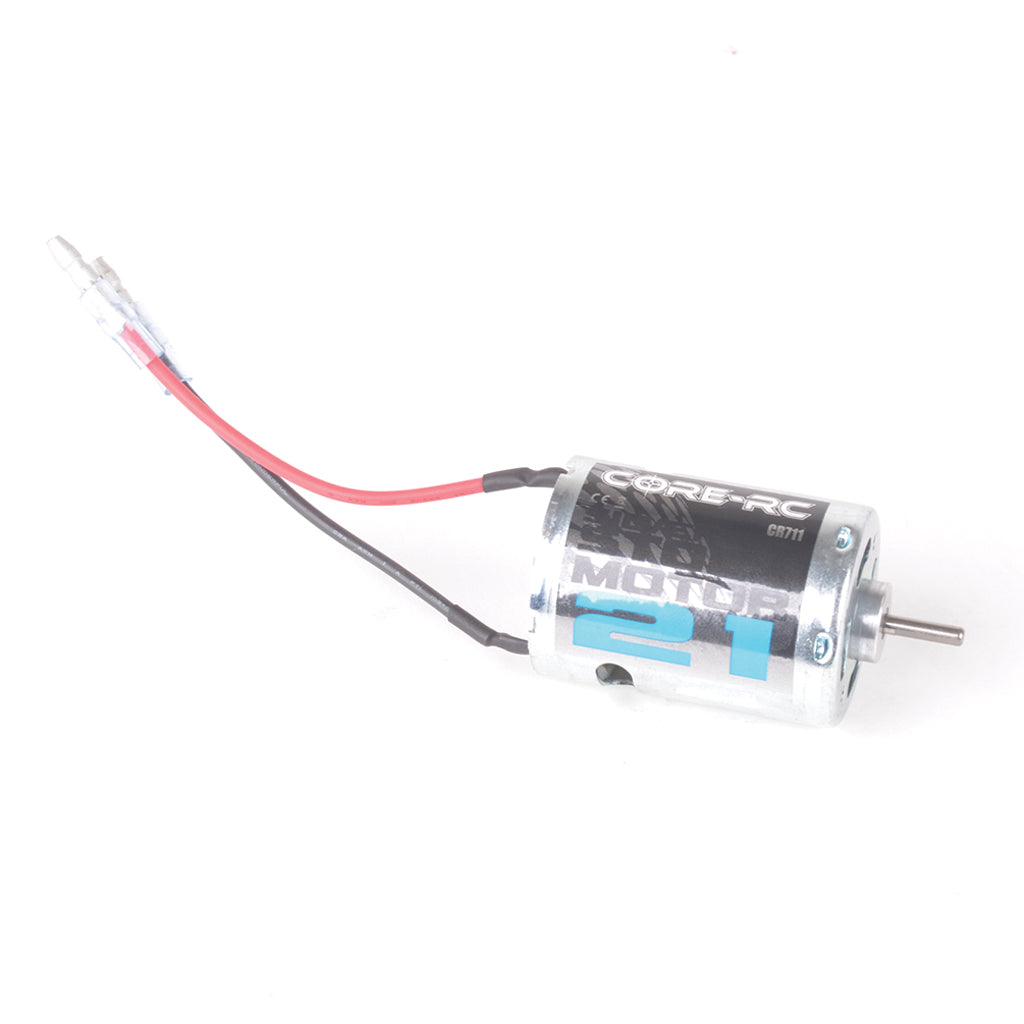

  - 21 Turns especially designed for F2 Stock Cars and Bangers etc
  - Approved by the BRCA for F2 Stock Cars.

Common uses for this stock 20T 540 Size Motor is for use in Mardave Banger and Mini.

• - Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

• - Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

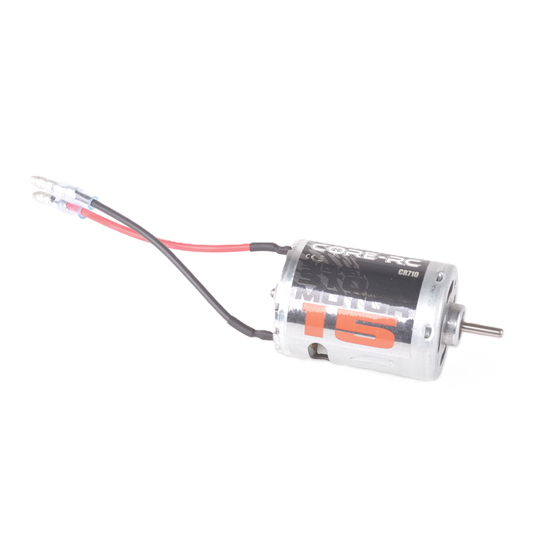

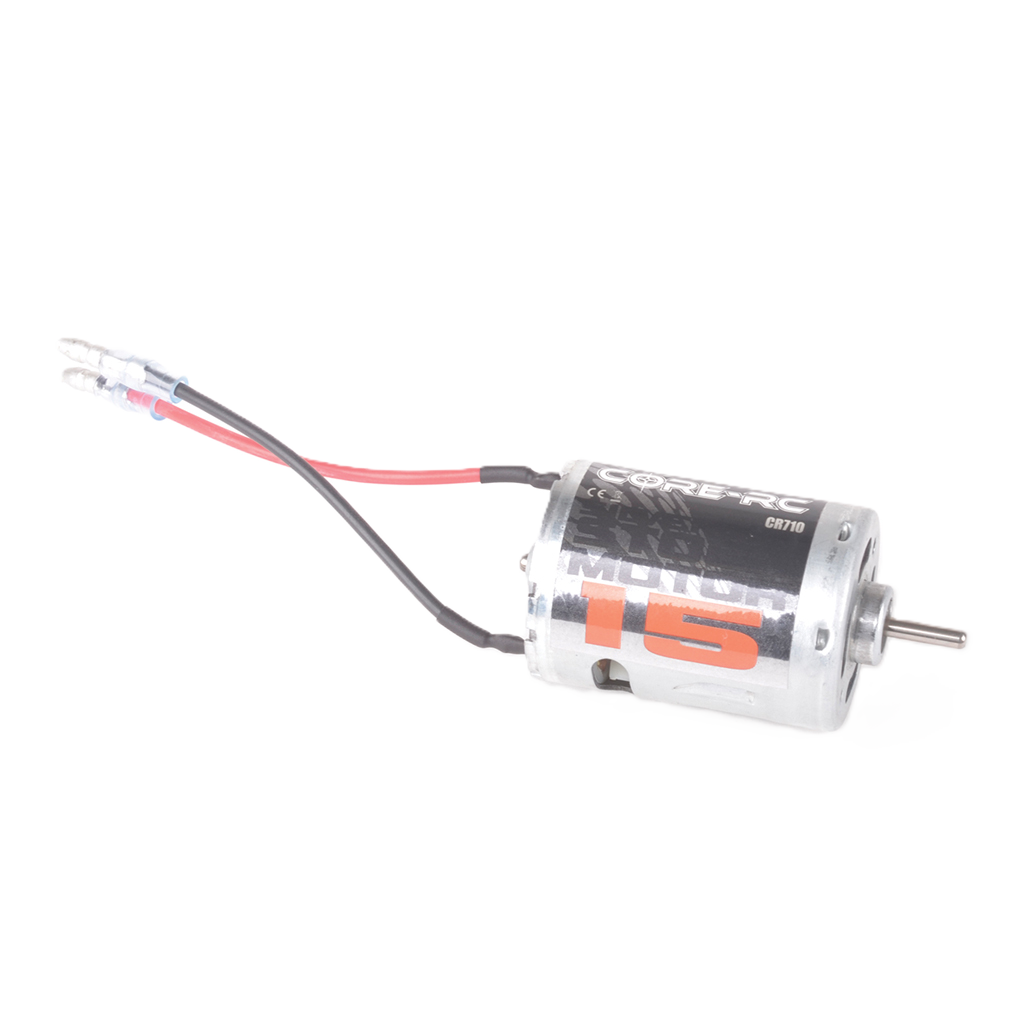

15Turns is faster than a 21Turn - Please make sure the ESC used can handle.

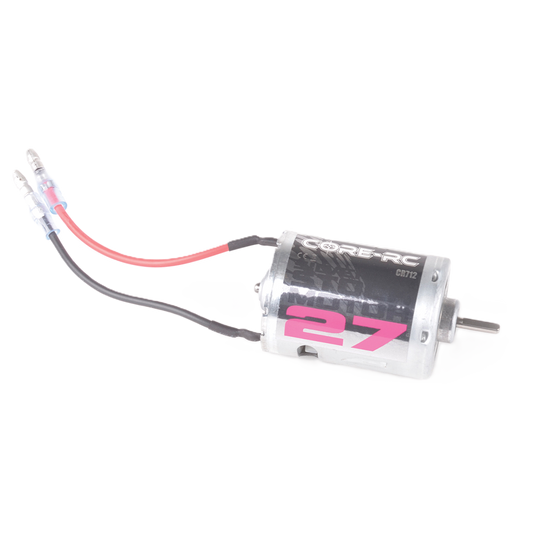

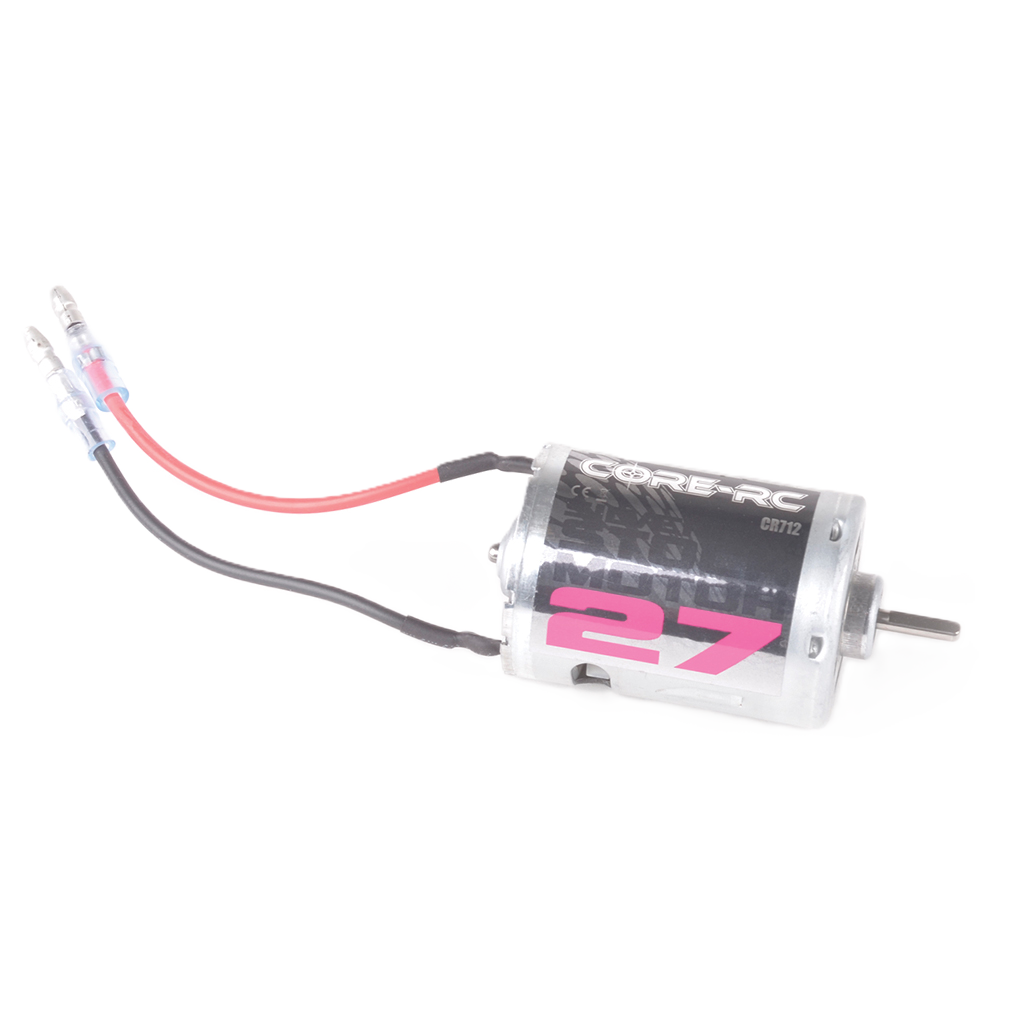

• Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

Great replacement for Tamiya TT01 & TT02 etc
