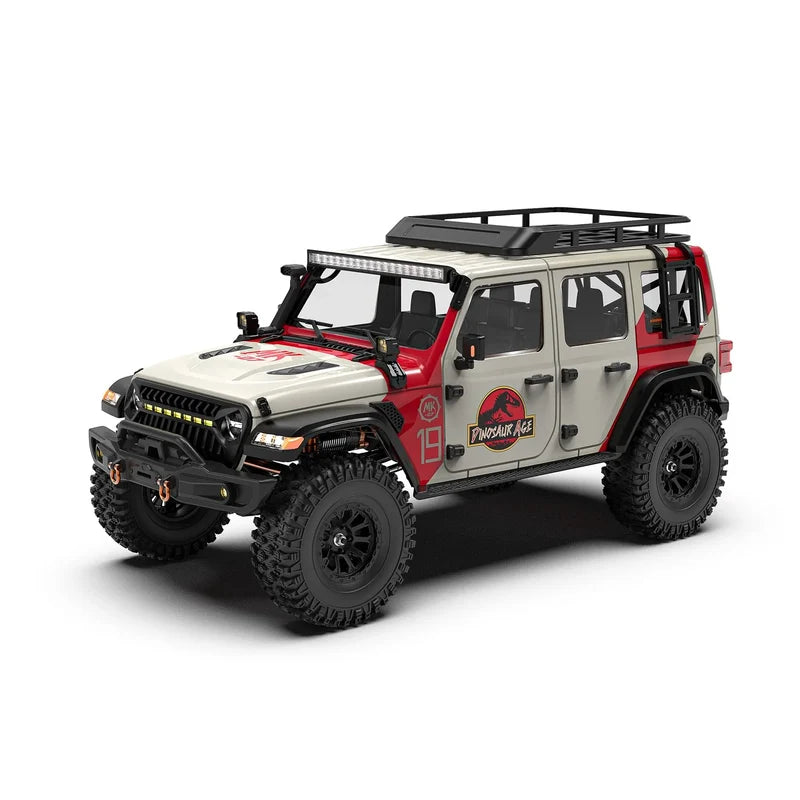

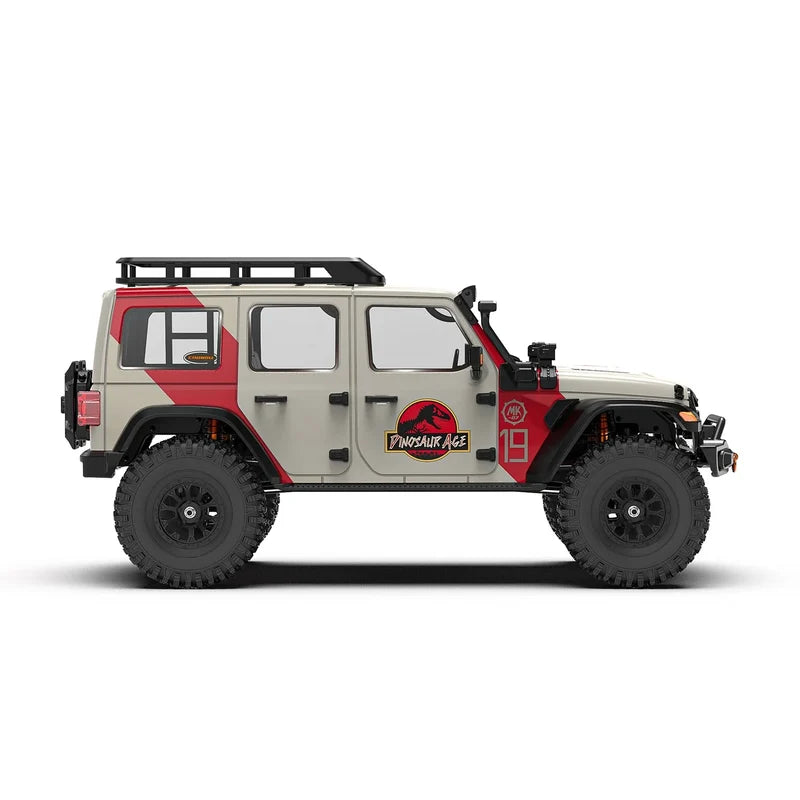

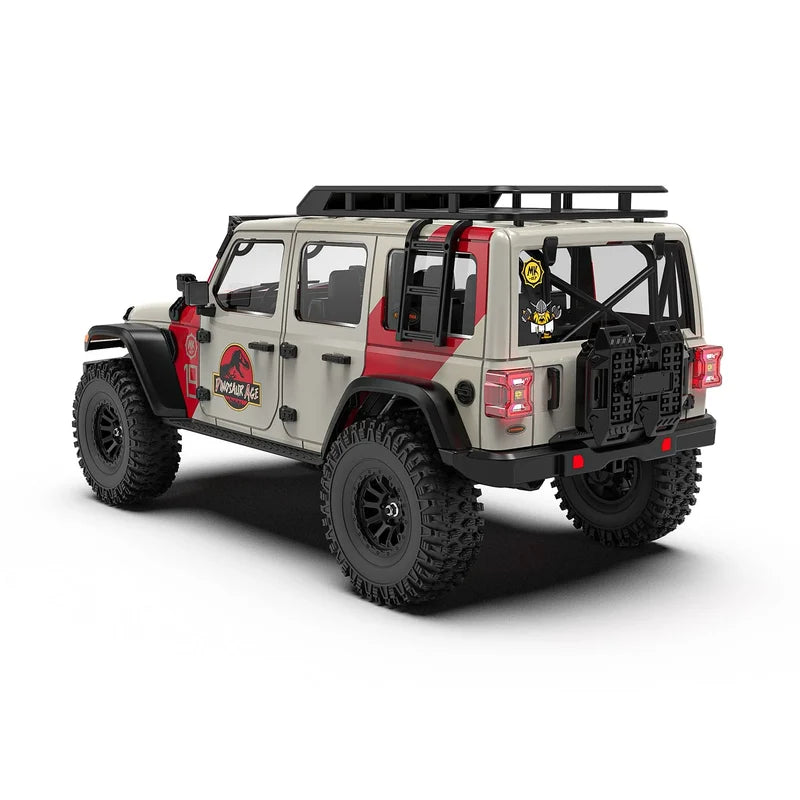

The Rlaarlo MK-07 V2 Dinosaur Age Edition is a serious large-scale RC crawler built for drivers who want realistic scale looks, powerful brushless performance and proper off-road capability with the added touch of a hand-painted finish.

At 1/7 scale, this is a big, heavy-duty crawler with plenty of presence. The detailed body, working lighting system, large tyres and scale accessories give it a realistic trail truck appearance, while the capable 4WD drivetrain and portal axle setup allow it to take on rough terrain with confidence.

Power comes from a 4282 2600KV brushless motor paired with a 140A brushless ESC, giving the MK-07 V2 smooth throttle control, strong torque and plenty of pulling power for climbing, trail driving and technical off-road use. The brushless system is designed to deliver precise low-speed control while still offering enough power for more open terrain.

The MK-07 V2 features lockable front and rear differentials, allowing you to adjust the drivetrain to suit the surface. Unlock the diffs for tighter steering and smoother driving, or lock them when you need maximum traction over rocks, mud, ruts and steep climbs.

Portal axles help increase ground clearance, making it easier to clear obstacles without catching the underside of the vehicle. Combined with the forward-mounted gearbox and front motor layout, the MK-07 V2 offers improved weight distribution and better climbing stability when the terrain gets more challenging.

The chassis is built around tough 6mm CNC aluminium alloy rails, giving the truck a strong and rigid foundation. Stainless steel suspension links, adjustable metal oil-filled shocks and rubber-sealed bearings all help make this a capable and durable platform for serious off-road use.

A 40kg steering servo provides strong steering power, while additional servos operate key functions including high and low speed switching, front and rear differential lock and rear-wheel drive control. The included 10-channel 2.4GHz radio system gives you control over the main driving functions, lighting and drivetrain settings.

The MK-07 V2 also includes an impressive scale lighting system with front lights, daytime running lights, high and low beam settings, roof light bar, indicators and additional body lighting effects. This gives the crawler a much more realistic appearance, especially when used on trails or in low-light conditions.

Supplied as an RTR model, the Rlaarlo MK-07 V2 is supplied with the vehicle and radio system included. Simply add a suitable 2-4s LiPo battery with XT60 connector and a compatible charger to complete the package (optional 3S battery and charger available from the drop-down choice).

Key Features

• Large 1/7 scale RC crawler

• Brushless RTR version

• 4WD drivetrain

• 4282 2600KV brushless motor

• 2-4S 140A brushless ESC

• 10-channel 2.4GHz radio system

• Lockable front and rear differentials

• Portal axle design for increased ground clearance

• Forward-mounted gearbox for improved climbing stability

• Front motor layout for better weight bias

• 40kg waterproof steering servo

• Additional servos for drivetrain functions

• High and low speed switching

• 6mm CNC aluminium alloy chassis rails

• 8mm stainless steel suspension links

• Adjustable metal oil-filled shock absorbers

• Rubber-sealed ball bearings

• Twin friction plate slipper clutch

• High-mounted steering and drag links

• Full scale lighting system

• Realistic body details including mirrors, handles, fenders and wipers

• Large 145mm off-road tyres

• Battery tray suitable for larger LiPo packs

• XT60 battery connector

Features Explained

The lockable differentials allow you to choose between smoother steering or maximum traction depending on the terrain. This makes the MK-07 V2 much more versatile than a basic crawler.

The portal axles give the truck extra ground clearance, helping the drivetrain and suspension links clear rocks, roots and uneven ground more easily.

The front-mounted motor and forward gearbox layout improve weight distribution, giving the crawler better grip and stability when climbing.

The 6mm CNC chassis rails, stainless steel suspension links and metal oil-filled shocks give the MK-07 V2 the strength and control needed for large-scale off-road driving.

The full lighting system adds excellent realism, with multiple lighting modes that help bring the scale body to life.

Specifications

• Scale: 1/7

• Drive System: 4WD

• Vehicle Type: RC Crawler

• Version: Brushless RTR

• Length: 700mm

• Width: 325mm

• Height: 340mm

• Wheelbase: 439mm

• Weight: Approx. 7kg


• Range: Approx. 350m

• Body: 1.5mm Polycarbonate

• Transmitter: 2.4GHz 10-Channel Radio System

• Motor: 4282 2600KV Brushless Motor

• ESC: 140A Brushless ESC

• Input Voltage: 2-4S LiPo

• Steering Servo: 40kg rated

• Shock Type: Adjustable Metal Oil-Filled Shocks

• Chassis: 6mm High-Strength CNC Beam Chassis

• Drivetrain: 4WD with Differential Lock

• Differential Type: Steel

• Spur Gear: Metal

• Motor Gear Type: Steel

• Servo Gear Type: Metal

• Battery Tray Size: 164 x 49mm

• Tyre Diameter: 145mm

• Tyre Width: 58mm

• Battery Connector: XT60

What's Included

• Rlaarlo MK-07 V2 Brushless 1/7 Scale RC Crawler (Dinosaur Age Edition)

• 2.4GHz 10-Channel Transmitter

• OPTIONAL - 3S 5200mAh LiPo battery and USB Charger (select from the drop-down choice).

Product Description

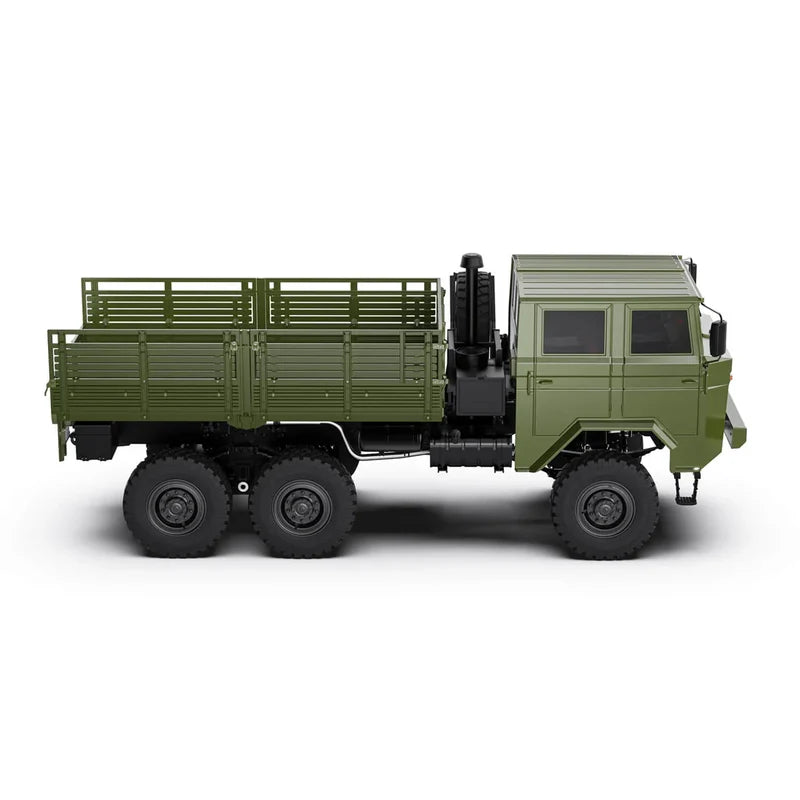

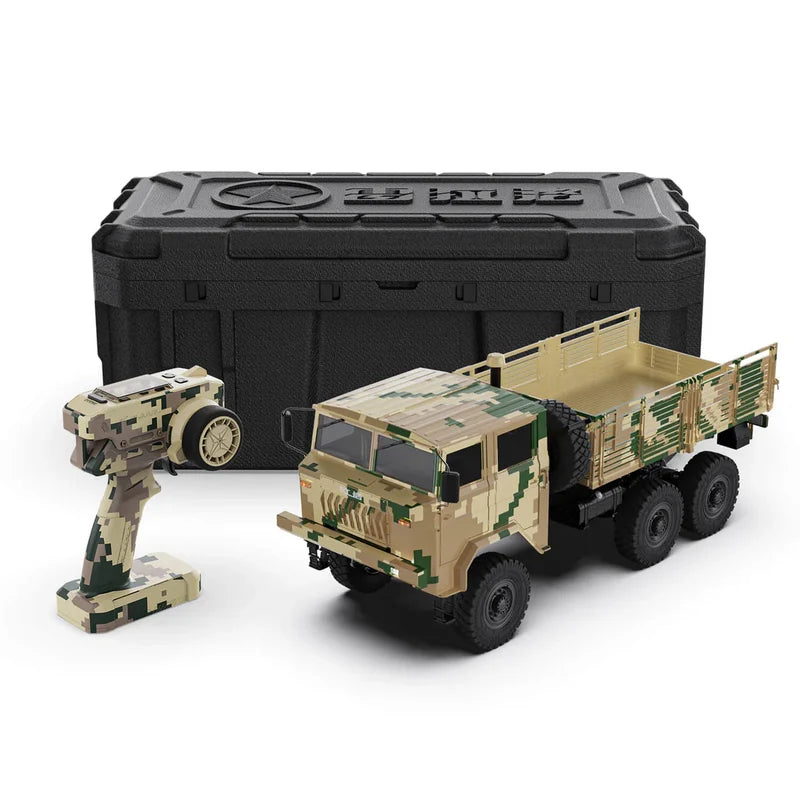

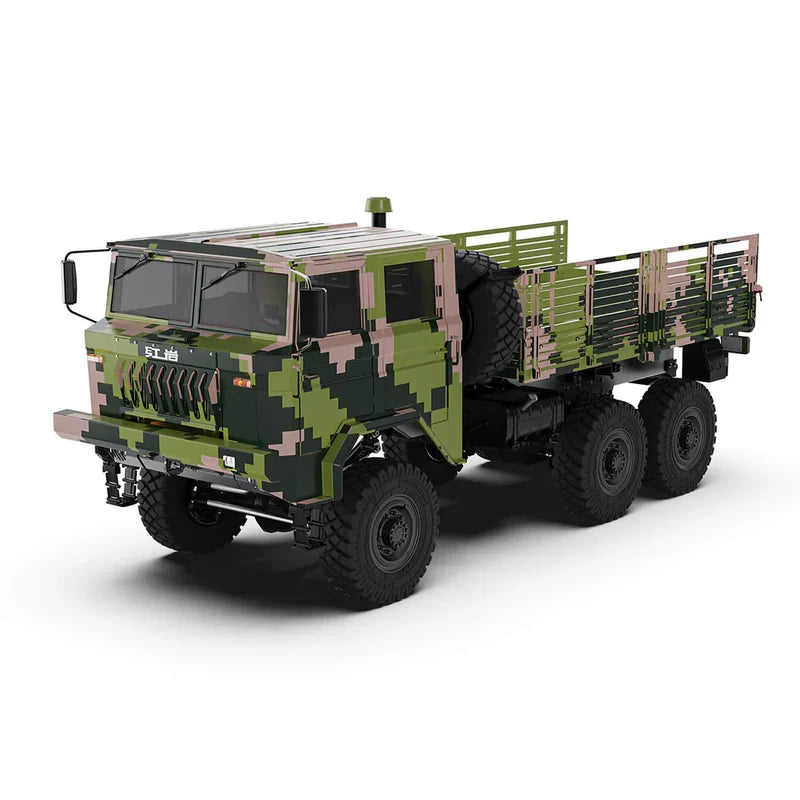

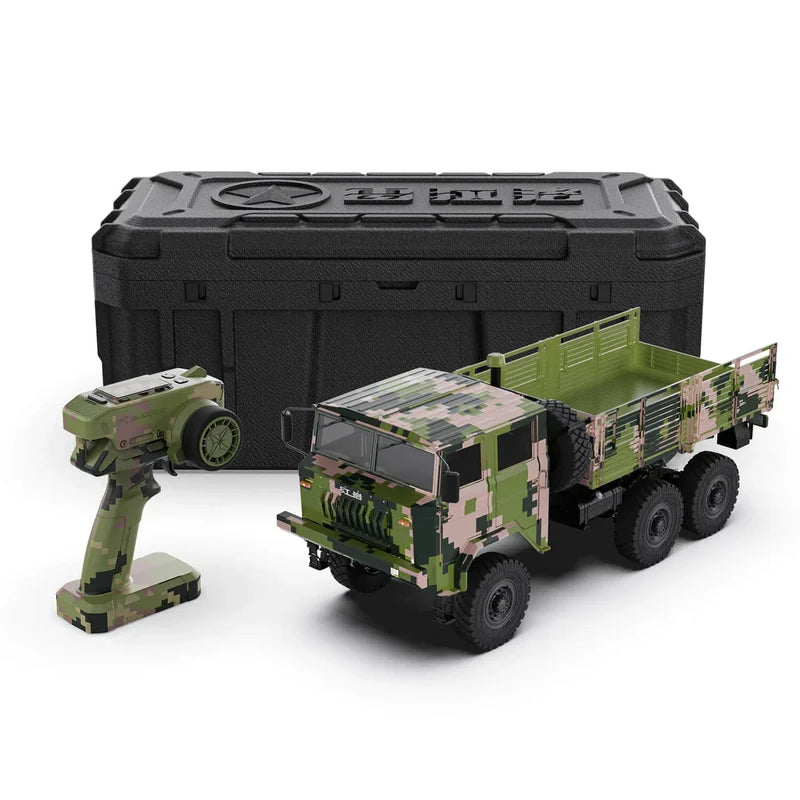

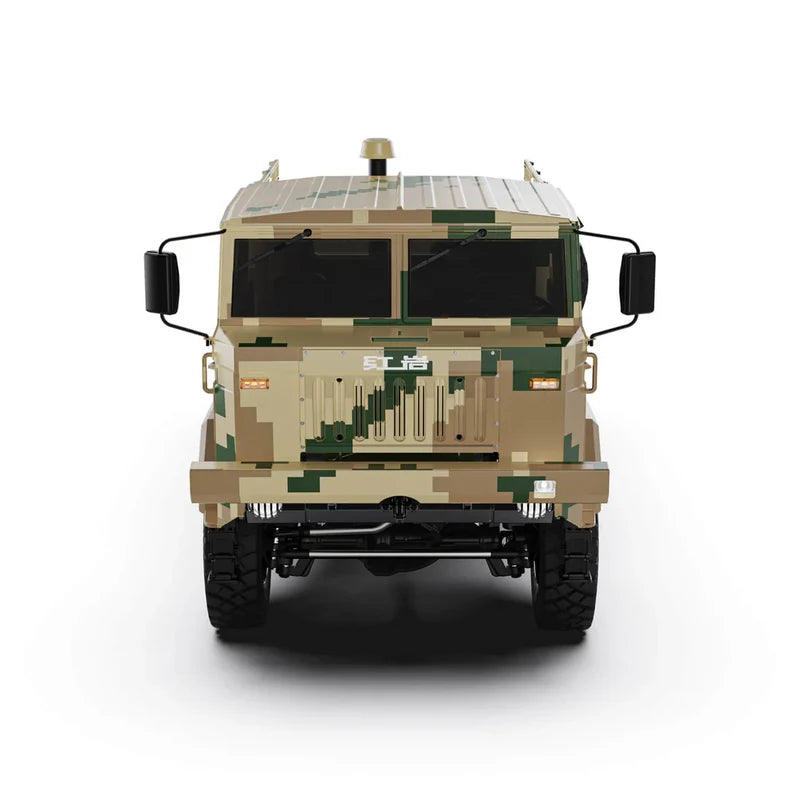

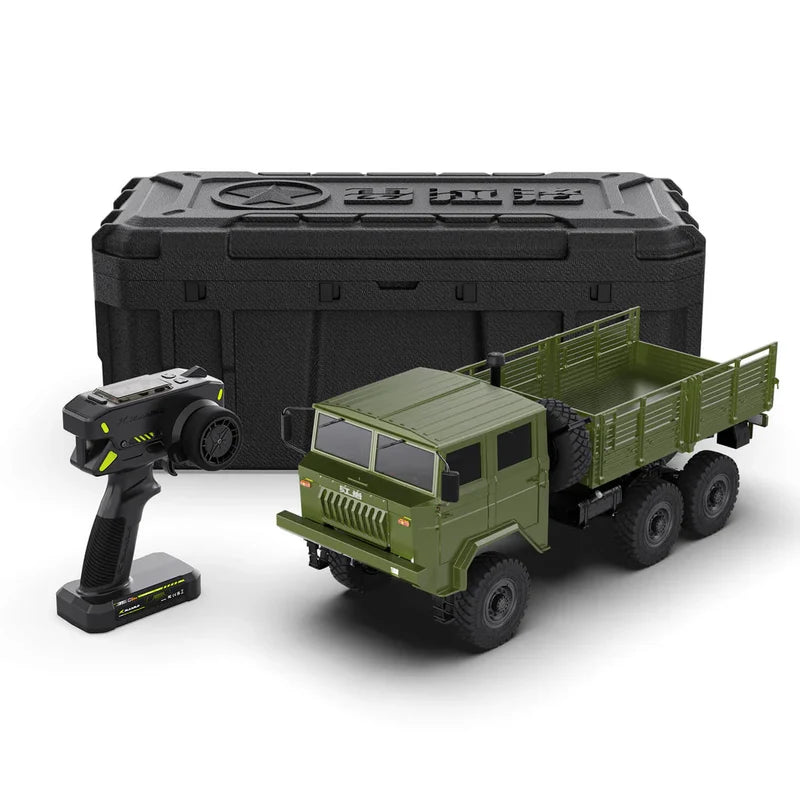

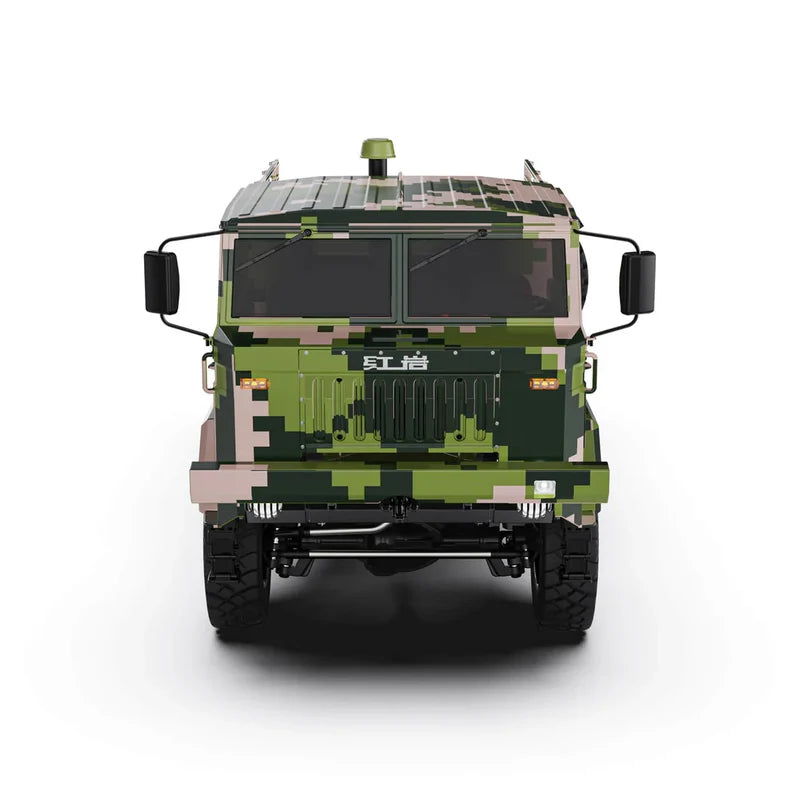

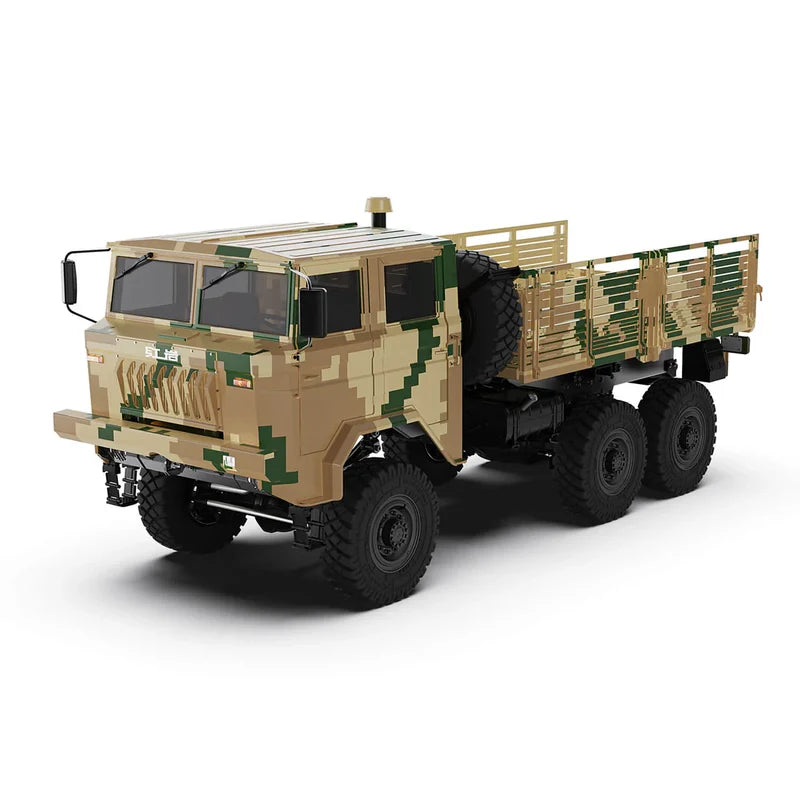

The HongYan HY6 Desert Edition truck is not simply a scale model — it is a purpose-built heavy-duty truck engineered for demanding terrain. At its core are 6 mm thick CNC-machined aluminium chassis rails, delivering exceptional torsional rigidity rarely found in RC vehicles. This structural integrity continues to the rear with a one-piece 6 mm aluminium cargo bed floor, designed to carry substantial loads without flex or distortion.

The suspension system uses a traditional leaf-spring layout, faithfully replicating the load-bearing characteristics of the full-size vehicle. For users seeking increased articulation, the platform also supports oil-filled shock upgrades without modification.

Climbing Performance
The HY6 delivers controlled, progressive throttle response with ample torque, enabling confident operation on steep gradients and uneven terrain including rock, grass, and sand.

Integrated Scale Lighting System
A fully linked lighting package provides ten selectable modes, recreating authentic real-world vehicle lighting while improving visibility during low-light operation.

Modular Quick-Release Cargo Bed
The cargo bed features tool-free removable panels, allowing rapid reconfiguration for different load types and operational scenarios.

HongYan HY6 — Technical Specifications

• Model: HY6 (HongYan)
• Scale: True to scale 1/10 (similar size to a normal 1/7 scale RC model)

• Body: Injection-moulded ABS
• Chassis Rails: 6 mm CNC-machined high-strength aluminium
• Suspension: Steel leaf-spring system
• Linkages: 8 mm stainless steel pull rods
• Drivetrain: 6WD (six-wheel drive) with front differential lock
• Motor: 4282 FOC brushless motor
• ESC: 140A FOC brushless electronic speed controller
• Steering Servo: 45 kg high-torque waterproof metal-gear servo
• Radio System: 2.4 GHz 6-channel transmitter
• Control Range: Approximately 350 m
• Operating Voltage: 6 V
• Top speed: 21–42 km/h (terrain and setup dependent)

HongYan HY6 Size

• Length: 800 mm
• Width: 321 mm
• Height: 331 mm
• Wheelbase: 493 mm
• Tyre size: 126 mm × 40 mm
• Battery Compartment maximum size: 165 × 50 × 32 mm

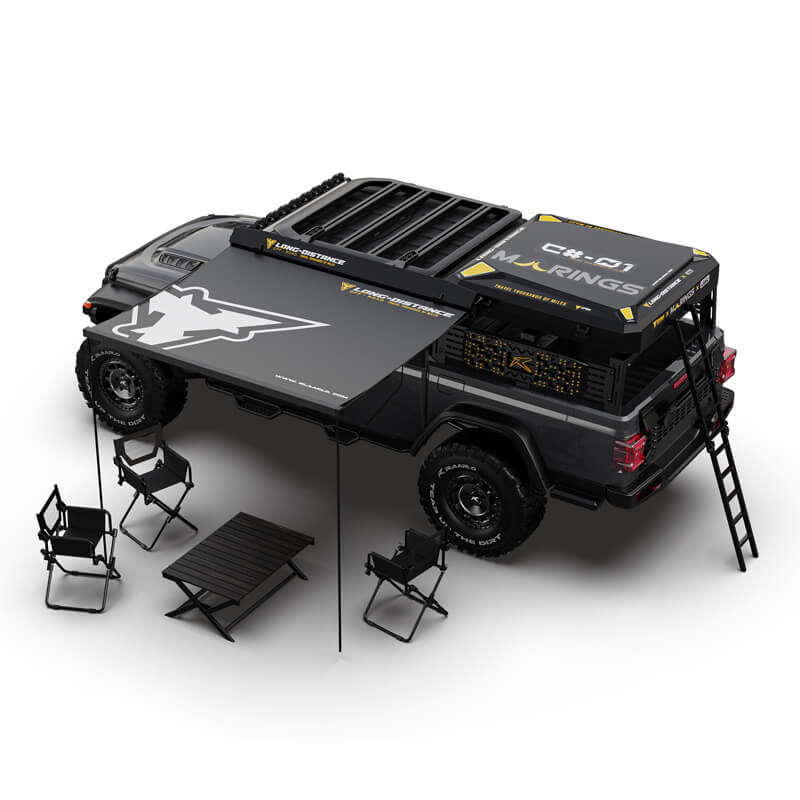

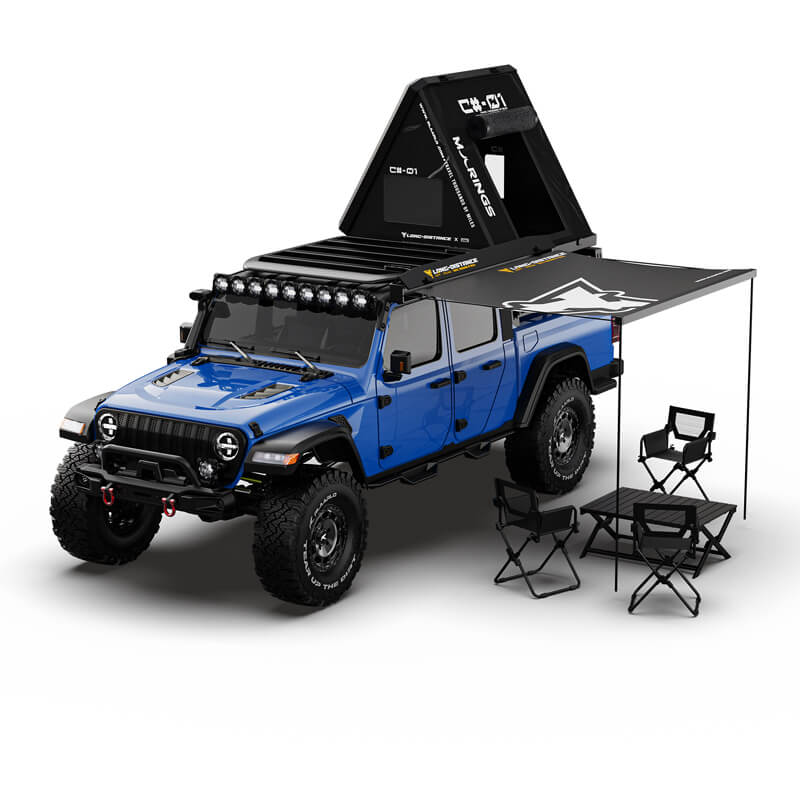

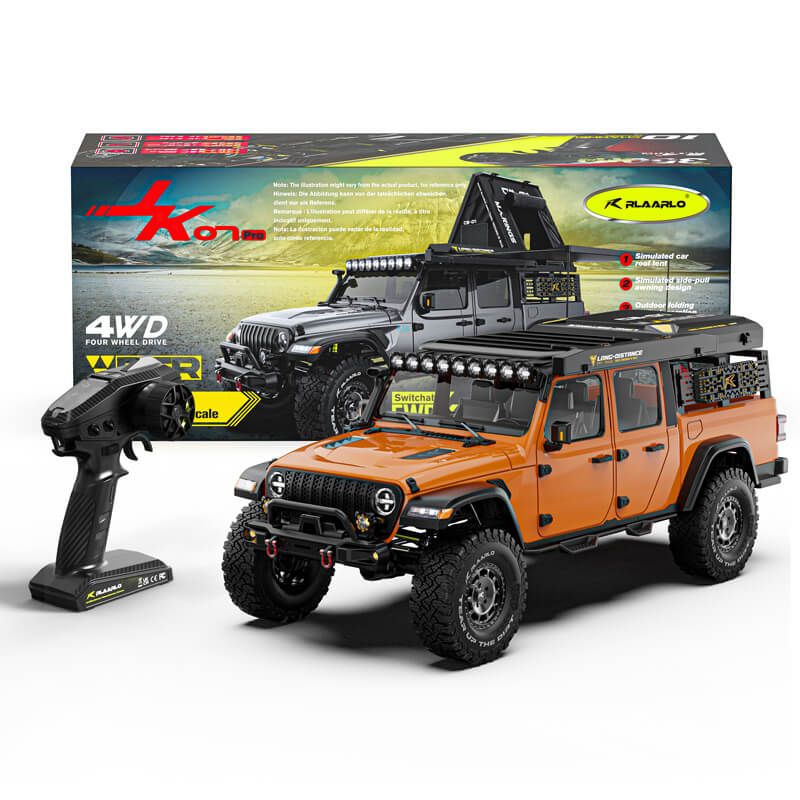

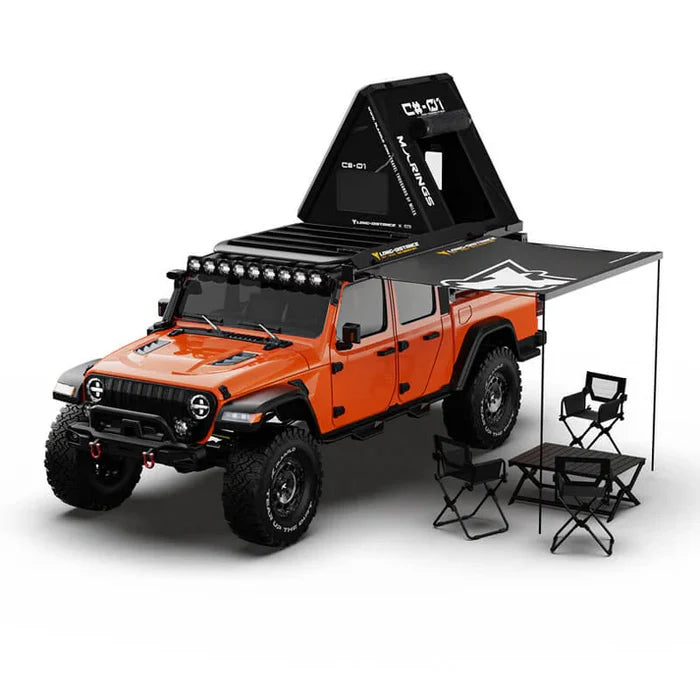

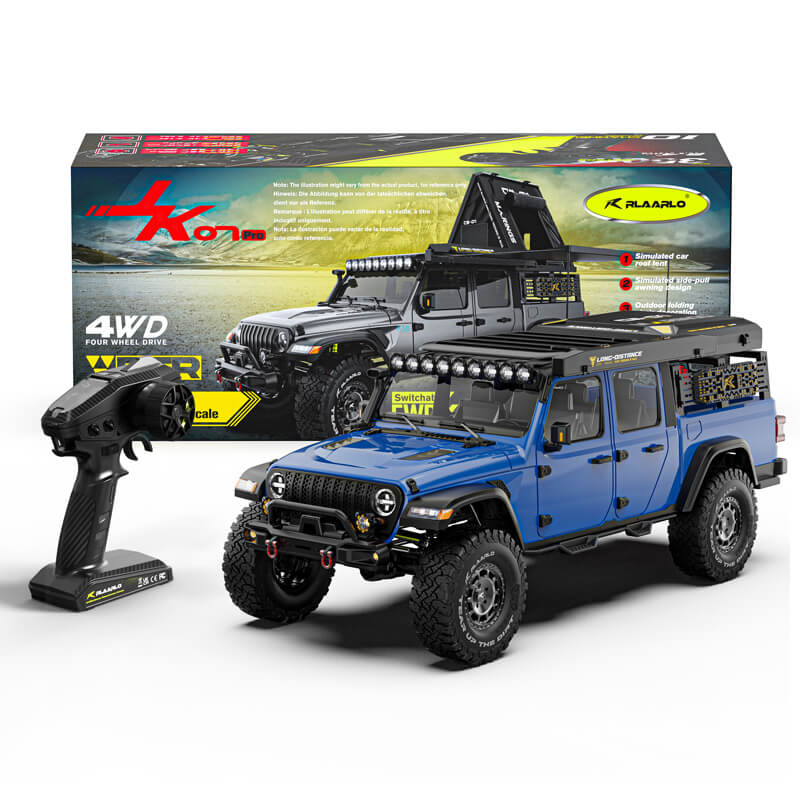

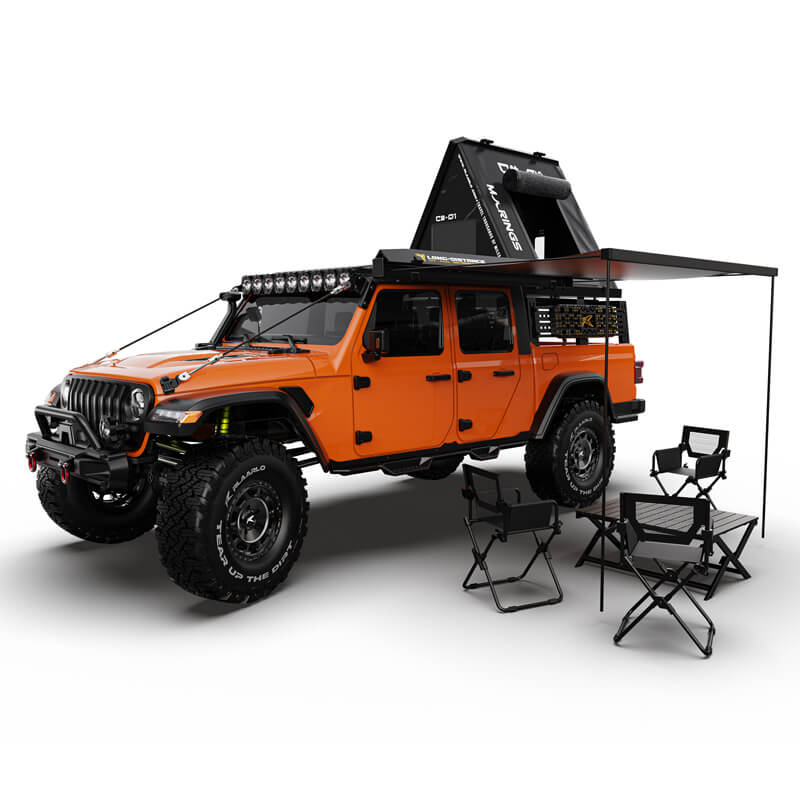

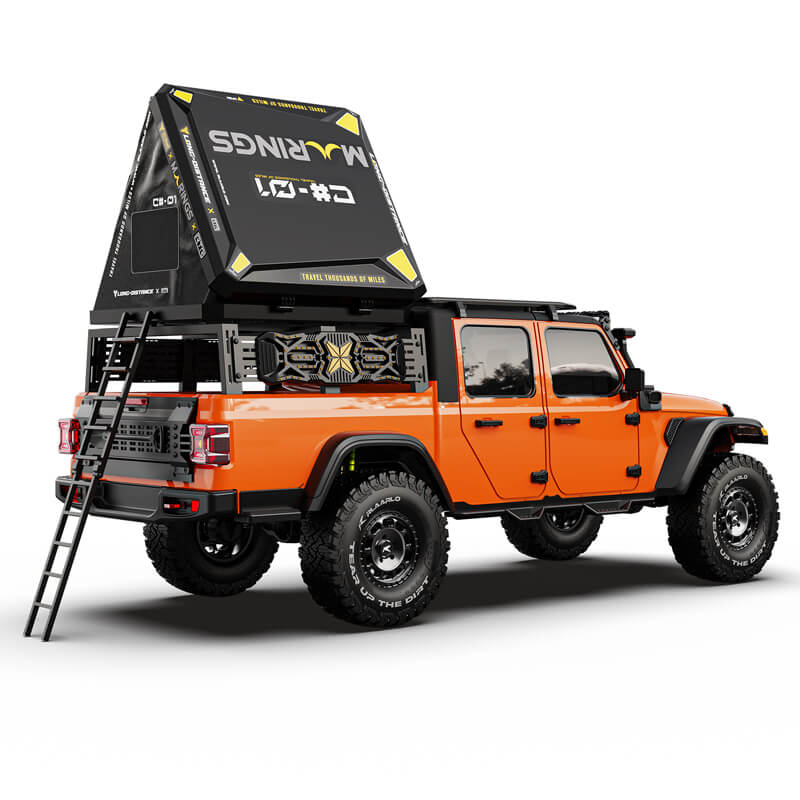

The JK07 Pro brushless model restores the appearance of the real car, equipped with a full vehicle linkage lighting system, simulation of side tents, gantries, luggage racks and other designs the ultimate simulation of details, to take you to open the adventure of truth and speed.

KEY FEATURES

• 4282-2200KV SENSORLESS BRUSHLESS MOTOR: Featuring a high-speed digital sensor that requires no calibration, the motor is plug-and-play. The sensor supports hot-swapping with strong anti-interference and high signal quality.
• 140A FOC VECTOR CONTROL ESC: supports 2-4S batteries with a continuous current of 140A, utilizing vector control technology. Compared to square wave ESCs, it saves 5%-20% energy, providing longer run times for climbing adventures..
• Professional Hobby Grade Transmitter with Receiver: 2.4 GHz 10-channel RC transmitter with a 350m range
• Gears: The gearbox adopts full CNC chromium steel gears throughout. The motor pinion and spur gear use 1.0CM whilst other transmission gears use 0.8CM, providing reliable durability for the entire gearbox
• Selectable 4WD to 2WD Transmission: Full-time four-wheel-drive transmission design can be alternated between front-wheel drive and rear-wheel drive. Upon encountering difficult obstacles, switching to front-wheel drive can provide more stable power output to overcome obstacles. When encountering downhill obstacles, switching to rear-wheel drive (locking rear wheels) can provide better power to stabilize the vehicle's descent
• Front and Rear Differential Design: The axle adopts 1.2CM gears to enhance durability. These can lock and unlock the front/rear differentials to meet different driving needs and terrain. Unlocking the differentials during driving will provide smoother steering and a tighter steering radius. When the terrain becomes more challenging, locking the rear differential or locking the front differential will allow the tires to obtain better power distribution and allow the vehicle clear the obstacle easier
• High and Low-Speed Can Be Switched On The Go: On flat roads switching to high gear will provide a faster high speed whilst driving on rough roads and extreme terrain using low gear increases torque. This will enable the user to tackle a multitude of terrain
• Twin Friction Plate Slipper Clutch: A slipper clutch design provides additional protection for the crawler under extreme conditions. This helps prevent any possible damage to the gears and the motor
• Forward Located Gearbox: Central gearbox design and location reduces the vehicle's center of gravity whilst improving climbing performance and stability by being located more towards the front. Reverse rotation design will help eliminate torque twist
• 3 Link Panhard Steering Link System: Drive train design reduces the lateral swing between the chassis plates (body) and the rear axle, making the car more stable on bumpy roads and more stable when driving straight
• 8mm Stainless Steel Suspension Rods: The entire vehicle suspension link rods uses thickened 8mm stainless steel to make the chassis more robust

• Oversized Front And Rear Axles: Large size front and rear axle design providing sturdiness and durability whilst allowing more space for the transmission to ensure the durability and fluid movement of the car
• 120mm Full Metal Hydraulic Shock Absorber: Extra-long 120mm all-metal hydraulic shock absorbers, with a maximum shock absorption stroke of 37mm provide smooth dampening of the vehicle even on rougher surfaces
• Powerful Lighting System: Front lights with daytime running, low and high beams, roof light (light bar) and turn signal lights, grille and top panel lights and rear hazard, brake, and reverse lights
• Powerful servos:45kg waterproof steering servo with 4 no’s of 25g servos used for high and low-speed switching, front and rear differential lock and rear-wheel drive
