Brushed 540 & 550 Motors

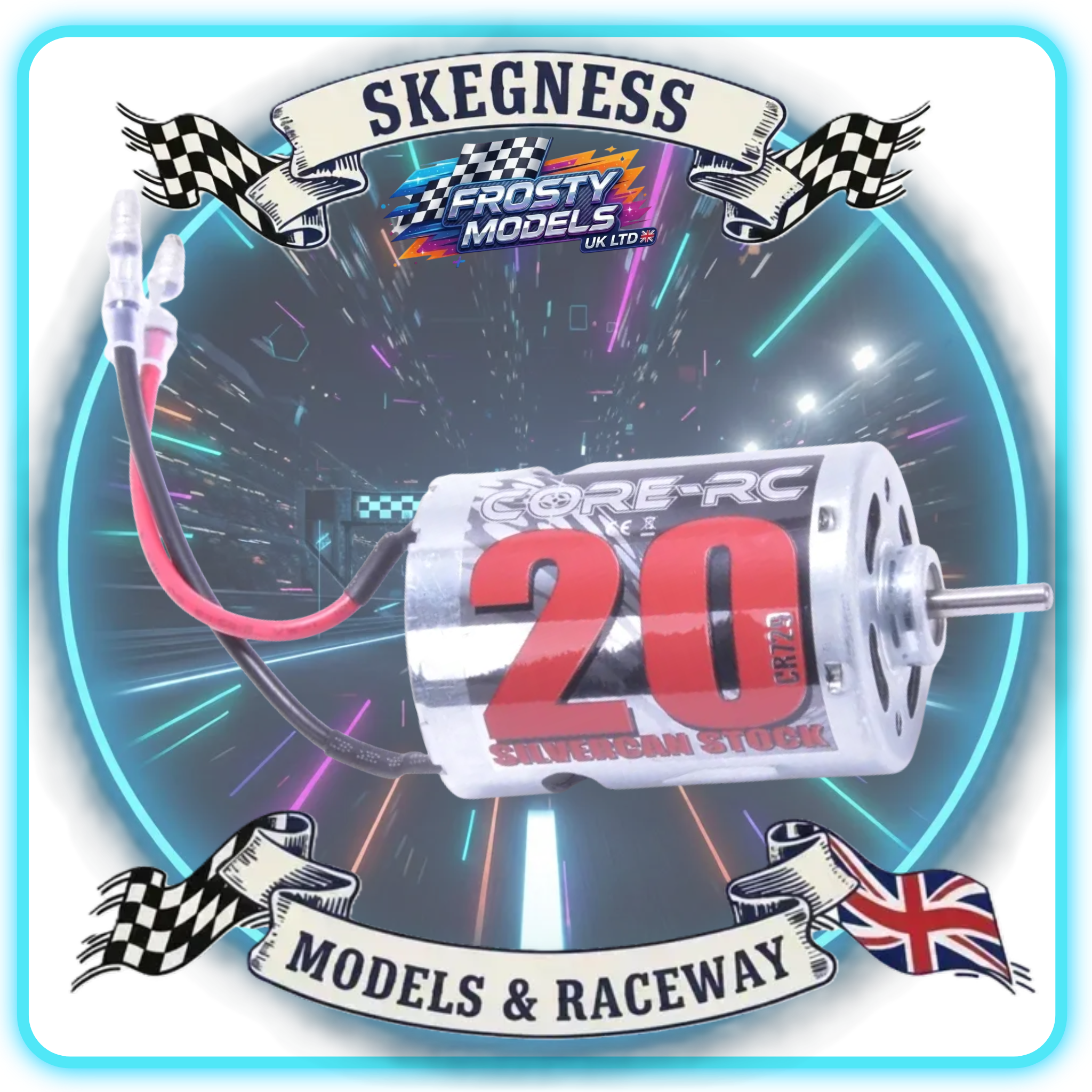

Introducing the CORE 20 Silver Can Brushed 540 Motor.

- 20 Turns especially designed for the 1/12th Mini class.
- Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
- Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
- Supplied with leads for easy connection in RTR cars.
- Includes internal cooling fan.

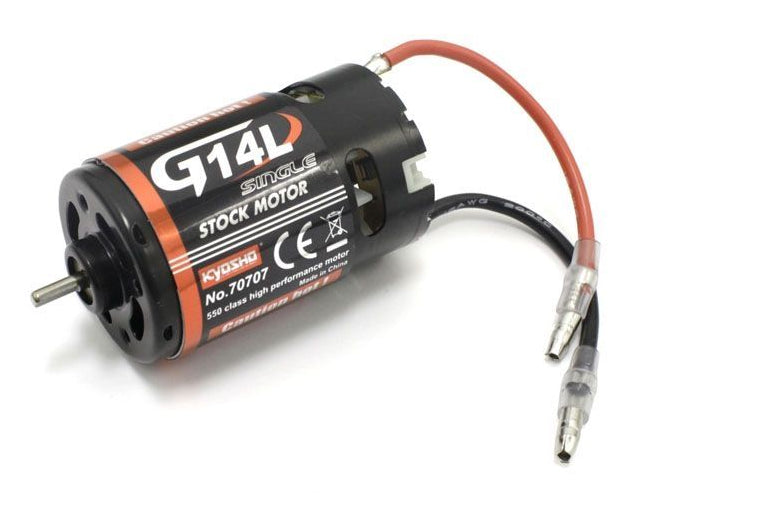

Kyosho G-Series 550 Class 14x1 Motor (RAGE 2.0)

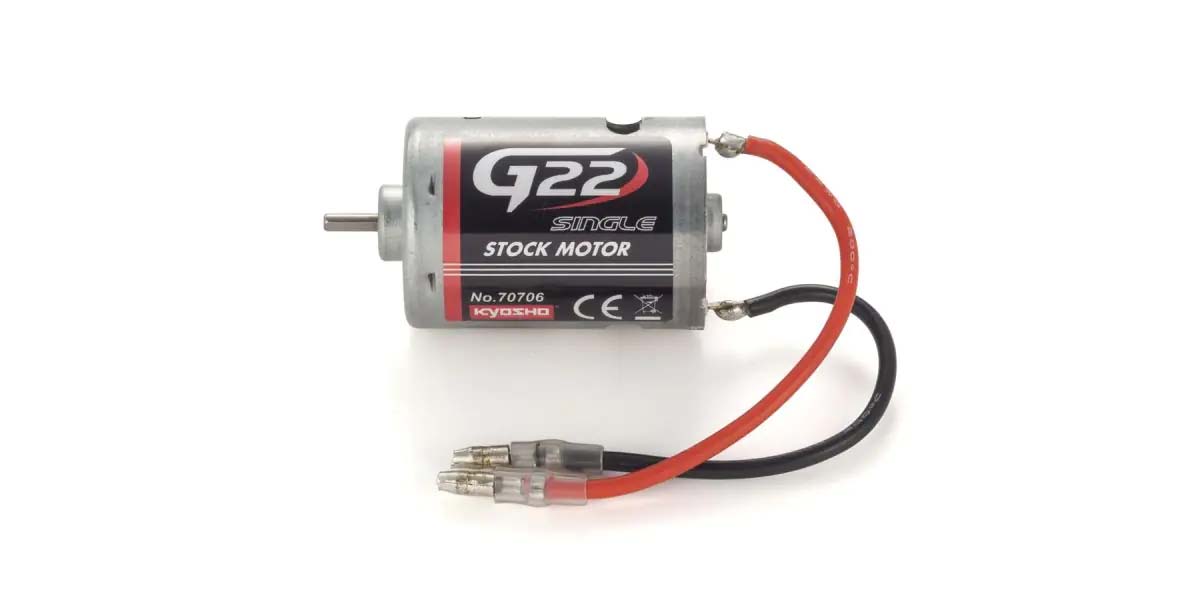

Kyosho G22 Classe 540 G-Series 22x1 Electric Motor

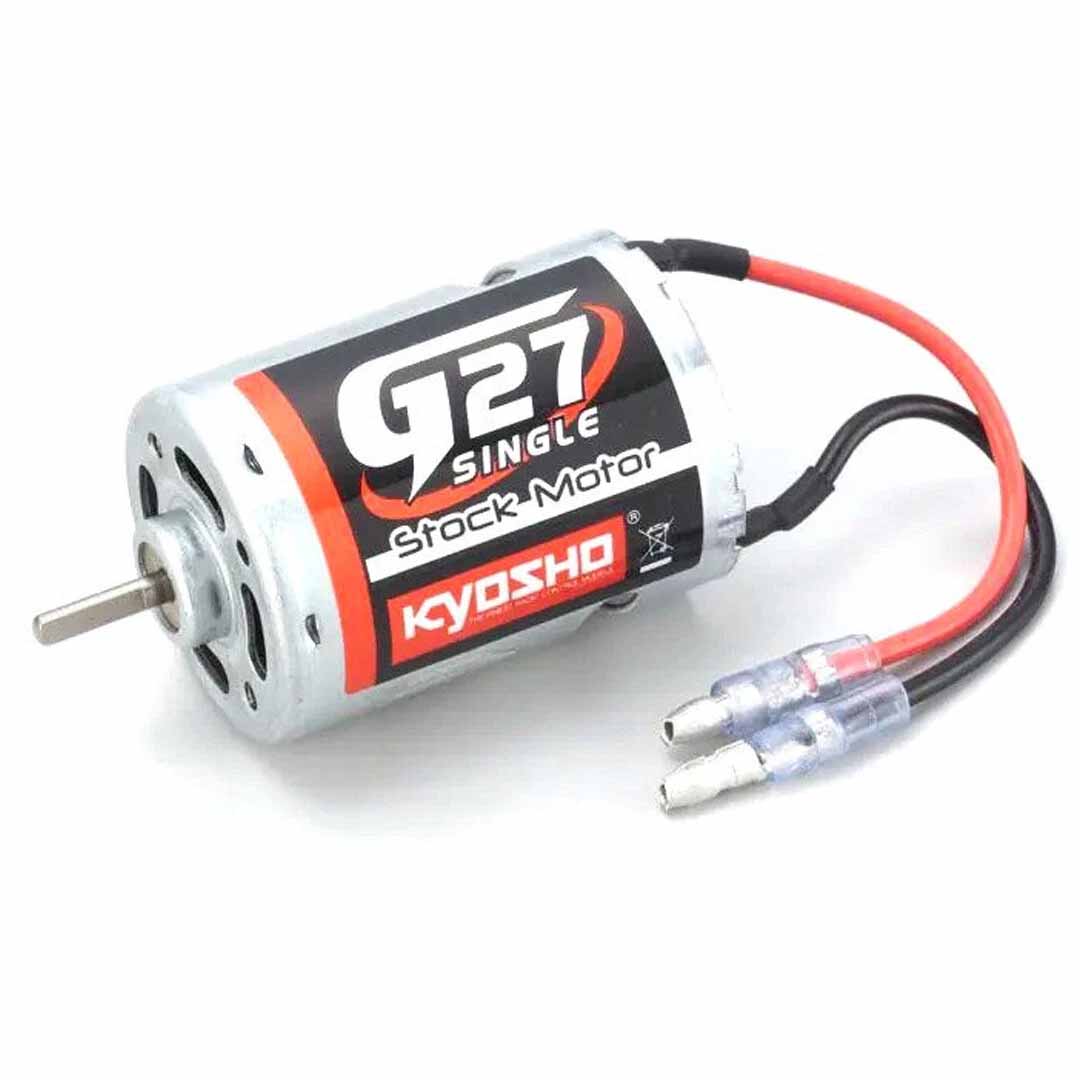

Kyosho G-Series 540 Class 27x1 Motor

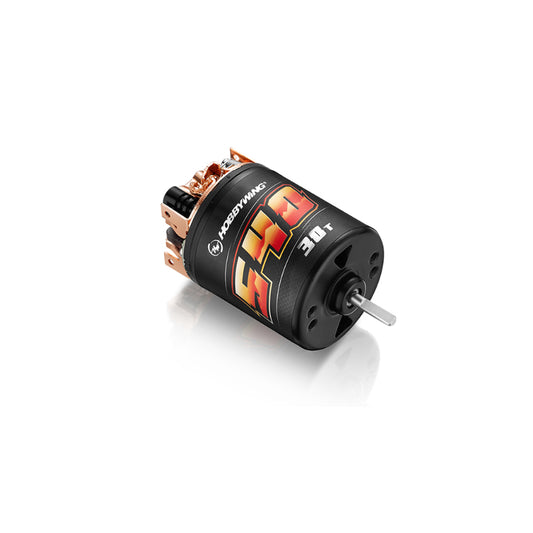

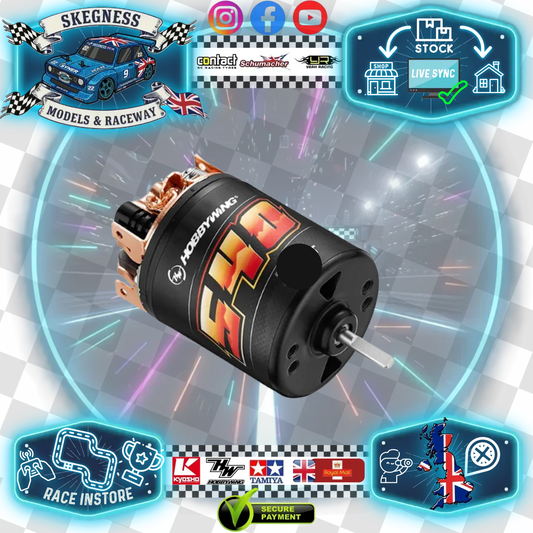

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th
Brushed/Brushless - Brushed
Turns - 30T

Relevant Parameters

RMP@7.4v - 10500
Input Voltage - ≥12.6v
Slot - 3

Size & Weight

O.D.(mm) - 36
Length (mm) - 53.2
Shaft Diameter (mm) - 3.175
Weight (g) - 168

Applications - 1/10thOn-road / Buggy / Crawler & 2WD Truck

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th 550
Brushed/Brushless - Brushed

Relevant Parameters

RPM@7.4v - 17000
Input Voltage - ≥10v
Slot - 5

Size & Weight

O.D.(mm) - 36
Length (mm) - 58.5
Shaft Diameter (mm) - 3.175
Weight (g) - 193

1/10th Crawler / Short course truck / Monster truck

This motor is similar in spec to Tamiya's 53068 Sport Tune motor but with a 16400 RPM speed at typical voltage.

It has been engineered to work with all Tamiya speed controllers without needing any changes other than swapping the motor over - most other brands of motor require you to change the speed controller at the same time.

It gives a moderate speed and torque increase over the standard kit motor, without making any significant effect to the run time per battery.

Nominal voltage 6 V
Voltage range 4,8-8,4 V
Rotational speed 28.000 rpm
Current consumption 1.95 A with max. efficiency: efficiency 61.1 % .

Rotational speed 16.400 rpm
Torque 1.69 Ncm
Current consumption 8.7 A
Output 28.8 W

• Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.
• ALLOWED IN SOME TT01E EURO TRUCK CLASSES AS REPLACEMENT FOR TORQUE TUNED TAMIYA MOTOR

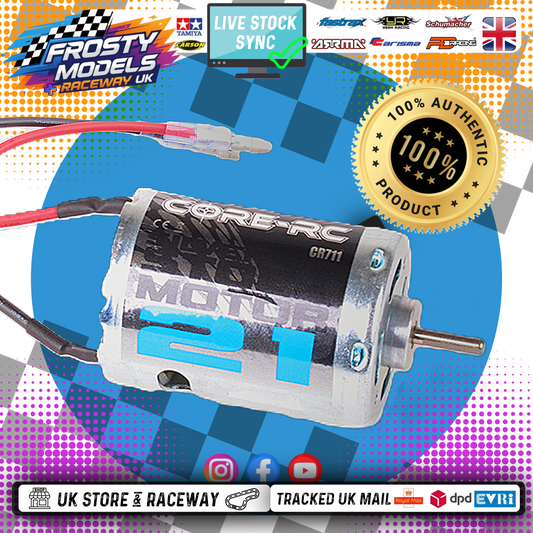

  - 21 Turns especially designed for F2 Stock Cars and Bangers etc
  - Approved by the BRCA for F2 Stock Cars.

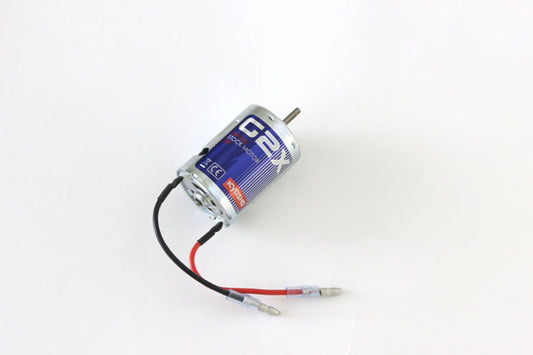

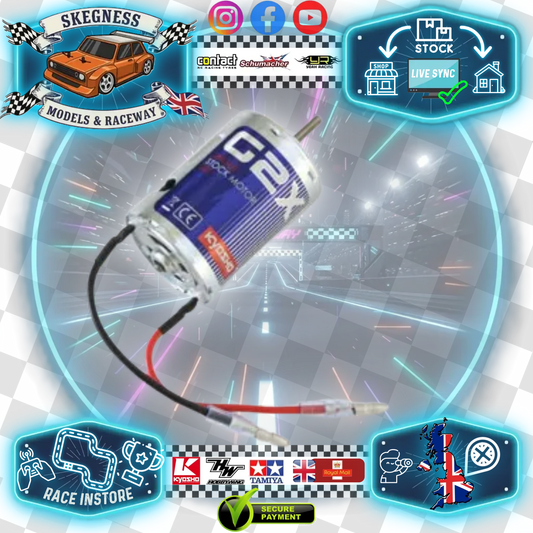

Common uses for this stock 20T 540 Size Motor is for use in Mardave Banger and Mini.

• - Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

• - Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

15Turns is faster than a 21Turn - Please make sure the ESC used can handle.

• Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
  - Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
  - Supplied with leads for easy connection in RTR cars.
  - Includes internal cooling fan.

Great replacement for Tamiya TT01 & TT02 etc
