1/10 Brushed Speed Controllers

Supports all ORCA “OE” ESC’s;

• OE1
• OE101
• OE101S
• OE1-1S
• OE1-1S Mk2 Pro
• OE1 Mk2 Pro
• OE1 WLEB
• OE1.2
• TOTEM 1S
• TOTEM 2S

Does NOT work with “RunPlus” or “800 Series” speed controllers

Introducing the Hobbywing Justock Combo 'JS2' with XR10 G3S speed control, paired with the Hobbywing  G2.1 fixed timing brushless motor.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.


Speed Control Features.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

-------------------------------------------------------------

Motor Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

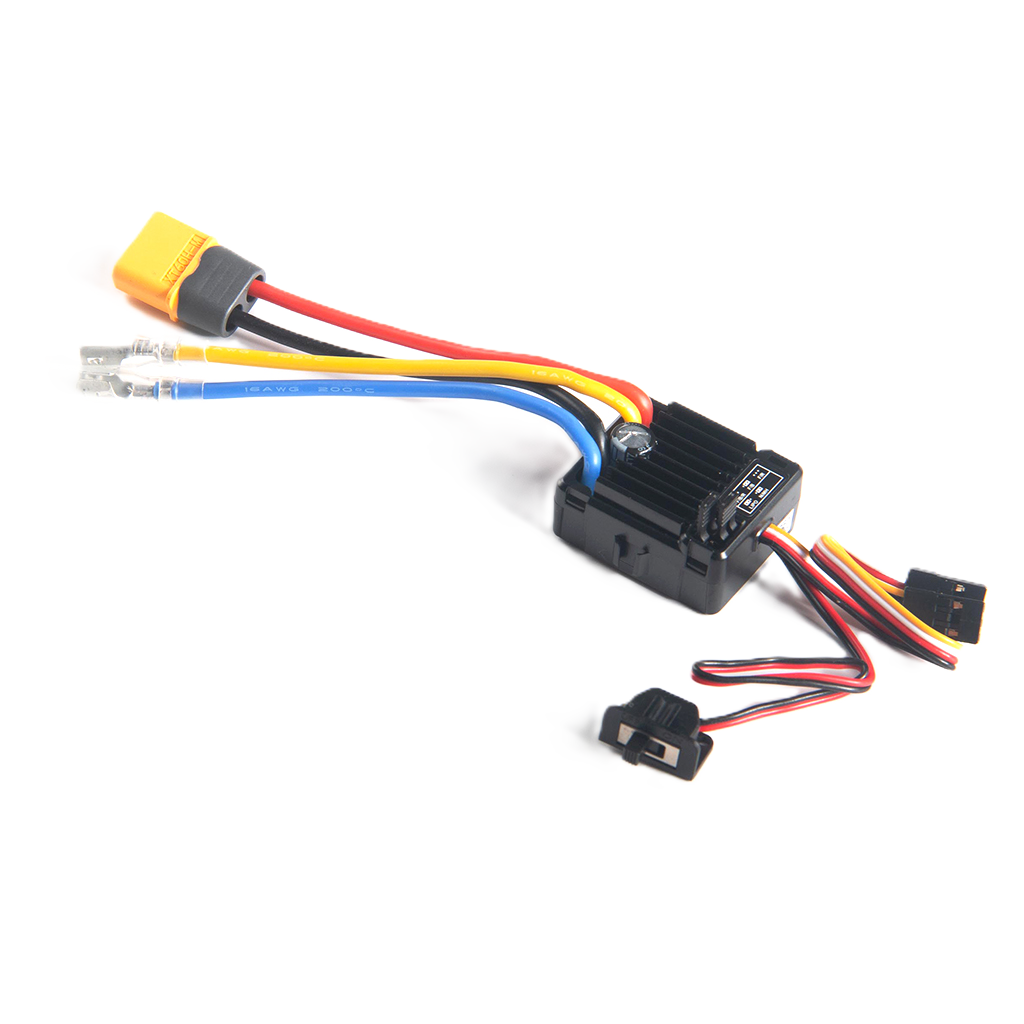

One of the most popular Hobbywing brushed speed controls, the WP1060 is now available with a XT60 Plug from Yikong

- A great alternative to Tamiya for those who prefer this plug style.

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - XT60
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

One of the most popular Hobbywing brushed speed controls, the WP1060 is now available with a XT60 Plug from Yikong

- A great alternative to Tamiya for those who prefer this plug style.

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - XT60
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

Introducing the ORCA RunPlus Brushless/Brushed ESC with Program Card, the perfect addition to your r/c car or truck. Measuring at just 29.5mm x 29.7mm x 17.6mm, this ESC is very compact and extremely lightweight, making it the ideal choice for those looking for a easy-to-use ESC.

With its attached power wires, this ESC is incredibly easy to install, making it a great choice for beginners and experienced hobbyists alike. Plus, with a 80A continuous current limit, it can handle all 540-size brushless motors up to 13.5 turns/3600kv, Brushless 380 or 390 sized motors up to 10.5 turns/4600kv as well as Brushed motors over 12 turns too.

Included with this ESC is an LED program card, which allows you to fine-tune your settings.

Specification;

Dimensions: 29.5mm x 29.7mm x 17.6mm

Weight: 22g (excluding wires)

Voltage Input: 6-12.6V (LiPo 2-3 Cells)

Peak Current: 310A

Continuous Current: 80A

Motor Limit (Brushless): Over 10.5T

Motor Type: 540 Sizes Brushless and Brushed motors – 380 sized Brushless motors

BEC: 4A 6V/7V

Non-updateable firmware – ideal for spec races

Includes both Blinky Mode and Turbo functions

LED program card with 15 adjustable parameters

Suitable for on-road, off-road, crawlers and all recreational vehicle type

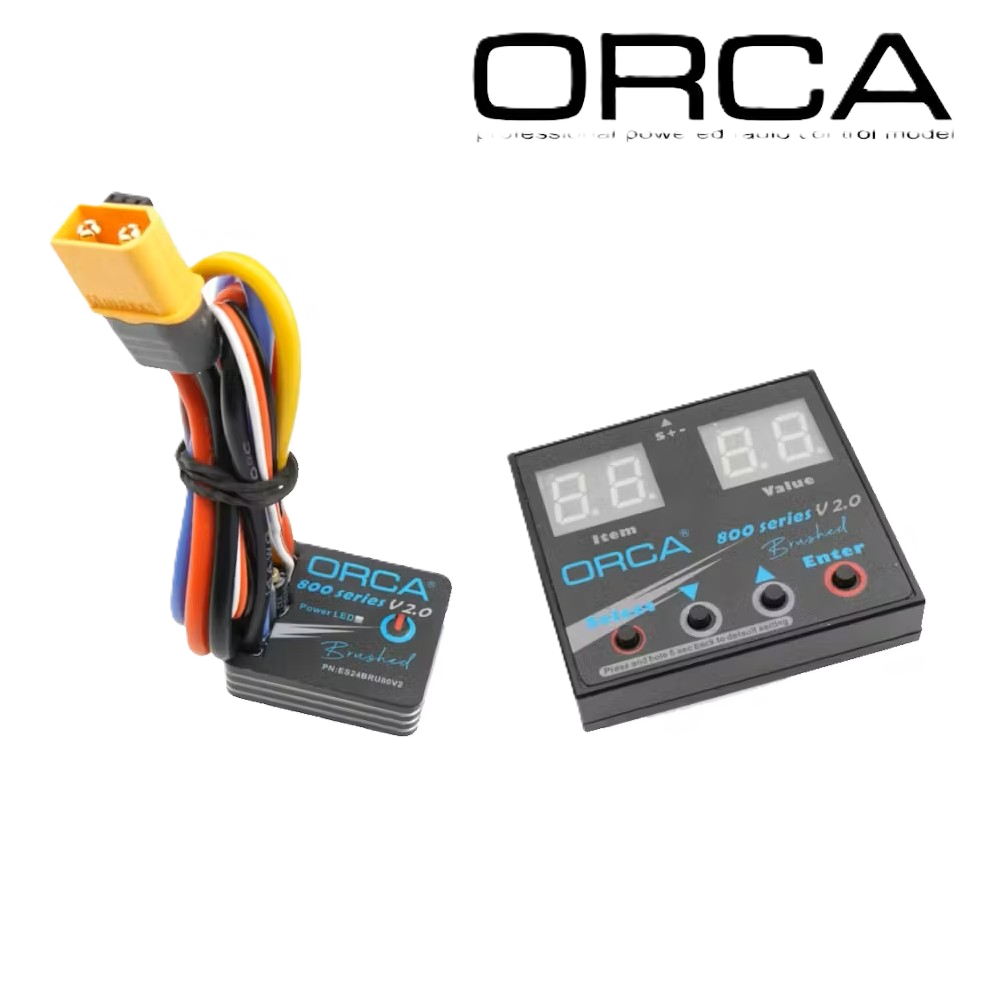

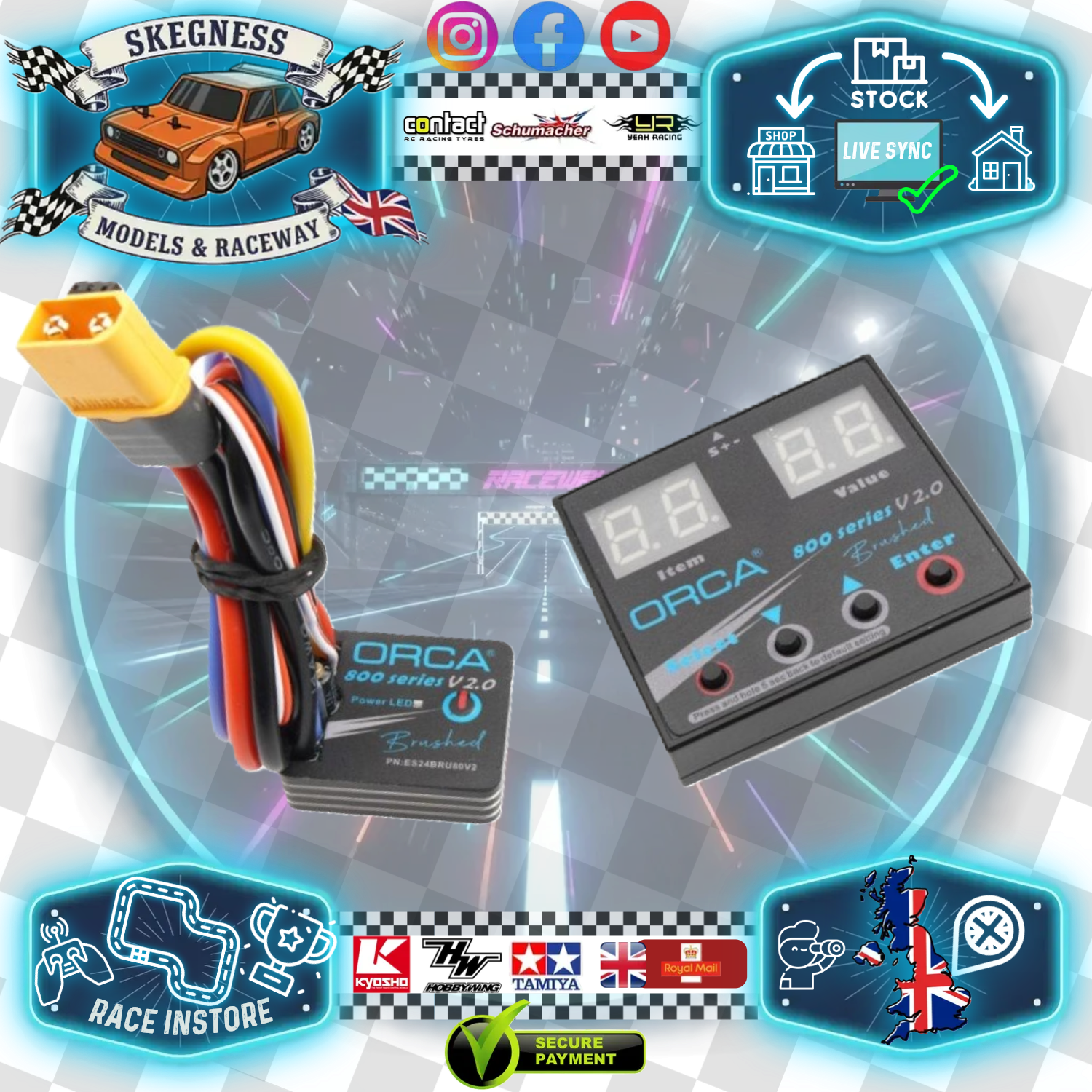

This is ORCA 800 Series V2.0 80A Water-Resistent Brushed ESC with Programmer has received a make-over and update to its spec

Features:

• ESC Brushed Motor System
• Same Small Footprint and size
• Aluminium lower case
• Water-Resistent
• 80A High Current Output
• LED Program Card with 14 programmable parameters
• **NEW** – BEC current now 5 amp
• **NEW** – Output current can now be adjusted between 6v and 7.2v
• **NEW** – Built-In touch type power switch
• **NEW** – Optimized software resulting in even better performance

Included In Box:

• ORCA 800 Series 80A Brushed ESC (1 pc)
• LED Programmer

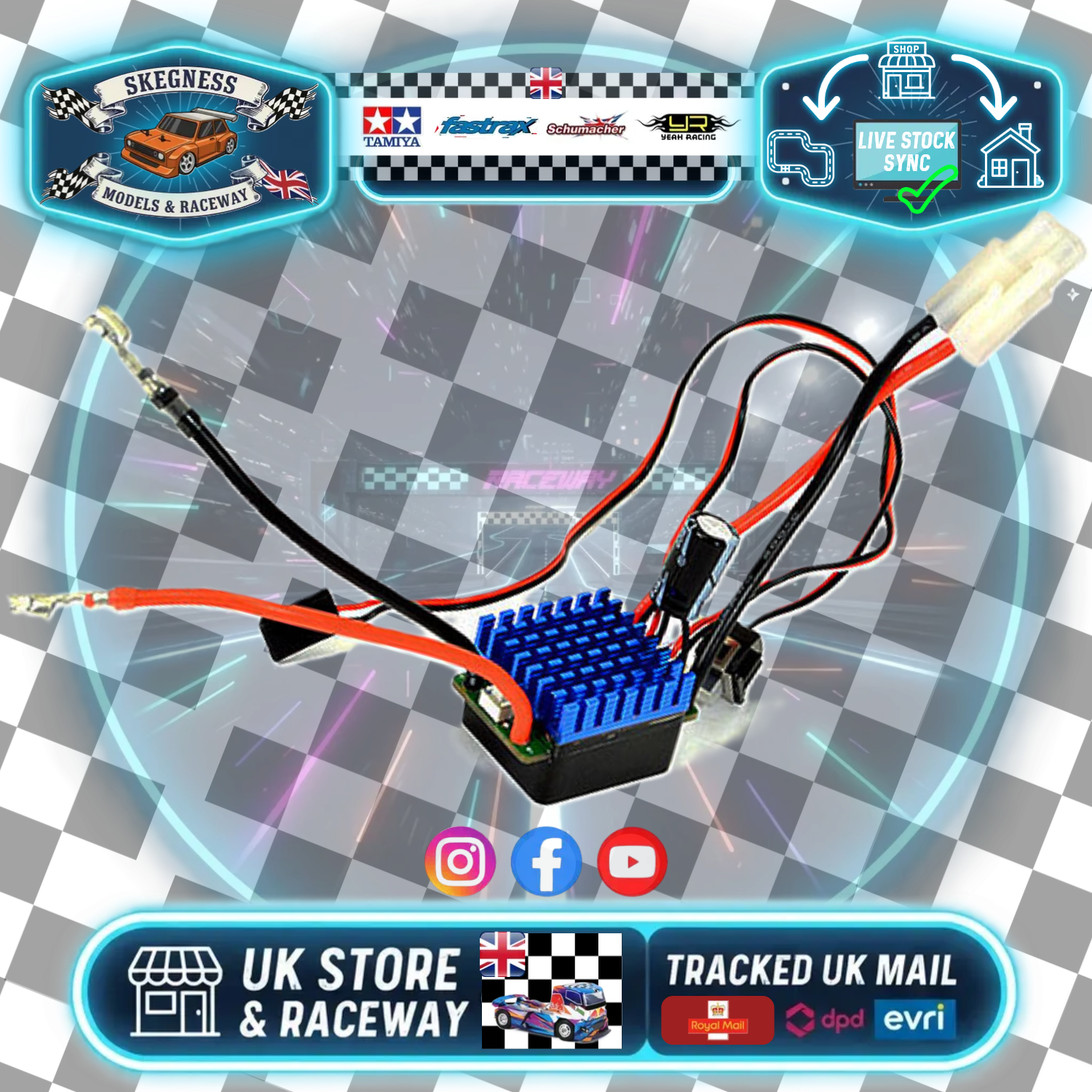

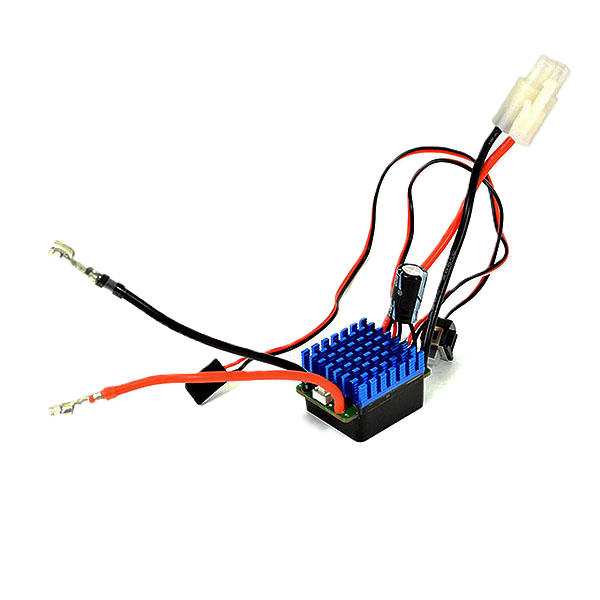

FTX VANTAGE / CARNAGE / OUTLAW / BANZAI ESC WATERPROOF BRUSHED

An affordable brushed ESC that is used in the FTX Vantage/Carnage/Outlaw and Banzai.

This ESC is setup in a simple way for ease of operation. When the ESC is switched on it automatically searches for the neutral point. When the automatic setup is finished the motor sends out “Do” “Re” “Me” indicating the neutral point is set and it is ready to be operated.

The ESC has 2 programmable running modes and a Low voltage protection mode that can be enabled for LiPo batteries.

FTX Vantage/Carnage/Outlaw/Banzai Brushed WP ESC Features:

• Waterproof protection
• 5-6 cell NiMH compatibility
• 7.2-7.4V 2S Li-Po compatibility
• Li-Po Safety cut off when less than 6V
• Thermal Protection: When more than 90°C
• BEC Output: 5.6V 2A
• Small foot print for easy mounting
• Dimensions: 30mm x 28mm x 22mm
• Weight: 38g

(TAMIYA PLUG FITTED - FOR OTHER PLUG'S, PLEASE SEE ADAPTOR LEADS OR CONNECTORS)

SUPPLIED WITH MOST TAMIYA KITS (SAME AS WP1060)

(TT01E Euro Truck Racing Stock Spec)

(BLACK VERSION)

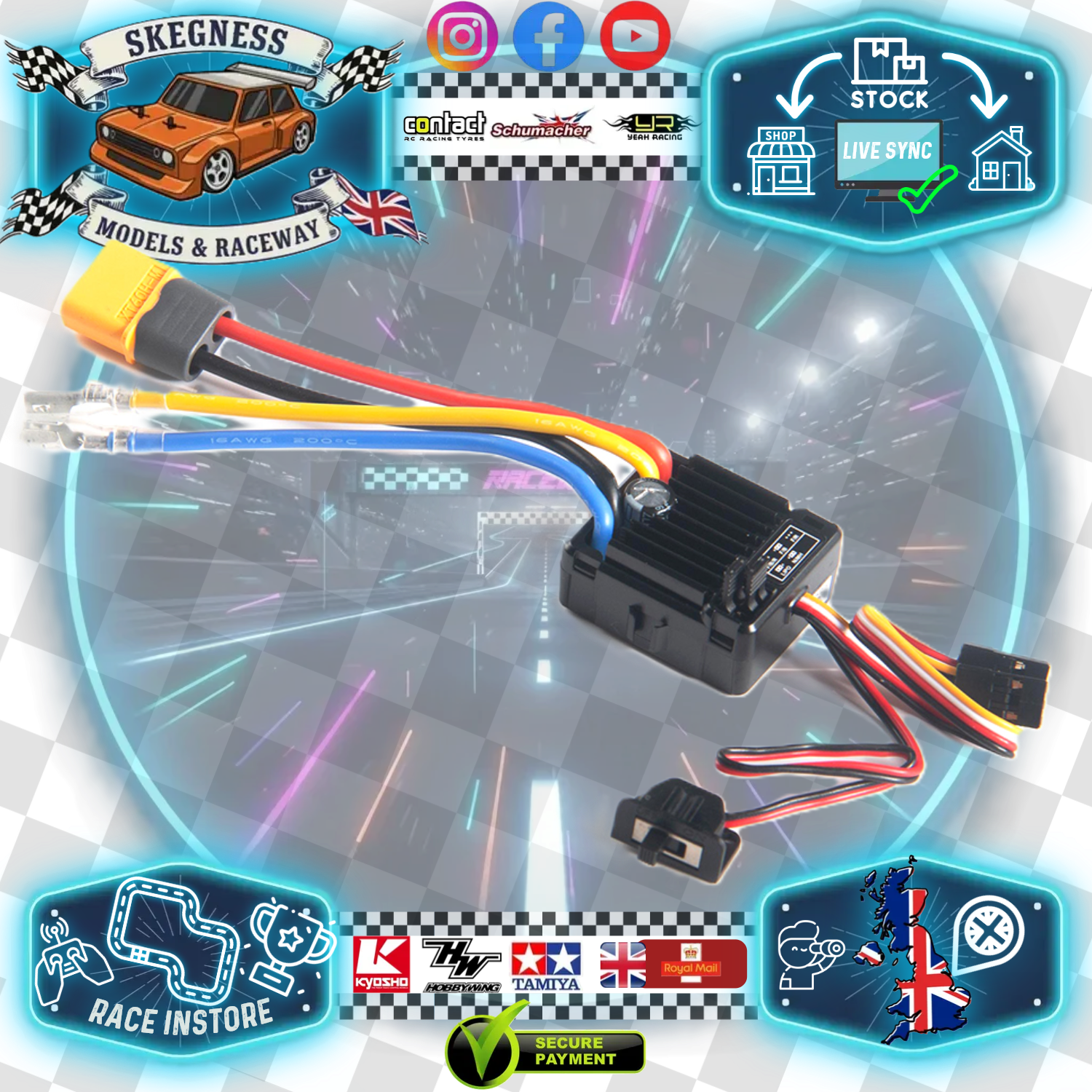

One of the most popular Hobbywing brushed speed controls, the WP1060

- Already pre soldered just plug and play.

Easy Operation
This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.

Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.

Specifications
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/6-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Input Wires - Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output Wires - Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
- Input Connectors - T Connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors 2S - 12T limit, 3S - 18T limit
- Vehicles - 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers
