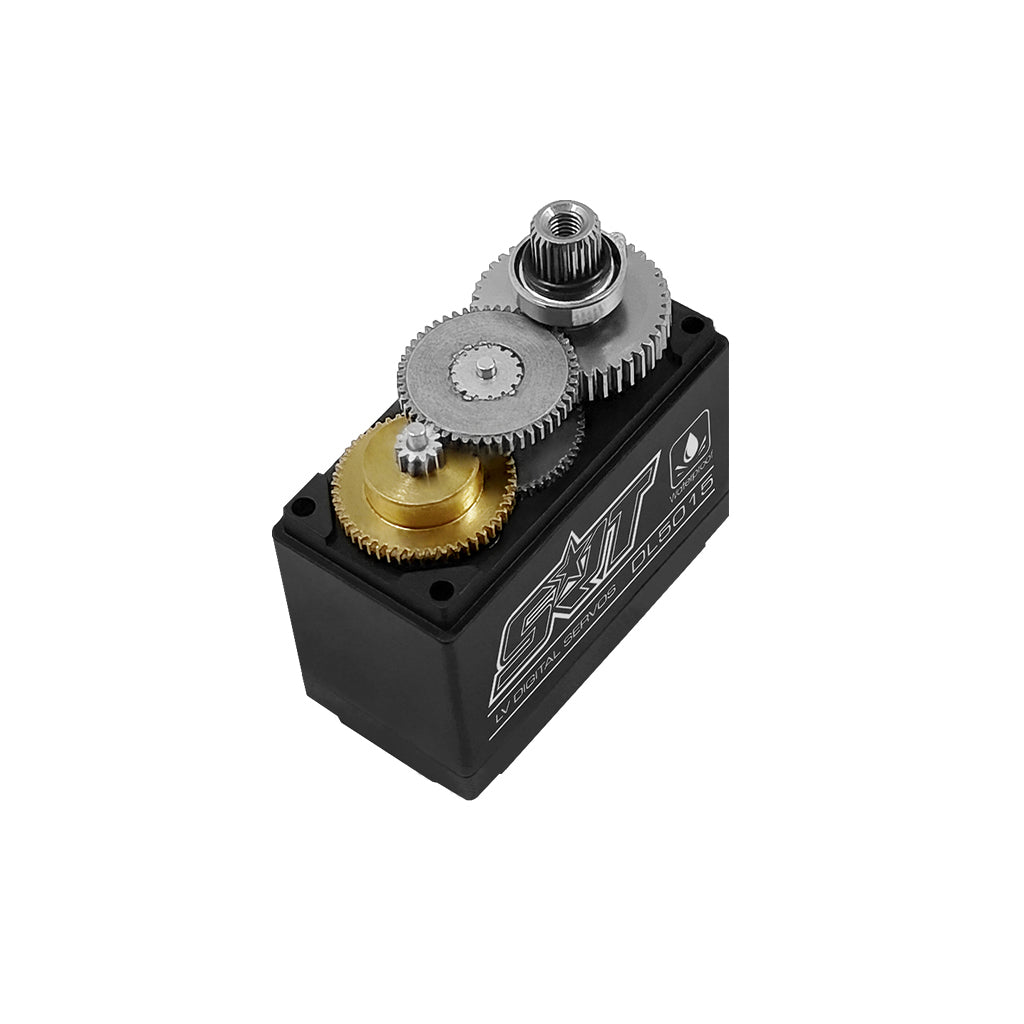

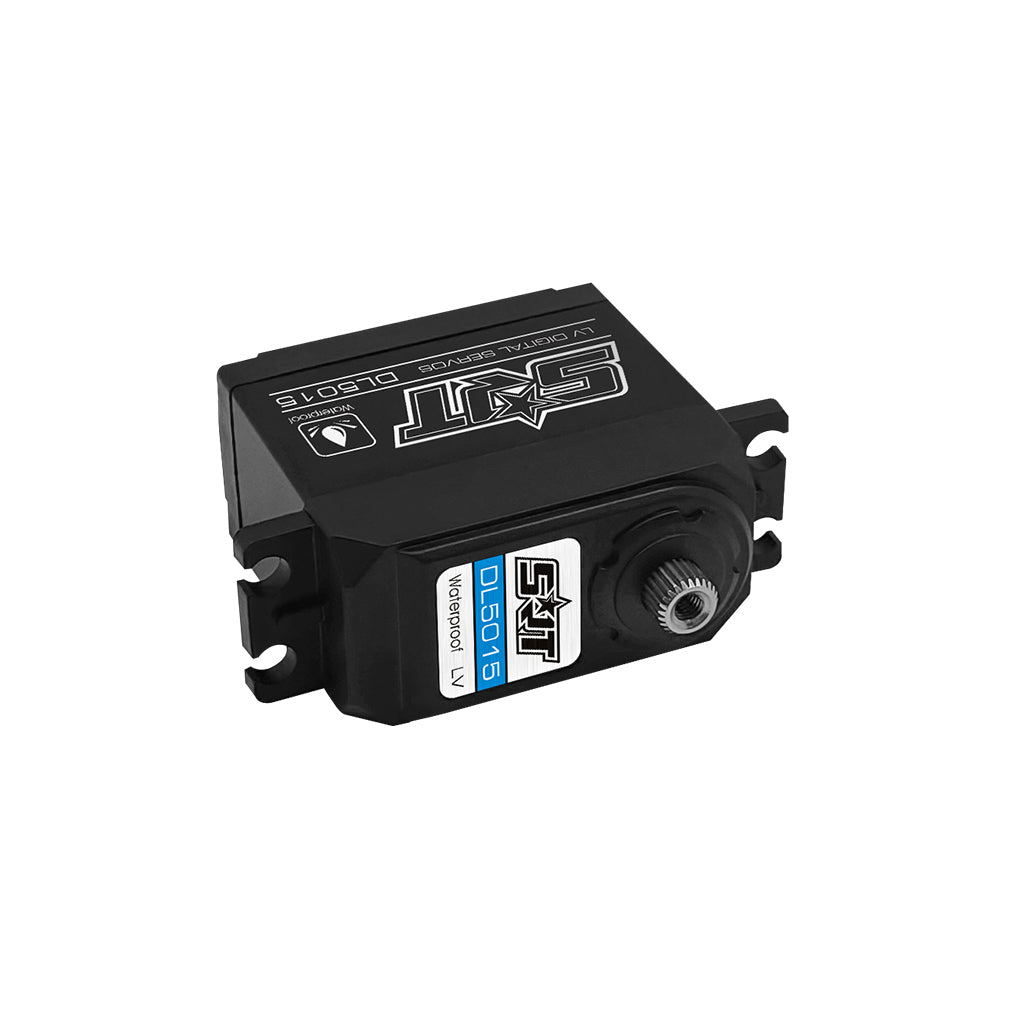

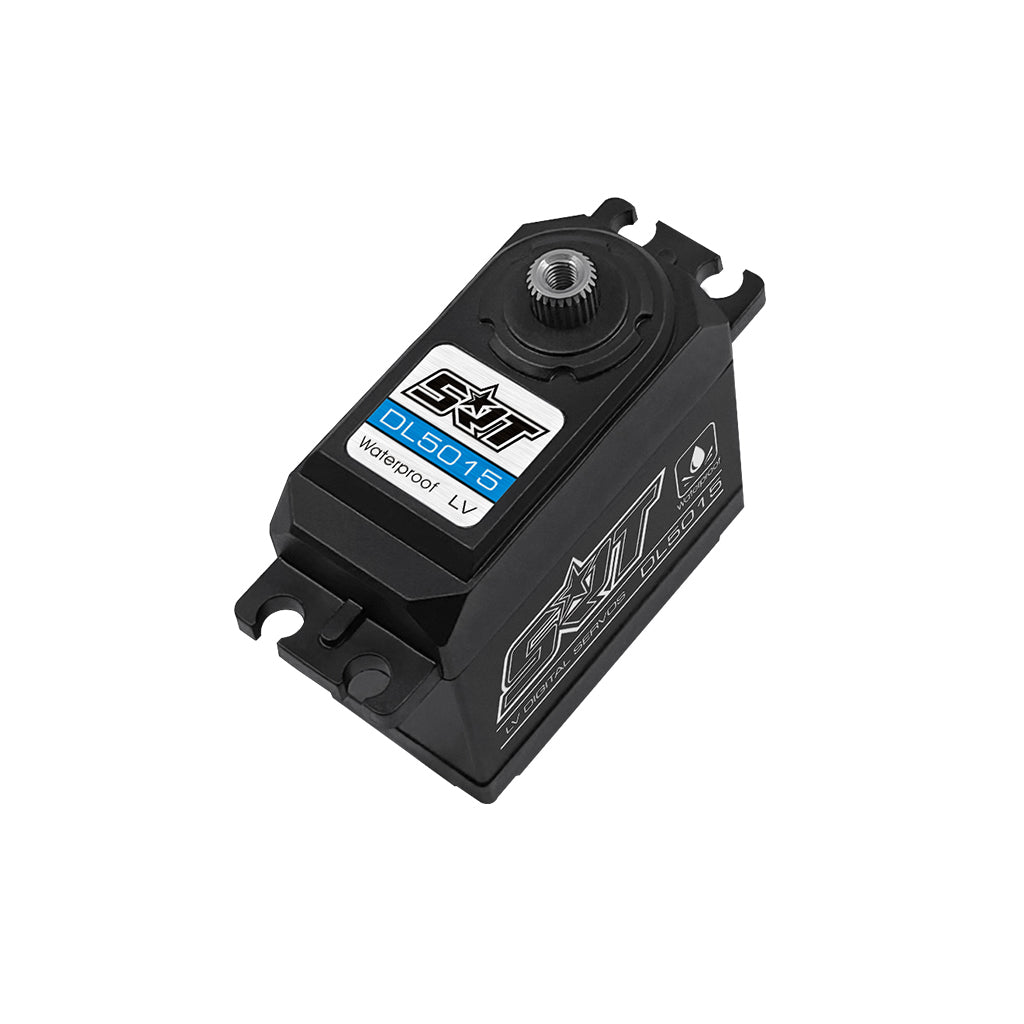

SRT - MG Waterproof LV 4.8V ~ 6v STD Digital Servo - SRTDL5015 (6.0v): 0.13 sec / 12.0kg) - (Ideal for 1/10 Off Road)

KEY FEATURES

- Ideal for 1/10 on road and off road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Type: Metal
- Gear Material: Titanium & Alu
- control system: pulse width control
- working frequency: 1520μs / 330hz
- operating voltage: dc4.8-6.0v
- operating temperature range: -10 to + 60 degree
- operating speed (4.8v): 0.15 sec/60 degrees at no load
- operating speed (6.0v): 0.13 sec/60 degrees at no load
- stall torque (4.8v): 12.0kg.cm (166.6 oz/in)
- stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
- potentiometer drive: direct drive
- dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
- weight: 62.0g (2.19 oz)
- connector wire length: jr 300 mm
