TAMIYA R/C KITS

• 1/10 scale R/C model assembly kit. Length: 447mm, width: 204mm, height: 233mm. Wheelbase: 252mm (Medium)
• 1.2mm thick polycarbonate body
• Features PC-ABS H parts (grilles, mirrors, spare tyre cover and door handles) and metal-plated K parts (light cases)
• ABS plastic roof rack included
• The CC-02 chassis has ladder frame which was inspired by full-size vehicles, provides both rigidity and cool styling, and allows stable performance even on tricky rocky and dirt roads
• 12-spoke black wheels (width: 26mm, offset: +6) are paired with semi-pneumatic rubber tyres
• Type 540 motor and ESC included
• Requires: 2-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

This R/C assembly kit recreates the Opel Calibra V6 Cliff. The polycarbonate body is mounted on the TT-01 Type-E chassis, for ease of assembly. The Opel Calibra V6 Cliff was previously released on the Tamiya TA-02 chassis during the 1990’s touring car boom.

About the Opel Calibra V6 Cliff
The Opel Calibra V6 Cliff took part in the 1995 running of the Deutsche Tourenwagen Meisterschaft (DTM) series. Entered by Joest Racing with the driver JJ. Lehto, the car was powered by a 2.5-liter V6 engine capable of 420 hp. The distinctive black body with the Cliff logo caught people’s eye, and this car showed off race pace strength in DTM races.

• 1/10 scale R/C model assembly kit. Length: 448mm, width: 185mm, height: 128mm. Wheelbase: 257mm.
• Lightweight, rigid polycarbonate body (clear) with separate side mirrors and a rear wing.
• The model utilizes the shaft-driven 4WD TT-01 Type-E chassis, which is based around a durable bathtub frame and gives an intuitive, highly controllable driving experience.
• Features 4-wheel double wishbone suspension system.
• Silver ABS, dish wheels are paired with racing slick tires.
• Comes with stickers and window masking stickers for use in the paint job process.
• Includes Tamiya Torque-Tuned 540-brushed motor.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

• Polycarbonate body (0.7mm thickness) is pre-cut and pre-painted in light blue
• Comes with metal-plated parts (A, E, G and front/rear wheels)
• Window nets, number plates and dummy antenna included
• Includes new stickers designed by Jun Watanabe’s brand Blockhead Motors

• 1/10 scale R/C assembly kit. Length: 425mm, height: 140mm, width: 225mm
• Wheelbase: 255mm
• Durable and lightweight ABS box type frame is matched with a battery case which is compatible with modern power sources such as Tamiya Racing Packs and LF batteries
• 4-wheel independent suspension consists of coil springs and trailing arms
• A wide tread ensures excellent off-road stability
• Enclosed gearbox includes differential gears for smooth cornering
• Driveshafts feature dog bone-type joints and dust cover
• Includes 540-type brushed motor

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

Speedy and controllable 2 belt-driven 4WD chassis in TA series!
The Tamiya TA series continues to evolve. This iteration, the TA08 PRO, further evolves on-road touring car driving with this hopped-up chassis. The slim TA08 PRO Chassis Kit eliminates the need for an upper deck, which balances weight and rigidity. Its layout features the motor in near identical position to the TRF420, with the spur gear in front of the motor. Newly designed upper & lower arms make effective use of tire grip, equipped with laid down SSBB (Super Short Big Bore) dampers. This kit was based on Tamiya's extensive know-how built up through our traditional chassis series and data from racing, and offers plenty of potential for tuning.

• 1/10 scale R/C touring car assembly chassis kit.
• Features Stepped-V shaped main chassis which balances weight and rigidity.
• The battery pack and servo are positioned on a slight angle (about 10 degrees) to reduce surface contact while cornering and facilitate optimum weight distribution.
• Spur gear is positioned in front of motor which produces stable drivability.
• 2 belt-driven 4WD uses TRF420 oil-filled gear differentials and steel TA07 differential joint cups.
• A-arm suspension arm gives your model a low center of gravity, enhanced with laid down dampers.
• Camber and caster angles are adjustable by turnbuckle shafts and lower arm spacers respectively.
• Comes with Super Short Big Bore size shock dampers.
• Universal drive shafts and full bearings included.
• Rotating body mounts by 180 degrees switches between standard and 2mm advanced body positions. This feature allows the user to change the balance of the car with any selected body.
• Requires: 2-channel radio, short steering servo, ESC, motor, 190mm touring car body set, tires, 7.2-7.4 volt battery pack & compatible charger.

This R/C model assembly kit recreates the 2020 Ford GT Mk II track-only supercar. The MK II was built to celebrate Fords race winning heritage at Le Mans which was accomplished with the legendary GT40 MKII back in 1966. This version of the Ford GT will be limited to 45 hand-built machines, but the Tamiya R/C version is available for all fans!

The accurately depicted Ford GT MK II body is made of polycarbonate and ABS plastic wing and mirror pieces, which sits on top of our most builder user friendly TT-02 entry-level on-road chassis.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels and slick tires make for a racy finish.

• 1/10 scale R/C model assembly kit. Length: 479mm, width: 188mm, height: 112mm. Wheelbase: 257mm.
• The ultra-honed form of the car is recreated in lightweight polycarbonate, with separate parts used to depict flying buttresses, rear wing and side mirrors.
• Body is made of polycarbonate with ABS plastic wing and mirror parts.
• Stickers are included to decorate the body as the car appeared in its unveiling.
• Twin five-spoke wheels with slick tires.
• The TT-02 chassis is a highly versatile shaft-driven 4WD unit, based around a durable bathtub.
• 4-wheel independent double wishbone suspension has identical arm and upright parts for ease of maintenance.
• A wide range of Hop-Up Option parts is available to customize your chassis.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS paint.

• Length: 472mm, width: 200mm, height: 192mm
• Wheelbase: 267mm　
• Tread: 160mm (front), 163mm (rear)
• Tyre width/diameter: 33/90mm (front & rear)
• Ladder frame
• Longitudinal motor, shaft-driven 4WD
• 3-bevel differential gears
• 4-link rigid suspension (front & rear) & CVA oil dampers
• Gear ratio = 17.33:1 (using kit-standard 16T pinion)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately

• Two-channel radio, ESC, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit.
• Length: 414mm. Width: 172mm. Height: 135mm
• Wheelbase: 239mm (L)
• Tyre Width/Diameter (Front & Rear): 26/60mm
• Tread (Front & Rear): 138mm
• Polycarbonate body pre-painted in White.
• Separately moulded plastic components are included to recreate bumper, side mirrors and fog lamps.
• Polycarbonate front and rear light cases are compatible with separately sold Tamiya 5mm LEDs.
• Stickers are included to recreate blue livery sections, sponsor logos and more.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
• Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front. The chassis can be converted to S and M wheelbases with separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Tamiya Torque Tuned Motor included.

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

This R/C model assembly kit creates a 4WD buggy, with a lightweight and durable stylized polycarbonate version of the legendary Hot Shot body. The reimagined comical body comes pre-painted in red and all that is needed is the application of the included stickers, and voila! A new, Comical Hot Shot which pays homage to Tamiya’s classic 1985 Hot Shot kit! The GF-01CB chassis in which the body sits on top of is a gear-driven unit that provides a thrilling drive and super wheelies when you jam on the throttle.

GF-01: Seriously Stable 4WD
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Sealed gearboxes protect from dust and debris and are integrated into the frame, while the built-in differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension with CVA oil dampers and a two-piece tie rod steering setup with the servo on the left for excellent response. Two-piece wheels are joined by ST block bubble tires, and WR-02 or GF-01 Hop-Up Option parts are available to hop-up your model.

• 1/10 scale R/C model assembly kit.
• Includes a lightweight and durable stylized polycarbonate version of the Hotshot body and wing, developed specially for this model. The body is pre-painted in PS-2 Red. Stickers based upon the 2007 re-issue Hotshot are included for decoration.
• Stylish bumper and muffler parts are included, as well as dedicated side guard components.
• Separately sold 5mm LEDs can be used to light up the model. Light pods are included.
• ST block bubble tires have stepped block patterns (width/diameter: front 45/99mm, rear 55/99mm).
• The GF-01CB chassis offers efficient gear-driven 4-wheel drive.
• ABS two-part wheels have red and white spoke parts.
• CVA Super Mini oil dampers molded in red ensure your ride has superior cushioning.
• A rear wheelie bar lets you perform thrilling wheelies by slamming on the throttle.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger.
• NOTE: Must use round type stick battery pack. Square shaped batteries will not fit the battery compartment.

Tamiya is no stranger to recreating classic cars from different eras! This specific kit recreates a true classic in the form of the Volkswagen Karmann Ghia. The Karmann Ghia was a stylish coupé based upon the same platform as the legendary Beetle. Its body was designed by Italian firm Ghia and manufactured by the German company Karmann. The polycarbonate body in this replica sits on top of the Tamiya RWD M-06 chassis.

Great RR Performance from the M-06
The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included.

• 1/10 scale R/C model assembly kit. Length: 410mm, width: 182mm, height: 125mm.
• Lightweight and durable polycarbonate. Separate plated parts depict side mirror, bumpers and light cases.
• Includes marking stickers, and window masking stickers for use during the painting process.
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C units positioned on either side for optimum balance and a low center of gravity.
• This model utilizes the 239mm wheelbase M-06L chassis.
• Metal-plated wheels paired with front radial and rear super grip radials for superior stability and sharp handling.
• A host of Hop-Up Option parts are available to customize the chassis to your driving needs.
• Includes Tamiya 540-motor.
• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Required Items: 2-Channerl radio, steering servo, 7.2volt battery pack with compatible charger, and Tamiya PS paint.

• 1/24 scale R/C model assembly kit. Length: 486mm, width: 270mm, height: 213mm
• Polycarbonate cab and moulded ABS plastic bed components. The cab component is pre-painted in yellow
• The bed can be moved manually between flat and raised positions
• Yellow deep-dish wheels are paired with 115mm lug pattern spike tyres
• Stickers are included to recreate details such as front grille, air inlets, headlights, and logos
• 6WD platform with a gear-driven powertrain, triple differentials, double-wishbone suspension and a tough monocoque frame
• Chassis parts are moulded in yellow
• The G6-01 can be converted to 4-wheel steering with reassembly of the suspension and a separately sold transmitter with 4WS function and R/C equipment
• A range of Hop-Up Option parts is available

• Two-channel radio, standard size servo, ESC, 7.2-7.4volt battery pack & compatible charger

Get ready to do some fun trail exploration with the all-new Tamiya CC-02 (Cross Country 2) chassis platform! Tamiya’s designers have been hard at work to bring R/C enthusiasts the next generation of Tamiya trail driving with a completely revamped machine.

The first body to grace the capable new chassis is a highly-detailed polycarbonate recreation of the Mercedes-Benz G 500, which first graced the Mercedes stable of SUV’s in 2018.

CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with matte plated seven-spoke wheels and grippy block pattern tires.

• 1/10 scale R/C model assembly kit. Length: 455mm, width: 196mm, height: 207mm. Wheelbase: 267mm.

• TLU-01 LED Light Unit and LEDs included.

• G 500 body is recreated accurately in polycarbonate. Separately molded parts are included for the front grille, side mirrors and spare tire cover.

• Designed for a wide range of off-road terrain including rocky surfaces, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability.

• A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears to the front and rear.

• Twenty gear ratios between 11.09:1 and 29.28:1 are possible using separately sold pinion gears, for some serious fine-tuning!

• 4-link rigid suspension front and rear, with CVA oil dampers.

• Differential Gears: 3-bevel differential gears provide a smooth driving. They can also be locked (with reassembly) for driving on poor surfaces.

• Axle Housings: Housings enclose a central differential gear and axle shafts in a rigid setup that lets the chassis take on rough terrain with ease: if one wheel rises, the other is pushed downward to help the chassis gain traction.

• Gearbox: Power from the motor is routed via the realistic looking gearbox and transfer case, from its propeller shafts to the differential gears, and finally to the wheels.

• 4-Link Suspension: A rigid setup employs 4 plastic link arms on each axle housing and four oil dampers. This ergonomic design offers superior durability and the ground clearance.

• Includes: Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit.

• Required Items: 2-Channerl radio, steering servo, 7.2-7.4volt battery pack with compatible charger, and Tamiya PS paint.

The classic Tamiya Monster Beetle is an iconic R/C kit. This version takes the classic body, shrinks it to a smaller scale, and mounts it on a variant GF-01 chassis called the GF-01TR!

The GF-01TR fits the gear-driven GF-01 chassis with reduction gears (also known as portal axles). This modification allows the hobbyist to better transverse trail terrain as it lifts the bottom of the chassis to better clear obstacles that could high center the vehicle and render it stuck.

GF-01TR Chassis:
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance, and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris, and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. 4-wheel double wishbone suspension utilizes friction dampers, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow wheels are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip. The chassis utilizes a ‘square’ setup with similar tread and wheelbase lengths.

• 1/14 scale R/C model assembly kit. Length: 333mm, width: 270mm. Wheelbase: 274mm.
• Body is molded in red ABS Plastic. It depicts a customized Beetle with gaping fenders, triple auxiliary lights and a shortened rear end.
• Metal-plated parts for headlights, auxiliary lights and engine.
• The model is based upon the tough, reduction gear-fitted GF-01TR variant chassis.
• 37.35:1 gear ratio (with the kit-standard 18T pinion gear) gives great drive. The model is also compatible with 20T pinion gears (for a 33.61:1 gear ratio).
• Yellow wheels are complimented by 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip.
• Includes 540-type motor.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit).

Specifications
• Length: 333mm, Width: 270mm, Height: 215mm
• Wheelbase: 174mm
• Tread: 210mm (Front & Rear)
• Tire Width/Diameter: 68/115mm (Front & Rear)
• Monocoque Frame
• 3-Bevel Differential Gears
• 2-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• Gear Ratio = 37.35:1 (using kit standard 18T pinion gear)
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately.

This TAMIYA R/C model assembly kit depicts the 1st-generation (T1) variant of the Volkswagen Type 2 van, which was introduced in 1950 and also known as the Volkswagen Bus to many of its legions of fans. Production of the actual van continued through until 1967. The iconic body is paired with the rear-wheel drive M-06 chassis for realistic fun driving just like the real RR Type 2 T1.

M-06 Chassis
The M-06 chassis features a Rear-Mounted Motor, Rear-Drive setup and features a longitudinally-mounted battery pack, with R/C radio gear positioned on either side for optimum balance and low center of gravity. 4-wheel double wishbone suspension is equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response.

• 1/10 scale R/C model assembly kit.
• Polycarbonate body with separate molded plastic parts included to create bumper, light cases and side mirrors.
• The M-06 chassis features a rear-motor, RWD setup with a longitudinally-mounted battery pack and R/C radio gear positioned on either side for optimum balance and a low center of gravity.
• 239mm wheelbase M-06L chassis.
• Metal-plated dish type wheels.
• Includes 540 motor.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Requires: 2-channel radio, steering servo, 7.2-volt battery pack & charger, and Tamiya PS paint.

The Dynahead 6x6 takes inspiration from the big trucks used in grueling off-road world of truck trials. The sleek body appears on the G6-01TR chassis, which is based upon the G6-01, with hub reduction axles providing extra height for taking on rougher terrain.

• 1/18 scale 6WD R/C model assembly kit. Length: 453mm, width: 244mm, height: 232mm. Wheelbase: 173+126mm.
• The cab-over truck body is a special design by Takayuki Yamazaki of PDC Design-works.
• Hub reduction axles raise ground clearance by 15mm; in conjunction with the traction provided by a 37.35:1 gear ratio (with kit-included 18T pinion), the Dynahead 6x6 has awesome off-road and crawling capability!
• 5-spoke wheels are paired with V-tread block tires (Item 53854) for superlative bite.
• With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.
• Type 540 brushed motor included.
• Requires: 2-Channel Radio, servo, ESC (electronic speed control) 7.2volt battery pack & charger, and Tamiya PS paint.

• 1/10 scale R/C model assembly kit. Length: 445mm, width: 184mm
• Body is made of durable polycarbonate, with separate moulded mirror, wing and grille parts, as well as a plated Mercedes-Benz 3-pointed star emblem
• Marking stickers included to recreate sponsor logos and numbers on the No.20 car
• 6-spoke wheels are moulded in soft green and paired with slick tyres
• The TT-01 Type-E chassis features shaft-driven 4WD system and full independent suspension that offers easy handling and great customisability

• R/C equipment (transmitter, servo), battery pack and charger to complete and Tamiya PS spray paint.

• 1/10 scale R/C model assembly kit. Length: 422mm, width: 186mm, height: 132mm
• The injection moulded body offers a highly realistic recreation of the 037
• Comes with metal-plated light cases for headlights, taillights and fog lamps
• Side mirrors and windscreen wipers are made using separate parts
• The interior features depictions of driver & co-driver, plus dashboard
• The TA02S chassis is a shaft-driven 4WD unit with bathtub frame, a rear ball diff and front gear diff
• Four-wheel independent double-wishbone suspension is paired with CVA oil shock dampers
• New front bumper and sticker sheet
• Compatible with standard Type 540 motors
• Includes 540-Type brushed motor
• Includes Tamiya TBLE-02S ESC (electronic speed control) capable of running sensored brushless motors and brushed motors alike (21.5 Turn BL motor limit, 23 Turn brushed motor limit)

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

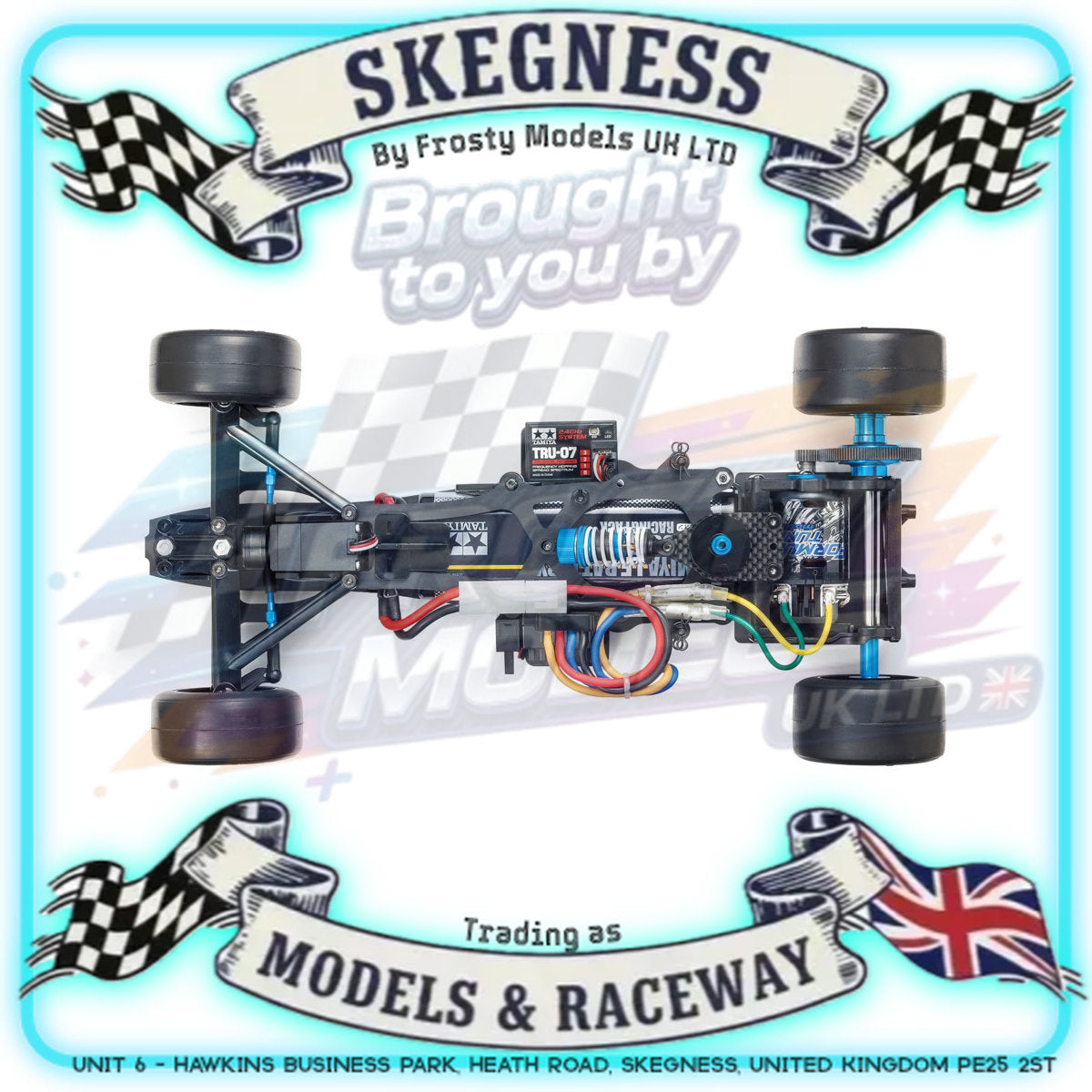

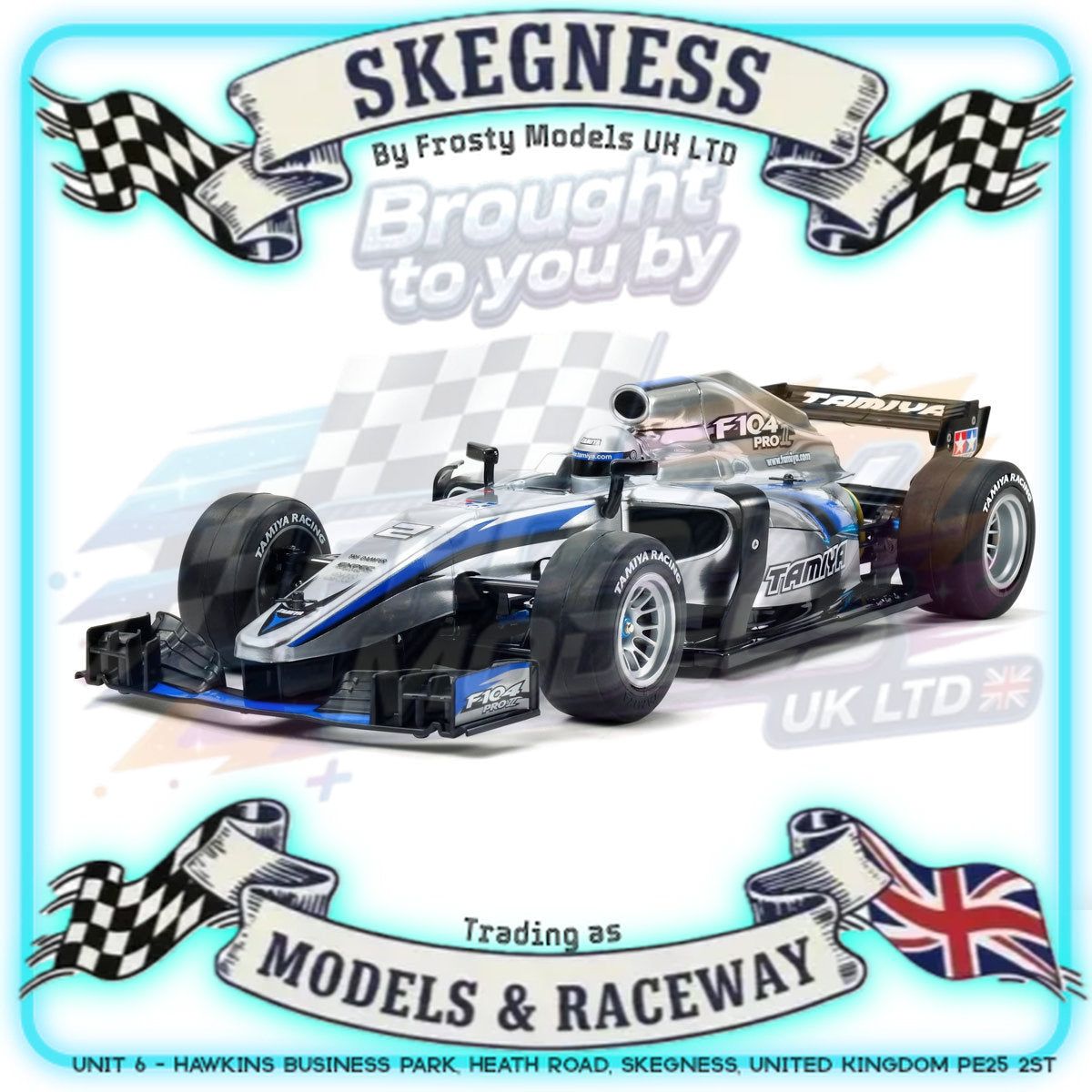

This original Formula One kit is an evolution of the F104 Pro chassis first introduced in 2009. The Pro II has received refinements to enhance your R/C formula racing fun. The Pro II pairs the lightweight and streamlined direct drive F104 chassis with a new lower deck, and upgrade parts, giving a sharp and responsive driving feel. Furthermore, it includes an all-new original body design based on the 2017 F1 car bodywork and wing dimensions.

• 1/10 R/C model assembly kit. Length: 440mm, width: 180mm, height: 88mm, wheelbase: 270mm.
• The lightweight F104 chassis is fitted with various upgraded parts to turn it into the F104 PRO II.
• FRP double deck chassis has a new lower deck design, and an inline (longitudinal) battery position.
• The 1.5mm thick FRP T-bar design with U-shaped cutaway is inherited from the F104WGP. It makes up the rear suspension in concert with friction plates and a TRF damper.
• Features front independent coil spring suspension. Alter camber by changing upper mount attachment direction.
• Utilizes an aluminum ball differential.
• A realistic original polycarbonate body is included. Its design is inspired by 2017 trends, with a sharp, slanting nose and bulging side pontoons. Additional parts are included to create alternative lower side pontoon sections as separate parts for chassis with larger R/C equipment.
• Separate parts depict the complex front wing and its low rear counterpart, rear diffuser, mirrors, helmet, etc.
• Comes with realistic semi-pneumatic synthetic rubber tires, and marking stickers to decorate the body.
• A wide range of Hop-Up Option parts are available to further tune the chassis to your needs.
• Requires: 2-channel radio, steering servo, ESC, 7.2volt battery & battery charger.
• Requires Tamiya Polycarbonate paint to paint the body. (sold separately)

This R/C assembly car kit replicates the iconic Nissan Skyline GT-R (R32). The highly detailed polycarbonate body sits on top of Tamiya’s easy to build and maintain TT-02D chassis.

The TT-0D chassis allows you to enjoy the thrill of drifting thanks to the specially tuned drift spec version of the TT-02 chassis. The chassis features drift spec parts such as 24mm width drift tires (paired with stylish matte-finish metal-plated wheels), and CVA shock units on the 4-wheel double wishbone suspension. Full ball bearings, an aluminum motor heat sink, and a sport-tuned motor come as standard to further enable drifting fun! Of course, the chassis retains the original TT-02's excellent drivability, ease of maintenance, and adaptability.

• 1/10 scale R/C model assembly kit. Length: 452mm.
• LED lights included.
• Polycarbonate body
• ABS molded parts included in the kit to recreate side mirrors and rear wing.
• Marking detail stickers to decorate the car included.
• Shaft-driven 4WD entry level chassis. Compatible with TT-02 option parts.
• Comes with 24mm width drift-spec tires on mesh wheels, CVA oil dampers, full ball bearings, a sport-tuned motor, and aluminum motor heat sink.
• Includes 540-type Sport-Tuned brushed motor.
• Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
• Requires: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS spray paint.

• 1/10 scale R/C model assembly kit. Length: 397mm, width: 163mm.
• The model uses the 239mm L wheelbase.
• Body is made of polycarbonate. Bumpers and side mirrors are recreated using separate metal-plated parts.
• Front light pods and rally-style stickers included. Includes Rally block tyres.
• The MF-01X is at home on-road or on flat dirt, thanks to 4-wheel double wishbone suspension.
•  Power from the rear mounted motor is transmitted by gear differential to the rear wheels, and via a propeller shaft to the front.
• The chassis can be assembled into S and M wheelbases using separately sold propeller shafts.
• A host of Hop-Up Option parts are available to tune the MF-01X chassis.
• Requires: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS Paint.

The Mazda RX-7 is a classic fan favorite among drift event enthusiasts. It was popularized by such movies as Fast and the Furious: Tokyo Drift and the well-known animation series Initial D. Originally released on the Tamiya TT-01 chassis platform, the iconic body style now sits atop the updated TT-02 Drift Spec chassis.

The TT-02 chassis on which this Mazda is mounted on is an amazing machine. The TT-02 chassis is an entry-level 4WD full independent suspension assembly kit that offers ease of assembly and easy maintenance. The TT-02D is the Drift Spec variant that includes special parts to make it a fun to drive drifting machine.

• 1/10 scale R/C model assembly kit. Length: 449mm.
• LEDs included.
• The RX-7 (FD3S) is recreated by a durable and lightweight polycarbonate body.
• Separately molded parts are included in the kit to recreate side mirrors, rear wing and headlight cases.
• Stickers included.
• The TT-02D is the specially tuned drift spec of the popular shaft-driven 4WD entry chassis, the TT-02.
• Comes with 24mm width drift-spec tires on mesh wheels, CVA oil dampers, full ball bearings, a sport-tuned motor and aluminum motor heat sink.
• Requires: 2-channel radio, 7.2volt battery & charger, and Tamiya PS spray paint.

This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers responsive drive characteristics and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Featured Components:

Monocoque frame chassis (with detachable lower section)
Long suspension arms
CVA oil dampers
Full ball bearings
Gear differential unit
Universal drive shafts
Hi-torque servo saver

• 1/10 scale R/C chassis assembly kit. Length: 332mm, width: 164mm.
• The core of the chassis is a 1-piece monocoque with integrated upper frame elements similar to the TA-07 Pro. It is designed to offer excellent rigidity with easy maintenance.
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction.
• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering linkage components. Rear toe can be adjusted simply using spacers.
• 4-wheel double wishbone suspension is fitted with CVA oil shocks.
• The TA06 oil-filled gear differential is used to drive the M-07. It is paired with universal drive shafts and full ball bearings.
• Compatible with standard IFMAR (Li-Po cell-type) regulation square-shaped battery packs.
• Compatible with Low-Profile servos.
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments vital at the racetrack.
• Body mounts have a new reinforced design for more secure body attachment.
• The chassis gives its driver excellent “feedback,” allowing you to judge with clarity how your setup changes have impact.

Designed for a 24-hour endurance race on the grueling Nurburgring, the WRX STI NBR Challenge car took Subaru's high-performance WRX STI sport sedan as a base. It certainly did the business, winning its class in the 2016 running of the race, and this R/C model assembly kit recreates that car. Its complex lines are gracefully depicted by a polycarbonate body, capturing features such as the bonnet air intake and vents, plus the sharp front fenders and diffuser-shaped rear end. Side mirrors and rear wing are depicted using separate parts, while stickers are included to recreate the multitude of sponsor logos.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with slick tires for a racy finish.

• 1/10 scale R/C model assembly kit.
• The aerodynamically-optimized form of the race version of the WRX STI is accurately rendered in lightweight and durable polycarbonate.
• Separately molded parts are included in the kit to recreate side mirrors and rear wing.
• The beginner-friendly yet highly adaptable TT-02 is a versatile and easy-to-maintain chassis.
• Gun metal color mesh type wheels are paired with slick tires.
• Stickers are included to recreate the markings of the car, as are masking stickers for use when painting.
• Includes 540-type brushed Torque-Tuned motor.
• Includes the Tamiya TBLE-02S ESC (brushless motor and brushed motor compatible)
• Requires 2-channel radio, 7.2volt battery, and compatible charger, and PS paint to complete.
• An extensive TT-02 option parts line-up offers a number of opportunities to tune your car.

• 1/10 scale R/C model assembly kit. Length: 445mm, width: 184mm
• The 190 E form is expertly depicted in durable polycarbonate, with separate moulded mirror, wing and grille parts, as well as a plated Mercedes-Benz 3-star emblem
• Marking stickers are included to recreate the numerous sponsor logos, car numbers, etc
• 6 spoke wheels (same design as Celica GT-Four '97 Monte-Carlo - Item 50770) are moulded in gold, and paired with slick tyres
• The TT-01 Type-E chassis features shaft-driven 4WD system which offers easy handling
• A wide range of option parts is available to tune the TT-01 Type-E chassis
• Torque-tuned motor is included

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

• Length: 414mm, Width: 185mm, Height: 132mm
• Wheelbase: 257mm
• Tyre Width/Diameter (Front & Rear): 24/63mm
• Bathtub-type Frame
• Shaft Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear CVA Oil Shocks
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
• Type 540 Sport-Tuned Motor
• Full Ball Bearings
• Electronic Speed Controller (ESC) is included

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

This is a R/C model assembly kit recreating the form of the outstanding new NSX super sports car. The included polycarbonate body is lightweight and durable, and captures the aerodynamically-styled NSX silhouette with aplomb. Stickers are included to recreate markings on the car, including the distinctive "Jewel Eye" 6-lamp headlights, window frames and air intake mesh. The model runs on the adaptable TT-02 chassis, a beginner friendly unit with tuning potential!

TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color mesh wheels are paired with radial tires.

Specifications
_Length: 438mm, Width: 190mm, Height: 124mm _Wheelbase: 257mm__Tire Width/Diameter: 27/67mm (Front & Rear) _Bathtub-type Frame _Shaft-Driven 4WD _Front/Rear 4-Bevel Resin Differentials _3-Piece Steering Tie-Rod _4-Wheel Double Wishbone Suspension _Front/Rear Friction Dampers _Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) _Type 540 Motor

• Length: 440mm
• Width: 290mm
• Height: 270mm
• Wheelbase: 247mm
• Tread: 200mm (Front); 225mm (Rear)
• Tyre Width/Diameter: 60mm/123mm
• ABS Resin Space Frame
• Rear-Wheel Drive
• 3-Bevel Differential Gear
• 2-Piece Steering Tie-Rod
• Suspension: Double Wishbone (Front); Trailing Arm (Rear)
• Oil Dampers
• Gear Ratio = 14.7:1
• Type 540 Motor
• Electronic Speed Controller (included)

• Two-channel radio, steering servo, 7.2volt battery with compatible charger, and Tamiya PS polycarbonate paint

The 1999 version of the two-door Subaru Impreza rally car was a highly balanced beast, with 4-cylinder turbocharged all-aluminium boxer engine, a drive-by-wire throttle and semi-automatic 6-speed transmission. This R/C model assembly kit recreates the Impreza from the year's opening rally in Monte-Carlo, with the form faithfully depicted in durable polycarbonate, and separate parts used to recreate the rear wing and side mirrors. Stickers are included to recreate the multitude of team and sponsor logos. The model runs on the adaptable TT-02 chassis, which is equally at home on road and flat dirt surfaces.

The TT-02 Chassis
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gold colour fin-spoke wheels are paired with rally block tyres.

• With 4WD drivetrain
• ECS included
• Torque-tuned 540-brushed type motor is included
• The classic form of the car is recreated in polycarbonate, with separately-moulded side mirror and rear wing parts
• The TT-02 chassis features a shaft-driven 4WD system that offers easy handling and great customisation
• Stickers are included to recreate the markings on the car, as are window masking stickers for use when painting
• 16-spoke gold colour moulded wheels are paired with rally block tyres (50476)
• A wide range of option parts are available to tune the TT-02 chassis
• Fully independent double wishbone suspension
• Suitable for both off-road and on-road terrain

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• Length: 370mm, Width: 250mm, Height: 160mm
• Wheelbase: 266mm
• Tread: 217mm (Front), 208mm (Rear)
• Bathtub-type Chassis Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Tyre Width/Diameter: 32/82mm (Front), 41/82mm (Rear) (Square Spike Tyres)
• CVA Oil Shock Units
• Gear Ratio＝10.71：1 (with kit-included pinion gear)
• Type 540 Motor
• ESC is included

• 2-Channel radio, Battery Pack & Charger, R6/AA/UM3 batteries for transmitter

• Scale 1/10. Length: 400mm, Width: 244mm, Height: 134mm
• Wheelbase: 287mm
• Tread (Front/Rear): 222/208mm
• Tyre Width/Diameter: 23/81mm (Front), 41/86mm (Rear)
• Monocoque Frame
• Rear Wheel 2WD
• 3-Bevel Differential
• 2-Piece Steering Tie-Rod
• Front & Rear Double Wishbone Suspension
• Gear Ratio = 9.28:1
• Type 540 Motor

• Two-channel radio, electronic speed controller (ESC), steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

This re-release version of the Monster Beetle assembly kit features a number of updates while keeping the basic layout of the original off-road car released in 1986. It features a realistic customised Beetle body depicted in tough polystyrene resin, with metal-plated parts supplied in the kit to add the finishing touch for handles and headlight frames. A resin driver figure is the icing on top of the cake!

Tough Space Frame Chassis
This hardy model's rear-wheel drive chassis is based around a durable ABS space frame to withstand all-action off-road driving. 4-wheel independent suspension uses CVA oil dampers, and has double wishbone front and trailing arm rear setups. Superlative cushioning and grip are provided by 130mm-diameter, 58mm-width lug pattern pin spike tyres on flashy gold colour plated wheels. Efficient and durable universal shafts come with rubber boots.

About the Model

• Length: 410mm
• Width: 285mm
• Height: 240mm
• Wheelbase: 247mm
• Tread: 220mm (Front); 225mm (Rear)
• Tyre Width/Diameter: 58mm/130mm
• ABS Resin Space Frame
• Rear-Wheel Drive
• 3-Bevel Differential Gear
• 2-Piece Steering Tie-Rod
• Suspension: Double Wishbone (Front); Trailing Arm (Rear)
• Oil Dampers
• Gear Ratio = 14.7:1
• Type 540 Motor
• Electronic Speed Controller (Included)

Requires: Radio Control System with 1 Servo, 7.2v Battery & Charger, suitable Paint for the Bodyshell (optional), Tools for Assembly.
