Now driving R/C is even more fun Newly designed FZ02L chassis with realistic racing car body

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 274mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

- “Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism.
- New design shaft drive full-time 4WD touring chassis（FZ02）.
- Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.
- Equipped with 2-bevel grease-filled gear diffs on front and rear.
- Large size dog bones and cup joints realize superior reliability and durability.
- Belt mounting battery compartment allows various battery types to be used.
- Full ball bearings that reduce drive loss equipped throughout the drive system.
- Features KS202W waterproof steering servo.
- Includes completely finished body with color scheme and decals applied.
- Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
- Performance can be further enhanced by installing various optional parts.

Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

Oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Embodying the true essence of the American Muscle car age, the Dodge Charger featured in many popular TV shows and movies. This 1/10 scale recreation featuring a 2-door hardtop semi-fastback body with its distinctive coke-bottle lines and concealed headlights captures the unique Dodge Charger identity.

New design Vintage Touring Car (VTC) tires & Rostyle type wheels to match vintage car style.

Comes with the new powerful 550 size 14T brushed motor(G14L). The long can with Steel ring around the motor case and internal cooling fan provides efficient torque and high speeds.

Features

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case, wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Trail Finder 2 includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.

The driveshafts on the Trail Finder 2 feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The Trail Finder 2 has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.

The Trail Finder 2 includes Scale 70mm and 80mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and ultimate performance. They are machined from billet aluminium with internal springs and are customizable.

With strength in mind, the ladder frame design of the Trail Finder 2 is made with CNC machined, billet aluminium and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

The Scale Dept. Edition includes a set of rugged 8 Lug Deep Dish Wagon Wheels. These 1.9" Chrome-Plated wheels are formed with stamped steel and are finished off with Scale Wheel Hubs.

Every RTR needs a tough set of tyres to hit the trails and the included RC4WD Dick Cepek Fun Country 1.9" Scale Tyres deliver the perfect amount of traction with its advanced X2S3 compound. The scale details complete the look in just the right size.

Details

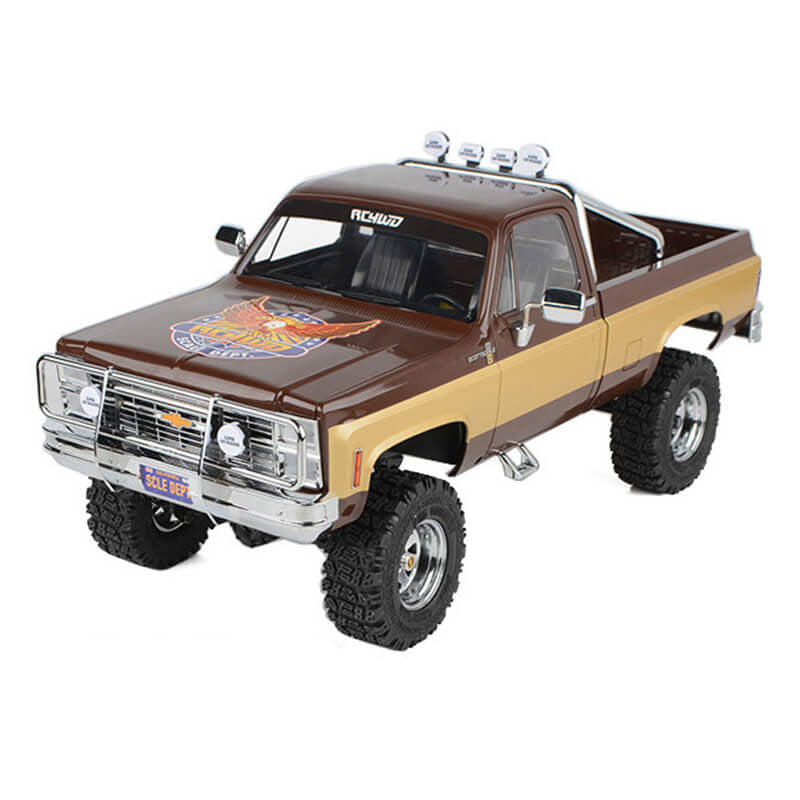

The Chevrolet K10 Scottsdale features exquisite scale details, including door handles, updated mirrors, new rear step bumper and the new front grille. It also has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.

The Chevrolet K10 Scottsdale Hard Body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.

The Chevrolet K10 Scottsdale Hard Body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale are unmatched when it comes to details.

The Chevrolet K10 Scottsdale Hard Body set includes an improved dashboard with preinstalled, super-scale interior decals and door panels.

Straight out of the box, an LED light set comes professionally installed and concealed, keeping that realistic look. Included are chrome-plated parts and coloured lenses for that scale look! Now including the old school halogen headlights.

Electronics

The Trail Finder 2 includes a high-quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!

The Trail Finder 2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, you're sure to get where you're going!

Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!

With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.

It's all in the box! Everything you need is provided to get you on the trails today!

More Features

• Chevrolet K10 Scottsdale Hard Body.
• Small Block V8 Engine Bay W/ Dress Up Kit.
• Halogen Style Lights (retro Look).
• Chrome Front Grille For Chevrolet Blazer And K10 (80's).
• Chrome Single Tube Roll Bar And Front Push Bar.
• Chrome Rear Step Bumper.
• 8 Lug Chrome Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels.
• Dick Cepek Fun Country 1.9" Scale Tyres.
• K44 Ultimate Scale Cast Axles (XVD).
• X-Ring Scale Shock Absorbers 70/80mm.
• Front Inner Fenders.
• Twister High Torque Metal Gear Digital Servo.
• 45T 540 Brushed Crawler Motor.
• R3 Single Speed Transmission.
• Center Mounted Hammer Transfer Case.
• Chrome Side Steps.
• Outcry III Waterproof ESC.
• 6-Cell 3000mAh NIMH Battery Pack.

Specifications

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")

Shock Absorbers
X-ring Scale Shock Absorbers 70/80mm

Wheels
Type: RC4WD 8 Lug Deep Dish Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Fits Standard: 12mm Hex
Width: 1.26in / 32.0mm
OD: 2.08in / 53.0mm

Tyres
Type: RC4WD Dick Cepek Fun Country 1.9" Scale Tyres
Outer Diameter: 3.94in / 100mm
Width: 1.52in / 38.8mm
Inner Diameter: 1.81in /46.0mm

TF2 Truck Dimensions
Wheelbase: 312.0mm(12.3")
Width: 220.0mm(8.7")
Height: 251.0mm(9.9")
Ground Clearance: 62.0mm(2.4")
Final Drive Ratio: 31.9:1

What's Included

• 1 x RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Scale Dept. Edition)

Notes

• Please note that these truck bodies are hand-painted, so minor blemishes, differences, or imperfections may occur.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.

Features

• 2015 Land Rover Defender D90 Body Set
• Basic Lighting System
• TDI Engine Bay
• Landies Vintage 1.9" Stamped Steel Beadlock Wheels
• Dick Cepek 1.9" Mud Country Scale Tires
• Yota II Ultimate Scale Cast Axle V2 (XVD)
• Dual Spring Scale Black Shocks 80mm V3
• Inner Fender Set
• 540 Crawler Brushed Motor 45T
• R3 Single Speed Transmission
• Center Mounted Hammer Transfer Case
• Twister High Torque Metal Gear Digital Servo
• Outcry III Waterproof ESC
• 6-Cell 3000mAh NIMH Battery W/ XT60 Plug
• Universal NIMH Peak Battery Charger
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
• Exclusive Decal Sheet

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles V2 (XVD) feature innovative 8-degree round knuckles, unique removable diff covers, lower mounting points, and a compact offset pumpkin in the front.

The driveshafts on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The Gelande II Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under-cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The Gelande II boasts realistic-looking, high -performance X-ring technology Dual Spring Shocks. These rebuildable aluminum shocks feature dual springs and Titanium Nitride coated shafts for superior, long-lasting impact control.

The Gelande II Chassis is a machined billet aluminum ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.

The Gelande II Included are a set of 5 Lug Wagon Landies Vintage 1.9" Stamped Steel Beadlock Wheels! The wheels are made from stamped steel and have a smooth black finish for added detail.

This Gelande II comes with a set of Dick Cepek 1.9" Mud Country Scale Tires that deliver the perfect amount of traction with its advanced X3 soft and sticky compound. The scale details complete the look in just the right size.

Electronics

The Gelande II includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control a winch and add even more fun to your scale adventure.

The Gelande II is powered by the RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, you're sure to get where you're going!

The Gelande II features the popular RC4WD Outcry IIl Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the Gelande II features the Twister. A high torque metal gear digital servo to handle all your steering duties.

It's ALL in the box! Everything you need is provided to get you on the trails today!

Details

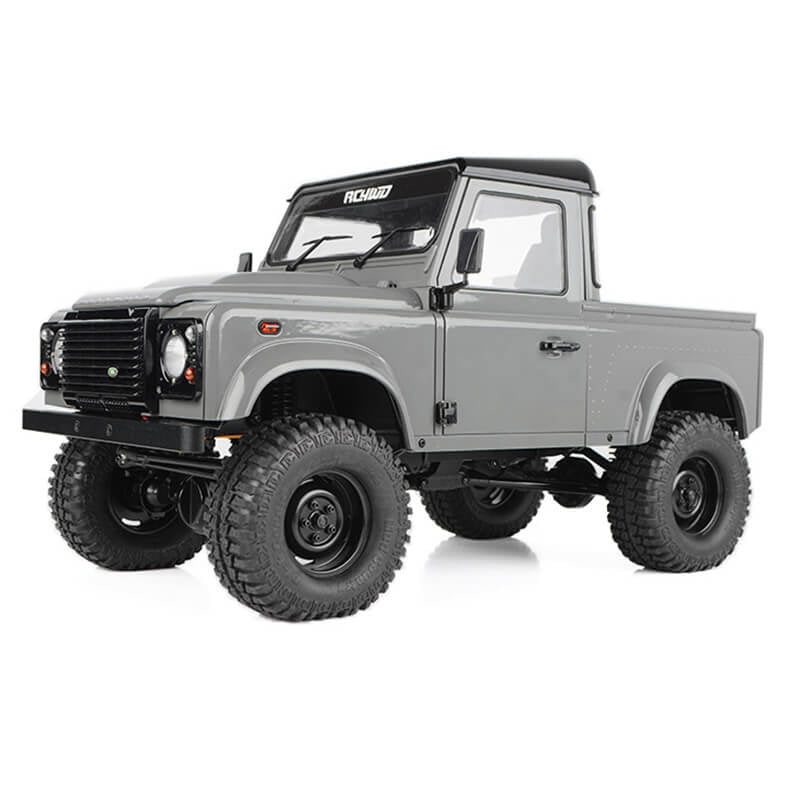

The Gelande II features the 2015 Land Rover Defender D90 Body Set, which comes with an awesome assortment of scale details including mirrors, door handles, vents and grille to match the 1:1 vehicle. It also has a complete molded plastic engine bay that comes painted with decals installed for an extremely scale appearance.

Officially licensed by Land Rover, the 2015 Land Rover Defender D90 Body Set is the most scale replica on the market, featuring opening doors, a rear tailgate, and a hood.

The Gelande II features the 2015 Land Rover Defender D90 Body Set, which comes in gloss grey paint, decals, a pre-installed lighting system, and a fully molded interior!

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It's all here to bring your scale experience to a new level.

The body features many intricate details and is almost unmistakable from its full size counterpart. Signal lights have color lenses and come with a pre-installed light kit!

Specifications

Hammer Transfer Case

Ratio: 1.47:1
Gears: Wide 0.8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm

Gelande II Chassis

Billet: Aluminum Construction
Adjustable Shock Hoops

Drive Shafts

High Quality Plastic Material
Durable High Steel Yokes

Wheels

Type: Landies Vintage 1.9" Stamped Steel Beadlock Wheels
Hub: 12mm Hex~
Width: 22.9mm (0.90")
OD: 52.5mm (2.06")

Gelande II Truck Dimensions

Wheelbase: 275mm (10.83")
Width: 215mm (8.46")
Height: 247mm (9.72")
Ground Clearance: 50mm (1.72")
Final Drive Ratio: 31.93:1

What's Included

• 1 x RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Grey)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Experience the versatility and advanced design of the 1/18 Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

The G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new 1/18 Mini Transmission provides power to the 1/18 Yota II Axles.

The core of the G2 is built for the true off-road enthusiast. From emergency and expedition vehicles, down and dirty off-road rigs and even daily drivers, the G2 can be customized to pull off any look you choose. The G2 delivers on performance and looks to match the driver's identity.

The G2 comes with double triangulated 4 Link Front and Rear Suspension. The servo is mounted on the chassis out of view for a more scale appearance.

Are you ready for your off-road experience?

Features

• True to Scale Design And Aesthetics
• Realistic Aluminum Ladder Frame Chassis
• R5 1/18 Mini Transmission V2
• 1/18 Cast Front And Rear Axle Set
• 4 Link Front And 4 Link Rear Suspension
• Rock Crusher 1.0" Micro Crawler Tires
• Stamped Steel 1.0" Stock Beadlock Wheels (Plain)
• 9G Analog Metal Gear Micro Servo
• The Ultimate Mini Scale Shocks (40mm)

Specifications

All New R5 1/18 Mini Transmission V2
Total Gear Ratio: 5.5 : 1
Pinion Gear: 55P 10T
Gear Material: Hardened Brass and Steel
Case Material: Plastic Injection Molded

All New 1/18 Cast Yota II Axles
Ratio: 2.55 : 1
Width at Hex : 92mm
Case Material: Zinc Alloy

G2 Suspension
Double Triangulated 4 Link Front and Rear Suspension

Shock Absorbers
Ultimate 40mm Scale Shocks - Can not be Oil Filled

Wheels
Type: Stamped Steel 1.0" Stock Beadlock Wheels (Plain)
Hub: 7mm Hex
Width: 7mm
Back Spacing: 7mm

Bumpers
Machined Billet Aluminum, Light Weight

G2 Truck Dimensions
Wheelbase: 130.71mm (5.15")
Length: 223.67mm (8.81")
Width: 110.23mm (4.34")
Height: 114.97mm (4.53")
Ground Clearance: 28.71mm (1.13")
Final Drive Ratio: 112 : 1
Weight: 1.14lbs / 0.52kg

What's Included

• 1x RC4WD 1/18 Gelande II RTR w/ Black Hawk Hard Body Set

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

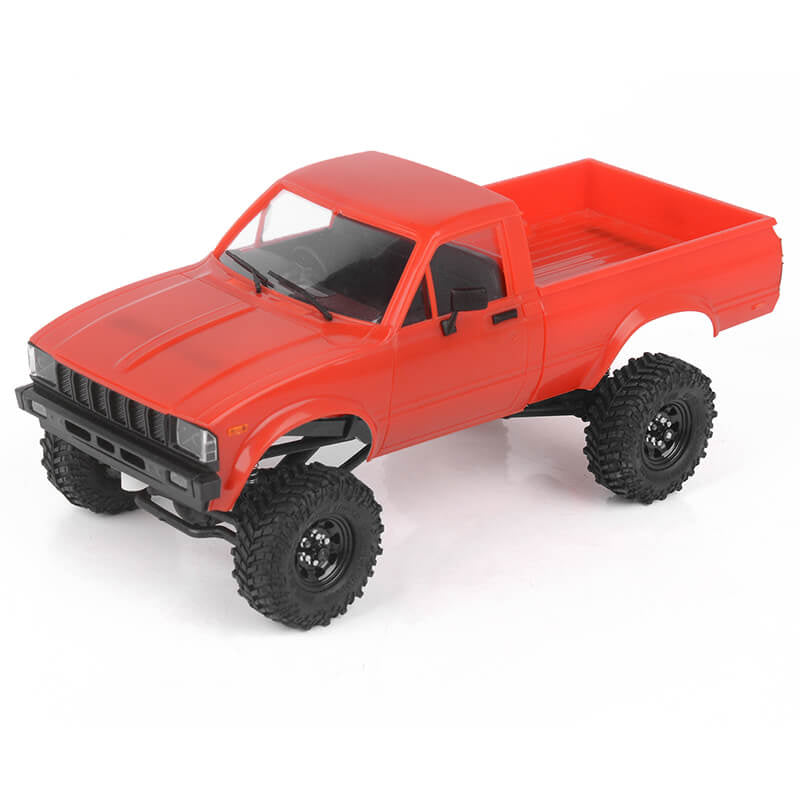

Enjoy all the fun of our popular 1/10 Trail Finder 2 in a 1/24 scale version!

This 1/24 Trail Finder 2 comes with all the true to scale detailing and quality performance to crawl through any terrain. Performance of the 1/24 is smooth with its R6 Mini Transmission, 4WD Drive-train, and 1/24 D44 Scale Axles, the 1/24 TF2 comes with Plastic 0.7" Beadlock wheels wrapped in some super scale Mickey Thompson 0.7" Baja Claw TTC Scale Tires to keep you trailing!

Whether it's outside on a trail or inside of your living room on an improvised course, the 1/24 TF2 comes prepared for creative challenges and is a perfect choice for any thrill seeking enthusiast. Experience all the fun and performance of the TF2 RTR, now in 1/24th scale!

Are you ready for your off-road experience?

Features

• 1/24 Trail Finder2 CNC Aluminium Chassis Set
• RC4WD Plastic Punisher Shafts (32mm - 37mm / 1.26" - 1.46")
• RC4WD 1/24 D44 Plastic Complete Axles
• R6 Micro Transmission
• Twister 5G Micro Servo
• N30 Micro Motor
• Spring Dampers for 1/24 TF2
• Super Scale 0.7" Beadlock Wheels
• RC4WD Mickey Thompson 0.7" Baja Claw TTC Scale Tires
• RC4WD 7.4V 320mAh Lithium Ion Battery W/ Balance Plug
• XR2 Ultimate Micro Radio and ESC/Receiver

Specifications

All New R6 Micro Transmission

• Motor: 30:1
• Internal Gear Ratio: 1.15:1
• Gear Material: Hardened Brass and Steel
• Case Material: Strong Durable Nylon

All New 1/24 D44 Plastic Complete Axles

• Ratio: 2.67:1
• Width at Hex: 71.6mm
• Case Material: Strong Durable Nylon
• Suspension: 4 Link Front and Rear Suspension

Wheels and Tyres

• Type: OEM Plastic 0.7" Beadlock Wheels (Black)
• Wheels Hub: Pin Type
• Width: 10mm
• OD: 19.5mm
• Tyres: officially licensed Mickey Thompson Baja Claw tyres

Dimensions and Weight

• Wheelbase: 120mm
• Length: 203mm
• Width: 91.7mm
• Height: 88.7mm
• Ground Clearance: 23.5mm
• Final Drive Ratio: 2.67:1
• Weight: 0.44lbs/0.2kg

What's Included

• 1x RC4WD 1/24 Trail Finder 2 RTR W/ Mojave II Hard Body Set (Black)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Enjoy all the fun of our popular 1/10 Trail Finder 2 in a 1/24 scale version!

This 1/24 Trail Finder 2 comes with all the true to scale detailing and quality performance to crawl through any terrain. Performance of the 1/24 is smooth with its R6 Mini Transmission, 4WD Drive-train, and 1/24 D44 Scale Axles, the 1/24 TF2 comes with Plastic 0.7" Beadlock wheels wrapped in some super scale Mickey Thompson 0.7" Baja Claw TTC Scale Tires to keep you trailing!

Whether it's outside on a trail or inside of your living room on an improvised course, the 1/24 TF2 comes prepared for creative challenges and is a perfect choice for any thrill seeking enthusiast. Experience all the fun and performance of the TF2 RTR, now in 1/24th scale!

Are you ready for your off-road experience?

Features

• 1/24 Trail Finder2 CNC Aluminium Chassis Set
• RC4WD Plastic Punisher Shafts (32mm - 37mm / 1.26" - 1.46")
• RC4WD 1/24 D44 Plastic Complete Axles
• R6 Micro Transmission
• Twister 5G Micro Servo
• N30 Micro Motor
• Spring Dampers for 1/24 TF2
• Super Scale 0.7" Beadlock Wheels
• RC4WD Mickey Thompson 0.7" Baja Claw TTC Scale Tires
• RC4WD 7.4V 320mAh Lithium Ion Battery W/ Balance Plug
• XR2 Ultimate Micro Radio and ESC/Receiver

Specifications

All New R6 Micro Transmission

• Motor: 30:1
• Internal Gear Ratio: 1.15:1
• Gear Material: Hardened Brass and Steel
• Case Material: Strong Durable Nylon

All New 1/24 D44 Plastic Complete Axles

• Ratio: 2.67:1
• Width at Hex: 71.6mm
• Case Material: Strong Durable Nylon
• Suspension: 4 Link Front and Rear Suspension

Wheels and Tyres

• Type: OEM Plastic 0.7" Beadlock Wheels (White)
• Wheels Hub: Pin Type
• Width: 10mm
• OD: 19.5mm
• Tyres: officially licensed Mickey Thompson Baja Claw tyres

Dimensions and Weight

• Wheelbase: 120mm
• Length: 203mm
• Width: 91.7mm
• Height: 88.7mm
• Ground Clearance: 23.5mm
• Final Drive Ratio: 2.67:1
• Weight: 0.44lbs/0.2kg

What's Included

• 1x RC4WD 1/24 Trail Finder 2 RTR W/ Mojave II Hard Body Set (Yellow)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Experience the versatility and advanced design of the 1/18 Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!

The G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new 1/18 Mini Transmission provides power to the 1/18 Yota II Axles.

The core of the G2 is built for the true off-road enthusiast. From emergency and expedition vehicles, down and dirty off-road rigs and even daily drivers, the G2 can be customized to pull off any look you choose. The G2 delivers on performance and looks to match the drivers identity.

The G2 comes with double triangulated 4 Link Front and Rear Suspension. The servo is mounted on the chassis out of view for a more scale appearance.

Are you ready for your off-road experience?

Features

• Custom Designed for True to Scale Looks
• Realistic Aluminum Ladder Frame Chassis
• RC4WD Milestar Patagonia M/T 1.0'' Micro Crawler Tyres
• R5 1/18 Mini Transmission V2
• JK 1.0 Scale Beadlock Wheels
• 9G Analog Metal Gear Micro Servo
• 1/18 Cast Front and Rear Axle Set
• The Ultimate Mini Scale Shocks (40mm)
• 4 Link Front and 4 Link Rear Suspension

Specifications

All New R5 1/18 Mini Transmission V2
Total Gear Ratio: 5.5 : 1
Pinion Gear: 55P 10T
Gear Material: Hardened Brass and Steel
Case Material: Plastic Injection Molded

All New 1/18 Cast Yota II Axles
Ratio: 2.55 : 1
Width at Hex : 92mm
Case Material: Zinc Alloy

G2 Suspension
Double Triangulated 4 Link Front and Rear Suspension

Shock Absorbers
Ultimate 40mm Scale Shocks - Can not be Oil Filled

Wheels
Type: JK 1.0 Scale Beadlock
Wheels Hub: 7mm Hex
Width: 15mm
OD: 27.5mm

Bumpers
Molded Plastic Bumper, Light Weight

G2 Truck Dimensions
Wheelbase: 130.7mm (5.15") Length: 231mm (9.09")
Width: 113.6mm (4.47")
Height: 115.9mm (4.56")
Ground Clearance: 30.8mm (1.21")
Final Drive Ratio: 112 : 1
Weight: 1.25lbs / 0.57kg

What's Included

• 1 x RC4WD 1/18 Gelande II RTR w/ Black Rock Body Set (Orange)

The Bully 2.2 MOA Competition Crawler is a full out of the box, ready to compete Crawler Kit. The Bully 2.2 offers unmatched features that include carbon fiber chassis, Bully 2.2 Competition CNC machined axles, aluminum shocks, titanium links, carbon fiber and delrin Rocker 2.2" Beadlock Wheels and Bully Advanced XS22 Compound Competition Tires.

This unit is a prebuilt, ready to add batteries, purpose built crawler. Built with the intention to meet the U.S.R.C.C.A rules and destroy the competition. Bully axles offer ultimate strength and durability, full ball bearings, steel internal heavy duty gears, XVD's, clockable C's, sleek gearbox and tons of adjustability to meet your needs.

The MOA allows for ultimate control with its dual motor setup. This will reduce your center of gravity and increase the run time. Paired with a Rocker Dig II (Z-E0028) to allow for independent control of the motors giving you optimum power and other useful functions on the rocks.

Not all RC Crawler manufacturers are created equally, RC4WD sets itself apart from the competitors by offering amazing quality and details. Adding to our portfolio is this crafted crawler that will without a doubt rock your world with its out of the box features! No other crawler or crawler company can compare. The Bully 2.2 MOA Competition Crawler is a game changer!

Features

• CNC Machined Aluminum Axles
• MOA (Motor on Axle Design)
• Steel Internal Heavy Duty Gears
• Bully 2.2" Competition Tires (Advanced X2SS Compound)
• Carbon Fiber and Delrin Wheels
• Clockable C's
• Aluminium Shocks
• Titanium Links
• Carbon Fiber and Delrin Chassis
• High Clearance Chassis Design
• Carbon Fiber Battery Plate
• Easy to Paint Lexan Body Panels
• Endless Customizing for a Unique End User Experience

Specifications

Bully 2 Competition Crawler Axles
Ratio: 40.7 : 1
Pinion Gear: 0.8 Mod 14T
Hex Width: 219.5mm
Hardened Steel Gears
Case Material: Billet Aluminum

Bully 2 Suspension
4 Links Front and Rear Suspension

Shock Absorbers
Internal Spring 90mm Shocks - Can Be Oil Filled

Wheels
Type: 2.2" Lightweight Competition Beadlock Wheels
Hub: Hex Type
Width: 25.3mm
Back Spacing: 15mm

Bully 2 Dimensions
Wheelbase: 306mm (12'')
Width: 254mm (10'')
Height: 190mm (7.5'')
Ground Clearance: 97mm (3.8'')
Final Drive Ratio: 40.7 : 1
Weight: 4.38lbs / 1.99Kg

What's Included

• 1x RC4WD Bully II MOA RTR Competition Crawler

Required To Complete

• Battery (Consult your "ESC" manual) or Lipo battery
• Charger (Consult your battery guide) Chargers

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

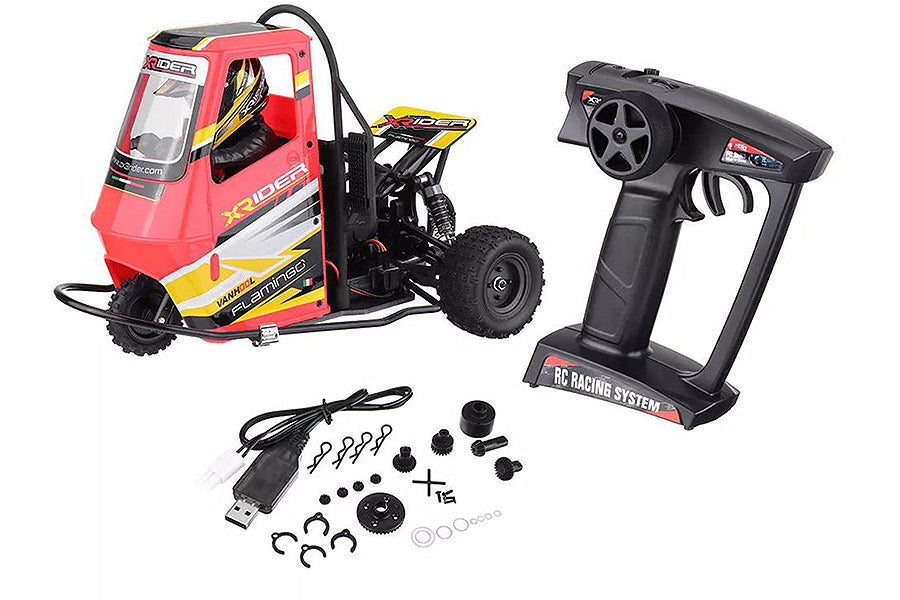

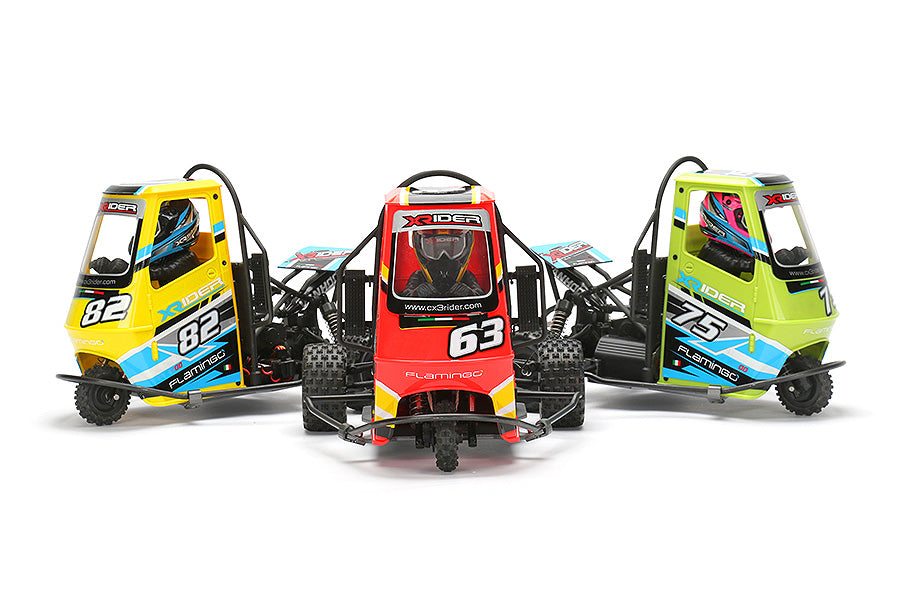

Inspired by the classical Italian ‘Piaggio Ape’ 3-wheel vehicles that are based on a Vespa scooter the X-Rider Flamingo is a unique cute bundle of fun that every R/C fan needs to enjoy.

Featuring a hard ABS moulded cab and entertaining cartoon style ‘bobbing head’ driver figure the Flamingo is available in a choice of three vivid colours. A steel roll bar runs around the outer edge of the chassis to help prevent tipping during hard turns even though you will lift rear wheels and drift! Mounted to a thick 6061 aluminium main chassis the 370 brushed motor, gearbox with heady-duty metal gears and 800mAh battery are all neatly housed under the cab and a special imitation engine block with moulded exhaust.

Multi-line rear suspension with shock absorbers, scale looking retro wheels and a spoiler finish off the Flamingo in style. Ready-to-run with radio, 2-in-1 esc, and USB Charger.

Bellissimo!

Features

• Easy to drive and install
• Sideways cornering performance similar to a drift car
• Suitable for two wheel tilt stunts
• Entertaining head-shaking cartoon drive
• High simulated ABS hard plastic car body
• Thickened 6061 aluminium chassis
• Metal drive gears
• Reinforced metal guard & fibre roll cage
• Simulated radiator & engine
• High performance spoiler
• Multi-link suspension
• Retro truck rim w/ all terrain tyres
• Ready-to-Run
• 2-in-1 ESC/RX
• 32T 370 Brushed Motor
• 8.2V 800mAh NiMH Battery
• Digital Steering Servo
• USB Charger

Specifications

Length: 255mm
Width: 190mm
Height: 180mm
Wheelbase: 175mm

Inspired by the classical Italian ‘Piaggio Ape’ 3-wheel vehicles that are based on a Vespa scooter the X-Rider Flamingo is a unique cute bundle of fun that every R/C fan needs to enjoy.

Featuring a hard ABS moulded cab and entertaining cartoon style ‘bobbing head’ driver figure the Flamingo is available in a choice of three vivid colours. A steel roll bar runs around the outer edge of the chassis to help prevent tipping during hard turns even though you will lift rear wheels and drift! Mounted to a thick 6061 aluminium main chassis the 370 brushed motor, gearbox with heady-duty metal gears and 800mAh battery are all neatly housed under the cab and a special immitation engine block with moulded exhaust.

Multi-line rear suspension with shock absorbers, scale looking retro wheels and a spoiler finish off the Flamingo in style. Ready-to-run with radio, 2-in-1 esc, and USB Charger.

Bellissimo!

Features

• Easy to drive and install
• Sideways cornering performance similar to a drift car
• Suitable for two wheel tilt stunts
• Entertaining head-shaking cartoon drive
• High simulated ABS hard plastic car body
• Thickened 6061 aluminum chassis
• Metal drive gears
• Reinforced metal guard & fibre roll cage
• Simulated radiator & engine
• High performance spoiler
• Multi-link suspension
• Retro truck rim w/ all terrain tyres
• Ready-to-Run
• 2-in-1 ESC/RX
• 32T 370 Brushed Motor
• 8.2V 800mAh NiMH Battery
• Digital Steering Servo
• USB Charger

Specifications

Length: 255mm
Width: 190mm
Height: 180mm
Wheelbase: 175mm

Inspired by the classical Italian ‘Piaggio Ape’ 3-wheel vehicles that are based on a Vespa scooter the X-Rider Flamingo is a unique cute bundle of fun that every R/C fan needs to enjoy.

Featuring a hard ABS moulded cab and entertaining cartoon style ‘bobbing head’ driver figure the Flamingo is available in a choice of three vivid colours. A steel roll bar runs around the outer edge of the chassis to help prevent tipping during hard turns even though you will lift rear wheels and drift! Mounted to a thick 6061 aluminium main chassis the 370 brushed motor, gearbox with heady-duty metal gears and 800mAh battery are all neatly housed under the cab and a special immitation engine block with moulded exhaust.

Multi-line rear suspension with shock absorbers, scale looking retro wheels and a spoiler finish off the Flamingo in style. Ready-to-run with radio, 2-in-1 esc, and USB Charger.

Bellissimo!

Features

• Easy to drive and install
• Sideways cornering performance similar to a drift car
• Suitable for two wheel tilt stunts
• Entertaining head-shaking cartoon drive
• High simulated ABS hard plastic car body
• Thickened 6061 aluminum chassis
• Metal drive gears
• Reinforced metal guard & fibre roll cage
• Simulated radiator & engine
• High performance spoiler
• Multi-link suspension
• Retro truck rim w/ all terrain tyres
• Ready-to-Run
• 2-in-1 ESC/RX
• 32T 370 Brushed Motor
• 8.2V 800mAh NiMH Battery
• Digital Steering Servo
• USB Charger

Specifications

Length: 255mm
Width: 190mm
Height: 180mm
Wheelbase: 175mm

Inspired by the classical Italian ‘Piaggio Ape’ 3-wheel vehicles that are based on a Vespa scooter the X-Rider Flamingo is a unique cute bundle of fun that every R/C fan needs to enjoy.

Featuring a hard ABS moulded cab and entertaining cartoon style ‘bobbing head’ driver figure the Flamingo is available in a choice of three vivid colours. A steel roll bar runs around the outer edge of the chassis to help prevent tipping during hard turns even though you will lift rear wheels and drift! Mounted to a thick 6061 aluminium main chassis the 370 brushed motor, gearbox with heady-duty metal gears and 800mAh battery are all neatly housed under the cab and a special immitation engine block with moulded exhaust.

Multi-line rear suspension with shock absorbers, scale looking retro wheels and a spoiler finish off the Flamingo in style. Ready-to-run with radio, 2-in-1 esc, and USB Charger.

Bellissimo!

Features

• Easy to drive and install
• Sideways cornering performance similar to a drift car
• Suitable for two wheel tilt stunts
• Entertaining head-shaking cartoon drive
• High simulated ABS hard plastic car body
• Thickened 6061 aluminum chassis
• Metal drive gears
• Reinforced metal guard & fibre roll cage
• Simulated radiator & engine
• High performance spoiler
• Multi-link suspension
• Retro truck rim w/ all terrain tyres
• Ready-to-Run
• 2-in-1 ESC/RX
• 32T 370 Brushed Motor
• 8.2V 800mAh NiMH Battery
• Digital Steering Servo
• USB Charger

Specifications

Length: 255mm
Width: 190mm
Height: 180mm
Wheelbase: 175mm

There is no doubt that the Tracer has been a huge hit with enthusiasts new to R/C cars... but there is always that little bit more excitement to be gained, and we have upped the specification on the monster truck to bring you a brushless version for some real small-scale thrills and spills!

With a 3800kv brushless motor hooked up to a 7.4v 1000mAh 2S lipo battery the Tracer brushless really puts to use its rear mounted wheelie bar. Metal rear dogbones are included for extra durability along with new rear upper suspension links for added reliability under power.

A new 100m range radio is provided to help control those longer speed runs and as with the brushed version, the Tracer brushless edition features coil sprung shock absorbers with multiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the rough stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Plug in front bumper LED lights are included and there is a wide selection of aftermarket options to further up spec your truck to new levels!

Features

• 99% Ready-To-Run
• 2.4ghz radio system w/100m range
• Fully proportional throttle and steering
• Splashproof Brushless ESC/Receiver unit
• Splashproof 1kg rated servo
• 3800kv Brushless Motor
• 7.4v 1000mAh 2S LiPo Battery
• Front & Rear Geared Differentials
• Coil sprung shock absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Metal Rear Dogbone Driveshafts
• Low Friction Ball Bearings
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-in Front LED lights included
• Oversized Wheels & Block Pattern Tyres
• Wheelie Bar
• Wide Range of Options Available

There is no doubt that the Tracer has been a huge hit with enthusiasts new to R/C cars... but there is always that little bit more excitement to be gained, and we have upped the specification on the monster truck to bring you a brushless version for some real small-scale thrills and spills!

With a 3800kv brushless motor hooked up to a 7.4v 1000mAh 2S lipo battery the Tracer brushless really puts to use its rear mounted wheelie bar. Metal rear dogbones are included for extra durability along with new rear upper suspension links for added reliability under power.

A new 100m range radio is provided to help control those longer speed runs and as with the brushed version, the Tracer brushless edition features coil sprung shock absorbers with multiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the rough stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Plug in front bumper LED lights are included and there is a wide selection of aftermarket options to further up spec your truck to new levels!

Features

• 99% Ready-To-Run
• 2.4ghz radio system w/100m range
• Fully proportional throttle and steering
• Splashproof Brushless ESC/Receiver unit
• Splashproof 1kg rated servo
• 3800kv Brushless Motor
• 7.4v 1000mAh 2S LiPo Battery
• Front & Rear Geared Differentials
• Coil sprung shock absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Metal Rear Dogbone Driveshafts
• Low Friction Ball Bearings
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-in Front LED lights included
• Oversized Wheels & Block Pattern Tyres
• Wheelie Bar
• Wide Range of Options Available

There is no doubt that the Tracer has been a huge hit with enthusiasts new to R/C cars... but there is always that little bit more excitement to be gained, and we have upped the specification on the monster truck to bring you a brushless version for some real small-scale thrills and spills!

With a 3800kv brushless motor hooked up to a 7.4v 1000mAh 2S lipo battery the Tracer brushless really puts to use its rear mounted wheelie bar. Metal rear dogbones are included for extra durability along with new rear upper suspension links for added reliability under power.

A new 100m range radio is provided to help control those longer speed runs and as with the brushed version, the Tracer brushless edition features coil sprung shock absorbers with multiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the rough stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Plug in front bumper LED lights are included and there is a wide selection of aftermarket options to further up spec your truck to new levels!

Features

• 99% Ready-To-Run
• 2.4ghz radio system w/100m range
• Fully proportional throttle and steering
• Splashproof Brushless ESC/Receiver unit
• Splashproof 1kg rated servo
• 3800kv Brushless Motor
• 7.4v 1000mAh 2S LiPo Battery
• Front & Rear Geared Differentials
• Coil sprung shock absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Metal Rear Dogbone Driveshafts
• Low Friction Ball Bearings
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-in Front LED lights included
• Oversized Wheels & Block Pattern Tyres
• Wheelie Bar
• Wide Range of Options Available

The popular Treka enjoys a facelift on the latest Outack 3 trail platform. Using hidden body mounts the detailed bodyshell features multiple moulded scale accessories such as integrated front grill with ‘angel eyes’ headlights, moulded scale bumpers, PVC roof cover and roof rack, mirrors, roof spot lights and clear windows the Treka 3 is just itching to be taken out on adventure.

Underneath the Outback 3 uses Etronix’s new System 3 waterproof ESC/RX/LED intelligent light smart controller providing a wide array of different lighting options along with the option of aftermarket plug-in roof LED bulbs.

A powerful Etronix 6kg steering servo, along with an improved 45° steering angle, paired with adjustable front caster angle provides exceptional maneuverability in tight spaces. The 1500mAh battery has been moved forward for improved stability, while the oill filled shock absorbers now feature threaded bodies for fine tuning adjustment.

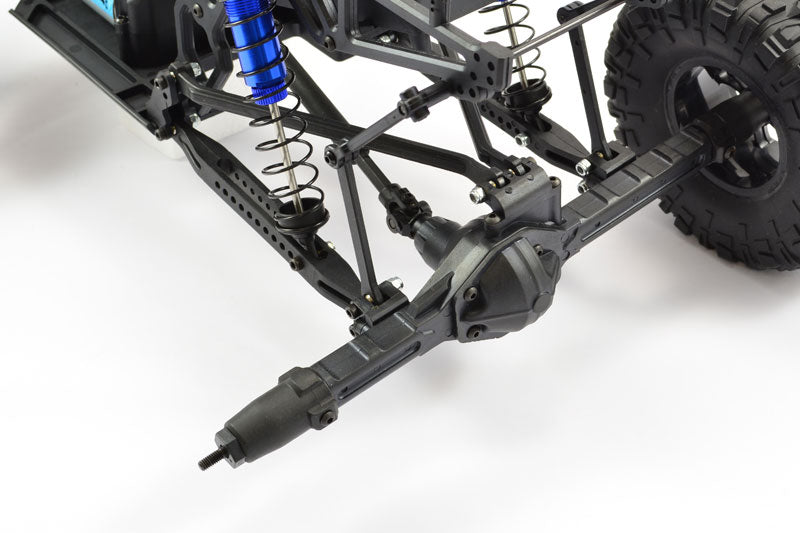

Updated locked front and rear axles feature a scale removable cover for access the metal drive spool and crown gear, while side chassis rock sliders help those annoying snags.

With scale tread 1.9”supersoft tyres mounted to chrome wheels, finished off with nut dust covers the Treka 3 is all set and ready for you to explore new paths.

Features

• 99% Ready-to-Run
• Etronix 4ch 2.4ghz radio system
• Etronix System3 Waterproof ESC/RX/LED Smart Controller
• Etronix 6kg waterproof servo
• 390 brushed 25 Turn motor
• 7.2v 1500mah NiMH battery & USB charger
• Ball bearings
• Steel twin rail metal frame chassis
• 6mm steel multi-link suspension
• Telescopic centre universal driveshafts
• Steel CVA front universal driveshafts
• Oil filled shock absorbers
• Integrated locked axles w/removable cover
• Improved 45° angle steering
• Metal drive spool and crown gear
• 1.9: chrome wheels w/nut dust cover
• Forward mounted battery tray
• Moulded grill, bumpers, light buckets
• PVC Roof cover and roof rack
• Intelligent LED headlights
• Hidden body post mounting
• Bodyshell features clear windows

Declaration of Conformity

• FTX5594B Declaration of Conformity

The evolution of the Outback platform continues with the release of the Outback 3 Paso. Using hidden body mounts the detailed bodyshell features multiple moulded scale accessories such as integrated front grill with ‘angel eyes’ headlights, moulded scale bumpers, PVC roof cover and roof rack, functional spare tyre and tools, mirrors, snorkal and more the Paso is just itching to be taken out on adventure.

Underneath the Outback 3 uses Etronix’s new System 3 waterproof ESC/ RX/LED intelligent light smart controller providing a wide array of different lighting options along with aftermarket plug-in roof lights.

A powerful Etronix 6kg rated waterproof steering servo, along with an improved 45° steering angle, paired with adjustable front caster angle provides exceptional manoeuvrability in tight spaces. The 1500mAh battery has been moved forward for improved stability, while the oill filled shock absorbers now featured threaded bodies for fine tuning adjustment.

Updated locked front and rear axles feature a scale removable cover for access the metal drive spool and crown gear, while side chassis rock sliders help those annoying snags.

With scale tread 1.9”supersoft tyres mounted to beadlock wheels, finished off withchrome nut dust covers the Paso is all set and ready for you to explore new paths.

Features

• 99% Ready-to-Run
• Etronix 4ch 2.4ghz radio system
• Etronix System3 Waterproof ESC/RX/LED Smart Controller
• Etronix 6kg waterproof servo
• 390 brushed 25 Turn motor
• 7.2v 1500mah NiMH battery & USB charger
• Ball bearings
• Steel twin rail metal frame chassis
• 6mm steel multi-link suspension for smooth articulation
• Telescopic centre universal driveshafts
• Steel CVA front universal driveshafts
• Oil filled shock absorbers
• Reinforced integrated locked axles with removable cover
• Improved 45° angle steering
• Metal drive spool and crown gear
• 1.9: Beadlock wheels with chrome nut dust cover
• Forward mounted battery tray
• Moulded grill, bumpers, light buckets, wipers, snorkel, tools
• Functional spare tyre and beadlock wheel
• PVC Roof cover and roof rack
• Intelligent LED headlights
• Hidden body post mounting for smooth scale appearance

Specification

Length: 465mm
Width: 215mm
Height: 230mm
Weight: 1940g
Wheelbase: 255mm
Gear Ratio: 88.1
Tyre Diameter: 102mm
Wheel Diameter: 54mm
Ground Clearance: 68mm

Required to complete

• 4 x AA batteries

Declaration of Conformity

• FTX5593Y Declaration of Conformity

The evolution of the Outback platform continues with the release of the Outback 3 Paso. Using hidden body mounts the detailed bodyshell features multiple moulded scale accessories such as integrated front grill with ‘angel eyes’ headlights, moulded scale bumpers, PVC roof cover and roof rack, functional spare tyre and tools, mirrors, snorkal and more the Paso is just itching to be taken out on adventure.

Underneath the Outback 3 uses Etronix’s new System 3 waterproof ESC/ RX/LED intelligent light smart controller providing a wide array of different lighting options along with aftermarket plug-in roof lights.

A powerful Etronix 6kg rated waterproof steering servo, along with an improved 45° steering angle, paired with adjustable front caster angle provides exceptional manoeuvrability in tight spaces. The 1500mAh battery has been moved forward for improved stability, while the oill filled shock absorbers now featured threaded bodies for fine tuning adjustment.

Updated locked front and rear axles feature a scale removable cover for access the metal drive spool and crown gear, while side chassis rock sliders help those annoying snags.

With scale tread 1.9”supersoft tyres mounted to beadlock wheels, finished off withchrome nut dust covers the Paso is all set and ready for you to explore new paths.

Features

• 99% Ready-to-Run
• Etronix 4ch 2.4ghz radio system
• Etronix System3 Waterproof ESC/RX/LED Smart Controller
• Etronix 6kg waterproof servo
• 390 brushed 25 Turn motor
• 7.2v 1500mah NiMH battery & USB charger
• Ball bearings
• Steel twin rail metal frame chassis
• 6mm steel multi-link suspension for smooth articulation
• Telescopic centre universal driveshafts
• Steel CVA front universal driveshafts
• Oil filled shock absorbers
• Reinforced integrated locked axles with removable cover
• Improved 45° angle steering
• Metal drive spool and crown gear
• 1.9: Beadlock wheels with chrome nut dust cover
• Forward mounted battery tray
• Moulded grill, bumpers, light buckets, wipers, snorkel, tools
• Functional spare tyre and beadlock wheel
• PVC Roof cover and roof rack
• Intelligent LED headlights
• Hidden body post mounting for smooth scale appearance

Specification

Length: 465mm
Width: 215mm
Height: 230mm
Weight: 1940g
Wheelbase: 255mm
Gear Ratio: 88.1
Tyre Diameter: 102mm
Wheel Diameter: 54mm
Ground Clearance: 68mm

Required to complete

• 4 x AA batteries

Declaration of Conformity

• FTX5593B Declaration of Conformity

The evolution of the Outback trail chassis hits new heights with the new Hi-Rock edition from FTX. As trail and crawler fans continue to crave both scale performance and scale looks, we have looked to address both with the Hi-Rock.

Featuring a new split transmission, the motor is now mounted directly above the front axle alongside the steering servo providing extra weight up front for better traction when climbing ascents. The steering angle has been increased to a 45° angle for further improved trail maneuverability. An adjustable drivetrain slipper can be set to protect the transmission and driveshafts in the event of a lock up, while internal axle and gearbox metal gears provide long term durability.

The split transmission layout provides a much lower centre section allowing for aftermarket interiors to be mounted for added scale realism. The moulded side chassis plates have aluminium plates on the exterior while the inner plates provide protection from the elements as well as mounting receiver and Hobbywing speed control. The moulded receiver box features additional plug in ports for LED lights and aftermarket winches.

The classic pick-up inspired bodyshell comes complete with moulded accessories such as front grill & LED light buckets, snorkel, mirrors, wipers, roll bar cage and spotlights (for optional LED’s). Front and rear bumpers feature mounted LED lights and tow hooks to top off that scale look.

Take to the trails and raise the bar with the FTX Outback Hi-Rock!

Features

• 99% Ready-to-Run
• 4ch 2.4ghz radio for lights & winch options
• Hobbywing HW1040 40A Waterproof ESC
• 15kg metal geared waterproof servo

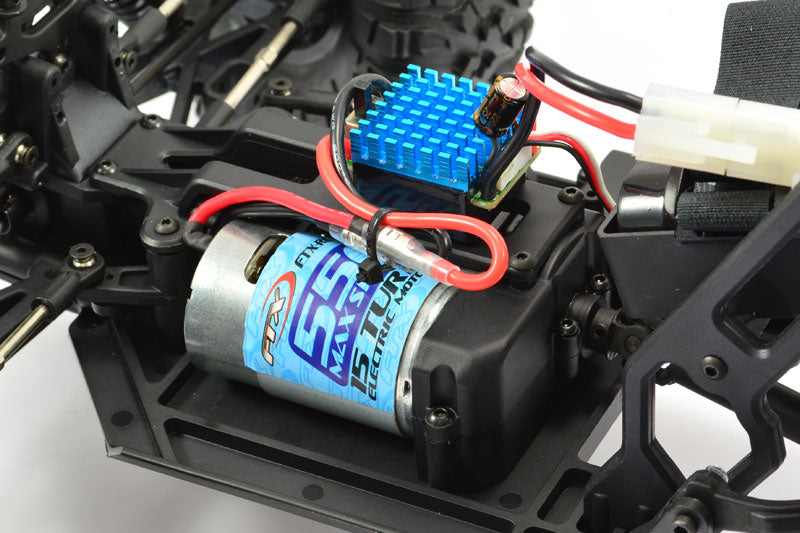

• 550 brushed 17 Turn motor
• 7.2v 2000mah NiMH battery & charger
• Ball bearings
• Twin rail metal frame chassis
• 6mm steel multi-link suspension
• Telescopic universal driveshafts
• Steel CVA front universal driveshafts
• Oil filled shock absorbers
• Metal axle & transmission gears
• Front & rear high clearance locked axles
• Adjustable central footplate for ESC & receiver mounting
• Receiver box with external third & forth channel ports for options such as LED, sound module or winch
• Split transmission system for better low-speed torque output
• Lower mid section accommodates interiors
• Transmission slipper clutch
• Raised chassis mounted steering servo & panhard bar
• Front mounted motor for better weight bias
• Scale styled wheels
• High grip all terrain tyres
• Scale looking front & rear bumpers with shackles & factory fitted LED lights
• Scale side metal footplate
• Moulded scale body accessories including snorkel, side mirrors & grill

Specifications

Length: 560mm
Width: 240mm
Height: 240mm
Weight: 2600g
Wheelbase: 313mm
Gear Ratio: 56.6:1 – 33.3:1
Tyre Diameter: 120mm
Wheel Diameter: 54mm
Ground Clearance: 80mm

Declaration of Conformity

FTX5587 Declaration of Conformity

Building on the success of the popular Fury 2.0, the new FTX Outback Fury 3.0 takes scale trail driving and crawling performance to the next level. Designed for enthusiasts who demand realistic looks, advanced functionality and dependable off-road capability, the Fury 3.0 introduces a range of upgraded features that enhance durability, drivability and scale authenticity.

At the heart of the Fury 3.0 is a newly refined crawler platform featuring a servo-operated two-speed transmission, allowing drivers to switch between low-range crawling and higher-speed trail driving at the touch of a button. The transmission also incorporates a reverse-drive layout to reduce torque twist and improve climbing stability on challenging terrain.

The chassis combines a low centre of gravity with a rugged steel C-channel frame and a heavy-duty 6.5mm steel multi-link suspension system. High-clearance locked axles, steel transmission components and telescopic driveshafts work together to deliver confident performance over rocks, roots, mud and uneven ground while maintaining excellent articulation and traction.

Semi-scale realism remains a key focus of the Fury 3.0. Moulded body accessories, inner fenders, a detailed roll cage and roof rack create an authentic off-road appearance, while integrated multi-mode LED lighting featuring distinctive Angel Eye headlights and an illuminated grille light bar ensure the vehicle looks as impressive after dark as it does during daylight adventures.

Ready-to-run straight from the box, the Fury 3.0 includes a Hobbywing waterproof speed controller, Etronix waterproof metal-gear steering servo, Voltz NiMH battery and USB charger, making it the perfect choice for newcomers and experienced trail drivers alike.

Features

Chassis & Drivetrain

• Servo-operated remote two-speed transmission.
• Low-range crawling and high-speed trail drive modes.
• Reverse-drive transmission layout to reduce torque twist.
• Steel transmission gears.
• Metal axle gears.
• Front and rear high-clearance locked axles.
• Centre telescopic driveshafts.
• Steel front CVA universal driveshafts.
• Telescopic universal driveshafts with steel joint heads.
• Full ball bearing transmission.

Suspension & Steering

• Adjustable steel C-channel ladder frame chassis.
• Heavy-duty 6.5mm steel multi-link suspension system.
• Eight-link suspension design for maximum articulation.
• CNC aluminium oil-filled coil-over shock absorbers.
• SOA (Servo-On-Axle) steering system.
• Waterproof Etronix 15kg metal gear steering servo.
• Metal servo horn for precise steering response.

Electronics

• Hobbywing WP1040 waterproof brushed ESC.
• Supports NiMH and 2S–3S LiPo batteries.
• 540-size 20-turn brushed motor.
• Waterproof electronics package.
• Receiver protection box.

Scale Details

• Hidden body mounting system.
• Detailed moulded body accessories.
• Scale roll cage.
• Roof rack.
• Moulded inner fenders.
• Scale beadlock-style wheels.
• High-grip Fastrax Bedrock tyres.

LED Lighting System

• Multi-mode LED lighting package.
• Integrated Angel Eye LED headlights.
• Illuminated front grille light bar.
• Realistic trail and night-driving appearance.

Ready-To-Run Package

• Fully assembled RTR vehicle.
• 2.4GHz radio system included.
• Voltz 7.2V 2000mAh NiMH battery included.
• USB charger included.
• Requires only 4 x AA batteries for the transmitter.

Specifications

Scale: 1:10
Drive System: Shaft-Driven 4WD
Length: 530mm
Width: 235mm
Height: 240mm
Wheelbase: 313mm
Ground Clearance: 73mm
Weight (without battery): 2880g
Tyre Diameter: 110mm
Wheel Diameter: 54mm
Transmission Ratio (Low): 41:1
Transmission Ratio (High): 20:1
Motor: 540 20T Brushed
ESC: Hobbywing WP1040 Waterproof
Servo: Etronix 15kg Waterproof Metal Gear
Battery: Voltz 7.2V 2000mAh NiMH
Charger: USB 600mA
Radio System: 2.4GHz
Battery Compatibility: NiMH / 2S–3S LiPo

What's New Over The Fury 2.0?

• New servo-operatedtwo-speed transmission.
• Low and high range selectable gearing.
• Reverse-drive transmission design for reduced torque twist.
• Upgraded Etronix 15kg metal gear servo with metal horn.
• Hobbywing WP1040 waterproof ESC.
• CNC aluminium oil-filled shocks.
• Front steel CVA universal driveshafts.
• Multi-mode LED lighting package.
• Angel Eye headlights and illuminated grille light bar.
• Hidden body mounting system.
• Enhanced scale accessories, roll cage and roof rack.
• Improved scale realism with moulded inner fenders.

This gives the Fury 3.0 a stronger feature set, greater crawling versatility, improved trail performance, and a more realistic scale appearance than the previous Fury 2.0.

Get ready for some big r/c off road action from the pocket rocket Tracer Truggy from FTX. The perfect entry into a world of r/c fun, the Tracer features coil sprung shock absorbers with moultiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the ruff stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Powered by a 390 sized brushed motor and micro 7.4 800mAh 2S Li-Ion battery, the Tracer is fast and nimble....perfect for bashing, jumping and more! For those that are new to r/c cars we have included a speed switch to help dial the speed of the Tracer and make it more manageable for new drivers.

Fancy some dusk driving as the light fades? Just plug-in the supplied front LED bumper lights to light the way.

With a choice of two bodyshell colour schemes as well as a Tracer Truck on the same platform you can even bash with friends and family!

Features

• 99% Ready-To-Run
• 2.4ghz Radio System
• Fully Proportional Throttle And Steering
• Splashproof ESC/Receiver Unit
• Splashproof 1kg Rated Servo
• RC390 Brushed Motor With Heatsink
• Front & Rear Geared Differentials
• Coil Sprung Shock Absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Low Friction Ball Bearings
• Micro 7.4 800mAh 2S Li-Ion Battery
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-In Front LED Lights Included
• Oversized Wheels & Block Pattern Tyres
• Length: 270mm Width: 215mm
• Range Of Options Available

Specifications

Length: 285mm
Width: 215mm
Height: 95mm
Ground Clearance: 38mm
Wheelbase: 175mm
Weight: 740g
Tyre: ø 78mm x 41mm
Gear Ratio: 1:10.71

Drivetrain Upgrade Notes

If you plan on upgrading your Tracer’s drivetrain each of the following components will required to complete this upgrade:

• 1 x FTX9776 – Centre Driveshaft and Cups
• 1 x FTX9777 - Machined Metal Spur Gear
• 2 x FTX9778 - Machined Metal Diff Gears

Declaration of Conformity

FTX5577G Declaration of Conformity

Get ready for some big r/c off road action from the pocket rocket Tracer Truggy from FTX. The perfect entry into a world of r/c fun, the Tracer features coil sprung shock absorbers with moultiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the ruff stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Powered by a 390 sized brushed motor and micro 7.4 800mAh 2S Li-Ion battery, the Tracer is fast and nimble....perfect for bashing, jumping and more! For those that are new to r/c cars we have included a speed switch to help dial the speed of the Tracer and make it more manageable for new drivers.

Fancy some dusk driving as the light fades? Just plug-in the supplied front LED bumper lights to light the way.

With a choice of two bodyshell colour schemes as well as a Tracer Truck on the same platform you can even bash with friends and family!

Features

• 99% Ready-To-Run
• 2.4ghz Radio System
• Fully Proportional Throttle And Steering
• Splashproof ESC/Receiver Unit
• Splashproof 1kg Rated Servo
• RC390 Brushed Motor With Heatsink
• Front & Rear Geared Differentials
• Coil Sprung Shock Absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Low Friction Ball Bearings
• Micro 7.4 800mAh 2S Li-Ion Battery
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-In Front LED Lights Included
• Oversized Wheels & Block Pattern Tyres
• Length: 270mm Width: 215mm
• Range Of Options Available

Specifications

Length: 285mm
Width: 215mm
Height: 95mm
Ground Clearance: 38mm
Wheelbase: 175mm
Weight: 740g
Tyre: ø 78mm x 41mm
Gear Ratio: 1:10.71

Drivetrain Upgrade Notes

If you plan on upgrading your Tracer’s drivetrain each of the following components will required to complete this upgrade:

• 1 x FTX9776 – Centre Driveshaft and Cups
• 1 x FTX9777 - Machined Metal Spur Gear
• 2 x FTX9778 - Machined Metal Diff Gears

Declaration of Conformity

FTX5577O Declaration of Conformity

Get ready for some big r/c off road action from the pocket rocket Tracer Truck from FTX. The perfect entry into a world of r/c fun, the Tracer features coil sprung shock absorbers with moultiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the ruff stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Powered by a 390 sized brushed motor and micro 7.4 800mAh 2S Li-Ion battery, the Tracer is fast and nimble....perfect for bashing, jumping and more! For those that are new to r/c cars we have included a speed switch to help dial the speed of the Tracer and make it more manageable for new drivers.

Fancy some dusk driving as the light fades? Just plug-in the supplied front LED bumper lights to light the way.

With a choice of two bodyshell colour schemes as well as a Tracer Truggy on the same platform you can even bash with friends and family!

Features

• 99% Ready-To-Run
• 2.4ghz Radio System
• Fully Proportional Throttle And Steering
• Splashproof ESC/Receiver Unit
• Splashproof 1kg Rated Servo
• RC390 Brushed Motor With Heatsink
• Front & Rear Geared Differentials
• Coil Sprung Shock Absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Low Friction Ball Bearings
• Micro 7.4 800mAh 2S Li-Ion Battery
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-In Front LED Lights Included
• Oversized Wheels & Block Pattern Tyres
• Length: 270mm Width: 215mm
• Range Of Options Available

Specifications

Length: 270mm
Width: 215mm
Height: 130mm
Ground Clearance: 38mm
Wheelbase: 175mm
Weight: 740g
Tyre: ø 78mm x 41mm
Gear Ratio: 1:10.71

Drivetrain Upgrade Notes

If you plan on upgrading your Tracer’s drivetrain each of the following components will required to complete this upgrade:

• 1 x FTX9776 – Centre Driveshaft and Cups
• 1 x FTX9777 - Machined Metal Spur Gear
• 2 x FTX9778 - Machined Metal Diff Gears

Declaration of Conformity

FTX5576B Declaration of Conformity

Get ready for some big r/c off road action from the pocket rocket Tracer Truck from FTX. The perfect entry into a world of r/c fun, the Tracer features coil sprung shock absorbers with moultiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the ruff stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Powered by a 390 sized brushed motor and micro 7.4 800mAh 2S Li-Ion battery, the Tracer is fast and nimble....perfect for bashing, jumping and more! For those that are new to r/c cars we have included a speed switch to help dial the speed of the Tracer and make it more manageable for new drivers.

Fancy some dusk driving as the light fades? Just plug-in the supplied front LED bumper lights to light the way.

With a choice of two bodyshell colour schemes as well as a Tracer Truggy on the same platform you can even bash with friends and family!

Features

• 99% Ready-To-Run
• 2.4ghz Radio System
• Fully Proportional Throttle And Steering
• Splashproof ESC/Receiver Unit
• Splashproof 1kg Rated Servo
• RC390 Brushed Motor With Heatsink
• Front & Rear Geared Differentials
• Coil Sprung Shock Absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Low Friction Ball Bearings
• Micro 7.4 800mAh 2S Li-Ion Battery
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-In Front LED Lights Included
• Oversized Wheels & Block Pattern Tyres
• Length: 270mm Width: 215mm
• Range Of Options Available

Specifications

Length: 270mm
Width: 215mm
Height: 130mm
Ground Clearance: 38mm
Wheelbase: 175mm
Weight: 740g
Tyre: ø 78mm x 41mm
Gear Ratio: 1:10.71

Drivetrain Upgrade Notes

If you plan on upgrading your Tracer’s drivetrain each of the following components will required to complete this upgrade:

• 1 x FTX9776 – Centre Driveshaft and Cups
• 1 x FTX9777 - Machined Metal Spur Gear
• 2 x FTX9778 - Machined Metal Diff Gears

Declaration of Conformity

FTX5576O Declaration of Conformity

Get ready for some big r/c off road action from the pocket rocket Tracer Truck from FTX. The perfect entry into a world of r/c fun, the Tracer features coil sprung shock absorbers with moultiple mounting points, double wishbone suspension and front universal driveshafts for smooth suspension movement while steering through the ruff stuff. Shaft driven 4WD and with geared differentials front and rear provide traction in all conditions.

Powered by a 390 sized brushed motor and micro 7.4 800mAh 2S Li-Ion battery, the Tracer is fast and nimble....perfect for bashing, jumping and more! For those that are new to r/c cars we have included a speed switch to help dial the speed of the Tracer and make it more manageable for new drivers.

Fancy some dusk driving as the light fades? Just plug-in the supplied front LED bumper lights to light the way.

With a choice of two bodyshell colour schemes as well as a Tracer Truggy on the same platform you can even bash with friends and family!

Features

• 99% Ready-To-Run
• 2.4ghz Radio System
• Fully Proportional Throttle And Steering
• Splashproof ESC/Receiver Unit
• Splashproof 1kg Rated Servo
• RC390 Brushed Motor With Heatsink
• Front & Rear Geared Differentials
• Coil Sprung Shock Absorbers
• Double Wishbone Suspension
• Front CVA Driveshafts
• Low Friction Ball Bearings
• Micro 7.4 800mAh 2S Li-Ion Battery
• USB Charger
• Detailed 4x4 Off Road Truck Bodyshell
• Plug-In Front LED Lights Included
• Oversized Wheels & Block Pattern Tyres
• Length: 270mm Width: 215mm
• Range Of Options Available

Specifications

Length: 270mm
Width: 215mm
Height: 130mm
Ground Clearance: 38mm
Wheelbase: 175mm
Weight: 740g
Tyre: ø 78mm x 41mm
Gear Ratio: 1:10.71

Drivetrain Upgrade Notes

If you plan on upgrading your Tracer’s drivetrain each of the following components will required to complete this upgrade:

• 1 x FTX9776 – Centre Driveshaft and Cups
• 1 x FTX9777 - Machined Metal Spur Gear
• 2 x FTX9778 - Machined Metal Diff Gears

Declaration of Conformity

FTX5576B Declaration of Conformity

The Ravine is ready navigate the tightest and steepest terrain you can throw at it with it’s multi M.O.A. axle design and multiple steering modes.

Inspired by full sized caged crawlers, the Ravine features and M.O.A. (motor over axle) design for a lower centre of gravity and more control front and rear. In addition the Ravine’s is fitted with steering servos both front and rear for a full array of different steering options. These steer-ing options can be easily switched while on the move via the transmitter providing you with instant help when navigating the trail. Stuck in a tight spot? Switch to the 4-Wheel-steering option for a tighter turning circle at low speed or at high speed or on softer surfaces change direction with the crab model. The options are limitless for you to explore all kinds of terrain with the Ravine.

Multi-link suspension matched with oil filled shocks provides huge articulation for you carve your way through the rocks. Supersoft, heavy lugged 2.2” tyres mounted on beadlock wheels pro-vide the traction and bite for you to apply the power.

Topped off with a tubu-lar rollcaged body and interior set, the FTX Ravine is ready for you to go climbing!

Features

• 2.4ghz radio system
• Switchable steering modes
• M.O.A. (Motor-on-axle) design
• 4-wheel drive & 4-wheel steering
• Two 6kg rated steering servos
• Two 380 sized motors
• Li-Ion 2S 7.4V 1500mAh battery
• USB Balance charger
• Ball bearings
• Oil filled shock absorbers
• Front & rear 4-link suspension
• Scale inspired roll cage crawler frame, panels & cockpit
• TVP chassis design
• Beadloc wheels
• Aggressive pattern all terrain tyres

Specifications

Length: 440mm
Width: 230mm
Height: 275mm
Weight: 1750g
Wheelbase: 320mm
Gear Ratio: 1:40.25
Tyre Diameter: 130mm
Wheel Diameter: 63mm
Ground Clearance: 45mm

Please Note: This kit is sold in RTR (Ready-to-run) format but requires 3 x AA batteries for completion.

Declaration of Conformity

Declaration of Conformity For FTX5574 Ravine

Yeeeha, the Outlaw Brushless has just left its rooster tail as the throttle is nailed. Well you might not have a Californian desert on your doorstep, but you can pretend! Loosely based on the powerful Ultra 4 buggies that take up the challenge of racing through the US’ west coast deserts, the Outlaw is the perfect mix of RTR entry level fun with a bit of scale realism thrown in to boot.

Under the semi-scale tubular roll cage, body panels and cockpit are some new and established features. The front suspension assembly is the same as FTX stablemates the Carnage and Bugsta trucks with fully adjustable settings, universal driveshafts, turnbuckles and a heavy-duty metal geared differential. Moving back, the moulded chassis supports the centrally positioned sealed shaft drivetrain, steering servo, motor and receiver box.

Semi-scale trailing arm rear suspension sets the Outlaw apart from other off road buggies in the FTX range. This long travel suspension, with huge articulation is what full size U4 buggies use to tackle the uneven desert surface. With drive to the rear axle assembly via a telescopic sliding driveshaft, along with multi-position shock absorber mounting points, the Outlaw can handle some of the roughest terrain with its all terrain super-soft tyres.

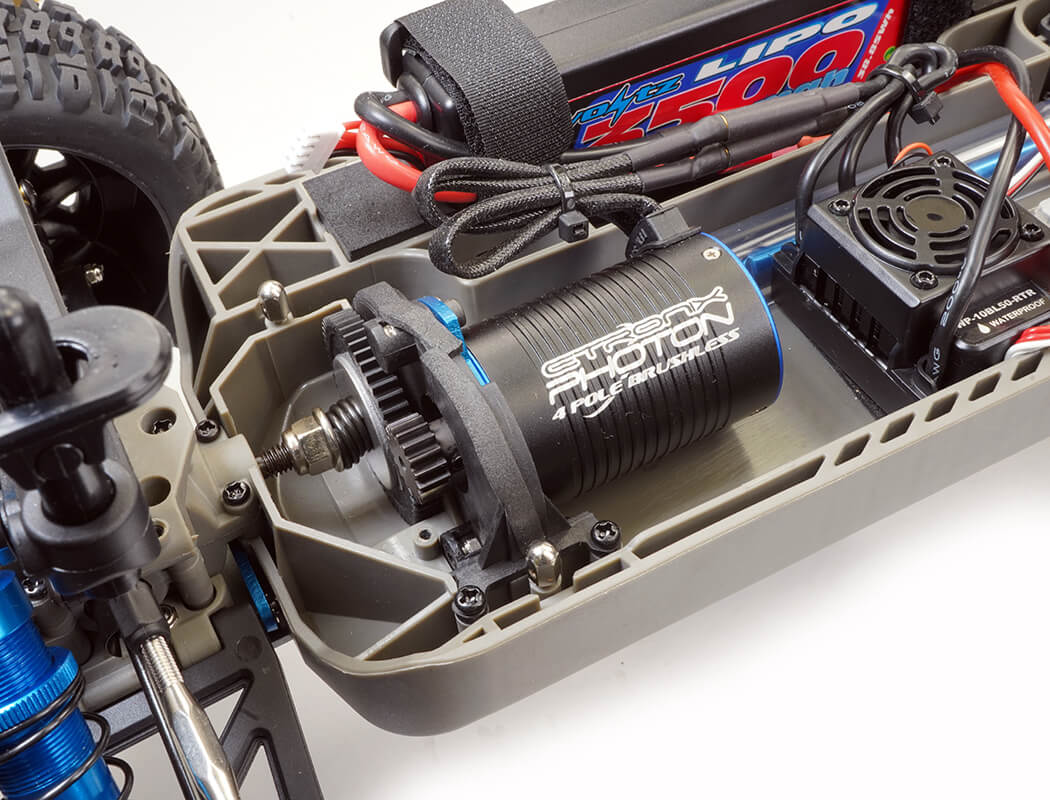

FTX has chosen Etronix for the brushless system with their waterproof 60Amp Photon 2.1W speed control and 2950kv 4-pole motor. Coupled with the Voltz 3250mAH LiPo battery and you will have all the power you need to unleash the Outlaw.

With established Etronix radio equipment, plus with the sweet addition of full aluminium oil filled shock absorbers and scale looking all terrain tyres the Outlaw is the perfect choice RTR for enthusiasts looking for a rig with a bit of character and a whole lot of speed!

FTX OUTLAW U4 CHASSIS

Featuring Semi-scale trailing arm rear suspension and long travel shock absorbers the Outlaw is set to tackle any terrain in its path.

FTX Outlaw U4 Suspension

The long reach aluminium oil filled shock absorbers are fully adjustable and with multiple mounting options can be fine tuned to suit whatever is thrown at them and help the Outlaw over any obstacles.

FTX Outlaw U4 Radio Equipment

The Etronic Radio will keep you in control alongside the Etronix brushless waterproof speed controller, Etronix waterproof servo, powerful 2950kv 4-pole motor and the Voltz LiPo battery pack. The Outlaw U4 really is ready to tackle anything with ease and plenty of speed.

Features

• 99% Ready to run
• Etronix Sport 2.4ghz radio
• Etronix 2.1W Waterproof 60 Amp ESC
• Etronix 2950kv Brushless motor
• Etronix 3kg waterproof steering servo
• Voltz 3250mah 7.4v 20c LiPo Hard cased batt
• Voltz LiPo charge sack
• Etronix PowerPal Pocket Balance Charger
• Pre-painted cage style body panels Tubular style roll cage with spare wheel & tyre
• Internal driver cockpit
• Moulded tub chassis
• Sealed transmission
• 4wd shaft drive
• Trailing arm rear link suspension
• Receiver box
• Lightweight high impact arms
• Aluminium big bore oil filled adjustable shocks
• Gearbox metal crown & pinion gear
• Front universal driveshafts
• Adjustable turnbuckles
• Fully adjustable suspension including, droop, camber, toe-in, wheelbase etc
• Chassis accepts NiMh or LiPo battery
• Wide range of option parts available

Specifications

Scale Size: 1/10th
Length: 505mm
Width: 320mm
Height: 240mm
Wheelbase: 328mm
Tyre Diameter: 135mm
Tyre Width: 55mm
Gear Ratio: 11.2:1
Drive: 4WD

Please Note: This kit is sold in RTR (Ready-to-run) format and requires 8 x AA batteries for completion.

Declaration of Conformity

FFTX5571 Declaration of Conformity

Declaration of Conformity

FTX5570 Declaration of Conformity
