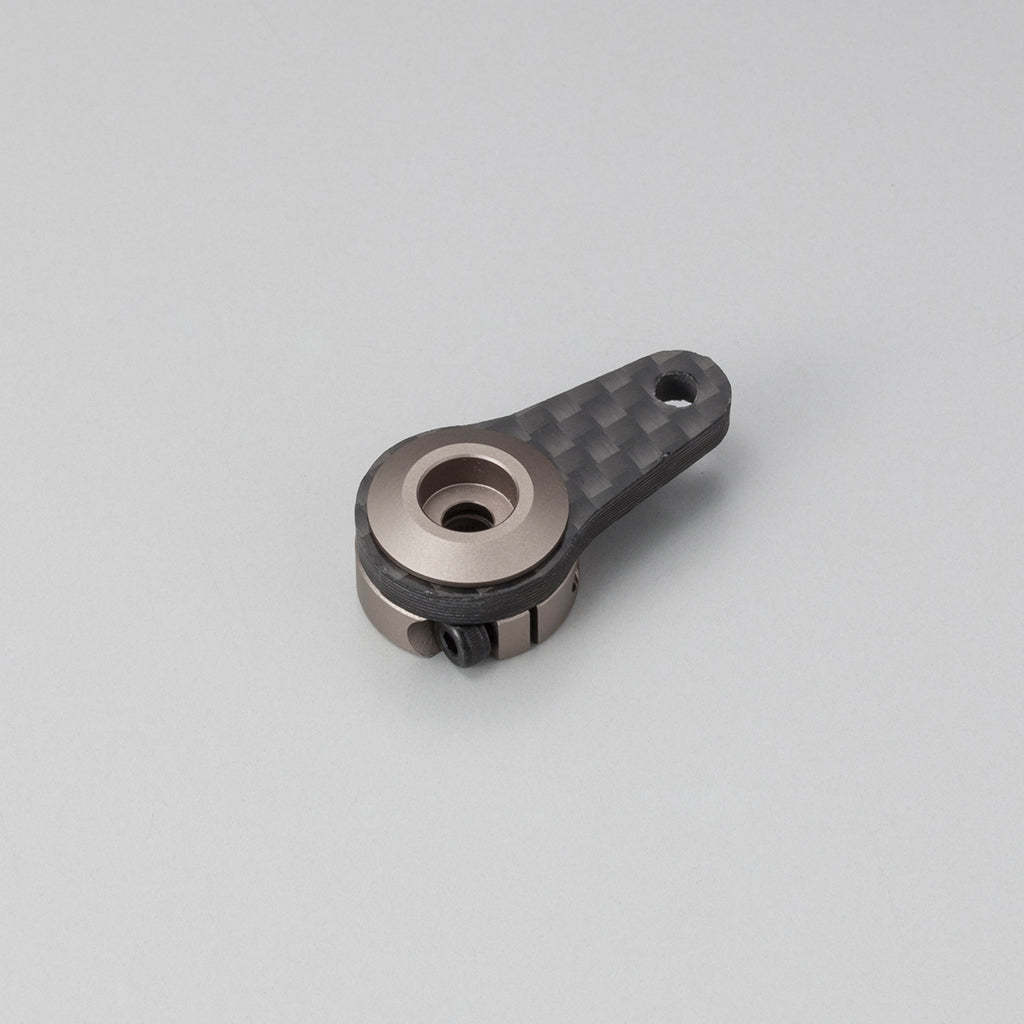

KO Servo horn 23T spline, aluminium clamp fixing.  16.5mm spline centre to hole centre.

[Compatible models]
Matser Unit EX-NEXT / RR / EX-1 / EX-2 / EX-6 / EX-LDT
*When using the Expert grip unit 2 for the EX-1, EX-2 and EX-6, only the ReturnSpeed
function may not operate correctly. All other functions will operate correctly.

*There is no difference in performance compared to the conventional Expert Grip Unit 2 (Right Hand).

This is a basic model with minimal decorative elements.

Throttle mechanism with more direct feel.
Renovating the form by lengthening the throttle trigger and operational angle. In order to not influence the operational angle, the distance to the finger from the angular sensor has created a more direct feeling while maintaining a compact and comfortable size. With the direct feeling of the throttle/brake reaction when moved, the increase of this linear feeling allows for a smoother and quicker reaction with input on the throttle and brake.

Spring Tension Adjustment.
Trigger spring tension = personal preference. The new trigger unit provides a spring tension adjustment with a screw. This allows for a stronger or softer spring tension according to personal preference.

The long life period of the angle sensor’s smoothness does not change.
The new angle sensor used has proven to give a precise signal and shown durability. Because the signal is very precise, delicate movements are very fluid.
The durability of the new sensor has shown approximately an improvement of 100 times over the past sensor used. Small operation feeling of the fingertip translates into a smooth and linear output to an ESC and servo.

[K.I.Y Compatible]
You can change each unit easily.

Notice
When using the Expert grip unit 2 for the EX-1, EX-2 and EX-6, only the ReturnSpeed function may not operate correctly. All other functions will operate correctly.

Using EX-2,EX-6

Only the ReturnSpeed function may not operate correctly. All other functions will operate correctly.
It can be used by updating to the latest Ver. 2.15. Please update from the following page.
URL:https://www.kopropo.co.jp/en/supports/view/303

Using EX-1

Only the function of Throttle>Return Speed may not operate properly.

Contents

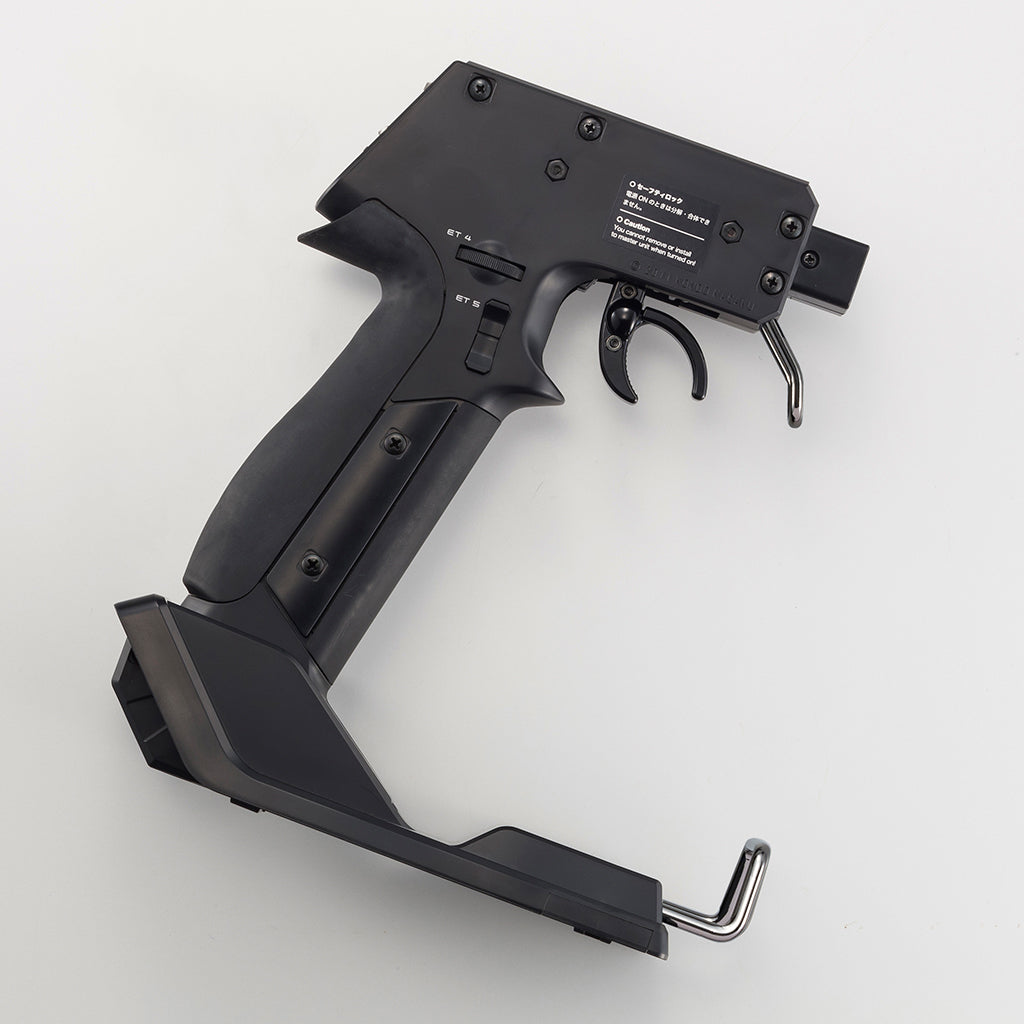

Expert Grip Unit2(Right hand) BASIC x1

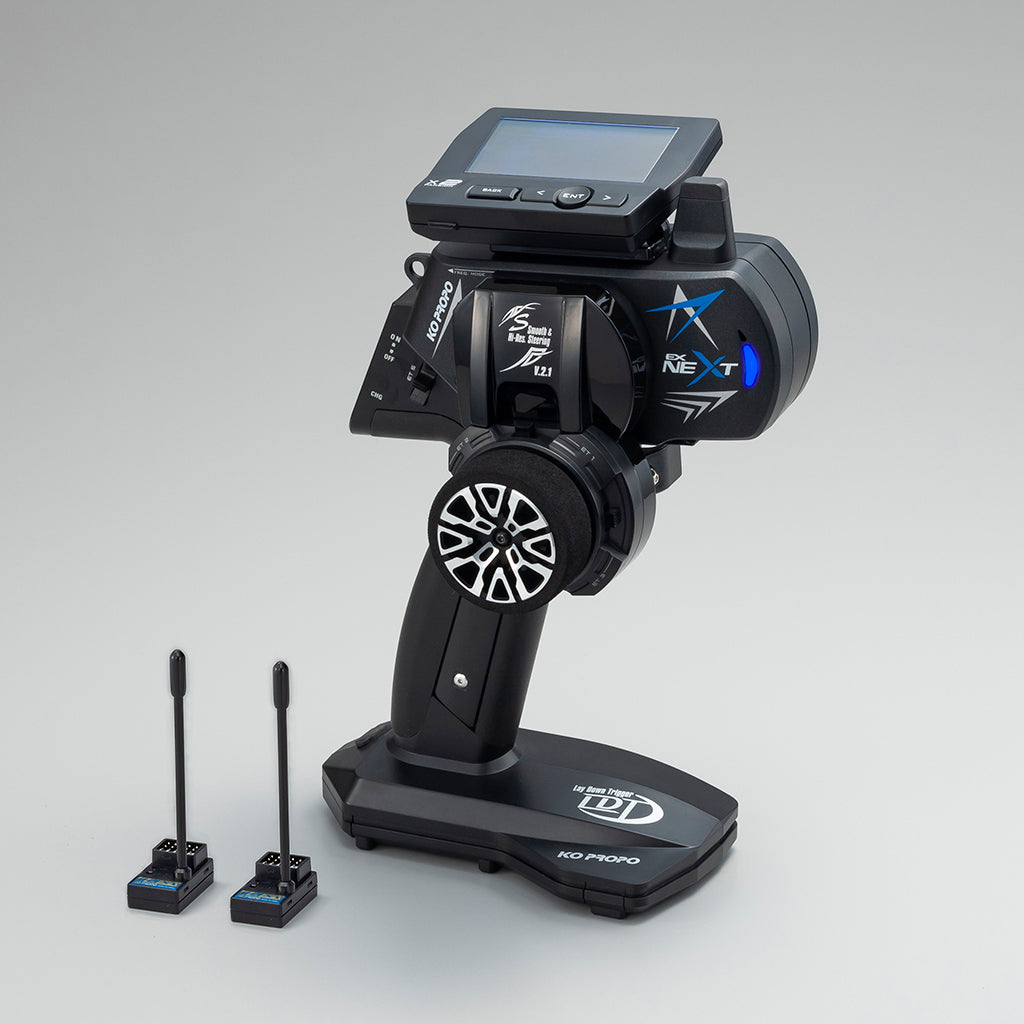

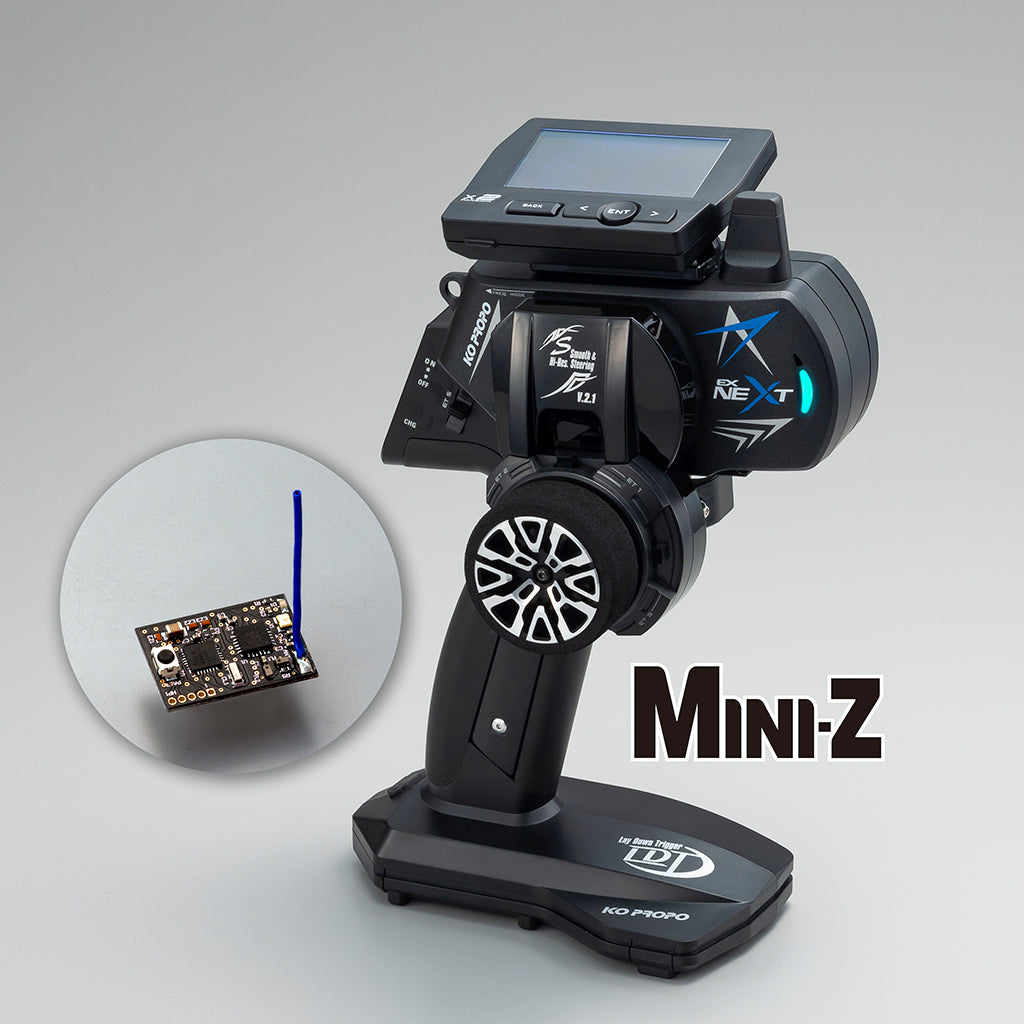

Introducing the KO PROPO EX-NEXT LDT Basic with MINI-Z EVO2 Receiver.



[Specifications]
# Dimensions:256.0×170.0×127.5mm（Does not include protrusions）
# Weight: 563g（battery not included ）
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch (PWM/Serial)
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
  RF Mode (Transmitter–Receiver): XT Telemetry
  Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.

*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Made in Japan

Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.

Equipped with Lay Down Trigger (LDT)!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.

Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm

MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver and KR-242XT(Telemetry only) can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT and KR-242XT.

Please note: Switching the RF mode

You can switch between XT Advanced Mode, XT Telemetry Mode, and MINI-Z Mode by setting the RF Mode in EX-NEXT. (Set the RF mode to "MINI-Z Mode" when using the MINI-Z.) Also, the default setting is "XT telemetry mode", so if you want to use it in MINI-Z Mode, please change it to "MINI-Z Mode" first.

RF mode can be set for each model memory in order to be able to use it on a variety of machines. When adding a new model memory, please be sure to set the RF mode first. For details on how to set the RF mode, please refer to the "EX-NEXT Instruction Manual".
When the RF mode is set to "MINI-Z Mode", the LED on the EX-NEXT unit repeats "blue -> light blue -> blue -> light blue" alternately, so please check it.

Adjust the Gyro sensitivity at the Transmitter
The EX-NEXT allows you to adjust the sensitivity of the gyro installed in the MINI-Z from the transmitter at hand. The sensitivity can be adjusted using the 3CH/4CH "GYRO" function. The sensitivity can be easily adjusted from the control console without connecting the machine to a PC, allowing fine adjustments while running the machine.

Intuitive alert function with vibration and full-color LED
Equipped with a vibration motor that has been requested. This can be used for alarms that notify the running time and alerts for various sensors. In addition, the LED on the front of the master unit is a full-color LED. The radio wave mode in use and the alert content of the vibration motor can now be identified by the LED lighting pattern.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Aram mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents

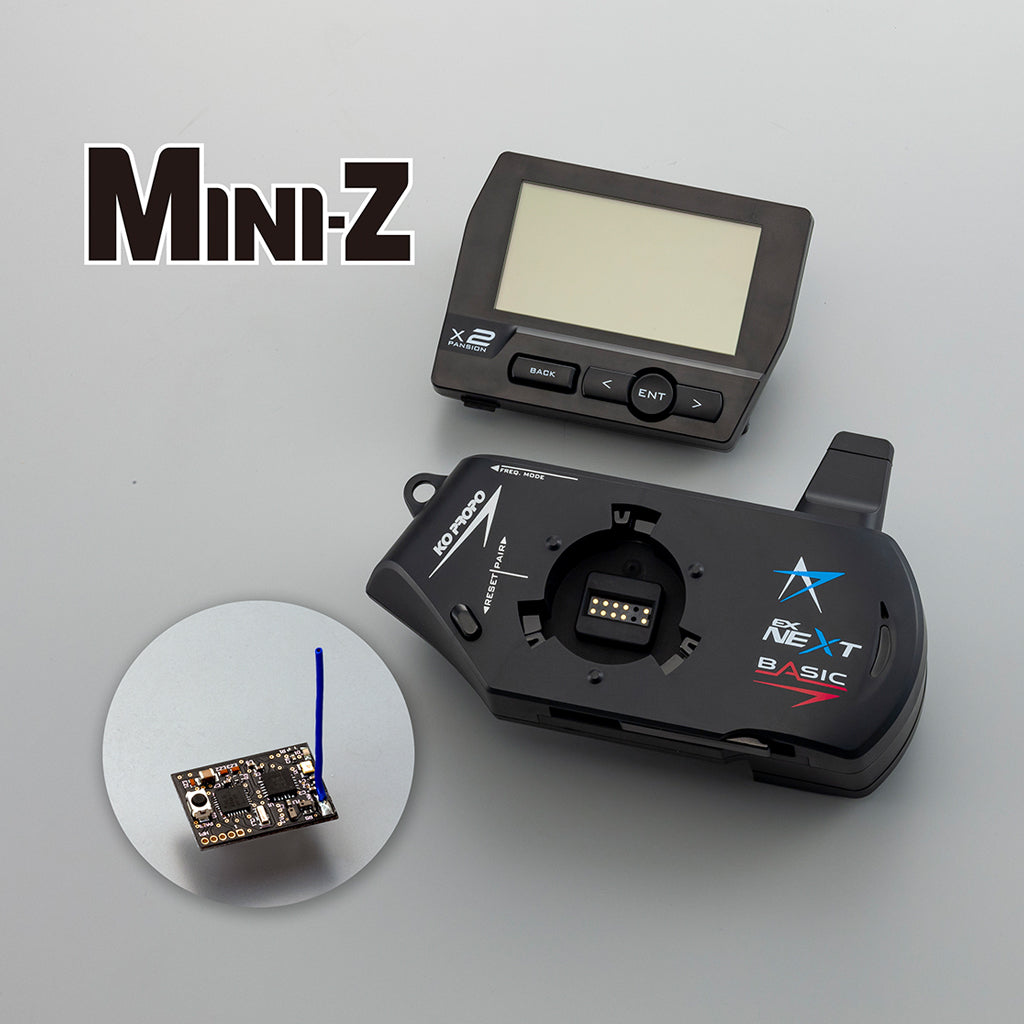

Master Unit EX-NEXT (BASIC) x1
LCD Xpansion Unit2 EXP-201 ×1
Drop down extension Unit 2.1 (BASIC) ×1
Expert grip unit LDT (BASIC) x1

Receiver: MINI-Z EVO2 Receiver Unit for KO compatible transmitter(No.82045) 　x1

Other: Throttle Lever(wide)/Trigger Pad/Brake spacer/Balance terminal extension cable

*Battery, Dry batteries are sold separately

[Specifications]
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50

[Compatible Products]
# Steering Unit
Drop extension unit 2.1(recommend)
Drop extension unit 2

# Grip Unit
Expert Grip Unit2(right)
Expert Grip Unit LDT

# Compatible receiver: KR-420XT, KR-242XT, MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.
*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Made in Japan

Basic Model with a Simple Design
A basic version of the "EX-NEXT" equipped with the XT system that delivers ultra-fast response. By minimizing exterior decorations, we’ve successfully reduced costs and are now offering this renewed model at a more affordable price. The internal specifications and functions remain unchanged, allowing you to enjoy the high-end performance with greater ease.

Good value upgrade set for KIY customer who using EX-RR, LDT, etc.
If you already have a KIY CONCEPT radio, you can upgrade to the latest EX-NEXT by replacing it with the master unit, LCD expansion, and receiver of this set. You can use the latest operation performance at the minimum cost without wasting your unit.

Also, If you use with Drop extension unit 2,1, you will have more good feeling.
*You can use legacy Drop extension unit 2 too.
*There is no difference in performance between the conventional Drop Extension Unit 2.1 and BASIC.

What is KIY Concept.
KIY (Kustomize it Yourself) CONCEPT, which consists of a detachable unit that can be attached and detached with one touch without tools, creates a new driving style. You can freely combine it with each unit and operate it in your own style.

Products that can be combined

Drop Extension Unit2.1
Drop Extension Unit2
Drop Extension Unit (Soft Spring included)
Drop Extension Unit
3D Extension Unit for KIY
ST Unit Stick Type for KIY
Steering Unit EX-1
Expert Grip Unit LDT
Expert Grip Unit2(right)
Expert Grip(right)
Expert Grip (left)
Right Hand Grip Unit
Left Hand Grip Unit

Antenna less, lightweight, compact Master unit.
The weight of the master unit has been reduced to the utmost limit. Achieves both optimal weight balance and usability. Furthermore, by making the antenna short and compact, outstanding maneuverability has been achieved. Furthermore, the LCD unit can be installed by rotating it 90° according to the driver's preference.

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.xx compatible with MINI-Z EVO2.
Firmware Ver.3.xx has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.xx.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.xx to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry (2 ways communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed.
"XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR.
The performance far exceeds the conventional high-speed communication.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

High speed supported by Serial servo.
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.

RSx4S / BSx4S Series

LCD extension unit 2 with various functions
LCD expansion unit 2 EXP-201 supports various RF modes, response modes, and various setting items added from EX-NEXT. Easy setting is possible with easy-to-understand menu structure and button operation. This product has a new ICS servo setting function. It supports not only 4S serial servos but also conventional ICS servos. You can change the servo parameters by connecting the servo directly to expansion 2 without using a PC or servo model selector. In addition, it is necessary to change the ID when using multiple 4S servos serially, but it can be easily assigned from this product.

Contents
Master Unit EX-NEXT (BASIC) x1
LCD Xpansion Unit2 EXP-201 x1
Receiver: MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045) ×1

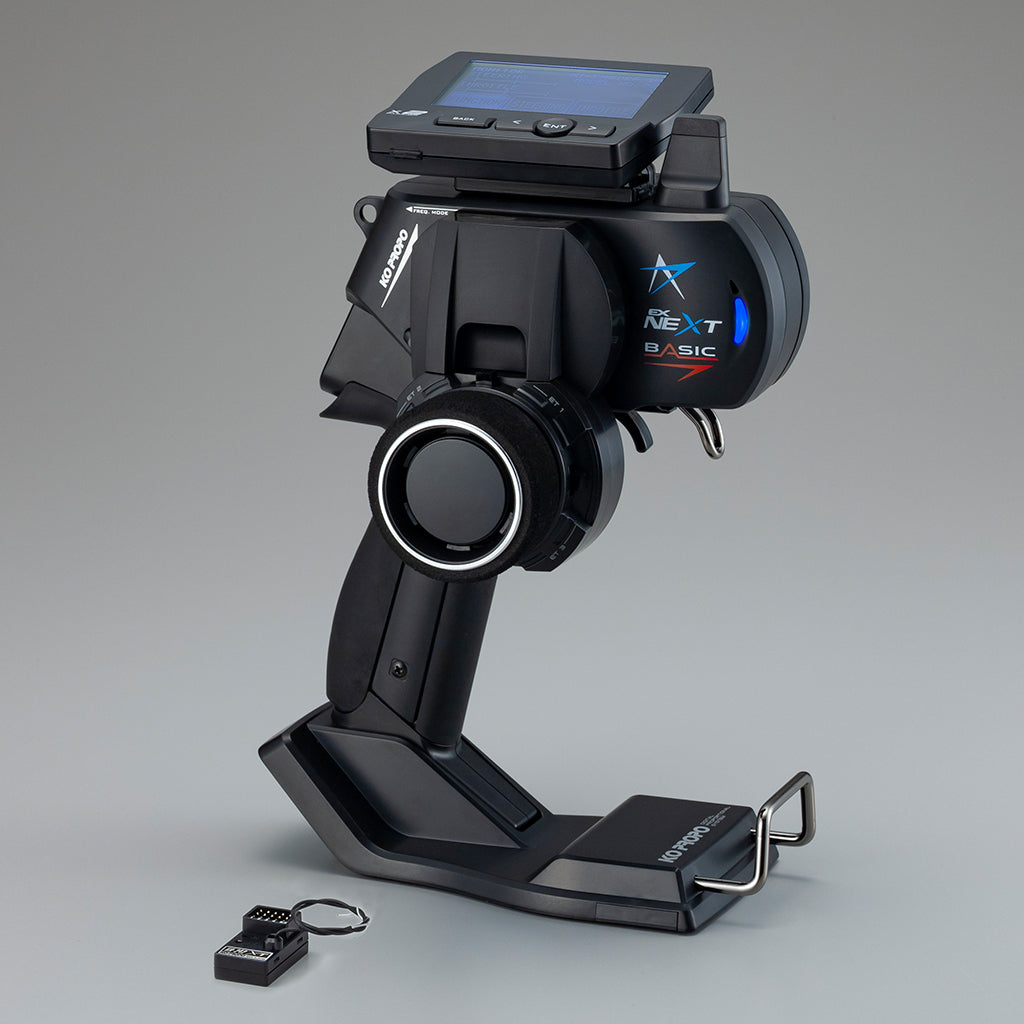

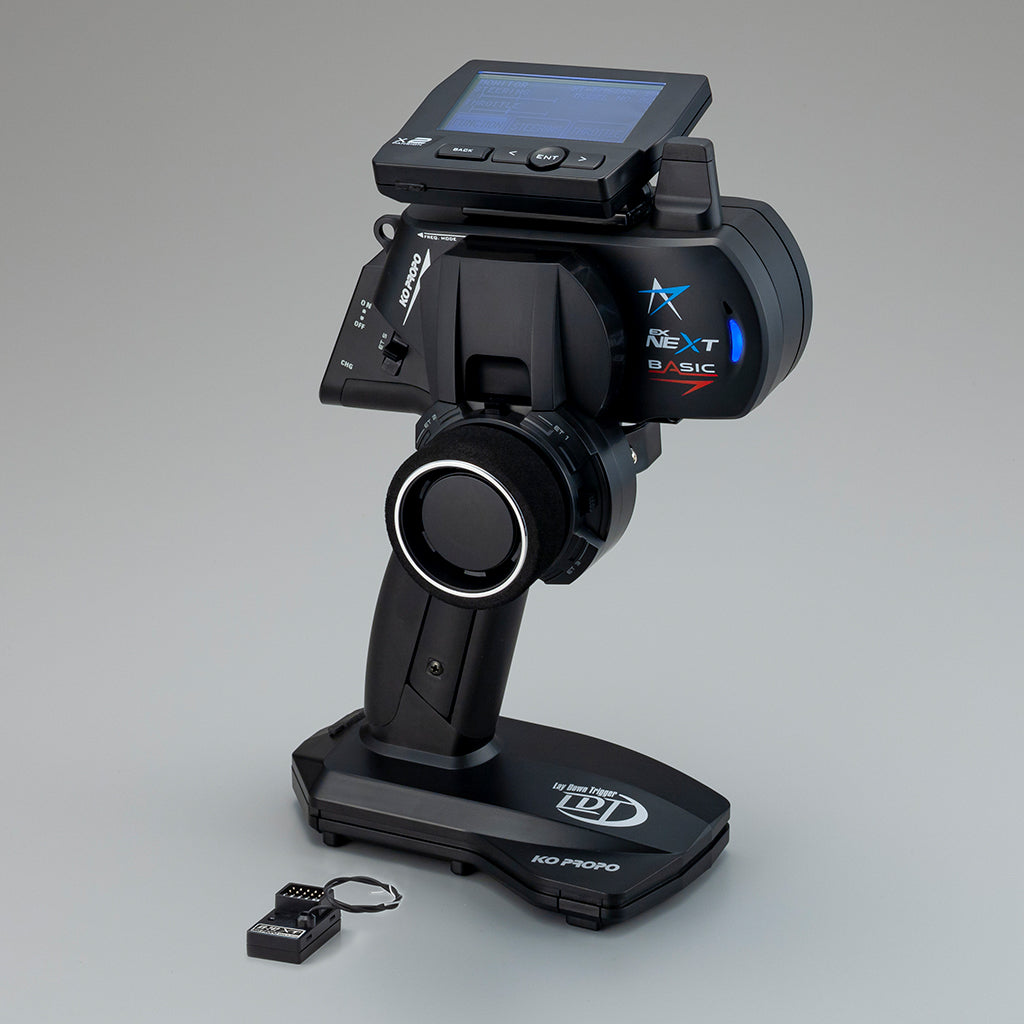

Introducing the KO PROPO EX-NEXT LDT Basic with KR-242XT Receiver.



[Specifications]
# Dimensions:256.0×170.0×127.5mm（Does not include protrusions）
# Weight: 563g（battery not included ）
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch (PWM/Serial)
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
  RF Mode (Transmitter–Receiver): XT Telemetry
  Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.

*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Made in Japan

Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.

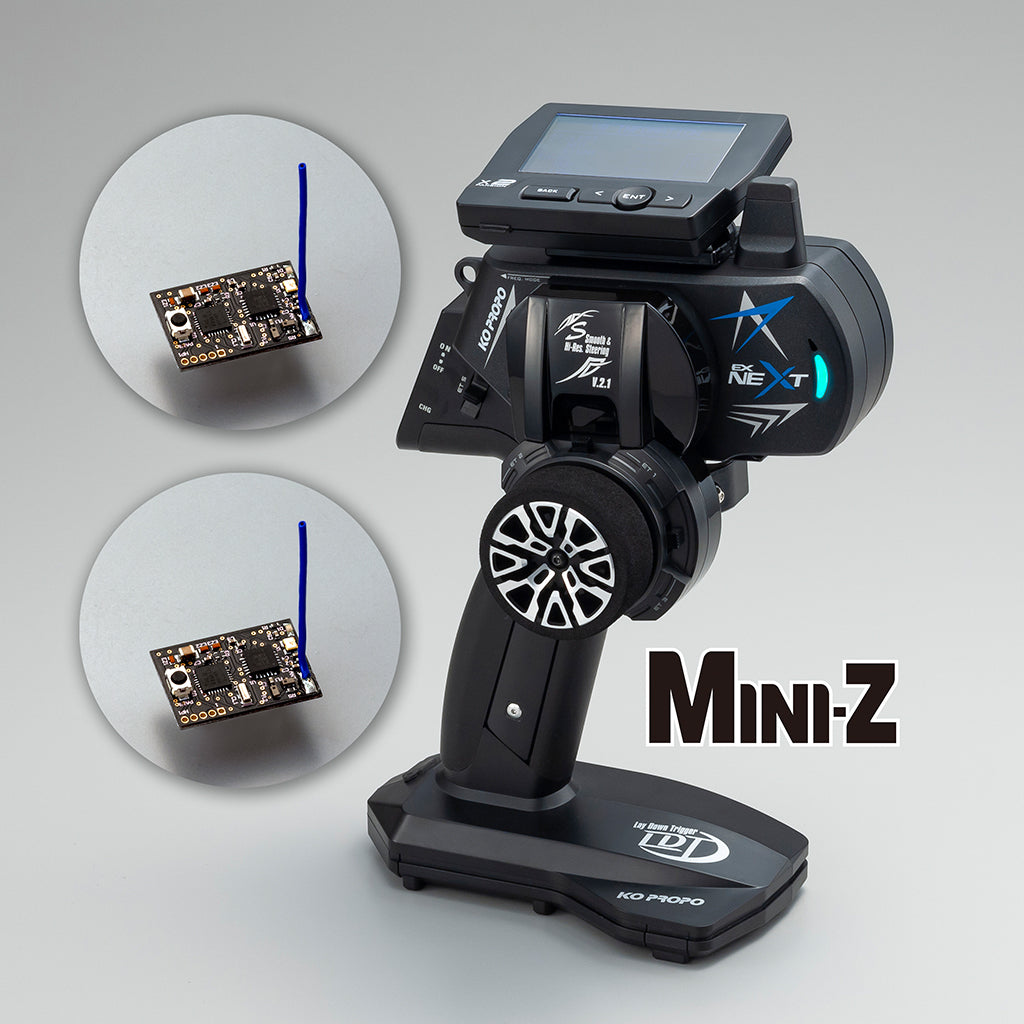

Equipped with Lay Down Trigger (LDT)!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.

Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.

XT Advanced Mode
EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.

*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.

XT Telemetry mode
EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

High speed supported by Serial servo.
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.

RSx4S / BSx4S Series

*Servo is sold separately.

*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.

Supported HCS.
EX-NEXT & KR-242XT support the use of HCS that was adopted from the RSx3, BSx3 series. Until now, it was necessary to change the receiver mode using the settingdevice, but with EX-NEXT this can be changed from the transmitter for each channel. HCS compatible servos are automatically change to HCS mode when the received signal is HCS. If you want use HCS, please connect servos to 1-4ch ofthe KR-242XT.

　　RSx3 / BSx3 / RSx4S / BSx4S Series

NORMAL mode (For commercially available servos and ESCs)
You can use different kinds of servos by changing the response mode to "Normal mode". So, you can use most current servos and ESC with EX-NEXT.

In this case, please connect to 1-4ch of the receiver.
*If you change the response mode of EX-NEXT from NORMAL to XT advanced mode in the radio settings, the maximum movement degrees of servos are limit to maximum about 42 degrees and will change. So, if you use NORMAL mode were commended setting to XT telemetry mode in the radio setting. In case of using an ESC, there is no chance of using over a travel limit, so there is no problem using with XT advanced mode.

Firmware Ver.3.00 compatible with MINI-Z
Firmware Ver.3.xx is released to use MINI-Z EVO with EX-NEXT. By combining it with MR-04EVO2 and "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)", you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

If you already have EX-NEXT

If you already have EX-NEXT, you can update it to Ver. 3.xx to make it compatible with MINI-Z EVO. Please download the software and files necessary for uploading from the following links. *The ICS USB Adapter HS is required for the update.

"EX-NEXT Updater, Update file"

*"MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" is not included in this set.
*When using "MINI-Z Mode" and "MINI-Z EVO Receiver Unit EX-NEXT MC-8" and "MR-03", telemetry function and advanced mode cannot be used even if EX-NEXT is updated to Ver. 3.xx.
*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

Ultra small receiver KR-242XT
1-4 ch are same function as conventional KR-418FH and KR-415FHD. You can use conventional servos in these ports.

Equipped with a terminal compatible for serial communication.
KR-242XT supports “REAL TIME ICS" that is a new serial communication to servos . By connecting serial communication-compatible servos such as the BSx4S-one10 Grasper2 to the B/S channel, REAL TIME ICS becomes available.

There is only one B / S port, but you can connect two or more devices by changing the device ID number and using a twin extension cable. You can use "REAL TIME ICS" in a GP car or other categories too.

Ultra small dimensions case
The ultra-compact receiver KR-242XT, which is equipped with the latest devices abundantly for the EX-NEXT. While maintaining the same footprint as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller then before. 5 Connecting ports for servos or ESC are equipped. Also, unused connecting ports can be use to power cooling fans and transponder for lap counting systems.

Pairing device without Power cycle.
The UI (user interface) of the setup switch and pilot LED has also been reviewed. In addition to the same handling as the conventional KO PROPO receiver, pairing and RF mode switching functions have been additionally implemented without turning the power on / off.KR-242XT has the capability to install an antenna pipe to receiver case directly just like the KR-415FHD, which has been very well received. The footprint is the same as the conventional model KR-418FH, but you can save the trouble of installing an antenna mount.

Intuitive alert function with vibration and full-color LED
Equipped with a vibration motor that has been requested. This can be used for alarms that notify the running time and alerts for various sensors. In addition, the LED on the front of the master unit is a full-color LED. The radio wave mode in use and the alert content of the vibration motor can now be identified by the LED lighting pattern.

Xpansion 2 that can change the ICS setting of the servo is standard equipment.
EX-NEXT is equipped with the evolved "LCD Xpansion unit 2 EXP-201" as standard equipment. New telemetry, XT radio mode, supported menu, and also the newly added setting function for ICS compatible servo are standard. Serial compatible servos which support "REAL TIME ICS" and conventional ICS compatible servos can be used. Change settings of an ICS servo by only using the Xpansion unit 2 without using a PC or servo model selector.

*It necessary to use external power (6 to 7.4V) for setting by Xpansion unit 2 only. Please use the "Servo Twin Extension Wire II w/new plug" for power supply, sold separately.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Convenient Backup Manager for Saving Memory Data
We have released backup manager software that allows you to save the memory data from your EX-NEXT to a PC. It’s useful for storing important data or as temporary storage when your memory becomes full. For more details, please refer to the link below:

Backup Manager Software for EX-NEXT

Note: A Windows PC and an ICS USB Adapter HS are required for updates.
Note: This software is exclusively for EX-NEXT and is not compatible with EX-RR, LDT, EX-2, EX-6, or EX-6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Aram mode / Timer mode (Lap timer/ Down timer)

Contents

Master Unit EX-NEXT (BASIC) x1
LCD Xpansion Unit2 EXP-201 ×1
Drop down extension Unit 2.1 (BASIC) ×1
Expert grip unit LDT (BASIC) x1

Receiver: KR-242XT (Telemetry only) x1

Other: Throttle Lever(wide)/Trigger Pad/Brake spacer/Balance terminal extension cable

*Battery, Dry batteries are sold separately

Introducing the KO PROPO EX-NEXT Basic with MINI-Z Receiver Unit.



[Specifications]
# Dimensions: 240.5 x163.0 x107.2mm (Does not include protrusions)
# Weight: 551g (battery not included)
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch（PWM/Serial）
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
  RF Mode (Transmitter–Receiver): XT Telemetry
  Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, KR-242XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Made in Japan

Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.

MINI-Z compatible telemetry function & advanced mode.

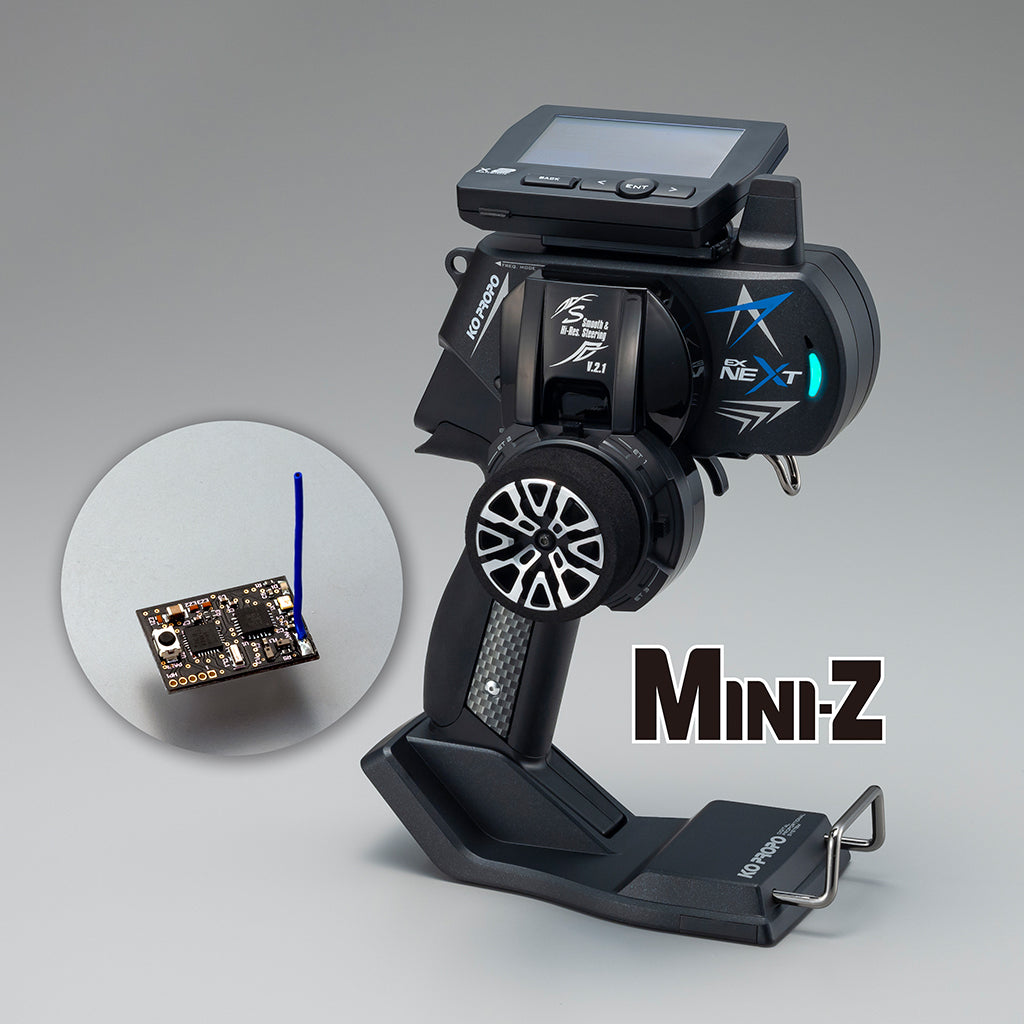

This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver and KR-242XT(Telemetry only) can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT and KR-242XT.

Please note: Switching the RF mode

You can switch between XT Advanced Mode, XT Telemetry Mode, and MINI-Z Mode by setting the RF Mode in EX-NEXT. (Set the RF mode to "MINI-Z Mode" when using the MINI-Z.) Also, the default setting is "XT telemetry mode", so if you want to use it in MINI-Z Mode, please change it to "MINI-Z Mode" first.

RF mode can be set for each model memory in order to be able to use it on a variety of machines. When adding a new model memory, please be sure to set the RF mode first. For details on how to set the RF mode, please refer to the "EX-NEXT Instruction Manual".
When the RF mode is set to "MINI-Z Mode", the LED on the EX-NEXT unit repeats "blue -> light blue -> blue -> light blue" alternately, so please check it.

Adjust the Gyro sensitivity at the Transmitter
The EX-NEXT allows you to adjust the sensitivity of the gyro installed in the MINI-Z from the transmitter at hand. The sensitivity can be adjusted using the 3CH/4CH "GYRO" function. The sensitivity can be easily adjusted from the control console without connecting the machine to a PC, allowing fine adjustments while running the machine.

Intuitive alert function with vibration and full-color LED
Equipped with a vibration motor that has been requested. This can be used for alarms that notify the running time and alerts for various sensors. In addition, the LED on the front of the master unit is a full-color LED. The radio wave mode in use and the alert content of the vibration motor can now be identified by the LED lighting pattern.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Aram mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents

Master Unit EX-NEXT (BASIC) x1
LCD Xpansion Unit2 EXP-201 x1
Drop extension Unit 2.1 (BASIC) x1
Expert grip unit 2 (BASIC) x1

Receiver: MINI-Z EVO2 Receiver Unit for KO compatible transmitter(No.82045) 　x1

*Battery, Dry batteries are sold separately

Introducing the KO PROPO EX-NEXT BASIC Transmitter and KR-242XT Receiver set.

[Specifications]
# Dimensions: 240.5 x163.0 x107.2mm (Does not include protrusions)
# Weight: 551g (battery not included)
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: 4ch（PWM/Serial）
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Default Settings:
  RF Mode (Transmitter–Receiver): XT Telemetry
  Response (Receiver–Servo): NORMAL
# Compatible receiver: KR-420XT, KR-242XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Made in Japan

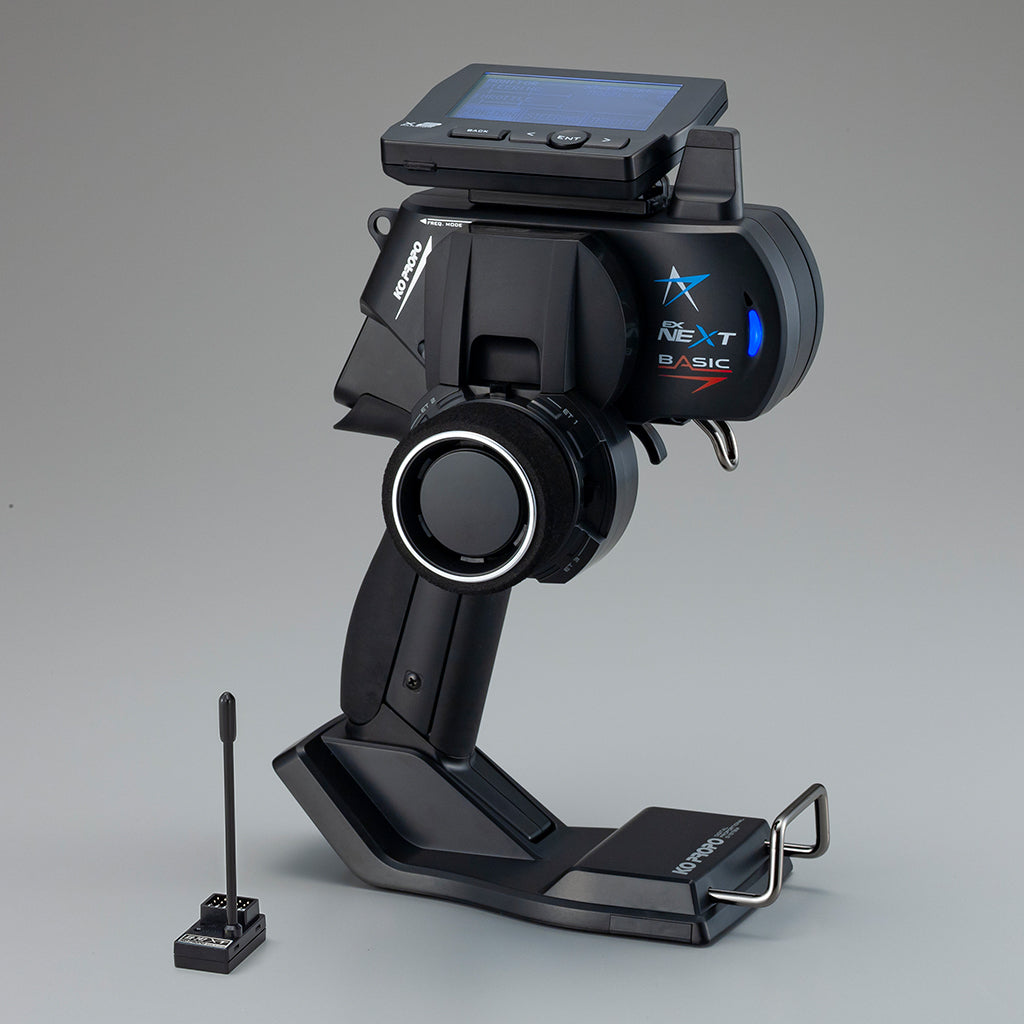

Basic Model with a Simple Configuration
This is the basic model of the "EX-NEXT" series, which features ultra-high-speed response enabled by XT technology. By minimizing exterior decoration, we have successfully reduced costs, allowing us to offer this renewed version at a more affordable price. The specifications and functions of the unit remain unchanged, so you can enjoy the high-end performance with ease.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
EX-NEXT features the newly implemented “XT” system, an evolution beyond the conventional “FHSS.” You can choose between “XT Advanced Mode” for ultra-high-speed response and “XT Telemetry Mode” for bi-directional communication (telemetry) support.

XT Advanced Mode
EX-NEXT has been newly developed with a complete redesign of both its control and communication systems from the ground up. It achieves industry-leading communication speed and ultra-high-resolution precision. In its fastest response mode, "XT Advanced Mode," EX-NEXT delivers approximately three times the communication speed compared to the EX-RR. This performance surpasses even the previously fastest HCS mode.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

*When using the ultra-high-speed XT Advanced Mode, please combine it with either serial-compatible servo “4S” or HCS-compliant "RSx3/BSx3" series servos. Due to the extremely fast communication cycle of the XT Advanced Mode, general servos might experience limitations in their operating angles.

*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.

XT Telemetry mode
EX-NEXT is equipped with telemetry (bi-directional communication) functionality. By connecting a serial-compatible “4S” servo to the B/S port of the KR-242XT, “REAL TIME ICS” becomes available. This allows you to adjust servo parameters directly from the transmitter without needing to retrieve the machine. Now you can achieve more refined and uncompromising setups with greater freedom than ever before.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

High speed supported by Serial servo.
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.

RSx4S / BSx4S Series
*Servo is sold separately.

*Although the EX-NEXT main unit is equipped with XT Advanced Mode, the included KR-242XT is for XT Telemetry only. To use XT Advanced Mode, please prepare a separate KR-420XT.

Supported HCS.
EX-NEXT & KR-242XT support the use of HCS that was adopted from the RSx3, BSx3 series. Until now, it was necessary to change the receiver mode using the settingdevice, but with EX-NEXT this can be changed from the transmitter for each channel. HCS compatible servos are automatically change to HCS mode when the received signal is HCS. If you want use HCS, please connect servos to 1-4ch ofthe KR-242XT.

　　RSx3 / BSx3 / RSx4S / BSx4S Series

NORMAL mode (For commercially available servos and ESCs)
You can use different kinds of servos by changing the response mode to "Normal mode". So, you can use most current servos and ESC with EX-NEXT.

In this case, please connect to 1-4ch of the receiver.
*If you change the response mode of EX-NEXT from NORMAL to XT advanced mode in the radio settings, the maximum movement degrees of servos are limit to maximum about 42 degrees and will change. So, if you use NORMAL mode were commended setting to XT telemetry mode in the radio setting. In case of using an ESC, there is no chance of using over a travel limit, so there is no problem using with XT advanced mode.

Firmware Ver.3.00 compatible with MINI-Z
Firmware Ver.3.xx is released to use MINI-Z EVO with EX-NEXT. By combining it with MR-04EVO2 and "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)", you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

If you already have EX-NEXT

If you already have EX-NEXT, you can update it to Ver. 3.xx to make it compatible with MINI-Z EVO. Please download the software and files necessary for uploading from the following links. *The ICS USB Adapter HS is required for the update.

"EX-NEXT Updater, Update file"

*"MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" is not included in this set.
*When using "MINI-Z Mode" and "MINI-Z EVO Receiver Unit EX-NEXT MC-8" and "MR-03", telemetry function and advanced mode cannot be used even if EX-NEXT is updated to Ver. 3.xx.
*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

Ultra small receiver KR-242XT

Port on the KR-242XT
1-4 ch are same function as conventional KR-418FH and KR-415FHD. You can use conventional servos in these ports.

Equipped with a terminal compatible for serial communication.
KR-242XT supports “REAL TIME ICS" that is a new serial communication to servos . By connecting serial communication-compatible servos such as the BSx4S-one10 Grasper2 to the B/S channel, REAL TIME ICS becomes available.

There is only one B / S port, but you can connect two or more devices by changing the device ID number and using a twin extension cable. You can use "REAL TIME ICS" in a GP car or other categories too.

Ultra small dimensions case
The ultra-compact receiver KR-242XT, which is equipped with the latest devices abundantly for the EX-NEXT. While maintaining the same footprint as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller then before. 5 Connecting ports for servos or ESC are equipped. Also, unused connecting ports can be use to power cooling fans and transponder for lap counting systems.

Pairing device without Power cycle.
The UI (user interface) of the setup switch and pilot LED has also been reviewed. In addition to the same handling as the conventional KO PROPO receiver, pairing and RF mode switching functions have been additionally implemented without turning the power on / off.KR-242XT has the capability to install an antenna pipe to receiver case directly just like the KR-415FHD, which has been very well received. The footprint is the same as the conventional model KR-418FH, but you can save the trouble of installing an antenna mount.

Intuitive alert function with vibration and full-color LED
Equipped with a vibration motor that has been requested. This can be used for alarms that notify the running time and alerts for various sensors. In addition, the LED on the front of the master unit is a full-color LED. The radio wave mode in use and the alert content of the vibration motor can now be identified by the LED lighting pattern.

Xpansion 2 that can change the ICS setting of the servo is standard equipment.
EX-NEXT is equipped with the evolved "LCD Xpansion unit 2 EXP-201" as standard equipment. New telemetry, XT radio mode, supported menu, and also the newly added setting function for ICS compatible servo are standard. Serial compatible servos which support "REAL TIME ICS" and conventional ICS compatible servos can be used. Change settings of an ICS servo by only using the Xpansion unit 2 without using a PC or servo model selector.

*It necessary to use external power (6 to 7.4V) for setting by Xpansion unit 2 only. Please use the "Servo Twin Extension Wire II w/new plug" for power supply, sold separately.

Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Convenient Backup Manager for Saving Memory Data
We have released backup manager software that allows you to save the memory data from your EX-NEXT to a PC. It’s useful for storing important data or as temporary storage when your memory becomes full. For more details, please refer to the link below:

Backup Manager Software for EX-NEXT
Note: A Windows PC and an ICS USB Adapter HS are required for updates.
Note: This software is exclusively for EX-NEXT and is not compatible with EX-RR, LDT, EX-2, EX-6, or EX-6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Aram mode / Timer mode (Lap timer/ Down timer)

Contents

Master Unit EX-NEXT (BASIC) x1
LCD Xpansion Unit2 EXP-201 x1
Drop extension Unit 2.1 (BASIC) x1
Expert grip unit 2 (BASIC) x1

Receiver: KR-242XT (Telemetry only) x1

*Battery, Dry batteries are sold separately

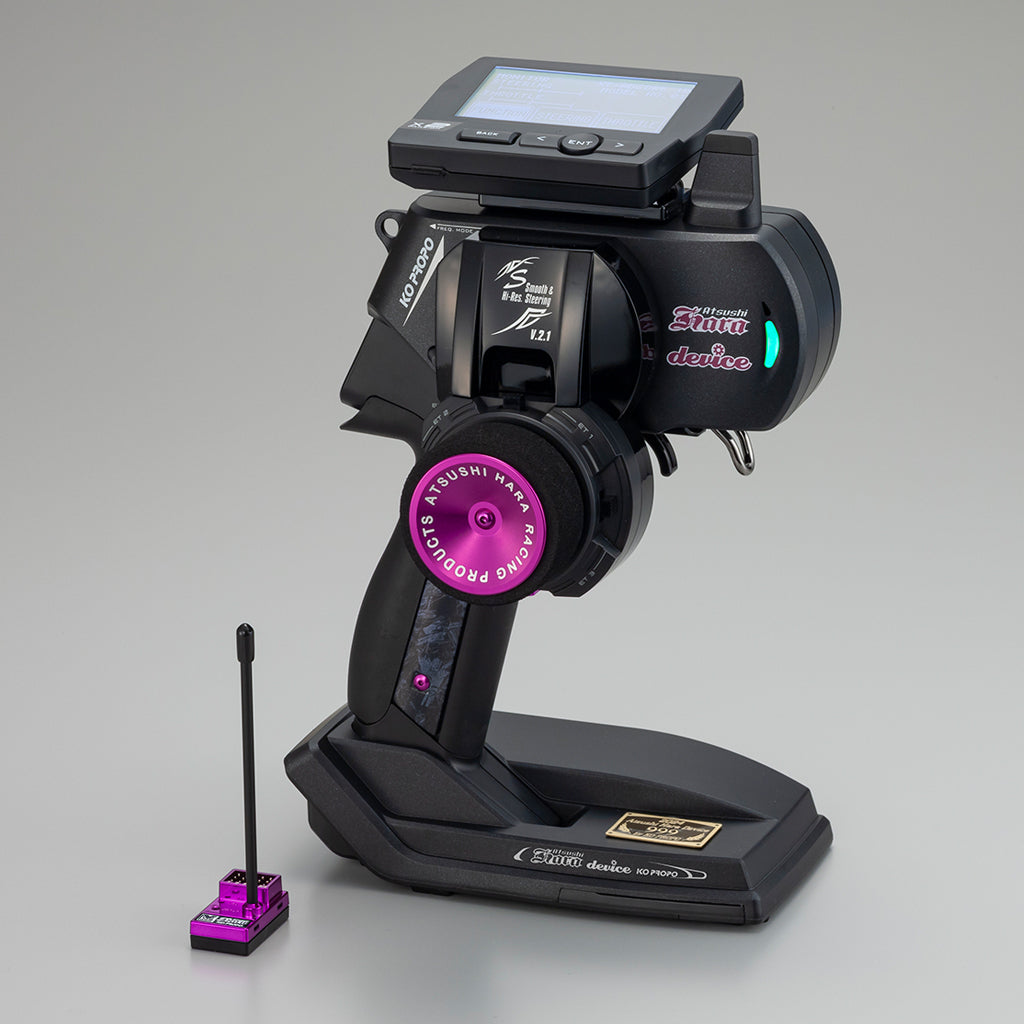

A unique collaboration model from KO PROPO where the past meets the future.

DEVICE 2024

Atsushi Hara x KOPROPO
Introducing a special collaboration model with world-renowned driver Atsushi Hara! This exclusive edition faithfully recreates DEVICE’s iconic logo design, which garnered widespread acclaim in the past. The matte clear coating seamlessly blends with the pearl black finish, delivering a refined, premium texture.

Dish design aluminum wheel
The steering wheel features a dish design, meticulously crafted through precision machining to recreate the original look. It incorporates purple-anodized aluminum wheel, showcasing a beautiful form enhanced by a special laser engraving, delivering a unique and exclusive feel.

The purple color, symbolic of Hara's signature style.
The exposed screws on the transmitter body have been replaced with purple-anodized aluminum, creating a cohesive design that extends to the back.

Plated parts with meticulous attention to detail.
The power key and BT1 key feature a custom purple finish, serving as accent colors that effectively enhance the overall cohesion of the design.

A carbon-look plate, exclusively designed for the 2024 DEVICE edition.
The DEVICE 2024 features a custom-made grip plate as well. It adopts a stylish, textured crash carbon finish that exudes a unique custom feel. A special film with a three-dimensional pattern has been transferred and finished with a clear coating, adding depth to its design.

Standard equipment includes the special design battery stand.
This set comes standard with a battery stand that can accommodate a battery, featuring silk printing tailored to the DEVICE 2024 specifications. Additionally, each unit is engraved with a unique number on a brass plate, enhancing the value of this limited edition with a serial number plate. *Serial numbers cannot be specified.

The receiver also features purple plating.
The included KR-420XT receiver also features purple plating on its upper case, enhancing its presence when mounted on the machine.

[Specifications]

# Dimensions:256.0x170.0x127.5mm
(Does not include protrusions)

# Weight: 563g(battery not included)

# Power supply:
AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery(2cell 6.6V),
Li-Po battery(2cell 7.4V),
(Batteries are sold separately.)

# Current: 200mA or less

# Channel: PWM 4ch / Serial 8ID
*Maximum setting ID number of serial are different by each products.

# Frequency: 2.4GHz

# Radio Mode: XT

# Model memory 50

# Compatible receiver:
KR-420XT,
MINI-Z EVO 2 receiver unit for KO compatible transmitter,
MINI-Z EVO Receiver Unit EX-NEXT MC-8

Note: There are no changes to the specifications of the radio.

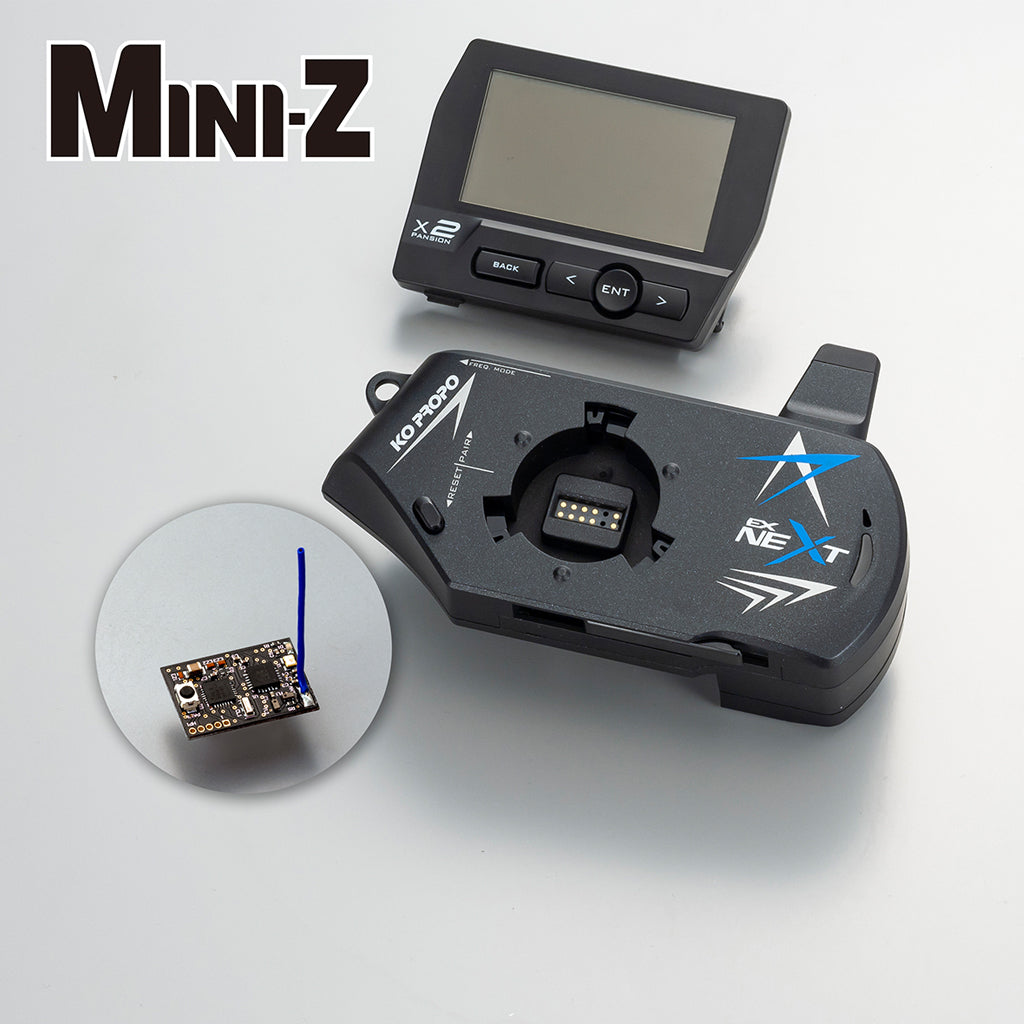

Introducing the KO PROPO Master Unit EX-NEXT SP Upgrade w/MINI-Z EVO2 Rx

Specifications
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch / Serial 8ID
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50

[Compatible Products]
# Steering Unit
Drop extension unit 2.1(recommend)
Drop extension unit 2

# Grip Unit
Expert Grip Unit2(right)
Expert Grip Unit LDT

# Compatible receiver: KR-420XT, MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.
*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.
*This product’s manual is not included in the package, please download from here.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

It can use instead of the 10682. (It is a different color)

Black painted version available in the lineup

A new black color has been added to the EX-NEXT lineup. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.

Good value upgrade set for KIY customer who using EX-RR, LDT, etc.
If you already have a KIY CONCEPT radio, you can upgrade to the latest EX-NEXT by replacing it with the master unit, LCD expansion, and receiver of this set. You can use the latest operation performance at the minimum cost without wasting your unit.

Also, If you use with Drop extension unit 2,1, you will have more good feeling.
*You can use legacy Drop extension unit 2 too.

What is KIY Concept.
KIY (Kustomize it Yourself) CONCEPT, which consists of a detachable unit that can be attached and detached with one touch without tools, creates a new driving style. You can freely combine it with each unit and operate it in your own style.

Products that can be combined

Drop Extension Unit2.1
Drop Extension Unit2
Drop Extension Unit (Soft Spring included)
Drop Extension Unit
3D Extension Unit for KIY
ST Unit Stick Type for KIY
Steering Unit EX-1
Expert Grip Unit LDT
Expert Grip Unit2(right)
Expert Grip(right)
Expert Grip (left)
Right Hand Grip Unit
Left Hand Grip Unit


Antenna less, lightweight, compact Master unit.
The weight of the master unit has been reduced to the utmost limit. Achieves both optimal weight balance and usability. Furthermore, by making the antenna short and compact, outstanding maneuverability has been achieved. Furthermore, the LCD unit can be installed by rotating it 90° according to the driver's preference.

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file" (in preparation)

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry (2 ways communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed.
"XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR.
The performance far exceeds the conventional high-speed communication.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

High speed supported by Serial servo.
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time ofthe servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating thecar directly.

RSx4S / BSx4S Series

■LCD extension unit 2 with various functions
LCD expansion unit 2 EXP-201 supports various RF modes, response modes, and various setting items added from EX-NEXT. Easy setting is possible with easy-to-understand menu structure and button operation. This product has a new ICS servo setting function. It supports not only 4S serial servos but also conventional ICS servos. You can change the servo parameters by connecting the servo directly to expansion 2 without using a PC or servo model selector. In addition, it is necessary to change the ID when using multiple 4S servos serially, but it can be easily assigned from this product.

Contents
Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Receiver: MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045) ×1

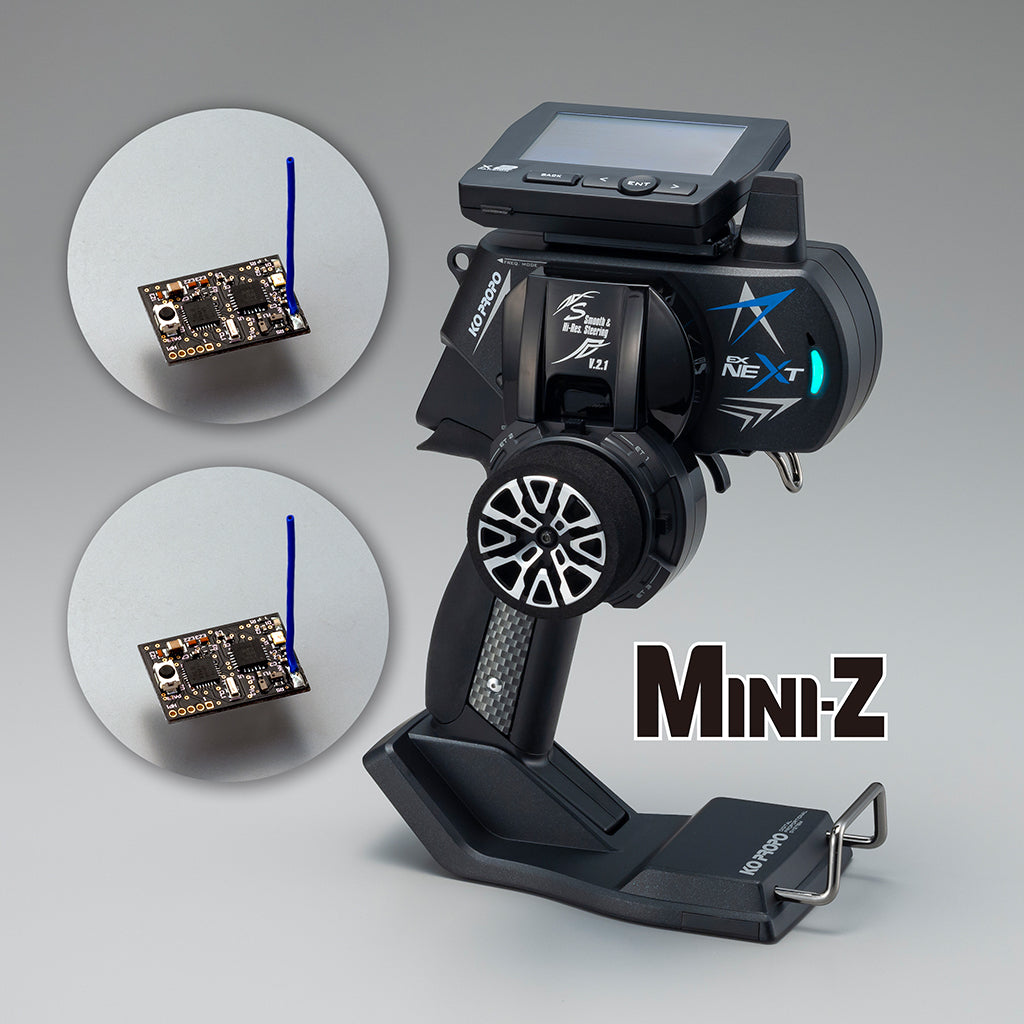

Introducing the KO PROPO EX-NEXT LDT Black SP Radio Set with  MINI-Z EVO2 Rx Unit.

Includes MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter

Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
　Li-Fe battery（2cell 6.6V）(sold separately)
　Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Compatible transmitter firmware version: Ver3.00 later
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Default Setting:
RF mode (Transmitter - Receiver) : XT Telemetry
Response (Receiver - Servo) : NORMAL
●Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.

*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

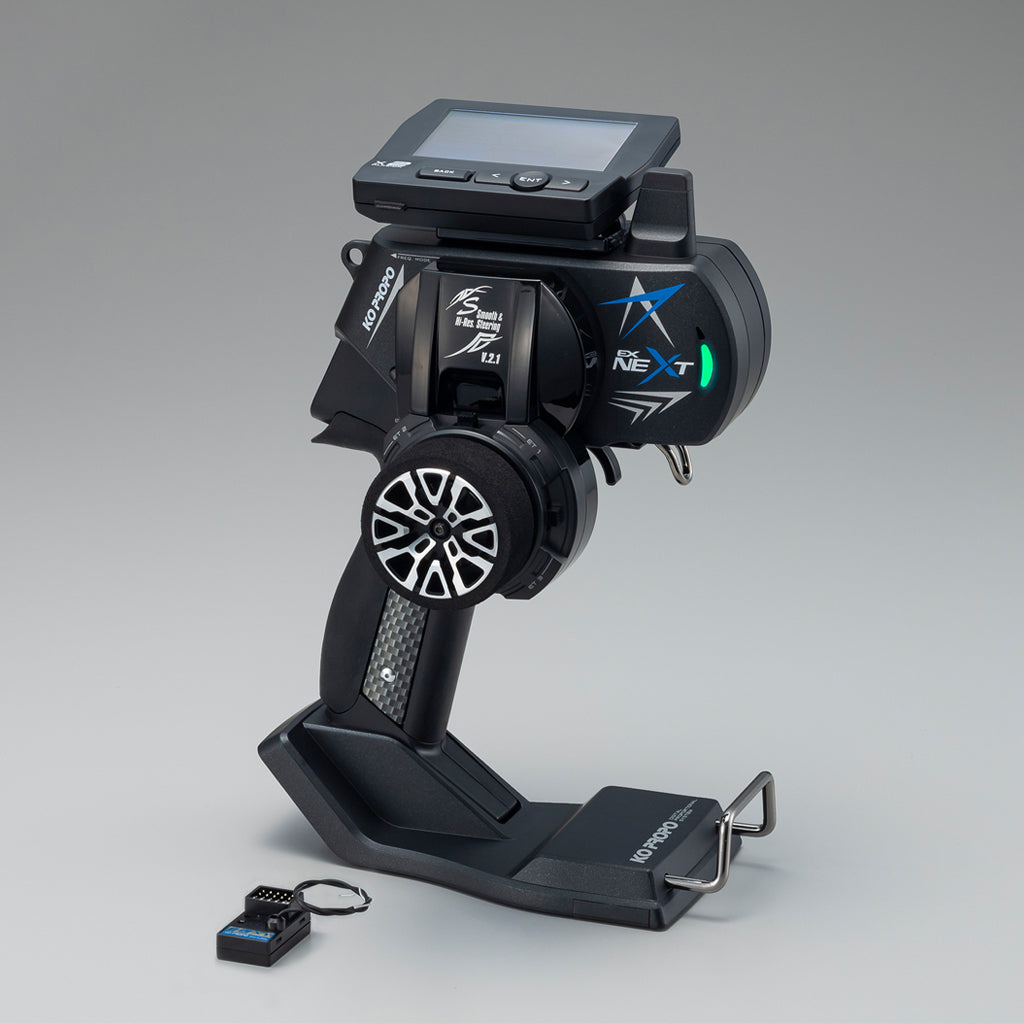

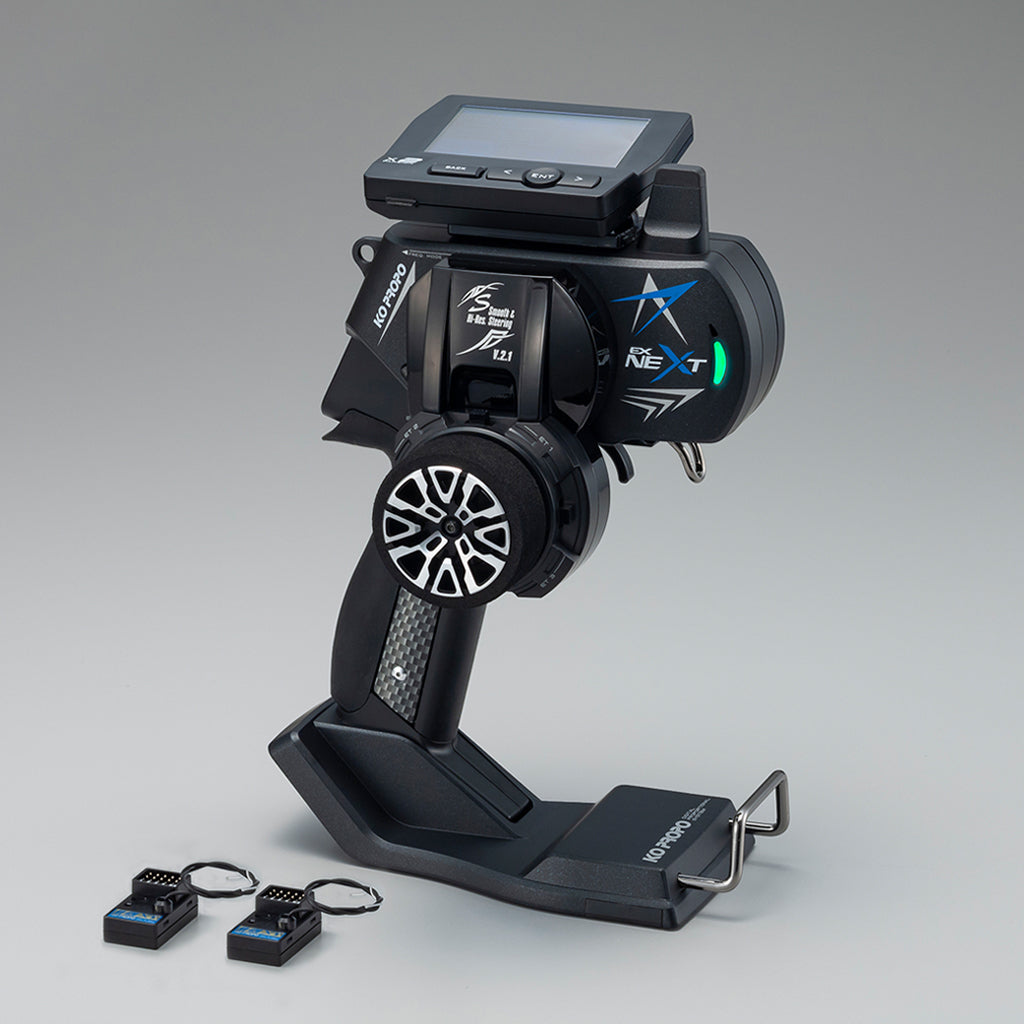

Black painted version available in the lineup

A new black color has been added to the EX-NEXT lineup. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.

The painted areas are the master unit and the standard grip stand.

*The stand for the Expert grip unit LDT is not painted.

The aluminum steering wheel has been changed to a new design.

New idea! Equipped with Lay Down Trigger!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.

Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Alarm mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents:

Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Aluminum Steering Wheel6 x1
Drop extension Unit 2.1 x1
Expert grip unit LDT x1

Receiver: MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045) ×1

Other: Throttle Lever(wide)/Trigger Pad/Brake spacer/Balance terminal extension cable/TX Battery Box3(for LDT)

*Battery, Dry batteries are sold separately

Introducing the KO PROPO EX-NEXT LDT Black SP Radio Set with 2 x MINI-Z EVO2 Rx Unit.

Includes 2 x MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter

Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
　Li-Fe battery（2cell 6.6V）(sold separately)
　Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Compatible transmitter firmware version: Ver3.00 later
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Default Setting:
RF mode (Transmitter - Receiver) : XT Telemetry
Response (Receiver - Servo) : NORMAL
●Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.

*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

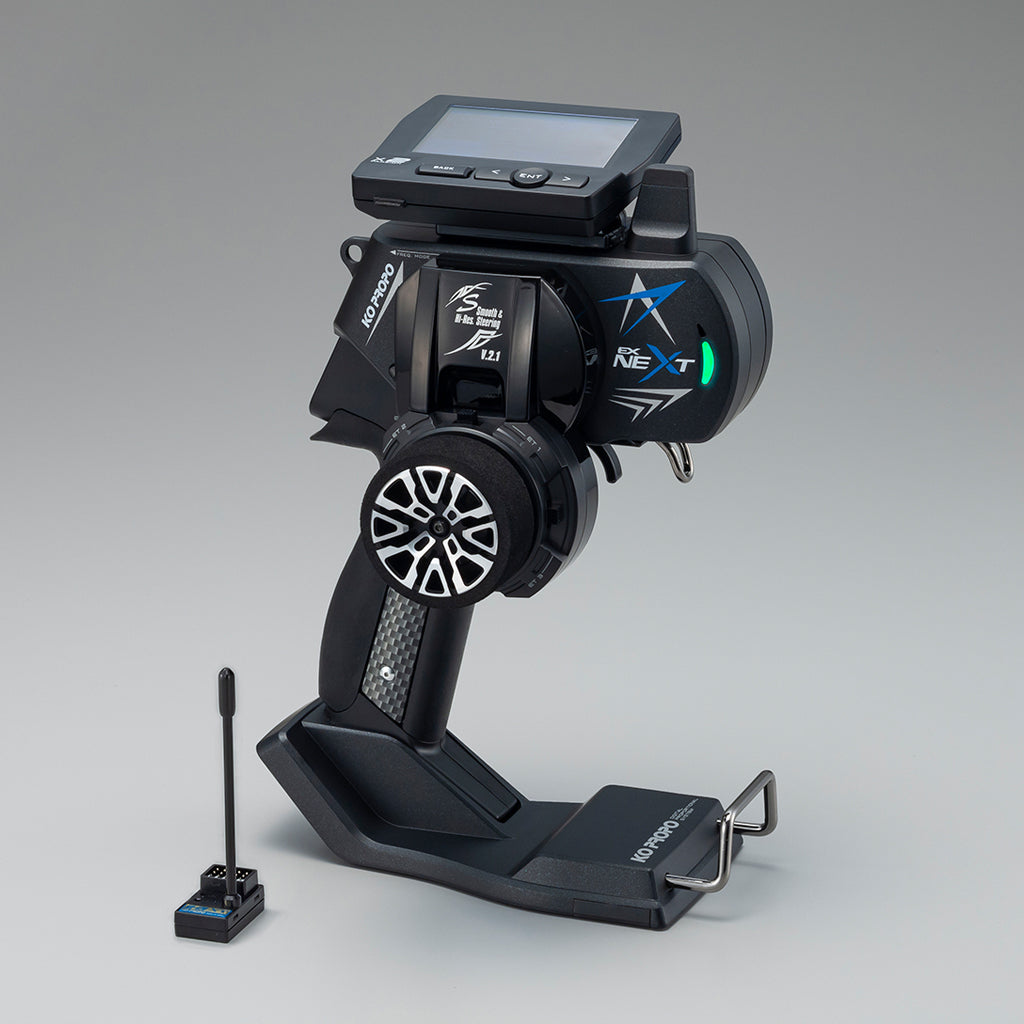

Black painted version available in the lineup

A new black color has been added to the EX-NEXT lineup. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.

The painted areas are the master unit and the standard grip stand.

*The stand for the Expert grip unit LDT is not painted.

The aluminum steering wheel has been changed to a new design.

New idea! Equipped with Lay Down Trigger!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.

Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse


Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Alarm mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents:

Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Aluminum Steering Wheel6 x1
Drop extension Unit 2.1 x1
Expert grip unit LDT x1

Receiver: MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045) ×2

Other: Throttle Lever(wide)/Trigger Pad/Brake spacer/Balance terminal extension cable/TX Battery Box3(for LDT)

*Battery, Dry batteries are sold separately

Introducing the KO PROPO EX-NEXT Black SP Radio Set with 2 x MINI-Z EVO2 Rx Unit.

Includes 2 x MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter

Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
　Li-Fe battery（2cell 6.6V）(sold separately)
　Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Compatible transmitter firmware version: Ver3.00 later
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Default Setting:
RF mode (Transmitter - Receiver) : XT Telemetry
Response (Receiver - Servo) : NORMAL
●Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.

*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Black painted version available in the lineup

A new black color has been added to the EX-NEXT lineup. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.

The painted areas are the master unit and the standard grip stand.

*The stand for the Expert grip unit LDT is not painted.

The aluminum steering wheel has been changed to a new design.

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Alarm mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents:

Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Aluminum Steering Wheel6 x1
Drop extension Unit 2.1 x1
Expert grip unit 2 (Black SP) x1

Receiver: MINI-Z EVO2 Receiver Unit for KO compatible transmitter(No.82045) 　x2

*Battery, Dry batteries are sold separately

Introducing the KO PROPO EX-NEXT Black SPRadio Set with MINI-Z EVO2 Rx Unit.

Includes MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter

Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
　Li-Fe battery（2cell 6.6V）(sold separately)
　Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Compatible transmitter firmware version: Ver3.00 later
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Default Setting:
RF mode (Transmitter - Receiver) : XT Telemetry
Response (Receiver - Servo) : NORMAL
●Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.

*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Black painted version available in the lineup

A new black color has been added to the EX-NEXT lineup. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.

The painted areas are the master unit and the standard grip stand.

*The stand for the Expert grip unit LDT is not painted.

The aluminum steering wheel has been changed to a new design.

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse

Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Alarm mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents:

Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Aluminum Steering Wheel6 x1
Drop extension Unit 2.1 x1
Expert grip unit 2 (Black SP) x1

Receiver: MINI-Z EVO2 Receiver Unit for KO compatible transmitter(No.82045) 　x1

*Battery, Dry batteries are sold separately

Introducing the KO PROPO EX-NEXT Black SP (Special) 2.4Ghz Wheel Radio with LDT (Lay Down Trigger)

Includes 2 x Serial compatible receiver KR-420XT.

Specifications
# Dimensions: 240.5 x163.0 x107.2mm (Does not include protrusions)
# Weight: 551g (battery not included)
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch / Serial 8ID
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Compatible receiver: KR-420XT, " MINI-Z EVO Receiver Unit EX-NEXT MC-8"

*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.


Luxury Pearl Black Paint
A new black colour has been added to the EX-NEXT line up. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.
*The stand for the Expert grip unit LDT is not painted.

Newly designed Aluminium Steering Wheel
The aluminium steering wheel has been changed to a new design.

Equipped with a new standard "XT" that achieves the fastest class communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record class response for one way communication and "XT telemetry mode" which is compatible for Telemetry (2 way's communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed. "XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR. The performance far exceeds the conventional high-speed communication.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise. Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster than the EX-RR.

High speed supported by Serial servo
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time of the servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating the car directly.

Ultra small receiver KR-420XT
The ultra-compact receiver KR-420XT, which is equipped with the latest devices abundantly for the EX-NEXT. While maintaining the same footprint as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller than before. 5 Connecting ports for servos or ESC are equipped. Also, unused connecting ports can be use to power cooling fans and transponder for lap counting systems.

Supports MINI-Z by switching modes
EX-NEXT's high-speed response is also available for MINI-Z EVO. Mode switching allows switching from general RC car to MINI-Z mode. EX-NEXT is compatible with the "MINI-Z EVO Receiver Unit EX-NEXT MC-8". *MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Made in Japan.

KO's dedicated webpage

Introducing the KO PROPO EX-NEXT Black SP (Special) 2.4Ghz Wheel Radio.

Includes 2 x Serial compatible receiver KR-420XT

Specifications
# Dimensions: 240.5 x163.0 x107.2mm (Does not include protrusions)
# Weight: 551g (battery not included)
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch / Serial 8ID
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Compatible receiver: KR-420XT, " MINI-Z EVO Receiver Unit EX-NEXT MC-8"

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.


Luxury Pearl Black Paint
A new black colour has been added to the EX-NEXT line up. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.
*The stand for the Expert grip unit LDT is not painted.

Newly designed Aluminium Steering Wheel
The aluminium steering wheel has been changed to a new design.

Equipped with a new standard "XT" that achieves the fastest class communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record class response for one way communication and "XT telemetry mode" which is compatible for Telemetry (2 way's communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed. "XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR. The performance far exceeds the conventional high-speed communication.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise. Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster than the EX-RR.

High speed supported by Serial servo
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time of the servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating the car directly.

Ultra small receiver KR-420XT
The ultra-compact receiver KR-420XT, which is equipped with the latest devices abundantly for the EX-NEXT. While maintaining the same footprint as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller than before. 5 Connecting ports for servos or ESC are equipped. Also, unused connecting ports can be use to power cooling fans and transponder for lap counting systems.

Supports MINI-Z by switching modes
EX-NEXT's high-speed response is also available for MINI-Z EVO. Mode switching allows switching from general RC car to MINI-Z mode. EX-NEXT is compatible with the "MINI-Z EVO Receiver Unit EX-NEXT MC-8". *MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Made in Japan.

KO's dedicated webpage

Introducing the KO PROPO EX-NEXT Black SP (Special) 2.4Ghz Wheel Radio.

Includes 1 x Serial compatible receiver KR-420XT with short antenna.

Specifications
# Dimensions: 240.5 x163.0 x107.2mm (Does not include protrusions)
# Weight: 551g (battery not included)
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch / Serial 8ID
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Compatible receiver: KR-420XT, " MINI-Z EVO Receiver Unit EX-NEXT MC-8"

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.


Luxury Pearl Black Paint
A new black colour has been added to the EX-NEXT line up. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.
*The stand for the Expert grip unit LDT is not painted.

Newly designed Aluminium Steering Wheel
The aluminium steering wheel has been changed to a new design.

Equipped with a new standard "XT" that achieves the fastest class communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record class response for one way communication and "XT telemetry mode" which is compatible for Telemetry (2 way's communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed. "XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR. The performance far exceeds the conventional high-speed communication.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise. Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster than the EX-RR.

High speed supported by Serial servo
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time of the servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating the car directly.

Ultra small receiver KR-420XT
The ultra-compact receiver KR-420XT, which is equipped with the latest devices abundantly for the EX-NEXT. While maintaining the same footprint as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller than before. 5 Connecting ports for servos or ESC are equipped. Also, unused connecting ports can be use to power cooling fans and transponder for lap counting systems.

Supports MINI-Z by switching modes
EX-NEXT's high-speed response is also available for MINI-Z EVO. Mode switching allows switching from general RC car to MINI-Z mode. EX-NEXT is compatible with the "MINI-Z EVO Receiver Unit EX-NEXT MC-8". *MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Made in Japan.

KO's dedicated webpage

Introducing the KO PROPO EX-NEXT Black SP (Special) 2.4Ghz Wheel Radio.

Includes 1 x Serial compatible receiver KR-420XT

Specifications
# Dimensions: 240.5 x163.0 x107.2mm (Does not include protrusions)
# Weight: 551g (battery not included)
# Power supply: AAA size dry battery x4,
Ni-MH battery x4,
Li-Fe battery (2cell 6.6V)*,
Li-Po battery (2cell 7.4V)*,
(Batteries are sold separately.)
# Current: 200mA or less
# Channel: PWM 4ch / Serial 8ID
*Maximum setting ID number of serial are different by each products.
# Frequency: 2.4GHz
# Radio Mode: XT
# Model memory 50
# Compatible receiver: KR-420XT, " MINI-Z EVO Receiver Unit EX-NEXT MC-8"

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.


Luxury Pearl Black Paint
A new black colour has been added to the EX-NEXT line up. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.
*The stand for the Expert grip unit LDT is not painted.

Newly designed Aluminium Steering Wheel
The aluminium steering wheel has been changed to a new design.

Equipped with a new standard "XT" that achieves the fastest class communication speed in the industry.
You can choose and use from "XT advanced mode" which is the world record class response for one way communication and "XT telemetry mode" which is compatible for Telemetry (2 way's communication).

XT Advanced Mode
An all new control software and radio communication software of the EX-NEXT has been developed. World record class communication response and High resolution control are installed. "XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR. The performance far exceeds the conventional high-speed communication.

XT Telemetry mode
EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise. Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster than the EX-RR.

High speed supported by Serial servo
Currently mainstream servo control method is performed by PWM control. PWM control method uses pulse width to send position of servos output from receiver. Serial control method uses a digital signal value to send the position of the servo output. So, communication speed of the Serial control method will be significantly faster than a PWM control method, time of the servo’s action from your operation input is shorter. Operating feeling will be ultra high speed like operating the car directly.

Ultra small receiver KR-420XT
The ultra-compact receiver KR-420XT, which is equipped with the latest devices abundantly for the EX-NEXT. While maintaining the same footprint as the KR-418FH compact receiver, which has been very well received, the connector mounting height has been reduced, and the total volume is smaller than before. 5 Connecting ports for servos or ESC are equipped. Also, unused connecting ports can be use to power cooling fans and transponder for lap counting systems.

Supports MINI-Z by switching modes
EX-NEXT's high-speed response is also available for MINI-Z EVO. Mode switching allows switching from general RC car to MINI-Z mode. EX-NEXT is compatible with the "MINI-Z EVO Receiver Unit EX-NEXT MC-8". *MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Made in Japan.

KO's dedicated webpage

Introducing the KO PROPO EX NEXT Transmitter and double receiver set. This version also includes the white version of the battery stand and serial compatible receiver 420XT x 2.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

[Specifications]
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
　Li-Fe battery（2cell 6.6V）(sold separately)
　Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each product.
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Compatible receiver: KR-420XT / MINI-Z EVO Receiver Unit EX-NEXT MC-8

*This product’s manual is not included in the package, please download from attachements tab.
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.
