KO PROPO - EX-NEXT LDT Black SP w/MINI-Z EVO2 Double Rx Unit - KO10763

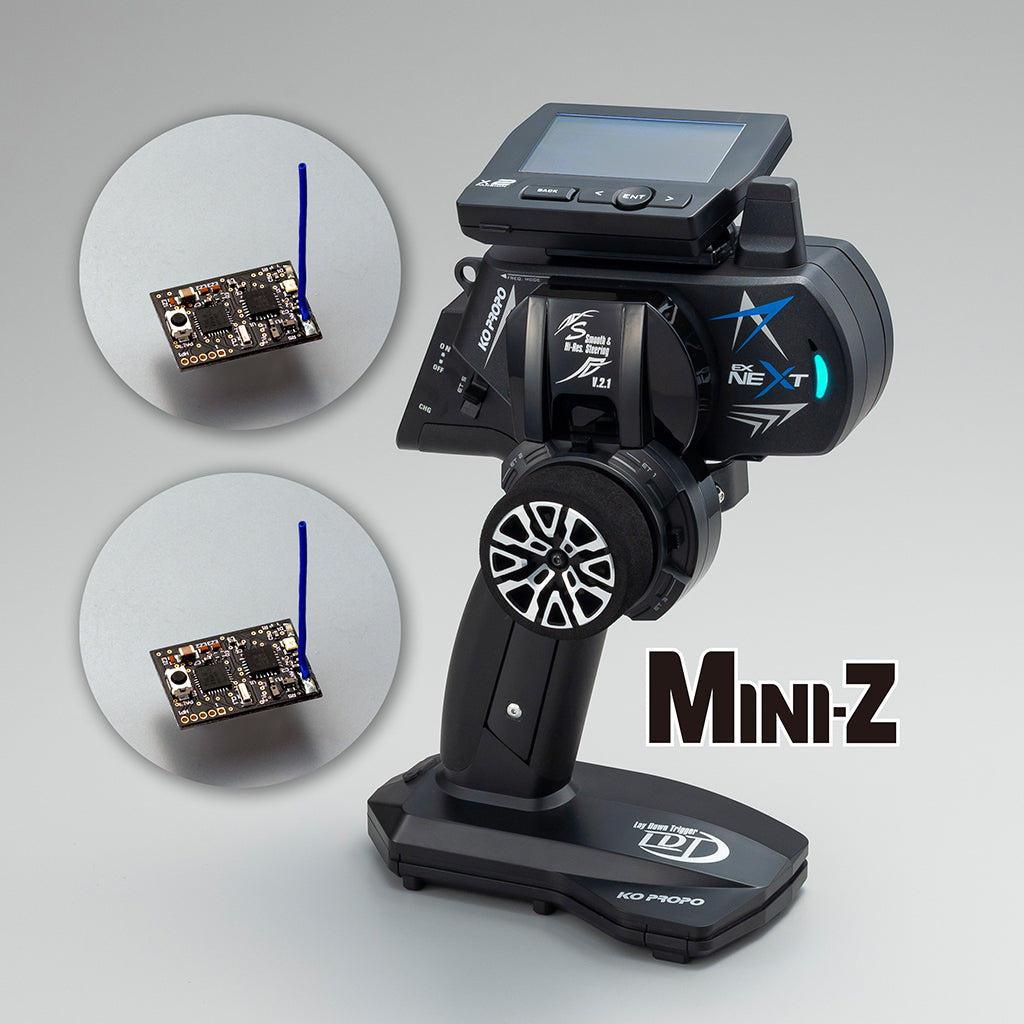

Introducing the KO PROPO EX-NEXT LDT Black SP Radio Set with 2 x MINI-Z EVO2 Rx Unit.

Includes 2 x MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter

Specifications
●Dimensions:240.5×163.0×107.2mm（Does not include protrusions）
●Weight: 551g（battery not included ）
●Power supply: AAA size dry battery, Ni-MH battery x4 (sold separately)
　Li-Fe battery（2cell 6.6V）(sold separately)
　Li-Po battery（2cell 7.4V）(sold separately)
●Current: 200mA or less
●Channel：PWM 4ch/ Serial 8ID
*Maximum setting ID number of serial are different by each products.
●Compatible transmitter firmware version: Ver3.00 later
●Frequency: 2.4GHz
●Radio Mode: XT
●Model memory 50
●Default Setting:
RF mode (Transmitter - Receiver) : XT Telemetry
Response (Receiver - Servo) : NORMAL
●Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z EVO Receiver Unit EX-NEXT MC-8

*The combination of MR-03 and "MINI-Z EVO 2 receiver unit for KO compatible transmitter" does not support telemetry function or advanced mode. Please use it in combination with MR-04.

*The conventional "MINI-Z EVO Receiver Unit 82040" is not compatible with this product.

*This product’s manual is not included in the package, please download from here.
*If you use Li-fe, Li-po, you must use with our option unit (Battery stand Unit).
*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.

Black painted version available in the lineup

A new black color has been added to the EX-NEXT lineup. Instead of simple solid black paint, it is painted in black with pearl. The matt texture gives it a luxurious feel.

The painted areas are the master unit and the standard grip stand.

*The stand for the Expert grip unit LDT is not painted.

The aluminum steering wheel has been changed to a new design.

New idea! Equipped with Lay Down Trigger!
A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.

Charge battery by connecting to stand
Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.
*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm

Long-awaited MINI-Z compatible telemetry function & advanced mode.
This is a transmitter/receiver set that comes with the receiver unit "MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045)" compatible with MINI-Z EVO2.
By combining it with MR-04EVO2, you can use the "telemetry function" that allows you to adjust settings from the radio, and the "advanced mode" that allows faster communication.

[New feature: 1] Bidirectional telemetry mode
Various setting values that have been previously set on a PC can be easily set from the radio by operating the buttons on the expansion unit, just as if changing the settings on the radio. Additionally, EX-NEXT's telemetry function can read machine information. Not only each setting value but also the machine's battery voltage can be read out in real time.

[New feature: 2] High-speed advanced mode
EVO2 allows you to use high-speed advanced mode (0.99ms)! Advanced mode's high-speed communication increases the density of information that can be sent to the machine. You can experience the "fine and smooth handling feeling" brought about by unprecedented high-definition and high-resolution control.

Firmware Ver.3.00 compatible with MINI-Z EVO2.
Firmware Ver.3.00 has been released to use MINI-Z EVO2 with EX-NEXT. EX-NEXT of this set is preset to Ver.3.00.

If you already have EX-NEXT

If you already have an EX-NEXT, you can update it to Ver.3.00 to make it compatible with MINI-Z EVO. Please download and use the software and files required for uploading from the link below. *A separate ICS USB Adapter HS is required for the update.

"Updater for EX-NEXT, update file"

Available functions vary depending on the MINI-Z receiver unit, MINI-Z main unit, and EX-NEXT version. Please check the table below for details.

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

MINI-Z Mode
EX-NEXT was newly developed by reviewing the design of the control and communication systems from the ground up. It achieves the industry's fastest communication speed and high resolution. In MINI-Z Mode, it outperforms FHSS such as the EX-RR, which has been the fastest. The EX-NEXT's high-speed communication increases the density of information that can be transmitted to the machine. You can experience the "fine and smooth control feeling" brought about by unprecedented high-definition, high-resolution control.

XT Advanced Mode, XT Telemetry Mode
This product is not dedicated to MINI-Z. When combined with the KR-420XT receiver can also be used with general-purpose RC cars without the need to change the firmware. The combination of the ultra-fast XT Advanced Mode, the bi-directional XT Telemetry Mode, and the serial servo 4S allows you to experience the dramatic evolution of high-speed performance from FHSS. For details, please refer to the product page of the set with KR-420XT.

Can be replaced with the Color Grip2 of your choice.
The "Color Grip2" already on sale can be attached. Choose your favorite color from a wide range of variations.

New Drop down extension Unit 2.1
Tune up for EX-NEXT
Tuned for the evolution of the EX-NEXT to match the fastest feeling master unit as an exclusive use unit.

Superior durability and operation feeling led by new angle sensor.
Prevents deterioration of durability and operational feeling due to wear, which can be said to be the problem of contact sensors. Along with smooth operation feeling by smoother sliding, we realize high durability that is approximately 100 times compared with the prior sensor. Therefore, the best feeling of operation can be maintained for a long time. In addition, the new sensor outputs a more linear signal to the Master Unit. You can control the ESC and servo with a detailed operation sense. A realization of a sense of unity between people and cars.

Increased the number of ball bearings that support the steering shaft for higher accuracy!
The number of ball bearings supporting the steering shaft has been increased from one to two. The double-support type supports higher precision operation and reliability.

The soft spring which can be operated with a constant tension.
The normal spring included in the extension unit has been modified. The previous spring used was a progressive spring becoming stiffer as the wheel angle increased, but the new softer spring give a linear stiffness as the wheel angle increases. Since the spring tension can be adjusted, you can set the spring tension to your personal preference.

Firmware update function.
Firmware update function is supported with the use of the ICS USB Adapter HS.
Please refer below pages for information about update.
EX-NEXT Updater, Update file

*Window PC and ICS USB adapter HS are necessary for update.
*Firmware for EX-NEXT can only be used for this product. It cannot be used with EX-RR/LDT/2/6/6R.

Backup manager convenient for saving memory data
We have released backup manager software that allows you to save memory data in EX-NEXT to your PC. It is convenient for storing important data or as a temporary storage space when the memory is full. Please refer to the page below for details.

"Backup manager software for EX-NEXT"

*When updating, a Windows PC and ICS USB adapter HS are required.
*The software for EX-NEXT is exclusive to this product. Not compatible with EX-RR/LDT/2/6/6R.

EX-NEXT function list

RF mode/Response/REAL TIME ICS/Battery fail safe


Model select /Model name/ Model copy /Model reset /50 model


Display / Battery / Calculator / Sound/ VR information / Setting /Key speed /Menu speed /Display language / Operation timer /User timer / All reset


Travel/ Balance / Trim /Sub Trim / Trim rate / Speed turn(2way) / Speed return(2way) / Curve / Punch / Feel / Response / Steering Auto Trim /Steering Auto balance/Reverse


Travel F / Travel B / Trim /Sub trim / Trim rate / Speed turn(3way) / Speed return(3way) / Curve / Punch / Feel / Response / Push control / Acceleration / ABS /Auto Start / Idle up / Neutral brake / Over ride / Reverse / Brake in / Hand brake

<3ch/4ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog/ Gyro / Twin servo / 4WS/AMP mixing
/Throttle mixing / Trim set

<5ch-8ch>
Key setting/ 2WAY / 3WAY / 5WAY / Analog


Timer Start / Trigger start / Lap history / Start stop key/Lap key /Lap navi / Alarm time/ Pre alarm / Alarm mode / Timer mode (Lap timer/ Down timer)

* MINI-Z is a product and registered trademark of KYOSHO CORPORATION.

Contents:

Master Unit EX-NEXT (Black SP) x1
LCD Xpansion Unit2 EXP-201 x1
Aluminum Steering Wheel6 x1
Drop extension Unit 2.1 x1
Expert grip unit LDT x1

Receiver: MINI-Z EVO 2 Receiver Unit for KO Compatible Transmitter (No.82045) ×2

Other: Throttle Lever(wide)/Trigger Pad/Brake spacer/Balance terminal extension cable/TX Battery Box3(for LDT)

*Battery, Dry batteries are sold separately
