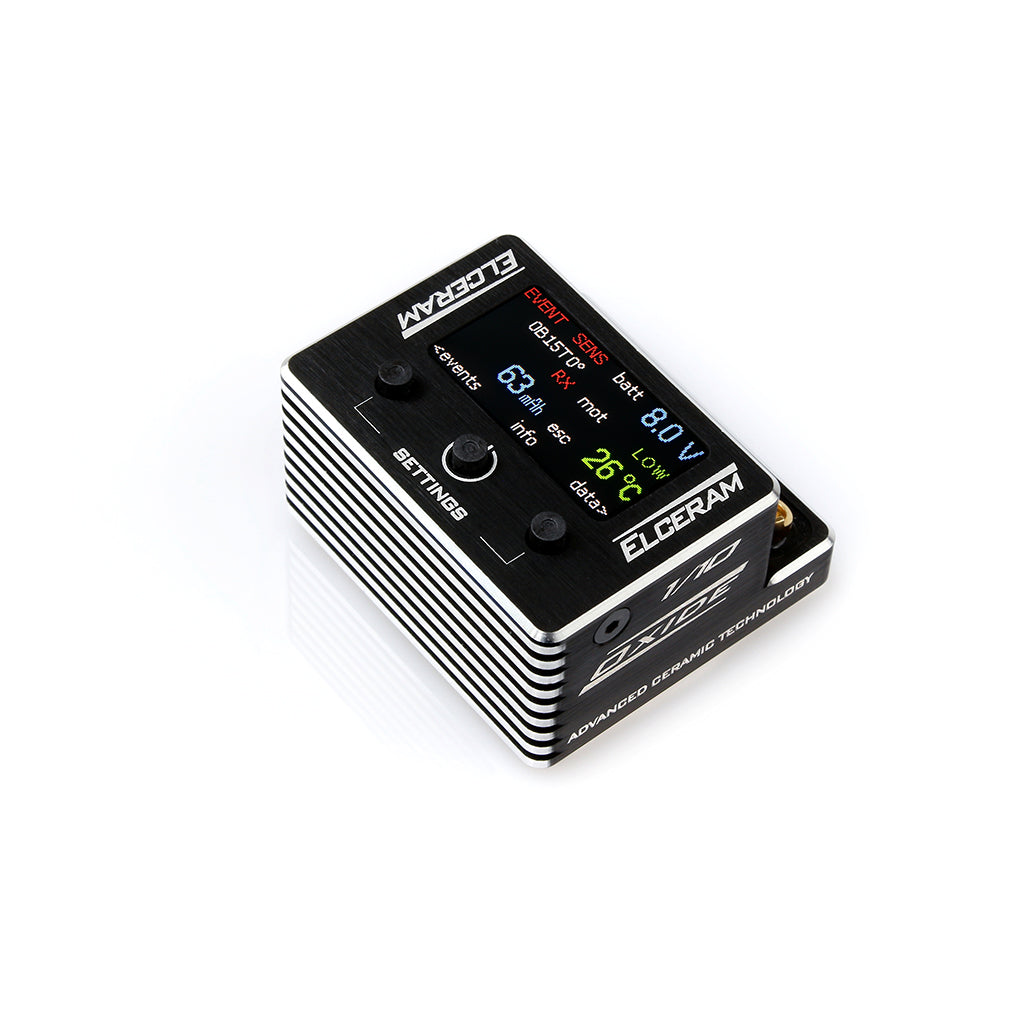

Elceram - ELCERAM Oxide G2 1/10th ESC 160A - ELC021

OXIDE 1/10 G2 is a new generation electronic speed controller for sensored Brushless DC motors. Using Advanced Cooling Technology based on Aluminium Oxide Ceramic cooler, Oxide 1/10 has excellent thermal conductivity and can be used with powerful motors from 6T up.

OXIDE 1/10 G2 brings revolutionary battery current and discharge real-time monitoring and Innovative Intelligent Algorithms to protect ESC in case of motor failure or mechanical issue.

OXIDE 1/10 G2 is featured with reverse polarity protection.

OXIDE 1/0 G2 has TFT matt surface LCD colour display and no other interface is needed. Simple settings adjustment with 3 buttons on display.

Programmable parameters and functions:
•Revolutionary simple Rx calibration.
•Real time monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and more.
•Revolutionary battery current and discharge monitoring.
•Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and more.
•Easy programming: throttle, brake, boost and turbo timing, Hall angle and many other functions.
•Race data logging, temperature and other curves, histograms and more. Data will be saved after turn of the ESC.
•Adjustable maintenance reminder for easy checking.
•No programming interface required.

Key Features:
•TFT LCD colour display, matte finish - LCD colour display with a resolution of 160 x 80 pixels allows you to set all the parameters and check all the data directly on your ESC, without the need for a programming card or a mobile application. Everything you need is inside your ESC.
It is really easy to use - 3 buttons allow you to quickly set everything you need and a single view is enough to check all the parameters necessary for the race. Simple. Fast. Accurate.
•Easy Check and Set - The display gives you an overview of all the important data and events - before the race, during the race and after the race. You can change your settings quickly and get instant feedback, without the delay of connecting an external control interface.
•Advanced Cooling Technology - OXIDE Featured Advanced cooling technology based on Aluminium Oxide heatsink, specially developed for OXIDE, gives the ESC excellent thermal conductivity and long-term resistance to high temperatures and loads.
MOSFETs transistors are cooled directly without any additional thermal resistance layer!
During production, ELCERAM used very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies inspired by advanced power systems designed and manufactured by ELCERAM.
•For even better cooling OXIDE 1/10 G2 features additional aluminium cooling thins and a connector for Intelligent FAN, if it is needed in special conditions.
•Reverse polarity protection.
•Intelligent algorithms for ESC protection.
•Dimensions - Despite having so many great new features, the OXIDE 1/10 G2 is really compact and even smaller than Generation 1. Its dimensions are suitable for all types of 1/10 RC cars.
What is more, 70% of the weight is on the underside of the ESC, giving your car even greater stability!
•Easy installation - installation of OXIDE 1/10 is quick and easy – using double-sided tape included in the package.
•In addition, the cover of ESC with display and buttons is able to be changed simply in case of any accident.

Specification:
•Type:
Scale: 1/10th Onroad and Offroad, Stock, Open Stock, Modified, Drift and other categories
Brushless
Sensored
•Waterproof: No
•Polarity protection: Yes

•Relevant parameters:
Cont./Peak Current: 160A / 1500A
Input Voltage: 2S LiPo
BEC Output adjustable voltage: 6.0 - 7.4V
BEC current Cont. / Peak: 6A/12A

•Size and weight:
Width: 34 mm
Length: 36,5 mm
Height: 20 mm
Weight: 50 g without wires
BEC cable length: 180 mm, grey stripe is minus pole

•Applications:
Applications: Sensored Brushless DC Motors from 6T up
Vehicles: 1/10 Buggy, TC and other cars
•Zero Timing (Blinky Mode) supported.
•External capacitors needed (included in package)
