SRT - MG Waterproof LV 4.8V ~ 6v STD Digital Servo - SRTDL3020 (6.0v): 0.11 sec / 20.0kg) - (Ideal for 1/10 On/Off Road & TT01E Euro Truck)

Name: SRT - MG Waterproof LV 4.8V ~ 6v STD Digital Servo - SRTDL3020 (6.0v): 0.11 sec / 20.0kg) - (Ideal for 1/10 On/Off Road & TT01E Euro Truck)
Brand: SRT
SKU: SRTDL3020
Price: 17.99 GBP
Availability: OutOfStock

£17.99 GBP

~~£19.99 GBP~~ £17.99 GBP

10% OFF Sold out - Check Back Soon

Shipping calculated at checkout.

Out of stock

Available today!
Click & Collect!
Nationwide Delivery!

Quantity

View full details

KEY FEATURES

Super Fast!
Super Strong!
Waterproof!

- incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :

1/10 On & Off Road

PRODUCT SPECIFICATIONS

- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Type: Metal
- Gear Material: Copper & Aluminum
- control system: pulse width control
- working frequence: 1520μs / 330hz
- operating voltage: dc4.8-6.0v
- operating temperature range: -10 to + 60 degree
- operating speed (4.8v): 0.13 sec/60 degrees at no load
- operating speed (6.0v): 0.11 sec/60 degrees at no load
- stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
- stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
- potentiometer drive: direct drive

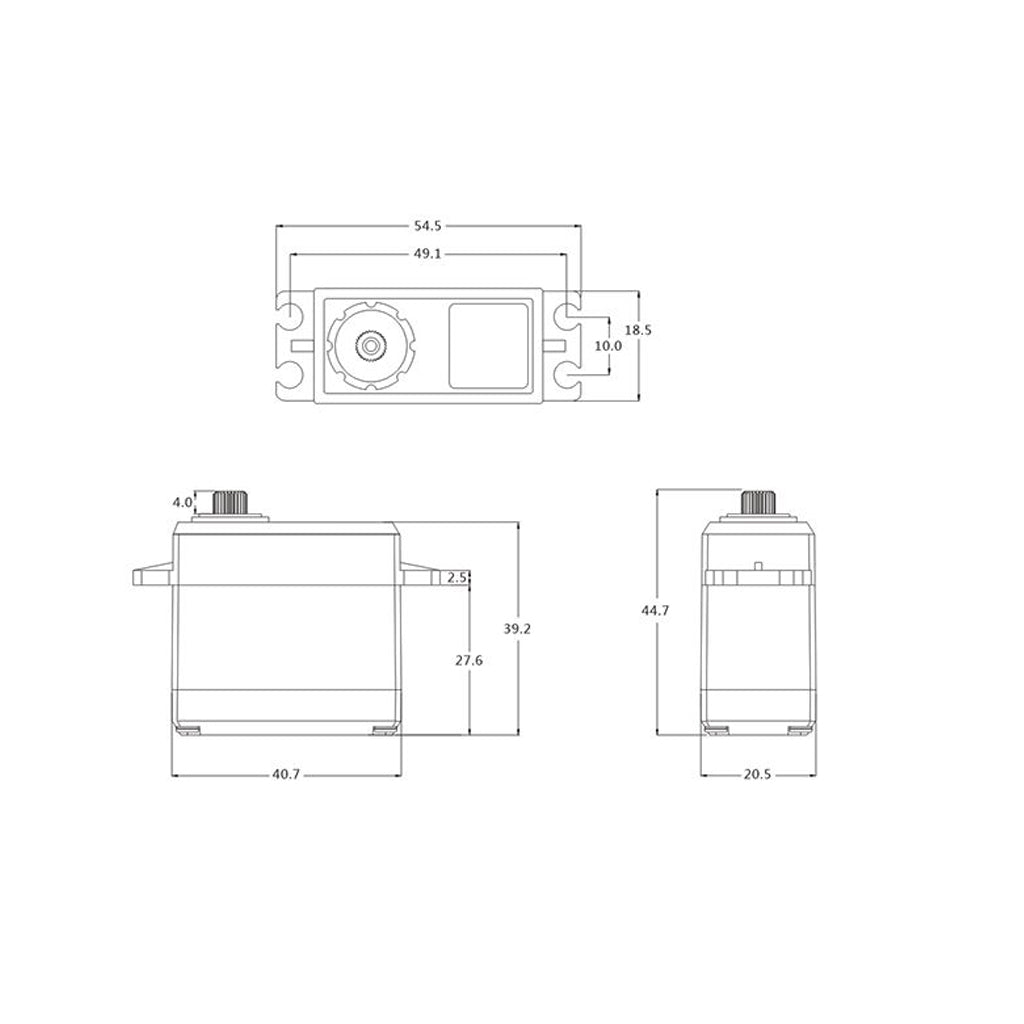

- dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
- weight: 56.0g (1.98 oz)
- connector wire length: jr 290 mm
