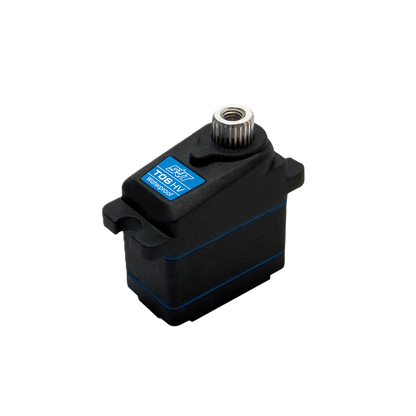

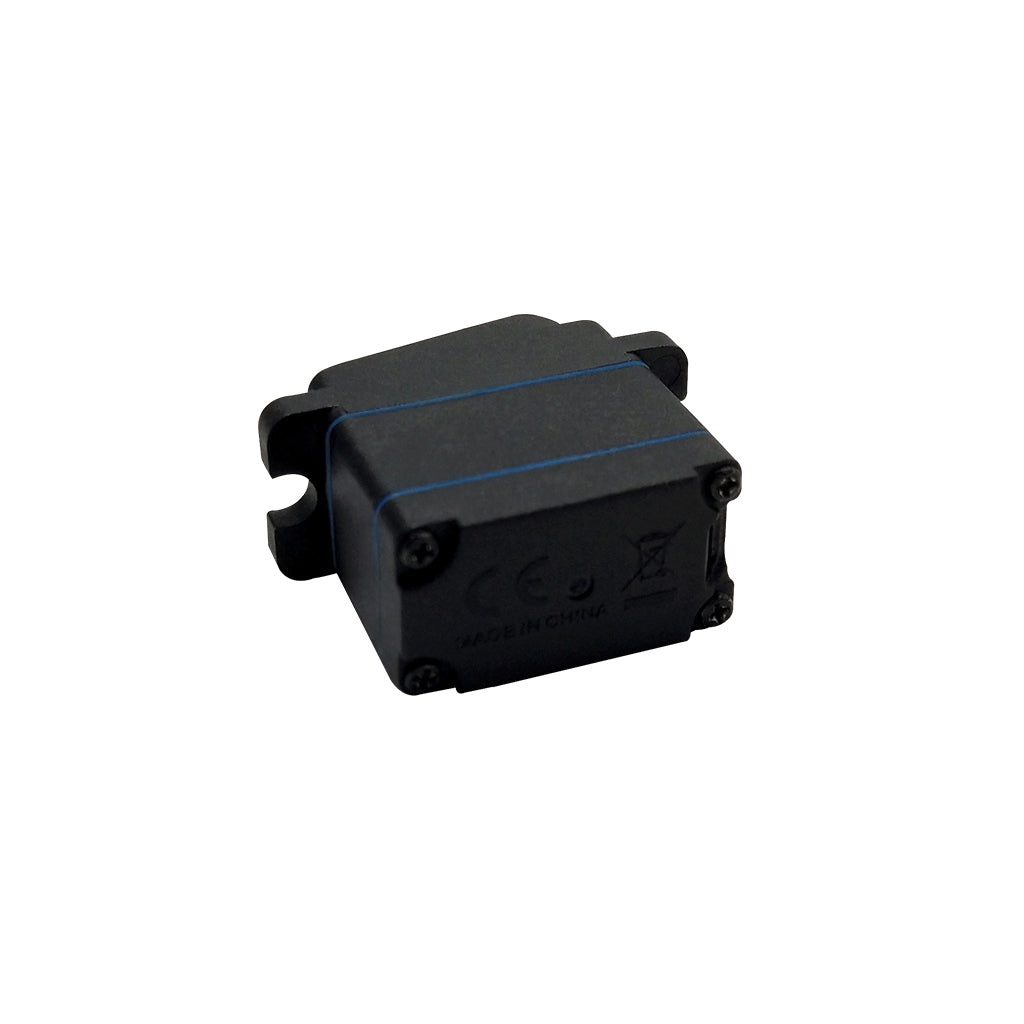

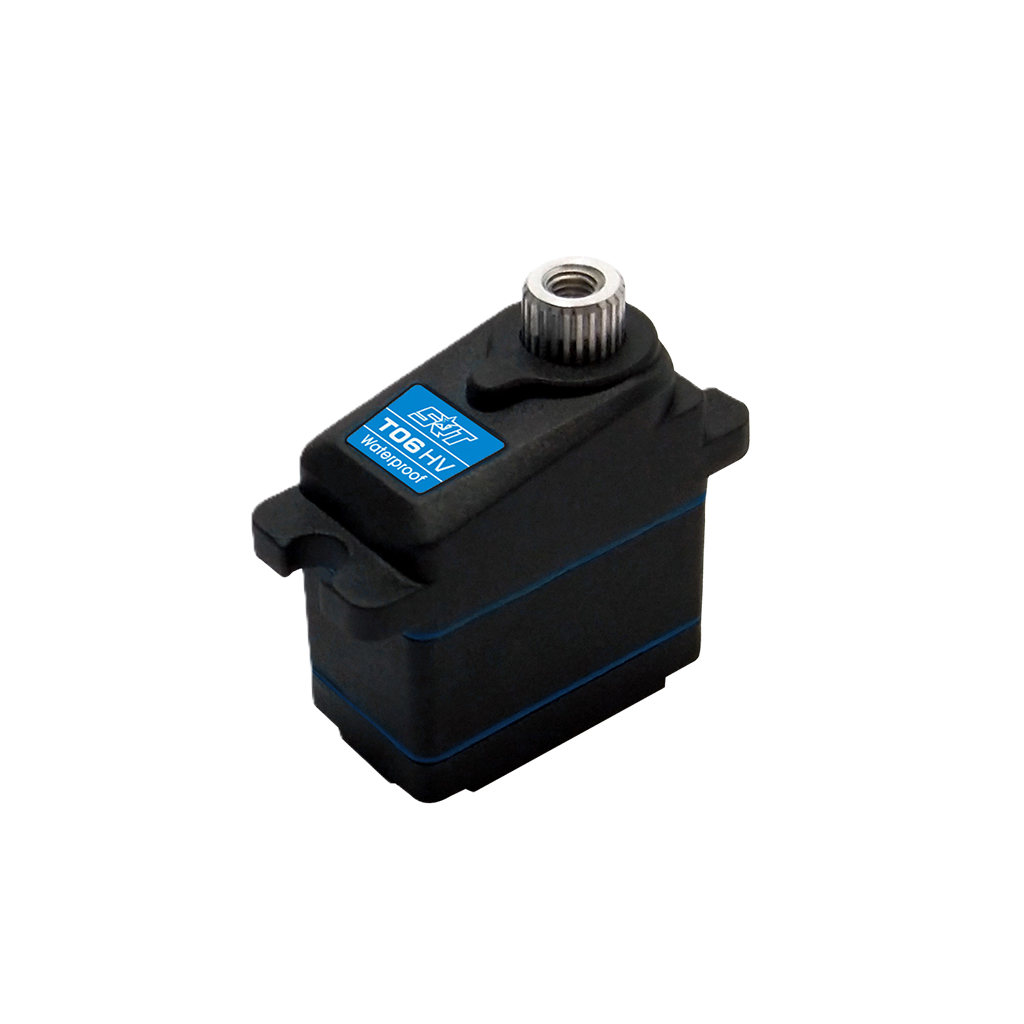

SRT - Metal Geared, Fast, Coreless & Low Profile - HV 6.0V ~ 7.4v STD Digital Servo - SRTT06 (6.0v): 0.23 sec - (25T Spline - Ideal for 1/24 - 1/12th On-road Cars)

KEY FEATURES

• Super Fast!

  - Ideal for 1/24 to 1/12 on road scale applications
  - Incredible efficiency and low power consumption
  - 2 μsec Dead Band
  - 1-Year Limited Warranty

  Ideal for 1/24th to 1/12th on road/ Using a standard 25T Sized Spline. Full sized spline to fit most 1/10th servo savers.

  PRODUCT SPECIFICATIONS

  Type: Digital
  Bearing: Dual
  Motor Type: Unknown
  Gear Type: Metal
  Gear Material: Titanium & Alu
  control system: pulse width control
  working frequence: 1520μs / 330hz
  operating voltage: dc6.0-7.4v
  operating temperature range: -10 to + 60 degree
  operating speed (6.0v): 0.12 sec/60 degrees at no load
  operating speed (7.4v): 0.10sec/60 degrees at no load
  stall torque (6.0v): 2.5kg.cm (125.0 oz/in)
  stall torque (7.4v): 2.8kg.cm (166.6 oz/in)
  potentiometer drive: direct drive
  dimensions: 22.5mm x 12.5mm x 25.5mm Approx
  weight: 16.0g (1.69 oz)
  connector wire length: jr 110 mm (Approx)
