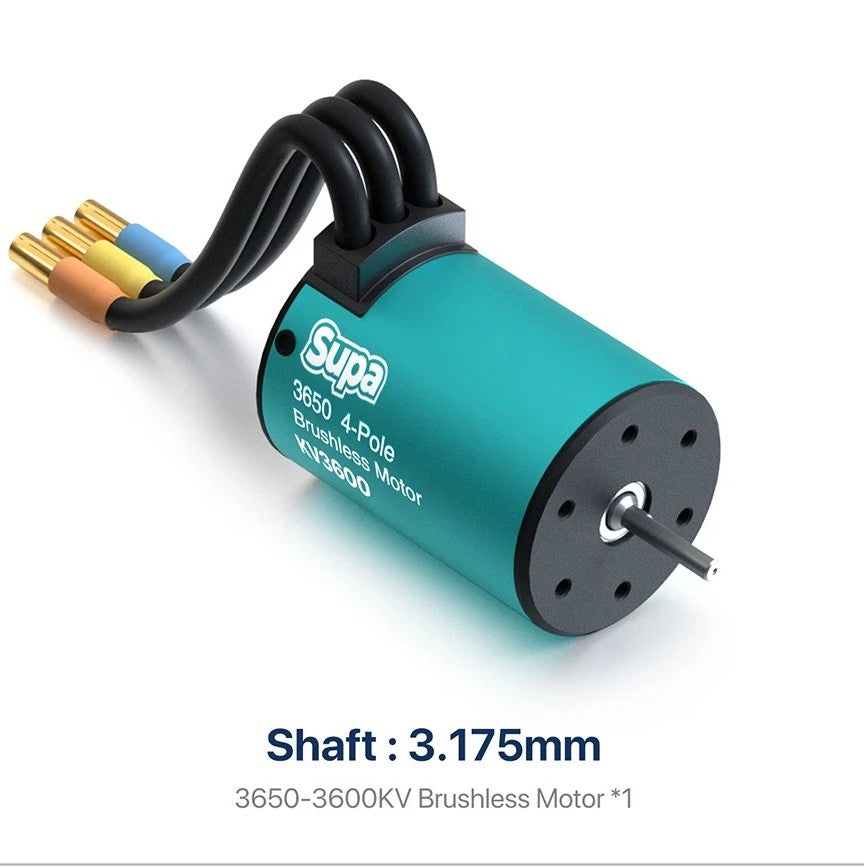

SKY RC - FuriaX Supa 3650 (3.175mm shaft) Brushless Motor 3600KV (540 1/10 Size) - (Roughly 12.5T Brushed equivalent) SK-400035-03

Introducing the 1/10 FuriaX Supa 3650 Brushless Motor from SKY RC

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
3600 KV
<13V
Voltage
1.7A
No-load Current
69A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*16
Rotor（mm）
