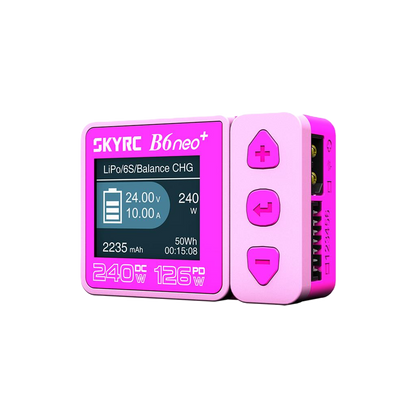

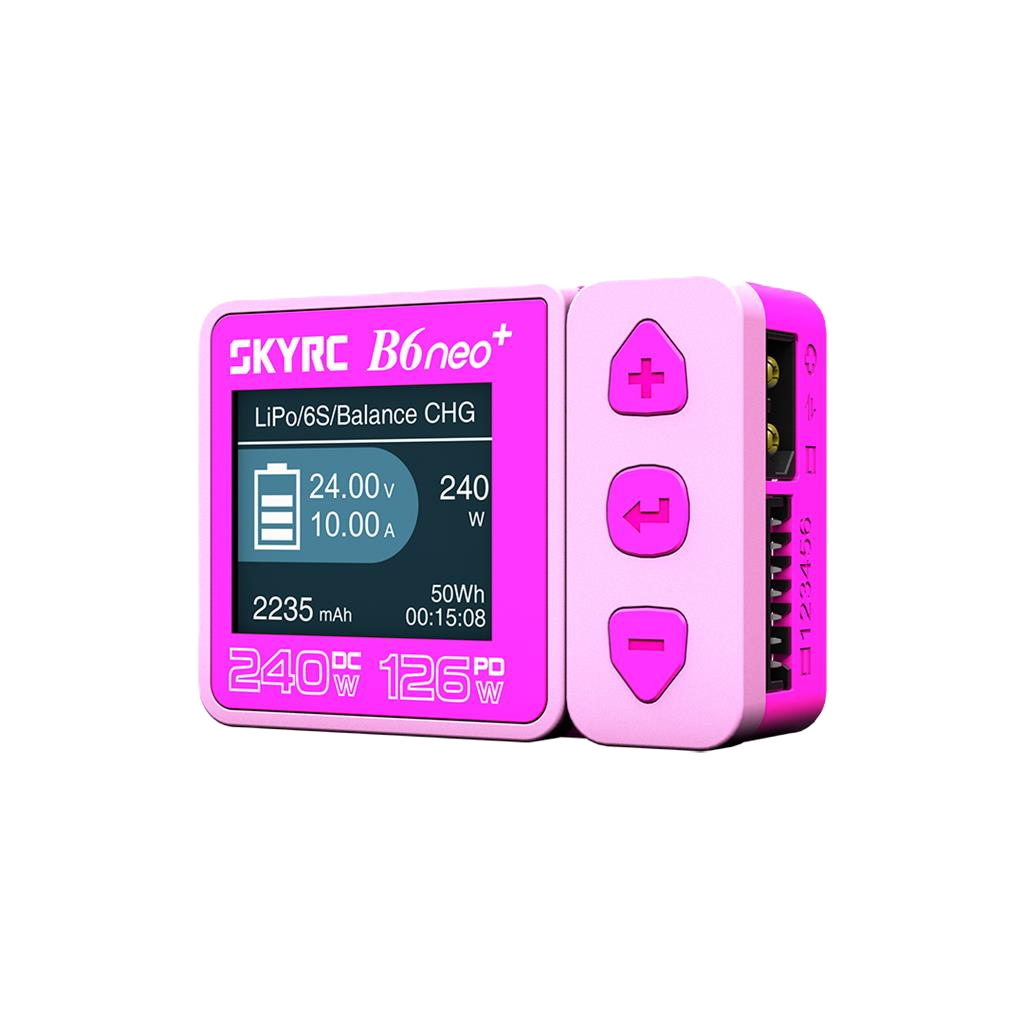

SKY RC - B6neo+ DC TINY! Smart Charger - Pink (needs 5-30V power Source) SK-100211-04

Introducing the B6neo+ Series DC Smart Charger.

From Bold to Beautiful, Perfect Blend of Fashion and Function.

Charging should not be a chore!
With the two-tone body design and playful color options, Adds a touch of fun to your routine charging session.
Stand out in the racing field with a pop of color and impress other players with your unique personality. Choose from bold and bright or classic and subdued color schemes that perfectly match your style.

Be Legendary:
Innovation Evolved, Smaller than Credit Card
B6neo series reimagines the iconic iMax B6—now in a footprint smaller than a credit card.
Nearly 1/4 the size of the original, B6neo, B6neo+, and B6neo 2 pack serious power into sleek, colorful plastic shells.
While the classic B6 maxed out at 50W DC, the new B6neo series delivers up to 300W on DC and 80W via USB PD, bringing modern performance to your pit bench.
With PD input now essential for everyday convenience, the B6neo series leads the way once again.

Tiny & Shiny with Amazing Power up to 300W
Don't be fooled by the compact size—the B6neo Series packs a serious punch.
When powered by DC, these pocket-sized chargers deliver up to 300W at 15A.
Even via USB-C PD, they provide a solid 126W with ease.
Sharing the same ultra-compact footprint, the B6neo Series redefines what’s possible in portable charging.
Power, portability, and style—what more could you ask for?

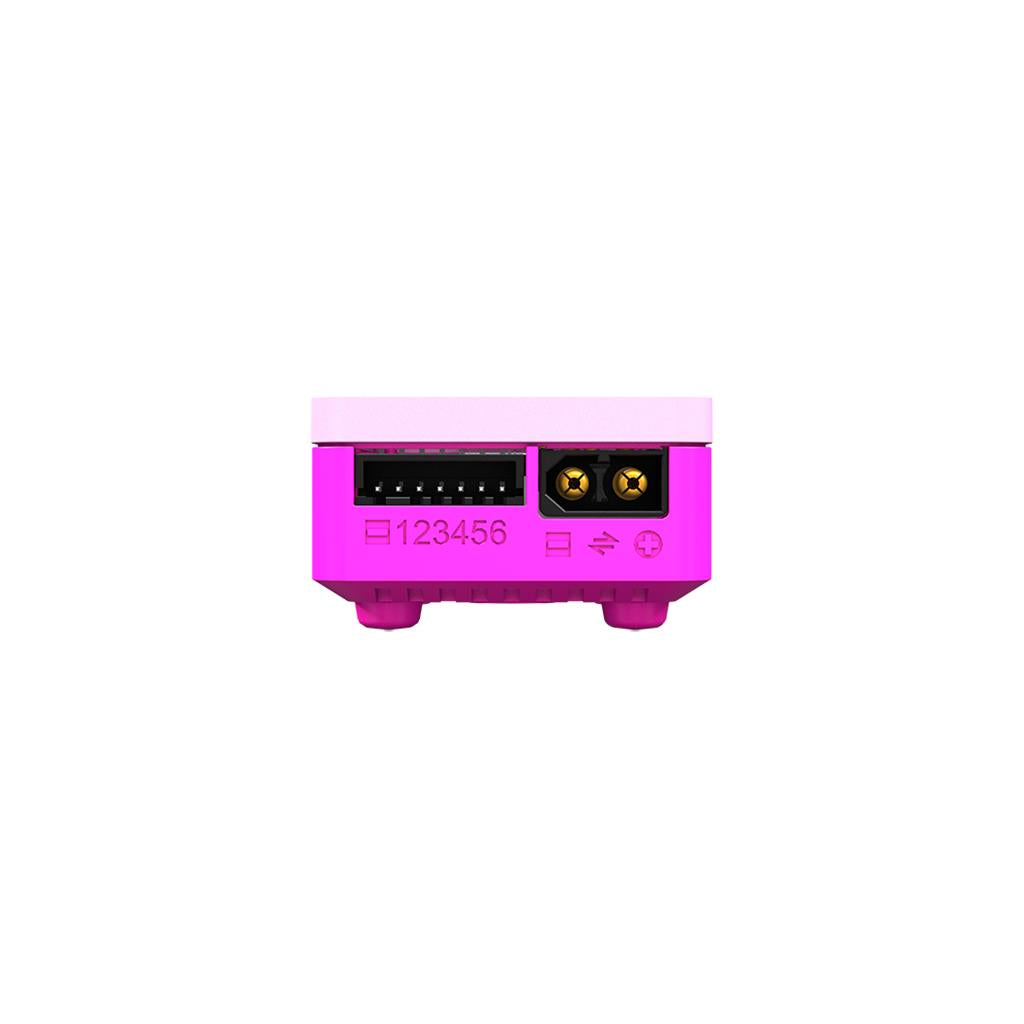

XT60 & Trendy PD input
SkyRC B6neo Series feature an XT60 interface as its DC input and a de-facto trendy Type-C PD input interface, ensuring greater flexibility and convenience in charging your RC batteries.

Discharging Multiplied by Balance Port
The built-in balance port enables B6neo Series chargers to discharge faster, allowing it to discharge at up to 29.5W when used in conjunction with the main port.

So. Pro.
So is Digital Power

Any B6neo Series Charger.
Six 1S Batteries. Total Control.
Any B6neo Series Charger. Six 1S Batteries. Total Control.
Charge up to six micro LiPo packs safely and efficiently. From FPV whoops to ultra-light trainers, keep your fleet mission-ready.
Snap it into your B6neo—like a Transformer—and power up.
Choose your version:
PH2.0 — Widely compatible.    
BT2.0 — Favored by FPV racers.

Harness the power of PD Reverse Discharging.Harness the power of PD Reverse Discharging

Experience the strength of our revolutionary PD Reverse Discharging!
This groundbreaking feature enables up to 100W of discharging power—allowing you to charge devices like MacBooks and smartphones directly from your battery via PD 3.0.
Whether you’re at the track or on the move, this turns your charger into a portable power hub.
Best of all, this method reduces energy waste, supporting a more sustainable future.

Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, B6neo Series is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.

Rectifier circuit, efficiency multiplied.
The B6neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.

Charge in your language.
ColorX is designed to be easily localized and comfortably engaged!
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.

ColorX: easy to charge, easy on the eyes.
Discover a new ColorX interface introduced by B6neo Series based on simple and textured visuals!
The tailor-designed light cyan and green color scheme are for RC charging. It helps you focus on the setting.
The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones!
Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI.
Life doesn't have to be boring, and neither does charging!

Hush, easy!
I am charging!"
Even under full power load, cooling fan operates at a maximum of 48 dB which is acceptable to most users.
You can confidently study, fine-tune your pit work, or relax while charging without disruptions or distractions.
We understand the importance of maintaining a peaceful atmosphere, and we have prioritized our charger's quietness. You have every right to focus on what truly matters to you.

Better over time:
upgrade firmware hassle-Free
Upgrade effortlessly with the free Charger Master app. Receive instant alerts for firmware updates and update via Type-C.
Each upgrade improves compatibility, stability, and performance for a smoother charging experience.





Specifications

Size and Weight

Shell material: PC-ABS V0
Size: 70*50*31mm
Weight: 82g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K

Power
B6neo+: DC:5-30.0V PD3.0/3.1: 5-28V

Charger power:
B6neo+: DC:240W PD: Max. 126W

Discharge power:
B6neo+: Max. 16W based on 6S(4.2V/S)

Battery

B6neo+
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 2-15cells
Pb: 3S/6S/12S

Charge and Discharge
Charging current
B6neo+: 0.3-10.0A

Discharge current
B6neo+: 0.6A Max

Balance current
B6neo+: Max.600mA

Operation
LiPo/LiFe/LiIon/LiHV: Balance charge, Charge, Discharge, Storage, Reverse Discharge
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge, Reverse Discharge
Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge, Reverse Discharge.
