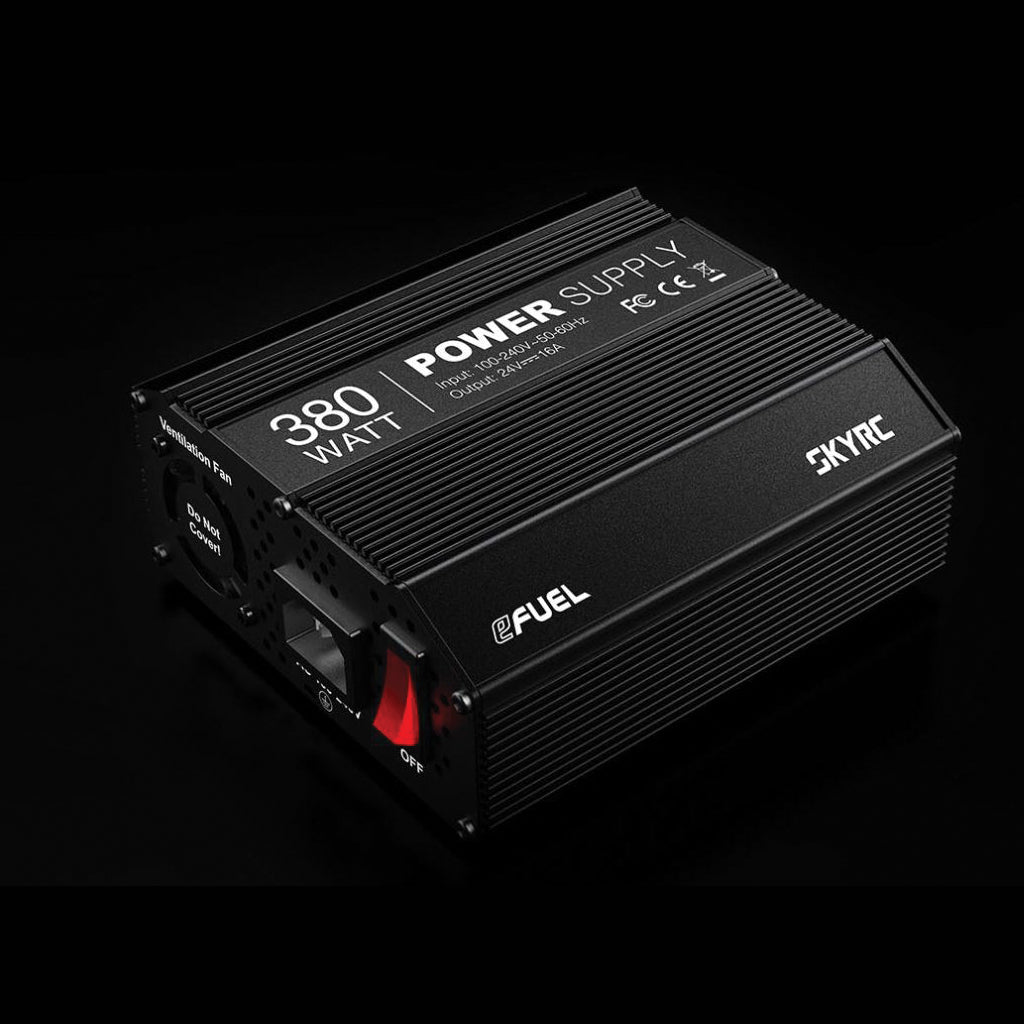

SKY RC - SKY RC 380W 24v Power Supply - SK-200023

Short-circuit - protection on output
Over Current - Protection
Over Temperature - Protection
Over Load - Protection
Over Voltage - Protection

Active PFC
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.
Active PFC, which is integrated into SkyRC 380W/16A regulated power supply, can provide higher power utilization.

Intelligent Air Cooling System
Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.

Overload/Error Indication
The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.

We are Certified,We are Qualified!
SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.

Rigorous testing, derived from the pursuit of quality
Each 380W powr supply must experience dozens of more than the industry standard of critical testing. Each rigorous testing and every detailing are the reflections of SkyRC's concentration on products.

Case Size ： 165x139x59.5mm
Weight ： 1.62kg

Power Supply
Voltage：100-240V
Input AC Frequency：50-60Hz
Output Current：16A
Output Voltage：24V DC±0.5V
Output Voltage Ripple：<300mV
Power Efficiency：88%
Power Factor：>0.98

Protection
Current Overload Protection：17A ±1A
Over Temperature Protection：<80℃
Cooling Method：Cooling Fan

Working
Operating Temperature：0-40℃
Operating Humidity：0-90%
