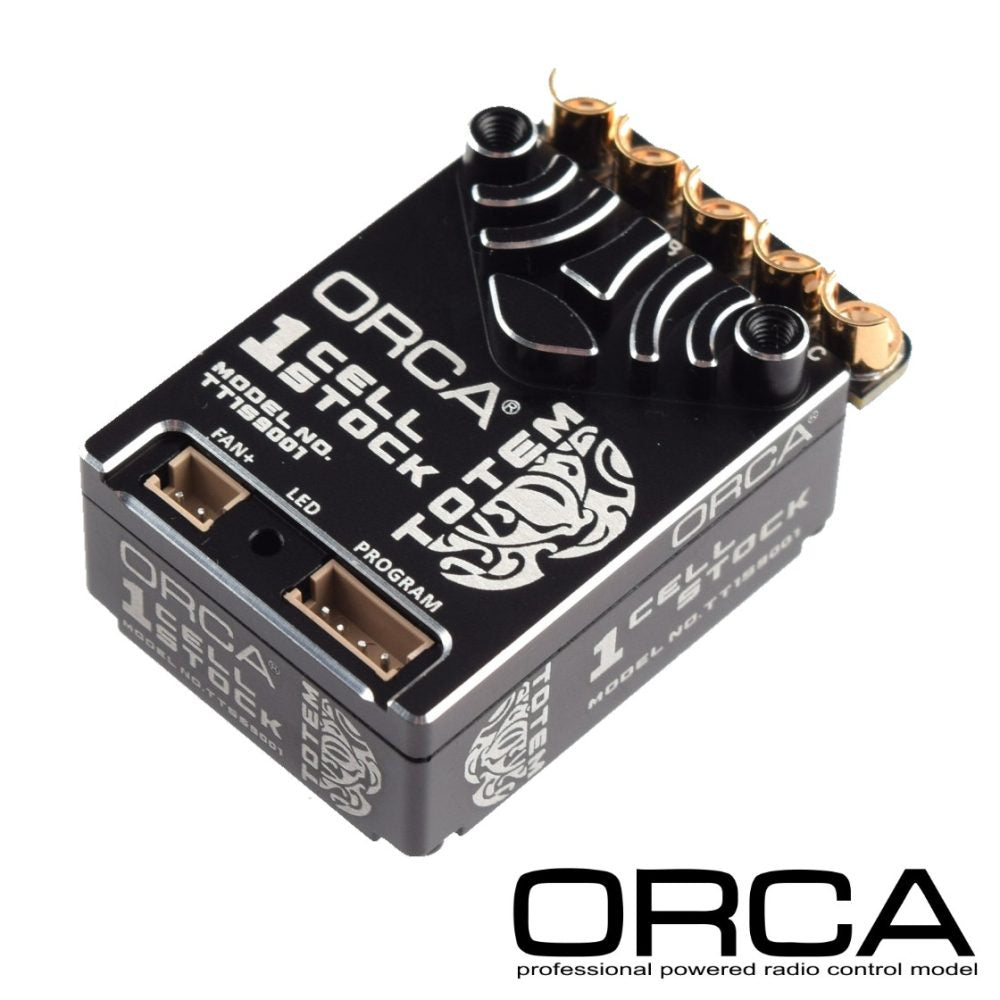

ORCA - Totem 1S – 1/12th 1S pro electronic speed controller - OR-ES23TOTEM1S

he ORCA Totem 1S 1/12 brushless esc is ORCA’s latest stock spec speed Controller developed for 1/12th LMP12 and GT12 pan cars.

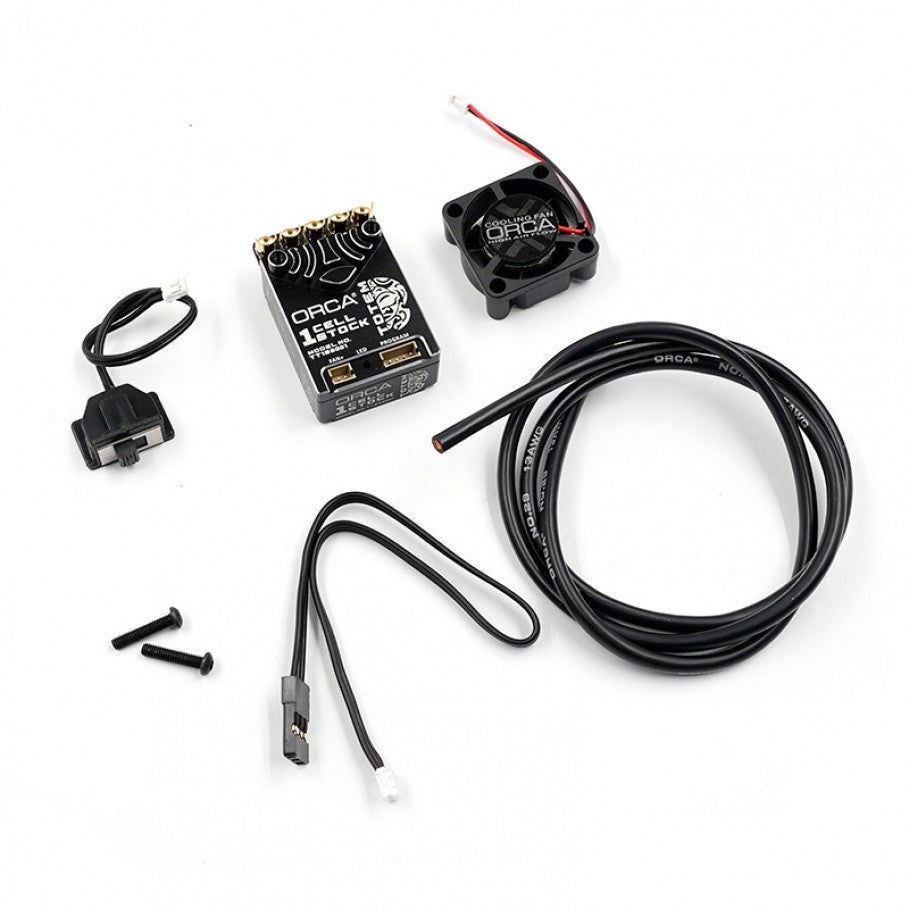

It features a continuos current rate of 100A, which is enough for up to 10.5T motors while using the included fan mounted on top of the esc.
The 23.5g light Totem 1S esc comes with reverse polarity protection and integrated capacitors for a even smaller footprint that is just 25.8mm wide.

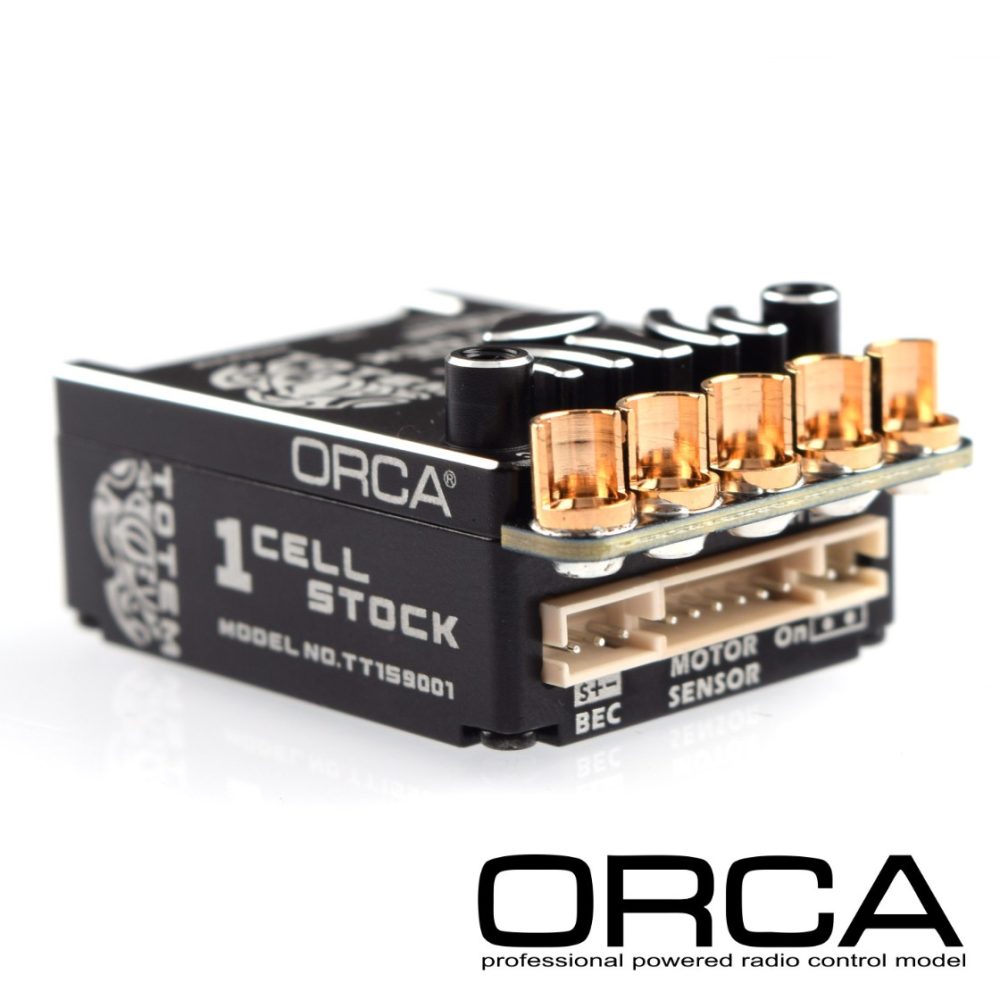

Centrally located cable outputs at the rear of the ESC.

Specifications:

Dimensions: 25.8mm x 33.6mm x 17.6mm

Weight: 23.5g

Voltage Input: 3-4.35V

Peak Current: 380A

Continous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 3A | 6V-7V

Multi Protection System: Yes
