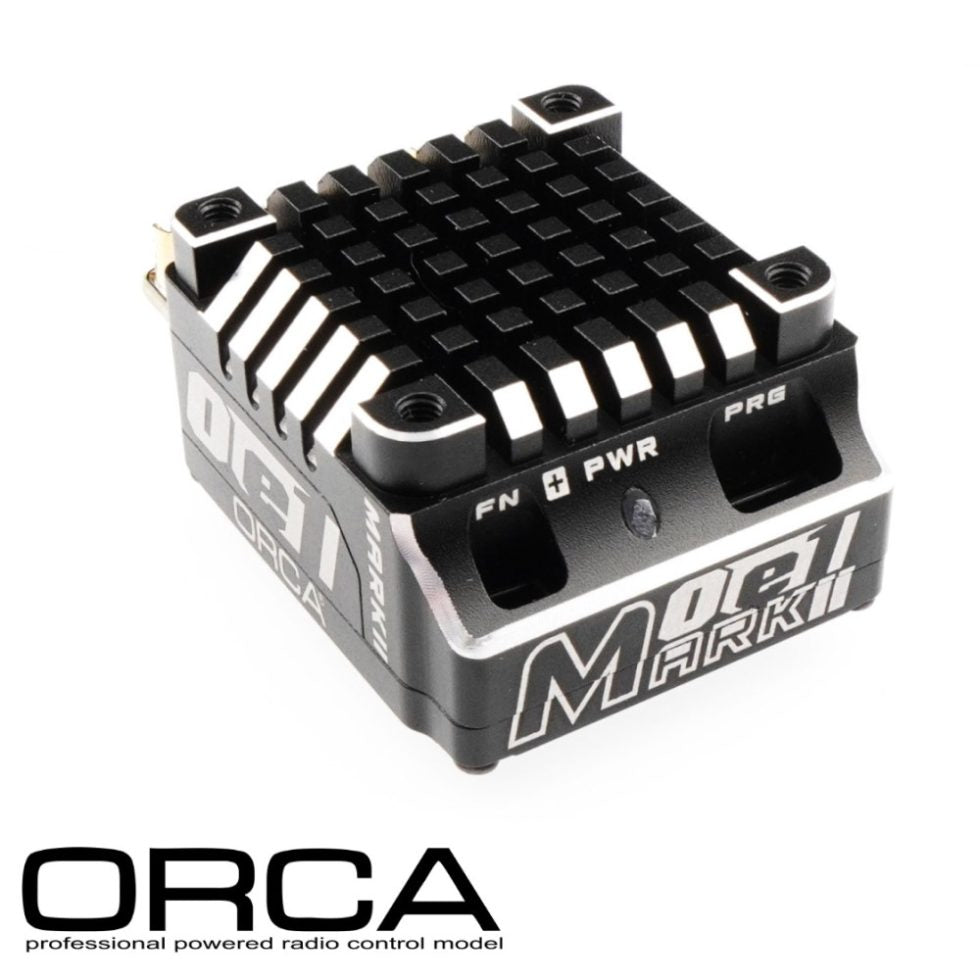

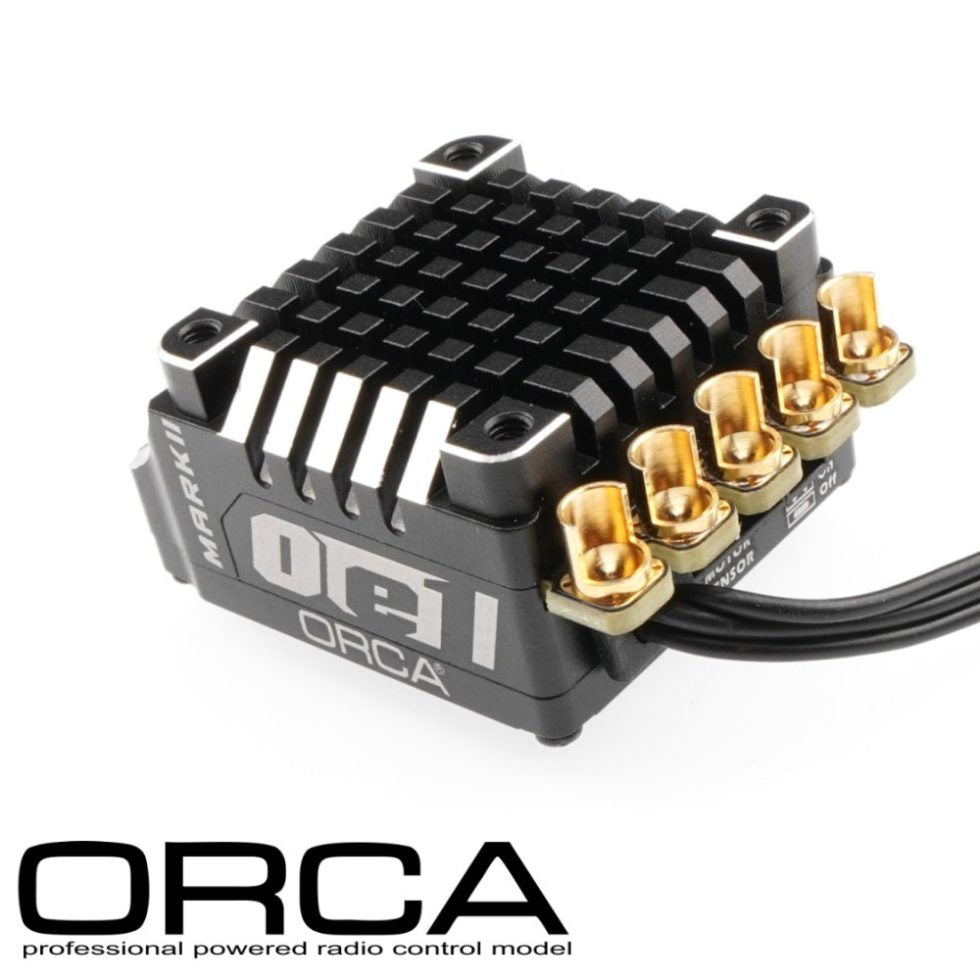

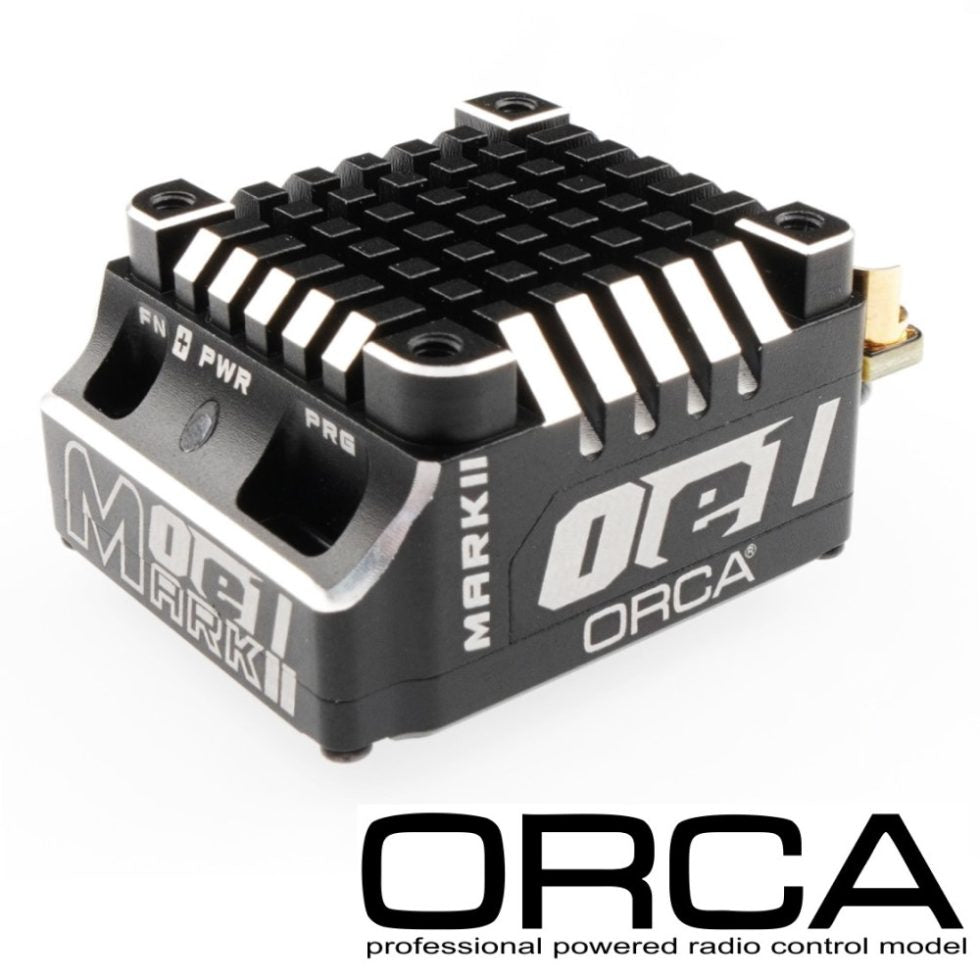

ORCA - OE1 Mk 2 – 1/10th Pro electronic speed controller ESC Brushless 2S - OR-ES24OE1MKII

Introducing the ORCA OE1 MK2 PRO ESC For 1/10th RC Cars.

With the OE1 Mk2 Brushless Pro ESC, ORCA has developed one of the very most advanced ESC’s in the RC market today. The OE1 Mk2 allows multiple parameters to be set (with ESC Programme Card or the new ORCA Blucon Bluetooth module to connect a smartphone for programming, sold separately).

Equipped with a powerful 32-bit processor and ultra high performance FETs with low internal resistance for the ultimate in smooth sensitive control. Capacitors and reverse polarity protection are all integrated in the housing. This means the OE1 Mk2 is ready to dominate straight from the box.

Features:

• For: 1/10 RC Car

• Motor Limited > 3.5T

• Material: Aluminium

• Color: Black

• Polarity Reverse Protection

• Built-In Internal Capacitor

• Detachable on/off switch, ESC is always on when on/off switch disconnected

• New CPU, Newly Design Circuit Board and Lower IR MOSFET’s

• Ultimate Brushless System

• 32 bit Processor

• Multiple Adjustable Parameters (adjusted by an optional Blucon module via Android / iOS smart phone or by an optional OE1 Program card)

Specification:

• BEC : 8A 6V / 7.2V

• Peak Current 760A

• Continuous Current 160A

• Motor limit 3.5T

• Motor Type: Brushless sensored 540 size Motor

• Voltage input : DC 6V – 9V

• Dimensions : 31(L) x 35(W) x 19.8(H) mm

• Weight : 43.3g excluding wires
