Hobbywing - EZRUN Combo MAX6 G2 - 4990SD 1650KV G2 - HW38010803

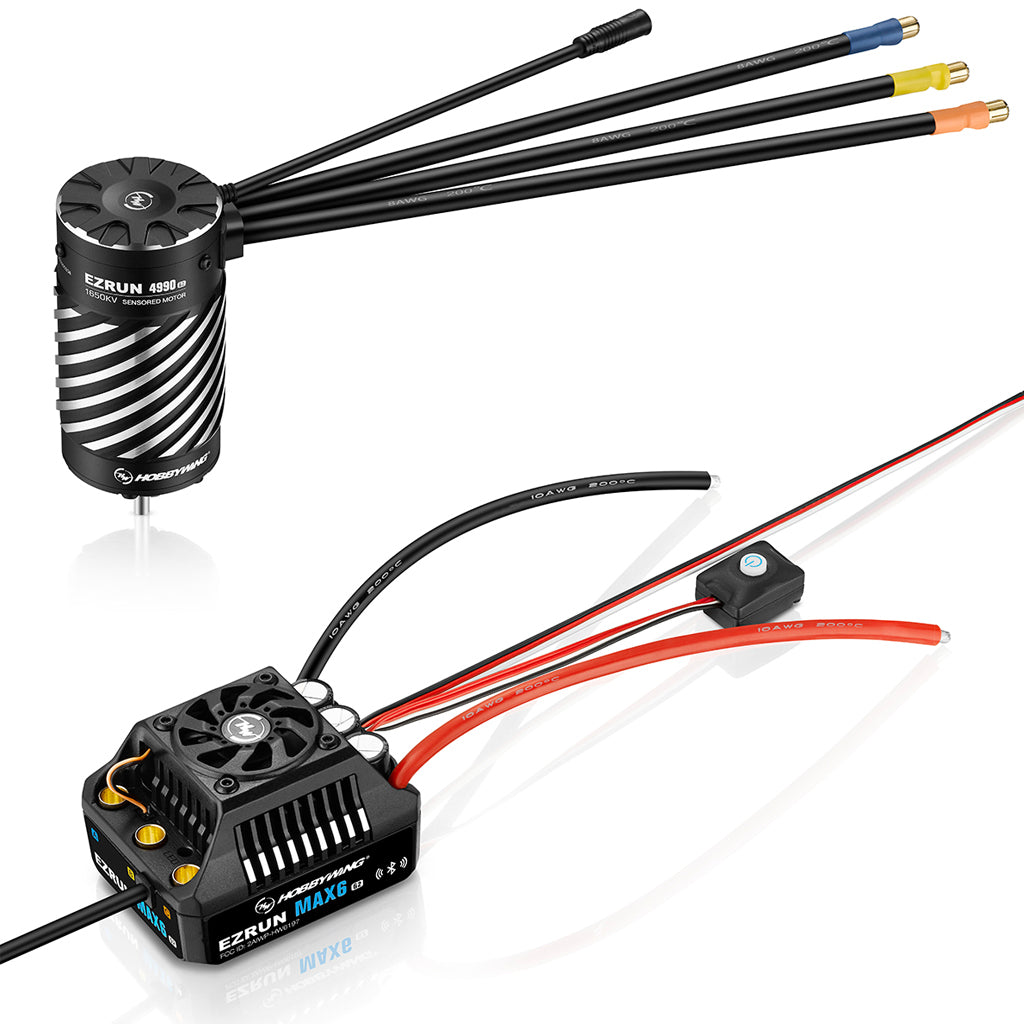

Introducing the EZRUN Combo MAX6 G2 combined with 4990SD 1650KV G2 brushless motor.

Suitable for vehicles such as the;

Losi 1/6 Super Baja Rey/Super Rock Rey，Traxxas XRT/X-MAXX/XO-1
ARRMA 1/7 Limitless/Fireteam/Felony/Infraction/Mojave，Cen 1/7 Reeper
ARRMA Kraton 8S/Outcast 8S，HPI Baja 5B

Sensored 8S ESC, Fully upgraded performance.
The Max6 G2 features Hobbywings new water proof sensor system, and also supports sensorless operation. Rated at up to 200 amps the Max6 G2 is ready to take on your high powered 8s builds. Powerful, smooth, with linear control through the entire RPM range. The ESC is suited for everything from hard starts, high speed runs, and low speed response that is unmatched. The motor supports up to 8S LiPo.

The maximum continuous output current is as high as 200A

Intelligent freewheeling technology, strong drive, low temperatures.

- Higher Driving Efficiency.
- Lower Operating Temperature.
- Ultra Dynamic Design.

The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency. At the same time, operating temperature is drastically lowered to improve overall stability and reliability of the ESC.
Remarks: Under heavy load conditions, the temperature of MAX6 G2 is comparable to that of MAX5 generation。

Built-in Bluetooth, connect directly to mobile APP.
The ESC has a built-in Bluetooth module. It is able to connect directly to the mobile phone APP without other devices for parameter setting, data reading, firmware upgrade and other operations.
User friendly ESC made simpler and convenient for users.
Remarks: The data includes throttle, voltage, current, temperature, rpm, etc.

Build in Data Recording with Graph.
The Max6 G2 has built in data recording and can record up to 10 minutes of Data. Using the HW Link V2 app, you will be able to review the saved data and review the runs complete with data Graph.
Note: Due to transmission distance of bluetooth, the effective distance is approximately 5m!

Intelligent fan start-stop function.
The Max 6 G2 features a smart fan circuit that only runs the fan when needed. The fan will remain "off" unless the ESC temperature requires air flow.
fan is off when the temperature of the ESC is low When the temperature of the ESC reaches the preset value the fan automatically turns on.

Applicable to All Weather Conditions.
The IP-67 waterproof rating guarantees excellent waterproof and dust-proof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
The overall protection level of the motor reaches IP67 Splash-proof Water-proof Dust-proof.
Remarks: The IP67 protection level mentioned above is splash-proof, waterproof, and dust-proof under normal usage. However, it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

1/6th scale power system. Turbo timing technology.
The ESC is able to support up to 24degrees of Turbo Timing adjustment. There is an approximate of 20% increase in performance and is recommended to pair with the new HOBBYWING EzRun 4990/5690 G2 motors to get the best performance.
Note: For non-Hobbywing EZRUN 4990/5690 G2 motors, Turbo timing cannot be turned on.

Powerful BEC.
The ESC has a built-in super BEC with a maximum output current of up to 25A.The output voltages are switchable between 6V/7.4V/8.4V.This ensures that the ESC is able to support the demanding high-torque servos in the market.
With a maximum output current of up to 25A.

The output voltages are switchable between 6V/7.4V/8.4V

Built-in anti-spark design.
The ESC has a built-in anti-spark circuit to protect the battery plug from damaging upon using a higher voltage battery(6-8S) and avoids any injuries.

Perfect combination with EzRun 4990/5690 G2 motor
Achieve the perfect compatibility using it together with EzRun 4990/5690 G2 motors. Avoid damaging the motor from overheating with the software protection function.
Note: Non-Hobbywing EZRUN 4990/5690 G2 motors is unable to detect motor overheat protection

ESC Specifications

Scale - 1/6th, 1/7th
Brushed/Brushless - BL
Sensored/Sensorless/ - SD
Waterproof - Yes

Cont./Peak Current - 200A/1100A

Input

3-8S LiPo

BEC Output

Switch Mode:6V/7.4V/8.4V @8A

Wires & Connectors

Input Wires - Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1
Input Connectors - 6.5mm Connectors (Female)

ESC Programming via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Not Supported
OTA Programmer - Not Supported
Programming Port - Built in Bluetooth

Fan

Size - 35x35x10mm

Output Wires - 5-8.4V

Input Connectors - Powered by BEC

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 70X56X45.5mm
Weight - 245g (Including input wires)

Applications

Motors - 1/6th&1/7th On-road,Truck,Monster Truck

Vehicles

Losi 1/6 Super Baja Rey/Super Rock Rey，Traxxas XRT/X-MAXX/XO-1

ARRMA 1/7 Limitless/Fireteam/Felony/Infraction/Mojave，Cen 1/7 Reeper

ARRMA Kraton 8S/Outcast 8S，HPI Baja 5B


-------------------

Motor Information.

Elegant Appearance

The motor casing adopts an innovatively spiral groove heat dissipation structure. It not only has good heat dissipation, but visually appealing.

8S Sensored Motor

Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.

New Sensor Line Interface
All Weather Operation Capability

All weather sensor plug system
The EzRun 4990/5690 is equiped with the HOBBYWING all weather sensor harness that makes all conditions, water proof, sensored combos a reality. This proven sensor harness keeps the elements out so your system can maintain fully sensored operation even in the worst conditions.
Note:
The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Module design for easy maintenance
The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Motor Specification

Scale - 1/7th-1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 1650KV
LiPo - 3-8s
No-load Current(A) - 7.0A
O.D. (mm) - 49
Length (mm) - 90
Shaft Diameter (mm) - 5
Weight (g) - 701g
Front Bearing - D19*D6*T6
Rear Bearing - D19*D6*T6
Timing - Fixed

Applications -
1/7th On-road,Short course truck,Truck
1/8th Heavy-duty Monster truck
Examples: ARRMA Mojave/ Kraton 6S/Outcast 6S，
Traxxas XRT/X-MAXX
