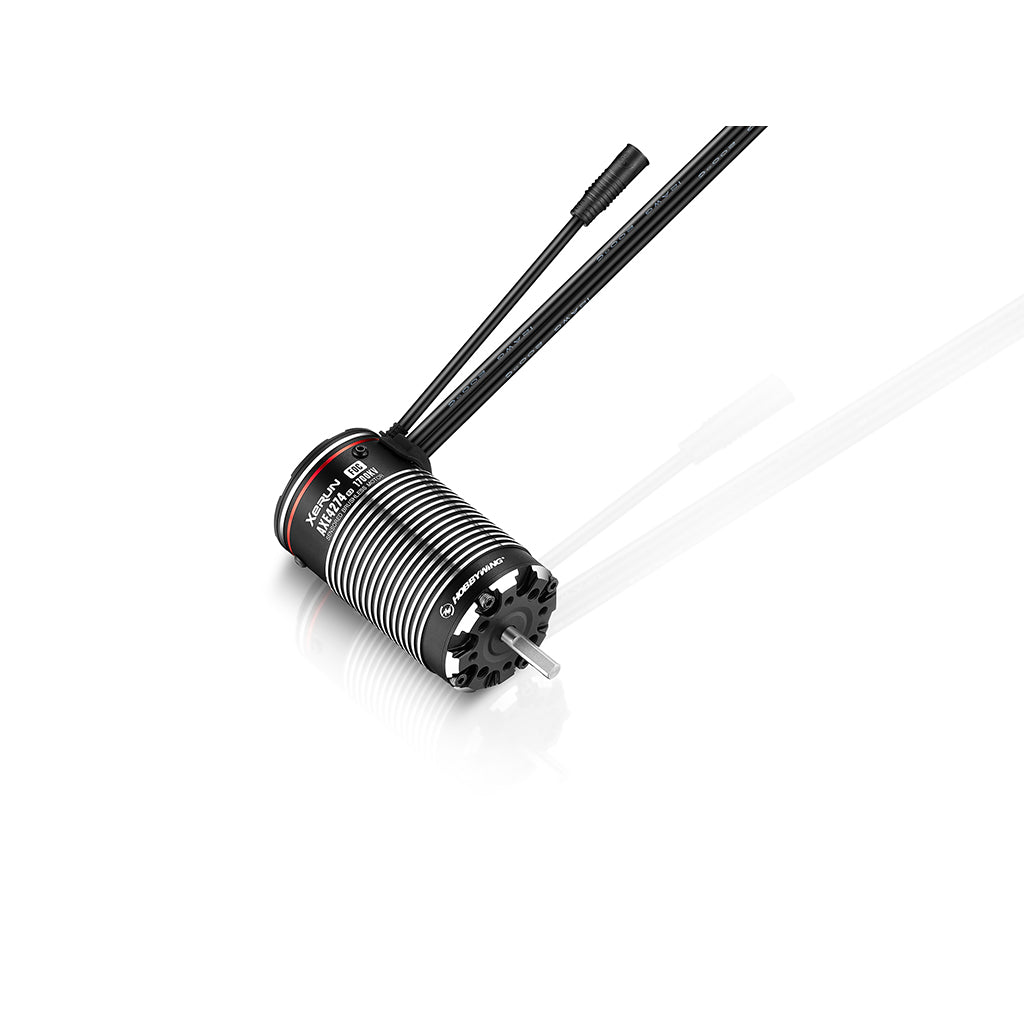

Hobbywing - XERUN AXE 4274SD 1700KV Black R3 Motor - HW30401401

Introducing the XeRun AXE 4274 Sensored Brushless Crawler Motor.

6S high power, for crawlers
The XeRun AXE R3 motor supports up to 6S LiPo battery. The maximum output power is increased by 106%, and is 11% more efficienct compared to the R2 motor.
The default mounting hole is 25.4mm. Please purchase the AXE 4274 motor conversion board if the mounting hole is 30mm.

Two KV options, wide application
AXE 4274 R3 is available in both 1700/2000KV options. It meets various application requirements for 1/8th, 1/7th, and 1/6th scale crawlers.

Excellent protection
The AXE R3 motor is now IP67 protected. The motor has the proven Hobbywing water proof sensor harness design to cope with complex and various climatic conditions.
The above-mentioned IP67 protection level is
splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to aging. Extended water exposure (submersion) may lead to damage.

Precision Magnetic sensor
The motor has a built-in magnetic encoding sensor. The accuracy 60 times better compared to the traditional sensor commonly used in brushless motors. The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.

Supports optional motor adapter, strong compatibility
The XeRun AXE R3 motor is built-in with 4 sets of 25.4mm mounting holes, and 4 for M3/M4 respectively. If the frame mounting holes are 30mm, an optional motor mounting conversion plate is available for purchase.
The conversion plate is an optional accessory and needs to be purchased separately!

Premium materials, performance upgrade
Hobbywing uses high quality aluminum CNC shell, first-line brand high-quality bearings, first-line brand ultra-thin silicon steel sheets, and 200°C high-temperature-resistant enameled wire, and high-toughness alloy output shaft. We are committed to deliver excellent performance to worldwide users.

Specifications

Type

Scale - 1/8th,1/6th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4

Relevant Parameters

KV Rating - 1700
LiPo Cells - 2-6S
No-load Current(A) - 4

Size & Weight

O.D.(mm) - 42
Length (mm) - 74
Shaft Diameter (mm) - 5
Weight (g) - 405

Applications

ESC - XERUN AXE PIUS R3

Vehicles - 1/8th,1/6th Rock Crawler, AXIAL SCX6, KM FORD RAPTOR F150, YIKONG YK4082
