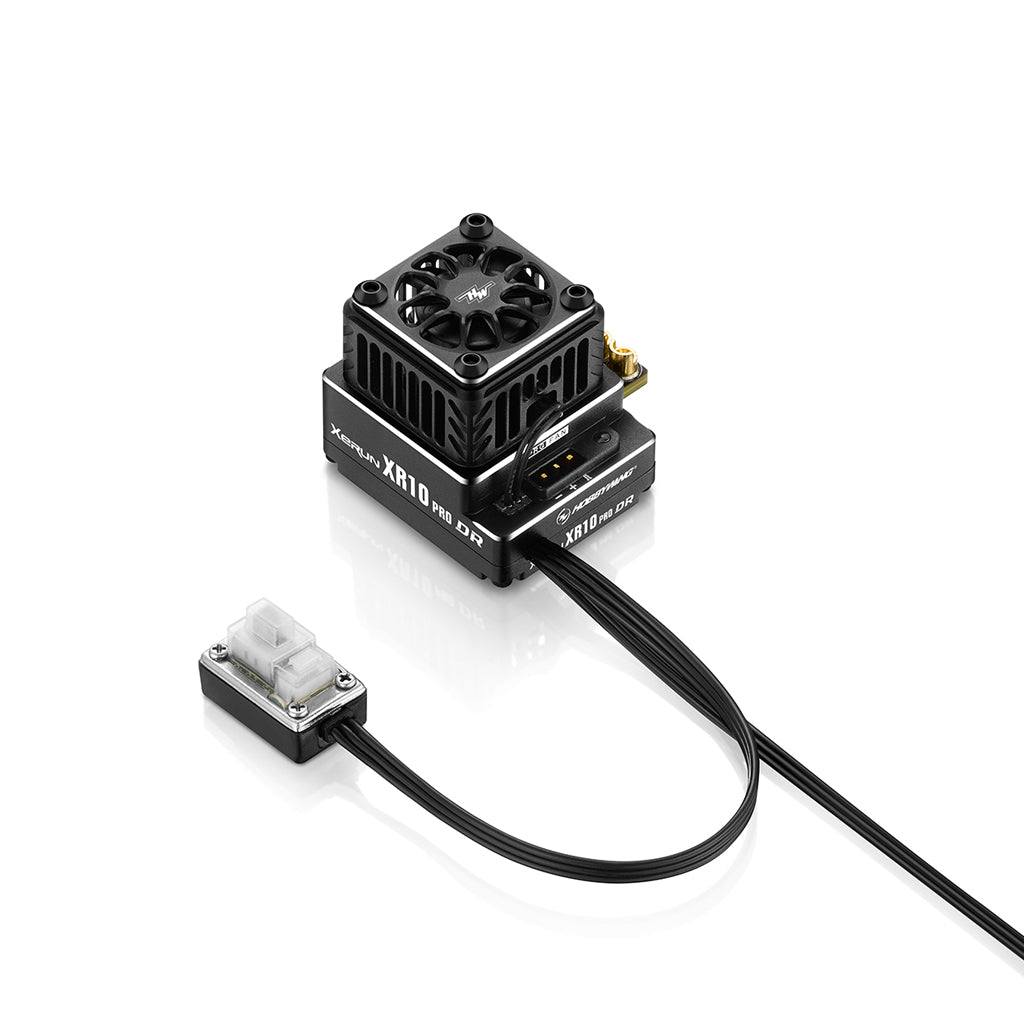

Hobbywing - XERUN XR10 Pro - DR Drag Racing - HW30112621

Introducing the Hobbywing XR10 PRO Drag Racing Speed Control.

Drag Racing Acceleration Tool
XeRun XR10 PRO DR uses a 32- bit M4 high-performance microprocessor and is optimized based on the software core of the flagship competition product XeRun XR10 PRO G2S to provide better control performance for Drag Racing .

When the throttleacceleration is set to the maximum level 30
Compared with XERUN XR10 PRO G2S,the response time of ESC is shortened by 1 times
Note: The response time is affected by the motor characteristics, so the specific time shall be subject to actual measurement!

9900uF super large capacitor
The ESC comes standard with a 9900uF ultra-large capacitor, which is nearly 9 times the standard capacitor of the XERUN XR10 PRO G2S , ensuring that the ESC voltage remains stable during high-power output.
Capacitance value increased by nearly 9 times

Frameless fan
Efficient heat dissipation The patented frameless fan can deliver high-flow air from the side of the fan . In addition, the internal power board is covered with a copper thermal bus bar,
which can quickly transfer internal heat to the integrated shell heat sink, forming a highly reliable cooling system to ensure that the ESC is always in a good heat dissipation state.

External Bluetooth OTA
After the ESC is connected to the OTA Bluetooth module, a wireless connection can be established between the mobile phone and the ESC, and the mobile phone App can be used to set parameters, read data, upgrade firmware, etc., which is simple and convenient.

Real-time data storage, easy to grasp the power status

Connect the ESC to the OTA Bluetooth module, and use the mobile phone APP to view real-time data such as throttle, voltage, temperature, speed, etc. You can also view historical record data (curve graph) after the operation, and easily obtain the operating status of the ESC and motor .
Note: Due to the Bluetooth transmission distance, the effective distance is about 5m !


Specification

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SD

Waterproof - No

Cont./Peak Current - 2000A/1200A

Input Voltage - 2S LiPo

BEC Output - 5V-7.4v 5A

Input Wires - Black-10AWG-200MMmm*1 Black-10AWG-200MMmm*1

Output Wires - Black-10AWG-200MMmm*3

Input Connectors - No

Output Connectors - No

Fan

Type - Normal Framed Fan

Size - 25x25x10mm

Output Wires - 5-7.4V

Input Connectors

Powered by BEC

Data Recording

Extreme Value - Supported

Real-Time Data - Supported

Historical Data (Graph) - Supported


ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Not Supported

LCD G2 Program Box - Supported

OTA - Supported

Programming Port - Separate

Firmware Upgrade - Supported

Size - 37.7X37.2X33.2mm

Weight - 137g (Included wires&connectors)

Applications - SD BL Motors

Vehicles - 1/10th Drag Racing

KV Rating/T Count - XERUN 3652/3662 DRX
