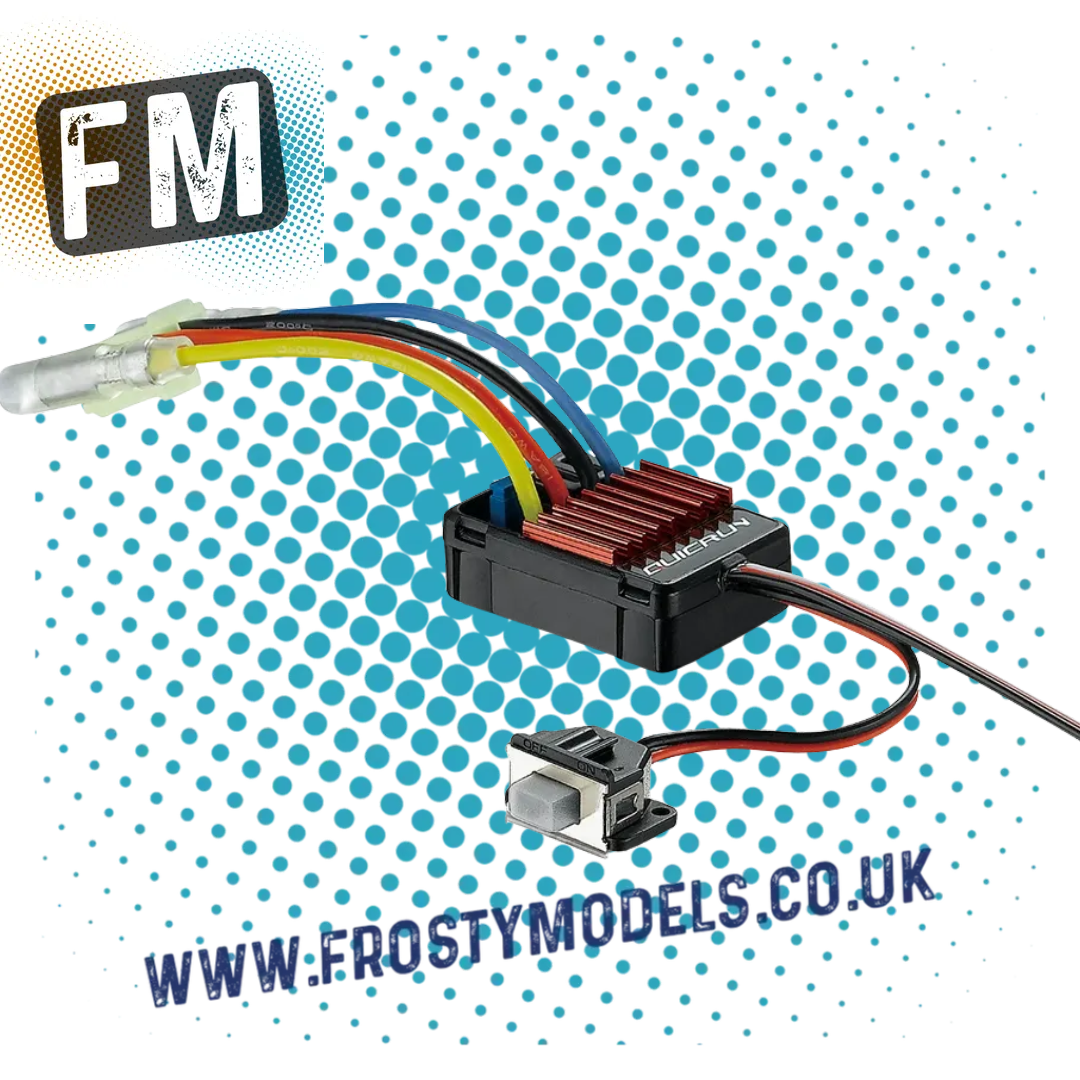

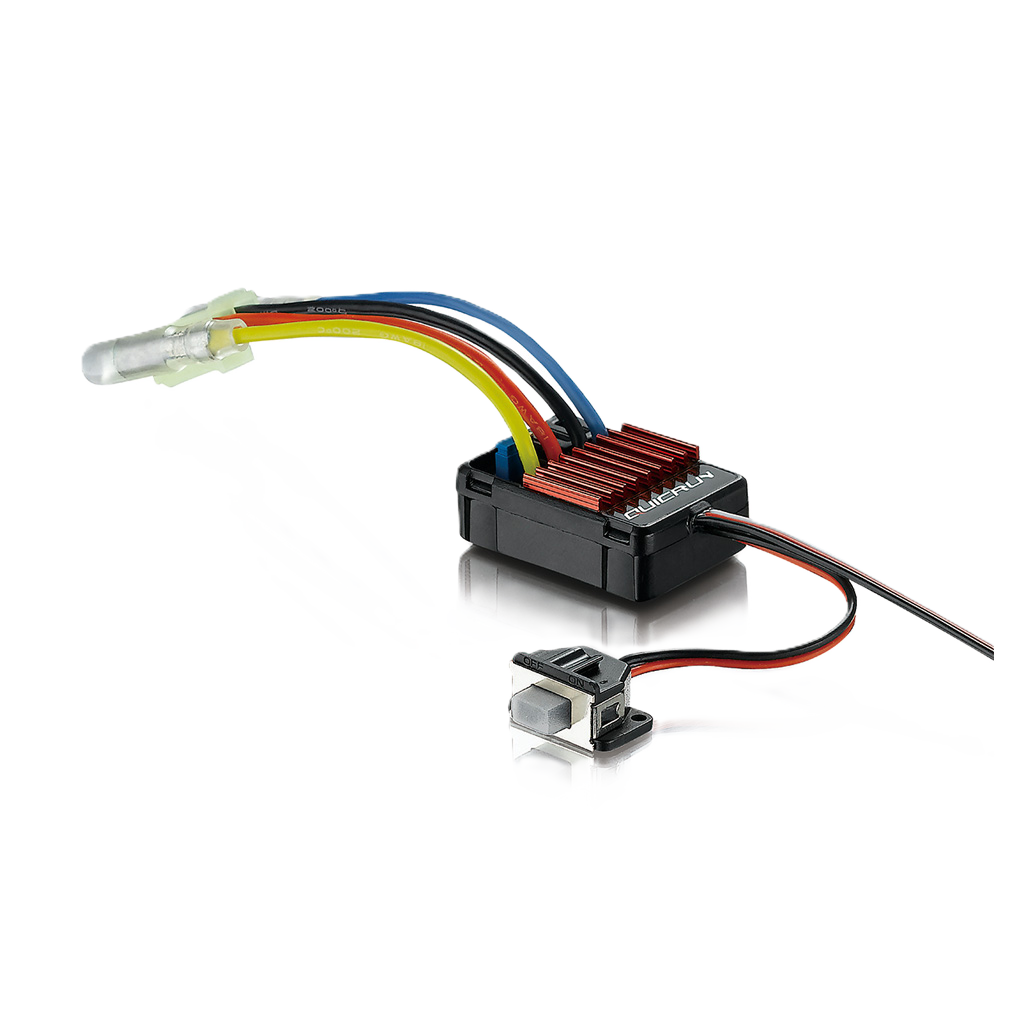

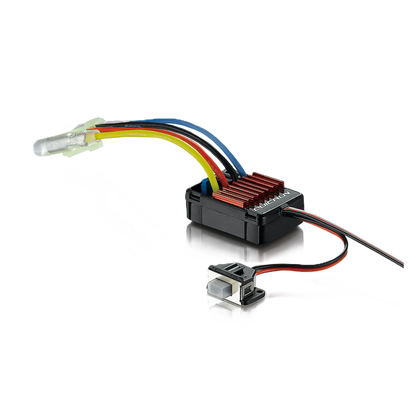

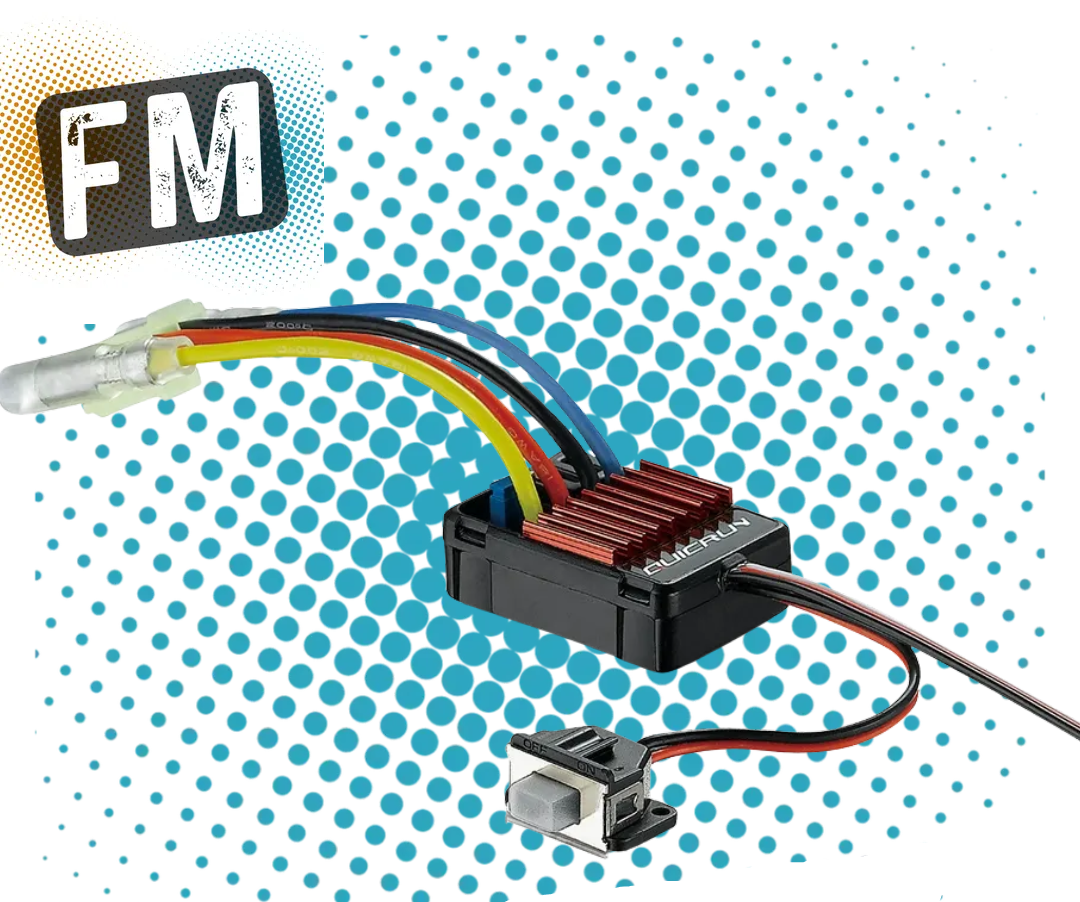

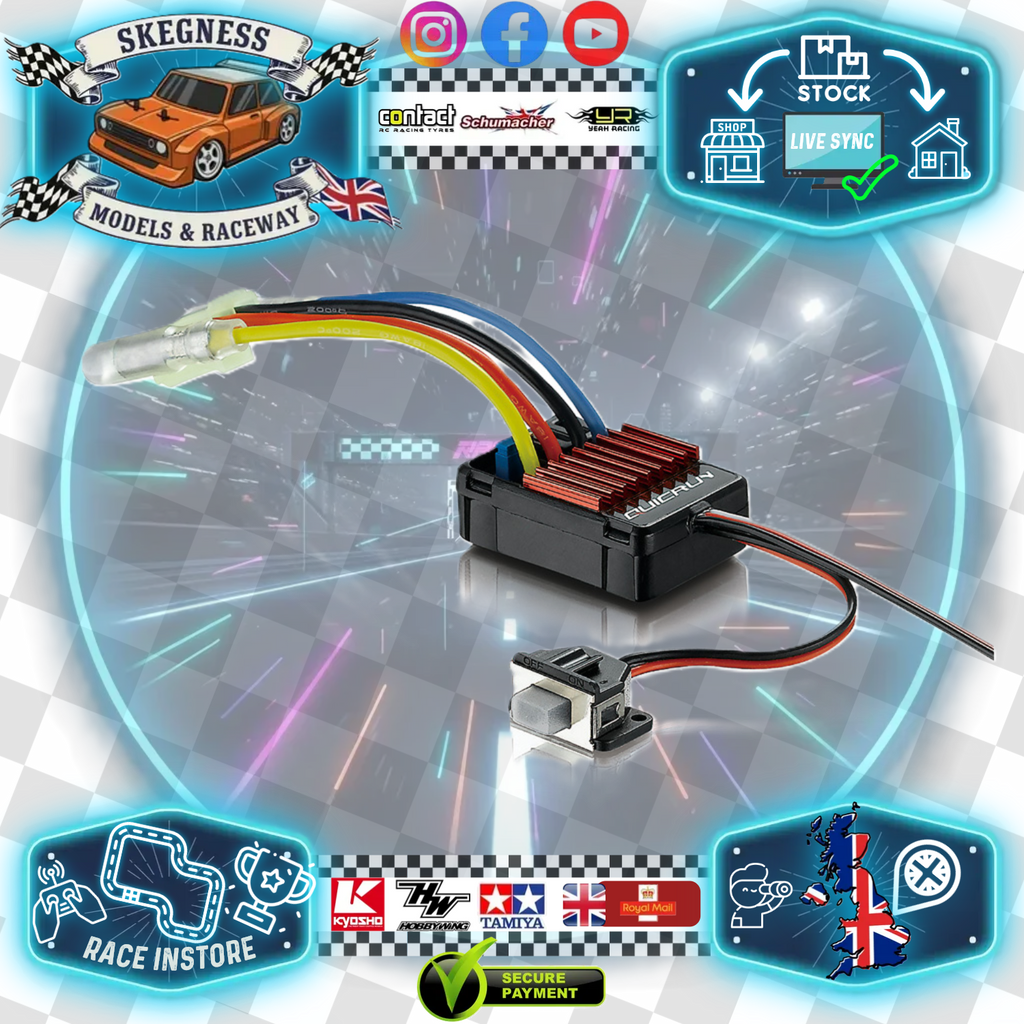

Hobbywing - QUICRUN - 1625 Brushed 1/18, 1/16th, 1/14 Micro ESC - 2~3S - HW30105025001

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design. It owns these outstanding features. Small size with built-in capacitor module. The Forward/Reverse/Brake running mode fits for sport races of various vehicles. Great current endurance capability. Automatic throttle range calibration, easy to use. Easy to set the ESC parameters with jumpers. Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.

Fwd. Cont. / Peak Current - 25A /100A
Rev. Cont. / Peak Current - 25A /100A
Resistance - Fwd 0.003, Rev 0.003
Input - 2-3S Lipo or 5-9 NiMH
BEC Output - 1A/5V (Linear Mode)
Motor Limit - 2S Lipo or 6 NiMH
280 370 or 380 Size Motor RPM<30000 @7.2V
3S Lipo or 9 NiMH
280 370 or 380 Size Motor RPM<20000 @7.2V

PWM Frequency - 1KHz
Cooling Fan - Without cooling fan
Weight - 23.5g
Size - 34(L)X24(W)X14(H)mm
Running Modes - Forward/Reverse/Brake
Car Applicable - 1/18 & 1/16
Touring Car, Buggy, Monster, Truggy
