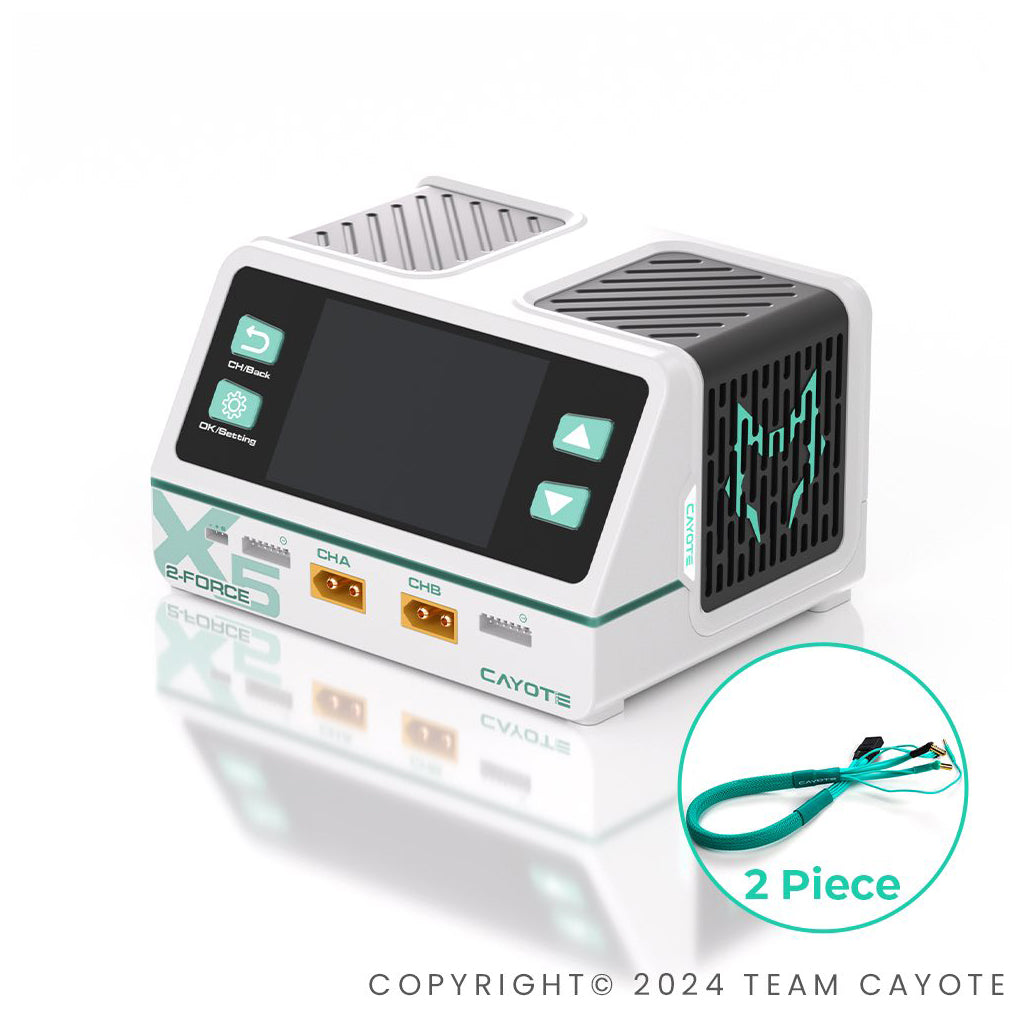

Cayote - CAYOTE 2-Force X5 Charger with 2 XT90 Leads - EU - CYEG1021

2-Force X5 is a dual-channel smart charger designed for professional RC model racing users, combining high-performance power management technology, exceptional user interaction, and a variety of operational modes.

Whether for battery activation before high-intensity races or multi-task power support on-site, the 2-Force X5 delivers robust power and stable performance, ensuring reliable support for every RC racer.

Design & Compatibility
Easy to carry and fit into your workstation or racing pit area.

Weighs 1.5kg

Measuring
172 mm (L)
130 mm (W)
101 mm (H)
High-gloss coated polymer shell with scratch-resistant surface treatment, providing a glossy and sleek exterior that reflect quality and style.

Charging Performance
Particularly designed for high-C rate competition batteries, fast, safe, and efficient, with a maximum charging current of 55A, and supporting charging power up to

AC - 500W
DC - 1400W

2A power balancing current: Built-in performance improving balancing system for faster and more accurate voltage regulation, therfore improving battery power output, consistency and extending its lifespan.

Dual-Channel Independent Operation
Independent circuit design supports synchronized battery management, improving charging efficiency.

Multi-Mode Functions
The 2-Force X5 offers multiple extended functions, including external discharge, two-in-one charging, and digital power supply modes, meeting diverse needs from daily maintenance to race tuning. It reduces racer workload and enhances overall value.

Safety & Protection
Comprehensive safety features include over-voltage, over-current, short-circuit, reverse polarity, and over-temperature shutdown.
These protections ensure reliable performance under any condition.

- Over-voltage
- Reverse Connection
- Over-current
- Over-temperature
- Short-circuit

Thermal Management & System Stability
Efficient Cooling System: The intelligent cooling fan system, paired with large ventilation holes, offers superior thermal management to ensure stable operation during high-power or extreme thermal conditions.

Additional Features & Interfaces

Servo Testing Interface
Equipped with a dedicated servo test port for easy operation and quick testing of servo functionality and response, ideal for on-site calibration.

12V DC Multi-Function Output
Provides stable 12V DC output, powering auxiliary devices such as tire warmers, soldering irons, and other RC tools for race and maintenance needs.

USB-C Firmware Upgrade
Easily upgrade the firmware via the USB-C
port to continuously optimize the charging experience.

Specification

Input Voltage - AC 100-240V 50/60Hz 6.5A (Max)DC 12-30V 65A (Max)
Output Voltage - DC 5-30V
Max Charging Power - AC 500W / DC 700W × 2(AC charging limited to 400W when DC 12V output is active)
Max Charging Current - 40A (normal), 55A (Synchronous)
Max Discharge Power - 70W × 2 (internal), 500W (external)
Max Discharge Current - 8A
Balancing Current - 2A / Cell Max
Supported Battery Types - 1-6S LiPo / LiFe / LiIon / LiHV1-18S NiMH
USB-C Output - 5V / 2A (10W)
XT60 DC Output - 12V / 100W
Servo Test Port Output - 5V / 0.5A (2.5W)
LCD Screen - 3.5-inch IPS sunlight-readable display
Operating Temperature -10℃ ~ 45℃
Storage Temperature -20℃ ~ 60℃

Package Contents
Servo Port Dust Cover - 1 pc
Balance Port Dust Cover - 1 pc
Power Cable - 1 pc
USB Upgrade Cable - 1 pc
Dust Cover Installation Guide Card - 1 pc
Team Cayote Sticker - 1 pc
User Manual - 1 pc
Team Cayote Custom Green Adapter Cables (Wired Version Only) - 2 pcs
