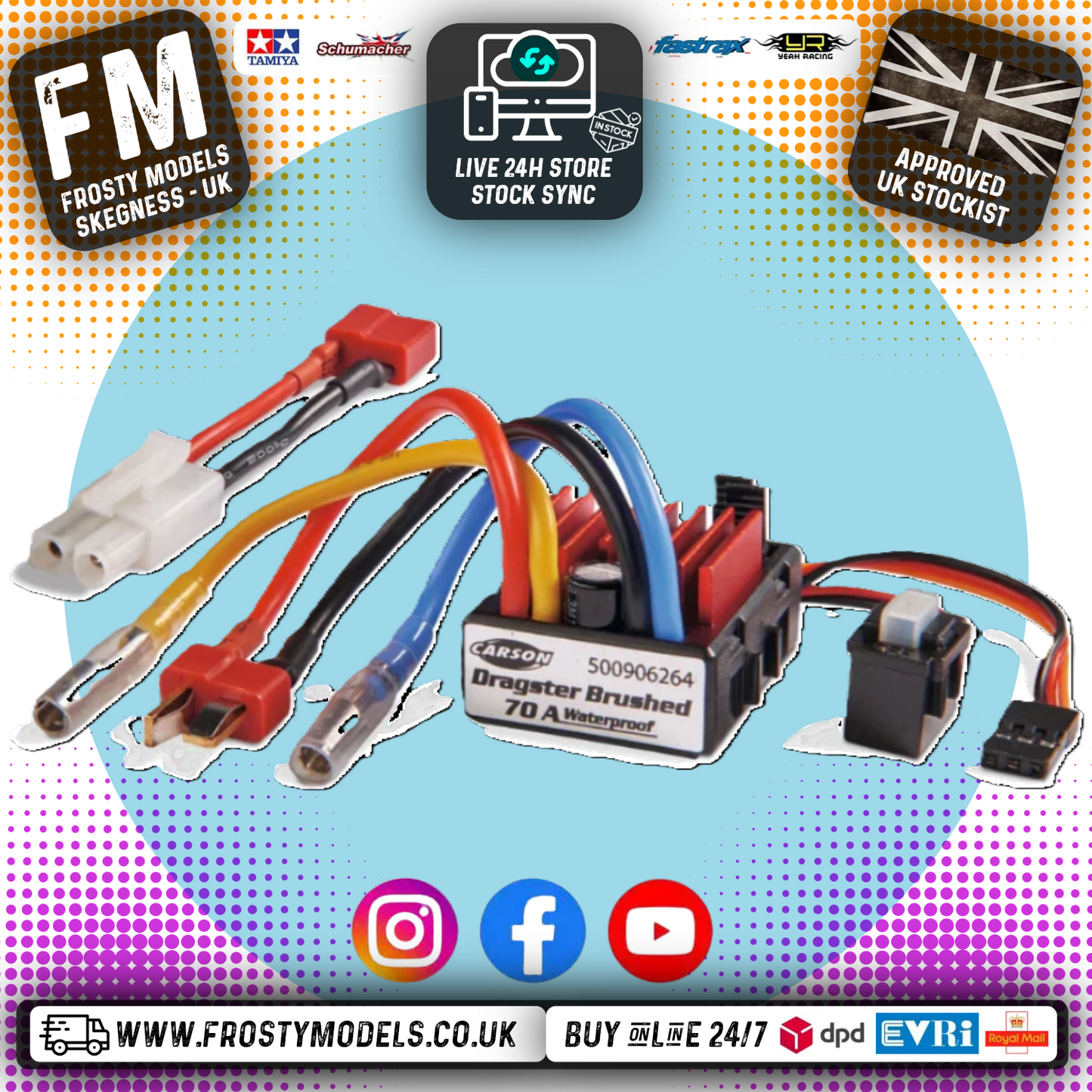

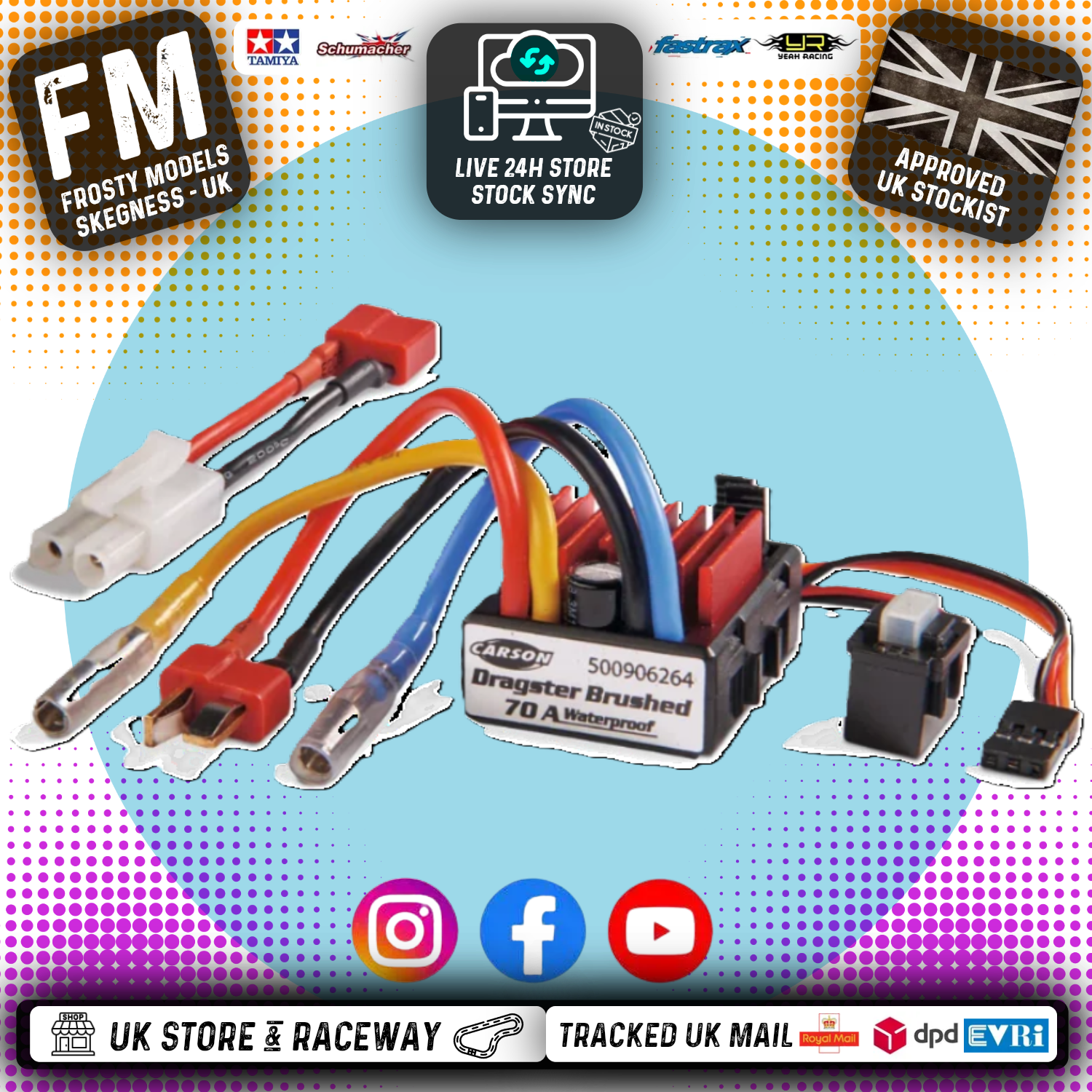

This excellent value ESC comes with a Deans-style connector and a Deans-Style-To-Tamiya adaptor lead, so is suitable for use in almost any brushed motor application. These are branded Tamiya-Carson as they are ESCs that are currently arriving in some Tamiya kits (due to Tamiya not being able to source their own ESC due to chip shortages).
SPECIFICATION AS FOLLOWS
Forward: Continues/Peak current 70A/360A
Backward: Continues/Peak current 40A/180A
Battery type: 2-3s Li-Po, 5-9 cells NiMH
Type of Model: 1:10 / 1:12 / 1/16 - ON Road, OFF Road, Boat
2s Lipo or 6 cells NimH: 540, 550 motor lowest 18 turn with 30000 rpm @ 7.2v
BEC Output Voltage: 3A/6v
Size: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
Mode: Boat, Forward/Backward, Crawler
Sealing: Waterproof (Splash, Rain)
This ESC appears to be a Hobbywing 1060 unit rebranded.
