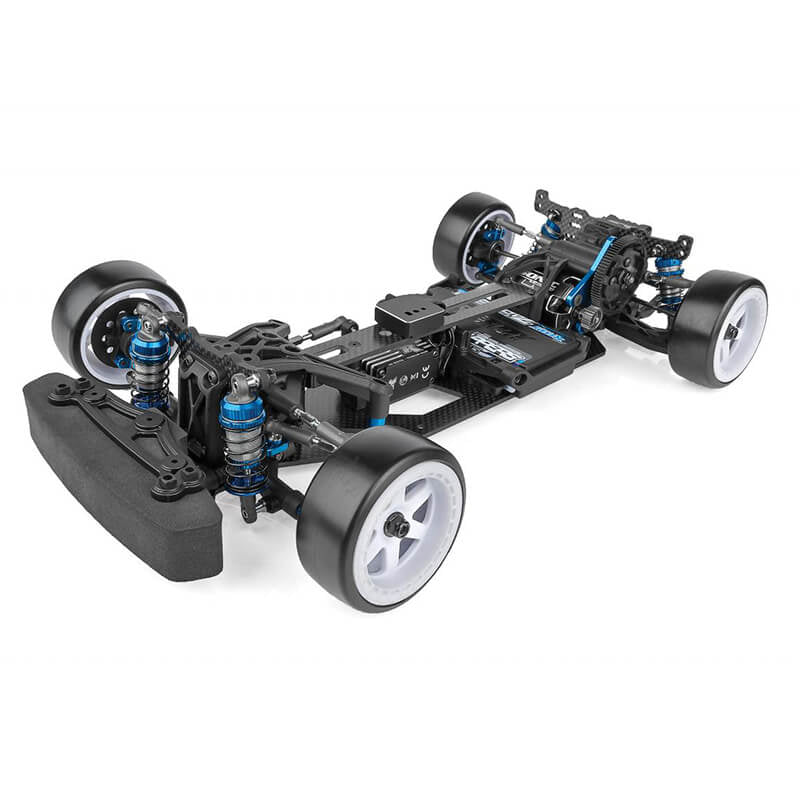

ASSOCIATED ELECTRICS - TEAM ASSOCIATED DC10 DRIFT CAR KIT - AS30134

Since 1964, Team Associated has proven to be the leader in competition racing. And with its roots in on-road racing, it makes sense that our Area 51 engineers would develop the ultimate RC drift car, the DC10. In RC drifting, vehicle balance is key. With the many suspension and chassis tuning options of the DC10, drivers can set up their car with precision. From camber, caster, and kingpin inclination (KPI), to motor and battery position, the Team Associated DC10 1:10 RWD Competition Drift Kit has it all!

Features

• Factory Team hard-anodized threaded aluminum shocks
• Factory Team 2.5mm carbon-fiber drift chassis
• Factory Team 2.5mm carbon-fiber shock towers
• Two Factory Team 2.5mm carbon-fiber top plate options included
• Factory Team blue-anodized aluminum chassis post
• High and low motor mounting options
• +6mm transmission height adjustment insert allows for higher roll center and larger spur gear
• Maximum steering throw for optimal control drifting through turns
• Easy-to-tune caster adjustments can be made without tools
• Adjustable battery placement
• Fully tunable, blue-anodized aluminum Ackermann plates
• Easy-to-adjust camber
• Adjustable offset wheels hexes
• Adjustable servo mount locations
• Precision rubber-sealed ball bearings throughout
• Rear mounted electronic speed control (ESC) plate
• Adjustable rear anti-squat and toe-in

Suspensions

Power Source: Electric
Terrain: On-Road
Body Style: Other
Scale Size: 1:10 Scale
Assembly Level: Kit*
Width: Varies
Wheelbase: 257mm (10.12in)
Weight: Varies
Internal Gear Ratio: 2.6:1
Drive: 2WD

* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Required To Complete

• 1:10 scale 540-size electric motor (AS27481 Sonic 540-SP5 13.5T Brushless Motor)
• 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height) (AS27397 Reedy Zappers SG5 LiPo 4000mAh 130C 7.6V LP Shorty)
• Radio control battery charger (AS27203 Reedy 1416-C2L Dual AC/DC Competition Balance Charger)
• 2-channel RC car surface transmitter and its batteries
• 2-channel receiver
• Steering servo (AS27154 Reedy RS1606A Low-Profile Hi-Speed HV Servo)
• Pinion gear (48 pitch)
• Spray paint for Lexan(R) body
• 1:10 scale wheels and tyres
• Drift steering gyro
• Other helpful items: sSlicone Shock Fluid, Silicone Diff Fluid, Body Scissors (AS1737), Reamer / Hole Punch, FT Wrench Set (AS1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler
