TAMIYA R/C KITS

• This is a 1/10 scale R/C model assembly kit. Length: 454mm, width: 189mm, height: 120mm. Wheelbase: 251mm (short)
• The powerful form of the Mercedes-AMG GT3 EVO is captured in style by a lightweight, rigid polycarbonate body with separate polycarbonate light cases (LED lights are not attachable), rear wing and canards
• Separate black ABS plastic parts realistically depict side mirrors and rear wing stays
• The efficient shaft-driven 4WD TT-02 chassis features superior adaptability and stability
• Black mesh type wheels are paired with racing slick tyres
• Includes Item 53415 Touring Car Urethane Bumper Sponge to keep the body in top condition
• Carton quantity is 6 and EAN is 4950344475193

• What's included?
  • ESC
  • Torque-Tuned motor
  • Polycarbonate body pre-painted with the following colours:
  • Metallic Orange (PS-61)
  • Black (PS-5)
  • Smoke (PS-31) windows
• What's needed?
  • Transmitter & receiver
  • Servo
  • Battery and charger
  • Tools to help with assembly of the kit

• 1/10 scale R/C model assembly kit. Length: 466mm, width: 188mm, height: 125mm. Wheelbase: 257mm.
• Polycarbonate body with separate polycarbonate front light cases for a 3D effect and canards. (NOTE: LEDs lights are not attachable)
• Separate black ABS plastic parts realistically depict distinctive side mirrors and a rear wing.
• The model utilises the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• 12-spoke gun metal wheels are paired with slick tires.
• Includes Item 51007 (Urethane Bumper M (TT-01/TGS)) to keep the body in top condition.
• Includes ESC and 540-Type brushed motor.
• Required to complete: 2-channel radio, steering servo, 7.2 volt battery with compatible charger, and Tamiya PS paints.

• 1/10 scale R/C model assembly kit. Length: 404mm, width: 187mm, height: 155mm
• Wheelbase: 257mm (standard)
• BT-01 chassis is set up for the front motor, front drive configuration for this model
• The form of the Peugeot 306 Maxi is authentically recreated in lightweight polycarbonate
• 6-spoke wheels are paired with racing radial tyres
• Separate moulded plastic parts recreate side mirrors and the rear wing
• Livery markings are Tamiya original design to recreate fictitious team
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

• 1/10 scale R/C model assembly kit. Length: 479mm, width: 188mm, height: 127mm (approximate)
• Wheelbase: 251mm (short)
• Polycarbonate body with separate polycarbonate rear wing and light case details
• Separate plastic parts moulded in black realistically depict side mirrors and wing stays
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• Black mesh-type wheels are paired with slick tyres
• Includes Item 51226 (Urethane Bumper L (TT-01, TGS)) to keep the body in top condition
• Includes stickers and window masking tape for use in the painting process
• Includes 540-Type Torque Tuned brushed motor and Hobbywing produced ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

• 1/10 scale R/C model assembly kit. Length: 451mm, width: 186mm, height: 134mm
• Wheelbase: 257mm
• Durable 1.0mm-thick polycarbonate body
• The model utilizes the efficient shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• 10-spoke wheels moulded in Gun Metal are paired with tread pattern racing radial tyres
• Includes stickers and window masking tape for use in the painting process
• Includes 540 brushed motor and ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

• 1/10 scale R/C model assembly kit. Length: 457mm, width: 204mm, height: 138mm
• Wheelbase: 251mm (short)
• The form of the Porsche 911 Carrera RSR 2.8 is realistically recreated in lightweight polycarbonate (comes pre-painted in white with windows tinted in smoke)
• Silver colour wheels (front: narrow, rear: wide / rims and red wheel caps are separate) are paired with racing slick tyres
• Separate moulded plastic part recreates the side mirror
• Includes 540 brushed motor and ESC

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

• 1/10 scale R/C model assembly kit. Length: 390mm, width: 198mm, height: 237mm. Wheelbase: 252mm (M-size wheelbase).
• The CC-02 chassis is designed for a wide range of off-road driving expeditions and has a ladder frame which was inspired by full-size vehicles.
• Pre-painted  Body.
• NEW: A roof rack with light pods is realistically depicted with separately moulded parts.
• NEW: Silver colour 12-spoke wheels are paired with block pattern tires. (Wide wheels are included to recreate the customized look of this version.)
• NEW: New stickers feature integrated tinted window and window frame sections to allow ease of applying stickers and eliminate the need for painting the window tint.
• Includes Motor and ESC.
• Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger.

• Full ball bearings
• Ball differential (52T)
• 33mm lightweight aluminium swing shafts
• Cross joint for LF assembly type universal shafts
• 06 module fluorine coated 20T pinion gear
• M-08 Concept aluminium shafts
• M-Chassis reinforced freewheel axles
• 5mm clamp-type wheel hubs
• Suspension
• Carbon fibre damper stays (front/rear)
• Reinforced D parts (suspension arms)
• Aluminium turnbuckle shafts
• Titanium coated suspension shafts
• 5x5mm, 5x11mm hard hex head ball connectors
• M-Chassis big bore aluminium dampers+
• 3x 1.3mm-hole pistons
• 4mm aluminium serrated wheel nuts (blue)
• 5mm reinforced open face adjusters

• Carbon fibre battery holder
• Carbon fibre body mount base
• Reinforced K parts (gearbox)
• Chassis balance weight (20g)
• Hi-torque servo saver
• Aluminium ball connectors (blue)
• Hex head screws

• Scale is 1:10
• Length: 319mm (with 225mm wheelbase), width: 165mm
• Alterable wheelbase: 210mm, 225mm, 239mm
• Monocoque frame with separate front and rear sections
• Midship motor, rear-wheel drive
• Ball differential
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• M-Chassis big bore aluminium dampers+
• Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
• Electronic speed controller (ESC) is sold separately.

• Body
• Type 540 motor (brushless is recommended)
• Tyres
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

• 1/10 scale 2WD R/C model assembly kit
• 2.5mm thickness FRP chassis gives a low centre of gravity for excellent balance
• The battery pack position has been slightly enlarged. Note: This kit is not compatible with square-shaped battery packs. Rounded profile battery packs must be used
• 4-wheel double wishbone suspension employs CVA oil dampers
• The sealed gearbox features TTC, which was Tamiya's first slipper clutch and protects gears from impacts and gives stable drive by limiting wheelspin. Externally the same as on the original, it features a modernised internal design, and can be adjusted simply by removing the gearbox cover and turning the lock nut
• Efficient 0.5 module gear included
• A low-profile servo is required for this model
• High-traction front rib-spike and rear square spike tyres provide superb response and awesome cornering
• Comes with durable and lightweight polycarbonate body and rear wing, plus a protective under cowl

• Two-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS polycarbonate paint

This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminium rear uprights give 3-degree toe-in for more stable cornering, while an aluminium motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminium propeller shaft and centre cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).

• Scale is 1:10
• Length: 376mm, width: 182mm
• Wheelbase: 257mm　
• Tire width/diameter: 24/64mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel resin differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear CVA oil dampers
• Includes 68T and 64T spur gears. Combine with separately-sold pinions for gear ratios from 9.82:1 to 5.74:1

The Fighting Buggy was originally exported as the Super Champ in 1982 across the globe. For a limited time only, it is back as a special re-release celebrating 36-plus years after it originally made its debut in hobby stores.

The re-release kit begins with a new name, which is the same as that used by the original Japanese release of the R/C model. While it features a variety of tweaks and upgrades, Tamiya's designers made sure to retain the drivability, appearance and characteristics of the original.

• 1/10 scale R/C model assembly kit.
• The classic body of the original is reproduced in durable ABS resin with an aluminum roof panel with wing.
• Stickers retain many of the themes of the classic model while also adding some new motifs.
• Lightweight and durable 2.5mm thick FRP chassis plate is compatible with Item 55105 Tamiya LF Battery LF1100-6.6V Racing Pack (M-Size) (sold separately).
• Original transverse damper rear suspension setup with progressive spring and separate oil reserve tank is again employed. Front suspension is double trailing arm type. Front/rear sus arms are die-cast.
• Employs durable die-cast sealed gear case with direct drive setup, which also houses the motor.
• Ribbed front and rear spike tires. They are fitted securely to 3-piece wheels.
• Type 540 motor included.
• Comes in nostalgic blister pack style packaging.
• Requires: 2-channel radio, steering servo, ESC, small 7.2volt battery pack with compatible charger, and Tamiya TS Paint.

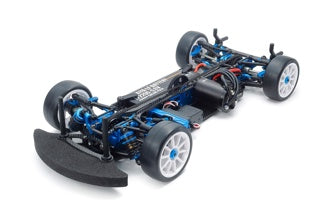

• This is a 1/10 scale R/C chassis assembly kit
• The drivetrain features the motor position moved 22.7mm toward the chassis centre compared to the TRF420X Chassis Kit (Item 42382) and has identical length front and rear drive belts for stable drivability
• With updated setup of spur gear and drive belts, only one dedicated nut is required to attach the spur gear, which enhances efficiency of maintenance
• The new lower deck is smaller compared to the one used on the TRF420X Chassis Kit to limit ground clearance when the chassis experiences roll
• Choose from two types (one-piece and two-piece) of upper deck. Changing screw positions allows five setup patterns in total
• A-shaped suspension arms are employed for higher rigidity (the 420X chassis kit uses I-shaped suspension arms)
• Longer lower arm spans limit swing width and ensure stability when the chassis experiences roll
• Along with longer lower arm spans, front and rear suspension setups are changed from suspension blocks to suspension balls
• Roughly 7mm-longer arm spans limit swing width and ensure stability when the chassis experiences roll
• Toe angle can be adjusted by uprights (toe angle of lower arm inside is 0 degrees)
• Three attachment damper positions (inner, middle and outer) on front and rear lower arms are offered by two types of aluminium bushings

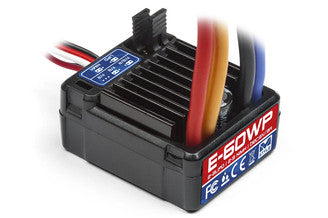

• 2S or 3S LiPo with voltage protection (Using jumper to select LiPo)
• 5-9 cell NiMH or NiCd (Using jumper to select NiMH)
• Suitable for all types of 1/10th scale vehicles
• Fitted with a Tamiya plug

• Forward Continuous Current: 60A
• Forward Burst Current: 360A
• Reverse Continuous Current: 230A
• Reverse Burst Current: 180A
• Input: 2-3S LiPo, 5-9 cell NiMH/NiCd
• Applications: 1/10 on-road, off-road buggy, short course truck, truggy, crawler, tank, boat
• Motor Limit: 2S LiPo or 6 cell NiMH: 540 or 550-size motor great than or equal to 12 turn, RPM over 30,000 at 7.2v
• Motor Limit: 3S LiPo or 9 cell NiMH: 540 or 550-size motor great than or equal to 18 turn, RPM over 20,000 at 7.2v
• Resistance: FWD 0.001 Ohm, BWD 0.002 Ohm
• PWM Frequency: 1 KHz
• BEC: 6V/3A
• Dimensions: 36.5x32x18mm
• Weight: 39g
