Tamiya Brushless Motors

This is a Tamiya 21.5 wind brushless motor designed to be used with any of Tamiya’s on-road racing cars.

• 21.5T motor provides smooth operation at both low and high speeds.
• An internal sensor's positional feedback is combined with the ESC's RPM data to offer a high level of control.
• Brushless design makes for long motor life and reduced maintenance.
• Motor timing is adjustable.

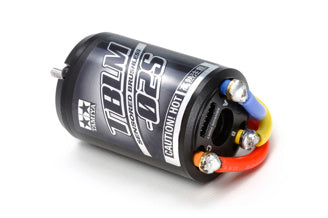

This is a Tamiya 17.5 wind brushless motor designed to be used with any of Tamiya’s on-road racing cars.

• 17.5T motor provides smooth operation at both low and high speeds.
• An internal sensor's positional feedback is combined with the ESC's RPM data to offer a high level of control.
• Brushless design makes for long motor life and reduced maintenance.
• Motor timing is adjustable.
• Use with sensored Tamiya Brushless ESCs.
• Compatible with 1/10 Tamiya touring cars, M-Chassis and buggies.

• Provides smooth operation at both low and high speeds
• Brushless design makes for long motor life and reduced maintenance cycles
• Ideally suited to use with Item 45066 Tamiya Brushless ESC 03 (Sensored). Also compatible with Item 45047 (TBLE-01S) and Item 45057* (TBLE-02S)
• When using Item 54611 (10.5T) with Item 45057 (TBLE-02S), it is highly recommended to install Item 45063 TFU-01 ESC Cooling Fan Unit to ESC, as ESC's overheat protection function may be activated due to excessive load
• Motor timing is adjustable

This is a Next Generation Tamiya Brushless motor. The motor design incorporates sensor technology, which allows the motor to communicate efficiently with the electronic speed controller (ESC) in your model, allowing efficient performance.

Key benefits

• Provides smooth operation at both low and high speeds.
• Brushless design makes for long motor life and reduced maintenance cycles.
• Ideally suited to use with Item 45066 Tamiya Brushless ESC 03 (Sensored). Also compatible with Item 45047 (TBLE-01S) and Item 45057* (TBLE-02S).
• When using Item 54611 (10.5T) with Item 45057 (TBLE-02S), it is highly recommended to install Item 45063 TFU-01 ESC Cooling Fan Unit to ESC, as ESC's overheat protection function may be activated due to excessive load.

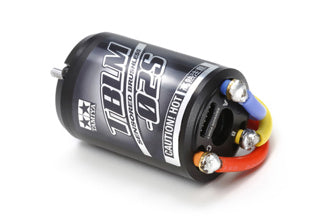

• Motor timing is adjustable. 54612 Tamiya Brushless Motor 02 (Sensored) 15.5T

• Dedicated brushless motor connector enables more efficient power supply
• Motor connectors can be directly connected to motor
• The FET (Field Effect Transistor) layout features parallelization to reinforce high current resistance. The maximum RPM is the same level as the TBLE-04SR
• The black-anodized aluminium case works as heat sink to ensure improved heat dissipation, and 25mm square cooling fan can be attached (*the TBLE-04SR had plastic case)
• Features a receiver switch with screw-attached switch case which protects cables and reinforces case rigidity
• The TBLE-05SR has a set button on the receiver switch for easier setup changes while the TBLE-04SR had it on the ESC
• Settings such as battery cut-off, reverse, brake, soft start and neutral brake can be changed by the set button and can be checked by three LED lights and sounds
• Features overheat and overload protection functions to help ensure that your equipment avoids damage
• Compatible with Item 54612 Tamiya Brushless Motor 02 (Sensored) 15.5T
• Includes 270mm sensor cable (the same cable as the one included in Item 45070)
• Maximum continuous current: 90A
• Input voltage: 6.6V - 7.2V
• Weight: 76g (including cables)
• Dimensions (approximate): 42.5 x 33.5 x 24.5mm (with fan: 42.5 x 33.5 x 33.5mm)
• Carton quantity is 1 and EAN is 4950344450718
