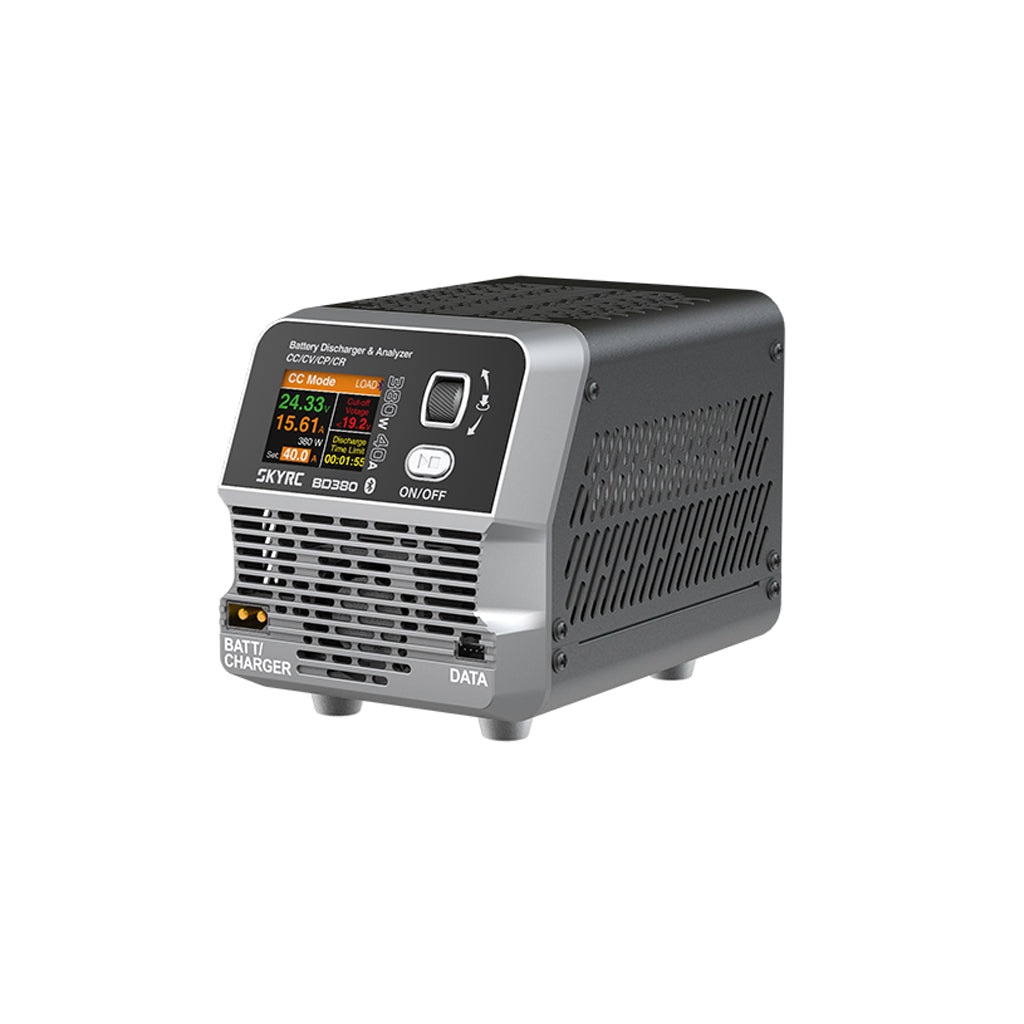

SKY RC - SKY RC BD380+ Discharger - SK-600153

Introducing the SKY RC BD380+ discharger.

Awaken the wild power of RC batteries and choose SKY RC BD380+.
This device starts as soon as it is connected and automatically performs the discharge operation, eliminating the need for an external power supply.
When used with D200neo and T1000 chargers, it can significantly improve the discharge and charging efficiency of high currents.
BD380 is specially designed for remote control models to help you improve battery performance reaching the pinnacle.

380W/40A/30V performance boost
The high output of 380W can easily cope with the challenge of large capacity; the high current of 40A can achieve fast and accurate regulation. The wide voltage of up to 30V is compatible with a variety of batteries and is the best choice for RC battery management.

Comprehensive with four modes
It is a discharger and a master of battery testing.
The excellent discharge capacity of BD380, combined with SKY RC's exclusive CHARGER MASTER software, monitors the battery discharge curve in real time. Bad quality batteries can be found out.

App support is powerful and intelligent
BD380 has built-in Bluetooth function, which enables convenient battery management through mobile phone App. Users can easily obtain all key data and view them intuitively.Capacity, voltage and power curves.

By connecting with D200neo or T1000 charger, the battery management efficiency is greatly improved.
The app's intuitive graphical interface gives you full control over the charging and discharging process: easily complete detailed capacity testing to ensure your battery is properly charged and discharged.Optimal maintenance and use.
This simplification significantly improves battery health,Reliability and lifespan.

Battery power improved
In RC racing, the battery can significantly improve performance through high current charging and discharging, which is the key to the power of racing cars. The core of force. This process allows drivers to fully unleash the potential of the car, achieve record-breaking acceleration and power, and win the race on the track.

One decoration with many faces
DC power supply performance detector
1. In constant voltage (CV) mode, set the power supply to be tested to outputConnect to BD380;
2. Adjust the current value on BD380 toMatching power specifications1;
3. Start the load and let it run for 3-6 hoursAging test;
If the voltage of the power supply remains stable during the whole process, it indicates that it is reliable.Quality level.

Security upgrade double protection
Built-in protections such as overload, overcurrent and overtemperature protection ensure the safety of the device during operation, preventing damage to the device itself and its connected battery.
Push the limits of performance with confidence!

Powerful yet cool.
BD380 uses advanced cooling technology from high-performance gaming PCs to provide excellent thermal management to prevent overheating.Ensure efficiency.
Equipped with high-efficiency fans, superconducting copper tubes and aluminum fins, it dissipates heat quickly. Real-time temperature control and speed regulation ensure optimal airflow, even at full loadMaintain peak performance.

Color screen
With a tailor-made color scheme optimized for RC charging, you can focus onYour settings.
Web 2.0 style, responsive menu, with scroll wheel and button operation, is more convenient for smartphone-savvy users.Intuitive used.
Say goodbye to old-school typography and hello to bold,Beautiful design.



Multi-language switching
The interface has been carefully designed for easy localization and comfortable operation, and is currently available in English, Dutch, Chinese,Available in French and Japanese*.
Users can easily change the language with a simple click to use the language they are most comfortable with.to charge.
*More languages will be released soon!

Specifications
Size and weight

Shell material: PC-ABS V0
Size: 159.7*110*121.6mm
Weight: about 1100g
show
Panel type: TN
Size: 1.77 inches
Viewable area: 43.20*57.60 mm
Resolution: 240x320 pixels
Number of colors: 262K

Power supply
DC power input: 3-30V
Discharge power: 380W MAX
Battery plug interface: XT60
Discharge: 0.3A-40.0A

Operating mode
CC constant current: 0.3-40.0A
CR constant resistance: 1-100Ω
CP constant power: 1-380W
CV constant voltage: maximum power 180W, please do not connect the battery to start this mode

Work and storage
Working temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: 10℃-70℃
Storage humidity: 0%-75%
