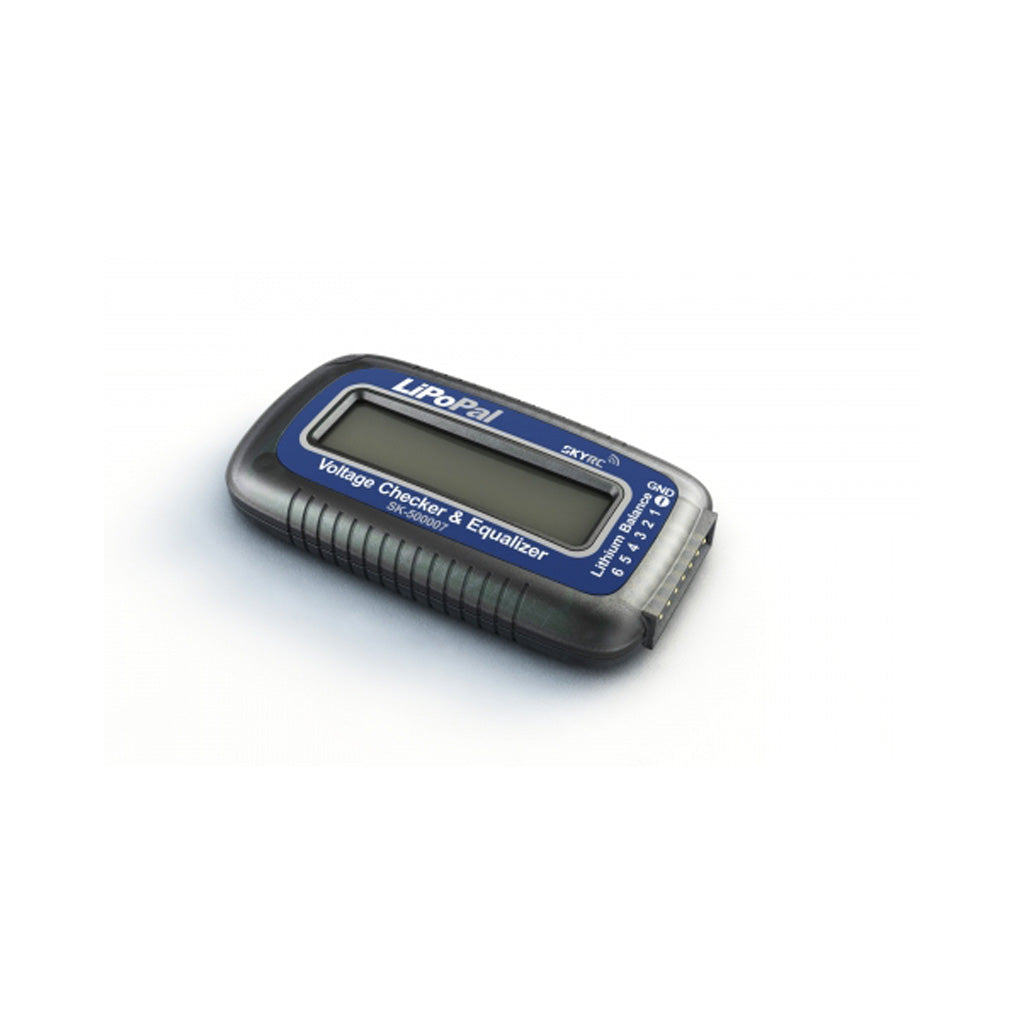

SKYRC LiPoPal is a simply used battery checker and self voltage balancer. When we are flying or running outside, it is difficult to know the remaining capacity of the battery. With this tiny LiPoPal we could check the voltage of each cell and the remaining capacity in percentage at anytime and anywhere. As we know, if each cell of the battery pack is balanced, the battery performance will be much better and the cycle life will be longer. But sometimes, we may don't have time or tool to balance the battery cell. With this small kit, when it detects the pack is not balanced, it will start work to balance the pack cell at once.

Functions:

There are two functions of this compact device:

1.Battery Checker
The LiPoPal can check the voltage of each cell of a lithium battery pack and remaining capacity in percentage %.

2.Self Voltage Balancer
This program can equalize the individual voltages to their lowest one. Balance operation automatically starts about 5 seconds after the battery pack is connected. When the voltage difference between cells over 0.02V, the balancer will start to work. The corresponding "V" will be blinking when it is balancing. When the voltage difference between cells reaches 0.01V or less, balance operation ends and the device enters the sleep mode and "SLP" will be displayed on the LCD.

How to use?

Simply connect the battery pack to 7 pins connector (XH type). Please note the negative lead or pin of the LiPo connector should match the "Negative" marked on the shell of LiPoPal. After the LiPo is connected, the LCD display the voltage of each cell and the built in balance will check the voltage. If the pack is not balanced, the balancer will start working.

Specifications

Applicable Battery Pack: 2-6S LiPo
Voltage Display Tolerance: +/-1.5%
Voltage Display Resolution: 0.01v
Voltage Display Range: 0-5v
Balancing Current: 50mA
Operating Temperature: 10~+45°C
Storage Temperature: -20~+60°C
Case Size: 70x38x11mm
Weight: 23g

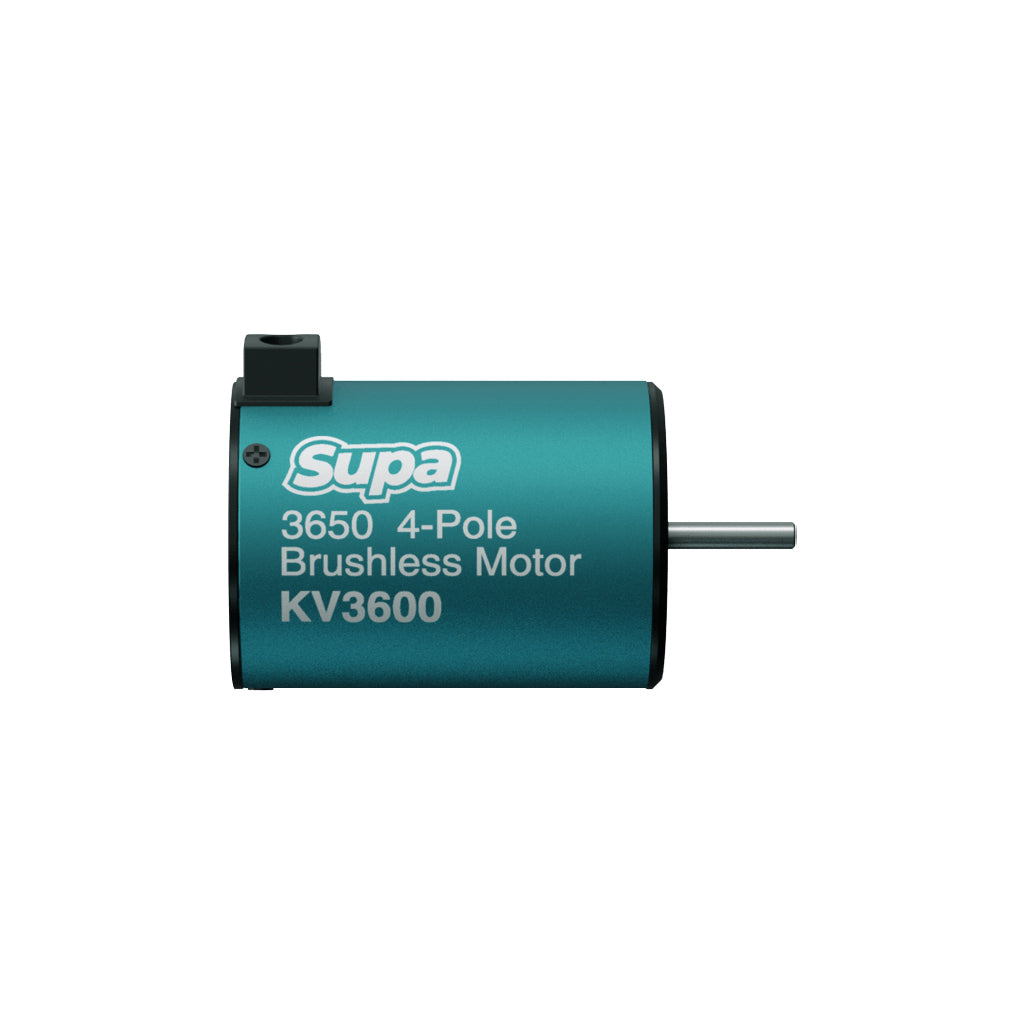

Introducing the 1/10 FuriaX Supa 3650 Brushless Motor from SKY RC

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
4000 KV
<12V
Voltage
2.0A
No-load Current
75A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*16
Rotor（mm）

FuriaX CoolSink Series for 1/10 3650 Motors

Stay Cool.  Stay in Control.

The precision aluminum cooling structure works with high-speed airflow to deliver an easy 10–30°C temperature drop*.
Snap-and-go press or screw mounting ensures a secure, stable fit the moment it clicks into place.

The precision-milled aluminum fan frame and fan guard provide a rigid structure that focuses airflow, delivering stable and accurate cooling performance lap after lap.

Features:
High-Speed Cooling Performance
Up to 28 CFM airflow (at 8.4V)*
*Measured by SkyRC with a duct area of 0.039 ft².
High-RPM fan: 28,000–30,000 RPM
Keep 1/10 or 3650 motors temperature-stable under heavy load.
Wide Voltage Support
Operating range: DC 3.5V – 9.0V
Rated voltages: DC 6.0V / 8.4V
Operating Current
0.5 A @ 6.0 V
0.6 A @ 8.4 V
Smart Protection
Stall protection: Auto-recover when obstruction clears
Reverse polarity protection: No damage, no response if miswired
Premium Construction
CNC aluminum heatsink
Clear laser engraving
26AWG silicone wires (200mm)
JR-2P: Universal 2-pin power connector, ready for direct receiver power
Clean assembly, precise fitting
Made for Harsh RC Conditions
Stable cooling from –10°C to +70°C.
39.1x40x31mm

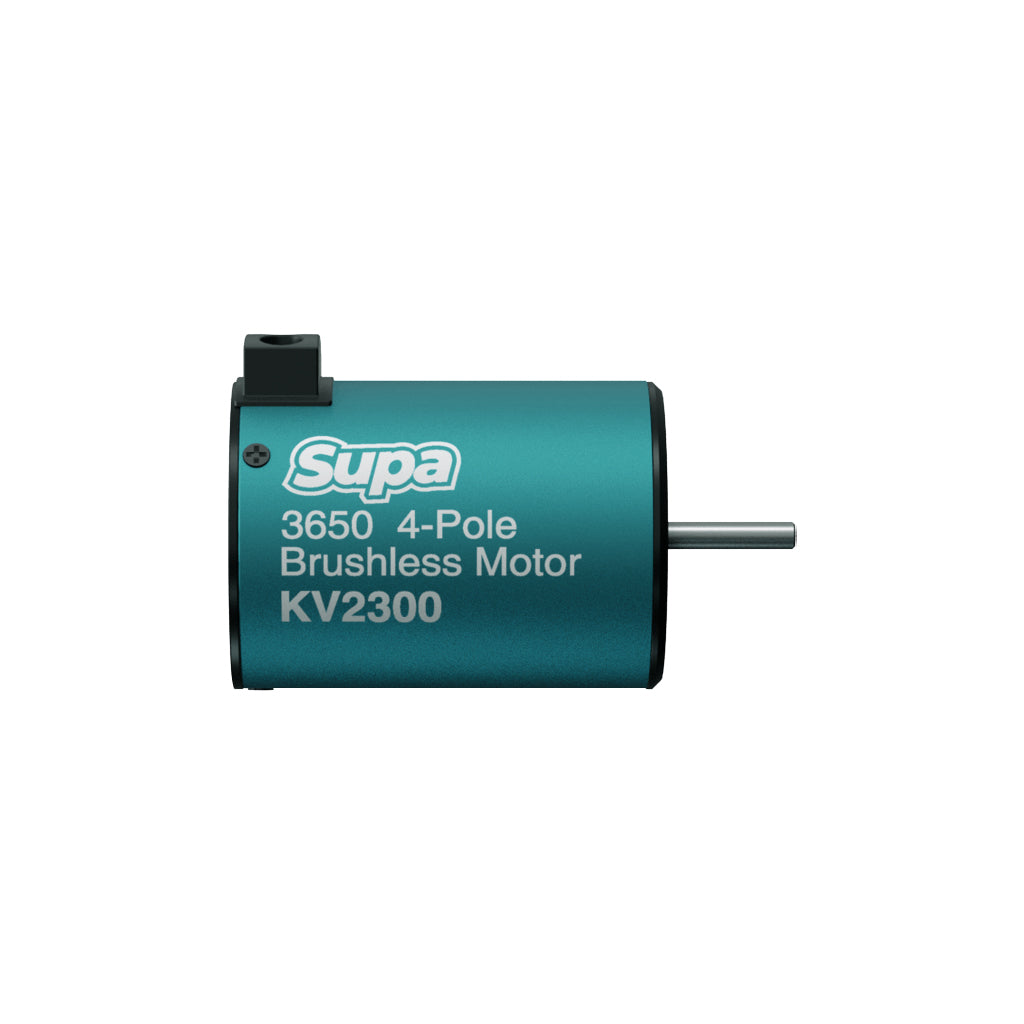

Introducing the 1/10 FuriaX Supa 3650 Brushless Motor from SKY RC

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
2300KV
< 22V
Voltage
1.0A
No-load Current
41A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*21
Rotor（mm）

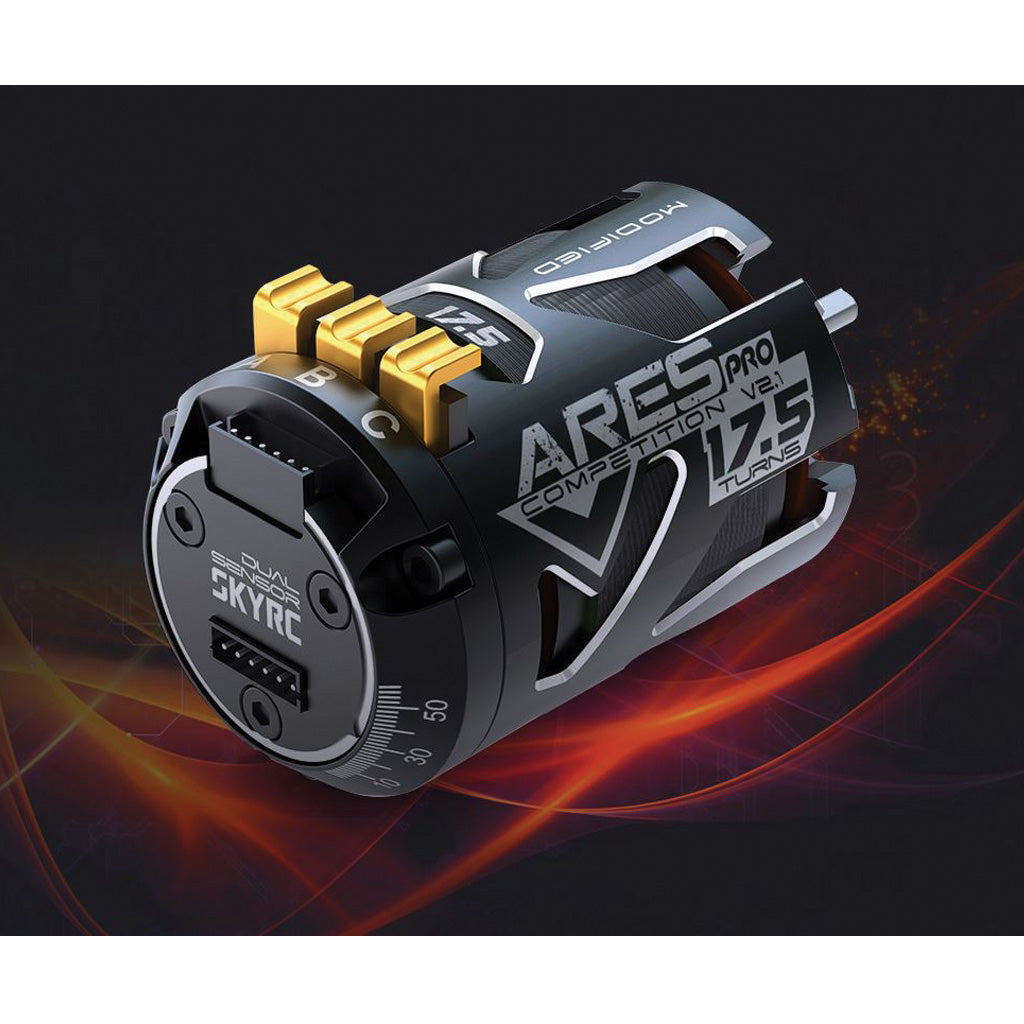

BRCA Approved.

Effective ventilation.
Extreme performance.
In more dazzling shape featuring multiple cooling engraved fins for added heat-dissipating surface area, the motor is implementing thermal silicone insulator between the endbell and stator to conduct the internal heat to the case with the temperate reduced efficiently, and power output multiplied!

Features
Aluminum Shell with CNC Forming Process
Pure Copper Coil with High Conductivity
High Power Welding Pieces
Replaceable Rotor
Powerful Sintered Neodymium Magnet
Dual Sensor Port
Adjustable Timing
Compatible with Any Sensored/Sensorless ESC

Separable Structure
The daily cleaning and maintaining is a breeze thanks to the motor is designed in separatable structure. Consequently, the motor’s life is prolonged with the efficiency Improved. Working in parallel with dynamically balanced high-precision rotor the built-in hall effect sensor ensures the super motor linearity with hobbyists stay in total control of the racing car.

Adjustable Timing
By loosening three screws on the endbell and rotate the endbell counter to align timing marks on the endbell, timing can be adjusted to get the most out of the motor! ( Do remember to tighten the screws on the endbell after that.) In this way, torque and efficiency can be changed to reach the best performance Increasing timing increases rpm and motor temps but decreases torque, efficiency, and runtime.

Works with mainstream models in the market
The ARES PRO V2 motor is compatible with TS120, TS150, TS160, TS50 and other ESCs. It has a wide range of vehicle compatibility and provides enough power for the racing cars. The overall performance can be reached by using the motor in parallel with ESC providing accurate reliable and precise operability.

Purpose-Built Power for Demanding Pros
Engineered for high-performance RC chargers like SkyRC D750 MIX, eFUEL PSU2000 delivers up to 1980 W* of pure, regulated power with exceptional stability and efficiency — making it the perfect companion for advanced charging systems. All that power, in a compact, portable form — ready for your bench, your pit, your next run.

Just Power It.
Even if you’re using an iCharger DX6*, ToolkitRC M8D*, or ISDT K2, eFUEL PSU2000* handles high power with ease and keeps everything running strong.
Just power up and go!

Right Voltage Preset
Power On with Confidence.
Two dedicated input versions — AC 110V and AC 220V — ensure optimized performance for every region. Each version is fine-tuned for its voltage range, maximizing efficiency and safeguarding your gear from incompatible input.

Precision at your fingertips.
Adjustable from 8 V – 36 V and up to 55 A, PSU2000 gives you full control over voltage and current. The bright LCD interface, tactile buttons, and multilingual UI make setup and monitoring effortless.

XT90: Built for the RC World
The native XT90 male output is designed for RC hobbyists — featuring gold-plated brass contacts housed in heat-resistant nylon.
This high-current connector (rated for continuous 90 A) ensures a secure, low-resistance interface for your chargers, delivering stable and efficient power to even the most demanding RC setups and seasoned hobbyists alike.

Multiplied by Omni Hub*.
One XT90. Seven Outputs.
Paired with the Omni Hub*, one XT90 expands into multiple outputs— XT90, XT60, 4.0 mm banana ports, USB-C, and USB-A.
55A High-Current XT Output
XT90 ×1 · XT60 ×2
10A Universal Banana Outputs
4.0 mm ×2 pairs
65W Smart Fast Charging
USB-C ×1 · USB-A ×1
All ports. All scenarios.
From workbench to track — one setup does it all.
*Omni Hub is sold separately and not included.

Design Highlights

A 65° tilted display and intuitive UI provide a naturally comfortable viewing and control experience — perfectly aligned for quick glances and effortless adjustments during charging.

Optimized internal airflow ensures efficient heat dissipation and quiet operation, keeping performance steady even under sustained 1980W demand.

Features a full-metal main chassis that provides strength, stability, and a premium feel, while the front panel — housing the buttons, display, and XT90 output — is precision-molded from high-grade plastic for safety, insulation, and perfect fit.

With sleek lines, a durable build, and just 2.9 kg of weight, PSU2000 moves effortlessly between the workbench and the track, always ready to power your next run.

Reliable by Design
Engineered with high-efficiency circuitry (> 85%) and multiple layers of protection—over-current, short-circuit, over-temperature, and overload—it keeps your power steady and your mind at ease.

Specifications
Size and Weight

Dimensions: 289 x 90 x 158mm
Weight: Approx. 2.9kg

Power
Input Voltage：
AC200V~AC240V
AC100V~AC120V
(Two versions are voltage incompatible)

DC Nominal Output Power：
1980W ±10% (AC220V)
1200W ±10% (AC110V)

Output Voltage Range：8.0V~36.0V （Default 12V）
Output Current Range：1.0A~55.0A （Default 30A）

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5%-75%
Storage temperature: -10℃-70℃
Storage humidity: 5%-75%

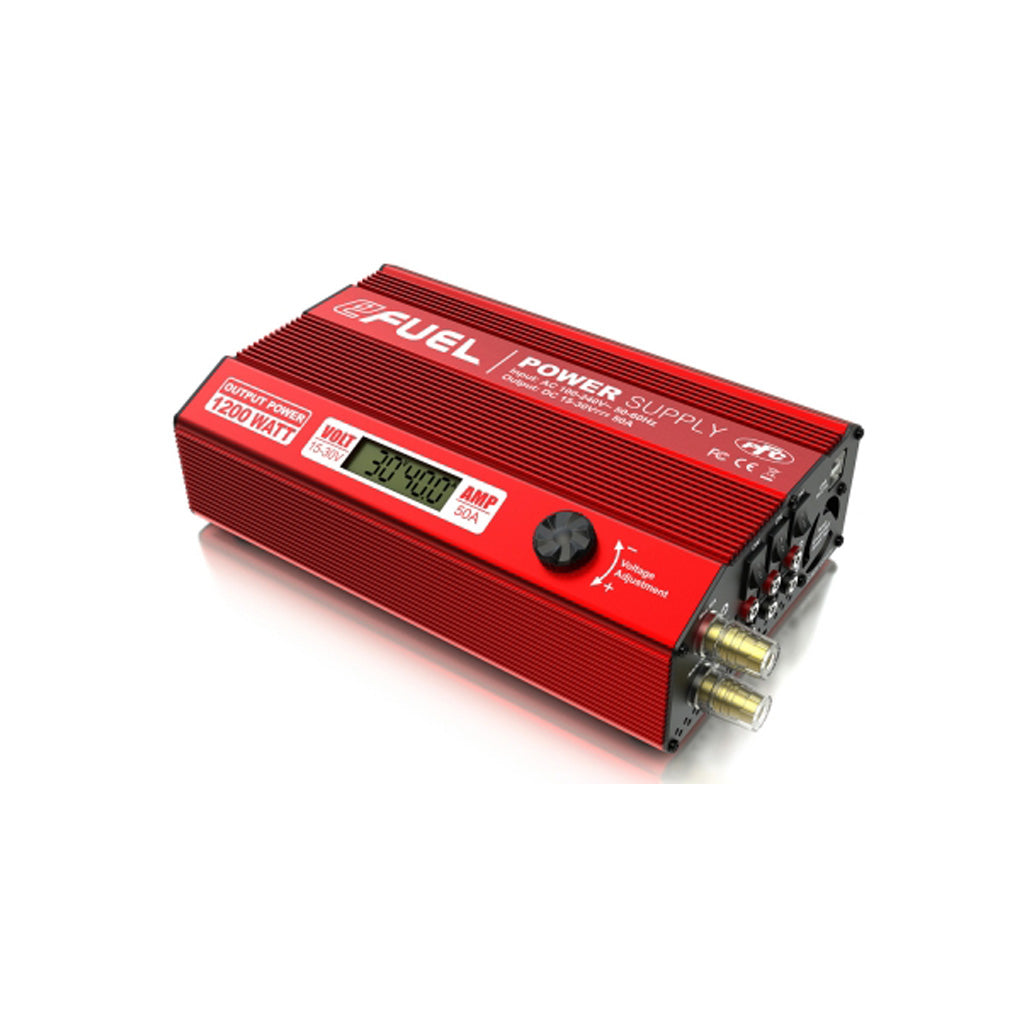

With 1200W outputs, adjustable output voltage from 15-30V and active PFC, it is the most advanced power supply you will find anywhere. 1200W of output is ideal for a variety of high powered chargers, and three outputs allow you to simultaneously operate multiple chargers or other devices.

An input voltage range of 100-240V makes it ready for worldwide compatibility with no setting required, and the DC output voltage is flexible: simply turn the dial to adjust the voltage to suit your setup-digital readouts give you an instant look at your output voltage and current.

Active power factor correction and a compact frame make this a great power supply to take to the field and use with a generator.

Specifications

Cooling Method - Cooling Fan
Input AC Frequency - 50-60Hz
Input Fuse - 20A Fuse
LCD Display - Voltage Precision ±0.3V Current Precision ±0.5A
Operating Temperature - 0-40℃
Output Current - 50A±1A
Output Voltage - 15-30V DC±0.5V
Output Voltage Ripple - < 300mV
Over Temperature Protection - < 65℃
Power Efficiency - 89%
Power Factor - > 0.98
Voltage - 100-240V AC
Weight - 3.08kg
height - 85mm
length - 305mm
width - 170mm

Built for most demanding pocket charger the SK-100134 B6 Nano Charger
Converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.

Short-circuit - protection on output
Over Current - Protection
Over Temperature - Protection
Over Load - Protection
Over Voltage - Protection

Active PFC
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.

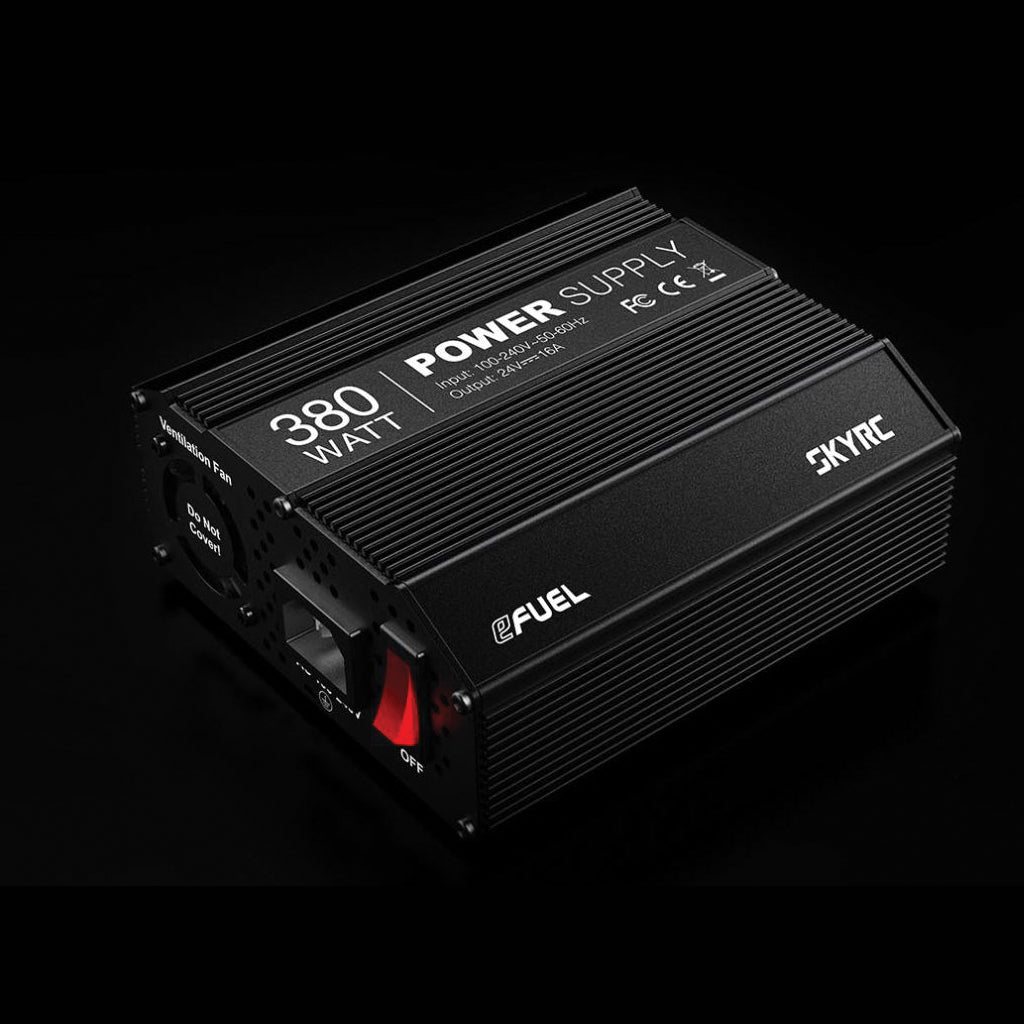

Active PFC, which is integrated into SkyRC 380W/16A regulated power supply, can provide higher power utilization.

Intelligent Air Cooling System
Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.

Overload/Error Indication
The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.

We are Certified,We are Qualified!
SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.

Rigorous testing, derived from the pursuit of quality
Each 380W powr supply must experience dozens of more than the industry standard of critical testing. Each rigorous testing and every detailing are the reflections of SkyRC's concentration on products.

Case Size ： 165x139x59.5mm
Weight ： 1.62kg

Power Supply
Voltage：100-240V
Input AC Frequency：50-60Hz
Output Current：16A
Output Voltage：24V DC±0.5V
Output Voltage Ripple：<300mV
Power Efficiency：88%
Power Factor：>0.98

Protection
Current Overload Protection：17A ±1A
Over Temperature Protection：<80℃
Cooling Method：Cooling Fan

Working
Operating Temperature：0-40℃
Operating Humidity：0-90%

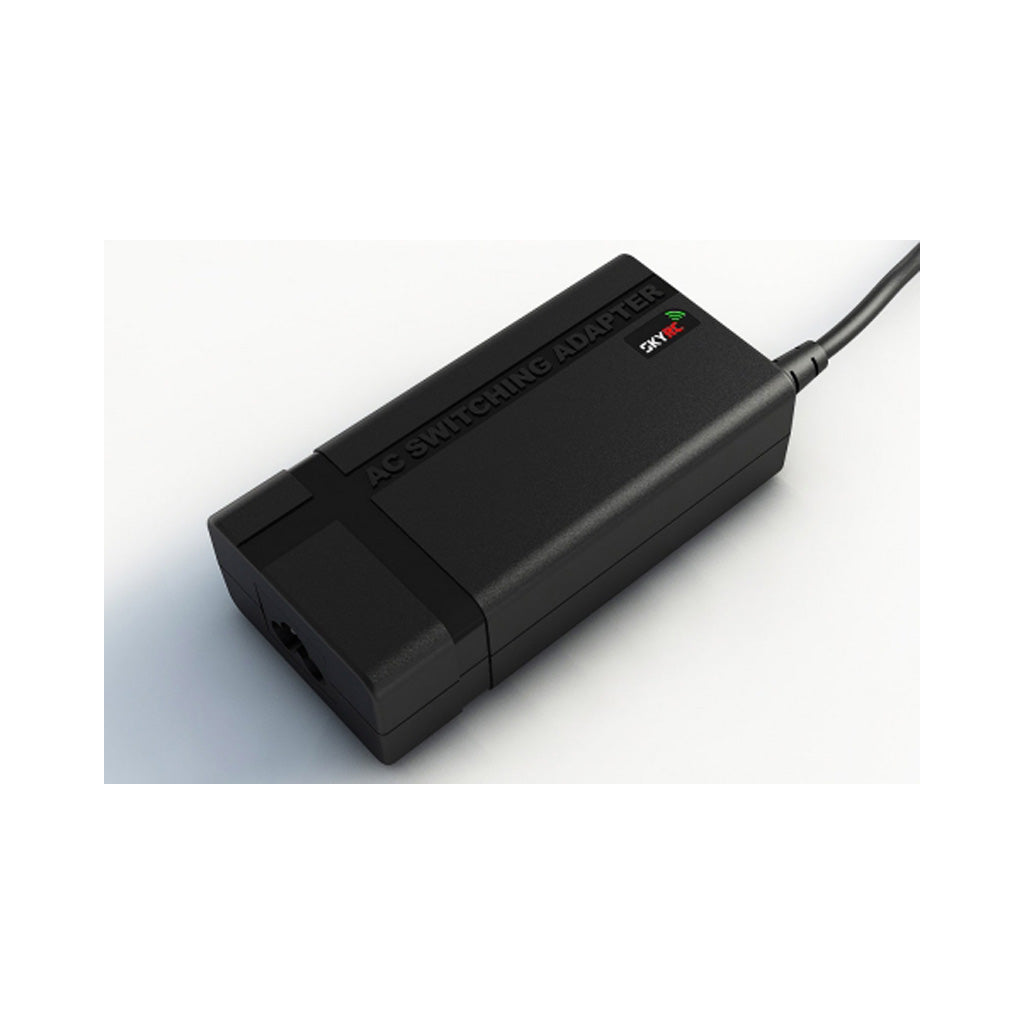

Keep a SkyRC 15V/4A AC Adapter to hand to ensure your IMAX B6 and IMAX B6 MINI charger has a consistent flow of power. This SkyRC AC adapter is perfect for use as a spare or replacement adapter for compatible IMAX chargers. It is compatible with all SkyRC IMAX B6 and IMAX B6 MINI chargers, power cord is selectable.

Input : AC 100-240V 50/60Hz 1.5A
Output : DC 15V 4A
Circuit power : 60W
LED indicator for power on

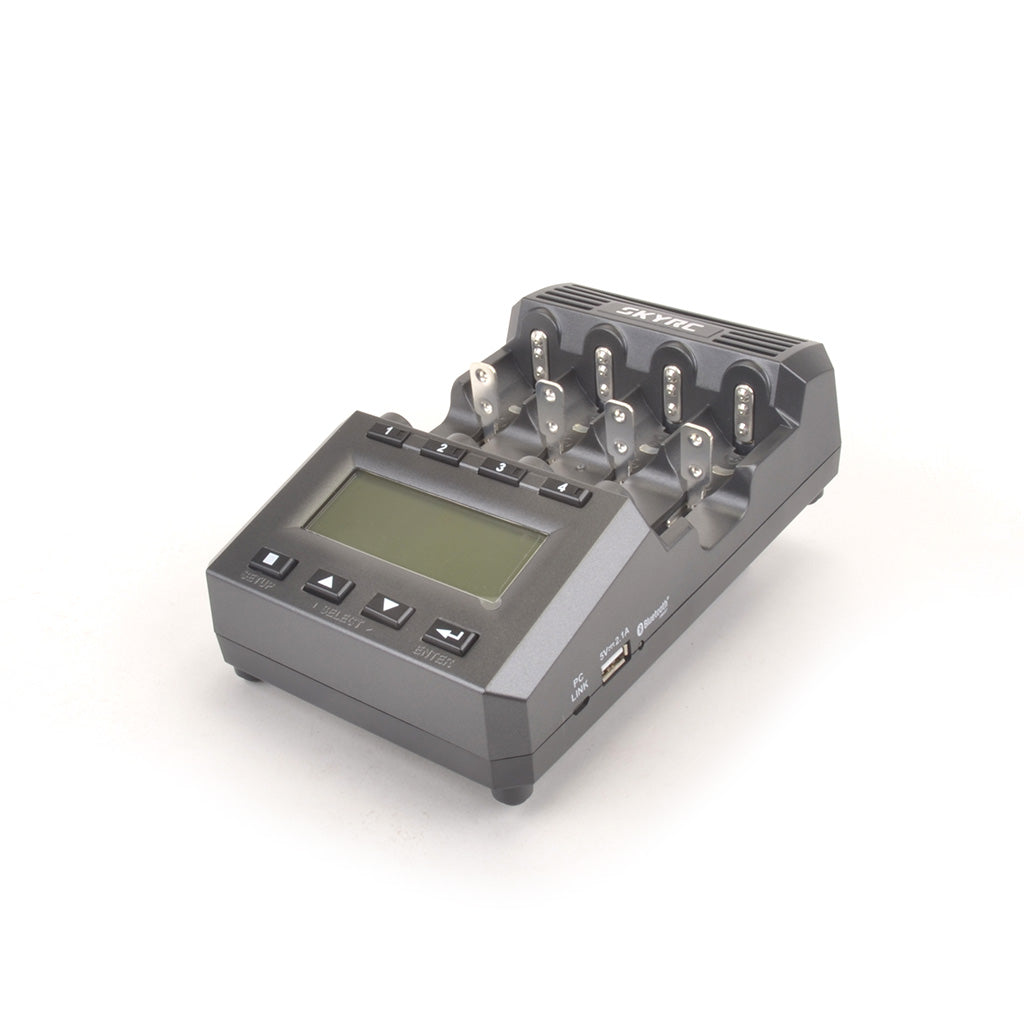

The World's Most Joyful Round Battery Charger

The creation of this product arose from the desire to finally have a charger as versatile, accurate and powerful as a SkyRC hobby charger but tailored to a sweet battery tray for cylindrical single cell batteries; no more hassle with battery holders, fiddly wiring, clamps or similar DIY solutions.

Multi-Chemistry

Support 9 + battery chemistries

Effective Cooling

The built-in aluminum cooler effectively dissipates heat generated in the inside of the charger to the environment, even at slow fan speed.  Twin fan for great cooling.

Compact Display

The 128x64 pixels screen shows 5 different views during operation, see above a picture of Total Overview (TOV).

Rich User Interface

Eight Buttons for easy programming and operation. Four Slot Number Buttons (SNB) help to address the different slots. The other four buttons are for programming and operation.

Easy Programmability

In Simple and Advanced UI modes, the charger operates off 30 user-defined operation profiles. The programs can be called up and run with few clicks, very conveniently.

Secure Stand

Rubber feet and strong tilt stand elements provide a firm stand. Tilted position enhances viewing angle and cooling air flow at the bottom side.

Specifications

Input Power

DC 11-18V/4A

Charge Current Range

0.05-3.00A

Discharge Current Range

0.05-2.00A

Max. Charge Power

50W

Max. Discharge Power

15W

Battery Chemistry Type

NiMH, NiCd, NiZn, Eneloop,Lithium-Ion, LiIo4.35, LiFePO4,RAM,LTO

Battery Capacity

100-50000mAh

Operating Temperature

0-40?

USB Power Output

DC 5V/2.1A

Dimensions(LxWxH)

200×124×69mm

Weight(Without DC Adaptor)

600g

Contents

Charger Unit
Power Supply
240v 3 pin power lead

Introducing the SKY RC Magnetic Power Switch - effortless control for RC enthusiasts. A simple swipe powers your model - no buttons, no fuss. Engineered with advanced magnetic sensor technology, its compact, lightweight, and built for high currents. Perfect for sailplanes, RC cars and boats. Its LED faceplate keeps you informed with clear ON/OFF status. Say goodbye to clunky connectors and hello to seamless RC adventures.

Ultra-Low Standby:
Built to Last
In standby mode, the magnetic switch demonstrates exceptional energy efficiency.
Switch OFF: ≤5μA.
Switch ON: ≤3.5mA.
This energy-saving design minimizes battery drain, ensuring prolonged operation even with a small battery. Reliable, efficient, and always ready, the Magnetic Switch is the perfect companion for your RC needs.

Versatile Applications, Effortless Control.

Built in failsafe

TechSpec;

Input Voltage: DC 3–13V
Standby Current:
Output OFF: ≤5uA
Output ON: ≤3.5mA
Continuous Output Current: 7A
Peak Output Current: 10A
Magnetic Sensing Distance: 1.0–1.5cm
Power-On State Memory: Retains the previous state if powered back within 10 seconds; resets if over 10 seconds.
LED Indicator: Green light ON when active, OFF when inactive.

SKY RC Set-Up System for 1/8th Off Road cars.

It is designed for precisely measure and set your cars’ camber, toe and steering throw. Also has caster measuring display.

A well-adjusted car will give better performance on track and will help you win races!

Includes;
4x Black measurement gauges for each corner.
1x Toe gauge

Transponder for SKY RC LapWiz.

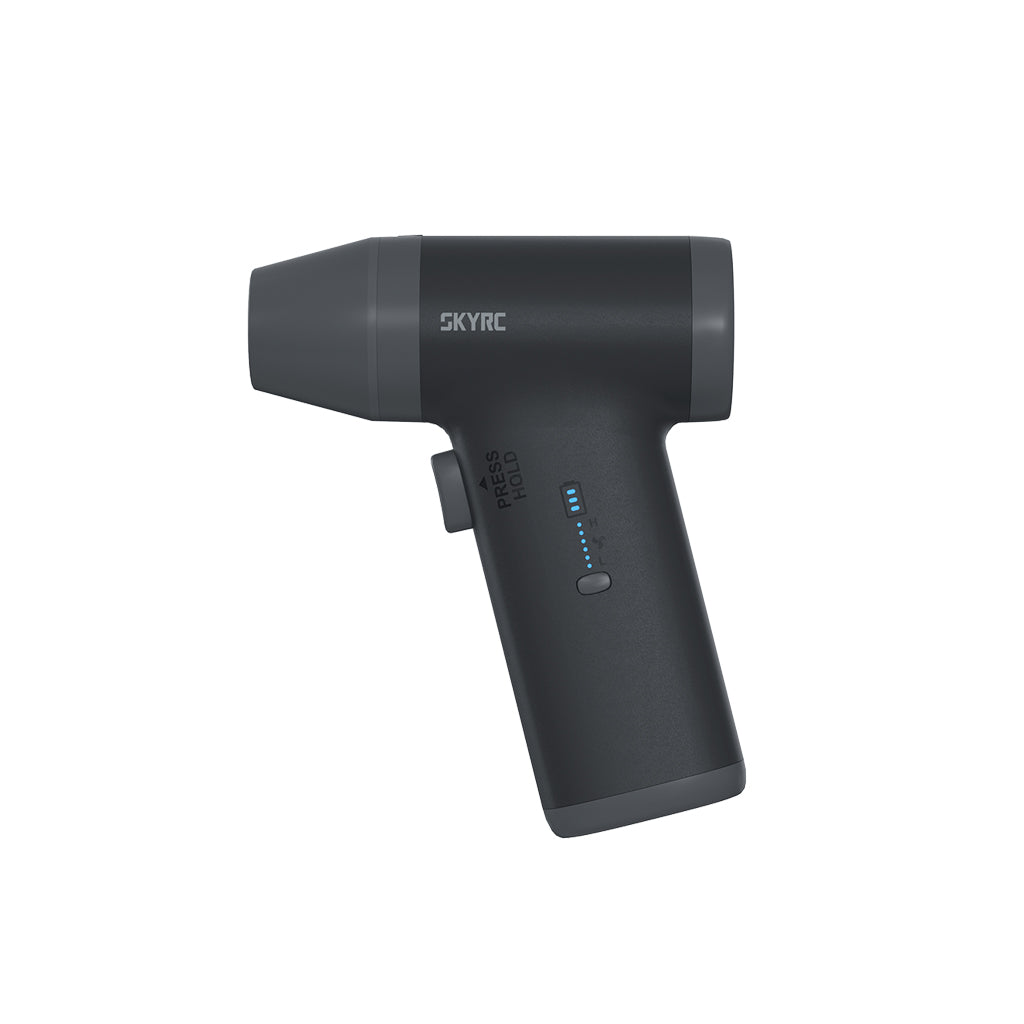

The first cordless air duster engineered exclusively for RC hobbyists.

Powerful, precise, and purpose-built, AirDuster handles everything from clearing chassis dust to cooling down hot motors — your new essential on every pit bench.

8000 mAh High Rate power core.
Dual 21700 high rate lion cells provide stable high output power for sustained performance.

- 80,000 RPM
- Pure Air Power.
- Blow'em Away.
- Driven by an 80,000 RPM high-speed brushless motor, AirDuster delivers a powerful 25 A burst current, unleashing explosive airflow for deep cleaning, rapid cooling, or even snow removal.

Six-Gear Control. Stepless. Effortless.
AirDuster offers six speed levels and cruise mode, powered by an effortless stepless trigger for smooth, precise airflow.

At the Pit. On the Track. In the Pocket. Always Ready.
Compact and cordless, AirDuster slips easily into your pit box or backpack and fires up instantly.

Know Your Power, Instantly.
Nine intuitive LEDs show power and status at a glance:
3 for battery, 6 for speed — clear, race-ready visibility wherever you go.

Safety & Reliability. You Can Trust.
With safeguards against:
• Thermal protection with auto-shutdown
• 0–40 °C operating temperature range
• Rugged construction for pit and track environments
• Rechargeable via 5V 3 A USB-C

Specifications

Size and Weight
Dimension: 145 x 120 x 45 mm
Weight: 340g

TechSpec
Operating Voltage: 2S Li-ion
Operating Current: 30A Max.
Maximum Charging Power: 15W
Battery Capacity: 4000mAh*2
Motor Speed: 80,000 RPM

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 10%–90% RH, non-condensing
Storage temperature: -10°C–50°C
Storage humidity: 20%–65% RH, non-condensing

Introducing the SKY RC BD380+ discharger.

Awaken the wild power of RC batteries and choose SKY RC BD380+.
This device starts as soon as it is connected and automatically performs the discharge operation, eliminating the need for an external power supply.
When used with D200neo and T1000 chargers, it can significantly improve the discharge and charging efficiency of high currents.
BD380 is specially designed for remote control models to help you improve battery performance reaching the pinnacle.

380W/40A/30V performance boost
The high output of 380W can easily cope with the challenge of large capacity; the high current of 40A can achieve fast and accurate regulation. The wide voltage of up to 30V is compatible with a variety of batteries and is the best choice for RC battery management.

Comprehensive with four modes
It is a discharger and a master of battery testing.
The excellent discharge capacity of BD380, combined with SKY RC's exclusive CHARGER MASTER software, monitors the battery discharge curve in real time. Bad quality batteries can be found out.

App support is powerful and intelligent
BD380 has built-in Bluetooth function, which enables convenient battery management through mobile phone App. Users can easily obtain all key data and view them intuitively.Capacity, voltage and power curves.

By connecting with D200neo or T1000 charger, the battery management efficiency is greatly improved.
The app's intuitive graphical interface gives you full control over the charging and discharging process: easily complete detailed capacity testing to ensure your battery is properly charged and discharged.Optimal maintenance and use.
This simplification significantly improves battery health,Reliability and lifespan.

Battery power improved
In RC racing, the battery can significantly improve performance through high current charging and discharging, which is the key to the power of racing cars. The core of force. This process allows drivers to fully unleash the potential of the car, achieve record-breaking acceleration and power, and win the race on the track.

One decoration with many faces
DC power supply performance detector
1. In constant voltage (CV) mode, set the power supply to be tested to outputConnect to BD380;
2. Adjust the current value on BD380 toMatching power specifications1;
3. Start the load and let it run for 3-6 hoursAging test;
If the voltage of the power supply remains stable during the whole process, it indicates that it is reliable.Quality level.

Security upgrade double protection
Built-in protections such as overload, overcurrent and overtemperature protection ensure the safety of the device during operation, preventing damage to the device itself and its connected battery.
Push the limits of performance with confidence!

Powerful yet cool.
BD380 uses advanced cooling technology from high-performance gaming PCs to provide excellent thermal management to prevent overheating.Ensure efficiency.
Equipped with high-efficiency fans, superconducting copper tubes and aluminum fins, it dissipates heat quickly. Real-time temperature control and speed regulation ensure optimal airflow, even at full loadMaintain peak performance.

Color screen
With a tailor-made color scheme optimized for RC charging, you can focus onYour settings.
Web 2.0 style, responsive menu, with scroll wheel and button operation, is more convenient for smartphone-savvy users.Intuitive used.
Say goodbye to old-school typography and hello to bold,Beautiful design.



Multi-language switching
The interface has been carefully designed for easy localization and comfortable operation, and is currently available in English, Dutch, Chinese,Available in French and Japanese*.
Users can easily change the language with a simple click to use the language they are most comfortable with.to charge.
*More languages will be released soon!

Specifications
Size and weight

Shell material: PC-ABS V0
Size: 159.7*110*121.6mm
Weight: about 1100g
show
Panel type: TN
Size: 1.77 inches
Viewable area: 43.20*57.60 mm
Resolution: 240x320 pixels
Number of colors: 262K

Power supply
DC power input: 3-30V
Discharge power: 380W MAX
Battery plug interface: XT60
Discharge: 0.3A-40.0A

Operating mode
CC constant current: 0.3-40.0A
CR constant resistance: 1-100Ω
CP constant power: 1-380W
CV constant voltage: maximum power 180W, please do not connect the battery to start this mode

Work and storage
Working temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: 10℃-70℃
Storage humidity: 0%-75%

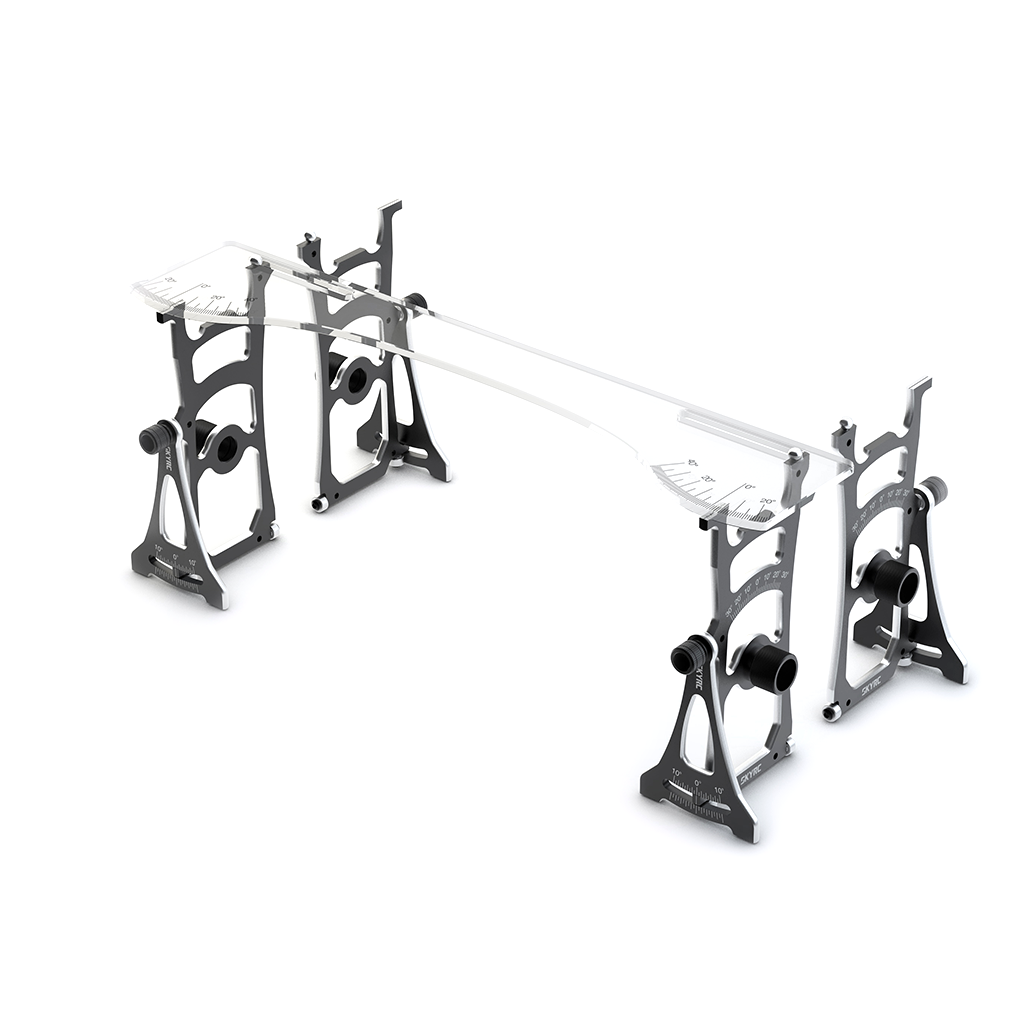

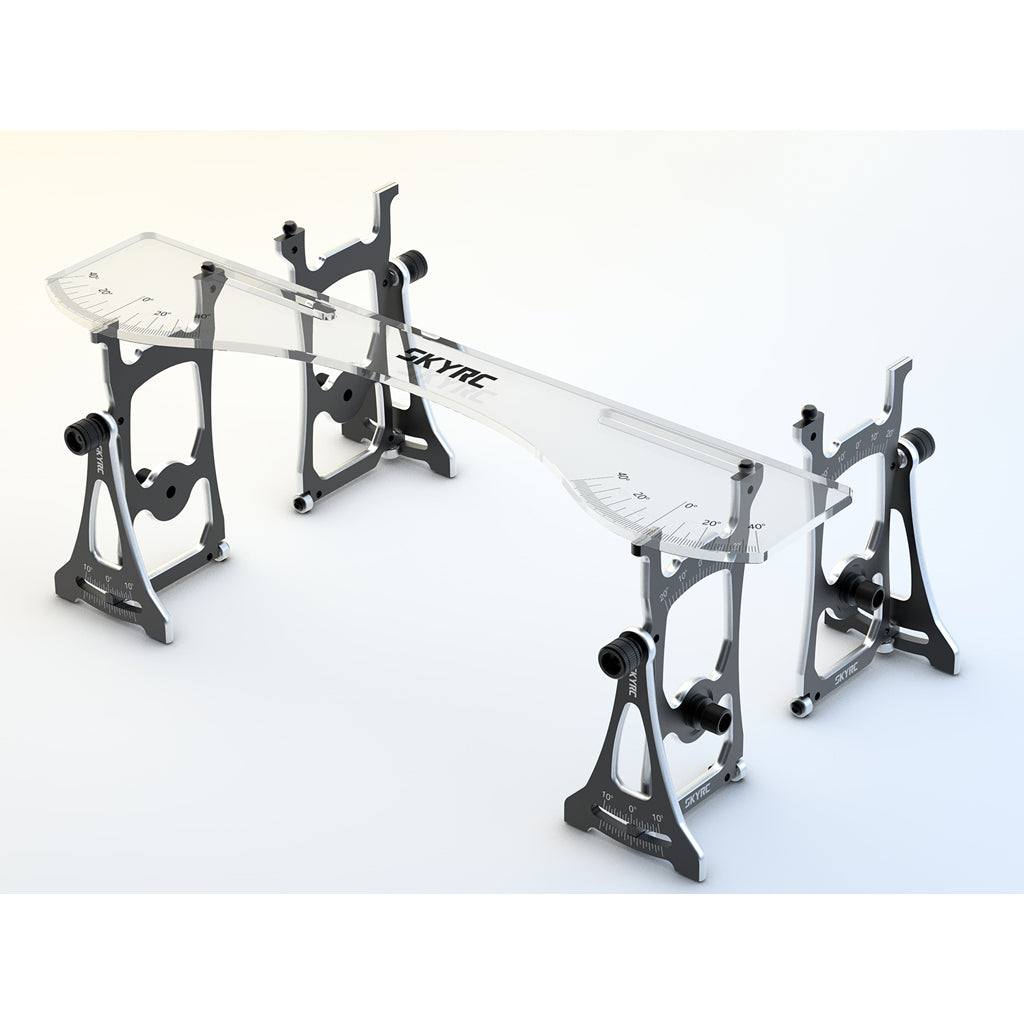

SKY RC set-up system fits all 1/10 Off Road cars.

It is designed to precisely measure and set your cars’ camber, toe, steering lock and has caster markings.

A well-adjusted car will show a great performance on track and help you win races!

Available in anodised Blue or Black.

Supplied in a nice carry case.

Introducing the SKY RC BD250 Discharger.

Giving upto 250W / 35A of discharging power in a stand alone unit.

SIMPLE, ROBUST, AND POWERFUL

Upgraded from BD200, BD250 is not only a powerful discharging device but also a precise measurement tool for battery capacity. It takes the guesswork out of choosing the good-performance battery for your application. BD250 offers a maximum of 250 Watts/35 Amps to discharge your battery and will test virtually any battery type or size, any chemistry cells. It's stylish but small with a high-performance cooling system and uses MOSFETS from the well-known IXYS, to make sure it can discharge at 250 watts continuously.

Battery Discharger & Analyzer

It displays real-time battery voltage, discharged capacity and discharge current.
It can test battery capacity that helps select batteries with the desired capacity.
It saves time when users wish to store their large capacity batteries.
It helps activate the best performance of your batteries for competition.

Specifications

Size and Weight

Dimension: 136.6x104.8x107mm
Weight: 879g

Power

Accepted Voltage Range: 5.40-35.00V (Not suitable for 1S LiPo's)
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W

Discharge

Discharge Current Range: 0.01A-35.00A
Discharge Power: 250W

Includes; discharger, discharging cable with XT60 connector, spare fuse and instructions.

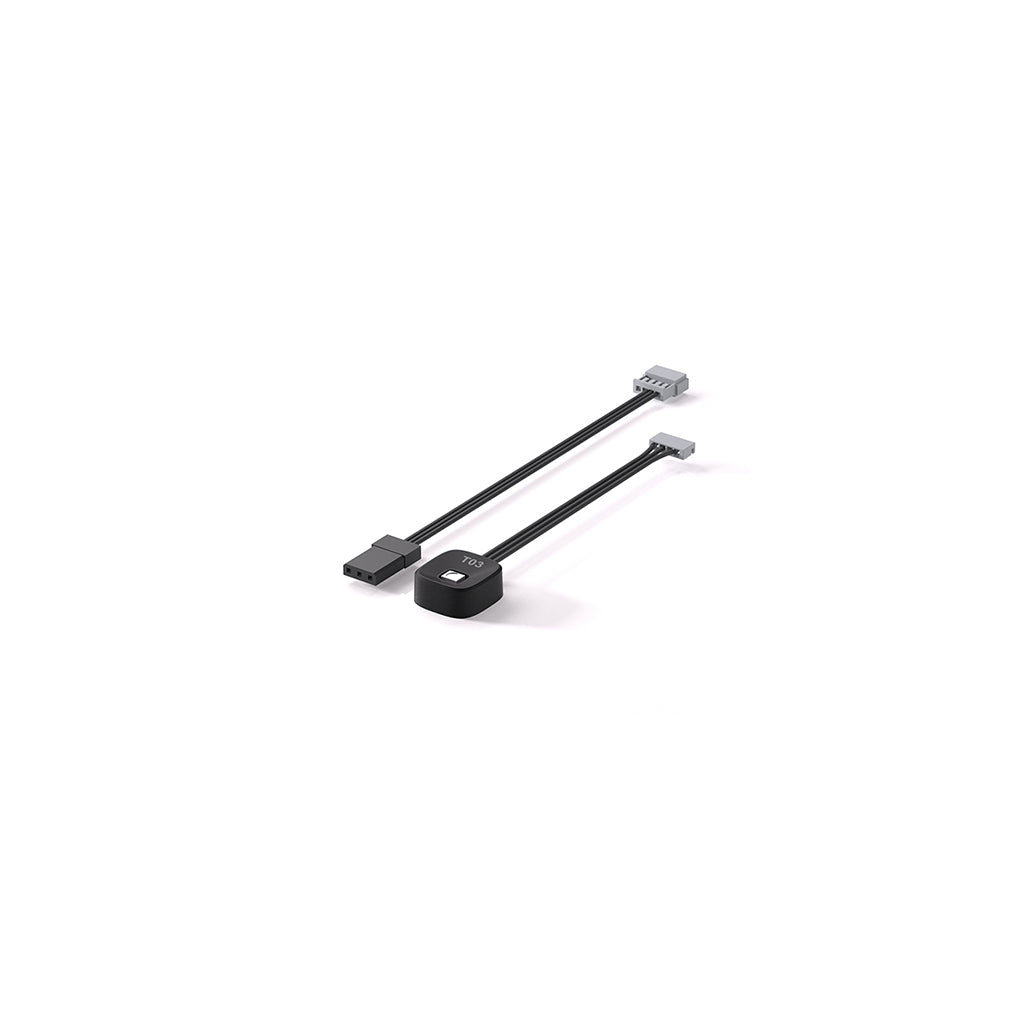

Transponder for SKY RC LapWiz.

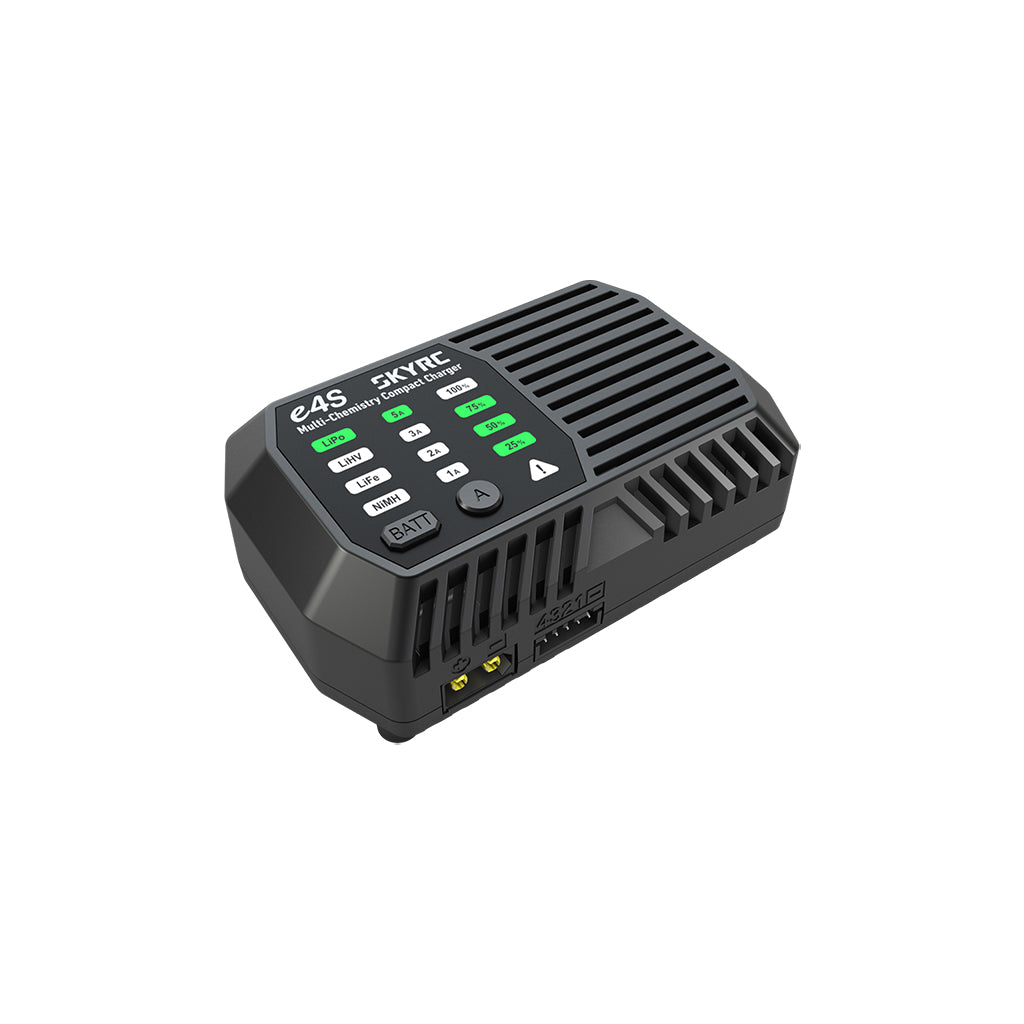

Legacy Evolves. To Excel.
Once again, e4S evolves inside and out—built on the iconic e450.
Delivering 60 W of power and up to 5 A of charging current, the charger pairs simple button control with a refined algorithm for effortless precision.
Designed for 2-4 S LiPo and 6-8 S NiMH batteries, e4S keeps the legacy alive—stronger than ever.

Stronger Current. Charge Ahead.
The all-new e4S charger delivers up to 60 W of power and 5 A of charging current.
Charge faster, more efficiently, and stay ready for every flight, every run, every race.

Versatile for Multi-Chemistry. Do More with One Charger.
e4S charger is expertly crafted to manage multiple chemistries with precision and ease:

LiPo: Lithium Polymer High-performance energy for demanding tasks
LiHV: High Voltage Lithium Polymer Extended capacity with high-voltage efficiency
LiFe: Lithium Iron Phosphate Rugged durability and unmatched safety
NiMH: Nickel Metal Hydride Unsurpassed safety and long-lasting cycle

Universal Voltage. Worldwide Charging.
e4S charger works effortlessly within a 100V to 240V range, adapting to power standards worldwide.
Wherever you go, it’s ready to keep you powered up.

Colour LEDs. Charging Status Visualized.
The e4S charger’s colour LED indicators provide a clear, intuitive way to track charging progress.
Effortless and seamless, monitoring has never been easier.

Specifications
Size and Weight

Case Material: Plastic
Case Size: 110x70x38mm
Weight: Approx. 169g

Power
Input: AC 100V-240V 50/60Hz
Charging Power: 60W

Battery
Battery Types/Cells:
LiPo/ LiHV/ LiFe: 2-4S
NiMH: 6-8S

Charge
Charging Current: 1A/2A/3A/5A
Balance Current: 500mA MAX

Cut-off Voltage
LiPo: 4.20V
LiFe: 3.65V
LiHV: 4.35V

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 0%-75% RH (Non-condensing)
Storage temperature: -10℃-70℃
Storage humidity: 0%-75% RH (Non-condensing)

Introducing from SKY RC the SKY RC Q500neo AC/DC Charger.

Four independent output ports allow simultaneous charging of multiple batteries.  From drone soccer to FPV and track racing, reduce downtime and stay ready to run.  1.5A balancing current and ±0.01V precision ensures stable performance.
Control, without effort.

Highlights at a Glance

- Dual AC/DC Input
- 500W Charging on AC
- 1000W Charging on DC
- Four Independent Ports
- Up to 25A per Port
- Smart Power Distribution
- Arm Cortex-M33 Control Core
- Digital Power Supply Mode
- Intelligent Fan Control
- HyperBoost Algorithm
- PD 3.0 @ 100W
- Intuitive User Interface
- Flip Display
- Multi-Language
- Colour X Display

25A per Port.Fast, Stable.
Each port supports up to 25A of charging current, making it suitable for more demanding battery setups.
It works well with both high-capacity batteries and higher-load applications, while maintaining stable and efficient performance.

Speed and stability, combined!
Dual AC/DC Input. Flexible for Every Setup.
Supports AC and DC input for easy switching across different scenarios.
Delivers stable, reliable performance—whether for everyday use or high-load applications, indoors or at the track.

Outsized Performance
Compact in size, powerful in delivery.
Behind its performance is a high-performance Arm® Cortex®-M 32-bit processing core, keeping charging control precise, responsive, and stable—even during high-power operation.
Serious power, packed into a compact footprint.

Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.

Do More With One Charger! Multiple Chemistries Go.
With exceptional versatility, Q500neo can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
Unlock the full potential of your battery arsenal with Q500neo– versatility multiplied capability.

Reverse Discharge Power on the go. Smarter. Greener.
Discharge your battery at up to 500W—and put that energy to work.
Exclusively between ports A and B, Q500neo transfers unused energy from one battery to another, maximizing efficiency and reducing waste.
Whether at the track, in the pit, or on the move, RC enthusiasts now have a cleaner, smarter, and more flexible way to stay powered up.
A small shift—with a big impact on how you manage energy.

So. Pro. So is Digital Power
Q500neo excels not only in charging, but also as a versatile quad output digital power supply.
With just a few clicks on the menu, Q500neo offers a voltage option, from 1.0V to 30.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.1A to 25.0A, with a precision of 0.1A.
This Dual output digital DC power supply provides two independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.

PD 3.0 @ 100W Power Anywhere. Anytime.
From powering RC gear to extending playtime on Nintendo Switch, to charging the latest MacBook Pro, and everything in between, including phones, tablets, and earbuds.
Q500neo doubles as your ultimate 100W PD charger, built to keep up with every moving need.




Specifications

Size and Weight

Case Size: 146x123x88mm
Weight: Approx.1206g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Power
AC: 100V~240V（50/60Hz）
Input：9-36V

Charge Power:
AC: 500W
DC：1000W

Discharge Power:
Main Port: 10W
Balance Port: 24W Max
Battery Types/Cells:
LiPo/LiFe/Li-ion/LiHV: 1-6S
NiMH/NiCd: 1-15S
Pb: 3S/6S/12S
Charge and Discharge
Charge Current
LiPo/LiFe/Li-ion/LiHV:
A/D Port:
0.1A~0.5A（±0.1A）
0.6A~15A（±10%）

B/C Port:
0.1A~0.5A（±0.1A）
0.6A~25A（±10%）

NiMH/NiCd:
0.1A~0.5A（±0.1A） 0.6A~10A（±10%）

Pb:
0.1A~0.5A（±0.1A） 0.6A~15A（±10%）

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 2.0A

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)

Be Seamlessly Perfect For Your Next Race !

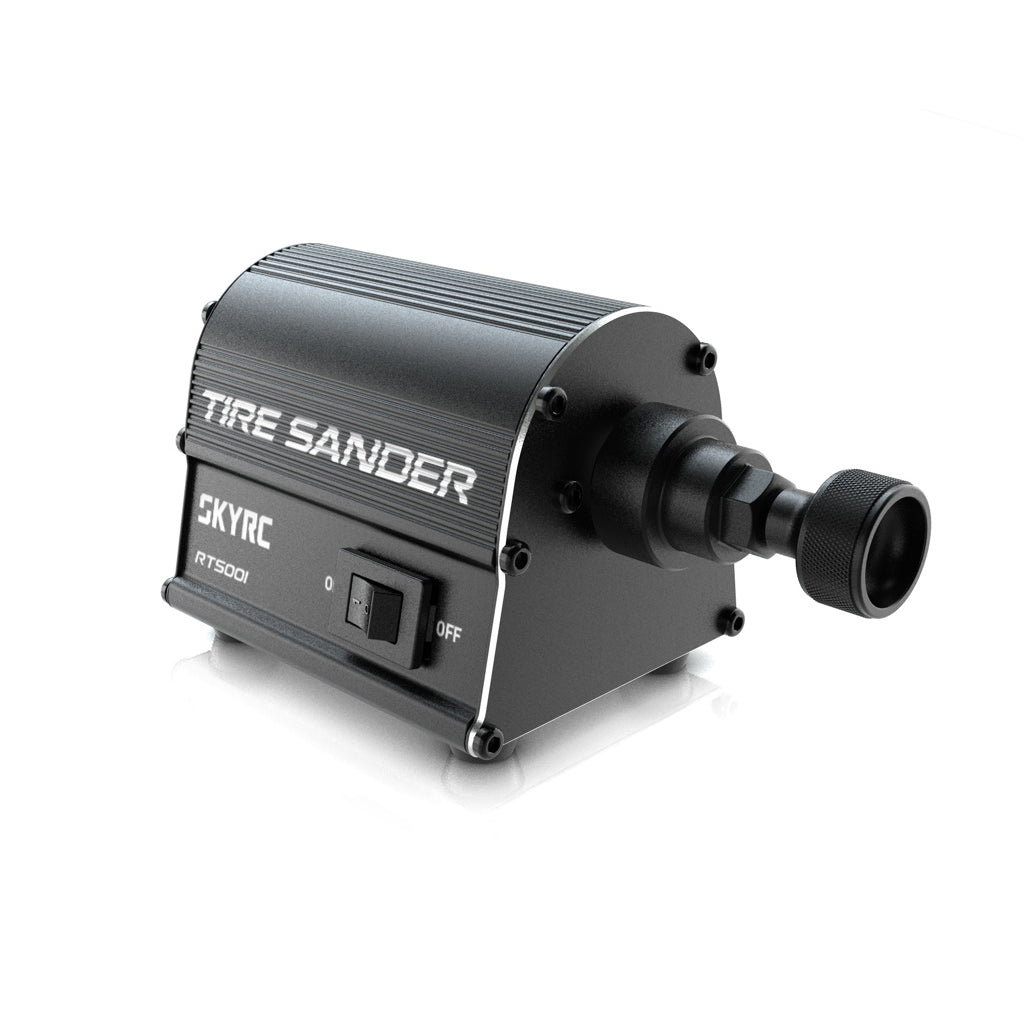

RTS001 TIRE SANDER
Finally, SkyRC introduces the lightweight Rubber Tyre Sander to our seasoned racing drivers.
To remove the seam from the centre of a new tire, RTS001 is a quick and effortless alternative to skip taking 2-3 laps around the track.

Compact & Portable
7.2V-12V DC Input
Powerful DC motor

Watch your Tyre
When it comes to RC racing, so many factors can contribute to the handling and performance of the vehicle.
But one thing we usually pass on is the most obvious on the tyres. When looking at a brand-new touring car tire, you’ll see a molding line running right down the center. This line is called the seam, which can cause the car to have inconsistent handling. If you’re looking for every ounce of performance, this seam needs to be removed, so your car is 100% awesome right off the bat!
After removing this seam, most RC touring cars will benefit from a slightly wider and more static tire grip on the track surface, benefiting the turns and reducing rollovers.

Re-engineered With Passion
In an incredibly compact aluminum enclosure, this Tyre Sander is high-precision mechanically upgraded with double bearings.
This pure copper-winding motor can drastically reduce vibration, bringing smooth and quiet operation.

- Easy to use
- Rubber tyre sander for touring class
- Quiet operation
- 7.2V - 12V DC Input
- Powerful high torque DC motor with dual bearings
- Lightweight aluminum case

Compact & Portable
The compact, ultra-lightweight design is easy to carry, can be used with one hand.

7.2V - 12V DC Input:
Universal Voltage to RC Players
The sander can be powered by an adjustable 12V power supply or a 2S LiPo battery in the RC field.
In some scenarios, you can switch the polarity to get the motor to rotate in different directions.

Size and Weight

Dimension: 138x73x70mm

Other Parameters

Case Material: Aluminum
Input Voltage: DC 7.2V-12V
Weight: 581g

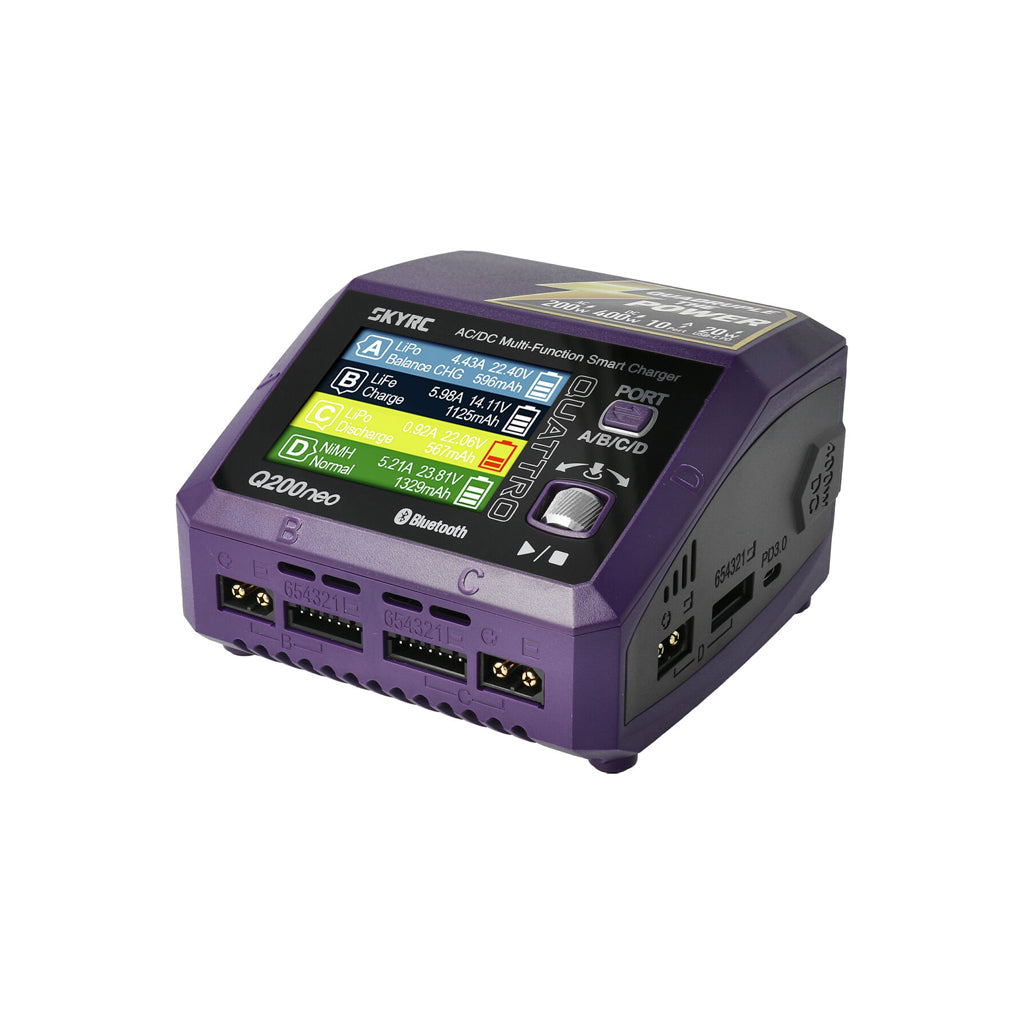

Introducing the SKY RC Q200neo AC/DC Charger.

Quadruple the Power: Impressively Powerful, Impossibly Accurate!
Experience a revolutionary charging process tailored for RC enthusiasts with the SkyRC Q200neo charger, boasting four impressive charging ports.
This advanced powerhouse redefines convenience by enabling four simultaneous charging of multiple chemistry batteries and powering with dual AC/DC input.
It delivers a remarkable total power of up to 400W with up to 10A per port. Additionally, it accelerates the balancing process among battery cells with an 800mA balancing current per cell, significantly enhancing the overall charging efficiency. The built-in high-precision balancer ensures exceptional accuracy with a remarkable voltage equalization optimization of ±0.02V.
Whether you're a seasoned professional or a passionate hobbyist, Q200neo guarantees that your batteries will always be ready to power your thrilling RC adventures.
Bid farewell to downtime and embrace the limitless potential of your RC pursuits with the SkyRC Q200neo charger.
Let the thrilling begin!

Qute Yet Mighty: Unleash Power on the Go!
Qute /kjuːt/. adjective
possessing quadrupled power or capabilities while having an appealing, cute shape or appearance.
It is used for concepts of power and cuteness.

Q200neo packs outrageous performance, 4 independent ports, and AC/DC dual input into an unbelievably compact footprint, 60% smaller than its predecessor, Q200.
Whether you need to power up your RC car, fly a drone, or use ChatGPT on your new Mac, Q200neo has you covered!

Hero Meets Hero. This is the charger made for you—the pro!
Innovation in Indigo: Immerse yourself in the cutting-edge with the SkyRC Q200neo, now available in a captivating indigo color.
Inspired by Silicon Valley legend SGI, who famously adopted indigo for their iconic products, this vibrant hue represents innovation and pushes the boundaries of what's possible. You're not only choosing a color, but also joining a lineage of trailblazers who refuse to settle for mediocrity.

Do More With One Charger!  Multiple Chemistries Go.
With exceptional versatility, Q200neo can charge a wide range of battery chemistries. This powerhouse can charge from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
You are turbocharging your time with a single charger that can handle multiple battery types.
Whether you're an RC guru, a beginner, or somewhere in between, Q200neo is the reliable and adaptable choice that ensures optimal performance for all your batteries.
Unlock the full potential of your battery arsenal with Q200neo – versatility multiplied capability.

Dual AC/DC Input: Efficient. Beyond.
Q200neo is designed to provide RC enthusiasts unparalleled flexibility in the garage or out in the field. You have the freedom to choose between AC or DC input based on your specific scenarios.
In AC mode, the charging power reaches an impressive overall 200W, dynamically distributing to each port. When powered by DC, the charger unleashes its true potential, offering an astounding overall 400W of charging power. With a single port capable of reaching up to 100W, you can power up your batteries with remarkable speed and precision.
Whether you are a beginner or a seasoned RC guru engaging in racing, Q200neo ensures efficient charging and optimal performance for your RC batteries.

Smart Power Distribution Seamless Charging Flexibility.
Under AC input, when a single two ports are in use, Q200neo will provide maximum power output to that specific ports. The charging power is distributed dynamically and intelligently when all four ports are simultaneously in use.
Once a particular port has completed its charging task, the remaining port(s) will receive increased power for faster charging. This intelligent and efficient allocation of power ensures optimal utilization at all times.
The charging capabilities of Q200neo are highly flexible, allowing for versatile charging options.

Unmatched Charging, Impressive Discharging.
This cutting-edge charger not only offers efficient charging but also provides impressive discharging functionality. The built-in balance port enables Q200neo to discharge faster, allowing it to discharge at up to 25W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to 5W.
Whether you need to prepare your batteries for storage, balance their voltage levels, or safely discharge them after use, the Q200neo is there for you! This advanced discharging feature allows you to maintain the health and longevity of your batteries by precisely controlling the discharge process.

So. Pro. So is Digital Power
Q200neo excels not only in charging, but also as a versatile quad output digital power supply.
With just a few clicks on the menu, Q200neo offers a voltage option, from 1.0V to 30.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.1A to 10.0A, with a precision of 0.1A.
This quad output digital DC power supply provides four independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.

20W PD 3.0 Port. Energize with Rapid Power Delivery!
With the 20W USB-C PD 3.0 charging port, our RC players can enjoy rapid charging speeds like never before. Whether you're charging your smartphones, tablets, or 2020 MacBook Airs, this powerful port ensures that you can fuel up your devices in a fraction of the time.

Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit.
The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.

Charge It Cool.
Within the sleek enclosure lies a groundbreaking thermal system designed to let Arm Cortex-M4 fly through heavy workloads at screaming-fast speeds — and stay whisper quiet. The fan will adjust the speed accordingly and dissipate heat more effectively according to the different power usage.

Charge in Your Language
ColorX is designed to be easily localized and comfortably engaged. The interface is currently available in English, Dutch, Chinese, French and Japanese*. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.

Universal Voltage. Travel On the Go.
With the universal-voltage input circuit, you don't need to hassle finding a voltage converter between 110V and 220V while traveling around!

Enhanced Protection, Assured Safety.
The SkyRC Q200neo charger is built-in with several essential safety features ensuring optimal charging safety.

Rectifier Circuit Efficiency Multiplied.
The Q200neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.

Smart Charging at Your Keyboard or Fingertips
Connected effortlessly to your charger via the versatile Type-C port or through the convenience of Bluetooth, Q200neo can be controlled by Charger Master on PC, Mac or smartphone.
Whether you're at your keyboard or on the go, our charger puts the power in your hands.
The app empowers you to take complete charge of your charging experience.
From adjustable charging rates to battery health monitoring, you can customize every aspect of the charging process to ensure optimal performance and battery longevity.
Don't settle for ordinary boring charging. Take charge. Power up!

Stay Updated, Always!
Upgrading your charger is now easier than ever. With the Charge Master app, you have two convenient options: Connect your charger to the app using the Type-C port for a fast and reliable upgrade experience. Alternatively, you can perform an Over-The-Air (OTA) update directly through the built-in Bluetooth functionality. Whichever you prefer, upgrading your charger is a breeze.
Experience flexibility and compatibility with the Charge Master app, available in four flavors: Mac, Windows, iOS, and Android!
Stay connected, stay updated, and you deserve a happier charging experience.

We are Certified, We are Qualified!
Our products are designed, tested, and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility, and other regulatory compulsory requirements.
They are intended for use in accordance with their designated purpose.

Specifications

Size and Weight

Case Material: PC-ABS V0
Case Size: 123*119*78mm
Weight: 680g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K

Power
DC Input Voltage: 10-30V
AC Input Voltage : 100-240V

Charger power:
AC: 200W MAX
DC: 400W MAX

Discharge power:
Main port: 5W
Balance port: 25W MAX (LiPo/6S)

20W USB-C Power Delivery:
QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W
PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A 20W

DC Power Supply
Output Voltage: 1.0-30.0V
Output Current: 0.1-10.0A
Output Power: Max. 100W single port
Battery
Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 2-15cells
Pb: 3S/6S/12S
Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-10.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

Balance current
LiPo/LiFe/LiIon/LiHV：800mA MAX

Operation
LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage Discharge
NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Discharge
Pb: Charge, AGM Charge, Cold Charge, Discharge

Replacement cups for the SKY RC neo tyre warmer.

Imax B6 Mini Charger 6A 60W DC

-Compact size
-Terminal voltage control
-Re-Peak mode for NiMH/NiCd Battery
-Battery meter
-Battery internal resistance tester
-PC Communications: USB Port for PC Control & Firmware Upgrade
-Smart phone control and monitor via Wifi module (SK-600075 Optional Part)

Specifications

DC Input Voltage - 11-18v
Charge circuit power - 60w
Discharge circuit power - 5w
Charge Currunt - Max 6A
Discharge current - 0.1-2A
Lipo/Life/Lilon Battery cell count - 1-6S
NiMH/NiCd Battery cell count - 1-15s
Pb battery - 1-10P (2-20v)
Dimension - 102x84x29mm
Weight - 231g

Instruction Manual

Includes DC input lead with crocodile clips. XT60, deans, crocodile and JST charge leads.
