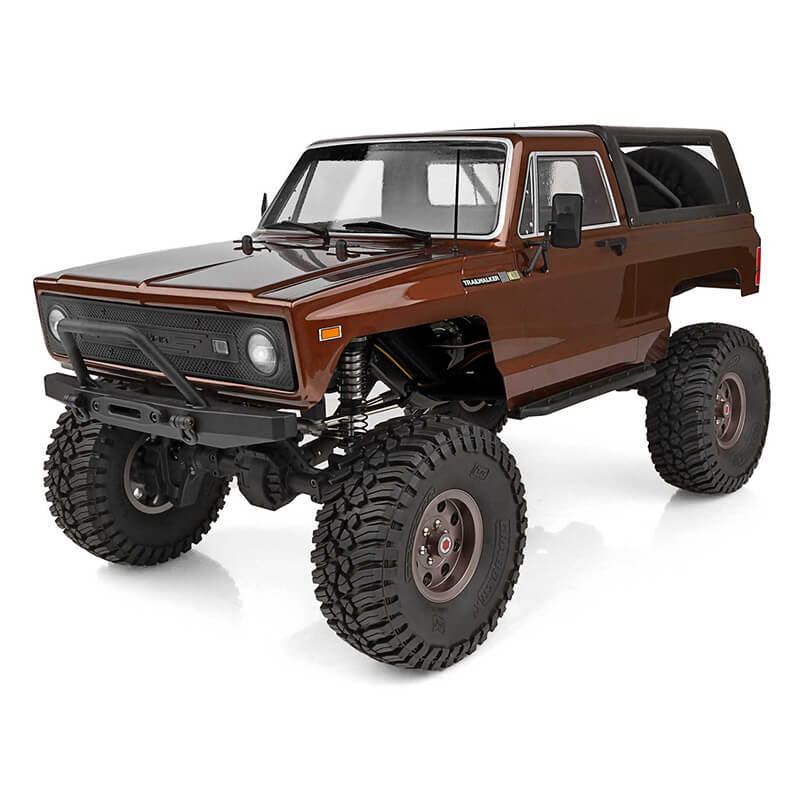

ELEMENT RC BY ASSOC. ELECTRICS - ELEMENT RC ENDURO TRAILWALKER PORTAL AXLES TRAIL RTR - EL40131

A performance rig built to endure.

When hitting the trail, you want to do it with confidence and the answer is the Enduro Trailwalker Portal Plus Trail Truck!

The Trailwalker Portal Plus RTR features new high-clearance portal axles. These new portal axles include all-metal gears, ball bearings, and a new larger pocket for a heavier-duty inner input bearing. With almost an inch more clearance than our standard straight axles, these axles are a perfect fit for the Enduro line-up.

The Enduro Trail Truck comes ready for adventure right out of the box, with performance-driven electronics. The ultra-smooth and powerful 14-turn 5-slot brushed crawler motor is matched with a 2-in-1 electronic speed controller and receiver. Controlling the beast on the trail is a 4-channel 2.4GHz radio and Reedy Power high-torque metal gear servo.

With all this packed in one box, we know the Enduro Trail Truck is ready for the trail – Are you?

Chassis Features

• BTA steering & Aluminium steering plates: Behind-the-axle steering provides better approach angles, more clearance, and a cleaner look. Bolt-on aluminum steering plates allow for more adjustments, strength, and future modifications.
• Integrated servo winch mount: Mounting a winch directly to the chassis is the strongest and most reliable spot on any trail rig. Positioned alongside the steering servo for overall chassis balance and weight distribution.
• Threaded Aluminum shock bodies: Threaded aluminum and fluid-filled, these shocks keep the vehicle stable on the trail and retain oil even in the roughest terrain.
• Reedy Power crawler motor: The Reedy Power 5-slot
  14-turn brushed crawler motor provides ample torque with a smooth power delivery. This allows for slow, precise acceleration while maintaining consistent power over rough terrain and obstacles.
• RX-21 2-in-1 esc/receiver unit: This RTR comes equipped with a 2-in-1 water-resistant brushed electronic speed control (ESC) and receiver unit with on and off switch.
• optional gears: If more underdrive is desired, we also offer an optional Factory Team 12/23 gear set (sold separately) with approximately 36% underdrive for serious rock crawler addicts.
• Portal Axles: When it comes to rock crawling, ground clearance is crucial. That’s why the Trailwalker Portal Plus RTR includes our all-new high-clearance portal axles. With almost an inch of added center axle clearance, over standard straight axles, getting over tough obstacles is a breeze. To battle the massive amount of torque inherent with portal axles, we not only utilize metal gears throughout, but also use six screws to hold the portal gear boxes tight. With that many screws it means a stronger portal box and less chance of gears pulling apart under heavy loads.
• Stealth® X: Included is our performance-proven Stealth® X transmission that features the ability to adjust the rear drive ratio. In the box you get the standard 5.7% and 11.83% gear options. Paired with our all-new portal axles with zero percent underdrive, this is the perfect mild setup for the average crawler. If even more underdrive in the rear is desired, an optional 12/23 tooth gear set (#42373) is available separately for an additional 36% overdrive from axle-to-axle alone!

Additional Features

• NEW high-clearance portal axles
• NEW spare tire mount and cover
• NEW led buckets front and rear
• CMS (Chassis Mounted Servo)
• Adjustable front track bar
• Universal front drive axles
• Stamped steel frame rails
• 12mm wheel hexes
• Adjustable front bumper mount
• Two battery boxes
• Aluminum motor plate
• Adjustable body posts
• Adjustable rear shock tower mount positions
• Universal front and rear drive axles
• Splined front axle with adjustable caster
• Increased inner axle input bearing size
• Aluminium steering plates
• Optimized ball cups for more fluid axle articulation
• Telescopic driveshafts front and rear
• Extruded aluminum driveshaft splines
• Machined input pinion gears
• Metal ring gears
• Machined steel top shaft
• Metal ball bearings included
• Steel 25T servo horn

Body Features

All in the details. No trail truck would be complete without a detailed and realistic looking body. The Trailwalker Portal Plus RTR is just that, with inspired styling from the 70s and 80s.

The Trailwalker Plus comes equipped with a high-strength polycarbonate body that has been pre-painted with a glossy metallic finish. This body was designed for both looks and function, featuring a single-piece design with detachable bed topper, roll bar, injection-molded bumper and D-rings, windshield wipers, faux spare tire mount with cover, folding mirrors, and front grille.

The Trailwalkers pivoting side mirror design reduces the risk of losing mirrors while on trial. Drive your rig with confidence knowing it can handle navigating through tight, technical rock features.

Out of the box, the Trailwalker Portal Plus is ready to tackle the elements – your journey begins here!

Officially Licensed Wheels and Tyres: Gripping the trail is a set of officially licensed General Grabber™ X3 tyres molded in a high-performance, soft compound rubber. The General Grabber™ X3 tyres are mounted on bronze Ocho beadlock wheels. No more worrying if your RTR tyres will come unglued.

Additional Body Features

• Trailwalker body thermoformed in high-strength polycarbonate
• Thermoformed bed topper
• Single-piece body with roll bar
• Clear windows
• Molded grille, antennas and action camera
• Replaceable headlight lenses
• Pivoting side mirrors
• Removable injection-molded fairlead
• Realistic styling
• Licensed 1.9”x4.65” General Grabber™ X3 tyres

Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Ready-To-Run*
Length: 462mm (18.19in)
Width: 260mm (10.24in)
Wheelbase: 313mm (12.32in)
Weight: Varies
Internal Gear Ratio: Varies
Drive: 4WD

*Please Note: This vehicle is fully assembled and ready to run right out of the box, but does require a battery and charger.
