Motors & ESCs & Accessories

FTX VANTAGE / CARNAGE / OUTLAW / BANZAI ESC WATERPROOF BRUSHED



An affordable brushed ESC that is used in the FTX Vantage/Carnage/Outlaw and Banzai.

This ESC is setup in a simple way for ease of operation. When the ESC is switched on it automatically searches for the neutral point. When the automatic setup is finished the motor sends out “Do” “Re” “Me” indicating the neutral point is set and it is ready to be operated.

The ESC has 2 programmable running modes and a Low voltage protection mode that can be enabled for LiPo batteries.

FTX Vantage/Carnage/Outlaw/Banzai Brushed WP ESC Features:

• Waterproof protection
• 5-6 cell NiMH compatibility
• 7.2-7.4V 2S Li-Po compatibility
• Li-Po Safety cut off when less than 6V
• Thermal Protection: When more than 90°C
• BEC Output: 5.6V 2A
• Small foot print for easy mounting
• Dimensions: 30mm x 28mm x 22mm
• Weight: 38g

This excellent value ESC comes with a Deans-style connector and a Deans-Style-To-Tamiya adaptor lead, so is suitable for use in almost any brushed motor application.  These are branded Tamiya-Carson as they are ESCs that are currently arriving in some Tamiya kits (due to Tamiya not being able to source their own ESC due to chip shortages).

SPECIFICATION AS FOLLOWS
Forward: Continues/Peak current 70A/360A
Backward: Continues/Peak current 40A/180A
Battery type: 2-3s Li-Po, 5-9 cells NiMH
Type of Model: 1:10 / 1:12 / 1/16 - ON Road, OFF Road, Boat
2s Lipo or 6 cells NimH: 540, 550 motor lowest 18 turn with 30000 rpm @ 7.2v
BEC Output Voltage: 3A/6v
Size: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
Mode: Boat, Forward/Backward, Crawler
Sealing: Waterproof (Splash, Rain)

This ESC appears to be a Hobbywing 1060 unit rebranded.

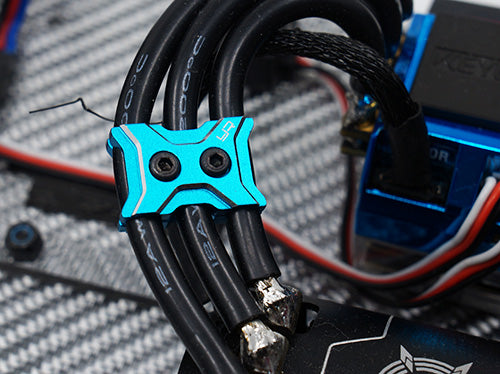

Wire Clamp from Yeah Racing for keeping the wires on your car neat and tidy, this wire clamp will be able to fit wire sizes ranging from 12 to 14 gauge. Features three slots for motor wires and you can use two if you wish to use this item for organizing battery connection wires! The two halves are secured together with two cap 1.5mm Cap screws which keep this clamp secure whilst keeping a low profile!

Feature:

• For: 14-12 Gauge Wire
• Material: Aluminum

Include:

• Yeah Racing Aluminum Case 12-14 Gauge Wire Guard Clamp Type A (1 pc)

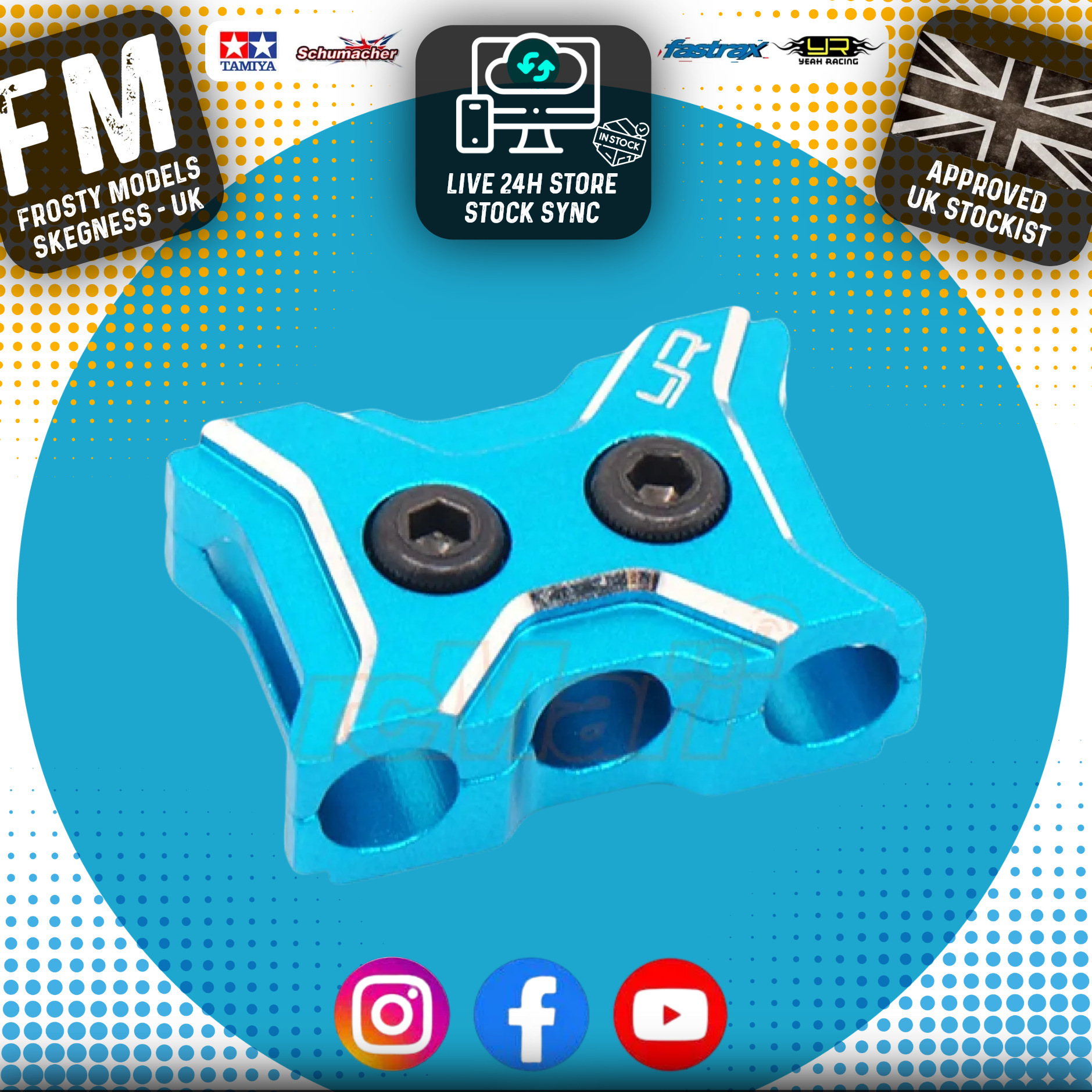

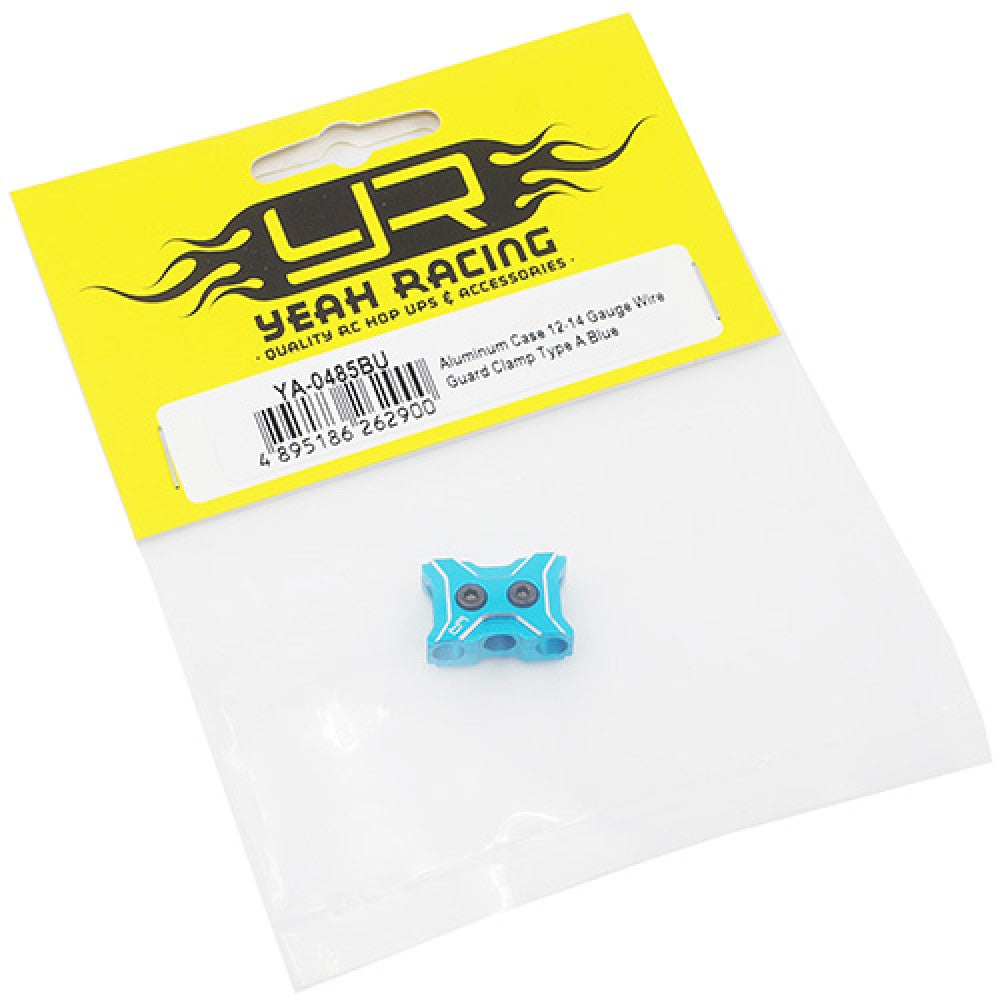

Yeah Racing Aluminum Case 12-14 Gauge Wire Guard Clamp Type A Blue

Description:

Wire Clamp from Yeah Racing for keeping the wires on your car neat and tidy, this wire clamp will be able to fit wire sizes ranging from 12 to 14 gauge. Features three slots for motor wires and you can use two if you wish to use this item for organizing battery connection wires! The two halves are secured together with two cap 1.5mm Cap screws which keep this clamp secure whilst keeping a low profile!

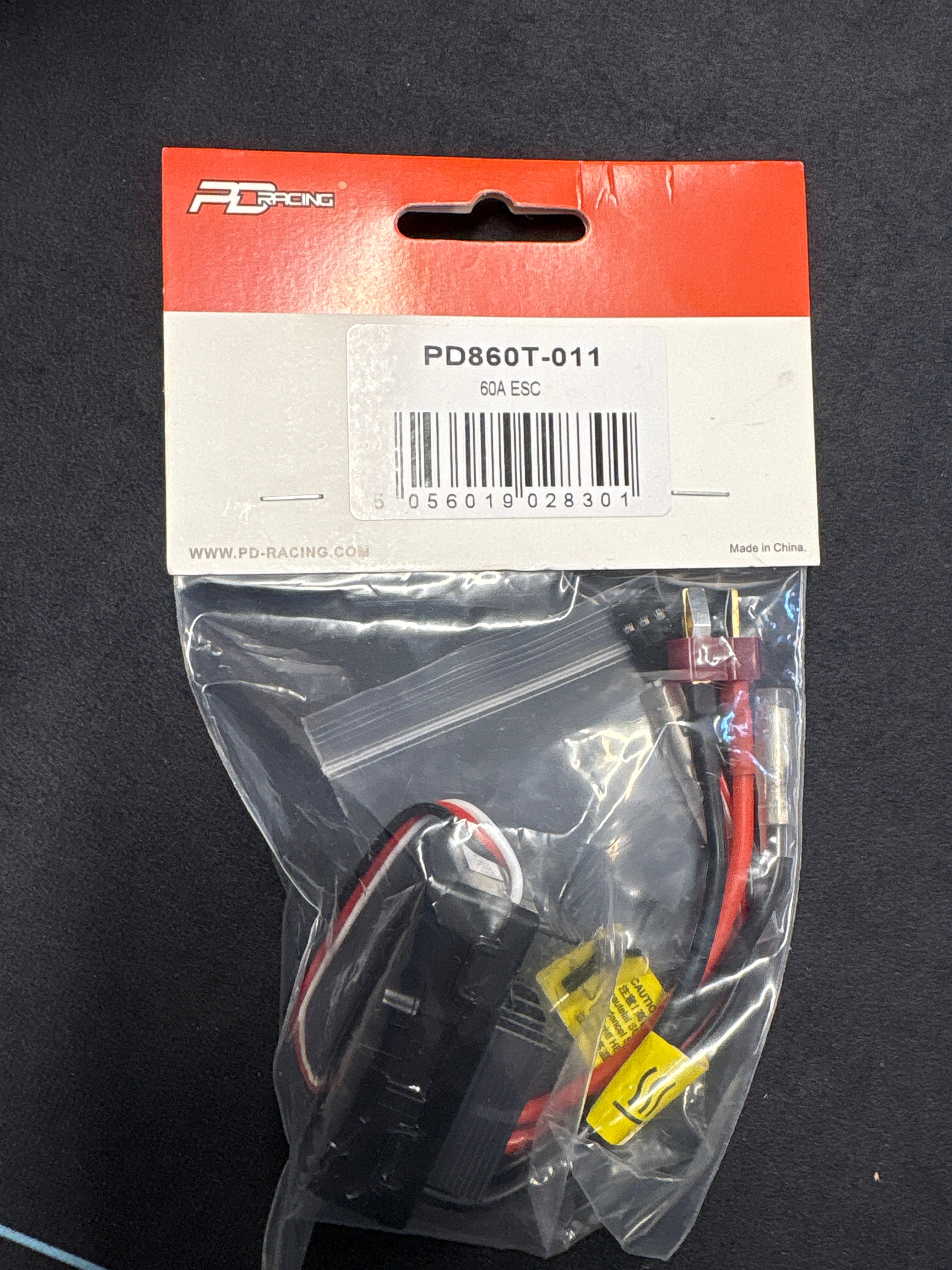

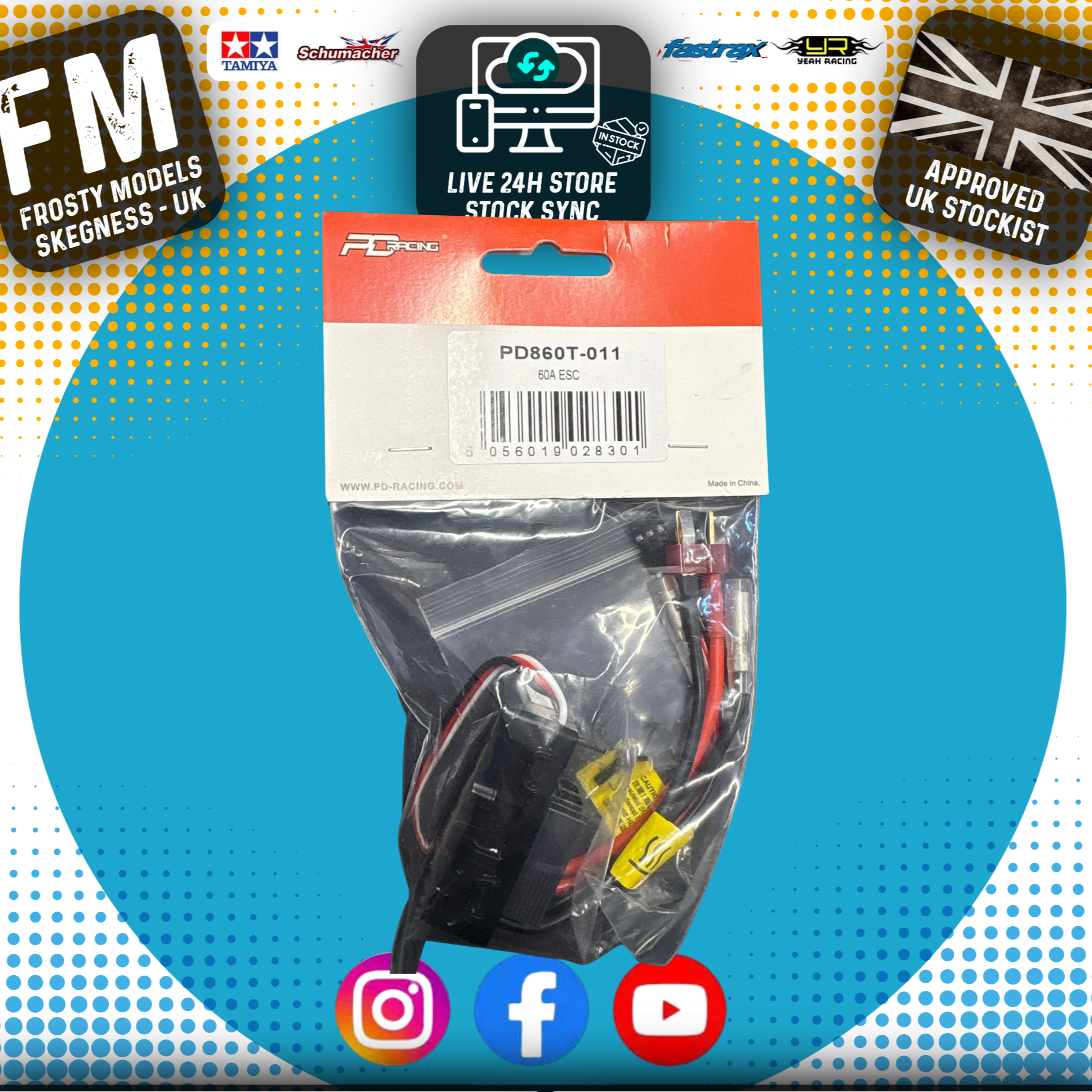

60A - Fitted with deans pug and standard motor wires - plug and play device

Replace parts to the original motor gear/pinions for Tamiya car

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P 19T (1 pc)
• Set screw (1 pc)

Replace parts to the original motor gear/pinions for Tamiya car

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P 19T (1 pc)
• Set screw (1 pc)

Replace parts to the original motor gear/pinions for Tamiya car

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P 19T (1 pc)
• Set screw (1 pc)

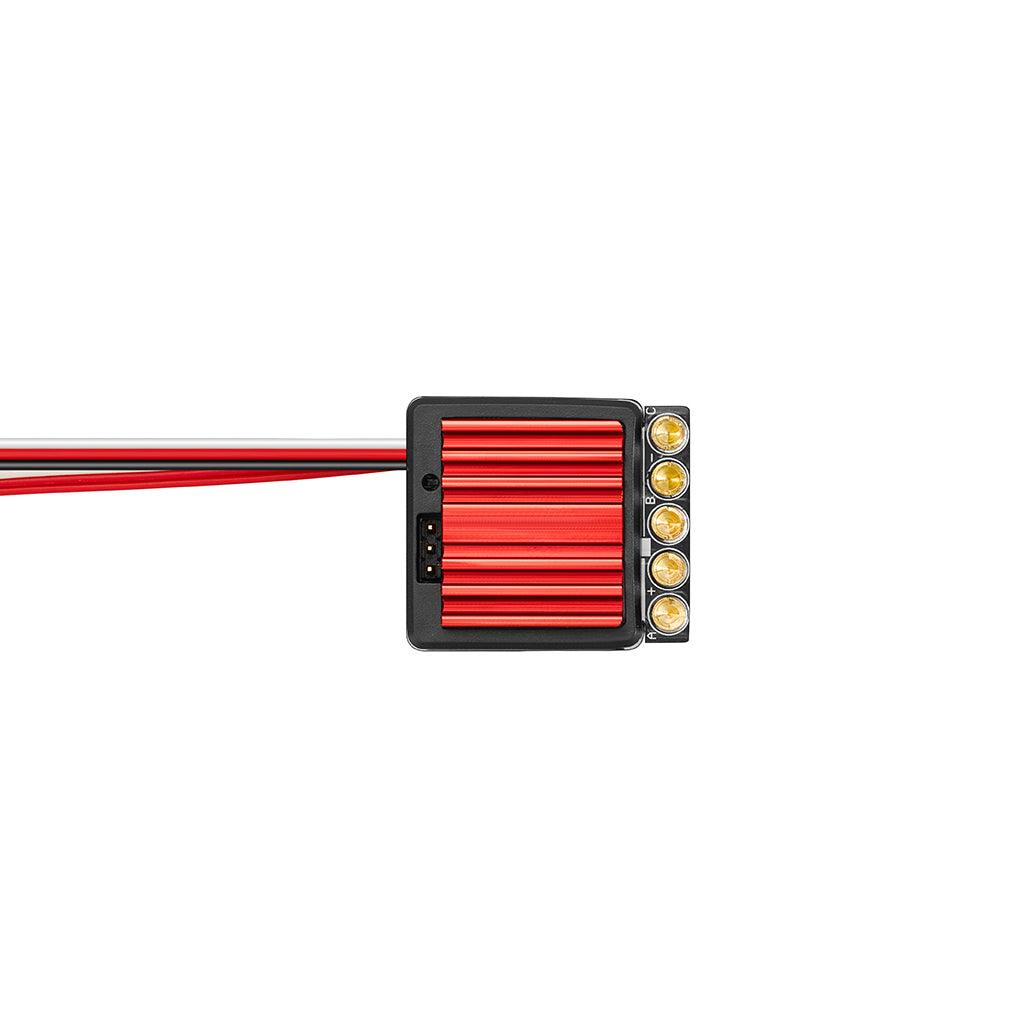

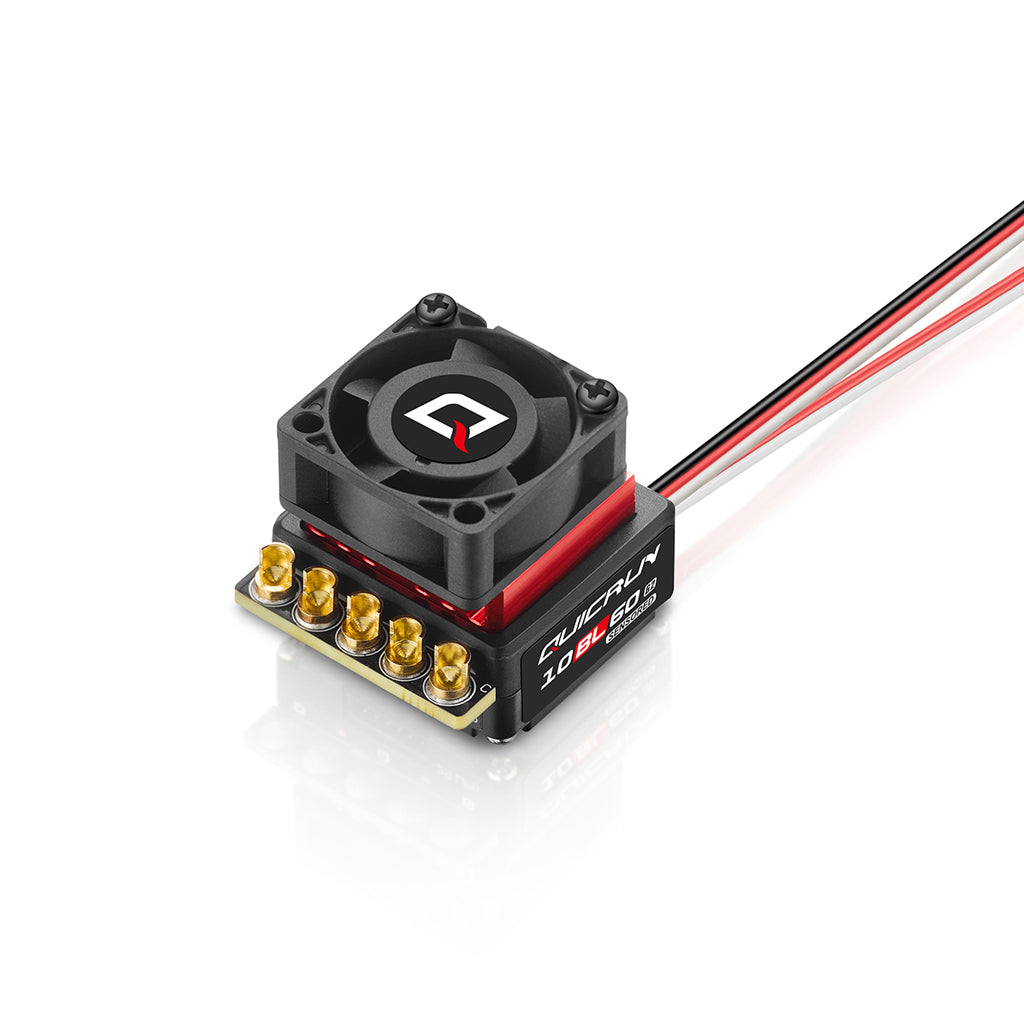

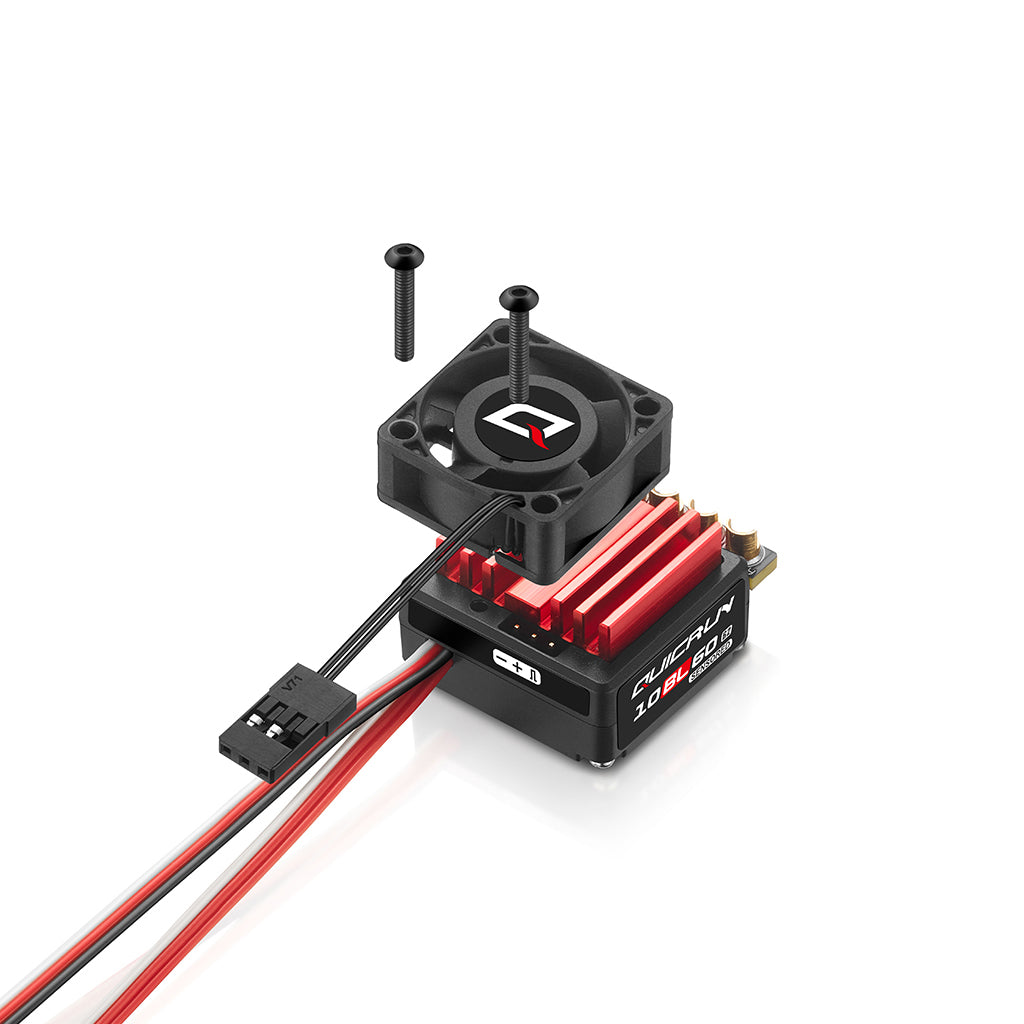

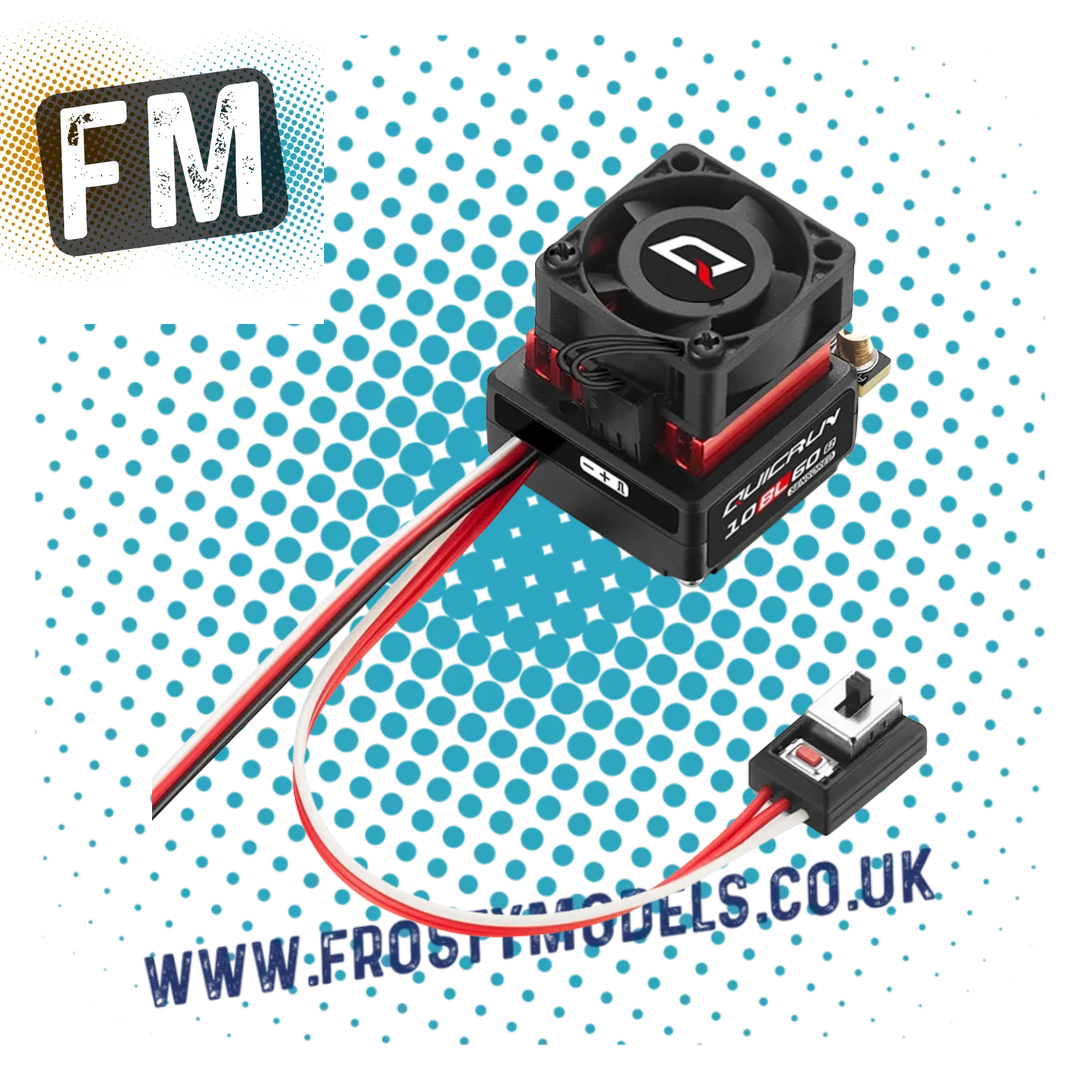

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2

Motor brushes to suit Hobbywing's QUICRUN 540 and 555 brushed motors (#'s below) plus many other brushed motors on the market.

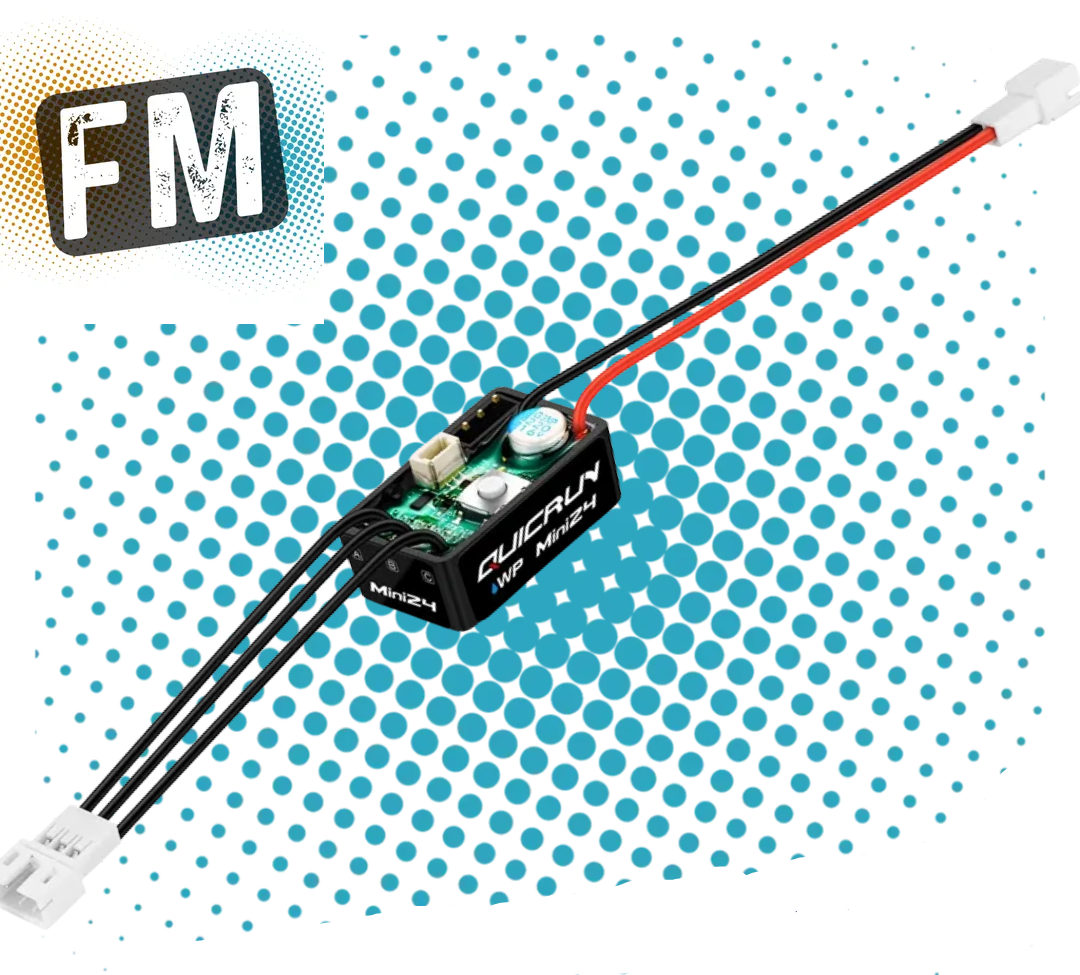

From Hobbywing, designed for smaller scale crawling vehicles the Quickrun WP - MINI24

The software, hardware, and structure of the QuicRun WP Mini24 are tailor-made for small-scale crawling vehicles. It has a large torque at low-speed, and operates smoothly. The QuicRun WP Mini24 is the ideal choice for crawling vehicles for 1/16th, 1/18th and 1/24th scale models.

Adjust drag brake force in real time

The ESC programming port has an AUX function. Connect the signal cable (standard 2pin cable) to an open channel on the receiver to adjust the drag brake force in real time. Adjusting drag brake force on the fly can be achieved to meet various application environments.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

Note:
The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Built-in BEC supported for high-voltage servo
The powerful switch mode BEC has a maximum current of 6A. The output voltage is switchable between 6V/7.4V and is suitable various standard/high-voltage servos on the market.

Waterproofing switch
The QuicRun WP Mini24 has a built-in waterproof switch with waterproof, dustproof, and impact-resistant. Completely solved the traditional mechanical switch in dusty, humid and other harsh environments frequent jamming, contact corrosion, impact (such as falling to the ground) and lead to the mechanical switch automatically shut down and other problems.

Easy to install
The QuicRun WP Mini24 uses a PH 2.0-3PIN female connector. Plug and play with HW motors or another brand of motors with the same plug. The input end uses a PH 2.0-2PIN female connector.
Other models such as SCX24 are able to plug and play. The common connector saves the trouble of re-soldering plugs.
Note:
In addition, the ESC comes standard with a brushed adapter cable for easy operation.

Support brushed and brushless modes
The QuicRun WP Mini24 supports both brushed and brushless motors with great compatibility.
Note:
The factory default is brushless mode. If you are connecting to a brushed motor, please connect the A/C line and set the ESC to "Brushed Motor", otherwise the ESC may be damaged.

Support various LED/LCD programming boxes
The ESC not only supports simple LED programming boxes, but also supports high-end products like the LCD programming boxes with a more complete display.

A vast variety of parameters
The QuicRun WP Mini24 has a vast variety of parameters for adjustment. A total of 13 adjustable parameters are available. It includes commonly used parameters such as drag brake force and drag brake acceleration. It is able to adjust accurately the power requirements to meet various application setting needs.

Specifications

Scale - 1/24th, 1/18th,1/16th

Brushed/Brushless - Brushless,Brushed

Sensored/Sensorless - Sensorless

Waterproof - Yes

Cont./Peak Current - 25A/60A

Input Voltage - 2-3S Lipo

BEC Output - 6V/7.4V adjustable, continuous current 2A (Switch mode)

Wires & Connectors

Input Wires

Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1

Output Wires

Black-12AWG-200mm*3 Black-14AWG-200mm*3

Input Connectors - PH2.0-2PIN Female Connector

Output Connectors - PH2.0-3PIN Female Connector

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Supported

LCD G2 Program Box/LCD PRO - Supported

OTA Programmer - Supported

Program Port

Independent programming cable

Firmware

Firmware Upgrade - Not Supported

Size & Weight

Size - 28*17.8*13mm

Weight - 13.5g（including wires&connectors）

Motors - Sensorless brushless motor, and brushed motor.

Vehicles - 1/24thVehicles，1/18th、1/16thCrawlers

Applicable motors - QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.

(PLEASE PURCHASE BATTERY CONNECTOR SOLD SEPERATELY - FEMALE XT60 OR T-PLUG RECOMMENDED)

Ideal Vehicles - 1/10th Short course truck, Monster truck, Truggies & Buggies

(SENSORLESS = LESS THINGS TO GO WRONG! HOWEVER NOT AS SMOOTH AS SENSORED VERSIONS. YOU WILL ONLY NOTICE WHEN STOPPED ON AN INCLINE - YOU MAY EXPERIENCE 'COGGING' WHERE YOU WILL NEED TO REVERSE, IN ORDER TO REINGADGE FORWARD MOVEMENT.)

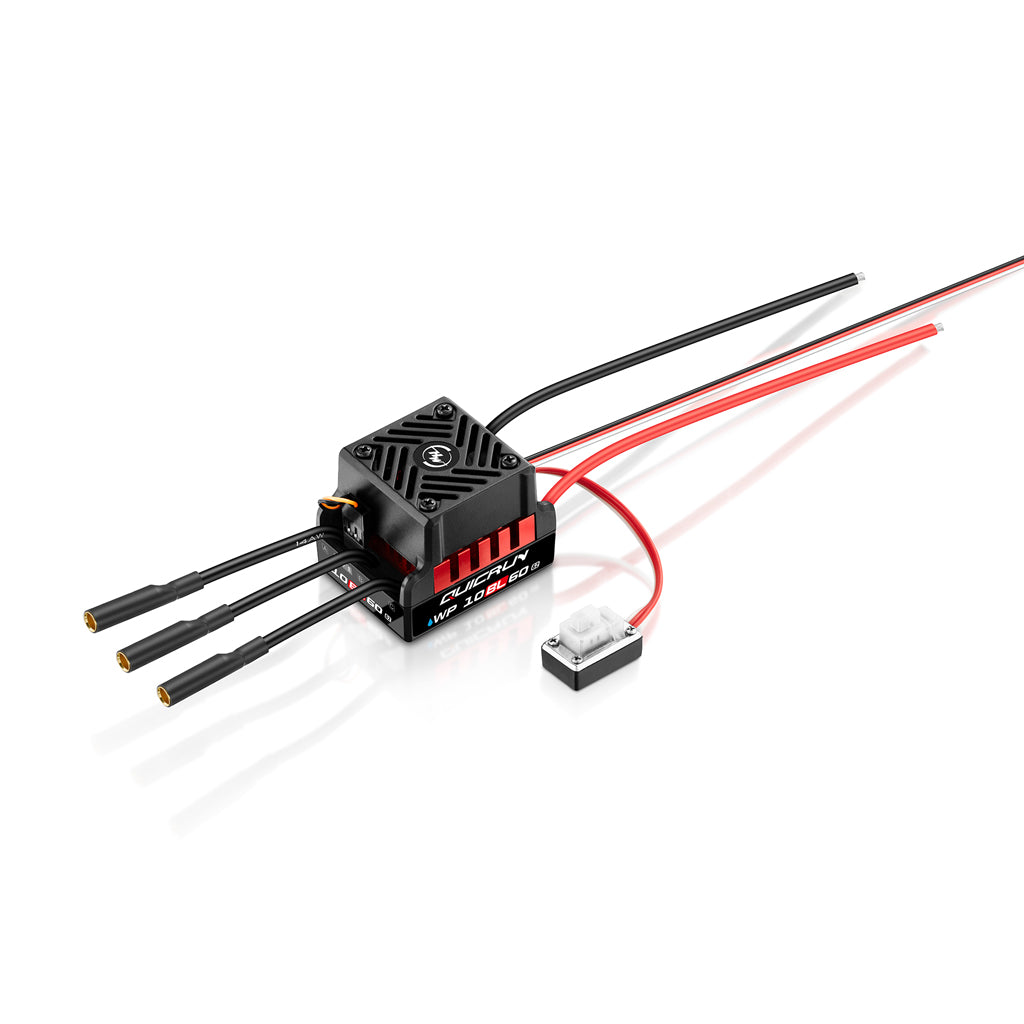

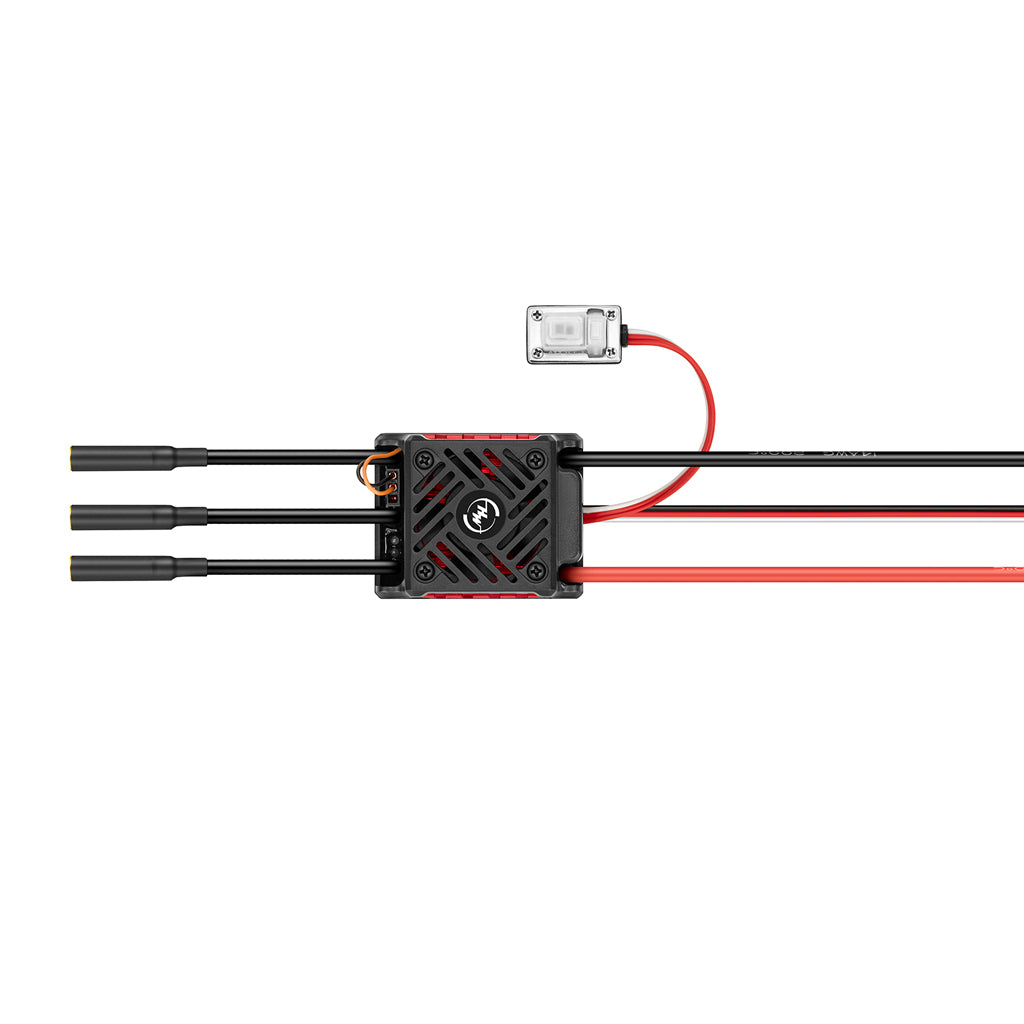

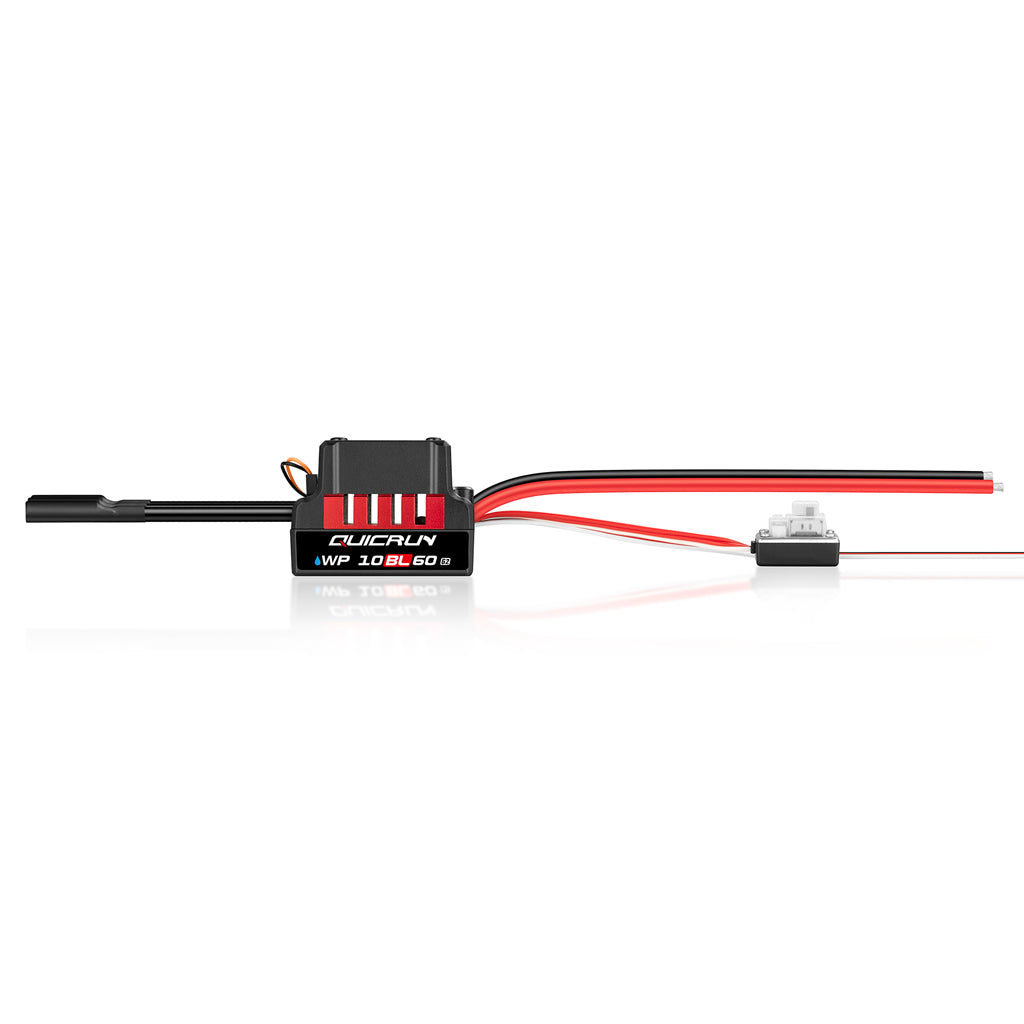

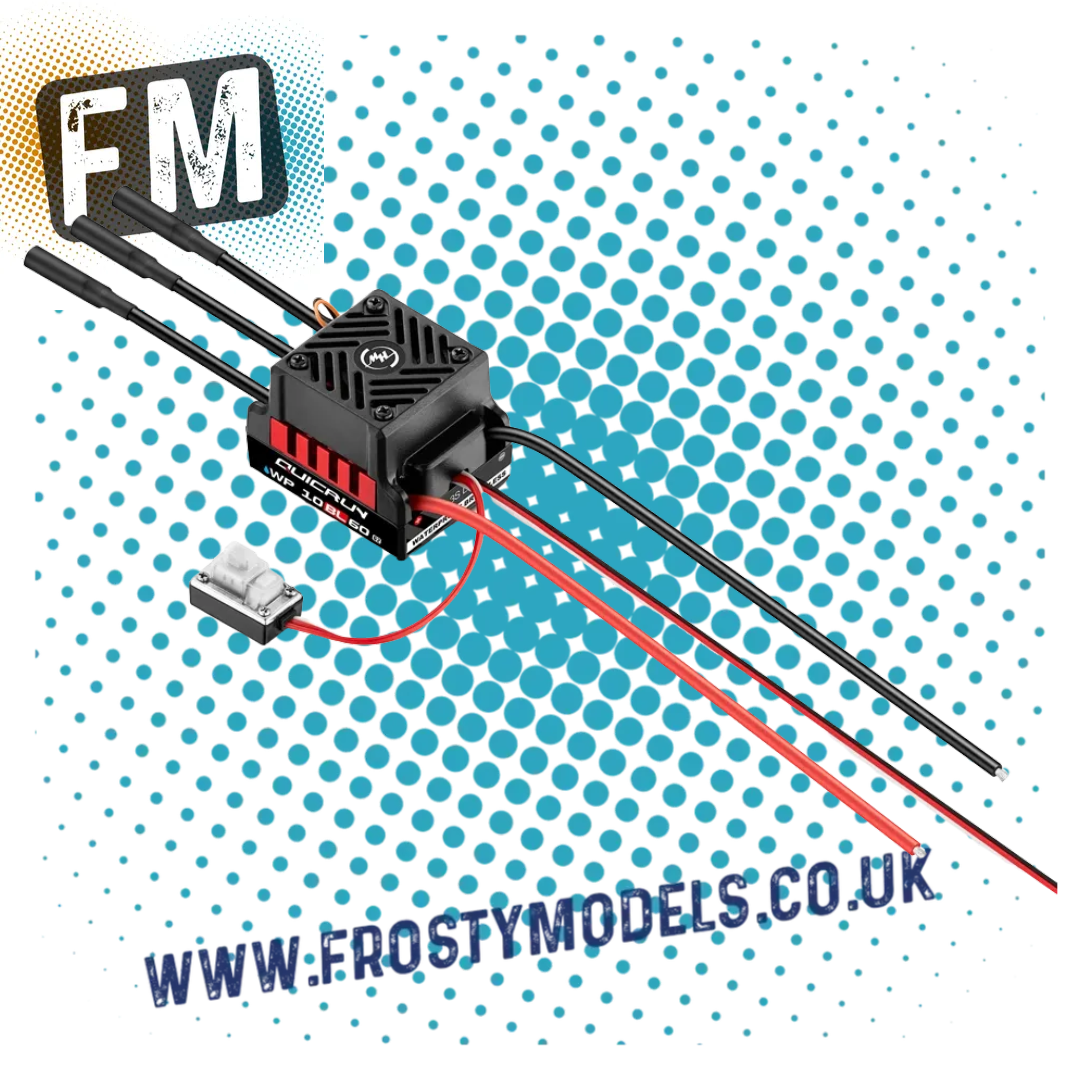

Introducing QuicRun WP 10BL60 G2 Brushless Speed Control - SENSORLESS VERSION

Intelligent freewheeling technology effectively reduces heat generation
The intelligent freewheeling technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature.
It further improves on the stability and reliability of the ESC.

Small and compact
The new QuicRun WP 10BL60 ESC is more compact than its predecessor
It is shorter in length by 2.5mm
The width is reduced by 1.5mm
Overall, it makes the layout and wiring convenient

Efficient cooling system
The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling.
The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.

Capacitor overheating protection
The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may degrade due to daily wear and aging. Do not submerge in water for a long time, otherwise the product may be damaged.

A vast variety of programming methods
It supports three programming methods:
Multi-function LCD programming box PRO, LED programming box, and SET key, making it easy for users to choose their favourite programming method for parameter adjustment.

Great value for money
Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!

Specifications

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SL

Waterproof - Yes

Cont./Peak Current - 60A/360A

Input Voltage - 2-3S LiPo

BEC Output - Switch Mode 6V @3A

Input Wires - Black-14AWG-150mm*1 Red-14AWG-150mm*1

Output Wires - Black-14AWG-60mm*3

Input Connectors - No

Output Connectors - 4.0MM Gold (female)

Fan

Size - 30.0x30.0x10.0mm

Voltage Range - 6V

Powered by BEC

ESC Programming via

SET Button on ESC - Supported

LED Program Box - Supported

LCD G2 Program Box - Supported

OTA - Not Supported

Programming Port - Shared with fan port

Firmware Upgrade - Not Supported

Data Recording - Not Supported

Size - 46x36.5x34.3mm

Weight - 82.6g(w/Wires)

Applications - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles - 1/10th On-road, Buggy, Short course truck

KV Rating/T Count - 2S LiPo:KV≤6000；3S LiPo:KV≤3500（3652/3660 size motor）

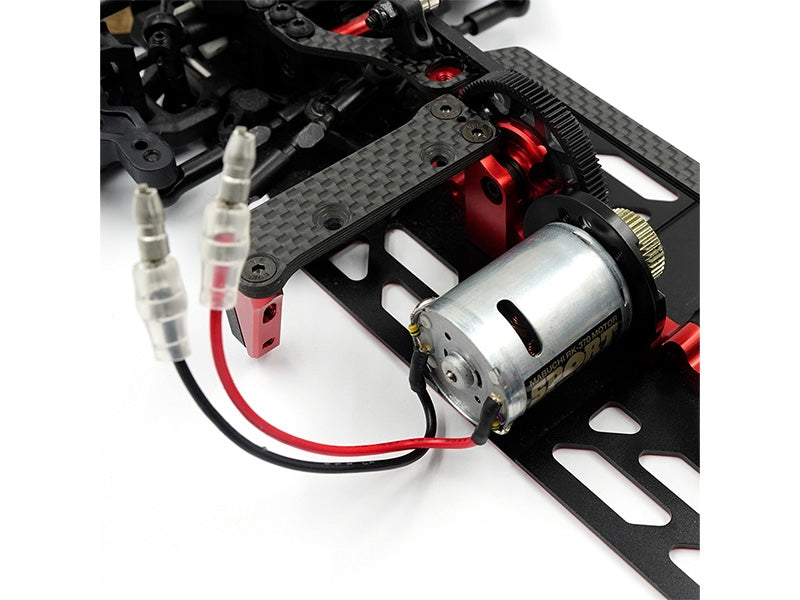

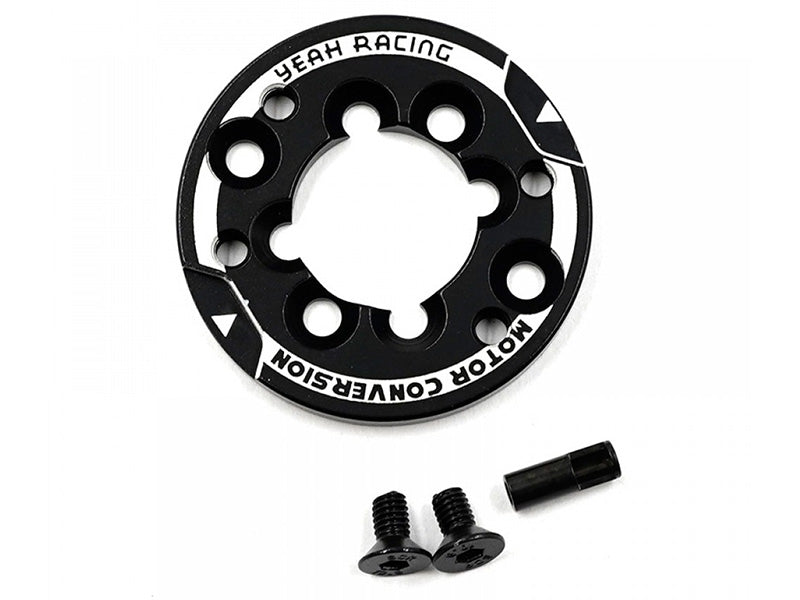

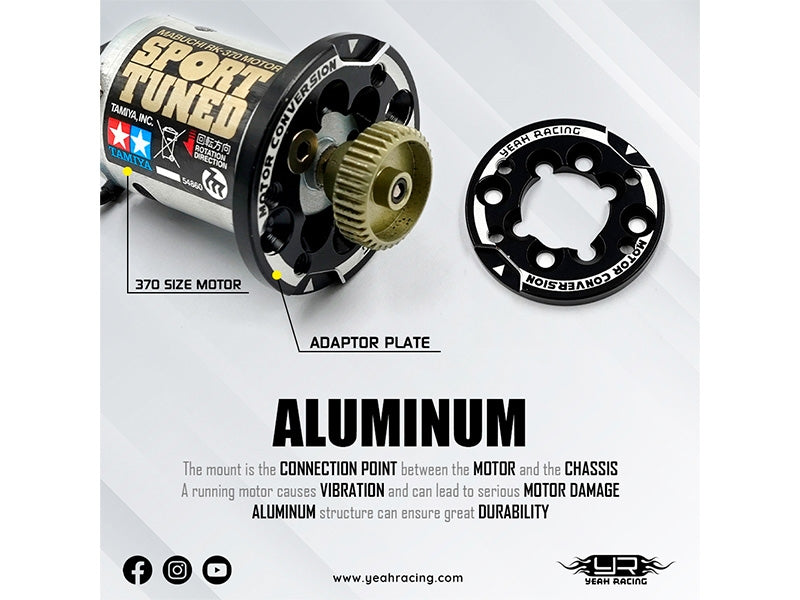

Install a 370 or 380 size motor onto your 540 sized motor mount! Sometimes you want slower speed and with a smaller motor this is the perfect way to achieve that! Included is a sleeve adaptor for you to use your normal sized pinions!

Feature:

• For: 370 380 Motor
• Material: Aluminum
• Color: Black

Include:

• Adaptor Plate (1 pc)
• Pinion Sleeve (1 pc)

UDI RC 1/12 GLEAM 4WD BUGGY PRO BRUSHLESS RTR - PINK



Designed for drivers who demand more speed, more strength and more durability, the UDIRC GLEAM PRO UD1204PRO takes the proven GLEAM platform to the next level. Packed with upgraded drivetrain components and a more powerful brushless electronics package, the UD1204PRO delivers serious performance in a compact and highly capable 1:12 scale platform.

At the heart of the GLEAM PRO is a high-output 2845-4700KV brushless motor paired with a programmable 60A brushless ESC, providing explosive acceleration and support for both 2S and 3S LiPo batteries. With motor speeds reaching up to 60,000 RPM, the UD1204PRO is built to deliver thrilling speed and rapid response on dirt, gravel, tarmac and off-road terrain.

To handle the increased power, UDIRC has equipped the PRO version with a strengthened steel drivetrain featuring upgraded 40Cr chromoly steel transmission gears, steel universal joint driveshafts and a metal centre driveline. This heavy-duty transmission system is designed to maximise reliability under high loads while ensuring efficient power delivery to all four wheels.

A fully enclosed transmission housing protects the drivetrain from dirt, dust, stones, and debris, helping maintain smooth operation and reducing wear during demanding off-road use. The sealed design also helps retain lubrication, lower friction and extend the lifespan of gears, bearings and drivetrain components.

Maintenance has been made remarkably simple thanks to the innovative quick-release drivetrain design. The complete centre drivetrain can be removed in seconds, while the front and rear differentials feature a rapid-access design that allows servicing or differential changes in under 30 seconds. This race-inspired modular layout dramatically reduces maintenance time and keeps drivers focused on running rather than wrenching.

Handling is equally impressive, with adjustable aluminium oil-filled hydraulic shock absorbers and a dual ball steering system that increases steering angle and precision. Combined with durable suspension components, adjustable spring preload and a wide-track chassis layout, the UD1204PRO provides excellent stability, predictable cornering behaviour and confidence-inspiring control at high speed.

The package is completed by a 17g digital metal-geared steering servo and a sophisticated hall-sensor transmitter featuring steering trim, dual-rate adjustment, integrated gyro tuning, throttle reverse functions, and selectable speed modes. Together, these features give drivers precise control and the flexibility to tailor the vehicle's behaviour to their experience level and driving conditions.

Combining premium brushless power, upgraded steel drivetrain components, race-inspired maintenance features and rugged off-road capability, the UDIRC GLEAM PRO Buggy is engineered to deliver big performance in a compact package.

Features

Performance

• 1:12 scale shaft-driven 4WD truggy.
• High-performance 2845-4700KV 4-pole brushless motor.
• Programmable 60A brushless ESC.
• Supports 2S and 3S LiPo batteries.
• Maximum motor speed up to 60,000 RPM.
• 360A ESC burst current capability.
• XT60 battery connector.

Heavy-Duty Drivetrain

• Upgraded steel gear transmission system.
• 40Cr chromoly steel differential gears.
• 40Cr chromoly steel pinion gear.
• 40Cr chromoly steel transmission input gears.
• Steel universal joint driveshafts.
• Metal centre driveshaft.
• Metal differential sun and planetary gears.
• Fully sealed transmission housing.
• Designed for improved durability under high-power brushless operation.

Maintenance-Friendly Design

• Quick-release centre drivetrain system.
• Differential removal and servicing in under 30 seconds.
• Modular drivetrain layout for simplified maintenance.
• Easy access to key drivetrain components.
• Removable rear wing assembly.

Suspension & Handling

• Adjustable aluminium hydraulic oil-filled shock absorbers.
• Adjustable spring preload.
• Ride height adjustment capability.
• Dual ball steering system for increased steering angle.
• Adjustable metal steering linkages.
• Wide stance for improved stability.
• Durable nylon suspension arms and bumpers.

Electronics & Control

• 17g digital metal-geared steering servo.
• Hall-sensor steering wheel transmitter.
• Integrated gyro adjustment.
• Steering trim adjustment.
• Steering dual-rate adjustment.
• Forward, brake and reverse functions.
• Low, medium and high-speed modes.
• Precision contactless steering wheel control.

Specifications

Scale: 1:12
Drive System: Shaft-Driven 4WD
Length: 345mm
Width: 193mm
Height: 103mm
Wheelbase: 228mm
Track Width: 168mm
Tyre Diameter: 66mm
Tyre Width: 26mm
Wheel Hex: 12mm
Motor: 2845-4700KV Brushless
ESC: 60A Brushless ESC
ESC Battery Support: 2S–3S LiPo
Servo: 17g Digital Metal Gear
Battery Connector: XT60
Main Gear: 38T 0.8M Steel
Motor Pinion: 10T 0.8M Steel
Differential Ring Gear: 30T 1M Steel
Differential Bevel Gear: 10T 1M Steel
Differential Sun Gear: 16T 0.8M Metal
Differential Planet Gear: 8T 0.8M Metal
Driveshafts: Steel Universal Joint Type
Main Shaft: Metal
Shocks: Adjustable Aluminium Hydraulic
Shock Length: 76.3mm Extended / 58.3mm Compressed
Battery Tray Size: 115 x 38 x 25mm
Radio System: UA42-E Hall Sensor Transmitter
Bodyshell Material: PC

Requires a 2-3S Micro Lipo

UD1204PRO vs UD1204

Feature	UD1204	UD1204PRO
ESC	45A	60A
Motor	2845-3800KV	2845-4700KV
Max Motor Speed	48,000 RPM	60,000 RPM
Main Gear	50T 0.6M Metal	38T 0.8M Steel
Pinion Gear	14T 0.6M Metal	10T 0.8M Steel
Diff Ring Gear	Powder Alloy	Steel / 40Cr Chromoly
Target User	Enthusiast Basher	High-Performance Basher

14awg SILICONE WIRE ORANGE

SOLDERING REQUIRED

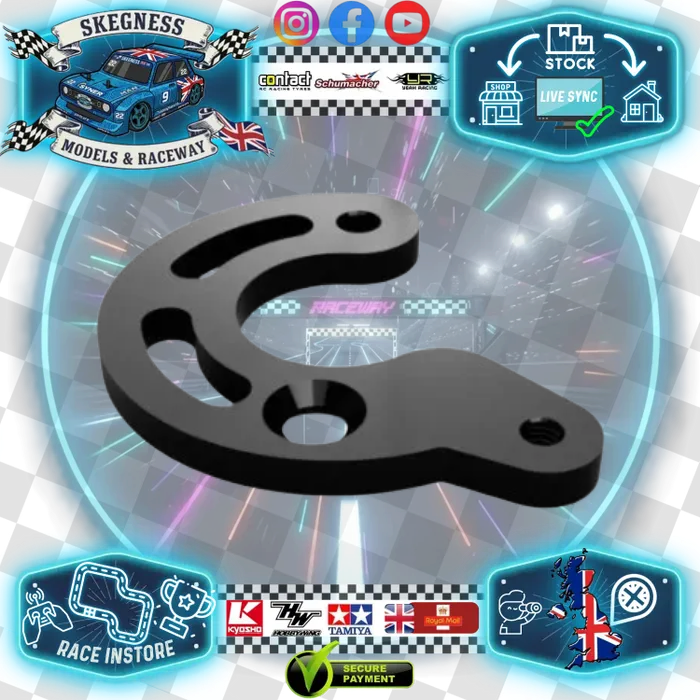

BattCave JOK3R Mini Replacement Motor Flange Plate. JKR-M01

🦇 Made from Aluminium.

🦇 Anodised black.

🦇 Sold individually.

Introducing the FuriaX Supa 60A Brushless ESC from SKY RC.



used unit - no plugs on motor wires. Rest looks good as new

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.
Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Developed in collaboration with Surpass and refined under the BattCave IMPOST3R platform, this motor is designed with high-quality components including high-purity copper windings and a powerful sintered neodymium magnet, the IMPOST3R 25.5T delivers smooth, efficient power with strong reliability. The CNC-machined T6 aluminium heatsink can helps maintain stable temperatures under load, while compatibility with both sensored and sensorless ESC systems ensures maximum flexibility across setups.

Whether you're upgrading from brushed or stepping into brushless racing, the IMPOST3R 25.5T offers the perfect balance of performance, control, and consistency.



• Fixed timing for consistent, predictable power delivery
• Smooth, drivable performance for club racing conditions
• High-purity copper windings for maximum efficiency
• Powerful sintered neodymium magnet for strong response
• High RPM precision bearings for smooth operation
• CNC-machined T6 aluminium heatsink can for improved cooling
• Compatible with sensored and sensorless ESC systems
• High power solder tabs for secure connections





• Platform: 540 sensored brushless motor
• Cell count: 1–3S LiPo
• Rotor poles: 2
• Weight: 161g
• Shaft: 3.175mm
• Timing: Fixed



(100CM)

Introducing the SKY RC Ares V4 1/10 Sensored Brushless Motor, with all new design.

ROAR Approved Roaring Ahead
On the track or in every turn, the ROAR-approved ARES PRO 4 delivers uncompromising, professional-grade power.
ROAR isn’t just about compliance—it’s a mark of excellence.
Race with confidence. Race with ARES PRO 4.

BRCA, EFRA and ROAR Legal.

Competition-Optimized Design
Every Detail Tuned to Win. Engineered to Excel.

Low-Resistance Solder Tabs
High-quality tabs minimize power loss, ensuring maximum current flows straight to the rotor.

Stay Cool: CNC Aluminum Heatsink Case with Rear Venting
The precision-machined aluminum case dissipates heat efficiently, while a large rear vent boosts airflow over the Hall sensor for stable, reliable performance.

Global-Grade Bearings & Precision Shaft for Ultra-Smooth Control
Top-tier international brand bearings paired with a high-precision shaft ensure buttery-smooth, accurate operation—race after race.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-Balanced, Heat-Resistant Rotor
Meticulously balanced for ultra-smooth rotation and minimal vibration, the rotor is crafted with a 200°C heat-resistant, explosion-proof structure—delivering consistent power, higher RPMs, and lasting durability.

200°C High-Temp Neodymium Magnets
200°C heat-resistant neodymium magnets and a high-efficiency iron core deliver strong torque, stable magnetism, and consistent performance under pressure.

Advanced Sensor
No Hesitation. Just Precision.
ARES PRO 4 features advanced sensor technology for ultra-smooth throttle response and precise low-speed control—crucial for technical tracks and tight corners. By eliminating cogging, or hesitation at low RPMs, it delivers seamless, immediate power exactly when you need it.

Adjustable Timing.
Any Track.
Adjustable timing is the core of brushless precision, enabling power delivery to adapt seamlessly to any track condition.

Low Timing (0-20deg)
Later power delivery creates smooth output, stable torque, and linear starts.
Ideal for precise control through continuous corners, preventing sudden wheel spin.

Mid Timing (20-40deg)
Balances instant punch with smooth sustained acceleration.
Perfect for mixed circuits with straights and curves, such as drift tracks

High Timing (40-60deg)
Earlier power delivery drives rapid RPM climbs and explosive top speed.
Best for flat-out straights, achieving higher RPM under the same voltage.

Redundant Dual Sensor Ports.
Zero Hassle.
Placed in different orientations, the dual sensor ports simplify wiring and offer built-in redundancy. If one fails, the other keeps you running—seamlessly and reliably.
Plug in. Power on. No setup—just pure performance.
*Before use, please confirm your ESC’s continuous/peak current, supported cell count, and sensor port type to ensure compatibility with the motor specifications.

Modular by Design.
Built to Stay New.
ARES PRO 4 features a fully rebuildable, modular design—allowing easy disassembly of the housing, stator, windings, and bearings with standard RC tools.
Clean, service, and swap components to keep performance sharp and consistent, race after race.
Always fresh. Always in control.

Multiple Turn Options.
Ready for Any Track.
Each turn rating gives your car its own distinct character.
Lower turns deliver explosive speed and powerful thrust.Higher turns offer smooth, consistent power for confident control, lap after lap.

Size and Weight
Size: 35.8x35.8x52mm
Weight: 148g±5g

Working and Storage
Operating temperature: -10°C-80°C
Operating humidity: 20%-80% (non-condensing)
Storage temperature: 0°C-50°C
Storage humidity: 30%-60% (non-condensing)

Introducing the FuriaX Supa 60A Brushless Combo set from SKY RC.

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.

Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Motor Details

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
4000 KV
<12V
Voltage
2.0A
No-load Current
75A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*16
Rotor（mm）

Introducing the Hobbywing QuicRun WP 10BL120 G2 and Quickrun 3650SD 13.5T G2 motor combo.

Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 120A/760A
Input Voltage - 2-2S LiPo
BEC Output - 6V/7.4V@4A

Wires & Connectors
Input Wires -Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1
Output Connectors - Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size -43*36.8*32.3mm
Weight -101.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor

Vehicles -1/10^th Touring Cars/Buggies/Drift Cars
KV Rating/T Count -2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor - The main feature of these motors is the fixed timing and easy to use solder joints, making it an excellent motor for controlled classes.

Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this motor and improve its operating efficiency.
- This motor is perfectly matched with a Hobbywing ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.
