Motors & ESCs & Accessories

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

(2024 VERSION)

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

Introducing the ORCA RunPlus Brushless/Brushed ESC with Program Card, the perfect addition to your r/c car or truck. Measuring at just 29.5mm x 29.7mm x 17.6mm, this ESC is very compact and extremely lightweight, making it the ideal choice for those looking for a easy-to-use ESC.

With its attached power wires, this ESC is incredibly easy to install, making it a great choice for beginners and experienced hobbyists alike. Plus, with a 80A continuous current limit, it can handle all 540-size brushless motors up to 13.5 turns/3600kv, Brushless 380 or 390 sized motors up to 10.5 turns/4600kv as well as Brushed motors over 12 turns too.

Included with this ESC is an LED program card, which allows you to fine-tune your settings.

Specification;

Dimensions: 29.5mm x 29.7mm x 17.6mm

Weight: 22g (excluding wires)

Voltage Input: 6-12.6V (LiPo 2-3 Cells)

Peak Current: 310A

Continuous Current: 80A

Motor Limit (Brushless): Over 10.5T

Motor Type: 540 Sizes Brushless and Brushed motors – 380 sized Brushless motors

BEC: 4A 6V/7V

Non-updateable firmware – ideal for spec races

Includes both Blinky Mode and Turbo functions

LED program card with 15 adjustable parameters

Suitable for on-road, off-road, crawlers and all recreational vehicle type

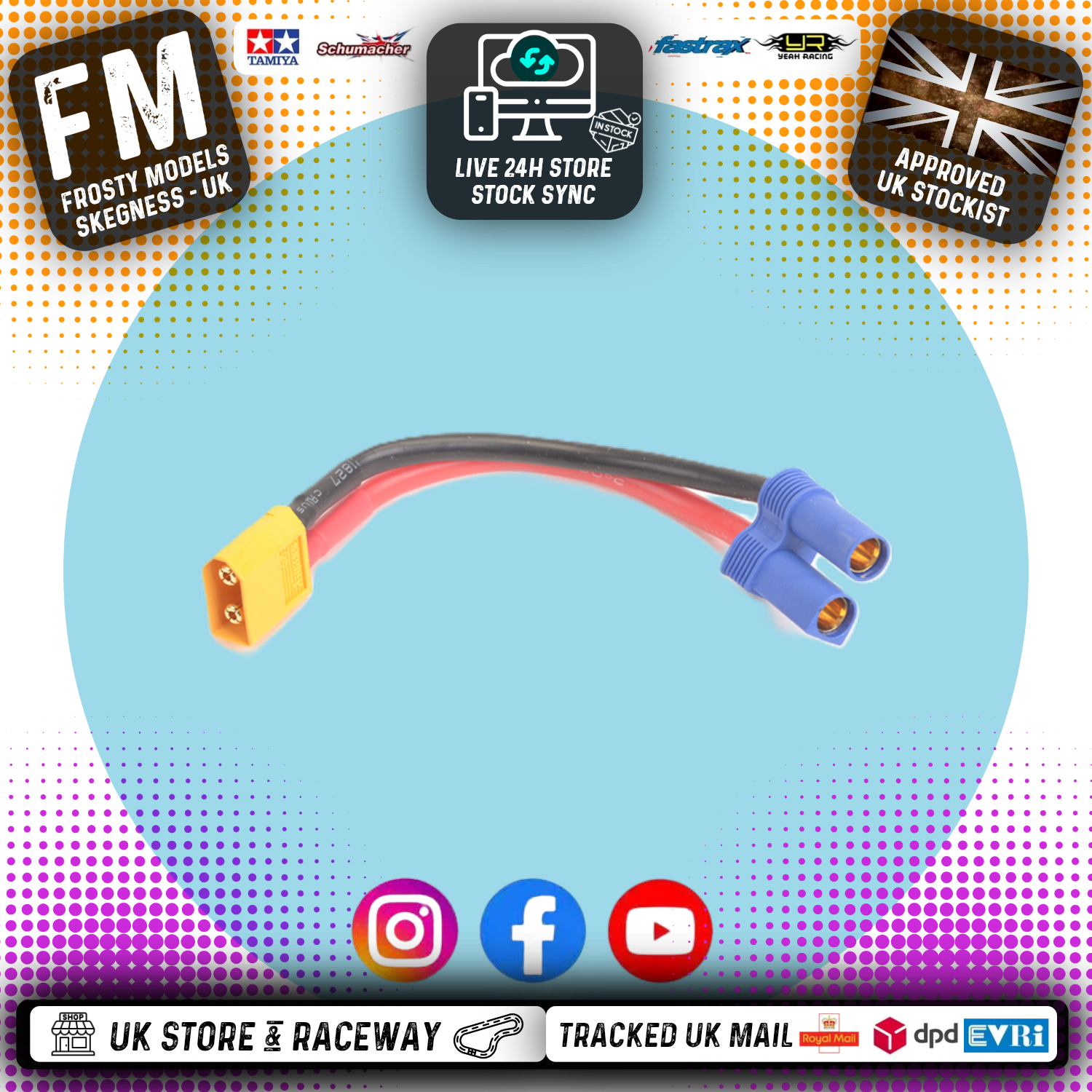

Core RC EC5F to XT60M Lead

For use on ESC's/Chargers fitted with EC5 Male Plugs as output.

Introducing the Hobbywing Quicrun brushed motors.

Outstanding Response and Control
The new Quicrun brushed motors offer improved performance, reliability, and response over other motors. With improved materials and overall design, these motors offer significant power gains.

Excellent efficiency
With up to 69% maximum efficiency, the Quicrun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.

Zero Cogging Torque Design
The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.

Adjustable mechanical timing of the motor
The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.

Specialized Carbon Brush for extended life
Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

Modular design for easy service and cleaning
The motors feature an easy-to-service rebuildable design. Convenient for cleaning and maintenance, effectively prolonging the life span and maintaining the efficiency of the motor.

PCB anti-interference board
The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

Quality materials
To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.

Specifications

Type

Scale - 1/10th 550
Brushed/Brushless - Brushed

Relevant Parameters

RPM@7.4v - 17000
Input Voltage - ≥10v
Slot - 5

Size & Weight

O.D.(mm) - 36
Length (mm) - 58.5
Shaft Diameter (mm) - 3.175
Weight (g) - 193

1/10th Crawler / Short course truck / Monster truck

FOR 540 Brushed / 3650 Brushless Motors

Powered via a JST plug from the Receiver

w/PROTECTIVE SLEEVE

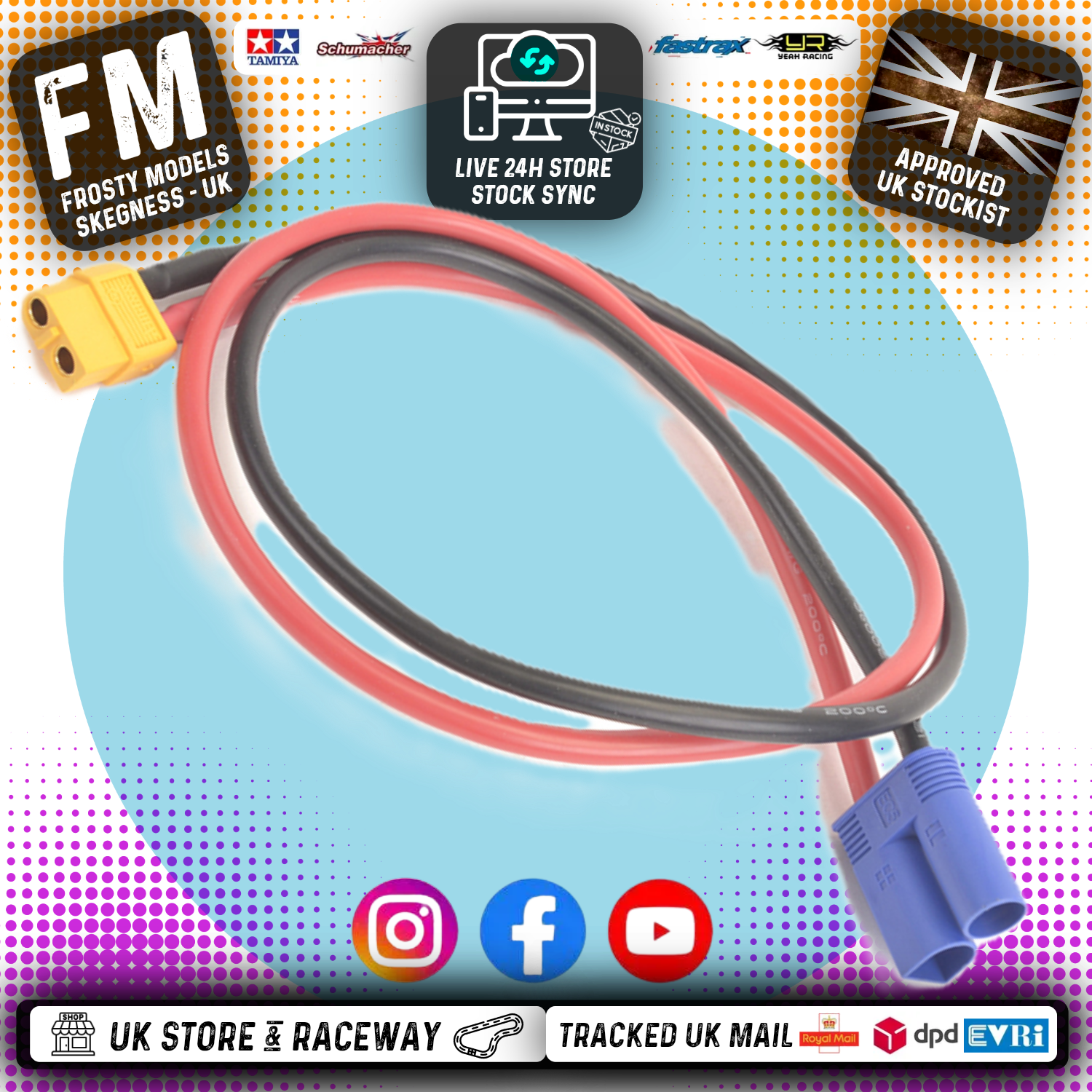

To plug into any SKY RC charger and adapt to charge IC5 Batteries.

• Version: XT60 to EC5
• Suitable for all common chargers with XT60 output connector
• Cable length: 150 mm
• Cable type: 14AWG

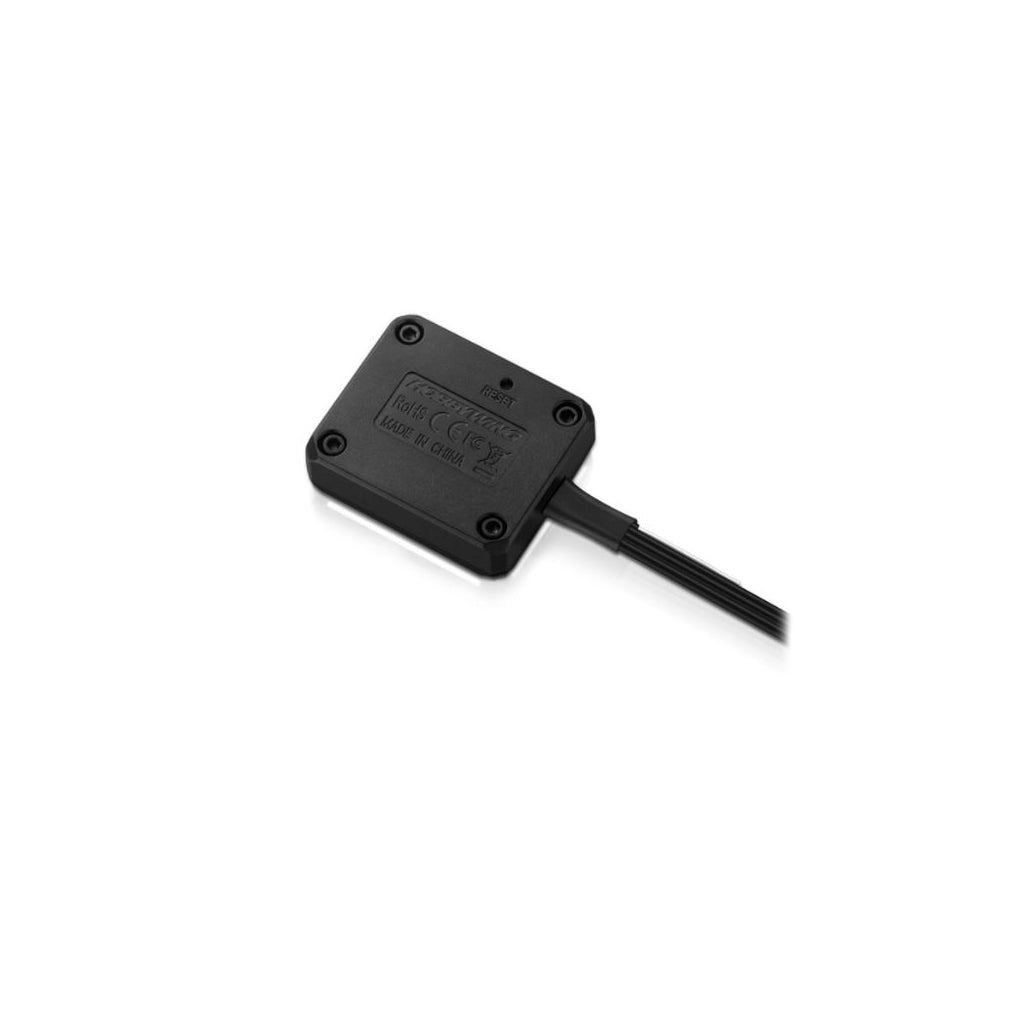

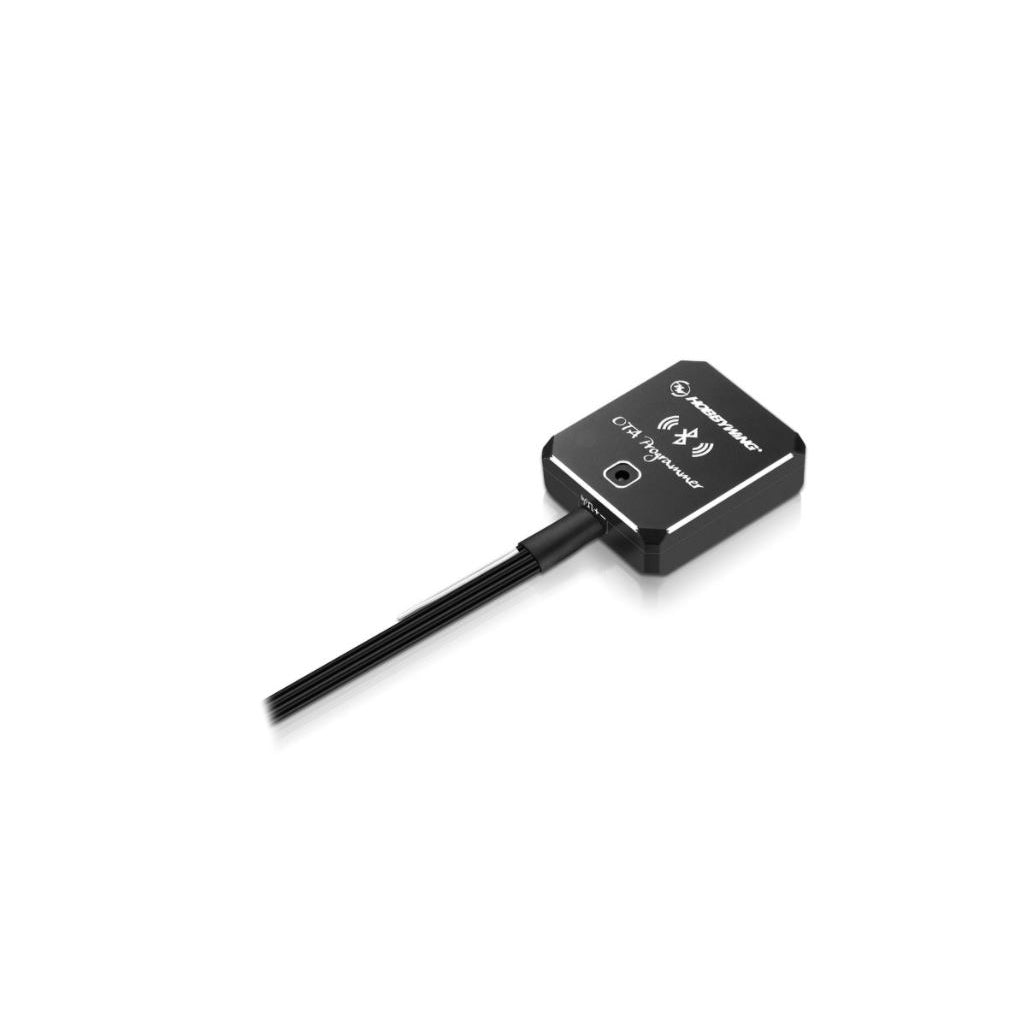

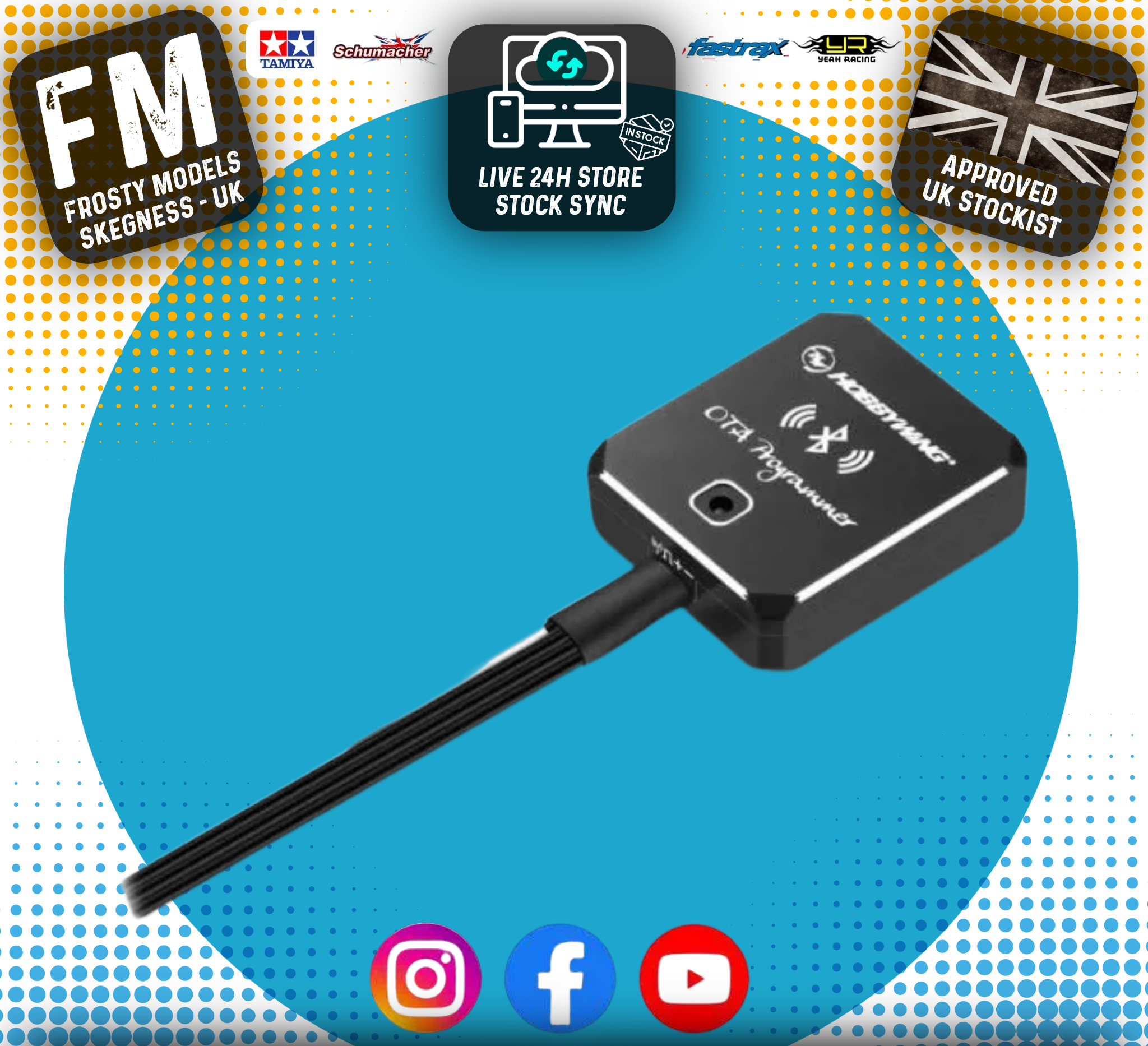

Hobbywing OTA Programmer allows the ESC to be wirelessly connected to smartphone.

Using the Hobbywing HW Link APP to clearly display and adjust all parameters of ESC. The interface is simple to operate.
1.App of IOS version:Search HW Link or Hobbywing in Apple store.
2.App of Android version: Search HW Link or Hobbywing in Google Play.
You can also directly click the Android icon on this page to download.

Intuitive Interface

When use app to adjust parameter, the graphical man-machine interaction interface of drop-down list box and scroll bar make the parameter adjustment more flexible and easier to operate.

Real-time data recording function

OTA programmer supports real-time data recording function and storesthe data in its memory. It can be opened by HW Link to know the running status of power system. The real-time data can be checked by connecting smartphone HW Link App within effective distance (0-3m).
*The real-time data function needs to be supported by the ESC. Please refer to the manual of ESC for details.

Simple and Convenient for Firmware Update

Compared with LCD programming box, it is no need to connect the computer to upgrade the firmware of ESC.
The firmware of ESC can be upgraded only by using HW Link App on the smartphone. More simple and easy to operate.

Bluetooth transmission and does not affect network of smartphone

OTA Programmer uses Bluetooth to communicate. It does not affect Wi-Fi and cellular data network of smartphone and network requirements of other Apps.

Compact Design

This OTA Programmer is smaller and lighter. It’s only 1/6 of HOBBYWING LCD program box in size and weight.

One-touch Factory Reset

Users can promptly factory reset their OTA Programmer via the Reset button on it.

Wide Application

This module is suitable for some brushless ESC of XERUN, EZRUN, PLATINUM and SEAKING series;
* Whether the ESC supports or not, please refer to the manual or the technical parameters on official website.

Specifications

Working Voltage: - 5-12.6V

Supported Bluetooh Version - = 4.0

Effective Range - 0-3m (Open Field)

Size - 30.0x25.5x8.5mm (LxWxH)

Weight - 10.2g

Applications

- Some of XERUN series & EZRUN series of car ESCs.
- Some of PLATINUM series of aircraft ESCs.
- Some of SEAKING series of boat ESCs.

* For details, please refer to ESC manual to ensure if the ESC can work with OTA Programmer.

Replace parts to the original motor gear/pinions for Tamiya car

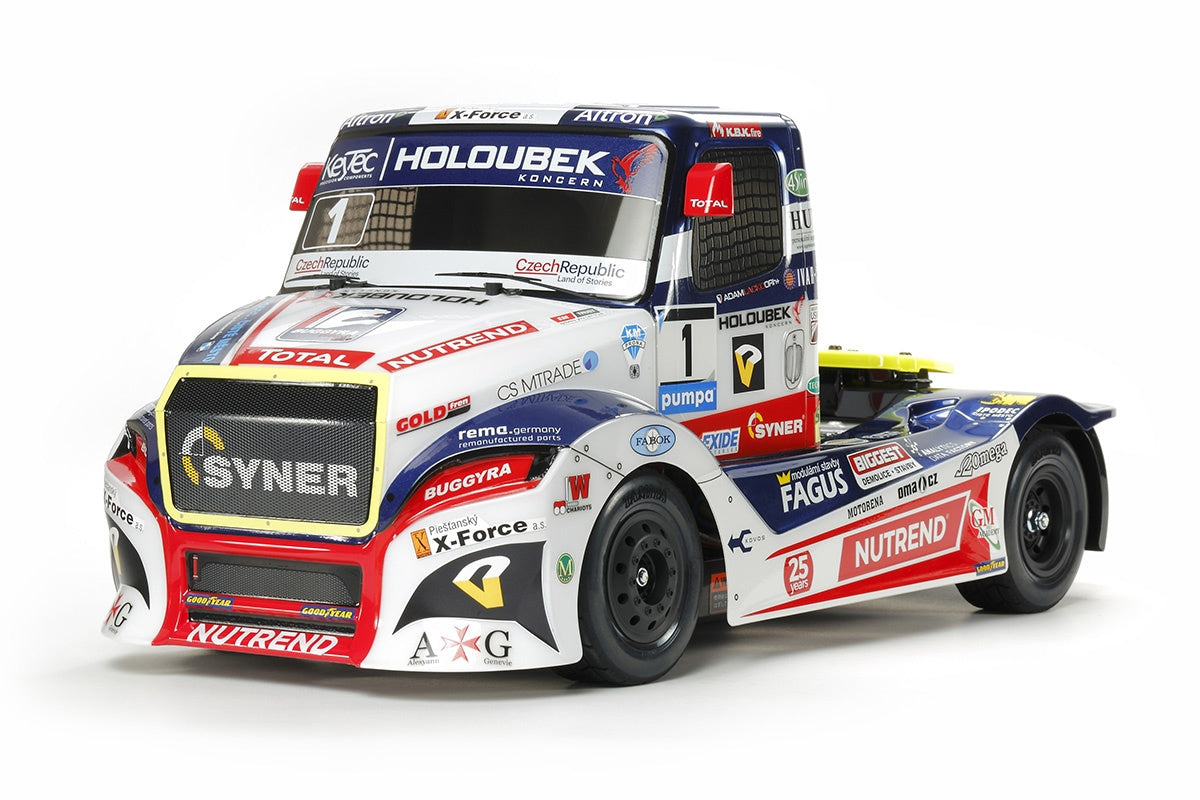

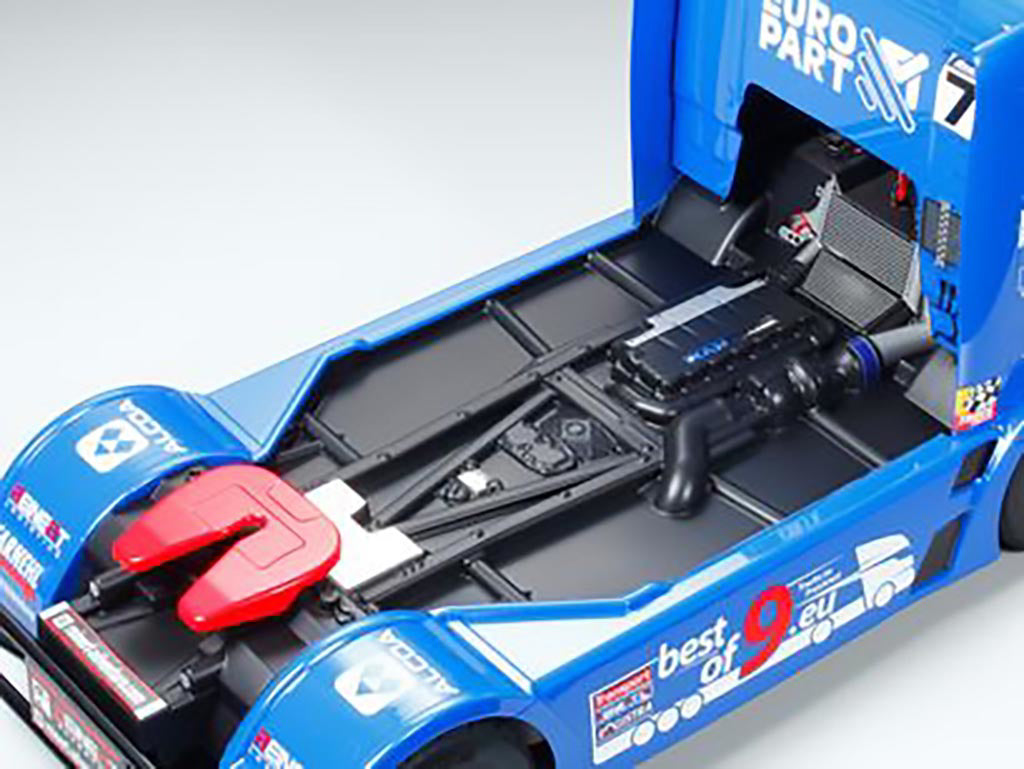

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P 19T (1 pc)
• Set screw (1 pc)

Replace parts to the original motor gear/pinions for Tamiya car

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P 19T (1 pc)
• Set screw (1 pc)

Replace parts to the original motor gear/pinions for Tamiya car

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P (1 pc)
• Set screw (1 pc)

Replace parts to the original motor gear/pinions for Tamiya car

(WILL FIT TAMIYA TT01E EURO TRUCK)

How to calculate Final Gear Ratio?

For example, if your car has the following setting:

Motor Gear: 25

Spur Gear: 84

Pulley: 19

Gear Differential: 38

Firstly, we need to calculate the 'Motor Gear to Spur Gear Ratio', divide 84 by 25 equal to 3.36. Then we need to calculate the 'Pulley to Gear Differential Ratio', divide 38 by 19 equal to 2. Finally, the 'Final Gear Ratio' is 3.36 x 2 = 6.72.

Motor Turn used based on Final Gear Ratio:

3.5T: 9.5-10

4.0T: 8.9-9.5

8.5T: 6.4-7.0

The above guideline is for reference only. The recommended motor turn may vary depending on different brands. More information can be found on motors' offical websites.

Feature:

• Material: Aluminum 7075
• Color: Titanium

Include:

• Aluminum 7075 Hard Coated Motor Gear/Pinions 06P 19T (1 pc)
• Set screw (1 pc)

QuicRun WP 10BL120 G2 Brushless Electronic Speed Controller

Intelligent freewheeling technology, greatly improved performance
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC,and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A.
The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction
of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF.
External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection.
The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Yes

Cont./Peak Current - 120A/760A

Input
2-4S LiPo

BEC Output
Switch Mode 6V/7.4V @5A

Wires & Connectors
Input Wires - Black-12AWG-150mm*1 / Red-12AWG-150mm*1
Input Connectors - 4.0mm Gold (female)

ESC Programming via
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Programming Port - Separate Programming Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 52.8*39.8*38.2mm
Weight - 119g (Including wires & connectors)

Applications
Motors - Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles
1/10th Short course truck, Monster truck

KV Rating/T Count - 3652、3660 Size Motor

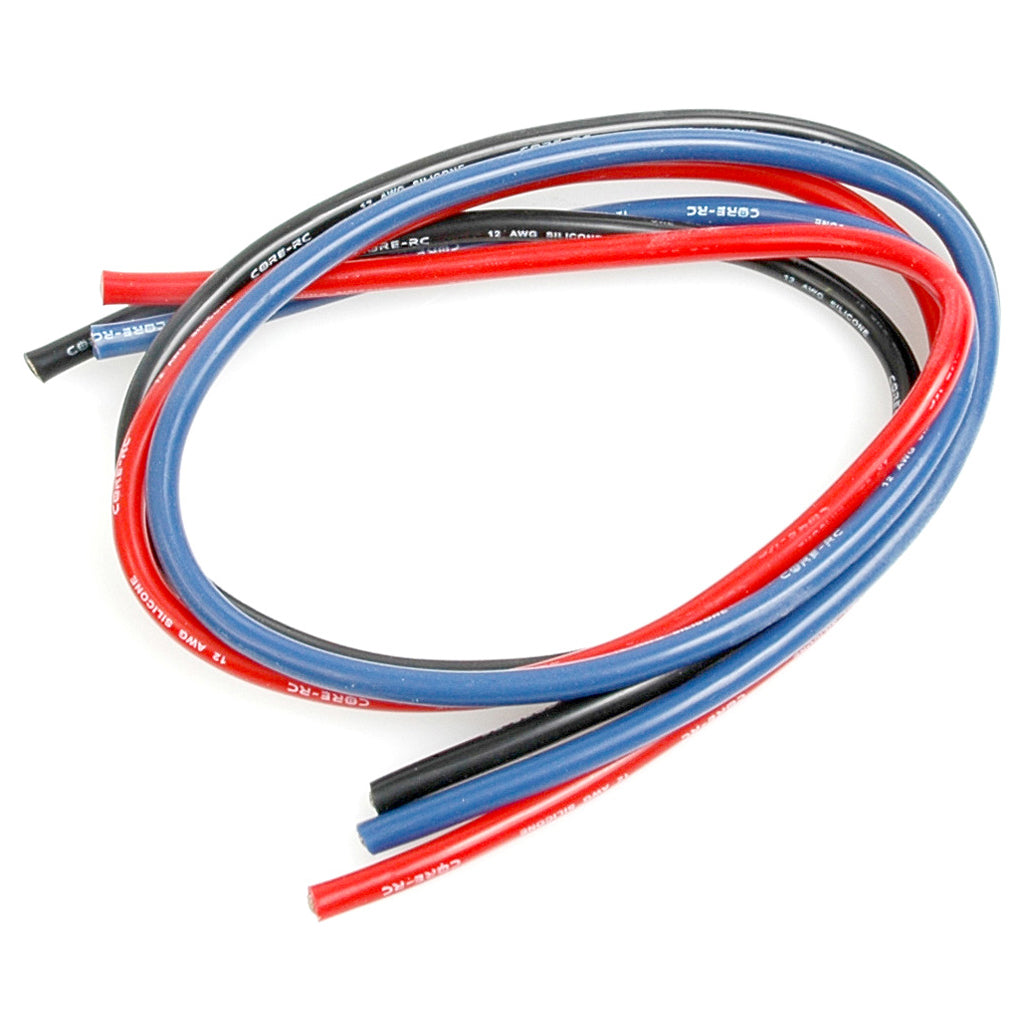

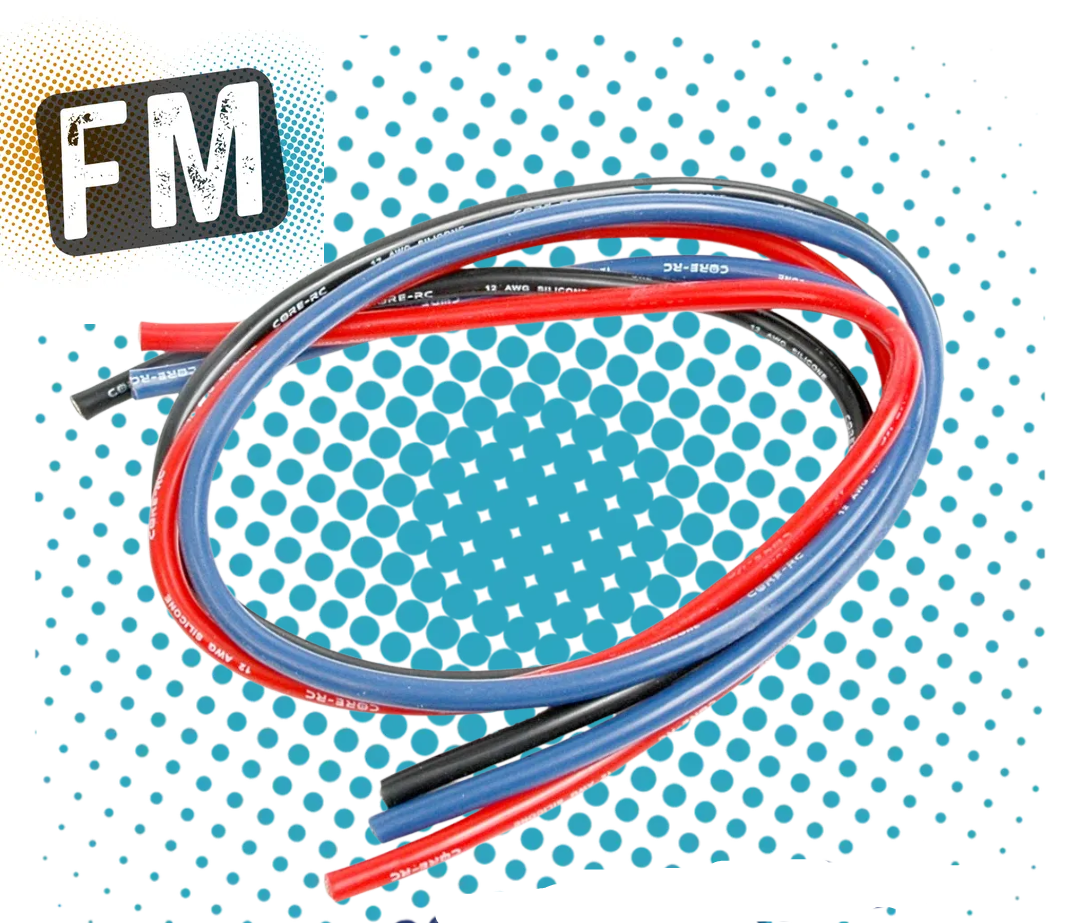

CORE RC Silicone Wire 12g - Red/Black/Blue 3x50cm - Heavy gauge extra flex silicone wire for powerful motor and battery wiring. Half metre each of red; black and blue in the pack.

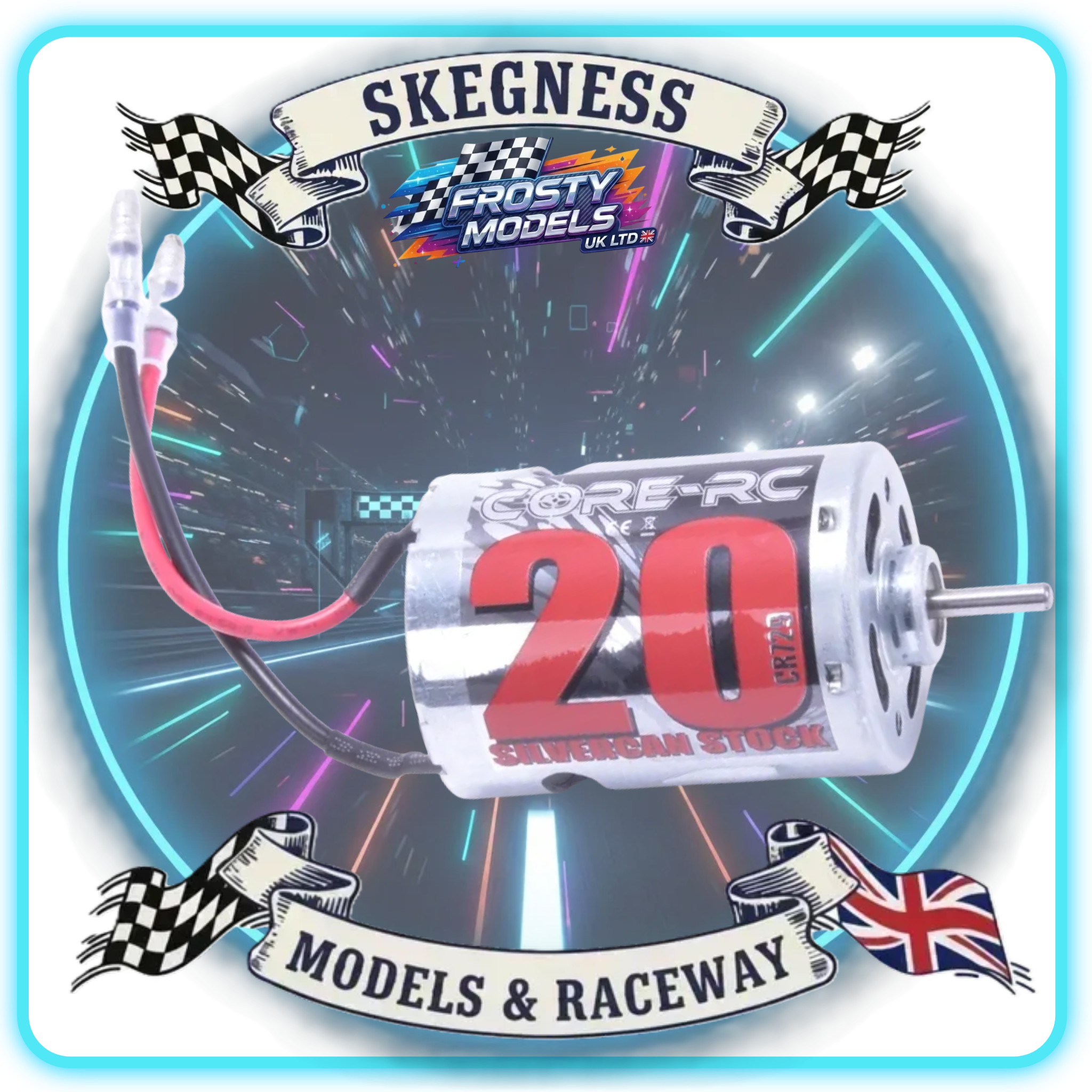

Introducing the CORE 20 Silver Can Brushed 540 Motor.

- 20 Turns especially designed for the 1/12th Mini class.
- Standard 540 can size for use in 1/10th scale or 1/12th scale vehicles.
- Motors are designed for use with 4 cell or 6 cell Nimh packs, or 1s or 2s lipo packs.
- Supplied with leads for easy connection in RTR cars.
- Includes internal cooling fan.

ORCA’s latest stock spec Speed Controller – the Totem 2S.

Featuring a continuous 100A current rate, which is enough for up to 10.5 turn motors while using the included fan mounted to top of the ESC.
The Totem is light too, weighing in at just 23.5g, it comes with reverse polarity protection and integrated capacitors for a even smaller chassis footprint.

Specifications:

Dimensions: 23.8 x 33.6 x 17.6mm

Weight: 23.5g

Voltage Input: 6 – 8.7V

Peak Current: 380A

Continuous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 4A | 6V-7V

This is 12AWG Silver Silicone Wire Set (BK/BU/RD).

Feature:

• Assorted Packing - Colors - Black / Blue / Red
• Wire Length - 60 cm each x 3 colors
• Nominal Voltage: 300V or 600V. (It is well-suited for Radio Control Cars which require the standard of 0.1 - 24V.)
• Temperatyre Rang: -60℃~200℃
• Outer Diameter Tolerance: +/-0.1mm
• Test Voltage: 2000v
• Conductor: Tinned Copper
• Insulator: Silicone

• Super strong
• Width: 25mm
• Length/roll: 10.0m

Introducing the FuriaX Supa 60A Brushless ESC from SKY RC.

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.
Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Introducing the 1/10 FuriaX Supa 3650 Brushless Motor from SKY RC

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
4000 KV
<16V
Voltage
1.5A
No-load Current
56A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*21
Rotor（mm）

Mini PRO Motor Pod

Designed to fit a Mini Racer Pro / Supastox / NASCAR

Motor can mounted either side.

3D Printed pod exclusively for Kamtec Mini Pro

You will receive pod only as in photo.

Will accept all 540 motors including Brushless
