1/10 Buggy ESC & Motor Combos & Programming

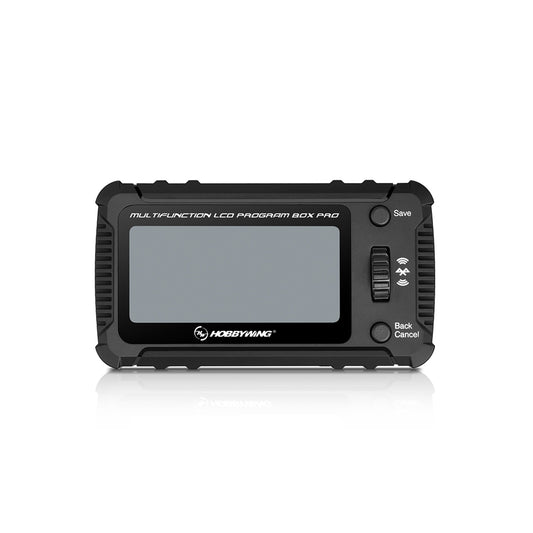

Introducing the new Hobbywing LCD Program Box Pro.

An independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).

Large Screen is easier to read than ever.
Equipped with a 2.8-inch display.
Double the characters and screen information over the previous LCD Program Box, the new display is a welcomed upgrade.
Support brightness adjustment to meet the needs of viewing in various brightness environments.

Roller helps to improve quality of life.
Simplified operation and control using the single roller interface. Navigating a speed controls settings is easier then ever.

Import and Export ESC profiles
Import and Export your favorite profiles with ease. You can bring in your ESC settings, save them and export them to a new ESC.
This makes profile sharing simple and easy.

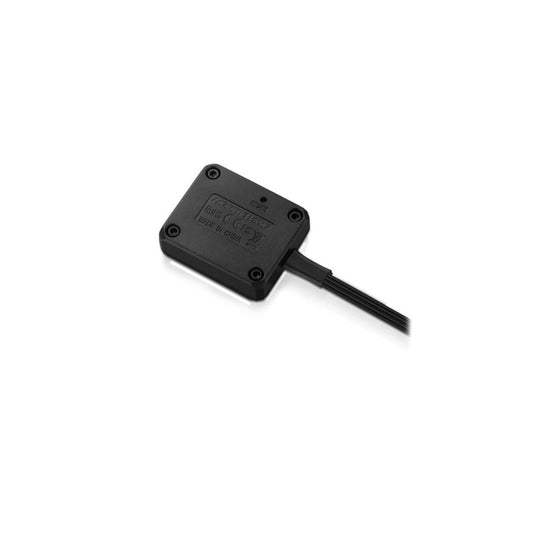

OTA parameter adjustment and firmware update
The built-in Bluetooth module functions as an OTA Programmer. The ESC establishes a wireless connection with a smartphone through the LCD programming box.
The HW Link V2 app can be used to adjust the ESC and update the Firmware.

Supports updates to the OTA parameter adjustment and firmware update.

Built-in Sound
Built in audio to make settings save confirmations easy. The sound can of course be turned off as well.

Battery Voltage Tester is built in.
Supports 1-8S battery voltage detection.

Specifications

Size - 105.6x59x24.4mm（LxWxH）

Weight - 85g

Input Voltage - 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

Interface - TYPE-C USB， ESC interface(Futaba plug), Power supply interface（Futaba plug）

Display Screen - LCD

Introducing the FuriaX Supa 60A Brushless ESC from SKY RC.



used unit - no plugs on motor wires. Rest looks good as new

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.
Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

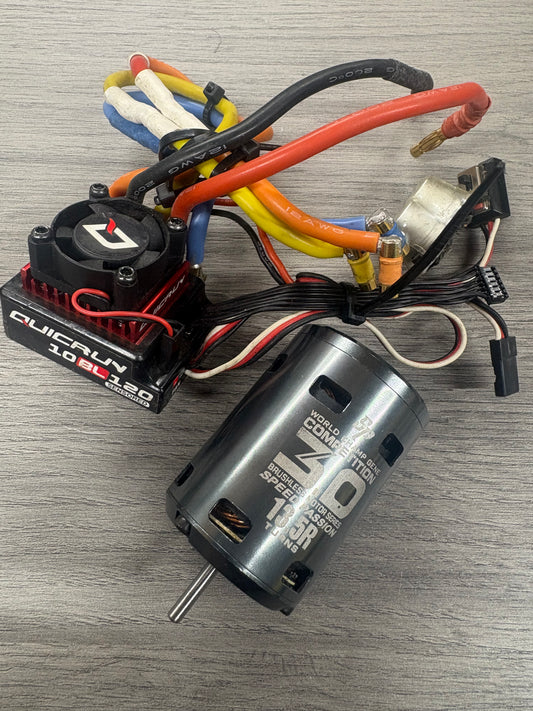

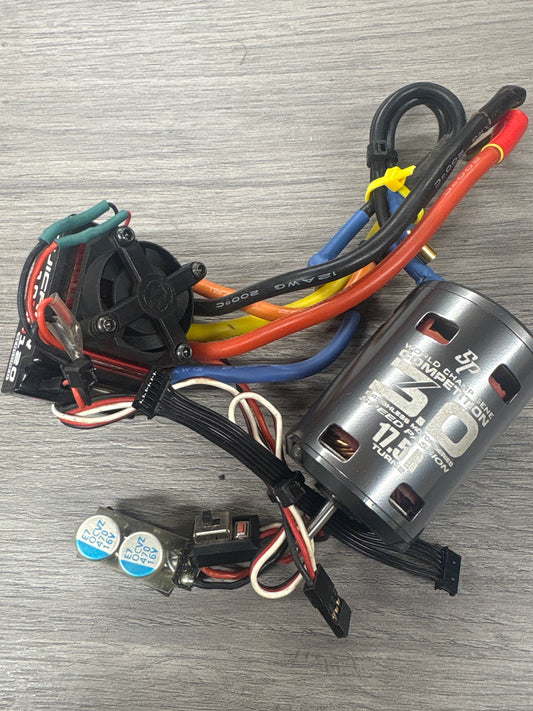

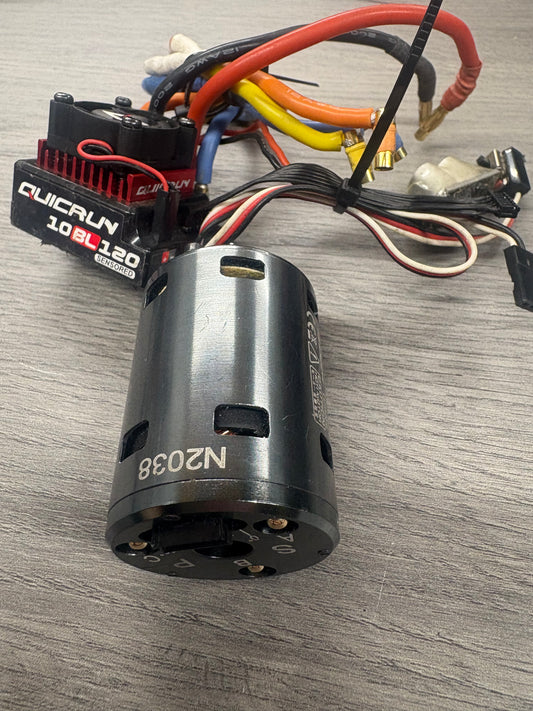

Introducing the Hobbywing QuicRun WP 10BL120 G2 and Quickrun 3650SD 13.5T G2 motor combo.

Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.

Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.

Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.

High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 120A/760A
Input Voltage - 2-2S LiPo
BEC Output - 6V/7.4V@4A

Wires & Connectors
Input Wires -Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1
Output Connectors - Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size -43*36.8*32.3mm
Weight -101.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor

Vehicles -1/10^th Touring Cars/Buggies/Drift Cars
KV Rating/T Count -2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor - The main feature of these motors is the fixed timing and easy to use solder joints, making it an excellent motor for controlled classes.

Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this motor and improve its operating efficiency.
- This motor is perfectly matched with a Hobbywing ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

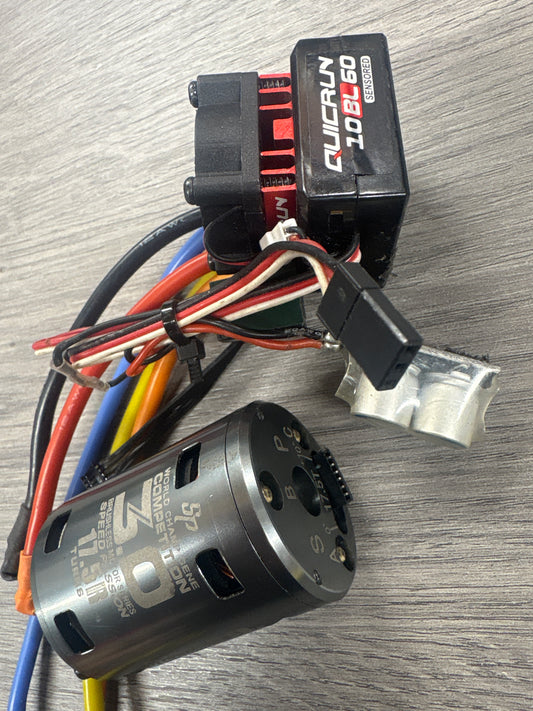

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2


-------


Motor

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design
The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multiple programming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port
Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2


-------


Motor

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design
The end bell can be easily removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

As shown -

USB Balance Smart Charger - Max.Charge Power: 10W - Charge Current: Max.0.8A

4x Dry Alkaline Radio Batteries

1x Deans Plug Round cased Lipo Battery 4000mah

As shown - Brushed & Nimh Setup

Xlink
With a user-friendly LCD interface, our Team Cayote Xlink system ensures that programming your ESC is now a quick and hassle-free job. Fine-tune your settings effortlessly, whether you’re at the track or in your workshop. Compact and portable, it’s your ultimate companion trackside.

Specifications

Brand: Cayote
Size: 115x55x18.5mm
Weight: 73.5g
ESC Port: Futaba Socket
Power Port: Futaba Socket
Input Voltage: 5-12.6V

Introducing the FuriaX Supa 60A Brushless ESC from SKY RC.

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.
Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Ideal for entry level RC Racing on 1/10 Car or 1/10 Buggy

Introducing the FuriaX Supa 60A Brushless Combo set from SKY RC.

FuriaX Supa 60A Brushless ESC is your perfect first step into brushless power — delivering exciting performance with effortless ease. It’s not just an ESC. It’s the key to unlocking your passion for speed — built for fun, reliability, and confidence from the very first run.

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

Beginner Friendly Guru Ready
Supa makes brushless power simple for newcomers and effortless for seasoned RC gurus — stable, reliable, affordable and always fun.

Effortless App Programming
Forget bulky programming boxes or cards. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone, saving you the cost of extra equipment.

60A Steady 360A Ready
With a continuous 60A output and bursts up to 360A, Supa delivers steady power to your brushless motor for smooth acceleration, reliable braking, and the confidence to push harder every run.

Smart BEC Power Made Simple
The SUPA ESC features a switchable 6V / 7.4V BEC, adjustable right from the app.
Standard servos run steady, HV servos unlock their full potential — no jumpers, no hassle, just a tap away.

Drive Hard, Stay Cool.
A built-in aluminum heatsink and fan help keep things cool, so you can focus on driving instead of worrying.

Reliable Performance
Balanced speed and torque give you enough power for fun runs, backyard bashing, and light off-roading — without overwhelming new drivers.

Always Protected
With safeguards against:
• Low voltage
• Overheating
• Motor lock
Supa keeps your car protected while you learn.

Fit for Your Car
Designed to fit most 1/10 RC car chassis, the SUPA ESC pairs flawlessly with FuriaX motors and works seamlessly with mainstream brushless motors — delivering stable, consistent power across every setup.

Ready for Every Run
From backyard tracks to open parks, the FuriaX Supa Series gives you the power, durability, and confidence to enjoy every drive.

Specifications

Size and Weight
Size: 48×38×38.5mm
Weight: Approx. 100g

TechSpec
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count:
2-3S LiPo
6-9S NiMH
BEC Output: 6V/7.4V
Low Voltage Protection: Auto / Off / 3.0V / 3.2V, default: Auto
Over-temperature Protection: 85°C / 105°C / 125°C / None, default: 105°C
Cooling: Fan

Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%

Motor Details

FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.

First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.

6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.

Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.

Effortless Wiring Plug and Play
Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.

Dust. Mud. Splashes No Problem
Engineered to resist dust and splashes, the motor keeps going strong.
From dirt to mud, it runs smooth and steady.

Versatile Fit Easy Maintenance
Supports most mainstream 1/10 chassis. Drop-in fit, no mods required.

Multiple KV Options
A range of KV ratings to suit track racing, street runs, or light off-road—find your perfect setup.

Specifications

1/10 FuriaX Supa 3650 Brushless Motor
2300KV
< 22V
Voltage
1.0A
No-load Current
41A Max.
Load Current
900W Max.
Power
Ø15*Ø5.00*21
Rotor（mm）

Introducing the ORCA RunPlus Brushless/Brushed ESC with Program Card, the perfect addition to your r/c car or truck. Measuring at just 29.5mm x 29.7mm x 17.6mm, this ESC is very compact and extremely lightweight, making it the ideal choice for those looking for a easy-to-use ESC.

With its attached power wires, this ESC is incredibly easy to install, making it a great choice for beginners and experienced hobbyists alike. Plus, with a 80A continuous current limit, it can handle all 540-size brushless motors up to 13.5 turns/3600kv, Brushless 380 or 390 sized motors up to 10.5 turns/4600kv as well as Brushed motors over 12 turns too.

Included with this ESC is an LED program card, which allows you to fine-tune your settings.



Specification;

Dimensions: 29.5mm x 29.7mm x 17.6mm

Weight: 22g (excluding wires)

Voltage Input: 6-12.6V (LiPo 2-3 Cells)

Peak Current: 310A

Continuous Current: 80A

Motor Limit (Brushless): Over 10.5T

Motor Type: 540 Sizes Brushless and Brushed motors – 380 sized Brushless motors

BEC: 4A 6V/7V

Non-updateable firmware – ideal for spec races

Includes both Blinky Mode and Turbo functions

LED program card with 15 adjustable parameters

Suitable for on-road, off-road, crawlers and all recreational vehicle type

Hobbywing OTA Programmer allows the ESC to be wirelessly connected to smartphone.

Using the Hobbywing HW Link APP to clearly display and adjust all parameters of ESC. The interface is simple to operate.
1.App of IOS version:Search HW Link or Hobbywing in Apple store.
2.App of Android version: Search HW Link or Hobbywing in Google Play.
You can also directly click the Android icon on this page to download.

Intuitive Interface

When use app to adjust parameter, the graphical man-machine interaction interface of drop-down list box and scroll bar make the parameter adjustment more flexible and easier to operate.

Real-time data recording function

OTA programmer supports real-time data recording function and storesthe data in its memory. It can be opened by HW Link to know the running status of power system. The real-time data can be checked by connecting smartphone HW Link App within effective distance (0-3m).
*The real-time data function needs to be supported by the ESC. Please refer to the manual of ESC for details.

Simple and Convenient for Firmware Update

Compared with LCD programming box, it is no need to connect the computer to upgrade the firmware of ESC.
The firmware of ESC can be upgraded only by using HW Link App on the smartphone. More simple and easy to operate.

Bluetooth transmission and does not affect network of smartphone

OTA Programmer uses Bluetooth to communicate. It does not affect Wi-Fi and cellular data network of smartphone and network requirements of other Apps.

Compact Design

This OTA Programmer is smaller and lighter. It’s only 1/6 of HOBBYWING LCD program box in size and weight.

One-touch Factory Reset

Users can promptly factory reset their OTA Programmer via the Reset button on it.

Wide Application

This module is suitable for some brushless ESC of XERUN, EZRUN, PLATINUM and SEAKING series;
* Whether the ESC supports or not, please refer to the manual or the technical parameters on official website.

Specifications

Working Voltage: - 5-12.6V

Supported Bluetooh Version - = 4.0

Effective Range - 0-3m (Open Field)

Size - 30.0x25.5x8.5mm (LxWxH)

Weight - 10.2g

Applications

- Some of XERUN series & EZRUN series of car ESCs.
- Some of PLATINUM series of aircraft ESCs.
- Some of SEAKING series of boat ESCs.

* For details, please refer to ESC manual to ensure if the ESC can work with OTA Programmer.

This LED program box is for programming HobbyWing brushless ESCs. Its friendly interface makes ESC programming easy and quick. It’s compact, portable and very applicable for field use.

Applications:

• Platinum V1/V2 series & FlyFun V5 SkyWalker V2 Series of brushless aircraft ESCs
• XeRun series (most), EzRun series & QuicRun series of brushless car ESCs
• SeaKing series of brushless boat ESCs

Specifications:

• Size: 88x58x14mm
• Weight: 40g
• Input Voltage: 4.8-6V
• Instruction and Lead included

NOTE: If the ESC doesnt have a built-in BEC, you will need to use an additional 6.0V battery to supply power to the program box.

Manufacturer	Hobbywing
Part Number	HW30501003
EAN	5051294137410
Electric Accessories	ESC Programmers

Introducing from Hobbywing the XR10 G3 Competition Speed Control.

HW30112619 - XERUN XR10 Pro Black G3  - Black Case / 13AWG Wire / Reverse Polarity Protection / Smoother power delivery and ideal for MODIFIED classes.

(OTHER OPTIONS AVAILABLE HW30112620 XERUN XR10 Pro Grey G3 X  - Titanium Grey Case / 12AWG wire / NO Reverse Polarity Protection / More punch feeling and ideal for STOCK classes)

Built-in data logging function
The XR10 Pro G3 features a built-in data recording module capable of storing up to 19 groups of 20-minute data sessions, totalling 380 minutes of storage. No need to keep the OTA Bluetooth module connected during operation.

OTA Programmer
The OTA or LCD Program box pro is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.

Historical Record Data (displayed as a curve graph)
Connecting to the App allows the review of the stored Data Logs after a run, (as a graph) as well as the Real Time Data output to check operational status.

Freewheeling function, lower temperature
Freewheeling effects deceleration and overall operational efficiency to help reduce temperature. Compared to the previous XR10 Pro G2S ESC, the temperature theoretically drops by around 15 deg during operation, improving overall consistency and reliability. This significant temperature reduction is especially beneficial under higher load applications.

The RPM decrease rate setting offers faster deceleration off throttle, enhancing control in corners.
Note: A higher RPM decrease rate results in faster deceleration when the throttle is released with Freewheeling enabled.

Disc Brake Mode
Using an innovative close loop brake control (disc brake mode) creates a brake output that is more accurate , and more linear. This allows the feel of your brakes to be completely linear at all speeds. This mode completely solves the problem of non-linear braking force, which is often caused by traditional braking methods due to the influence of vehicle speed.

Disc Brake Mod also supports the Brake Force Curvature, to fine tune the brake bias feeling. Of course, the normal Linear/Traditional braking nodes are still available.

Durable frameless fan
The frameless fan blades are made from special materials, significantly increasing their rigidity. As a result, the fans are more durable, and the reliability of the ESC is improved.

Smart fan start-stop function
This allows the fan to be off when the ESC does not need it, and automatically activate when the ESC’s temperature rises and colling is required. The Smart Fan Start stop function ensures the ESC stays within it’s operational temperature range and reduces power usage and noise when the fan is not needed.
Note: The smart start-stop function can be disabled through the parameter settings.

Dual parameter setting mode
24 Parameters (Basic)
44 Parameters (Advanced)
Two levels of of parameter adjustments allows drivers to simplify some of the more common tuning items, while still having complete access to all the ESC settings when needed. You can keep it as simple, or option packed as you need.

Extensive programmable parameter options
It contains more than 44 programmable parameters that are designed allow a wide range of tuning to suit any driver’s needs. Of these settings, notable update include which are new throttle/brake curvature, freewheeling, disc brake, drag, brake frequency, boost timing, turbo timing and many others.

Softening 2.0 technology
The ESC is equipped with an optimized Softening 2.0 technology. The new softening 2.0 parameter enhances the driving force in the initial phase, significantly improving the drivability of high power vehicles without losing overall speed.

Low center of gravity design
The ESC fan assembly features an improved lower center of gravity design compared to the previous XR10 Pro G2S ESC. The overall height of the ESC is reduced by 2mm, effectively lowering the center of gravity and aiding in the car balance.

The fan assembly is also detachable to further reduce the ESC’s center of gravity when an ESC cooling fan is not required.

Optimized cable output for easier wiring
The ESC layout has been optimized for simplicity in wiring for on-road applications while also accommodating off-road vehicle layouts. Plus, the ESC also includes one set of U-type connectors, which can easily meet various wiring requirements, such as flat and diagonal soldering.

Built-in reverse polarity protection circuit
The standard version of the G3 ESC includes a built-in reverse connection protection circuit, effectively preventing damage to the ESC caused by accidental reverse connections.

Note:
Only the non-polarity capacitor option is able to provide reverse polarity protection for the entire power system. The standard capacitor in the ESC does not offer reverse connection protection. While reverse connection of the battery will damage the capacitor, the ESC itself will remain undamaged.

The G3X version of the XR10 Pro, does NOT offer any internal Reverse Voltage Protection and will be damaged if connected incorrectly.

Dual version options
The ESC offers two options:the standard G3 (black) and the G3X (titanium grey).
Note： The G3 version comes standard with 13AWG wire, while the G3X version comes standard with 12AWG wire,and does not have Reverse Voltage Protection.

Built-in BEC supports high-voltage servos
An adjustable BEC is integrated in the ESC to provide an output current with a peak of 10A. The output voltage has continuous adjustability ranging from 5.0V to 7.4V,settable at 0.1V per step in this range.

All this meets the power requirements without any issues for both high-torque and high-voltage servos.

Specification

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SD

Waterproof - No

Cont./Peak Current - 160A/1200A

Input Voltage - 2S LiPo

BEC Output - Switch Mode 5V-7.4v 6A

Input Wires - Black-13AWG-200mm*2

Output Wires - Black-13AWG-200mm*3

Input Connectors - No

Output Connectors - No

Fan

Type - Frameless Fan

Data Recording

Extreme Value - Supported

Real-Time Data - Supported

Historical Data (Graph) - Supported

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Not Supported

LCD G2 Program Box - Supported

LCD Pro - Supported

OTA Programmer - Supported

Program Port - Separate

Firmware

Firmware Upgrade - Supported

Size - 35X33.6X30.3mm

Weight - 93g (Included wires&connectors)

Applications - SD BL Motors

Vehicles - 1/10th Touring car and Buggy, 1/10th Drift, F1, Rally.

KV Rating/T Count - XERUN V10 G4R/G3 Bandit G4
