Cayote Connectors

Cayote

Cayote - CAYOTE LiPo Balance Port Green Easyfix Spacer - CYECBS01

£10.99

Warehouse Order 3-5 Days

Sunpadow

Sunpadow - Sunpadow LiPo 8000-2S2P-7.4V-130C Stick Platin - SUJA0032

£94.99

Warehouse Order 3-5 Days

Cayote

Cayote - CAYOTE CREST 1/10 Stock Motor 17.5T - CYEB11012

£104.99

Warehouse Order 3-5 Days

Cayote

Cayote - CAYOTE CREST Modi 5.5-9.5T Standard Rotor 12.5mm - CYEBR1003

£49.99

Warehouse Order 3-5 Days

Cayote

Cayote - CAYOTE CREST Modi 4.5-5.0T Standard Rotor 12.3mm - CYEBR1002

£49.99

Warehouse Order 3-5 Days

Hobbywing

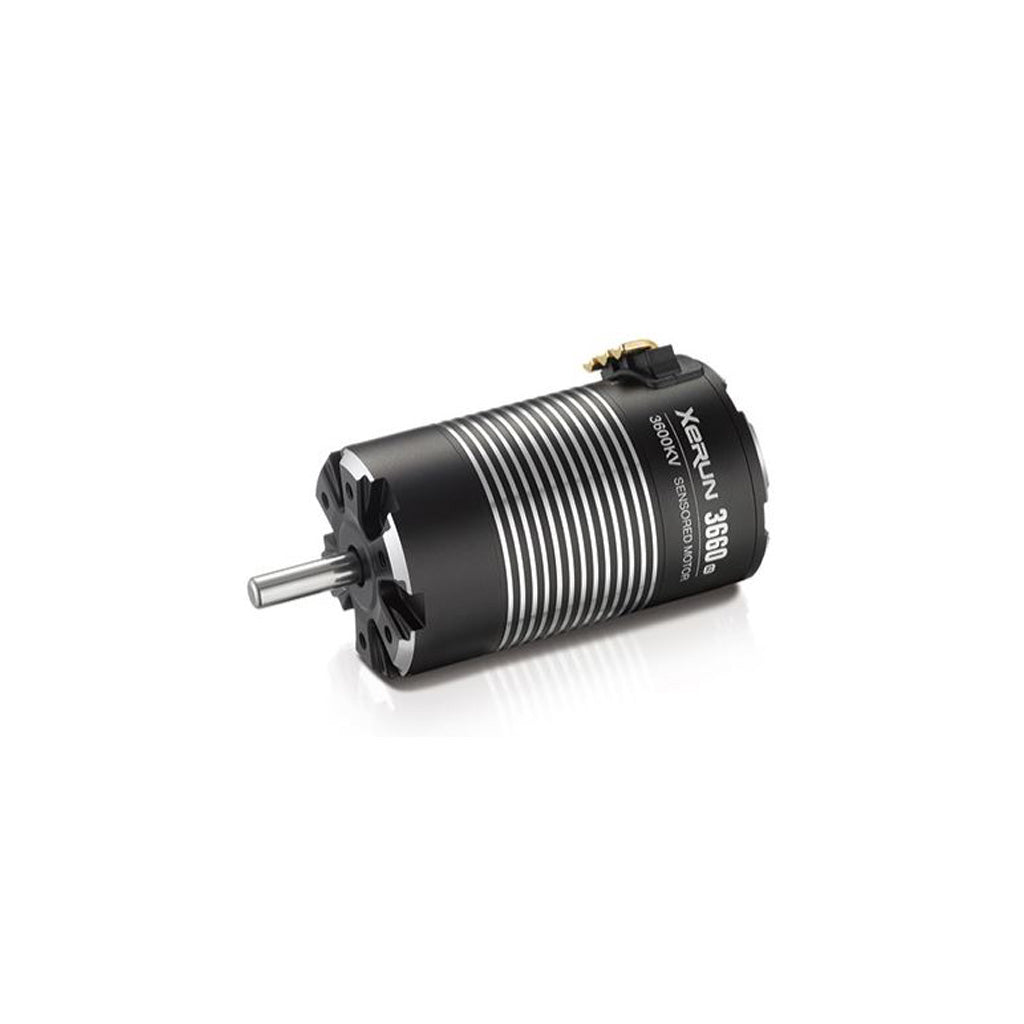

Hobbywing - XERUN - 3660SD - D5.00 - G2 - BL Motor - 3600 -Blk - HW30401151

£94.49 £104.99

-10%

Warehouse Order 3-5 Days

Hobbywing

Hobbywing - XERUN - 3652SD - D5.00 - G2 - BL Motor - 5100-Blk - HW30401060

£82.79 £91.99

-10%

Full-sensored Mode
The first 4-pole motor with a built-in chip which helps ESC identify it's a HOBBYWING motor (only when pairing it with the XeRun XR8 series of ESCs) and the XR8 ESC create a power system which is able to work in the "sensored" mode (at all times) and provide users with the better performance and smoother control. Note: this motor is compatible with other ESCs but unable to work in the "sensored"
mode at all times.

Turbo Timing Technology
The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.

Bi-directional Adjustable Timing
The mechanical timing which is adjustable from 20 degrees to 40 degrees (30 degrees by default) meets different power demands of various applications.
(Note: bi-direction means CW/CCW)

Advanced Hall Sensing System
The HOBBYWING-patented "error-free" Hall sensing system adopted by the motor guarantees users the steady operation in the "sensored" mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.

Low Cogging Torque
The HOBBYWING-patented 4-pole-8-magnet "staggered pole" rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.

Quality Materials & Excellent Design
The use of double insulated windings (200? R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300?) guarantees users the outstanding performance and great durability.
(With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.

Turbine Design
The turbine design adopted by the rotor actively accelerates internal air circulation, reduces heat and keeps the motor temperature stay at a low level.

Compatible with the XeRun XR8 SCT ESC
When pairing the XeRun 3652/3660 G2 motor with a Hobbywing XeRun XR8 SCT ESC, the excellent match between ESC and motor will give users large torque plus a very smooth and linear power band.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 5100
LiPo Cells - 2S
No-load Current(A) - 4.7
Resistance(mO) - 3.5
O.D.(mm) - 36mm(1.417in)
Length (mm) - 52.5(2.067in)
Shaft Diameter (mm) - 3.175(0.125in)
Weight (g) - 192(6.77oz)
Shaft Length(mm) - 15(0.591in)
Timing - 20-40 Degrees (Adjustable)

Warehouse Order 3-5 Days

Cayote

Cayote - CAYOTE LiPo 3900mAh HV Shorty 7.6v 15.8mm 142g - CA392S145

£37.99

Warehouse Order 3-5 Days

Cayote

Cayote - CAYOTE CREST 1/10 Stock Motor 21.5T - CYEB11013

£104.99

Warehouse Order 3-5 Days

Cayote

Cayote - CAYOTE CREST Brushless Motor - 7.5T - CYEB11009

£99.99

Linear Power Response - Precision Control at Your Fingertips
The Team Cayote CREST Modi competition motor ensures smooth and accurate performance with its exceptional linear output and ultra-precise power response. It maintains consistency between input and output signals during both acceleration and deceleration, preventing stutters or glitches. The built-in high-precision Hall sensors and a precision balanced magnet rotor enhance stable power across a very wide torque range, maintaining control sensitivity and precision power demands of professional racing.

BRCA Legal from 01/09/2025

Efficient Heat Dissipation Design
The Team Cayote CREST Modi motor features an innovative cooling design with large ventilation holes on both end caps, while a center structure exposes the stator core directly to air for optimal cooling. This setup minimizes heat buildup while maintaining a stable operating temperature even under extreme use. The efficient heat dissipation improves durability and ensures consistent power output in high-load and high-temperature environments.

Unmatched Burst Power for Unstoppable Performance
The CREST Modi motor delivers powerful burst performance with its advanced linear power system and efficient rotor design. It responds instantly, providing maximum torque when needed. Whether accelerating off the line or powering through high-speed sections, this motor excels in any high-load or high-speed environments.

High-Temperature Resistant Rotor Design
The Modi features a high-temperature resistant magnet built to withstand temperatures up to 220°C. Even under high-load, high-temperature conditions, the rotor resists heat-induced cracks, ensuring reliable performance and durability. This design ensures consistency no matter the conditions, therefore allowing you to push the limits with full confidence.

Convenient Disassembly for Effortless Maintenance
The innovative rebuildable design makes maintenance and cleaning quick and easy. This user-friendly feature ensures simple, regular checks, reducing malfunctions and keeping your motor at peak performance longer. Spend more time on the track, while enjoying consistent power and reliability.

Seamless Precision Control Functions
In combination with Team Cayote's Crest X and EVO ESC series, and our advanced continuous angle adjustment technology, Modi motors offer more tuning options and enhance control. The "infinite adjustment system" feature lets users fine-tune output instantly via our APP, ensuring responsive, immaculate handling in any situation.

Suggestion Application
1/10 Off-Road
Suitable for 1/10 off-road/truck racing.
1/10 On-Road
Suitable for 1/10 on-road racing.

Warehouse Order 3-5 Days
