1/12 Mini GT - Brushless 2S Electrics

Introducing the SKY RC Ares V4 1/10 Sensored Brushless Motor, with all new design.

ROAR Approved Roaring Ahead
On the track or in every turn, the ROAR-approved ARES PRO 4 delivers uncompromising, professional-grade power.
ROAR isn’t just about compliance—it’s a mark of excellence.
Race with confidence. Race with ARES PRO 4.

BRCA, EFRA and ROAR Legal.

Competition-Optimized Design
Every Detail Tuned to Win. Engineered to Excel.

Low-Resistance Solder Tabs
High-quality tabs minimize power loss, ensuring maximum current flows straight to the rotor.

Stay Cool: CNC Aluminum Heatsink Case with Rear Venting
The precision-machined aluminum case dissipates heat efficiently, while a large rear vent boosts airflow over the Hall sensor for stable, reliable performance.

Global-Grade Bearings & Precision Shaft for Ultra-Smooth Control
Top-tier international brand bearings paired with a high-precision shaft ensure buttery-smooth, accurate operation—race after race.

High-Purity, High-Temp Copper Windings
220°C-rated, high-purity copper windings ensure efficient, low-heat power delivery for stronger punch and higher top speed.

Precision-Balanced, Heat-Resistant Rotor
Meticulously balanced for ultra-smooth rotation and minimal vibration, the rotor is crafted with a 200°C heat-resistant, explosion-proof structure—delivering consistent power, higher RPMs, and lasting durability.

200°C High-Temp Neodymium Magnets
200°C heat-resistant neodymium magnets and a high-efficiency iron core deliver strong torque, stable magnetism, and consistent performance under pressure.

Advanced Sensor
No Hesitation. Just Precision.
ARES PRO 4 features advanced sensor technology for ultra-smooth throttle response and precise low-speed control—crucial for technical tracks and tight corners. By eliminating cogging, or hesitation at low RPMs, it delivers seamless, immediate power exactly when you need it.

Adjustable Timing.
Any Track.
Adjustable timing is the core of brushless precision, enabling power delivery to adapt seamlessly to any track condition.

Low Timing (0-20deg)
Later power delivery creates smooth output, stable torque, and linear starts.
Ideal for precise control through continuous corners, preventing sudden wheel spin.

Mid Timing (20-40deg)
Balances instant punch with smooth sustained acceleration.
Perfect for mixed circuits with straights and curves, such as drift tracks

High Timing (40-60deg)
Earlier power delivery drives rapid RPM climbs and explosive top speed.
Best for flat-out straights, achieving higher RPM under the same voltage.

Redundant Dual Sensor Ports.
Zero Hassle.
Placed in different orientations, the dual sensor ports simplify wiring and offer built-in redundancy. If one fails, the other keeps you running—seamlessly and reliably.
Plug in. Power on. No setup—just pure performance.
*Before use, please confirm your ESC’s continuous/peak current, supported cell count, and sensor port type to ensure compatibility with the motor specifications.

Modular by Design.
Built to Stay New.
ARES PRO 4 features a fully rebuildable, modular design—allowing easy disassembly of the housing, stator, windings, and bearings with standard RC tools.
Clean, service, and swap components to keep performance sharp and consistent, race after race.
Always fresh. Always in control.

Multiple Turn Options.
Ready for Any Track.
Each turn rating gives your car its own distinct character.
Lower turns deliver explosive speed and powerful thrust.Higher turns offer smooth, consistent power for confident control, lap after lap.

Size and Weight
Size: 35.8x35.8x52mm
Weight: 148g±5g

Working and Storage
Operating temperature: -10°C-80°C
Operating humidity: 20%-80% (non-condensing)
Storage temperature: 0°C-50°C
Storage humidity: 30%-60% (non-condensing)

Introducing the MC4 range of Intellect Competition LiPo's for 2026.

With increased performance over 2024/25 offerings and still a great price there's an Intellect LiPo to suit almost all applications.

Proven by top drivers such as Elliott Harper, Ben Smith and Kyle Branson.

BRCA/EFRA legal for 2026.

Specifications

18.5mm x 93mm x 47mm
4600mAh
120C
7.6v
5mm connector
155g

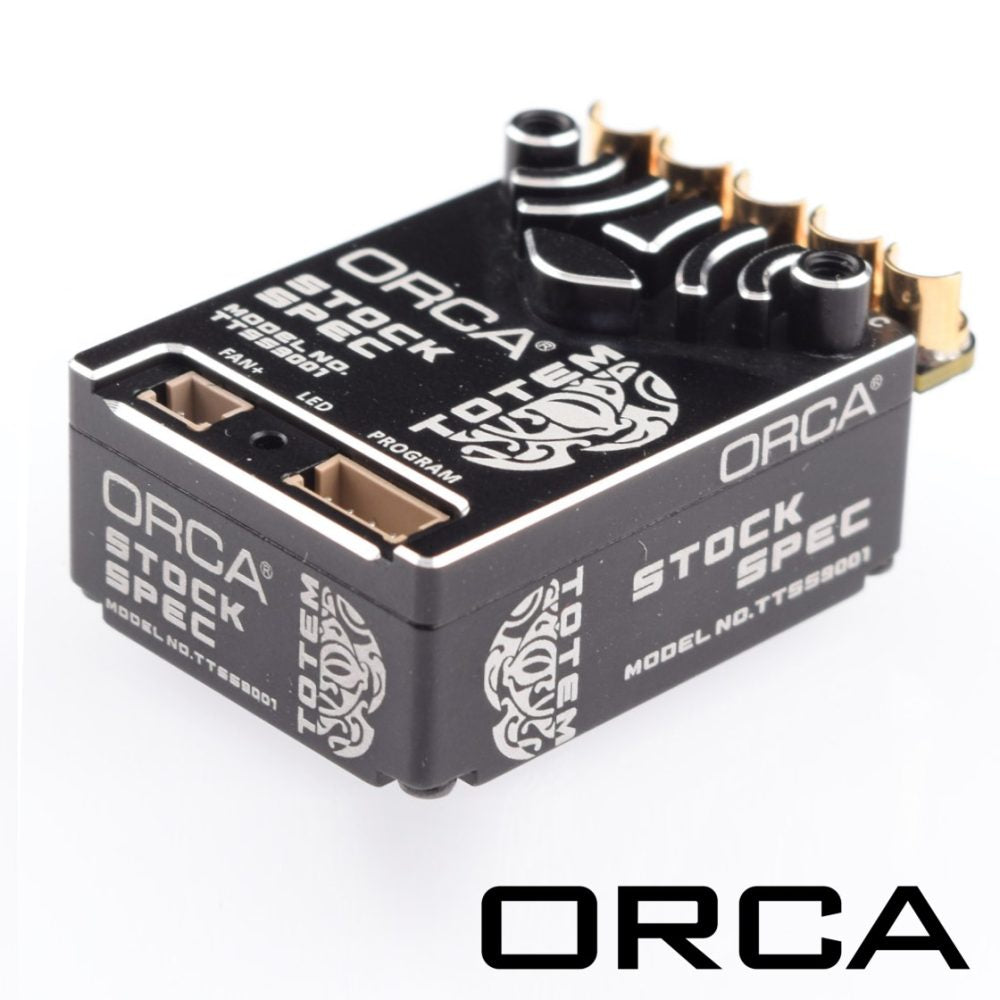

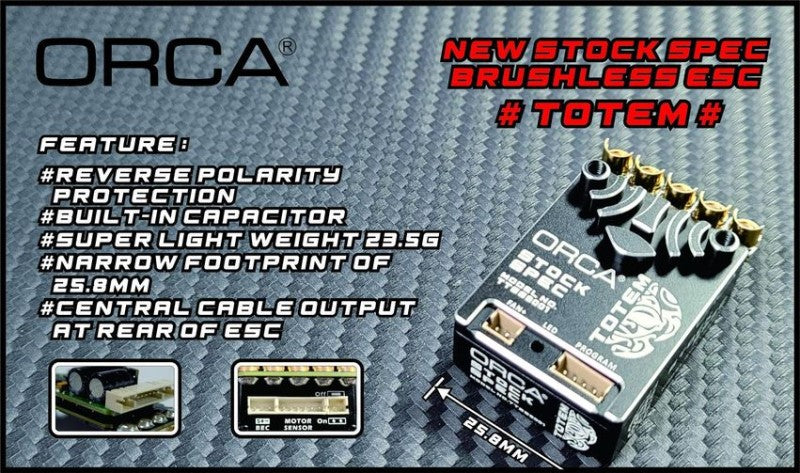

ORCA’s latest stock spec Speed Controller – the Totem 2S.

Featuring a continuous 100A current rate, which is enough for up to 10.5 turn motors while using the included fan mounted to top of the ESC.
The Totem is light too, weighing in at just 23.5g, it comes with reverse polarity protection and integrated capacitors for a even smaller chassis footprint.

Specifications:

Dimensions: 23.8 x 33.6 x 17.6mm

Weight: 23.5g

Voltage Input: 6 – 8.7V

Peak Current: 380A

Continuous Current: 100A

Motor Limit: Over 10.5T

Motor Type: Sensored 540 sized brushless motors

BEC: 4A | 6V-7V

Developed in collaboration with Surpass and refined under the BattCave IMPOST3R platform, this motor is designed with high-quality components including high-purity copper windings and a powerful sintered neodymium magnet, the IMPOST3R 25.5T delivers smooth, efficient power with strong reliability. The CNC-machined T6 aluminium heatsink can helps maintain stable temperatures under load, while compatibility with both sensored and sensorless ESC systems ensures maximum flexibility across setups.

Whether you're upgrading from brushed or stepping into brushless racing, the IMPOST3R 25.5T offers the perfect balance of performance, control, and consistency.

• Fixed timing for consistent, predictable power delivery
• Smooth, drivable performance for club racing conditions
• High-purity copper windings for maximum efficiency
• Powerful sintered neodymium magnet for strong response
• High RPM precision bearings for smooth operation
• CNC-machined T6 aluminium heatsink can for improved cooling
• Compatible with sensored and sensorless ESC systems
• High power solder tabs for secure connections

• Platform: 540 sensored brushless motor
• Cell count: 1–3S LiPo
• Rotor poles: 2
• Weight: 161g
• Shaft: 3.175mm
• Timing: Fixed

HOBBYWING QUICRUN 3650 G2 25.5T SENSORED MOTOR

Unleashing Performance: The Hobbywing 30404308 Motor.

The Hobbywing 30404308 motor stands out as a quintessential powerhouse for RC enthusiasts seeking versatility and reliability. Designed to cater to both on-road and off-road adventures, this motor brings precision and power to the forefront of RC racing.

A Closer Look at the Technology.

Built for excellence, the Hobbywing 30404308 motor features a sensored design, ensuring smoother performance with precise control. Whether you're tackling a tight corner on a race track or navigating rugged terrain, the sensored technology offers unparalleled responsiveness that seasoned racers will appreciate.

Tailored for Versatility.

With a KV rating of 1520 and compatibility with 2-3S LiPo cells, this motor is a versatile choice for a range of applications. From 1/10th scale touring cars to 1/12th scale F1 models, and even off-road buggies, its adaptability makes it a favorite among competitive racers and hobbyists alike.

Perfect for Competitive Edge.

In stock and sport class competitions, having the right motor can be the difference between first place and the rest. The fixed timing and dual-pole count are engineered for maximum efficiency, giving racers the edge they need to outperform their rivals.

Specifications

Scale: 1/10 and 1/12
Type: Brushless
KV Rating: 1520
Compatible LiPo Cells: 2-3S
No-load Current: 1.1A
Outer Diameter: 36mm
Length: 52.8mm
Shaft Diameter: 3.17mm
Weight: 186g
Timing: Fixed

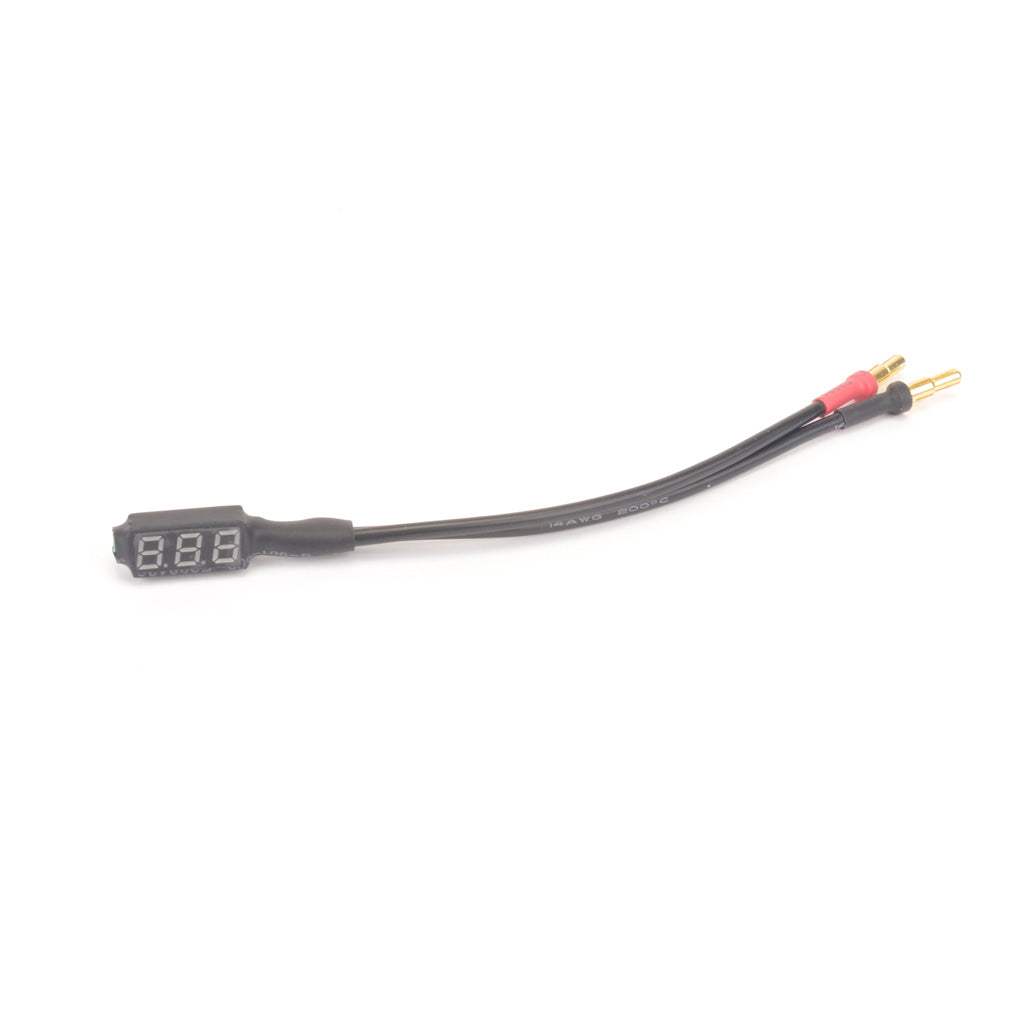

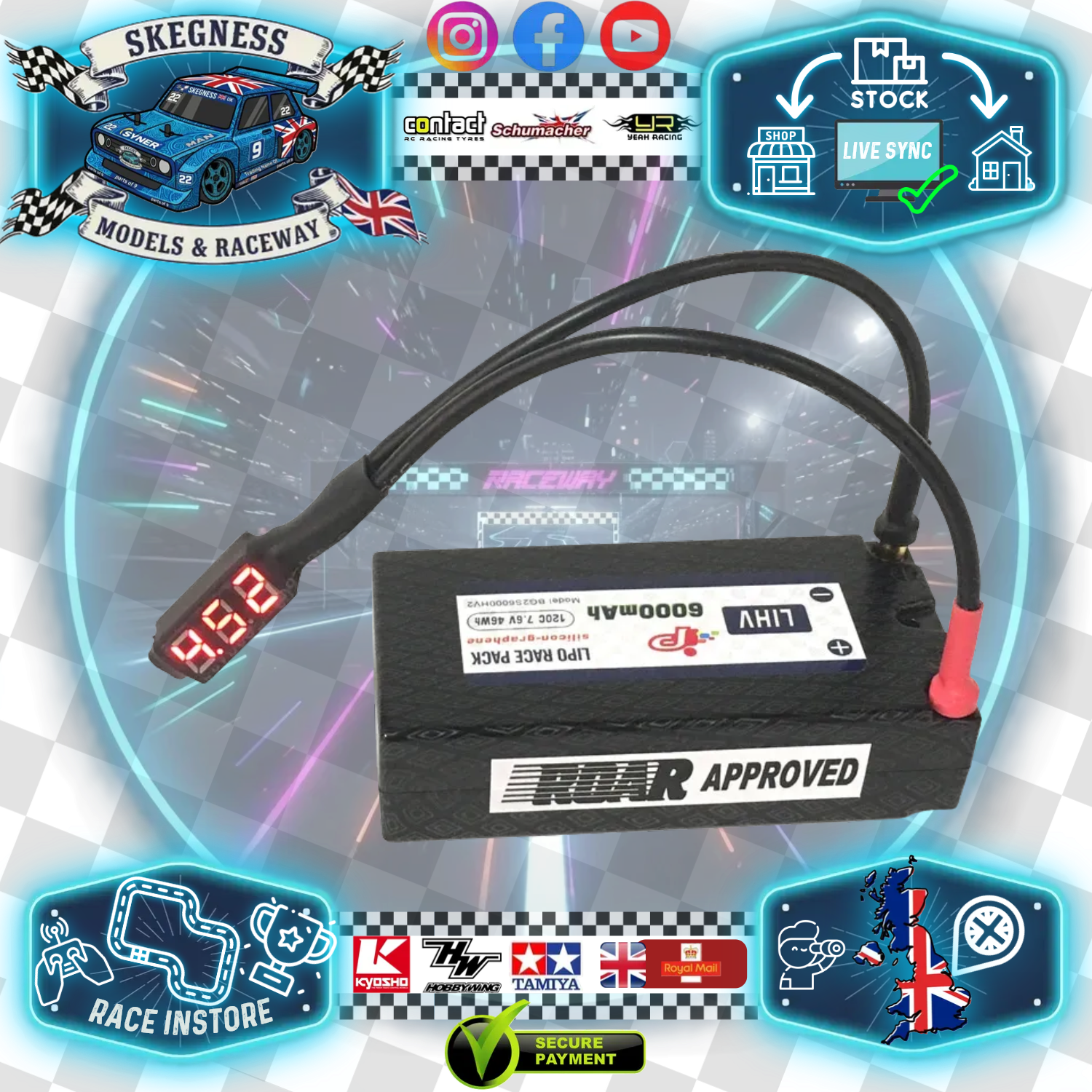

A must for every pit box! (Battery not included)

Designed to check the voltage of your packs quickly and easily to see what state of charge they are in.

The checker has a DC Voltage range - 2.5v - 30v so good for 1S-4S racing packs and higher.

Red digital display, with neat, cool looking black wires to look great on your pit bench.

Reverse connection protected, in case of cross connection it wont be damaged.

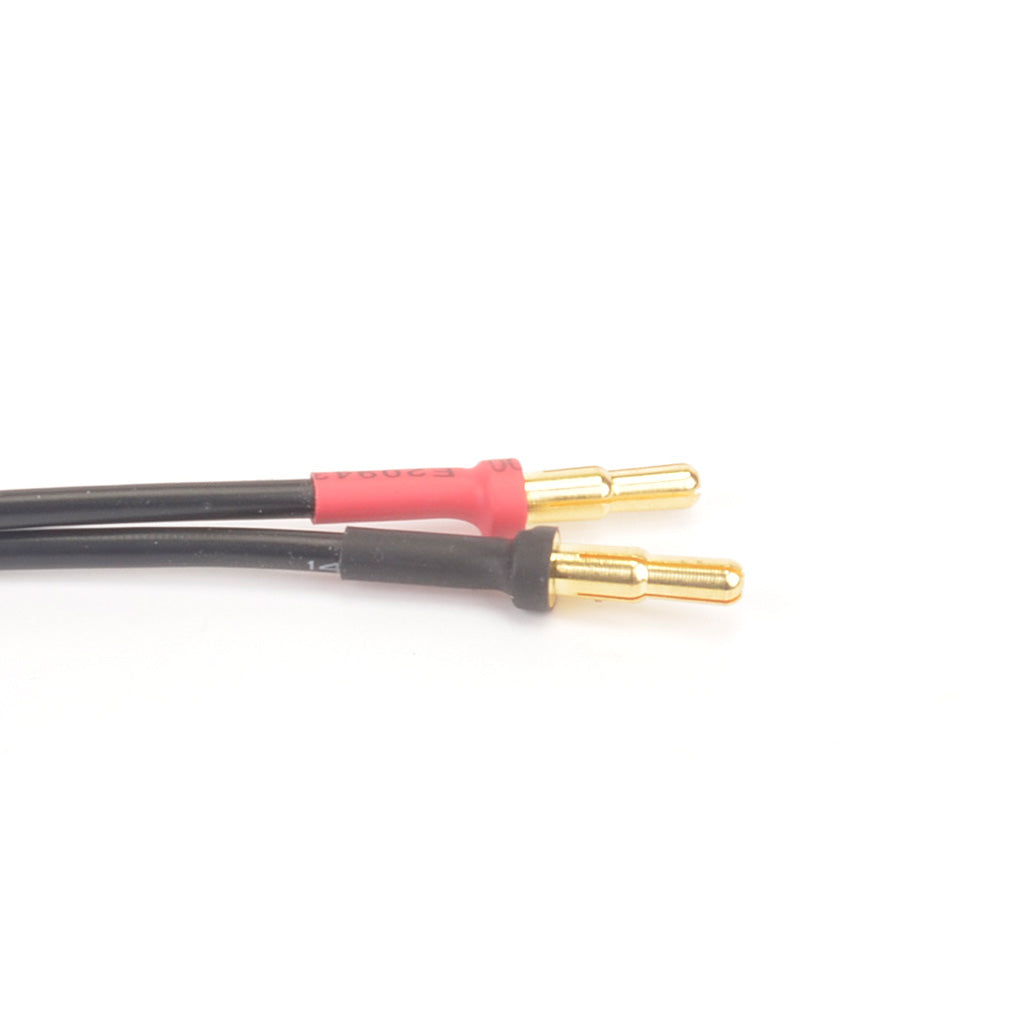

Neatly built with 4/5mm bullet stepped plugs for most common racing battery types.

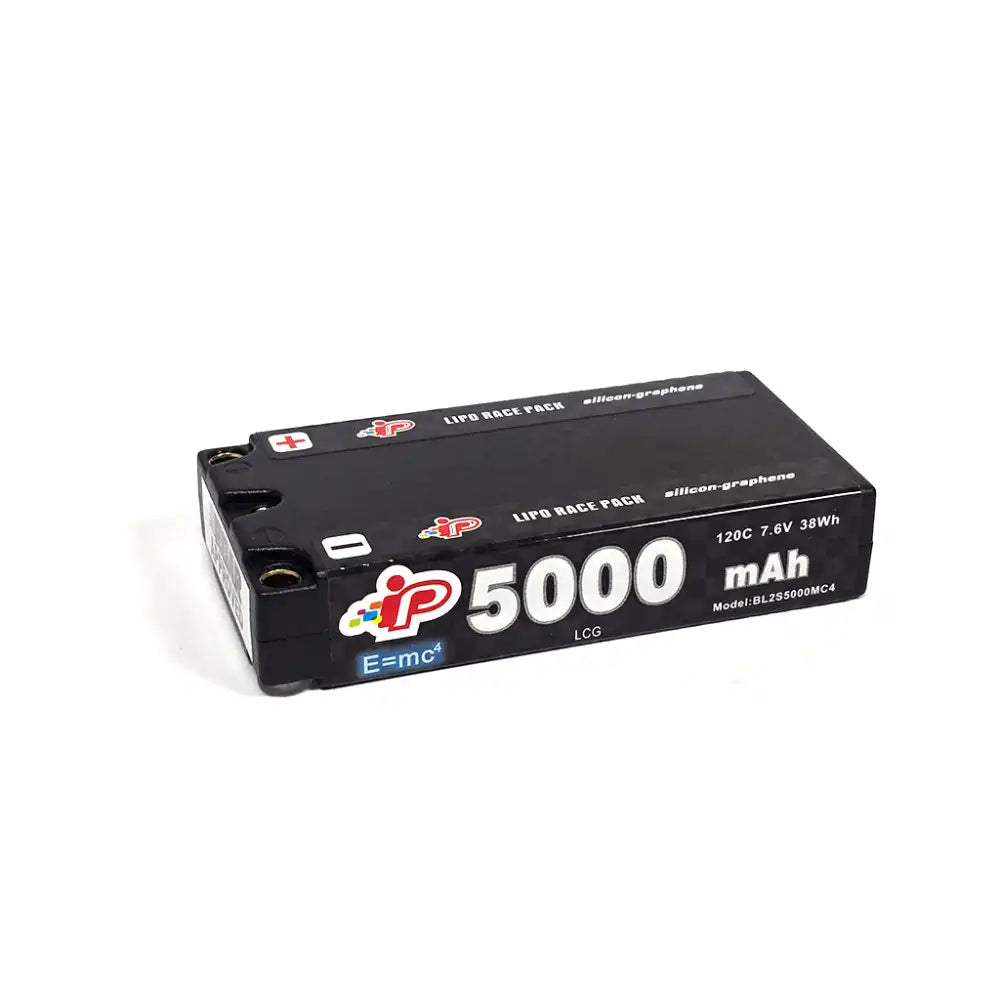

Introducing the MC4 range of Intellect Competition LiPo's for 2026.

With increased performance over 2024/25 offerings and still a great price there's an Intellect LiPo to suit almost all applications.

Proven by top drivers such as Elliott Harper, Ben Smith and Kyle Branson.

BRCA/EFRA legal for 2026.

Specifications

20mm x 93mm x 47mm
5000mAh
120C
7.6v
5mm connector
173g

High Voltage Cell

Introducing the ORCA RunPlus Brushless/Brushed ESC with Program Card, the perfect addition to your r/c car or truck. Measuring at just 29.5mm x 29.7mm x 17.6mm, this ESC is very compact and extremely lightweight, making it the ideal choice for those looking for a easy-to-use ESC.

With its attached power wires, this ESC is incredibly easy to install, making it a great choice for beginners and experienced hobbyists alike. Plus, with a 80A continuous current limit, it can handle all 540-size brushless motors up to 13.5 turns/3600kv, Brushless 380 or 390 sized motors up to 10.5 turns/4600kv as well as Brushed motors over 12 turns too.

Included with this ESC is an LED program card, which allows you to fine-tune your settings.

Specification;

Dimensions: 29.5mm x 29.7mm x 17.6mm

Weight: 22g (excluding wires)

Voltage Input: 6-12.6V (LiPo 2-3 Cells)

Peak Current: 310A

Continuous Current: 80A

Motor Limit (Brushless): Over 10.5T

Motor Type: 540 Sizes Brushless and Brushed motors – 380 sized Brushless motors

BEC: 4A 6V/7V

Non-updateable firmware – ideal for spec races

Includes both Blinky Mode and Turbo functions

LED program card with 15 adjustable parameters

Suitable for on-road, off-road, crawlers and all recreational vehicle type

Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection

Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability

Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specifications

Type
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications
Cont./Peak Current - 60A/200A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V@4A

Wires & Connectors
Input Wires - Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires - Blue-14AWG-175mm*1、Yellow-14AWG-175mm*1、Orange-14AWG-175mm*1
Input Connectors - No
Output Connectors - No

ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
LCD Pro - Supported
OTA Programmer - Not Supported
Program Port - Shared with fan port

Date Recording - Not supported

Firmware
Firmware Upgrade - Not Supported

Size & Weight
Size - 35.0*31*30.8mm
Weight - 66.5g (Included wires&connectors)

Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count - QUICRUN 3650 SD G2


-------


Motor

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner
heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires
guarantee "plug-and-play" and stable connections between the ESC and motor.

Re-buildable Design
The end bell is easy to be removed for maintenance purposes and for the replacement
of common wearing parts such as rotor and sensor module (Ex bearings).

Core RC brass weight measuring 92 x 47mm and with 1mm thickness to allow you to position weight directly under your 1S or 2S shorty battery for the lowest centre of gravity. Super flat with Core RC logo etched on.

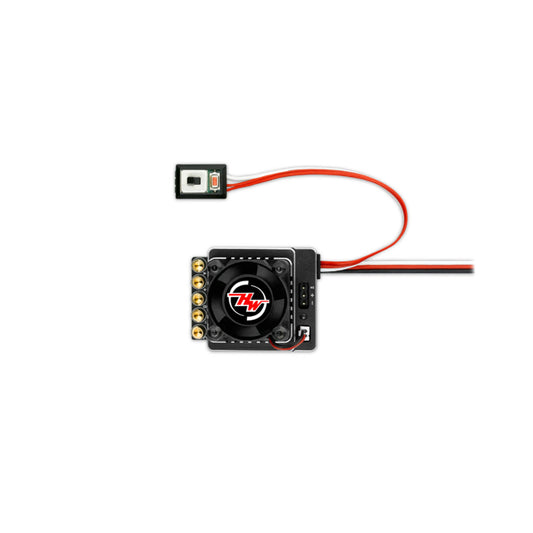

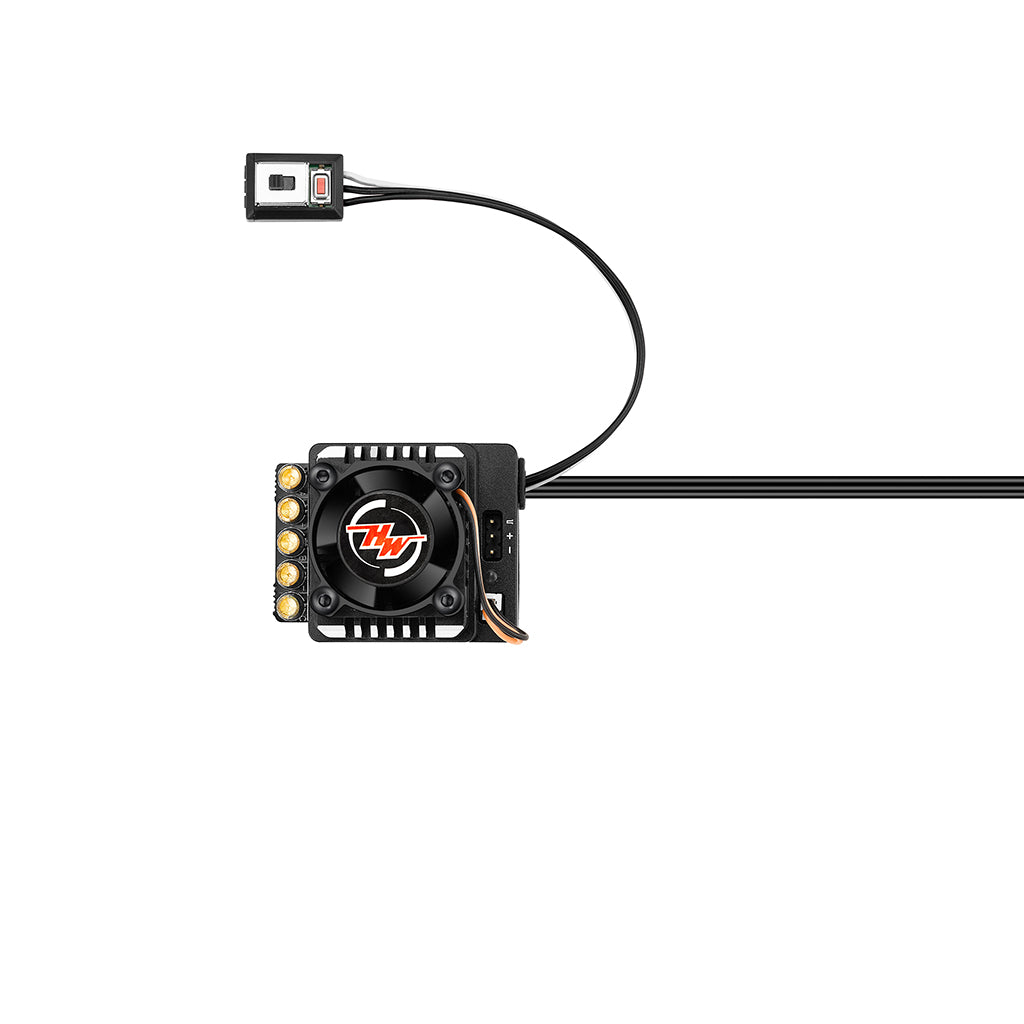

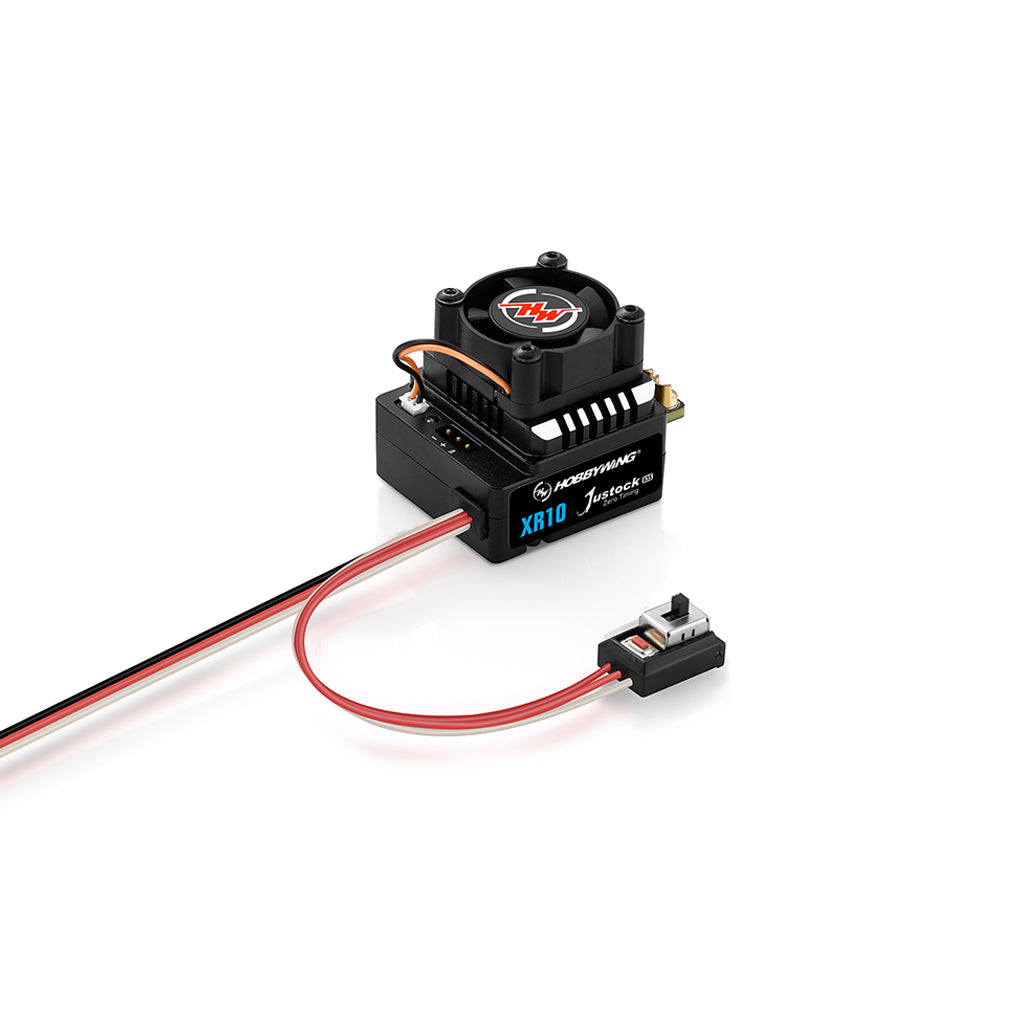

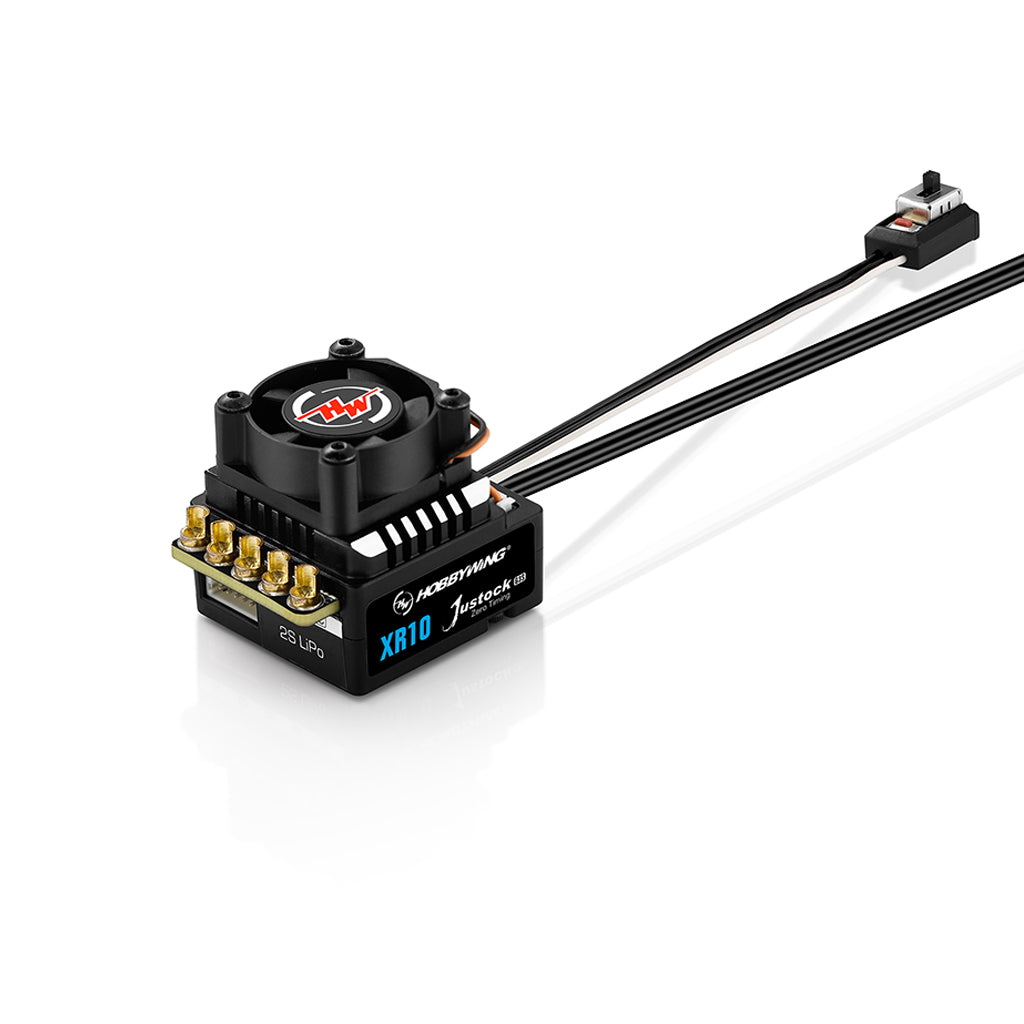

Introducing the Hobbywing Justock Combo 'JS2' with XR10 G3S speed control, paired with the Hobbywing  G2.1 25.5T fixed timing brushless motor.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.


Speed Control Features.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor

-------------------------------------------------------------

Motor Features

- The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
- The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
- This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
- This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
- The motor design is in compliance with IFMAR, and ROAR specifications.

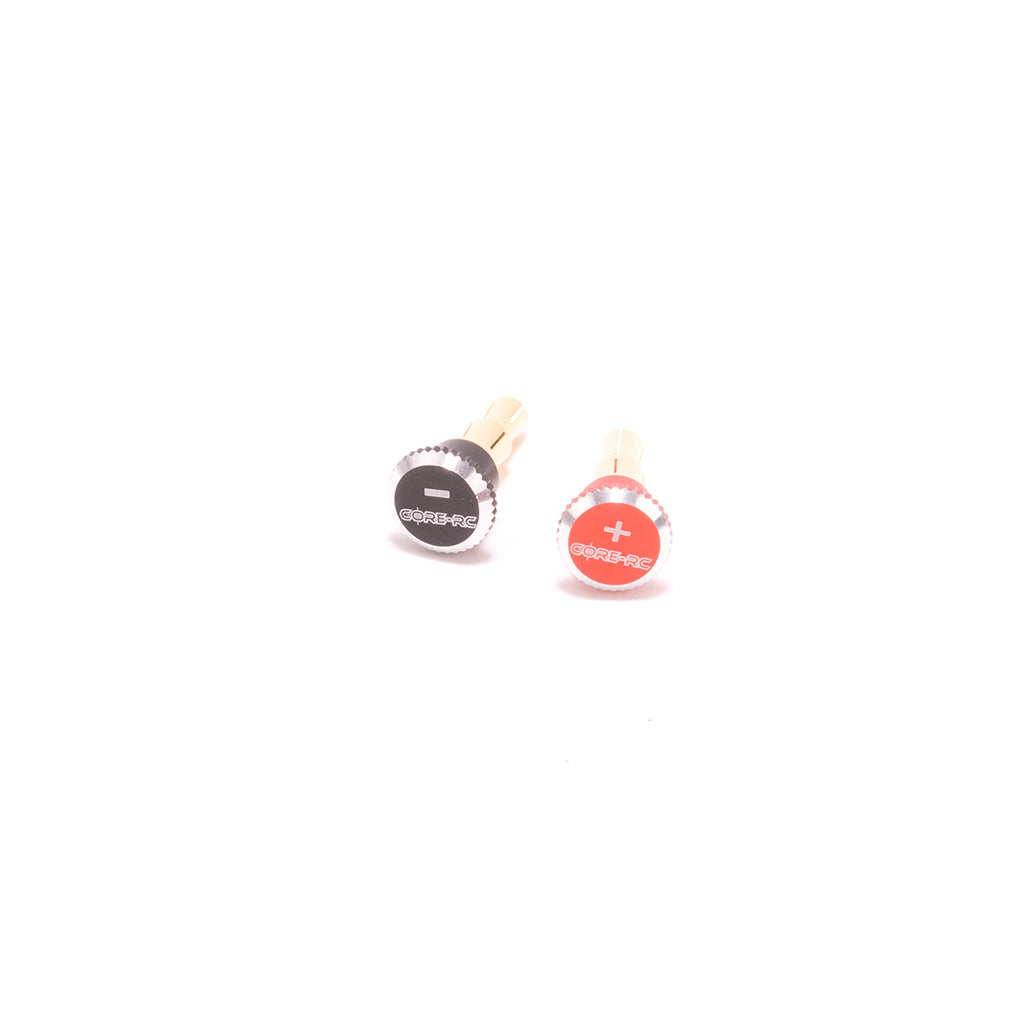

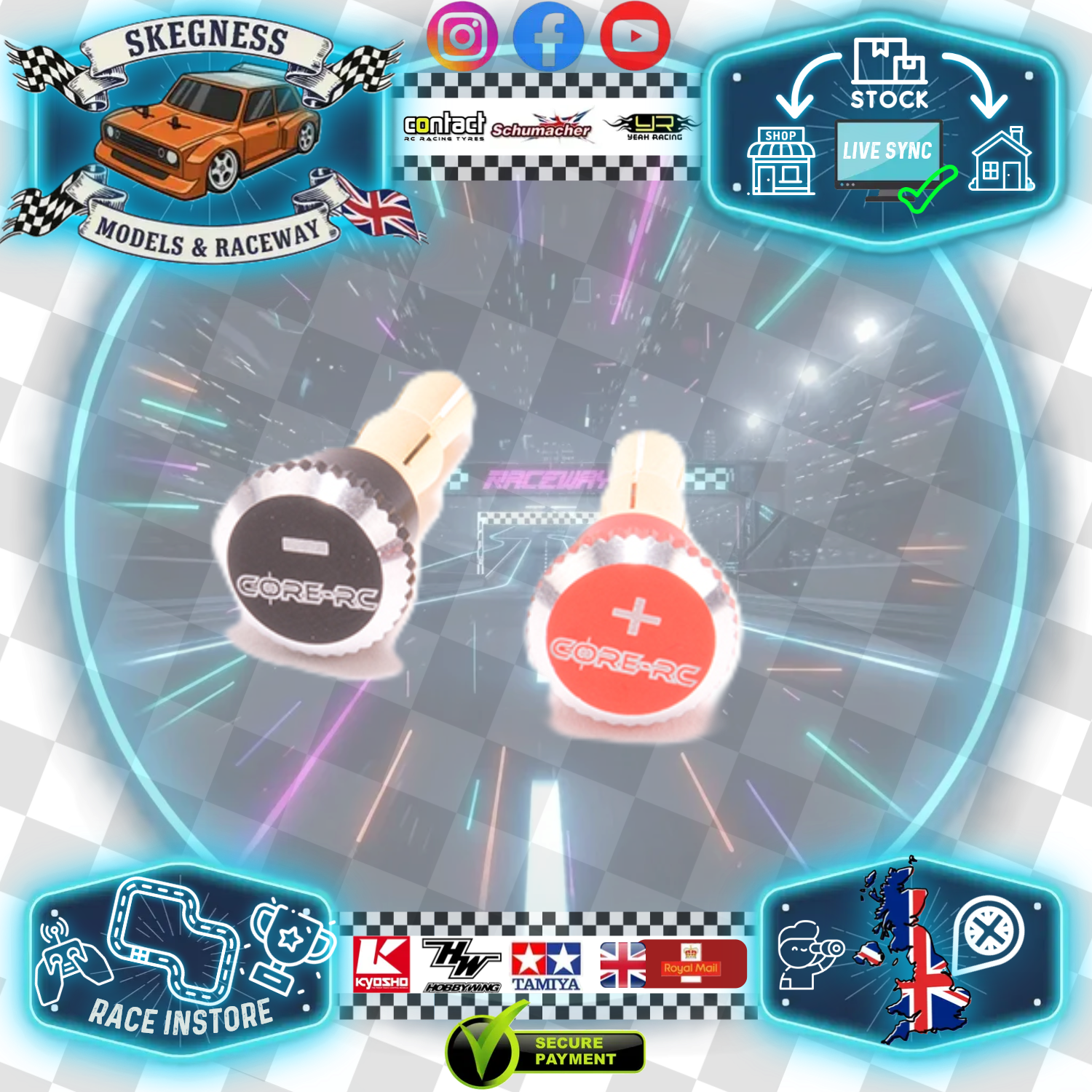

From CORE RC are these Lockdown Heatsink Bullet Plug Grips.

A tight and reliable connection between your LiPo and speed control eliminates any losses of power, increased resistance, arcing and general poor electronic set up.

Giving a reliable connection with an easy twist of the attractive looking locking screw.

Easy to identify Red +ve and Black -ve plugs helps prevent cross connection and that moment every racer dreads, the magic smoke escaping from your speed control !

4/5mm Size.

The XR10 Justock G3S has precise control and powerful performance.  It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

(2024 VERSION)

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class.

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
（10000-88000RPM）RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized
It is tailored and are more in line with competition needs.

Type

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Specifications

Cont./Peak Current - 60A/380A
Input Voltage - 2S LiPo
BEC Output - 6V/7.4V @4A

Wires & Connectors

Input Wires - Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires - Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors - No
Output Connectors - No

Fan

Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors - Powered by BEC

Data Recording

Extreme Value - Not Supported
Real-Time Date - Not Supported
Historical data (Graph) - Not Supported

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD Program Box - Supported
WiFi Module - Supported
OTA Programmer - Supported
Programming Port - Separate

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 40.9x33.9x32.1mm
Weight - 75.4g(w/Wires)

Applications

Applications - SL BL Motors / SD BL Motors
Vehicles - 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count - ≥10.5T 3650 Motor
