1/14 Buggy ESC's

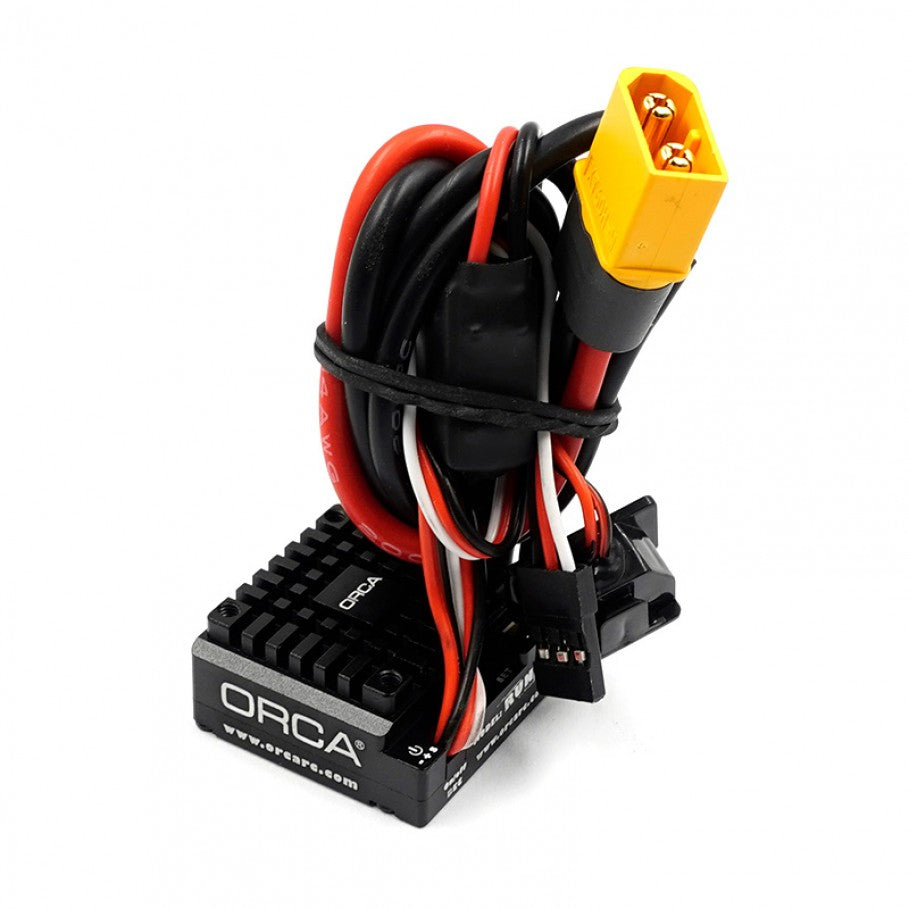

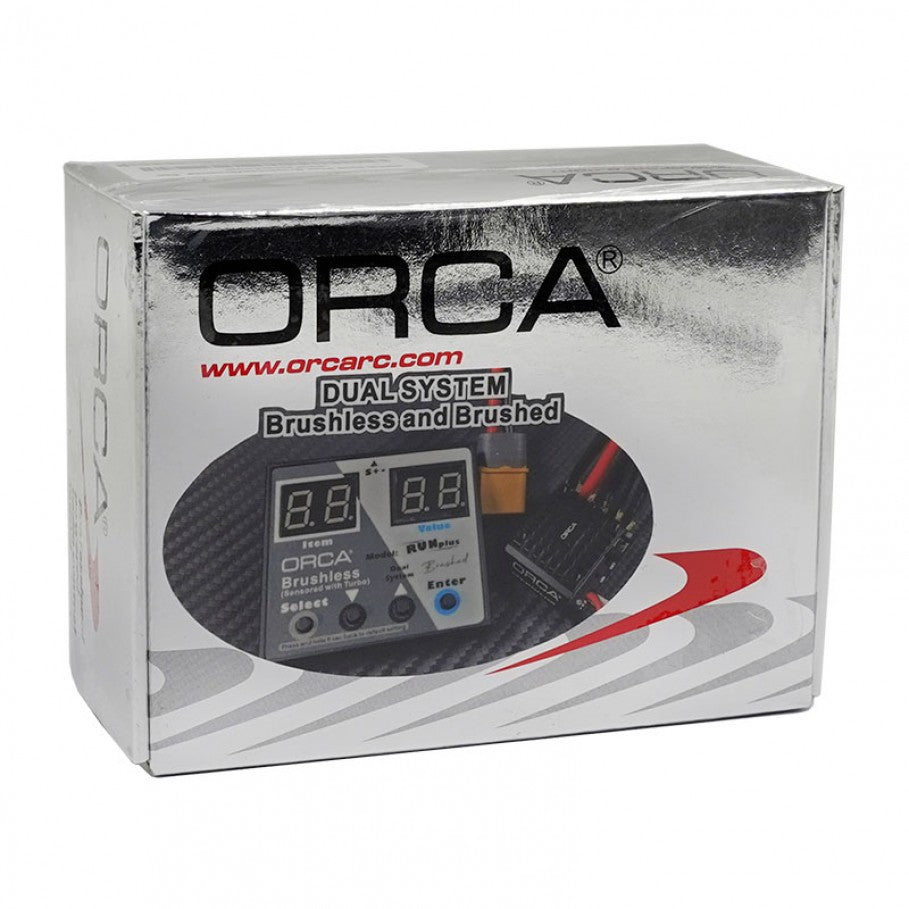

Introducing the ORCA RunPlus Brushless/Brushed ESC with Program Card, the perfect addition to your r/c car or truck. Measuring at just 29.5mm x 29.7mm x 17.6mm, this ESC is very compact and extremely lightweight, making it the ideal choice for those looking for a easy-to-use ESC.

With its attached power wires, this ESC is incredibly easy to install, making it a great choice for beginners and experienced hobbyists alike. Plus, with a 80A continuous current limit, it can handle all 540-size brushless motors up to 13.5 turns/3600kv, Brushless 380 or 390 sized motors up to 10.5 turns/4600kv as well as Brushed motors over 12 turns too.

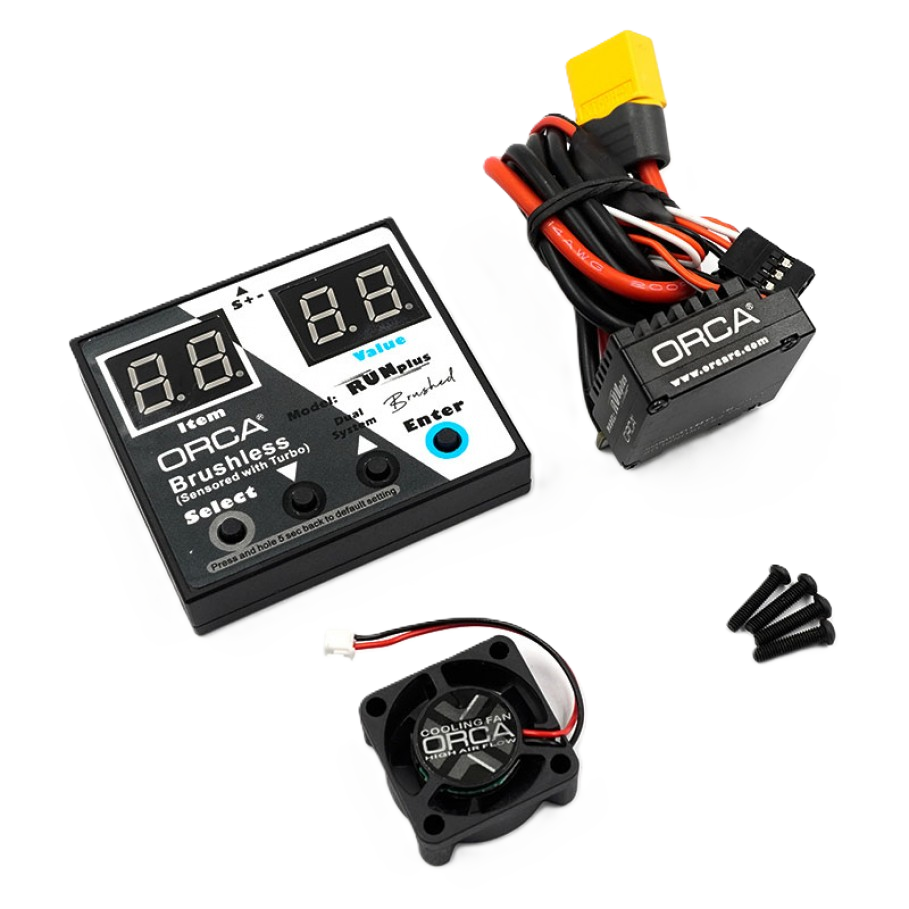

Included with this ESC is an LED program card, which allows you to fine-tune your settings.

Specification;

Dimensions: 29.5mm x 29.7mm x 17.6mm

Weight: 22g (excluding wires)

Voltage Input: 6-12.6V (LiPo 2-3 Cells)

Peak Current: 310A

Continuous Current: 80A

Motor Limit (Brushless): Over 10.5T

Motor Type: 540 Sizes Brushless and Brushed motors – 380 sized Brushless motors

BEC: 4A 6V/7V

Non-updateable firmware – ideal for spec races

Includes both Blinky Mode and Turbo functions

LED program card with 15 adjustable parameters

Suitable for on-road, off-road, crawlers and all recreational vehicle type

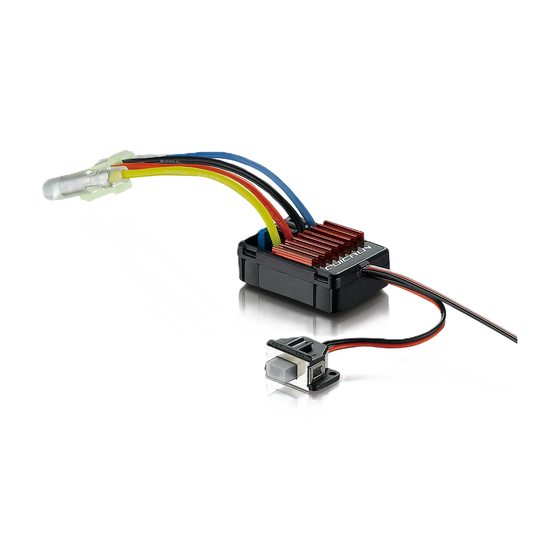

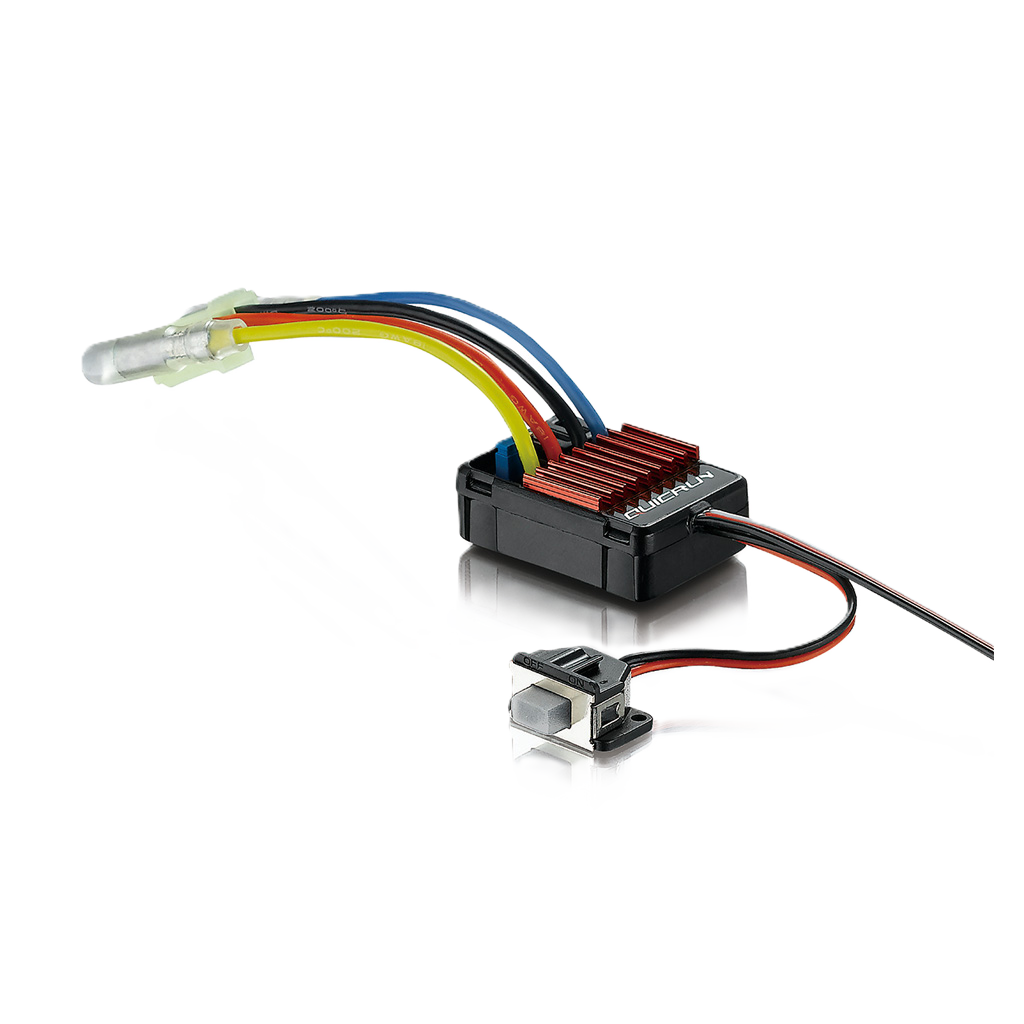

This speedo is suitable for all-weather condition races because of its water-proof and dust-proof design. It owns these outstanding features. Small size with built-in capacitor module. The Forward/Reverse/Brake running mode fits for sport races of various vehicles. Great current endurance capability. Automatic throttle range calibration, easy to use. Easy to set the ESC parameters with jumpers. Multiple protections like Low voltage cut-off protection, Over-heat protection and Throttle signal loss protection to extend the service life.

Fwd. Cont. / Peak Current - 25A /100A
Rev. Cont. / Peak Current - 25A /100A
Resistance - Fwd 0.003, Rev 0.003
Input - 2-3S Lipo or 5-9 NiMH
BEC Output - 1A/5V (Linear Mode)
Motor Limit - 2S Lipo or 6 NiMH
280 370 or 380 Size Motor RPM<30000 @7.2V
3S Lipo or 9 NiMH
280 370 or 380 Size Motor RPM<20000 @7.2V

PWM Frequency - 1KHz
Cooling Fan - Without cooling fan
Weight - 23.5g
Size - 34(L)X24(W)X14(H)mm
Running Modes - Forward/Reverse/Brake
Car Applicable - 1/18 & 1/16
Touring Car, Buggy, Monster, Truggy
