Vanquish

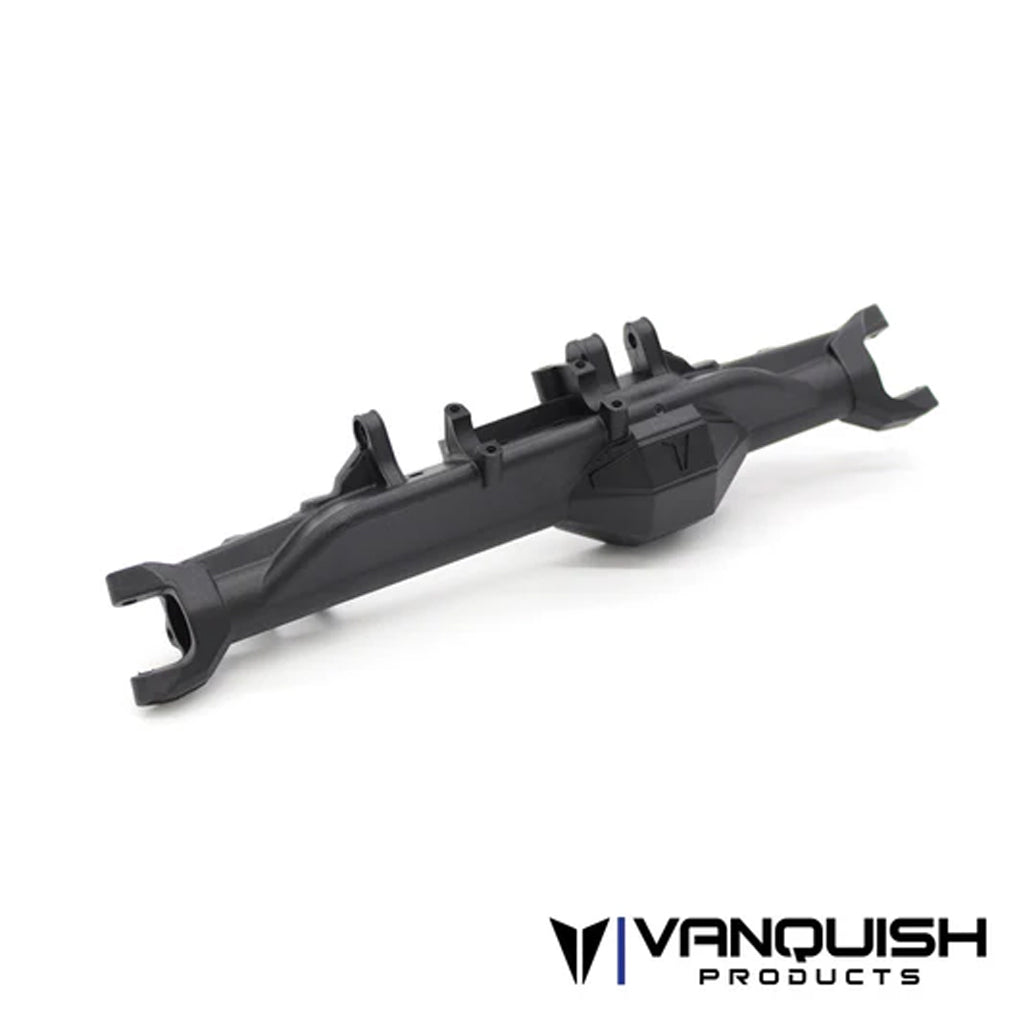

VPS08804 H10 Hydro Front Axle Housing - Molded Black

Replacement front axle housing for the H10 Platform.

Compatible with:

VPS09010A - Direct Replacement
VPS09010B - Direct Replacement

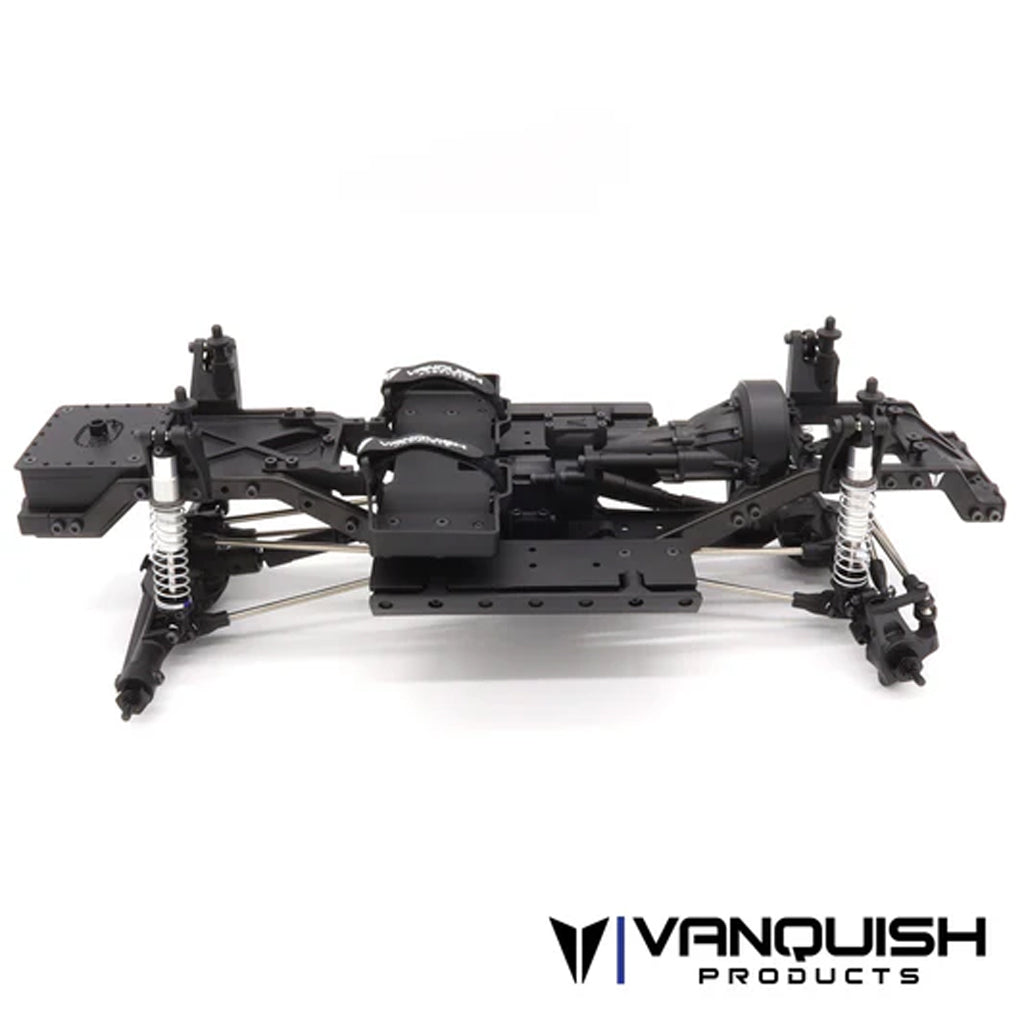

Unassembled Builders Kit
Wheels, Tires, Body and Bumpers are not included. See information below.

F10 STRAIGHT AXLES
The F10 Straight Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.

Drivetrain
The VS4-10 Builders Kit includes the Vanquish Products VFD transmission and F10 straight axles. The F10 axles feature a high clearance design, minimizing pumpkin size and maximizing strength around the C-hub and knuckle. The ISD10 driveshafts connect the VFD to the F10 axles, featuring machined CV joints and molded splined shafts for smooth, efficient performance.

VFD TRANSMISSION
The proven VFD transmission is equipped with 6.5% overdrive. Providing a low and forward motor position with a protective skid plate along the front of the skid plate.

OVERDRIVE TRANSFER CASE
Full ball bearing and metal gears provide strength and longevity for worry free performance.

UNIVERSAL JOINT AXLE SHAFTS
VDI Front axle shafts provide 49° of steering angle.

SECURE BATTERY STORAGE
The versatile battery tray accommodates most batteries, including hard case LiPo and standard stick pack sizes, ensuring a perfect fit for your needs.

VS4-10 Chassis
The Vanquish Products VS4-10 Chassis combines scale looks with high performance. Its steel C-channel design offers scale detail and strength, featuring dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders have a replaceable tapered outer portion. The machined aluminum panhard mount withstands severe trail impacts. Molded shock towers secure the 90mm Incision S8E Shocks.

VS4-10 CHASSIS DETAILS
The VS4-10 Chassis brings unmatched rigidity, superior build quality, and a versatile design, making it a popular choice for a wide range of projects.

VFD Transmission
The VFD is designed for optimal performance, scale appearance, strength, and versatile accessories. It positions the motor forward and low for ideal weight distribution. The VFD Spec transmission offers a 6.5% overdrive for improved turning and climbing without stressing electronics. The T-case features replaceable bearing plates for adjustable positioning and optional gear ratios. Compatible with 540 brushed and brushless motors*.

Strength and Tunability
The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.

Suspension
The VS4-10 features Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension offers scale looks by hiding the servo, while allowing full suspension travel. Stainless steel links ensure low weight and durability.

Strength and Capability
A proven combination of 3-link with panhard front suspension and triangulated rear suspension will allow your custom project to perform as good as it looks. The high clearance chassis and 90mm S8E shocks will give you the flexibility and predictability to conquer the terrain.

Specification

• 1/10th Scale
• 3.75:1 Axle Gear Ratio
• 13T Pinion
• 56T Spur Gear
• Wheelbase: 313mm (12.3")
• Overall Front Ratio: 47.6:1
• Overall Rear Ratio: 50.8:1
• Front axle width pin to pin: 182mm (7.17")
• Rear axle width pin to pin: 182mm (7.17")

Drivetrain
The VS4-10 Builders Kit features the Vanquish Products VFD transmission and F10 straight Axles. The molded F10 Straight Axles utilize a high clearance design which minimizes the size of the pumpkin and maximizes strength around the C-hub and knuckle. Connecting the VFD to the F10 Straight Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth and efficient performance.

VFD Transmission

• F10 Straight Axle Housings
• Offset Pumpkin Front Straight Axle
• Centered Pumpkin Rear Straight Axle
• Universal-style front axle shafts
• Double Shear Shock Mounts
• ISD10 Driveshafts

VFD Transmission
The VFD is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. Out of the box the VFD Spec transmission provides a 6.5% overdrive to provide better turning and climbing performance without taxing your electronics. The T-case utilizes unique replaceable bearing plates to provide adjustable bearing positioning. The modular design of the bearing plates allow for optional gear ratios to be used inside the T-case. The VFD transmission is compatible with 540 brushed and brushless motors*

• Standard Overdrive 6.5%
• Sintered Internal Gears
• Hardened Chromoly Shafts
• Molded VFD Extended Skid Plate for Motor Protection
• Molded Battery and Electronic trays
• Full ball bearing transmission
• Scale Molded Transmission Housing
• Molded 6mm motor plate
• Molded Spur Gear Cover
• 32P 56T Spur and 13T Steel Pinion

F10 Straight Axles
The F10 Plastic Molded Straight axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The molded F10 Straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, and oversized C's with an integrated panhard mount.

• Molded Plastic Axle housings
• Universal Style Axle Shafts
• 49 Degrees of Steering
• High Caster reinforced C-Hub
• High-Pinion Hypoid Axle Gears (30/8)
• 5mm Output shafts with M4 wheel nut
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position
• Scale removable third member

Chassis
Vanquish Products VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision S8E Shocks in double shear for maximum support.

• Heavy Duty High Clearance Steel C-Channel Frame Rails
• Integrated battery tray and electronic mounting positions
• Stainless Steel links

Suspension
The VS4-10 features Incision 90mm S8E shocks with larger 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for full suspension travel. The suspension pivots on a full set of stainless steel links to keep the weight down low with a smooth transition from the link to the rod ends.

• SC8E Incision 90mm Shocks with bleeder screw shock cap
• Stainless Steel Links
• Stainless Steel Pivot Balls
• Stainless Steel offset lower shock pivot balls for tuning shock width at axle

S8E Scale Shocks
The Incision S8E Scale Shocks feature a larger 8mm bore for increased damping. The increased volume reduces internal shock pressures for longer seal life. Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard o-rings. Threaded shock bodies allow for a wide spring preload range. Offset lower shock pivot balls allow for greater flexibility for tuning shock angles.

• 8mm Bore Scale Shocks
• Includes IRC00523 S8E Shock Tuning Rod End Set for +5mm, 0mm, and -5mm shock tuning options
• Threaded shock bodies
• Scale shock cap with steel pivot ball and bleeder screw
• Polished Shock shafts
• Dual X-Rings
• Includes
• Threadlock
• Grease
• 30wt Shock Oil
• *Fits most 540 brushed and brushless motors

Required Items to Complete:

• Tools
• Paint
• Body
• 1.9 Tires (Recommended)
• 1.9 Wheels (Recommended)
• Transmitter / Receiver
• Steering servo (25 spline 20mm Servo Horn included)
• 540 Motor
• ESC
• Battery (35mm x 35mm x 100mm Maximum)
• Charger

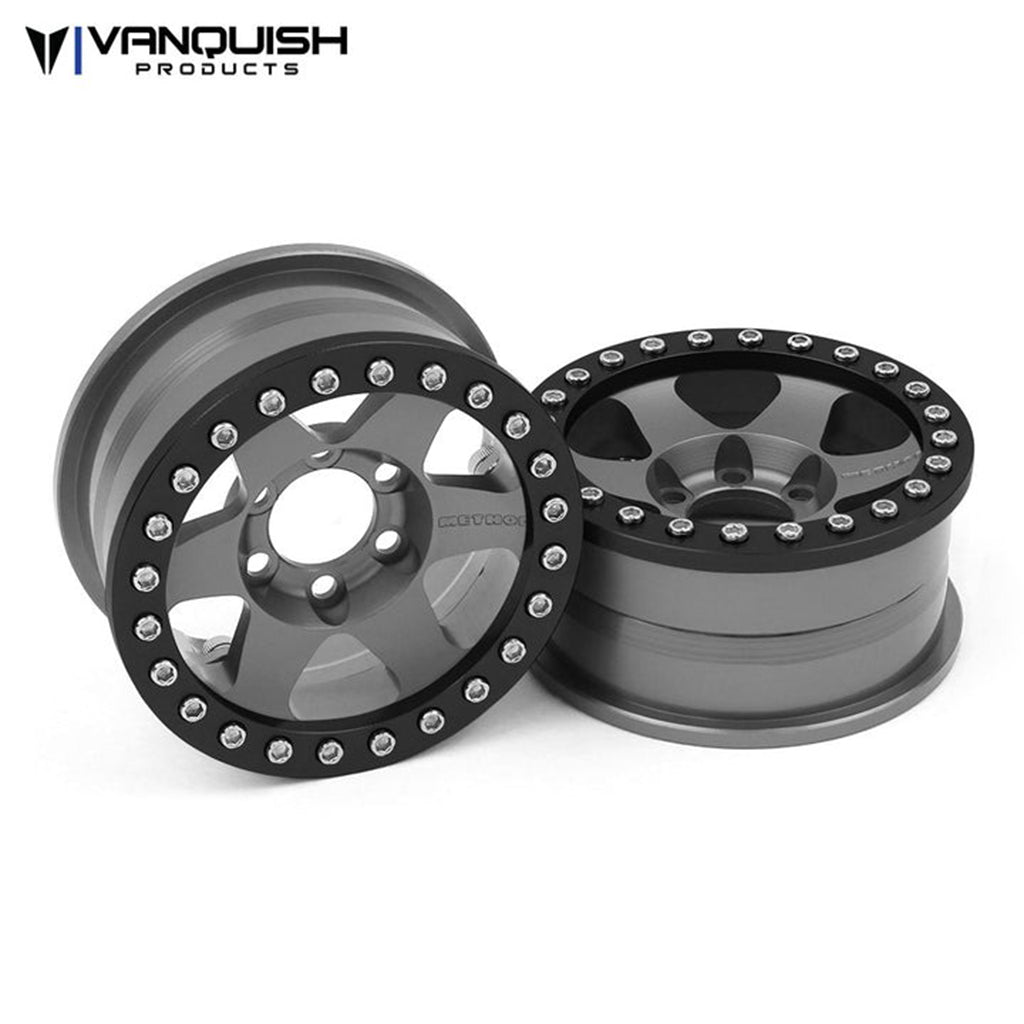

Officially Licensed Aluminum 1.9 Method Race Wheel 310 beadlock wheel By Vanquish Products

Compatible with Vanquish OMF 1.9 beadlock rings
Based on our popular 1.9 OMF clamp ring beadlock mounting system
Rapid fast tire changes with only 6 screws
Lightweight and durable design
Grade 5 Stainless Steel hardware
High clearance inner wheel opening
Choose multiple offsets to adjust track width Vanquish Products patented wheel hub system
These are a 0.80" wide at the bead surface and 1.0" wide to the outside of wheel
Carefully designed to be a precise scale replica of the full sized Method Race Wheel
Laser engraved Method logo on wheel face
Includes the following:

2pcs Method 1.9 310 Wheel Face
2pcs Aluminum Rear Beadlock Rings
2pcs Lightweight Molded Internal clamping ring
2pcs Anodized Beadlock ring
50pcs 1-64 SHCS
24pcs 4-40 SHCS
Requires SLW Hubs

Raw Aluminum Hubs
Black Aluminum Hubs
Brass Hubs
Optional Parts

IFR Inner Rings
Brass Clamp Rings (0.8")
Scale Hardware


Due to the nature of anodizing aluminum, the shade of color may differ from the image shown.

****SLW Hubs are not included, so be sure to include SLW hubs in the accessories section below.

****Requires the use of standard size hex tools 1/16" & 3/32"

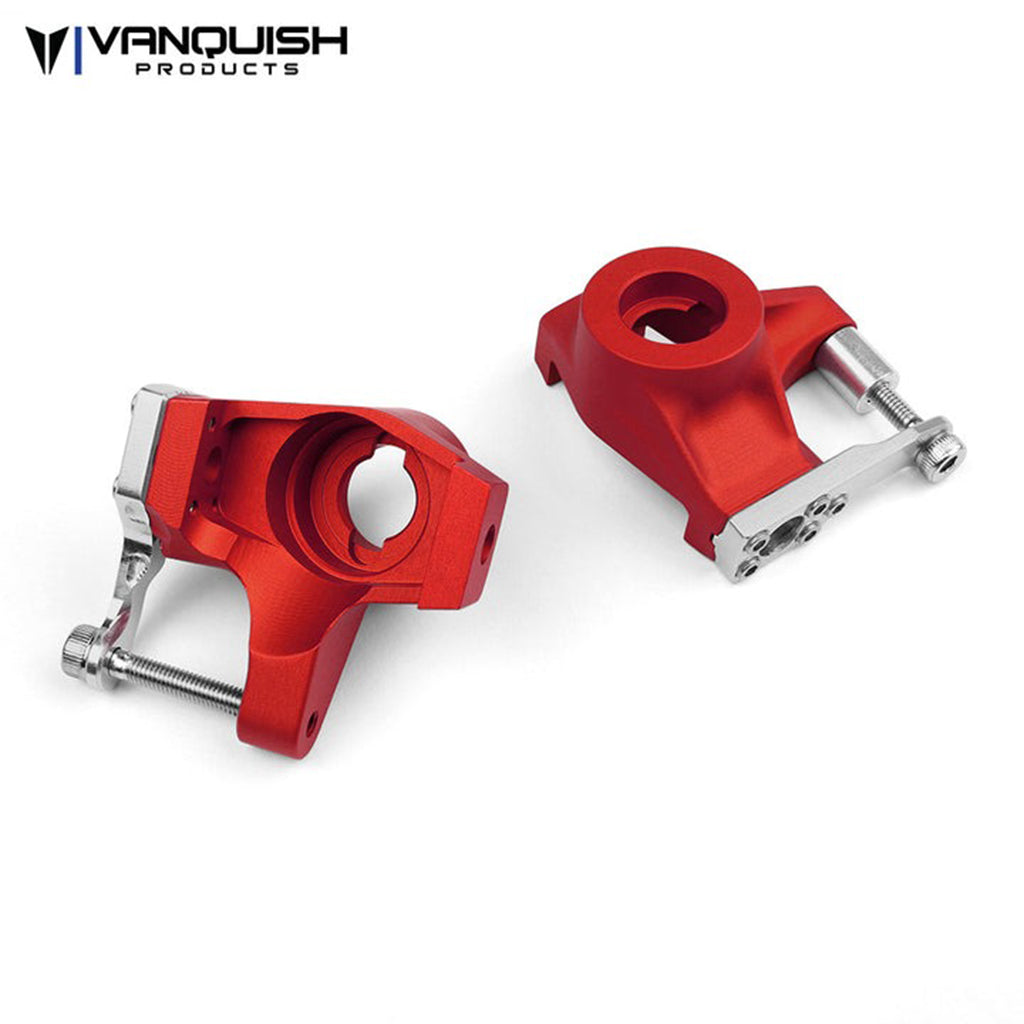

Vanquish Products Aluminum Knuckles for VS4-10 Straight Axles

Compatible with stock links
Milled entirely from high quality billet aluminum
Bolt-on realistic high steer arm adds scale appearance and double shear support of the tie-rod and drag link
Designed to mimic the looks of cast knuckles used on full size vehicles, however these are fully machined
Compatible with:

VS4-10 Origin
VS4-10 Pro
VS4-10 Phoenix Straight Axle
VS4-10 Fordyce
F10 Straight Axle
F10T
D44
F9 Straight Axle
Axial SCX10ii

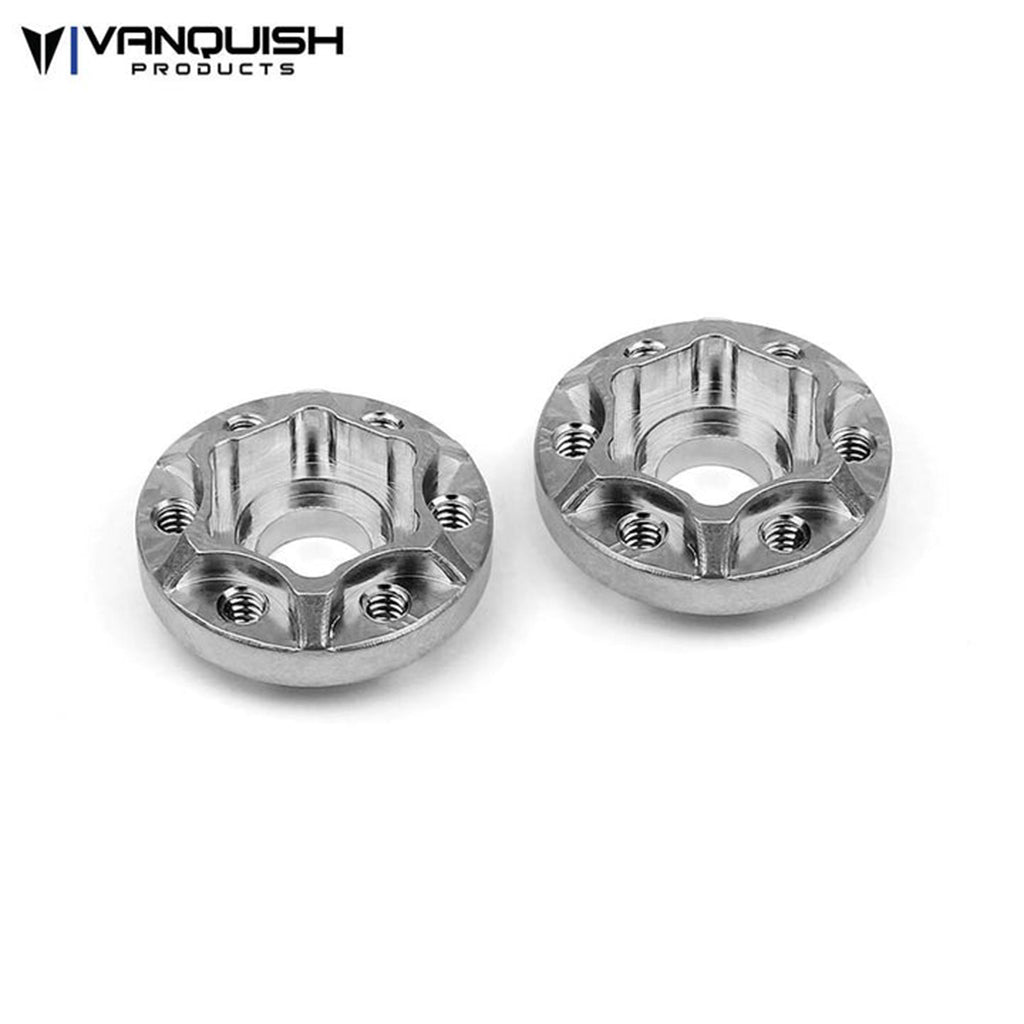

Vanquish Products Aluminium SLW 225 Wheel Hubs
Compatable with SLW, OMF, KMC, Method, and SSZ style wheels
Sold in pairs
Increments of 1/8 of an inch
Uses six 4-40 screws to attach hub to wheels
Hardware not included
Patent No. 8,167,380 B2

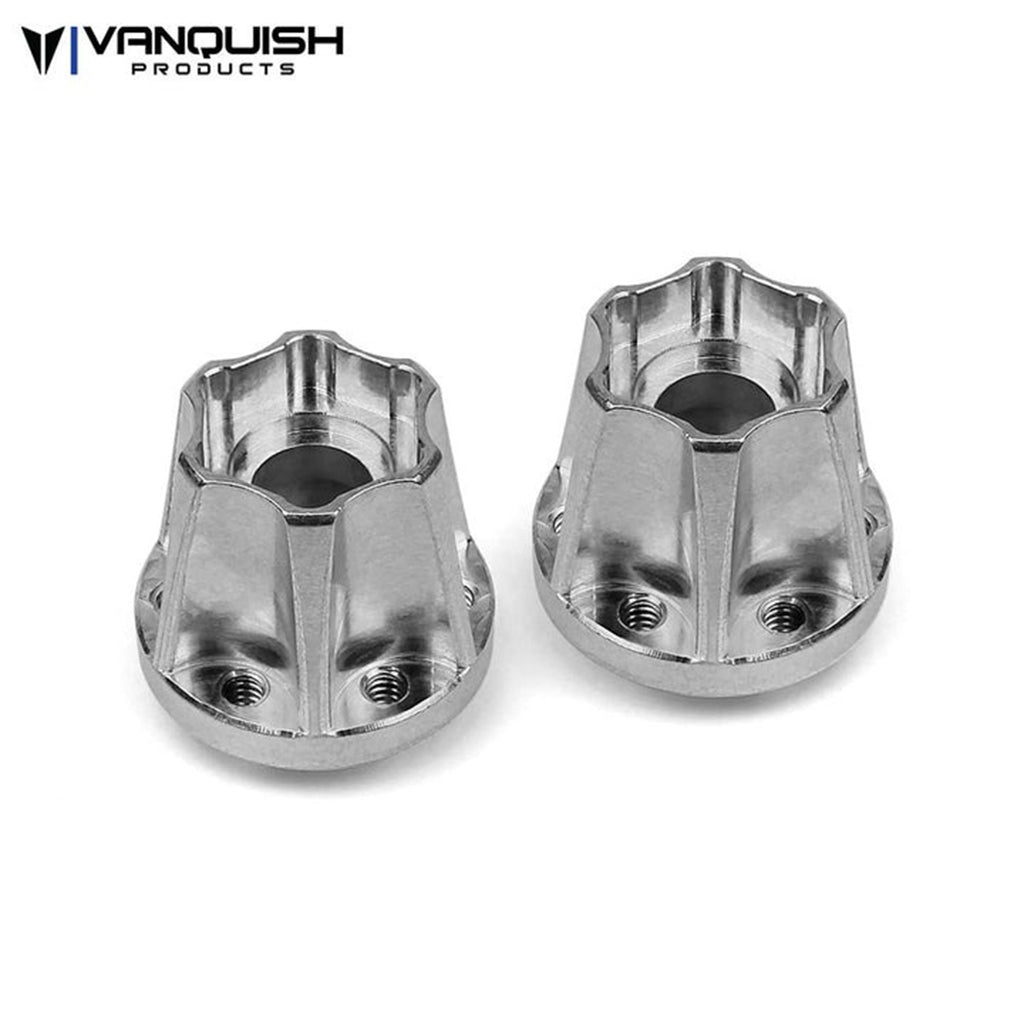

Vanquish Products Aluminium SLW 725 Wheel Hubs
Compatable with SLW, OMF, KMC, Method, and SSZ style wheels
Sold in pairs
Increments of 1/8 of an inch
Uses six 4-40 screws to attach hub to wheels
Hardware not included
Patent No. 8,167,380 B2

Vanquish Truck Hat - Patch - Style 1.

This isn't your standard snap back, we found the most comfortable flex fit hats that retain the versatility of a snap back and the cool breathable mesh design. The molded Vanquish Products patch is a clean and stylish premium look.

• Gray with White mesh
• Flex fit - One size fits all
• Snap Back
• Mesh Back
• Vanquish Products Patch

Manufacture Specifications:

• Trucker Flexfit Snapback Cap
• This mesh snapback features a cotton blend front panel and a pro-stitched finish
• CROWN: Mid-Profile, Pro-Model
• VISOR: Curved
• CLOSURE: Snapback
• FABRIC: Cotton Blend, Trucker Mesh

Vanquish Products Aluminum Knuckles for VS4-10 Straight Axles

Compatible with stock links
Milled entirely from high quality billet aluminum
Bolt-on realistic high steer arm adds scale appearance and double shear support of the tie-rod and drag link
Designed to mimic the looks of cast knuckles used on full size vehicles, however these are fully machined
Compatible with:

VS4-10 Origin
VS4-10 Pro
VS4-10 Phoenix Straight Axle
VS4-10 Fordyce
F10 Straight Axle
F10T
D44
F9 Straight Axle
Axial SCX10ii

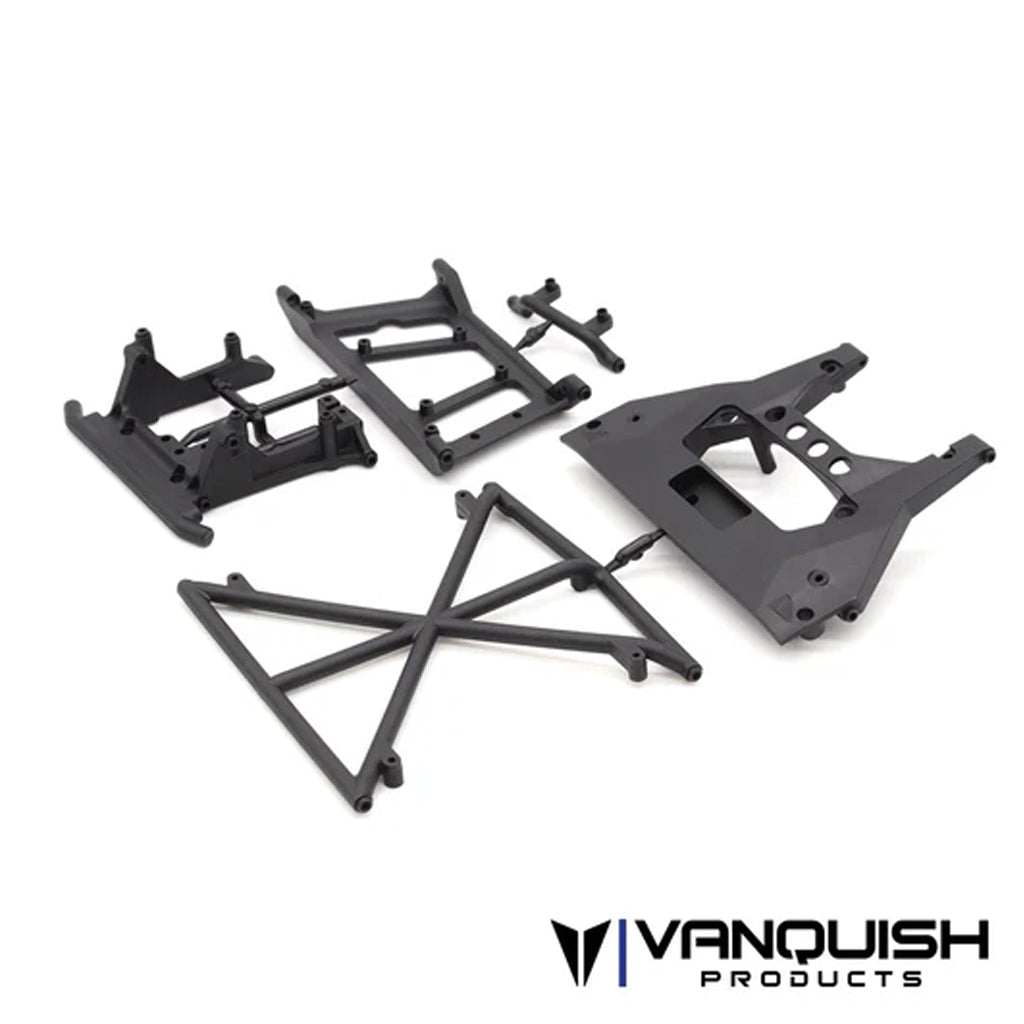

VPS10516 H10 Cage Components set #2 Molded Black.

Replacement cage components parts set for the H10 Platform.

Compatible with:

VPS09010A - Grey
VPS09010B - Black

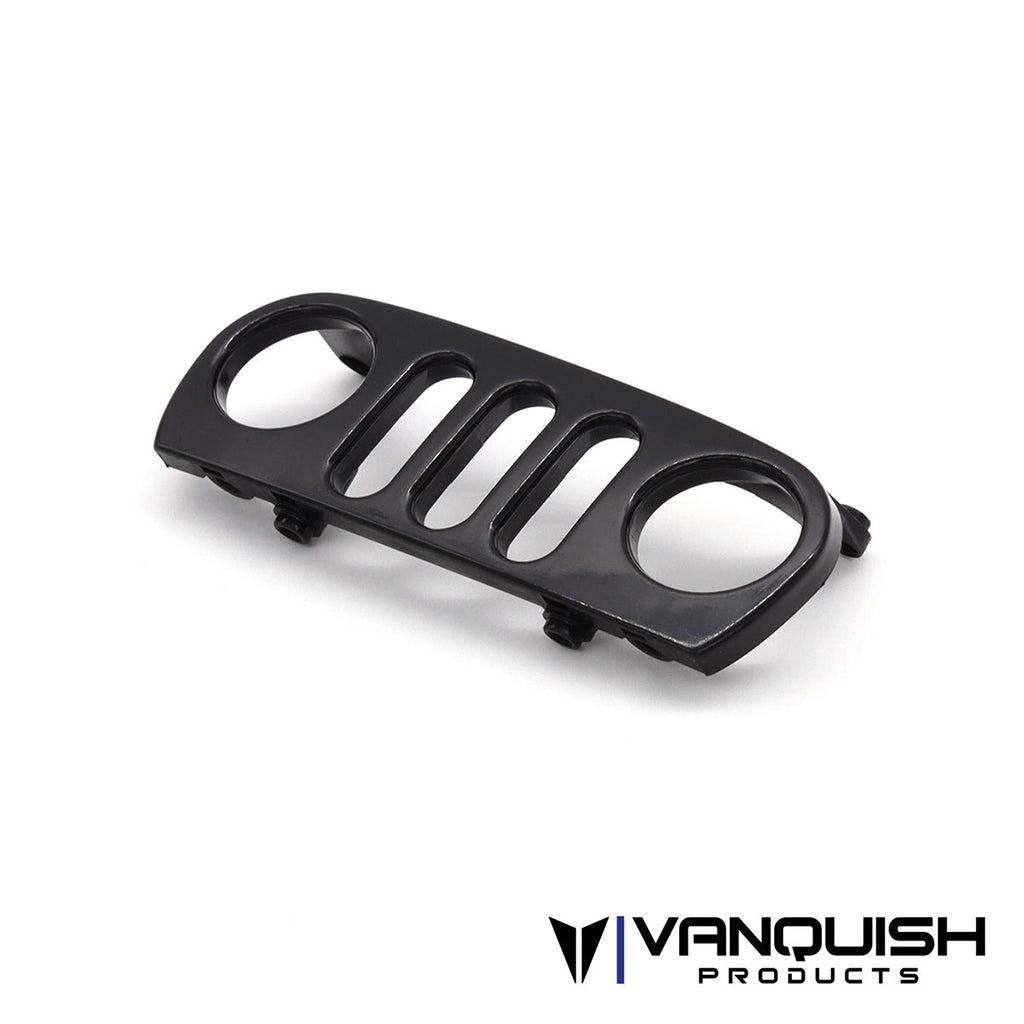

H10 Optic HWO Grill

Compatible with:

VPS09010A
VPS09010B

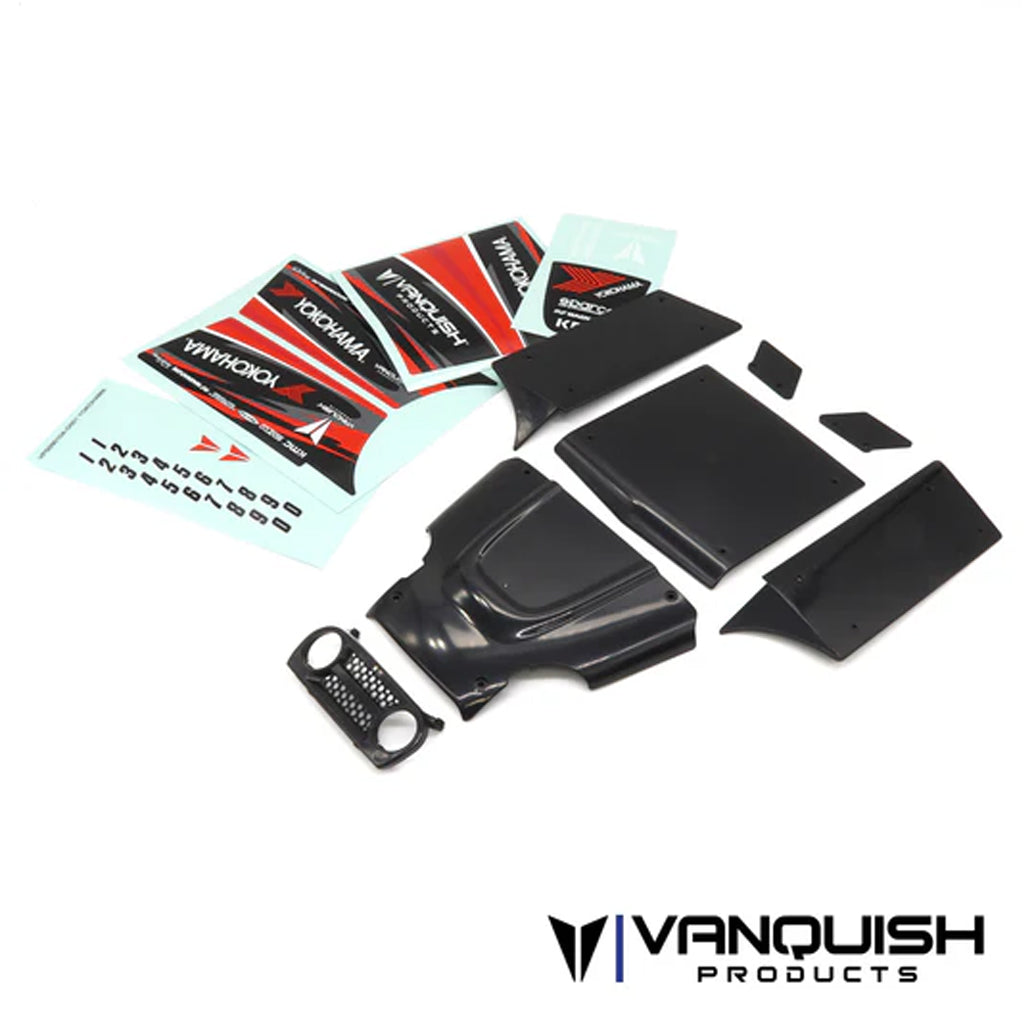

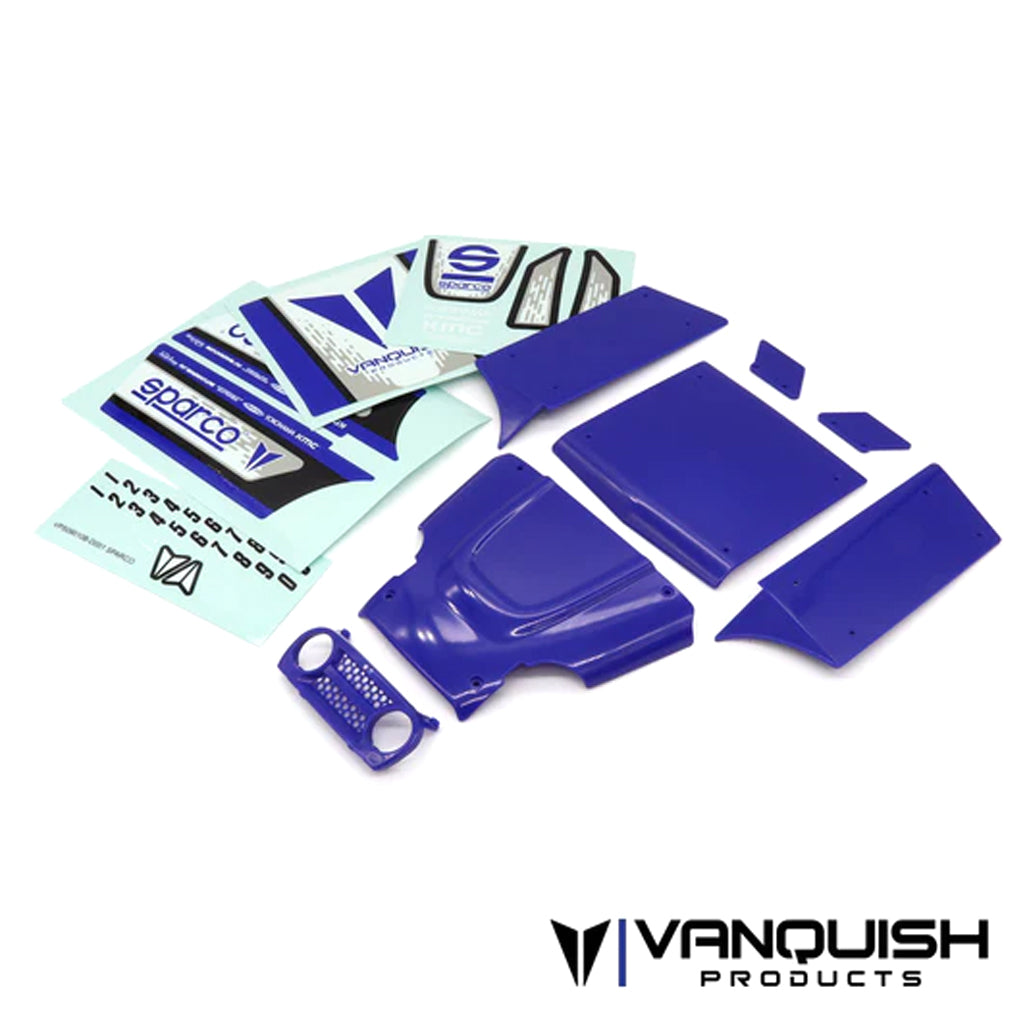

H10 Optic Body Panel Set - Includes livery graphic decals (Not installed)

Compatible with:

VPS09010A
VPS09010B

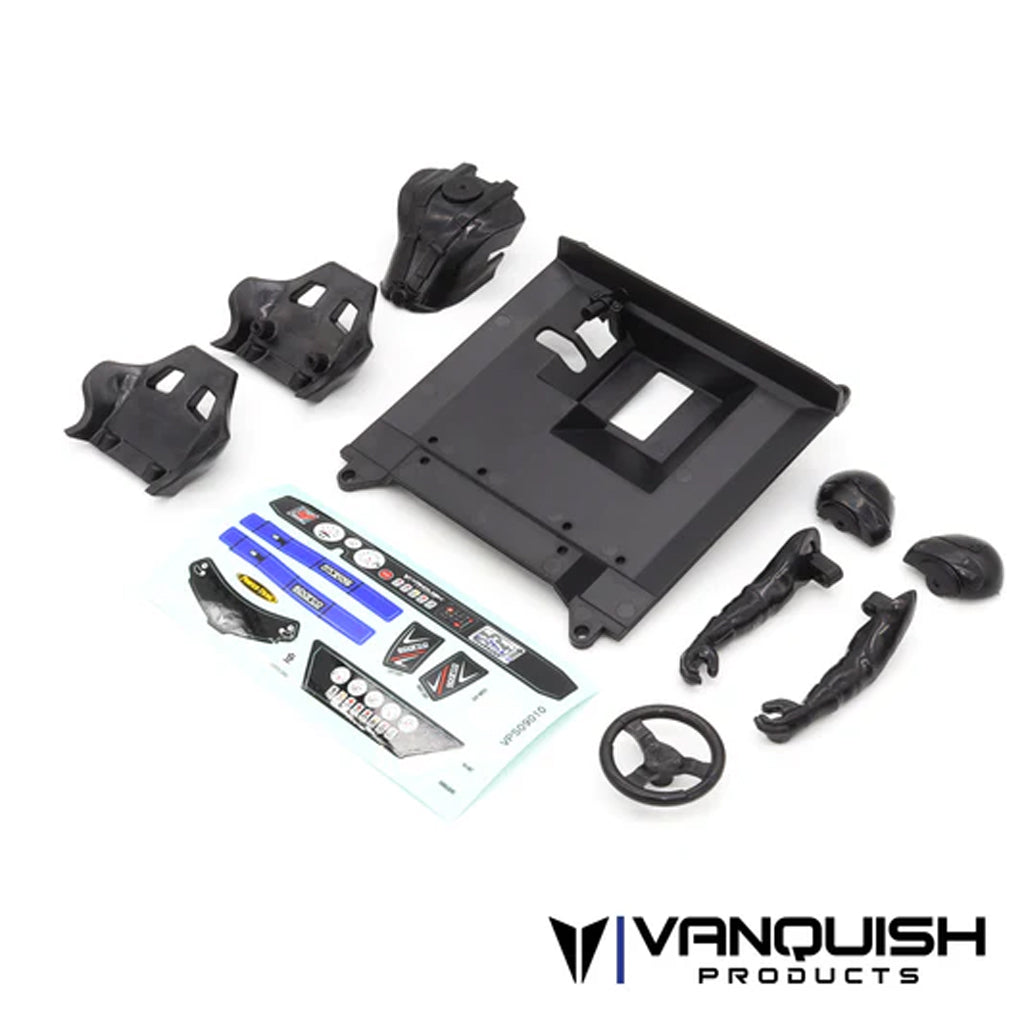

VPS10515 H10 Interior and Driver Set Molded Black.

Replacement Interior components parts set for the H10 Platform. Includes Decal sheet

Compatible with:

VPS09010A
VPS09010B

H10 Optic Body Panel Set - Includes livery graphic decals (Not installed)

Compatible with:

VPS09010A
VPS09010B

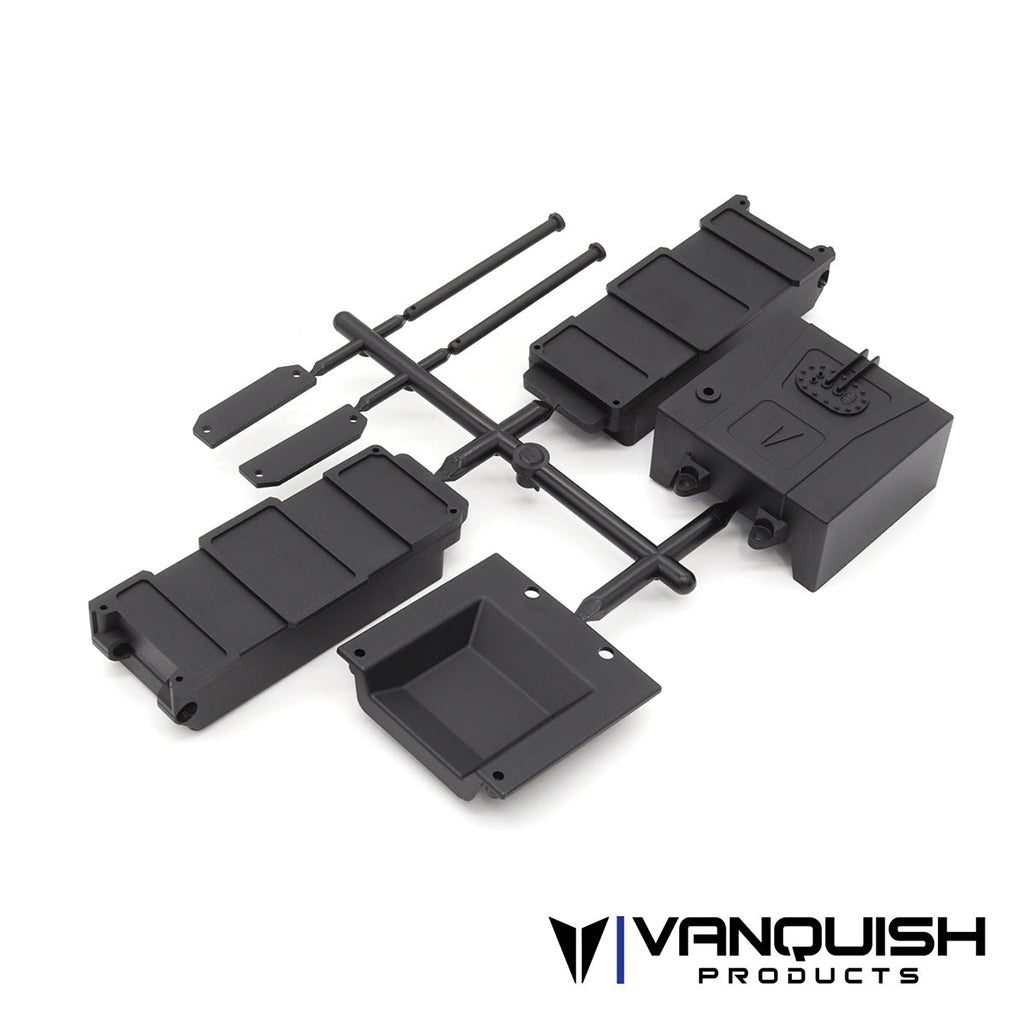

VPS10508 H10 Battery Tray and Fuel Cell Set

Replacement components parts set for the H10 Platform.

Compatible with:

VPS09010A
VPS09010B

The F10 Plastic Molded Portal axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The plastic molded F10 Portal axles feature an ultra-rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle.

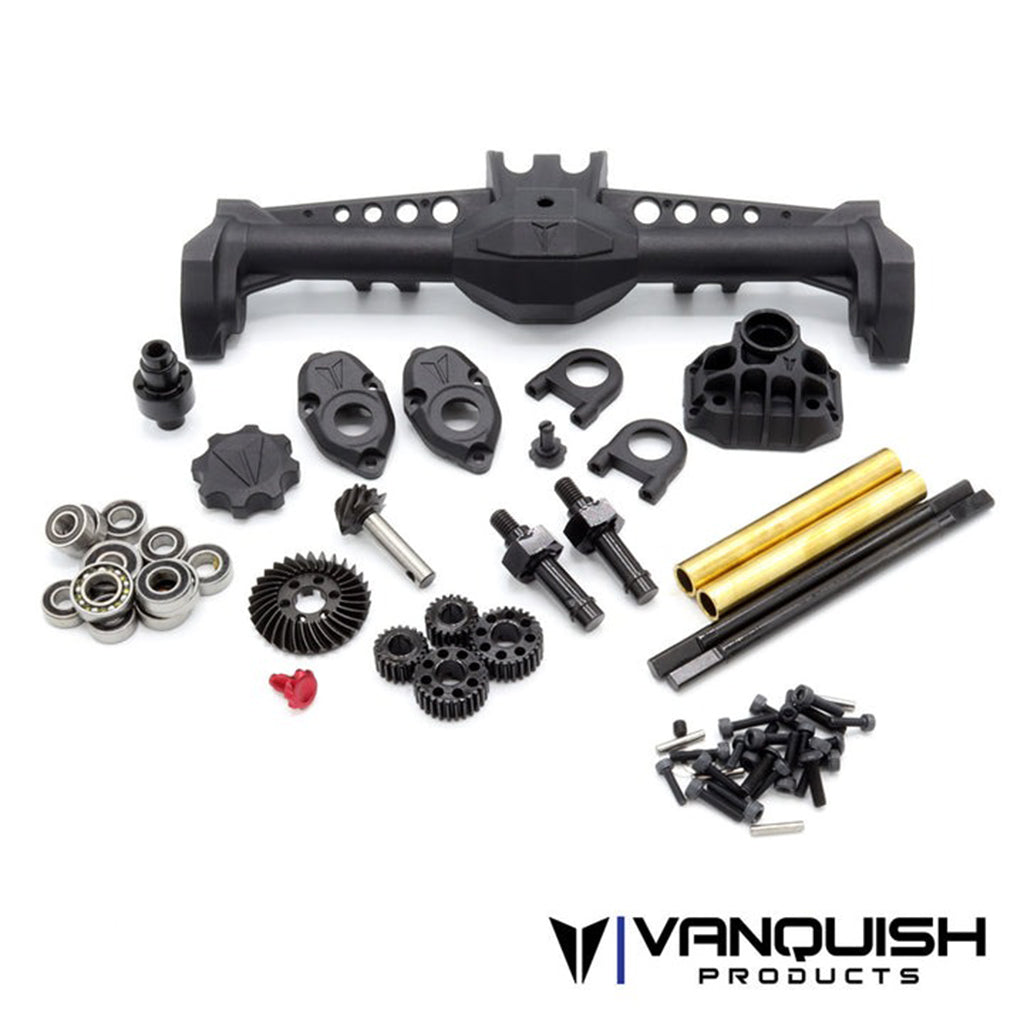

F10 Portal Rear Axle Set

• Molded Plastic Axle housing
• 2 Upper link mount tuning positions
• Machined Chromoly Portal Gears (VPS08353)
• High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
• 6-Bolt Ring Gear and Spool
• 1.4:1 Portal Gear Ratio (VPS08353)
• 6mm Output shafts with M5 wheel nut
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
• Chromoly axle shafts
• Brass tube inserts
• Scale removable third member
• Machined aluminum red anodized rear fill cap with molded install tool

Note:

• M5 wheel nut requires one of the following tools: IRC00142 or VPS08440

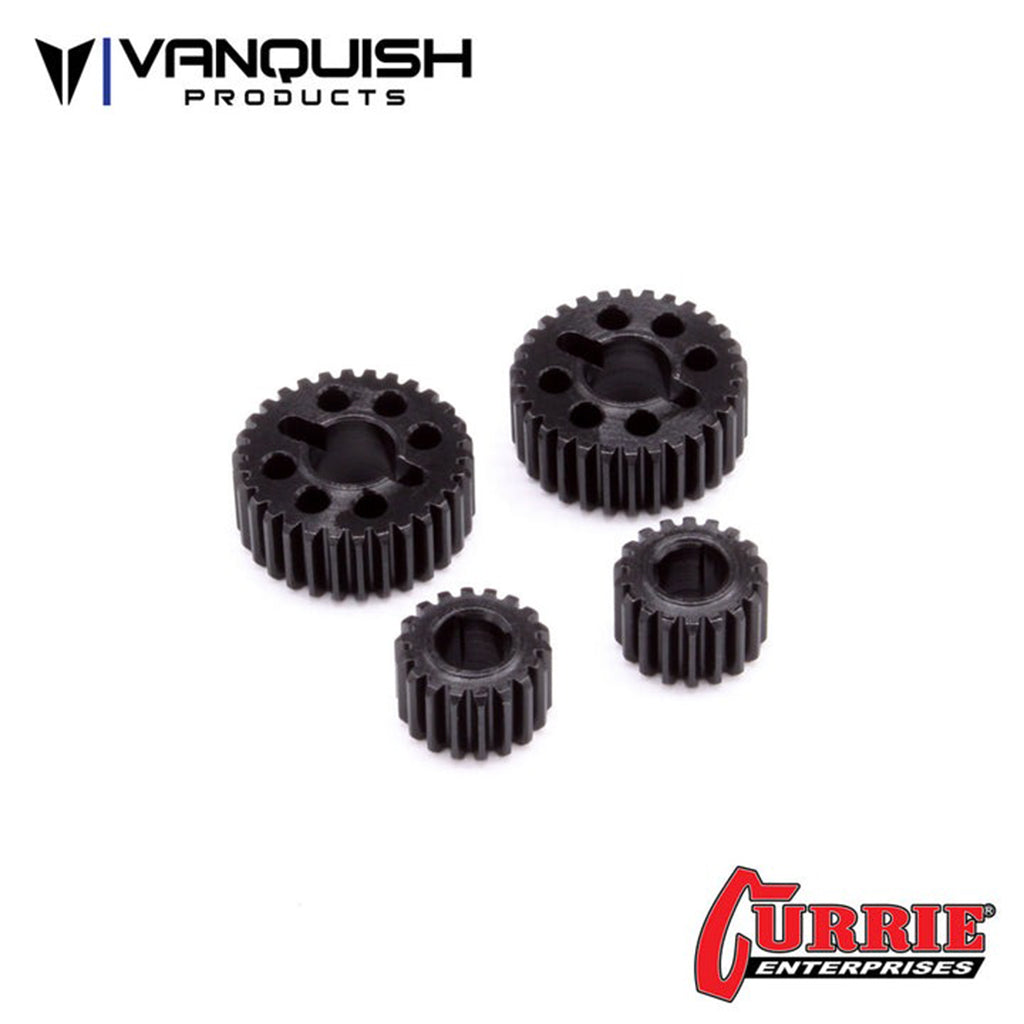

• To add overdrive in the portal gears, install VPS08354 Standard portal gears in the rear axle

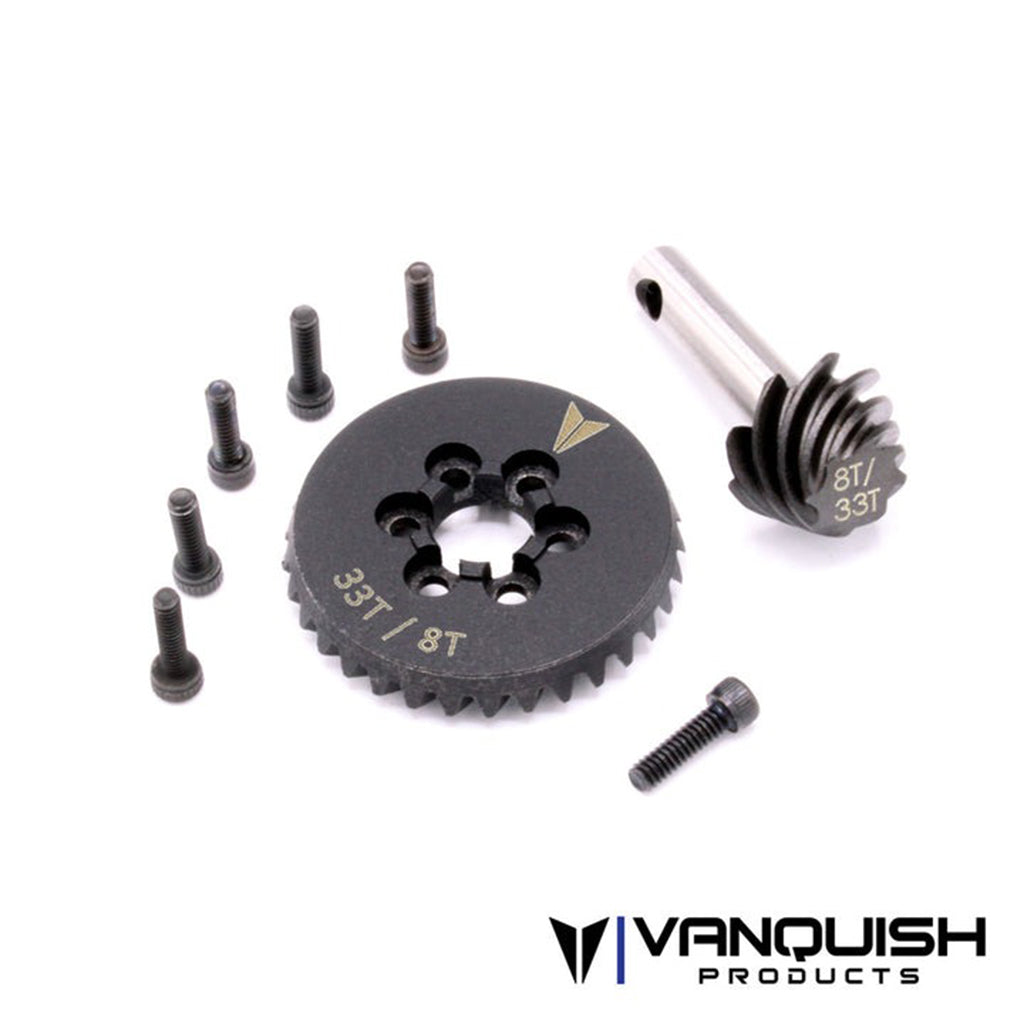

• To add overdrive in the ring and pinion, install VPS08331
• Compatible with all Vanquish SLW and Incision hubs.
• Does not include link mounting hardware
• Incision .280" width pivot ball compatible
• For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations

Recommended for use with the following:

• VPS10130 VS4-10 Chassis Kit
• IRC00303 VS4-10 F10 Link Set
• VPS0152 VFD Transmission Kit

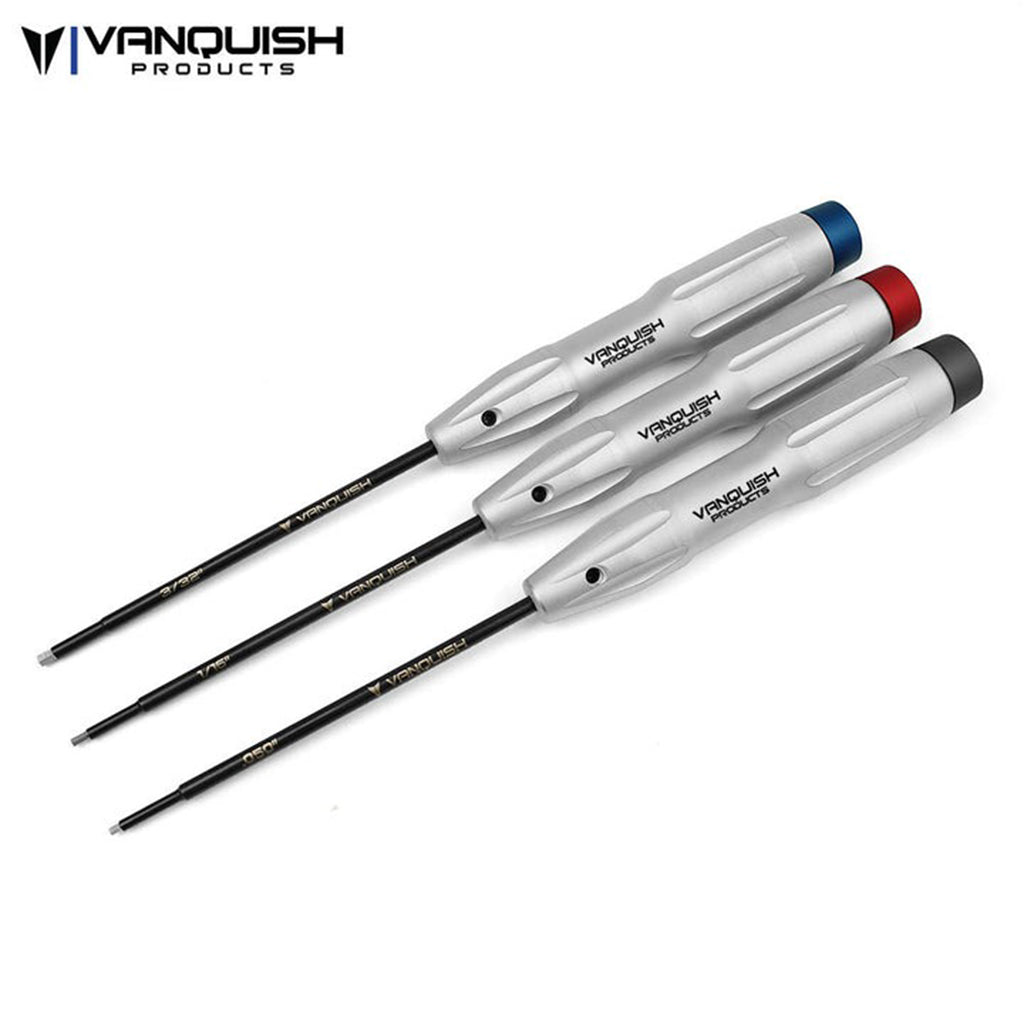

Machined aluminum handles have a bearing supported cap for comfort while working. Each cap is anodized a different color for quick visual identification. The tool tips are laser etched with the Vanquish Products logo and tool tip size.

Kit Includes:

3pc - Tool Handle with bearing supported color coded cap for each tool size

3pc - Ground tool steel hex driver tip (1x0.05in, 1x1/16in, 1x3/32in)

1pc - 2mm L-key tool for assembly

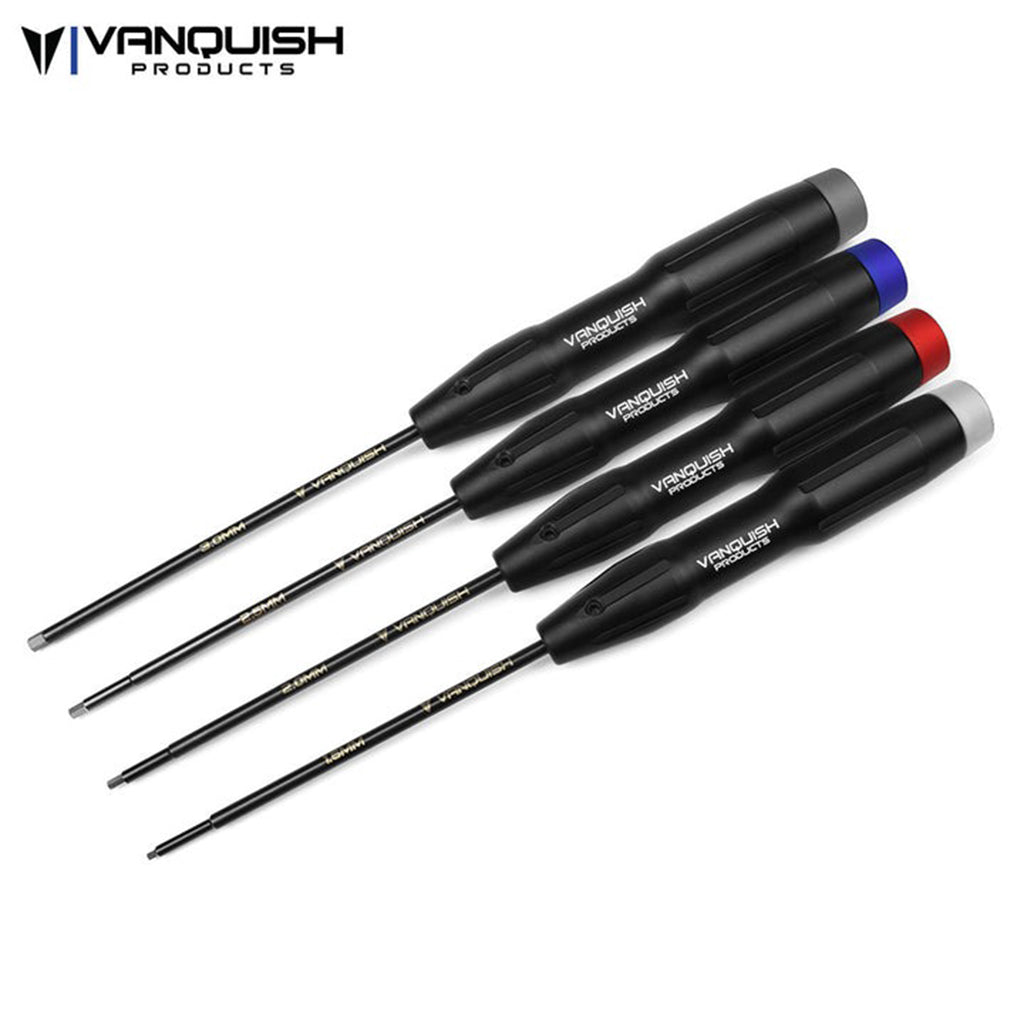

Vanquish Products Metric Tool Set with Bearing Supported Cap

Machined aluminum handles have a bearing supported cap for comfort while working. Each cap is anodized a different color for quick visual identification. The tool tips are laser etched with the Vanquish Products logo and tool tip size.

Kit Includes:

4pc - Tool Handle with bearing supported color coded cap for each tool size

4pc - Ground tool steel hex driver tip (1x1.5mm, 1x2.0mm, 1x2.5mm, 1x3.0mm)

1pc - 2mm L-key tool for assembly

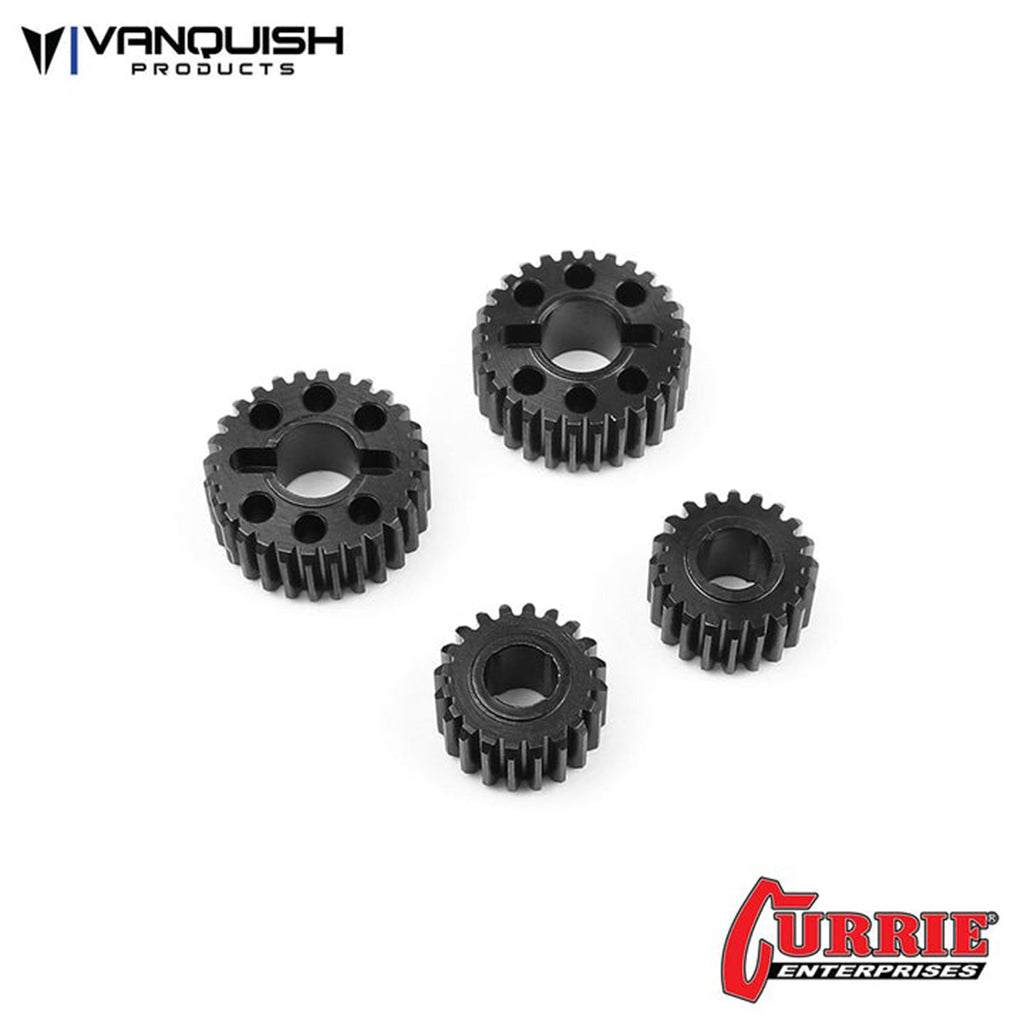

Currie F9, F10 Portal Axle Overdrive Gear Set - For Vanquish Products SCX10-II Portal, VS4-10 Ultra, and VS4-10 Phoenix F10 Portal Axles.

• Suggested for use in the front axle only, or front AND rear axle.
• 1.4:1 gear ratio compared to 1.67:1 gear ratio with gear set included in the portal axles
• Helps with steep climbs and turning radius
• Stock replacement for the VS4-10 Ultra and VS4-10 Phoenix (VPS09007) kits.

Note: Does not fit Axial Capra, Axial SCX10III.

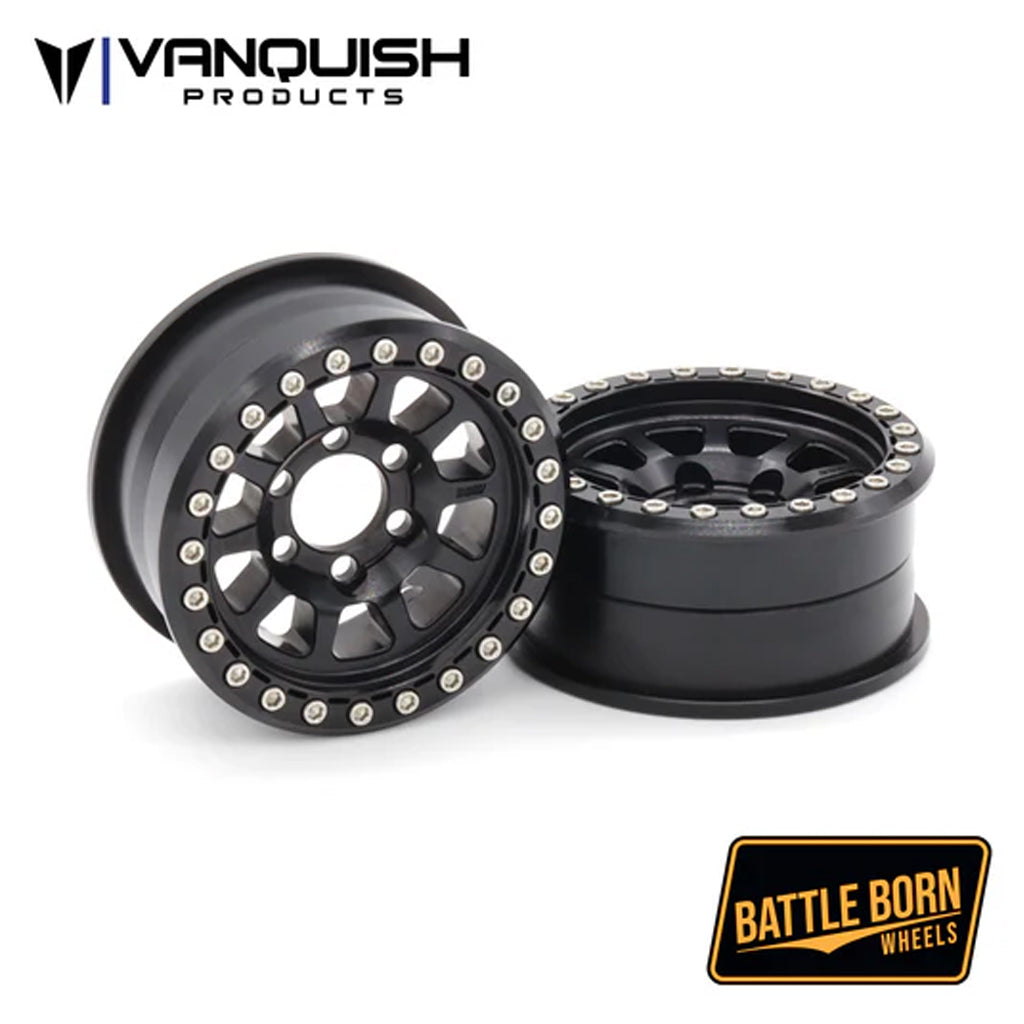

Vanquish Products 1.9 Aluminum Battle Born Wheels Sierra Beadlock Wheels

Officially licensed Battle Born Wheels
These wheels include Battle Born Wheels Slotted beadlock ring design
Uses 0.8" wide clamp rings
Includes the following:

2pcs Battle Born Wheels Sierra Front Face
2pcs Rear Rings
2pcs Anodized Slotted Beadlock Rings*
2pcs 0.8" Molded Clamp Rings
1pc Screw Kit VPS05000
1pc Instructions Sheet
Note: Included rings are not IFR compatible

Requires SLW Hubs

Raw Aluminum Hubs
Black Aluminum Hubs
Brass Hubs
Optional Parts

Brass Clamp Rings (0.8")
Scale Hardware
Due to the nature of anodizing aluminum, the shade of color may differ from the image shown.

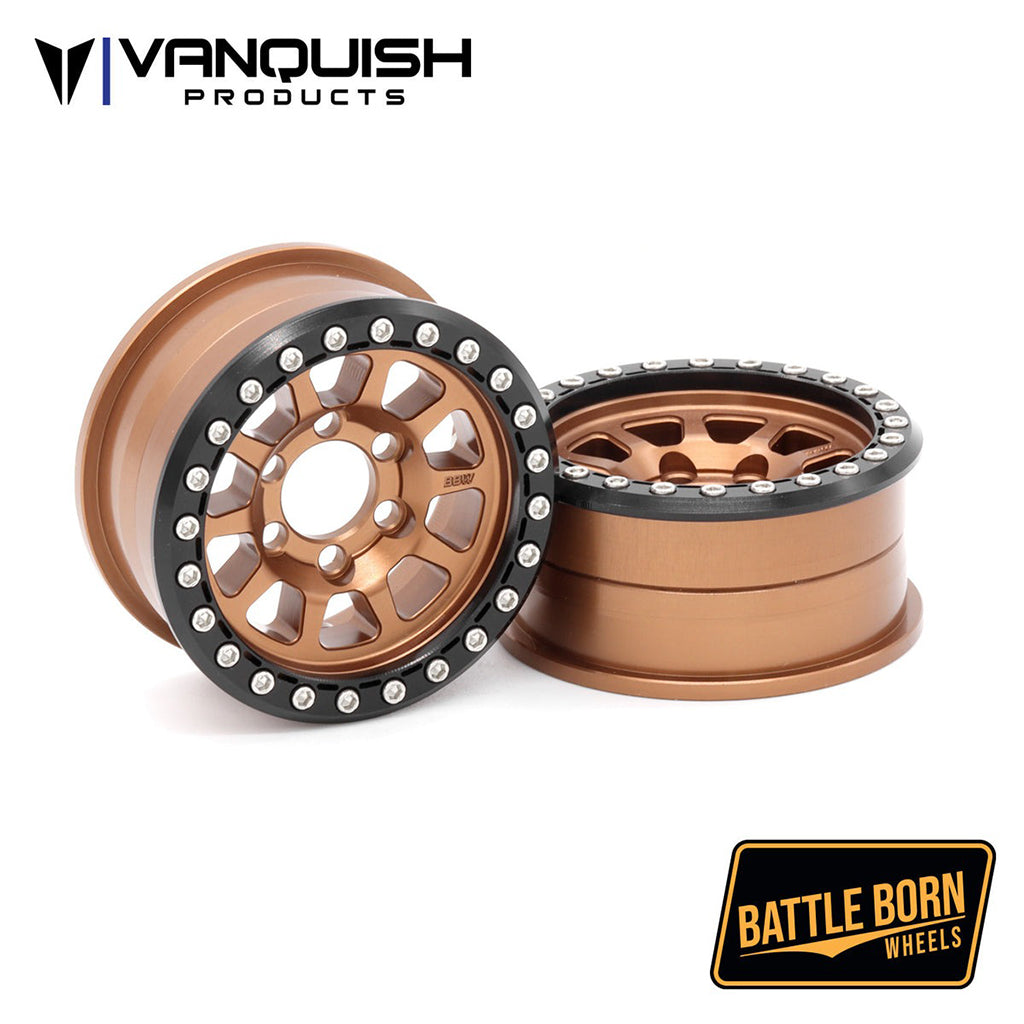

Vanquish Products 1.9 Aluminum Battle Born Wheels Sierra Beadlock Wheels

Officially licensed Battle Born Wheels
These wheels include Battle Born Wheels Slotted beadlock ring design
Uses 0.8" wide clamp rings

Includes the following:

2pcs Battle Born Wheels Sierra Front Face
2pcs Rear Rings
2pcs Anodized Slotted Beadlock Rings*
2pcs 0.8" Molded Clamp Rings
1pc Screw Kit VPS05000
1pc Instructions Sheet
Note: Included rings are not IFR compatible

Requires SLW Hubs

Raw Aluminum Hubs
Black Aluminum Hubs
Brass Hubs
Optional Parts

Brass Clamp Rings (0.8")
Scale Hardware
Due to the nature of anodizing aluminum, the shade of color may differ from the image shown.

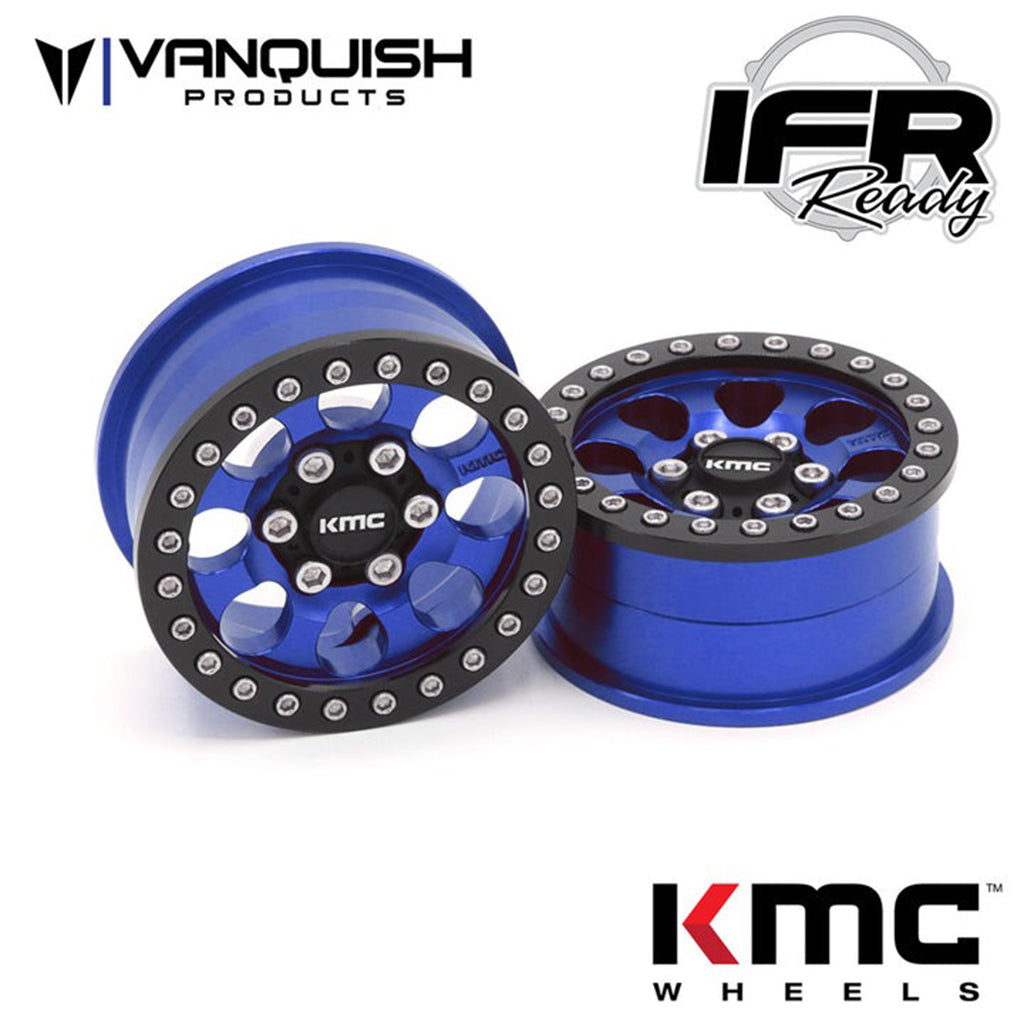

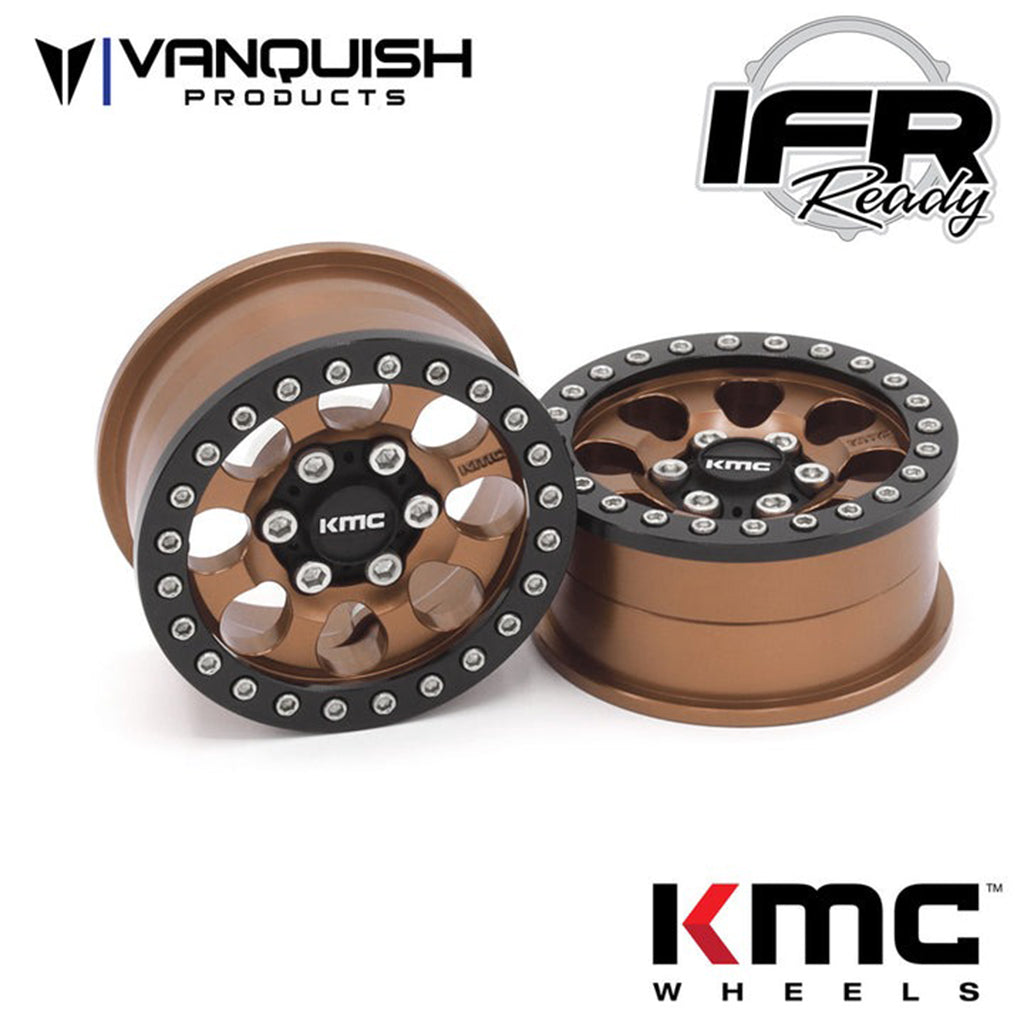

• Vanquish Products 1.9 Aluminum KMC KM237 Riot Beadlock Wheels

  • Officially licensed KMC Wheels
  • These wheels include their own KMC branded center cap
  • Uses 0.8" wide clamp rings


  Includes the following:

  • 2pcs KMC 1.9 KM237 Riot Front Rings
  • 2pcs Rear Rings
  • 2pcs Anodized Beadlock Rings
  • 2pcs Anodized Black Center Cap
  • 2pcs 0.8" Molded Clamp Rings
  • 1pc Screw Kit VPS05005
  • 1pc Instructions Sheet


  Note: NOT compatible with 225 SLW hubs if using the included center cap. The stub axle may interfere with the inside of the center cap.


  Requires SLW Hubs

  • Raw Aluminum Hubs
  • Black Aluminum Hubs
  • Brass Hubs


  Optional Parts

  • IFR Inner Rings
  • Brass Clamp Rings (0.8")
  • Scale Hardware


  Due to the nature of anodizing aluminum, the shade of color may differ from the image shown.

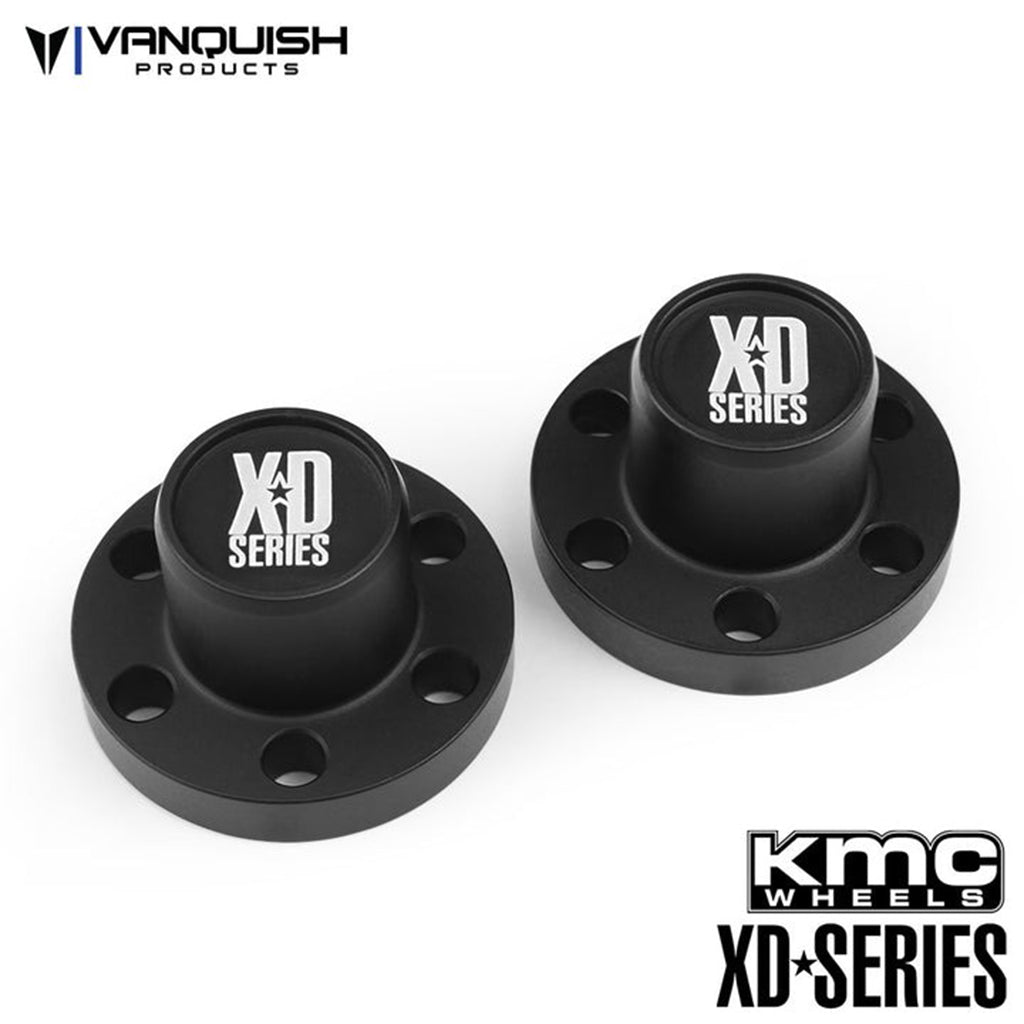

Vanquish Products Aluminium Center Hubs XD Series

These work with all Vanquish Products 1.9 and 2.2 wheels designed for use with a SLW hub*
The center hub rests between the wheel and the SLW hub, attached by the included screws
Hub adds .100 offset
Includes the Following:

2pcs Center Hubs
13pcs 4-40 x 3/8 SHCS
*Some discontinued Vanquish Products wheels had a center cap milled into the wheel face, these center hubs will not be compatible with those wheels.

...

VPS07740 | Vanquish KMC 1.9 XD229 Machete V2 Black Anodized | Schumacher RC Racing

Vanquish Products 1.9 Aluminium KMC XD229 Machete V2 Beadlock Wheels

Officially licensed KMC XD Series Wheels
These wheels pair well with Vanquish Products Center Hubs XD Series VPS07720 and VPS07721
Includes the following:

2pcs KMC 1.9 XD229 Machete V2 Front Rings
2pcs Rear Rings
2pcs Anodized Beadlock Rings
2pcs Molded Clamp Rings
1pc Screw Kit VPS05000
1pc Instructions Sheet
Requires SLW Hubs

Raw Aluminum Hubs
Black Aluminum Hubs
Brass Hubs
Optional Parts

IFR Inner Rings
Brass Clamp Rings (0.8")
Scale Hardware
Due to the nature of anodizing aluminium, the shade of color may differ from the image shown.

****SLW Hubs are not included, so be sure to include SLW hubs in the accessories section below.

****Requires the use of standard size hex tools 1/16" & 3/32"
