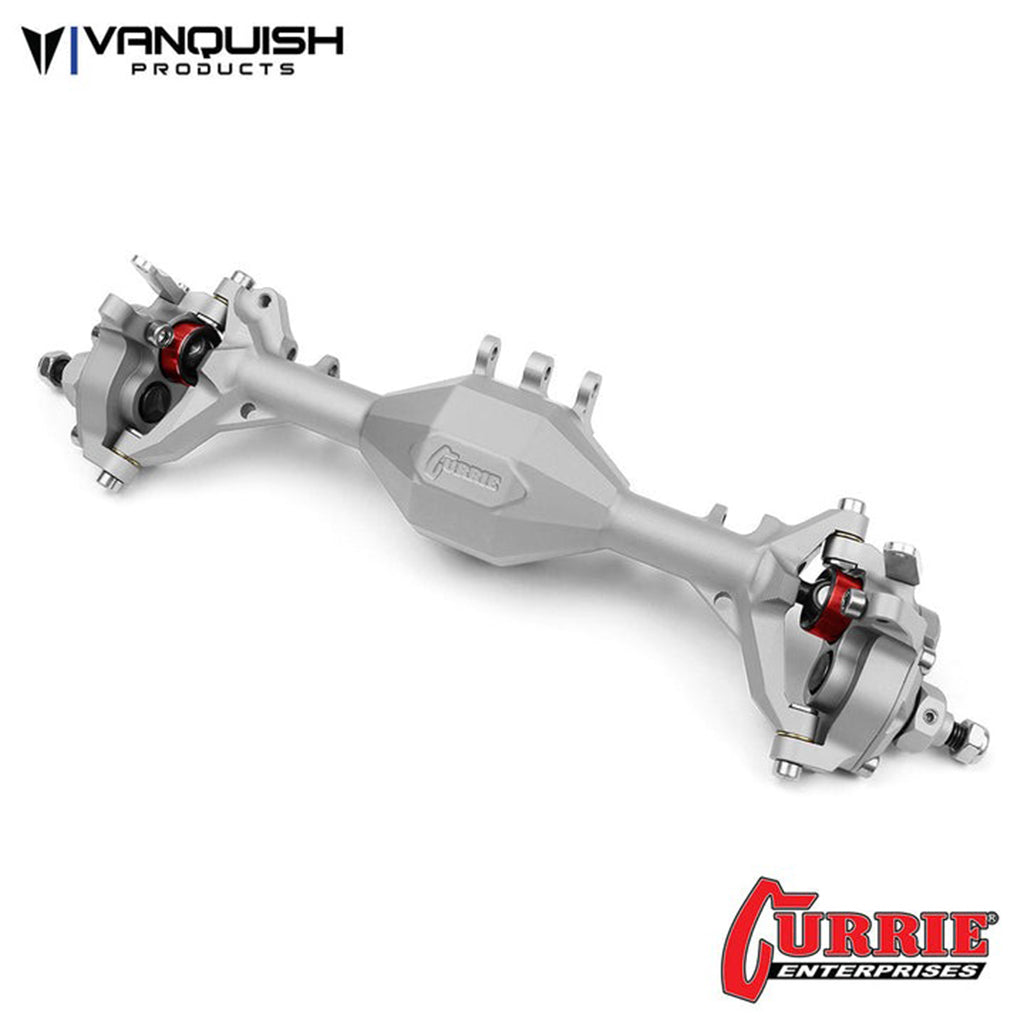

Currie F9 Portal Front Axle for SCX10-II based vehicles

The F9 Portal axles create extreme amounts of ground clearance under the center of your axle, increasing the clearance by 1/2"+ (13mm). This provides the equivalent of a tire over 1 inch taller than what is on your vehicle. The advantage of the Vanquish Currie F9 Portals is the gear reduction inside the portal (1.67:1) which can be adjusted with optional gear sets (1.4:1 Overdrive). By adding reduction at the portal, less torque is transferred through the other upstream components in the drivetrain. These axles are a direct replacement to any Axial AR44 axle, using all stock links.

These axles come with all parts needed to assemble a full front axle.

Features

• Portal box built into the included knuckle with bolt on high steer arm for double shear mounting

• Gear reduction in the portal of 1.67:1 (18/30), Optional Overdrive Ratio of 1.4:1 (20/28) recommended for use in front axle only.

• Included Vanquish AR44 machined gear set

• Overall axle reduction of 6.26:1 with stock portal ratio

• 13mm increase in ground clearance

• Specifically design offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance

• Hex to hex width of 7.66 inches, only roughly 5mm wider than a stock AR44 axle with a narrow hex

• Replaceable Chromoly threaded inserts used at knuckle and C-hub to ensure a stripped thread doesn't ruin your investment

• Brass knuckle bushing from the AR60 axles are used in place of SCX10-II sized for more durability.

• Chromoly AR60 size VVD axle shafts come preassembled

• Chromoly stub shafts with 6mm design at the drive pin which tapers down to a 5mm thread for ultimate strength

• Chromoly spool

• Aluminum 12mm hex with set screw

• Compatible with stock SCX10-II Chassis mounted servo or F9 Servo on axle mount

• Uses all SCX10-II linkage

• Adjustable steering stop integrated into knuckle

• Complete Fast Eddy Bearings kit

• Licensed by Currie Enterprises

• Comes with One Piece Bearing Retainers (Patent Pending)

• Double shear shock mounts

• Integrated Panhard mount

• Upper link mounts built into third member

• Increased upper link clearance for more suspension up travel ability.

Requires the use of a 350 SLW hub or greater on Vanquish 1.9 wheels, Incision wheels will require a #4 or greater. Other wheel manufacturers offsets will vary. Axles must be used in pairs, you cannot run a front portal axle without a rear and vice versa. This product is not compatible with the VS4-10 Pro, or in combination with the VFD transmission.
