RC4WD

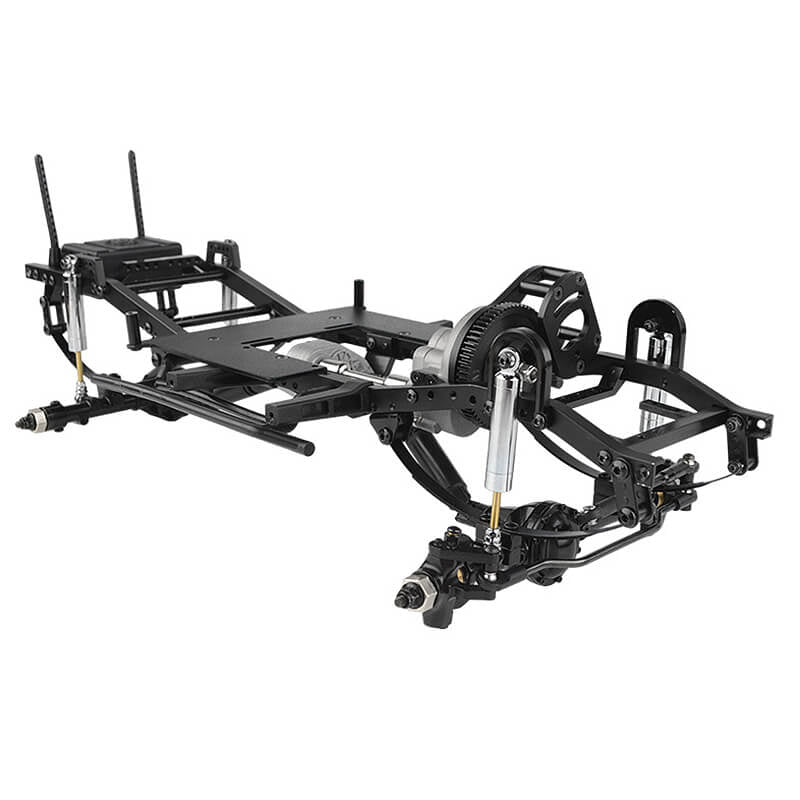

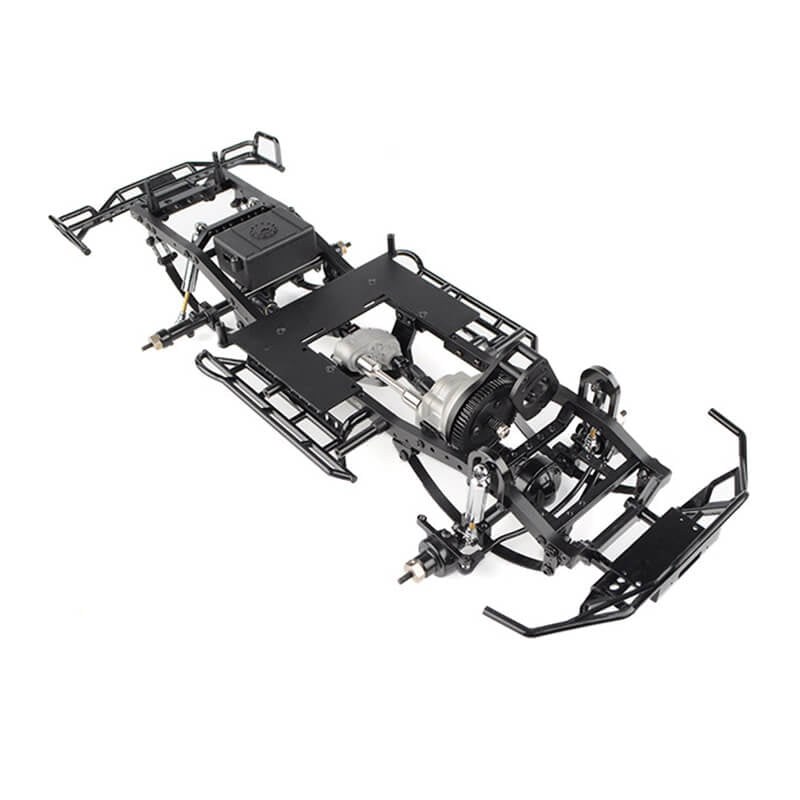

The Trail Finder 2 masterfully blends style with aggressive off-road performance. Designed to deliver both scale detail and powerful functionality, it features an R3 Scale Single Speed transmission, a 4WD drivetrain, a rugged Bulletproof Transfer Case, and durable metal components for unmatched smoothness and control. Upgraded XVD front axles enhance durability and offer a superior steering angle compared to standard models. A testament to innovative engineering, the Trail Finder 2 stands out with its impressive looks and performance capabilities. Additionally, it offers extensive compatibility with a wide range of upgrades and performance enhancements, elevating the authenticity and user experience of this 1/10-scale off-road truck.

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles in the market, the RC4WD K44 Ultimate Scale Cast Axles feature innovative high steer knuckles, lower mounting points, compact pumpkins, as well as XVDs & offset pumpkin for the front.

The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

This chassis comes with new body mount brackets and rear shock hoops that fit the RC4WD Chevrolet Blazer Hard Body Set; paired with the lift kit you can instantly transform your truck into a mini lifted beast.

The Trail Finder 2 includes a set of RC4WD Ultimate Scale Shocks. Designed with scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.

The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

Features

• Realistic Billet Aluminium Ladder Frame Chassis
• R3 Scale Single Speed Transmission
• Hammer Transfer Case (1.47/1)
• K44 Ultimate Scale Cast Axles
• RC4WD Bilstein SZ Series Shock Absorbers (80mm)
• RC4WD Lift Blocks for Yota and K44 Axles
• RC4WD Body Mounts and Shock Towers for Chevrolet Blazer

Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide .8 Mod Steel Gears
• Features: 8 Bearings, Cast Casing, Hardened Gears

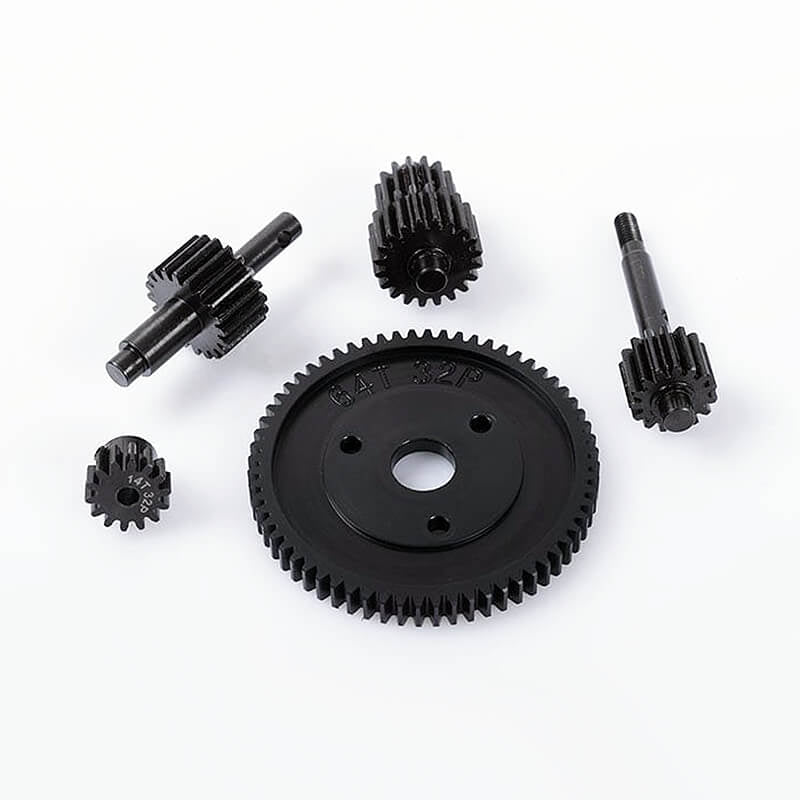

R3 Scale Single Speed Transmission

• Ratios: Pinion/Spur 14/64 = 1:4.57
• Internal Ratio: 1.78:1
• Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles

• Ratio: 2.67:1
• Width at Hex: 177mm (6.96")

Trail Finder 2 Chassis

• Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts

• High Quality Plastic Material, Durable Steel Yokes

Specifications

Wheelbase: 285mm (11.2")
Width: 196mm (7.7")
Height: 148mm(5.8")
Final Drive Ratios: 31.9:1

What's Included

1 x RC4WD Trail Finder 2 1/10 Scale Builders Kit (K44)

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery Z-E0090 or Lipo battery
• Charger

Suggested Bodies

• RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
• RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257)

Notes

• This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.

Kick off your adventure with the Gelande II Scale Builders Kit!

Built for off-road performance, the Gelande II features an aluminium ladder frame chassis, updated R3 Single-Speed Transmission, and Yota II V2 axles with our new XVD technology!

The front axle now comes with improved screw engagement that maximizes steering precision and improves sturdiness. 4-link rear and 3-link pan-hard bar suspensions provide smooth handling and D-80 shocks with our new X-Ring tech and Titanium Nitride Coated Shafts provide a new level of durable impact control.

Customise it to suit your style, whether as a rock crawler or expedition vehicle, without compromising performance. With cast metal axles, stamped steel beadlocks, Scrambler tyres, and a chassis-mounted steering servo,sheet. Build your ultimate off-road rig today!

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8-degree round knuckles, unique removable diff covers, lower mounting points, and a compact offset pumpkin in the front.

The driveshafts on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The Gelande II Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminium, frame-mounted under-cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The Gelande II comes with a new set of RC4WD Dual Spring Shocks. This fresh design offers a shock that looks true to life and performs at the highest level. These shocks are made from solid aluminium, feature dual springs, and can be taken apart and put back together. They include our latest X-Ring technology and shafts coated with Titanium Nitride, delivering long-lasting impact control that's a step above the rest.

The all-new Gelande II Chassis is a machined billet aluminium ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.

Included are a set of 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome) with scale wheel hubs! The wheels are made from stamped steel and have a smooth silver finish for added detail.

This Gelande II kit comes with a set of Scrambler Offroad 1.9" Scale Tyres that deliver the perfect amount of traction with its advanced X2SS soft and sticky compound. The scale details complete the look in just the right size.

Details

The Gelande II features the Cruiser Scale Body Set. The Cruiser body has an awesome appointment of scale details, including mirrors, door handles, vents, and a grill to match the 1:1 vehicle.

The unmistakable lines of a classic. The Cruiser Body Set is a replica of the full-scale vehicle, right down to the removable top! No other scale body comes this close to realism.

The Cruiser Body Set comes in durable hard plastic molded in a paintable gray finish, perfect for custom paint. All the trim parts are separate pieces to get a great look with minimal fuss.

Comprised of over 70 parts, the Cruiser Body Set features a fully detailed interior, seats, gear shifter, handbrake, and detailed dashboard. It's all here to bring your build to the next level.

The crisp lines and subtle details are captured. A metal grill insert is included, as well as detail lenses for all signal lights. All lamps can be illuminated with modification.

Features

• Realistic Billet Aluminium Ladder Frame Chassis.
• Plastic Punisher Shaft V2.
• R3 Scale Single Speed Transmission.
• Center Mounted Realistic 4x4 Transfer Case.
• Yota II Ultimate Scale Cast Axle V2 (XVD).
• 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels.
• Scrambler Offroad 1.9" Scale Tyres.
• Dual Spring 80mm Scale Black Shocks (VER 3).
• Cruiser Body Conversion Kit For G2 Builder Kit.
• Chassis Mounted Steering Servo.
• Plastic Fuel Cell Receiver Box.

Specifications

Hammer Transfer Case

Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

Gelande II Suspension

Double Triangulated 4 Link Rear Suspension. 3 Link Front Suspension with Panhard Bar

Shock Absorbers

Dual Spring 80mm Shocks - Can be oil filled

Wheels

Type: 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Hub: Pin Type Width: 25mm (0.98")
Outer Diameter: 48.26mm (2.09")

Tyres

Type: Scrambler Offroad 1.9" Scale Tyres
Outer Diameter: 104mm (4.09")
Width: 43mm (1.69")
Inner Diameter: 46mm (1.81")

Gelande II Truck Dimensions

Length: 18.31in / 465mm
Width: 8.66in / 220mm
Height: 10.24in / 260mm
Ground Clearance: 1.97in / 50mm
Final Drive Ratio: 31.9:1

What's Included

• 1 x RC4WD Gelande II Truck Kit w/Cruiser Body Set

Please Note: This is a kit that requires building time (appro. 2-3 hours) and electronics.

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Experience the versatility and advanced design of the Gelande II for yourself. Packed full of capability, the Gelande II is ready for any challenging condition. Put your off-road driving to the test and see why the Gelande II can easily maneuver extreme descents and climb with ease.

The Gelande II is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.

The Gelande II comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The Gelande II is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your Gelande II exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the Gelande II is built for the true off-road enthusiast!

Features

• Realistic Aluminium Ladder Frame Chassis.
• R3 Single Speed Transmission.
• Center Mounted Realistic 4x4 Transfer Case.
• Yota II Ultimate Scale Cast Axles.
• 3 Link Front and 4 Link Rear Suspension.
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels.
• Dirt Grabber 1.9" All Terrain Tyres.
• Chassis Mounted Steering Servo.
• Plastic Fuel Cell Receiver Box.
• Dual Spring Scale Black Shocks 80mm V3 (X-Ring).

Drivetrain

Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and the same heavy duty 0.8 Mod widened gears for durability.

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles V2 (XVD) feature innovative 8-degree round knuckles, unique removable diff covers, lower mounting points, and a compact offset pumpkin in the front.

The driveshafts on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminium, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.

The Gelande II boasts realistic-looking, high-performance X-ring technology Dual Spring Shocks. These rebuildable aluminium shocks feature dual springs and Titanium Nitride coated shafts for superior, long-lasting impact control.

The G2 Chassis is a machined billet aluminium ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9” internal beadlock wheels. Featuring a super tough black finish, aluminium internal lock- ing ring and popular 5 lug design with separate hub.

Every G2 needs a tough set of rock grabbing tyres and the included RC4WD Dirt Grabbers deliver traction as well as the perfect scale looks in just the right size.

Details

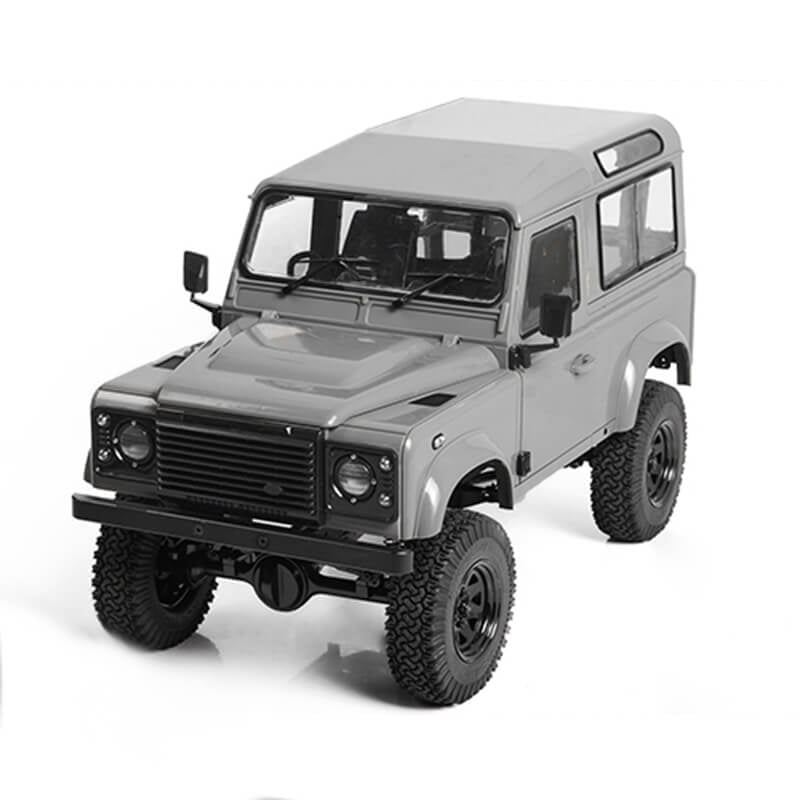

The G2 features the 2015 Land Rover Defender D90 Body Set. The custom 4 door Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

It's officially licensed with Land Rover with open- ing side and rear doors and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It's all here to bring your scale experience to a level. This update adds more detail to the interior of the D90.

Comprised of over 100 parts, the 2015 Land Rover Defender D90 Body Set features a full detailed interior. Fold-down rear seats, gear shifter, hand- brake and detailed dash. It’s all here to bring your build to next level.

The crisp lines and subtle details are all captured. Functional light parts are included as well as coloured lenses for all signal lights. All lamps can be illuminated with an optional RC4WD LED light kit.

Specifications

Hammer Transfer Case
Ratio: 1.47:1 Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled

Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminium, Lightweight

G2 Truck Dimensions
Wheelbase: 275mm (10.82")
Width: 213mm (8.38")
Height: 252mm (9.92")
Ground Clearance: 58mm (2.28")
Final Drive Ratio: 31.9:1
Weight: 5.58Lbs / 2.533Kg

What's Included

1 x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Blue Thread Lock
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)

Electronics

• Motor (35t, 45t or 55t)
• Outcry III Waterproof ESC (Z-E0113)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Notes

• This is a kit that requires building time (appro. 2-3 hours) and electronics.
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Be sure to shim your axles if needed.

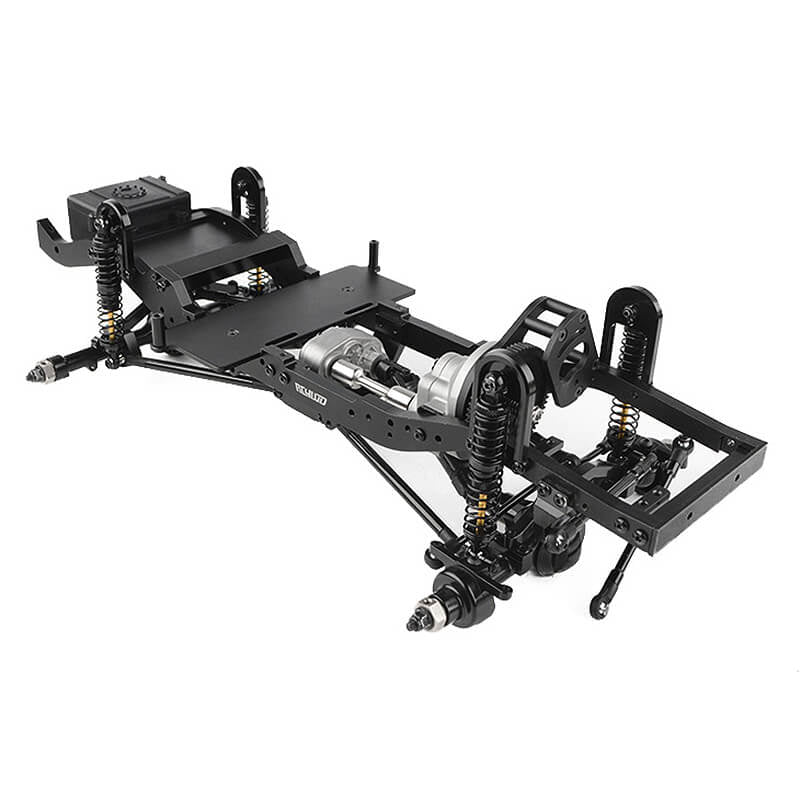

Experience the versatility and innovative design of the Gelande II firsthand! Now featuring exciting new upgrades, the Gelande II comes ready for challenging terrains. Put your off-road skills to the test and discover why the Gelande II is a fan favorite!

The Gelande II comes with a 4-link rear and 3-link Panhard rod suspension as a standard feature. The chassis-mounted servo is out of view for added realism.

The Gelande II platform is incredibly versatile, offering a wide range of styles and looks to bring any off-road enthusiast’s vision to life. With countless customization options, RC4WD allows you to personalize your Gelande II without sacrificing performance. Whether you're building an emergency vehicle, expedition rig, scale replica, or hard-core rock crawler, this unit is ready to explore endless possibilities!

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Gelande II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale-accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axle V2 (Front/Rear) set the standard for scale realism, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin.

The driveshafts found on the Gelande II Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The all-new Gelande II Chassis is a machined billet aluminium ladder frame with an all-link suspension design, scale shock hoops, chassis servo mounts, and hard body mounting points for the ultimate in strength.

The Gelande II includes a set of new RC4WD Dual Spring Scale Black Shocks 80mm V3. With an all-new design, the shocks come with our new X-ring tech that provides multiple sealing points for superior protection against leaks and contamination, ensuring cleaner operation, longer performance life, and reliability!

The Gelande II Chassis Set is CNC machined with a smooth anodized black finish and integrated grooves for cross-bracing, giving it more texture and stability.

Dominate tough terrain with RC4WD Steering Links. Perform sharp turns and experience immediate responsiveness. Crafted from premium materials, these links deliver unmatched durability and control.

This Metal Drive Coupling is made of hardened steel, which provides sufficient durability, extending the lifespan of your drivetrain and withstanding the stresses of high-torque.

Features

• Realistic Billet Aluminium Ladder Frame Chassis.
• R3 Single-Speed Transmission.
• Center Mounted Realistic 4x4 Transfer Case.
• Metal Drive Coupling for Gelande II.
• Yota II Ultimate Scale Cast Axle V2 (XVD).
• Dual Spring 80mm Scale Black Shocks (Ver 3) (X-Ring).
• Aluminium Shock Hoops for Gelande II Chassis.
• Fuel Cell Radio Box.

Specifications

Hammer Transfer Case

Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

Gelande II Chassis Set

Smooth Anodized Black Finish Integrated Notches for Cross Braces.

Drive Shafts

High Quality Plastic Material Durable Steel Yokes

Gelande II 1/10 Scale Builders Kit Dimensions

Wheelbase: 275mm (10.8")

Length: 440mm (17.3")

Width: 220mm (8.7")

Height: 140mm (5.5")

Ground Clearance: 50mm (1.97")

Final Drive Ratios: 31.9:1

What's Included

• 1 x RC4WD Gelande II Truck 1/10 Scale Builders Kit

Please Notes: This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Suggested Bodies

• RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
• RC4WD 2015 Land Rover Defender D90 Body Set (Z-B0215)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.

Take your adventures to the next level with the Trail Finder 2—the off-road platform that evolves with you. Built for customisation, this rugged machine is fully compatible with an extensive range of upgradeable parts, allowing you to fine-tune performance and enhance its lifelike scale appearance.

From upgraded drivetrains to detailed body accessories, the Trail Finder 2 offers endless possibilities to make it truly yours. Whether you're chasing peak performance or crafting a head-turning scale masterpiece, this truck grows with your off-road ambitions.

Unleash your creativity, conquer the terrain, and experience the freedom of a truck that's as adaptable as your wildest adventures. The Trail Finder 2 — where innovation meets exploration.

Features

• R3 Scale Single Speed Transmission
• Center Mounted Hammer Transfer Case
• Realistic Billet aluminium Ladder Frame Chassis
• The Ultimate Scale Shocks (60/80mm) (Chrome)
• Yota II Ultimate Scale Cast Axles V2 (XVD)
• Super Soft Flex Leaf Springs
• Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
• BFGoodrich All Terrain K02 1.7" Scale tyres
• Marlin Crawler Side Plastic Sliders V2
• Marlin Crawler Front Winch Bumper w/Stinger V2
• Rear Plastic Tube Bumper

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The RC4WD Yota II Ultimate Scale Cast Axles (XVD) are the most scale-accurate on the market, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin. Designed for versatility, they accommodate leaf springs in over-axle and under-axle configurations, eliminating the need to flip the axle.

The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The Trail Finder 2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminium, frame-mounted under cab electronics tray for multiple electronics mounting options.

RC4WD Ultimate Scale Shocks deliver precision and durability. These rebuildable shocks are machined from billet aluminium and feature an internal spring design. Equipped with X-ring technology, they provide multiple sealing points for superior protection against leaks and contamination, ensuring cleaner operation, longer performance life, and reliability.

The Trail Finder 2 Chassis is a machined billet aluminium ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.

The Trail Finder 2 includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome). These wheels have proportional hex bolts, hubs, and two printed wheel caps.

Every off-road truck needs a set of tough tyres, and the Trail Finder 2 comes equipped with RC4WD BFGoodrich All Terrain K02 1.7” Scale Tyres with X2S3 compound to deliver proper traction!

Details

The 1982 Toyota pickup truck, recognized for its timeless design, is now an exciting addition to the RC4WD 1/10 ready-to-run line-up!

The 1982 Toyota pickup truck also includes scale rock rails plus front and rear tube rock guard bumpers. The front bumper has a winch mount built right in for an optional RC4WD winch.

The 1982 Toyota pickup truck includes a great dropped bed molded directly into the body. It’s perfect for carrying all your scale accessories or spare wheel and tyre!

The 1982 Toyota Pickup Truck features a fully functional hood and can be upgraded to showcase your personalized modification style. Its simple, durable design and retro charm make it a favorite for collectors and modification enthusiasts!

The 1982 Toyota pickup truck includes a bolt on, scale accurate molded cab back with every kit so you can use just the cab for a truggy style build.

Specifications

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features:8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Features:Machined Billet aluminium Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson).

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex:178.2mm (7.01")

Trail Finder 2 Chassis
Features:Billet aluminium Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Durable Steel Yokes

Wheels
Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
Hub: 12mm Hex
Width: 23mm (0.90")
OD:47mm (1.85")

TF2 Truck Dimensions
Wheelbase: 284mm (11.2")
Width: 214mm (8.4")
Height: 203mm (8.0")
Ground Clearance: 45mm (1.8")
Final Drive Ratio:31.9:1

Bumpers
Marlin Crawler Side Plastic Sliders V2
Marlin Crawler Front Winch Bumper w/Stinger V2
Rear Plastic Tube Bumper
Authentic Looking Crawler Style Tube Bumper. Very High Quality Flexible Plastic, Very Durable, Very Scale.

What's Included

• 1x RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set

Please Note: This is a kit that requires building time (appro. 2-3 hours).

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 2x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
• Charger (Consult your battery guide) Chargers

Body Kit

• Modeling / Craft Knife
• Body Reamer
• Side Cutters
• Instant glue / Plastic Cement (prefer non whitening)
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdrivers (small)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.

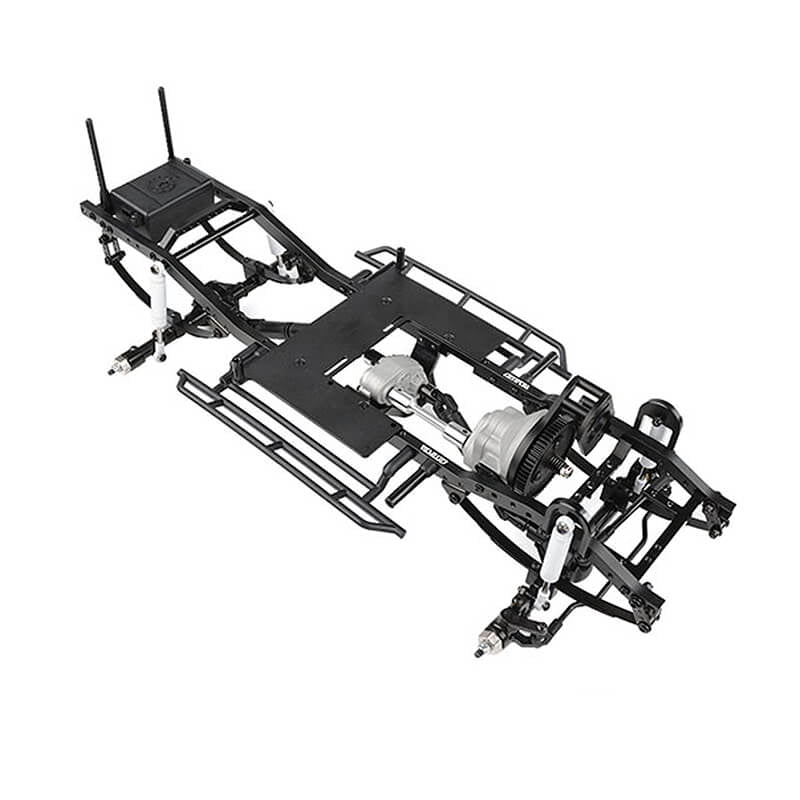

The Trail Finder 2 masterfully blends style with aggressive off-road performance. Designed to deliver both scale detail and powerful functionality, it features an R3 Scale Single Speed transmission, 4WD drivetrain, a rugged Bulletproof Transfer Case, and durable metal components for unmatched smoothness and control. Upgraded XVD front axles enhance durability and offer a superior steering angle compared to standard models. A testament to innovative engineering, the Trail Finder 2 stands out with its impressive looks and performance capabilities. Additionally, it offers extensive compatibility with a wide range of upgrades and performance enhancements, elevating the authenticity and user experience of this 1/10-scale off-road truck.

Features

• Realistic Billet Aluminium Ladder Frame Chassis.
• R3 Scale Single Speed Transmission.
• Center Mounted Hammer Transfer Case.
• Yota II Ultimate Scale Cast Axles V2 with XVD's.
• The Ultimate Scale Shocks (60/80mm).
• Marlin Crawler Side Plastic Sliders V2.
• Marlin Crawler Front Winch Bumper w/Stinger V2.
• Rear Plastic Tube Bumper.
• Super Soft Flex Leaf Springs.

Drivetrain

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminium motor mount for added toughness.

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

Suspension

The axles are now designed to accommodate leaf springs in two configurations: Over the axle for an off-road appearance and under the axle for a street look. This dual design eliminates the need to flip the axle, providing ease of use.

The Trail Finder 2 Chassis includes a set of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminium with internal springs and rebuildable internal parts!

With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminium and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.

The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 V2 are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

Specifications

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm (7.01")

Trail Finder 2 Chassis
Features: Billet Aluminium Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Durable Steel Yokes

Trail Finder 2 Truck Dimensions
Wheelbase: 287mm (11.2")
Width: 196mm (7.7")
Height: 148mm(5.8")
Final Drive Ratios: 31.9:1

What's Included

• 1 x RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit

Please Note: This is a kit that requires building time (appro. 2-3 hours), electronics, tyres and wheels.

Needed To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 2 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
• Charger (Consult your battery guide) Chargers

Suggested Bodies

• RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
• RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body (Z-K0049)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.

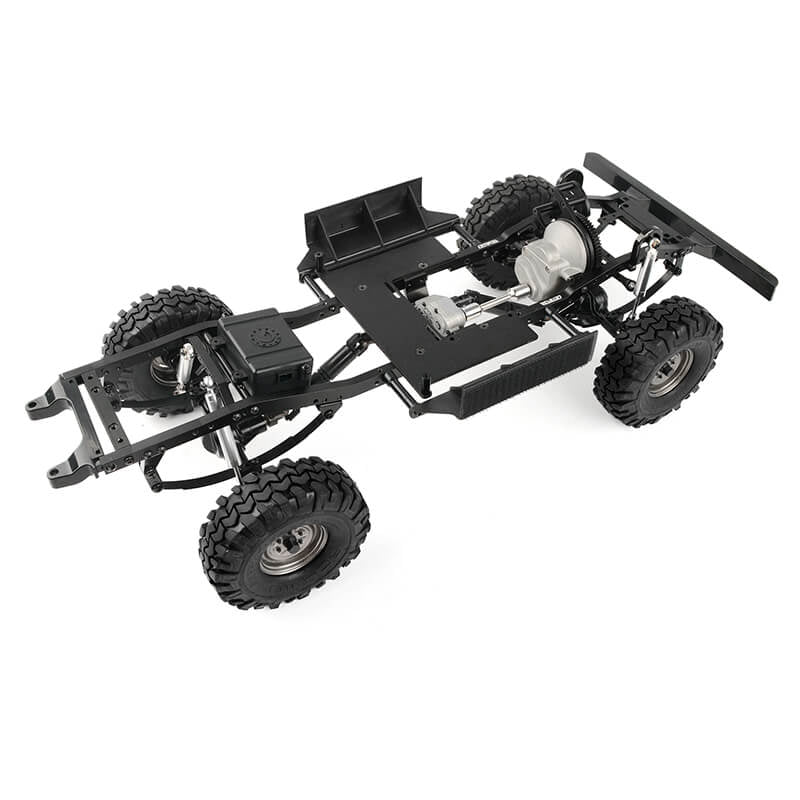

This is the all new Licensed RC4WD Trail Finder 2 Truck Kit "LWB" W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set.

The RC4WD Trail Finder 2 Truck Kit LWB W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set is an all-new customizable canvas for RC enthusiasts and scale artists alike. This FJ55 Lexan body set replicates the stocky look of the 'Iron Pig' and comes molded from quality material. Notice the precise positioning of the circular headlights with bezels and the tapering hood to a compact grill, recreating that distinctive front-end face. Finish it off with a Lexan body designed for any chosen paint job, from a single color to a signature two-tone!

One of the most realistic Lexan bodies on the market, this model features a fully molded interior cabin and an innovative mounting system that hides the body clips under the chassis! All of the lighting on this body is also fully LED capable!

This scale Toyota body set comes mounted to the popular Trail Finder 2 “LWB” chassis through the hidden body mounts positioned at the front and rear bumpers. The TF2 “LWB” chassis features the R3 Single Speed Transmission, Yota II Ultimate Scale Cast Axles, and RC4WD Ultimate Scale Shocks ensuring all-terrain capabilities!

Express your inner admiration for vintage builds and separate yourself from the rest with the RC4WD 1980 Toyota Land Cruiser FJ55 Body Set today!

Features

• 1980 Toyota Land Cruiser FJ55 Lexan Body Set
• Trail Finder 2 "LWB" Chassis
• Yota II Ultimate Scale Cast Axles
• R3 Single Speed Transmission
• Center Mounted Hammer Transfer Case
• Ultimate Scale Shocks
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear)
• Rock Stompers 1.55" Offroad Tyres

Specifications

Hammer Transfer Case
Ratio: 1.47:1 Gears: Wide .8 Mod
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.20mm

Trail Finder 2 LWB Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole

Wheels
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear)
Hub: 12mm Hex
Width: 0.92in / 23.40mm
OD: 1.81in / 46.10mm

FJ55 Truck Dimensions
Wheelbase: 314.20mm (12.37")
Width: 223.00mm (8.78")
Height: 229.00mm (9.02")
Ground Clearance: 64.30mm (2.53")
Final Drive Ratio: 31.92:1

What's Included

• 1x RC4WD Trail Finder 2 Truck Kit "LWB" W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Medium (Blue) Thread Lock Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)
• Paint for Body

Electronics

• Motor (35t, 45t or 55t)
• Electronic Speed Control (Z-E0113 or Z-E0118)
• Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Standard Size Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

The Trail Finder 2 LWB has both style and aggressive performance.You can find a balance of scale details and performance into every build.

Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVDs, providing sturdier construction and a greater steering angle than stock counterparts. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.

The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!

Features

• Realistic Billet Aluminum Ladder Frame Chassis
• R3 Scale Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• K44 Ultimate Scale Cast Front Axle with Upgraded XVD's
• K44 Ultimate Scale Cast Rear Axle
• Super Scale 70mm White Shocks W/ Internal Springs
• RC4WD Marlin Crawler Side Plastic Sliders
• Soft Steel Leaf Springs

Specifications

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")

Trail Finder 2 “LWB” Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Durable Steel Yokes

Trail Finder 2 "LWB" Truck Dimensions
Wheelbase: 314mm(12.4")
Width: 193mm(7.6")
Height: 118mm (4.65")
Final Drive Ratios: 31.9:1

What's Included

• 1x RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit

Required To Complete

This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t or 55t)
• Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
• Charger (Consult your battery guide) Chargers

Suggested Bodies

• RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
• RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock sparingly.
• Do not over tighten screws, otherwise you may strip the thread.

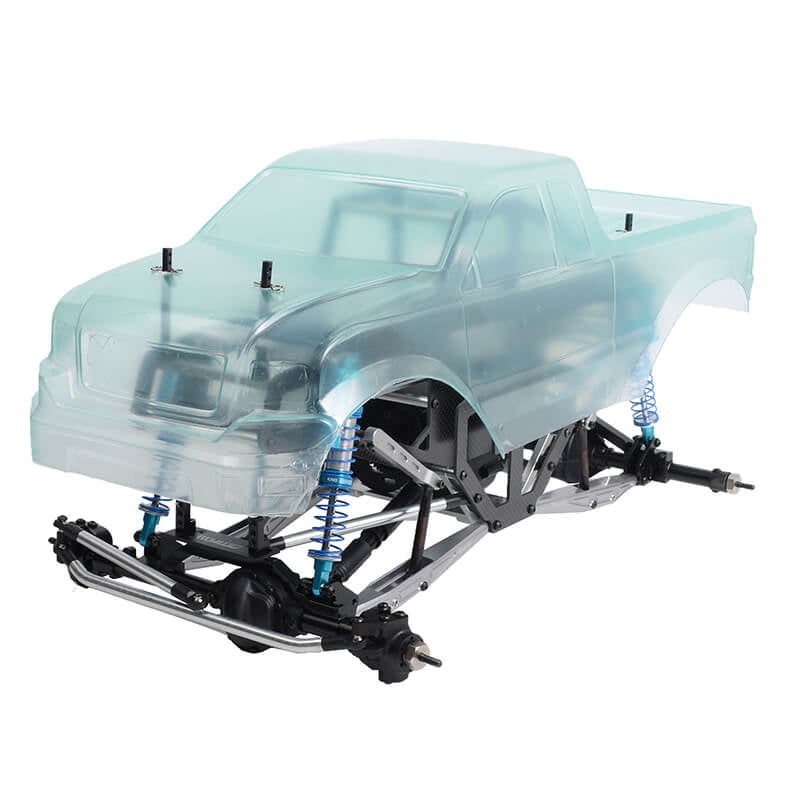

RC4WD's Carbon Assault Monster Truck has been created with premium parts and boundless customization, it uses proven suspension geometry and a light-weight carbon fiber chassis coupled with rugged CNC billet aluminium chassis components. The Carbon Assault Builder's Kit is only limited by your creativity, a great starting point for any builder looking for a high performance monster truck kit.

The Carbon Assault Monster Truck incorporates a chassis with multiple suspension mounts for various arrangements, suspension links that mimic dimensions of proven setups and a robust AX2 2-Speed transmission with hardened steel gears and a second gear for increased speed. The box includes 1 body and a complete sticker sheet featuring the epic Carbon Assault Logo.

The Carbon Assault has components and features never seen on a monster truck kit before. This truck is loaded with premium parts and will give hours of fun and a superior platform for the advanced builder.

Features

• CNC Machined 2MM Carbon Fiber Chassis
• CNC Billet Aluminum Chassis Braces & Skid Plates
• CNC Billet Aluminum Axle Tubes & Trusses
• AX-2 Speed Transmission
• RC4WD Wide D44 Front & Rear Axles
• Adjustable Front & Rear Sway Bars
• King Off-Road Racing Dual Spring Shocks
• Lexan Monster Truck Body w/ Complete Decal Sheet
• Dual Electronics Mounting Plate
• Servo Mount for D44 Wide Axles
• CNC Machined Trailing Arms
• RC4WD Plastic Punisher Shaft V2

Specifications

AX2 2 Speed Transmission Transmission

• CNC Machined Billet Aluminum
• 15T 32P Steel Pinion
• 60T 32P Delrin Spur
• Gear Ratio Pinion / Spur Ratio = 4:1
• 1st Gear Ratio = 5.05:1
• 2nd Gear Ratio = 1.78:1

D44 Wide Axle

• Ratio: 2.9 : 1
• Pinion Gear: 0.8 Mod 13T
• Hex Width: 242mm
• Hardened Steel Gears
• Case Material: Reinforced Nylon Plastic
• CNC Billet Aluminum Trusses and Tubes

Suspension and Shocks

• 4 Link Front and Rear Suspension
• King Off-road Dual Spring Shocks (110mm) - Can Be Oil Filled

Dimensions and Weight

• Wheelbase: 358mm (14.1")
• Width: 266mm (10.5")
• Height: 244.3mm (9.6")
• Final Drive Ratio: 2.9 : 1
• Weight: 4.23Lbs / 1.92Kg

What's Included

• 1x RC4WD Carbon Assault 1/10th Monster Truck Builder's Kit w/ Manticore Lexan Body Set

Required To Complete

• Electronics (Motor, ESC, Servo, RX/TX)
• Wheels
• Tyres
• Paint for Body
• Grease and Lubricants

Notes

• This is a kit that requires building time (approx. 2-3 hours)
• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

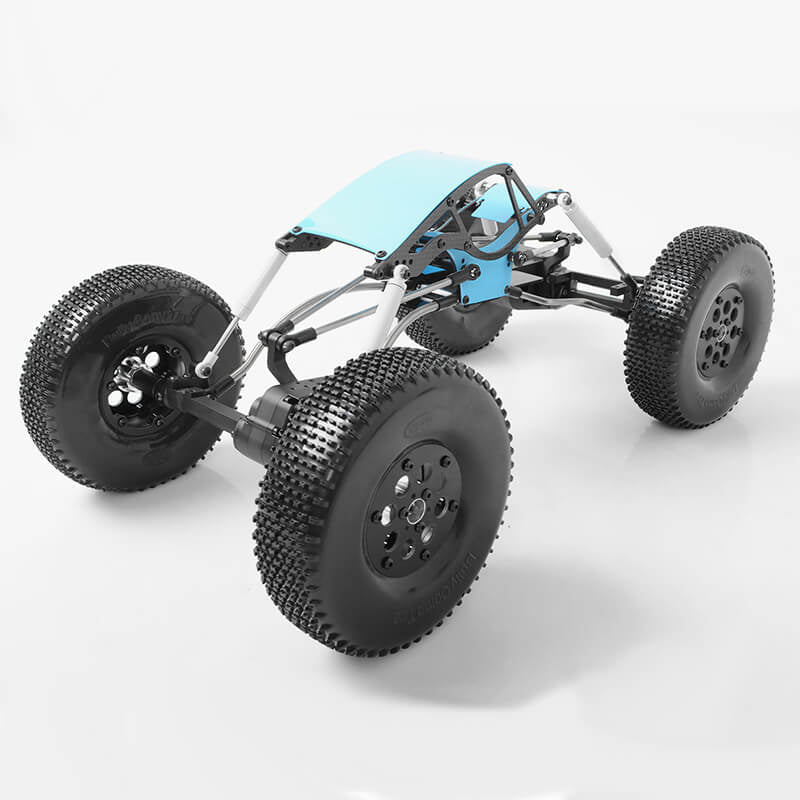

The Bully 2.2 MOA Competition Crawler Kit is engineered for serious competitors. Built with premium materials and precision components, it offers unmatched features including a carbon fibre chassis, CNC-machined Bully 2.2 axles, aluminium shocks, titanium links, carbon fibre and delrin Rocker 2.2" Beadlock wheels, and Bully Advanced X2SS compound competition tires.

Every component in the Bully 2.2 MOA kit is designed to meet U.S.R.C.C.A. rules while delivering maximum performance. The Bully axles provide outstanding strength and durability with full ball bearings, steel internal heavy-duty gears, XVD’s, clockable C’s, a sleek gearbox, and extensive adjustability to suit your setup.

The MOA (Motor-on-Axle) design delivers ultimate control with a dual motor setup. This lowers the centre of gravity, increases run time, and—when paired with a Rocker Dig II (Z-E0028)—gives you independent motor control for precise power delivery and advanced crawling functions.

RC4WD continues to set the standard in crawler performance and quality. With the Bully 2.2 MOA Competition Crawler, you’re not just getting another kit—you’re getting a game changer built to dominate straight out of the box.

Drivetrain

Rod ends are molded from a new advanced RC4WD plastic compound for maximum durability on the rocks. Solid titanium links deliver excellent drive-line angles and superior strength.

The Bully 2 axles are the result of years of testing and development, providing a true competition-ready axle straight out of the box—no expensive upgrades required.

A new Bully 2 gear set is pre-installed in the axles, offering the most durable gears RC4WD has ever produced to keep your MOA performing run after run.

Suspension

Completely redesigned aluminium shocks handle any terrain, giving your crawler the articulation it needs to conquer tough lines.

Lightweight yet strong, the carbon fibre and delrin beadlock wheels support the crawler’s weight without sacrificing performance.

Developed and tested by the RC4WD Crawler Team, the Bully 2.2 tires are competition-proven across a variety of terrains and conditions.

The carbon fibre MOA chassis reduces weight and improves responsiveness, giving you every advantage on the rocks.

Features

• Dual Motor MOA (Motor on Axle) Design
• CNC Machined Aluminium Axles
• Steel Internal Heavy-Duty Gears
• Bully 2.2" Competition Tires (Advanced X2SS Compound)
• Carbon Fibre and Delrin Beadlock Wheels
• Clockable C’s
• Aluminium Shocks
• Titanium Links
• Carbon Fibre and Delrin Chassis
• High-Clearance Chassis Design
• Carbon Fibre Battery Plate
• Easy-to-Paint Lexan Body Panels
• Endless Customizing Options

Specifications

Bully 2 Competition Crawler Axles

• Ratio: 40.7 : 1
• Pinion Gear: 0.8 Mod 14T
• Hex Width: 219.5mm
• Hardened Steel Gears
• Case Material: Billet Aluminium

Bully 2 Suspension

• 4-Link Front and Rear Suspension

Shock Absorbers

• 90mm Internal Spring Shocks (oil-fillable)

Wheels

• Type: 2.2" Lightweight Competition Beadlock
• Hub: Hex Type
• Width: 25.3mm
• Backspacing: 15mm

Bully 2 Dimensions

• Wheelbase: 317mm (12.5")
• Width: 254mm (10")
• Height: 182mm (7.2")
• Ground Clearance: 92mm (3.6")
• Final Drive Ratio: 40.7 : 1
• Weight: 1.99kg (4.38lbs)

The TF2 SWB has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2.

Performance of the TF2 is smooth with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout. The TF2 is truly a work of art in both appearance and performance.

Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance and add to the look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

Features

• Realistic Billet Aluminum Ladder Frame Chassis "SWB"
• R3 Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Yota II Ultimate Scale Cast Axle
• True to Scale Leaf Spring Suspension
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
• Mud Thrashers 1.9" Scale Tires
• Realistic Bumpers and Skid Plate
• Chassis Mounted Steering Servo
• RC4WD Scale Shock Absorbers
• Plastic Rod Ends
• Full Ball Bearings

Specifications

All New Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod steel gears

All New R3 Single Speed Transmission
Ratio: 1.78:1
Pinion/Spur: 14/64 = 4.57:1

Cast Yota 2 Axles
Ratio: 15/40 = 2.67:1
Width at hex: 176.5mm

Trailfinder 2 SWB Chassis
Features: Billet aluminum construction Adjustable shock hoops

Driveshafts
RC4WD Punisher Metal Driveshafts
Heavy duty steel construction

Wheels
Type: 1.9 Steel Beadlock Wheels with Lug Nuts
Hub: Pin type
Width: 25mm
Back Spacing: 11mm

TF2 SWB Dimensions
Wheelbase: 9.5in / 242mm
Width: 8.3in / 211mm
Height: 5.55in / 141mm
Ground Clearance: 2.3in / 58.5mm
Overall Length: 15.31in / 389mm
Weight: 62.1oz / 1.76kg

What's Included

• 1x RC4WD Trail Finder 2 SWB
• Universal Body Mounting Kit for TF2 SWB

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2,5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 channel or more) (3 Channel Z-R0009)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or comparable LiPo battery
• Charger (Consult your battery Guide) Chargers

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Features

• Hand Made Tube Trailer Chassis
• Black Powder-coated Finish
• Trailing Arm Leaf Suspension
• Working Lights
• Working Lift Jack
• Easy Clip Hitch Mount
• Plastic Nylon Boat Hull Runners
• 9v Battery Powered LED Lighting
• Steel Tool Box for Battery and Light Switch

Specifications

Length: 44.49in / 1130.0mm
Width: 10.87in / 276.0mm
Height: 4.531in / 115.0mm
Deck Length: 24.0in / 610.0mm
Weight: 113.3oz / 3212.5g

What's Included

• 1 x BigDog 1/10 Tri Axle Widebody Scale Boat Trailer

Fits

• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049), but you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• Fits Traxxas Boat

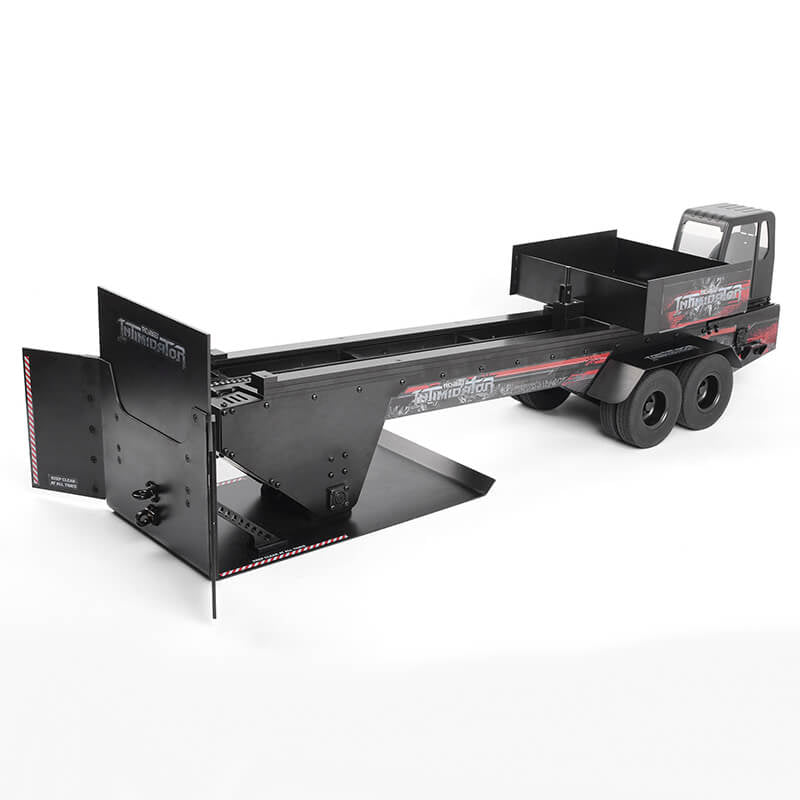

Put the scale pedal to the metal with RC4WD's Intimidator Pulling Sled! Hook your RC Truck up and find out if you can get a full pull. The RC4WD Intimidator is built ready to take a beating with a premium Billet Aluminum Trailer Chassis design, it comes in at a length of 36.51 inches and weighs almost 20 pounds.

Features

• Billet Aluminum Trailer Chassis
• Solid Rubber Tires
• CNC Aluminum Wheels

Specifications

Length: 36.51in / 902.0mm
Width: 12.591in / 328.0mm
Height: 8.85in / 225.0mm
Weight: 19.68lb / 8.93kg

What's Included

• 1 x RC4WD Intimidator Pulling Sled
• 2 x Debris Shields
• 2 x Debris Shield Mounts
• 1 x Decal Sheet
• 1 x Instruction Manual
• 12 x M3 x 8mm Steel Flat Head Cap Screws (Z-S0649)

Notes

• Weight hopper features a latch which disengages the chain to slide it back to the starting position
• Scale Controller Cabin
• Full pull locks the wheels at 20' of rollout

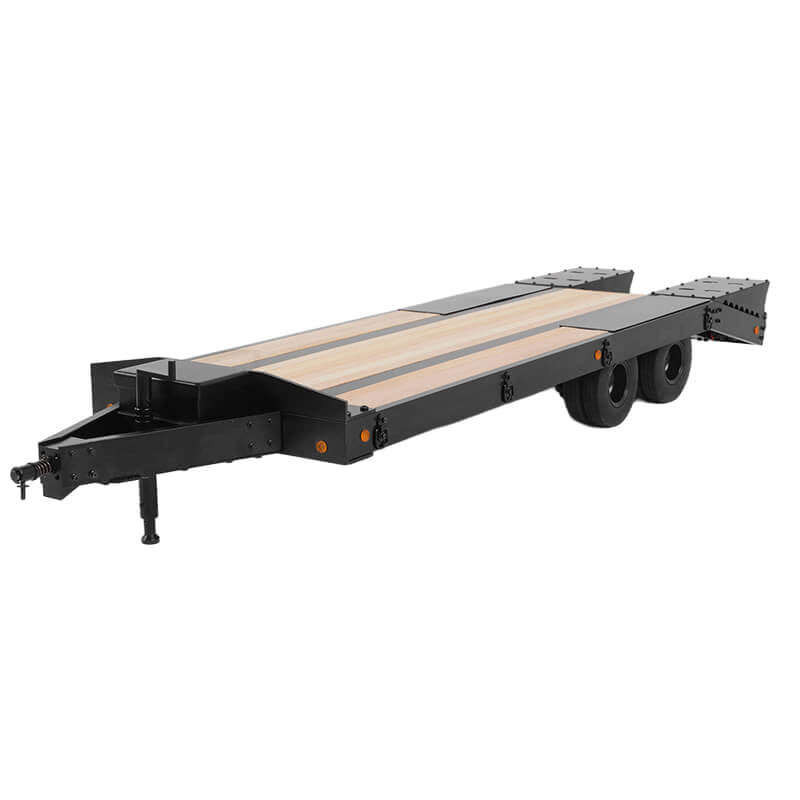

Our BigDog 1/14 Dual Axle Scale Heavy Equipment Trailer is the newest addition to the line of BigDog RC Trailers by RC4WD. This trailer is hand-built and features a completely scale feel. From the built-in working lights and lift jacks to the spring loaded ball hitch and Officially Licensed Michelin Michelin X® Force ST 1.3" Trailer Tires (Z-T0105), you'll be pleased with the attention to detail on this trailer. Use it with our RC Heavy Equipment or attach it to 1:14 scale lorries and semis to haul around your rigs.

Features

• Hand Made Billet Aluminum Trailer Chassis
• Leaf Spring Suspension
• Working Lights
• Working Lift Jack
• Spring Loaded Ball Hitch
• Safety Chains
• Michelin X® Force ST 1.3" Trailer Tires
• Two Back Ramps Perfect for Hauling Tractors or Other Vehicles
• Wooden Deck Area to Handle Heavy Loads
• Steel Tool Box for Battery and Light Switch

Specifications

Length: 35.43in / 900.0mm
Width: 7.60in / 193.0mm
Height: 2.621in / 66.7mm
Deck Length: 24.0in / 610.0mm
Back Ramp Length: 4.81in / 122.1mm
Back Ramp Width: 2.30in / 58.5mm
Weight: 81.1oz / 2300g

What's Included

• 1 x 1/14 Scale Heavy Equipment Trailer
• 2 x RC4WD 1/14 Scale Silver Chain ( 39"/ 1000mm)
• 2 x Small Red Scale Hooks
• 2 x Small Silver Scale Hooks
• 1 x Reflective Decal Sheet

Fits

• 1/14 8x8 Armageddon Hydraulic Dump Truck (FMX) (VV-JD00017)

Notes

• Requires 9v battery (Not Included)

Features

• Hand Made Tube Trailer Chassis
• Stamped Steel 1.55" Stock White Beadlock Wheels
• Dirt Grabber 1.55" All Terrain Tires
• Steel Leaf Spring
• Working Lift Jack
• Steel Tool Box for Battery and Light Switch
• Working Lights
• Easy Clip Hitch Mount
• Two Steel Ramps
• Ramp Holders
• Whitebone Inspired Design 12mm Hex (Replaceable Wheels)
• Manufactured by RC4WD

Specifications

Length: 44.49in / 1130mm
Width: 11.02in / 280mm
Height: 3.17in / 80.4mm
Weight: 116.05oz / 3.29kg

What's Included

• 1 x BigDog 1/10 Triple Axle Scale Boat Trailer

Fits

• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049), but you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• Fits Traxxas Boat

Features

• CNC Machined and Stamped
• Steel and Aluminum Construction
• Black Powder-coated Finish
• Hand Welded
• Steel Leaf Spring Suspension
• Easy Clip Hitch Mount
• 9v Battery Powered LED Lighting
• Easy Access On/Off Light Switch
• 12mm Hex (Replaceable Wheels)

Specifications

Length: 10.04in / 284.5mm
Width: 7.09in / 180.0mm
Height: 5.16in / 130.9mm
Weight: 33.95oz / 962.5g

What's Included

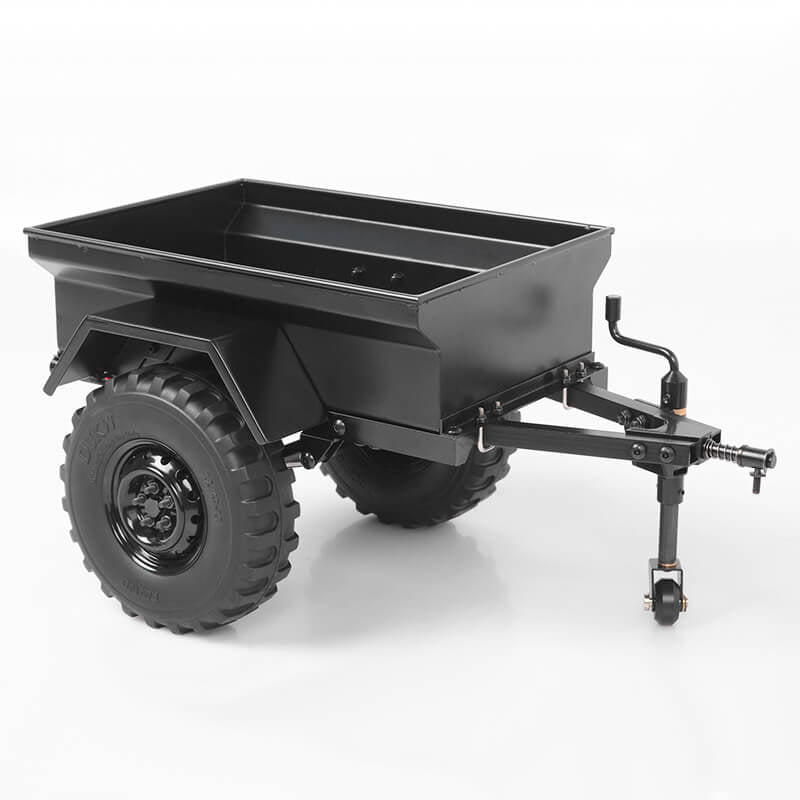

• 1 x RC4WD 1/10 M416 Scale Trailer

Fits

• Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc"), But you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049), But you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• Fits other 12mm hex wheels.

Notes

• Remove 4 screws from battery compartment to install a 9V battery to allow the LED lighting to be functional with the on/off switch location on the bottom of the trailer.

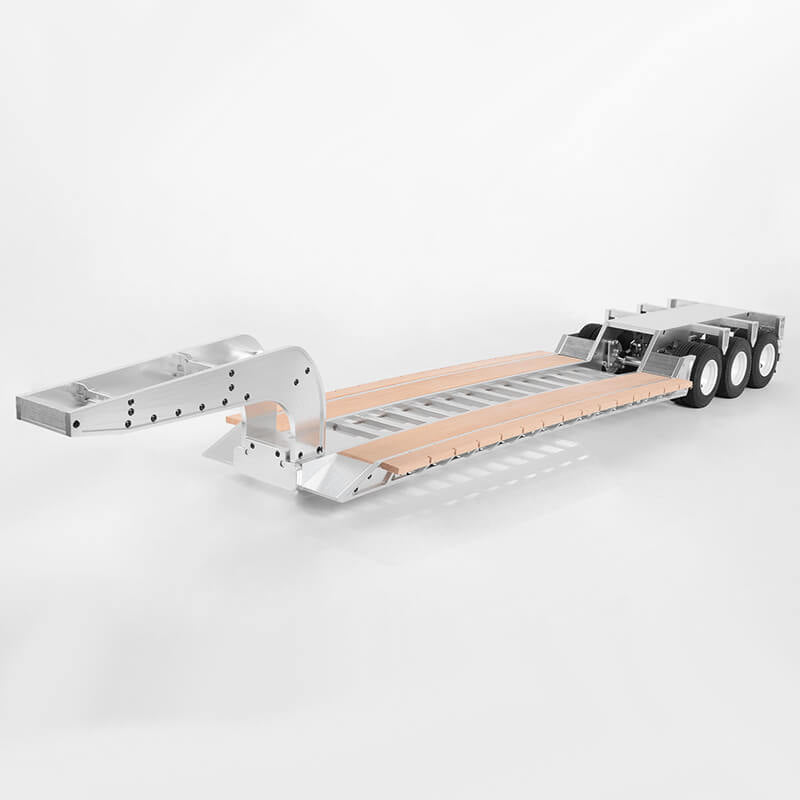

Features

• CNC Machined Aluminum
• Real Wooden Decks
• Manually Detachable Gooseneck
• Additional Width Option
• 12mm Hex (Replaceable Wheels)
• LED Pockets to allow for Lighting
• Works With Tamiya Tractor Semi Truck Coupler

Specifications

Length: 47.5in / 1205mm
Width: 7.2in / 183mm
Wooden Deck Length: 22.7in / 578mm
Installation Side Board Width: 8.9in / 225.9mm
Weight: 250oz / 7100g

What's Included

• 1 x RC4WD 1/14 Lowboy Trailer

Fits

• Tamiya 1/14 King Hauler Tractor Truck Kit

This is a 1/10 Boat Hauler. Perfect for towing around your boat to the lake, events or showing it off. Dual axles for extra towing capacity. Features full working leaf springs.

Features

• Hand Made Tube Trailer Chassis
• Stamped Steel 1.55 Stock White Beadlock Wheel
• Dirt Grabber 1.55" All Terrain Tires
• Steel Leaf Spring
• Working Lift Jack
• Steel Tool Box for Battery and Light Switch
• Working Lights
• Easy Clip Hitch Mount
• Two Steel Ramps
• Ramp Holders
• Whitebone Inspired Design12mm Hex (Replaceable Wheels)

Specifications

Length: 27.28in / 693mm
Width: 7.12in / 181mm
Height: 5.70in / 145mm
Weight: 58.55oz / 1.66kg

What's Included

• 1 x BigDog 1/10 Dual Axle Scale Boat Trailer

Fits

• Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc"), But you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc"), But you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049), But you will need Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)

Required To Complete

• 9 volt Battery

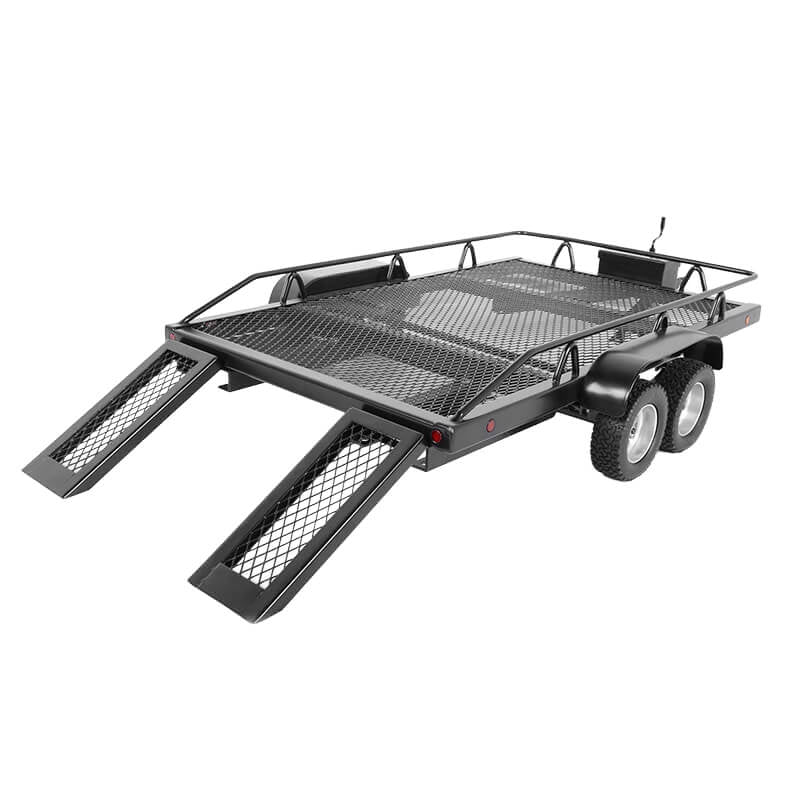

This is the new 1/8 Car or Truck Hauler. Larger bed for the bigger hauls. Perfect for towing around your rig to events or showing it off. Dual axles for extra towing capacity. Features full working leaf springs.

Features

• Hand made Tube Trailer Chassis
• Billet Aluminum Wheels
• 1.55 Dirt Grabber Tires
• Steel Leaf Spring
• Working lift jack
• Steel tool box for battery and light switch
• Working lights
• Easy clip hitch mount
• Two Steel ramps
• Ramp Holders
• Whitebone inspired design

Specifications

Weight: 102.3oz (2900g)
Length: 25.59in (650mm)
Width: 14.84in (377mm)
Height: 4.33in (110mm)
Inside of the Deck Length: 18.11in / 460mm
Inside of the Deck Width: 10.82in / 275mm
Tail Plate Length: 6.1in / 155mm
Tail Plate Width: 2.55in / 65mm

What's Included

• 1 x BigDog 1/8 Dual Axle Scale Car/Truck Trailer

Notes

• Tyres require glue installation on wheel.

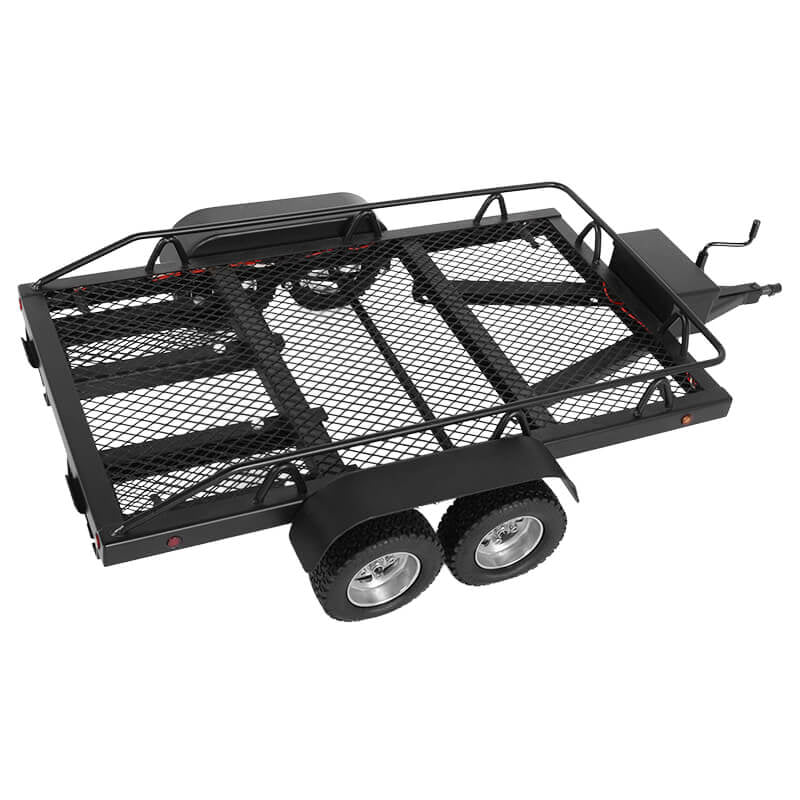

This is a 1/10 Car or Truck Hauler. Perfect for towing around your rig to events or showing it off. Dual axles for extra towing capacity. Features full working leaf springs.

Features

• Hand made tube trailer chassis
• Billet aluminum wheels
• 1.55 Dirt grabber tires
• Steel leaf spring
• Working lift jack
• Steel tool box for battery and light switch
• Working lights
• Easy clip hitch mount
• Two steel ramps
• Ramp holders
• Whitebone inspired design

Specifications

Weight: 80.77oz (2290g)
Length: 22.63" (575mm)
Width: 12.28" (312mm)
Height: 5.31" (135mm)
Inside of the Deck Length: 15.9in / 404mm
Inside of the Deck Width: 8.5in / 216mm
Tail Plate Length: 6.1in / 155mm
Tail Plate Width: 2.55in / 65mm

What's Included

• 1 x BigDog 1/10 Dual Axle Scale Car/Truck Trailer

Notes

• Tyres require glue installation on wheel.

Features

• CNC Machined
• Hardened 45# Steel
• Heat Treated
• Black Finish

Specifications

Total Weight: 2.21oz / 62.7g

What's Included

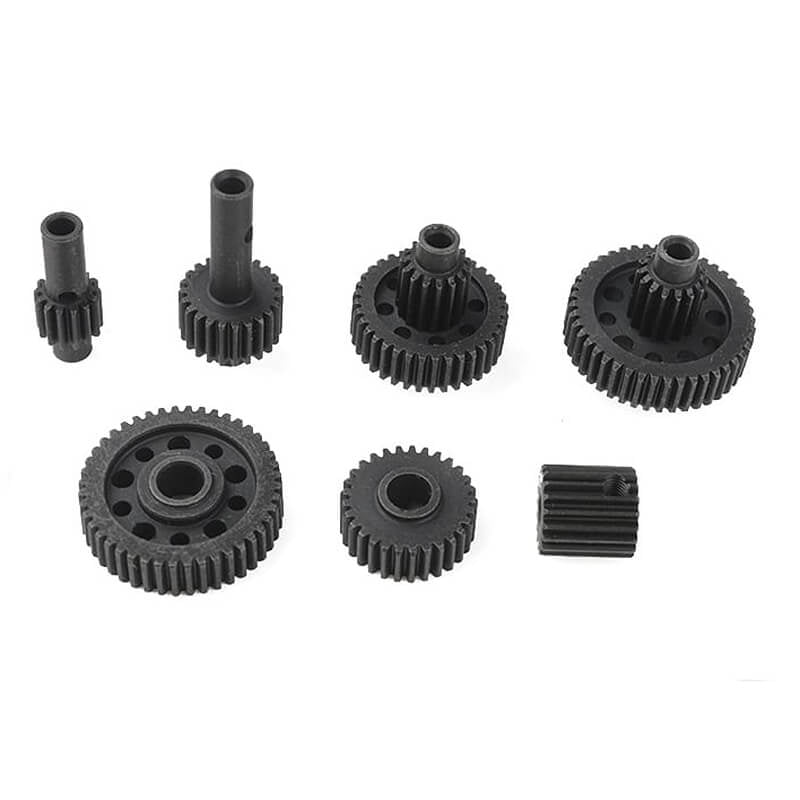

• 1 x RC4WD Gear Set for Super Bully 2 Competition Axles
• 1 x 2.5mm x 7.7mm Pin
• 1 x 2.0mm x 10.7mm Pin
• 1 x M3 X 3mm Set Screw (Z-S0124)

Fits

• Super Bully 2 Competition Axle (Z-A0122).
