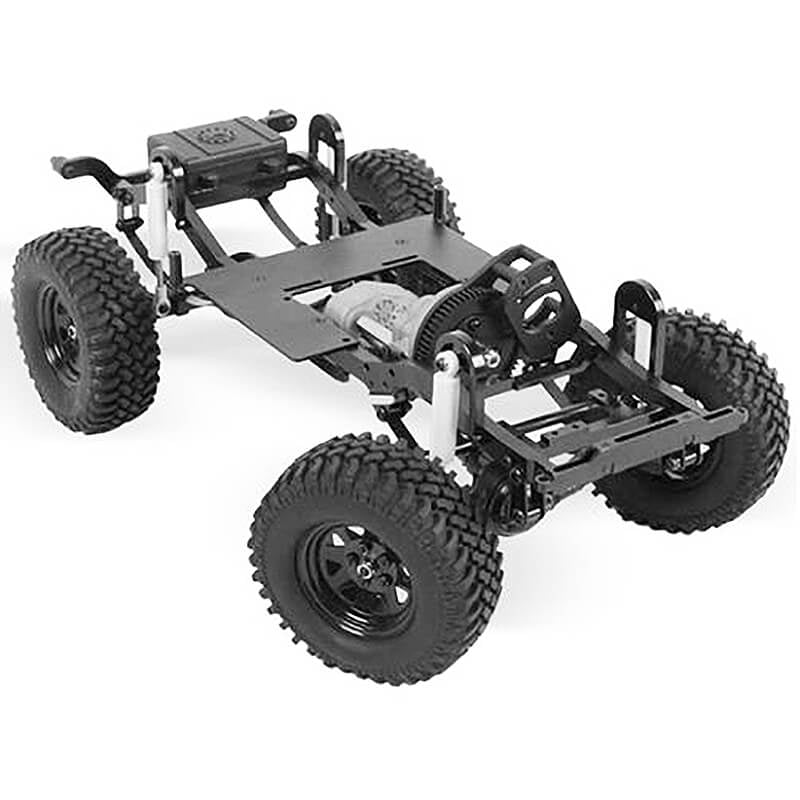

RC4WD - TRAIL FINDER 2 TRUCK KIT "SWB" - Z-K0045

The TF2 SWB has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2.

Performance of the TF2 is smooth with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout. The TF2 is truly a work of art in both appearance and performance.

Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance and add to the look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

Features

• Realistic Billet Aluminum Ladder Frame Chassis "SWB"
• R3 Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Yota II Ultimate Scale Cast Axle
• True to Scale Leaf Spring Suspension
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
• Mud Thrashers 1.9" Scale Tires
• Realistic Bumpers and Skid Plate
• Chassis Mounted Steering Servo
• RC4WD Scale Shock Absorbers
• Plastic Rod Ends
• Full Ball Bearings

Specifications

All New Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod steel gears

All New R3 Single Speed Transmission
Ratio: 1.78:1
Pinion/Spur: 14/64 = 4.57:1

Cast Yota 2 Axles
Ratio: 15/40 = 2.67:1
Width at hex: 176.5mm

Trailfinder 2 SWB Chassis
Features: Billet aluminum construction Adjustable shock hoops

Driveshafts
RC4WD Punisher Metal Driveshafts
Heavy duty steel construction

Wheels
Type: 1.9 Steel Beadlock Wheels with Lug Nuts
Hub: Pin type
Width: 25mm
Back Spacing: 11mm

TF2 SWB Dimensions
Wheelbase: 9.5in / 242mm
Width: 8.3in / 211mm
Height: 5.55in / 141mm
Ground Clearance: 2.3in / 58.5mm
Overall Length: 15.31in / 389mm
Weight: 62.1oz / 1.76kg

What's Included

• 1x RC4WD Trail Finder 2 SWB
• Universal Body Mounting Kit for TF2 SWB

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2,5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 channel or more) (3 Channel Z-R0009)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or comparable LiPo battery
• Charger (Consult your battery Guide) Chargers

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
