RC4WD - TRAIL FINDER 2 TRUCK KIT "LWB" W/ 1980 TOYOTA LAND CRU - Z-K0068

This is the all new Licensed RC4WD Trail Finder 2 Truck Kit "LWB" W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set.

The RC4WD Trail Finder 2 Truck Kit LWB W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set is an all-new customizable canvas for RC enthusiasts and scale artists alike. This FJ55 Lexan body set replicates the stocky look of the 'Iron Pig' and comes molded from quality material. Notice the precise positioning of the circular headlights with bezels and the tapering hood to a compact grill, recreating that distinctive front-end face. Finish it off with a Lexan body designed for any chosen paint job, from a single color to a signature two-tone!

One of the most realistic Lexan bodies on the market, this model features a fully molded interior cabin and an innovative mounting system that hides the body clips under the chassis! All of the lighting on this body is also fully LED capable!

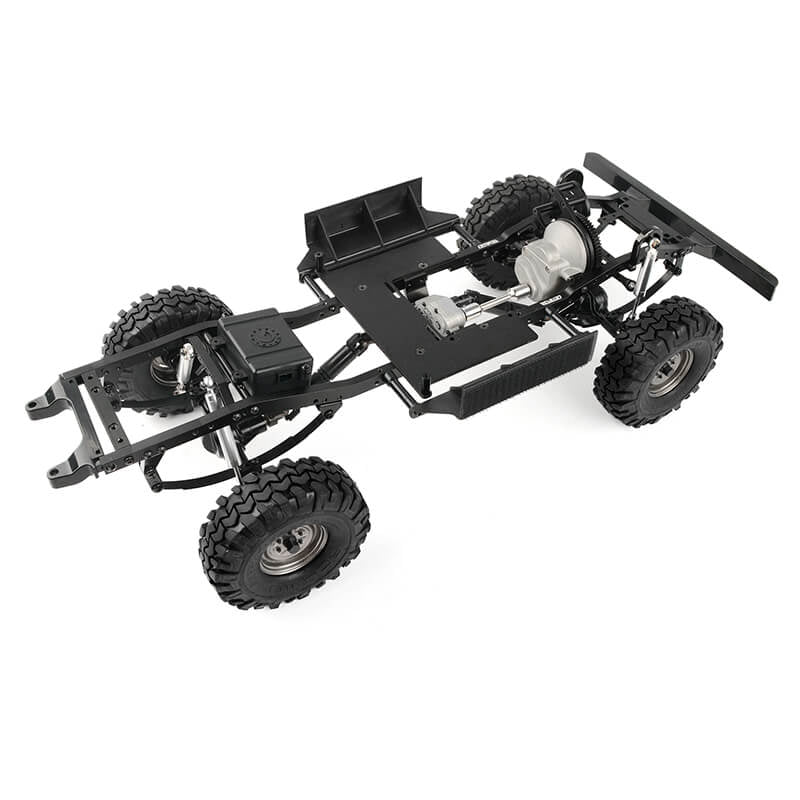

This scale Toyota body set comes mounted to the popular Trail Finder 2 “LWB” chassis through the hidden body mounts positioned at the front and rear bumpers. The TF2 “LWB” chassis features the R3 Single Speed Transmission, Yota II Ultimate Scale Cast Axles, and RC4WD Ultimate Scale Shocks ensuring all-terrain capabilities!

Express your inner admiration for vintage builds and separate yourself from the rest with the RC4WD 1980 Toyota Land Cruiser FJ55 Body Set today!

Features

• 1980 Toyota Land Cruiser FJ55 Lexan Body Set
• Trail Finder 2 "LWB" Chassis
• Yota II Ultimate Scale Cast Axles
• R3 Single Speed Transmission
• Center Mounted Hammer Transfer Case
• Ultimate Scale Shocks
• Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear)
• Rock Stompers 1.55" Offroad Tyres

Specifications

Hammer Transfer Case
Ratio: 1.47:1 Gears: Wide .8 Mod
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.20mm

Trail Finder 2 LWB Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole

Wheels
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear)
Hub: 12mm Hex
Width: 0.92in / 23.40mm
OD: 1.81in / 46.10mm

FJ55 Truck Dimensions
Wheelbase: 314.20mm (12.37")
Width: 223.00mm (8.78")
Height: 229.00mm (9.02")
Ground Clearance: 64.30mm (2.53")
Final Drive Ratio: 31.92:1

What's Included

• 1x RC4WD Trail Finder 2 Truck Kit "LWB" W/ 1980 Toyota Land Cruiser FJ55 Lexan Body Set

Required To Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Medium (Blue) Thread Lock Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)
• Paint for Body

Electronics

• Motor (35t, 45t or 55t)
• Electronic Speed Control (Z-E0113 or Z-E0118)
• Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Standard Size Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers
