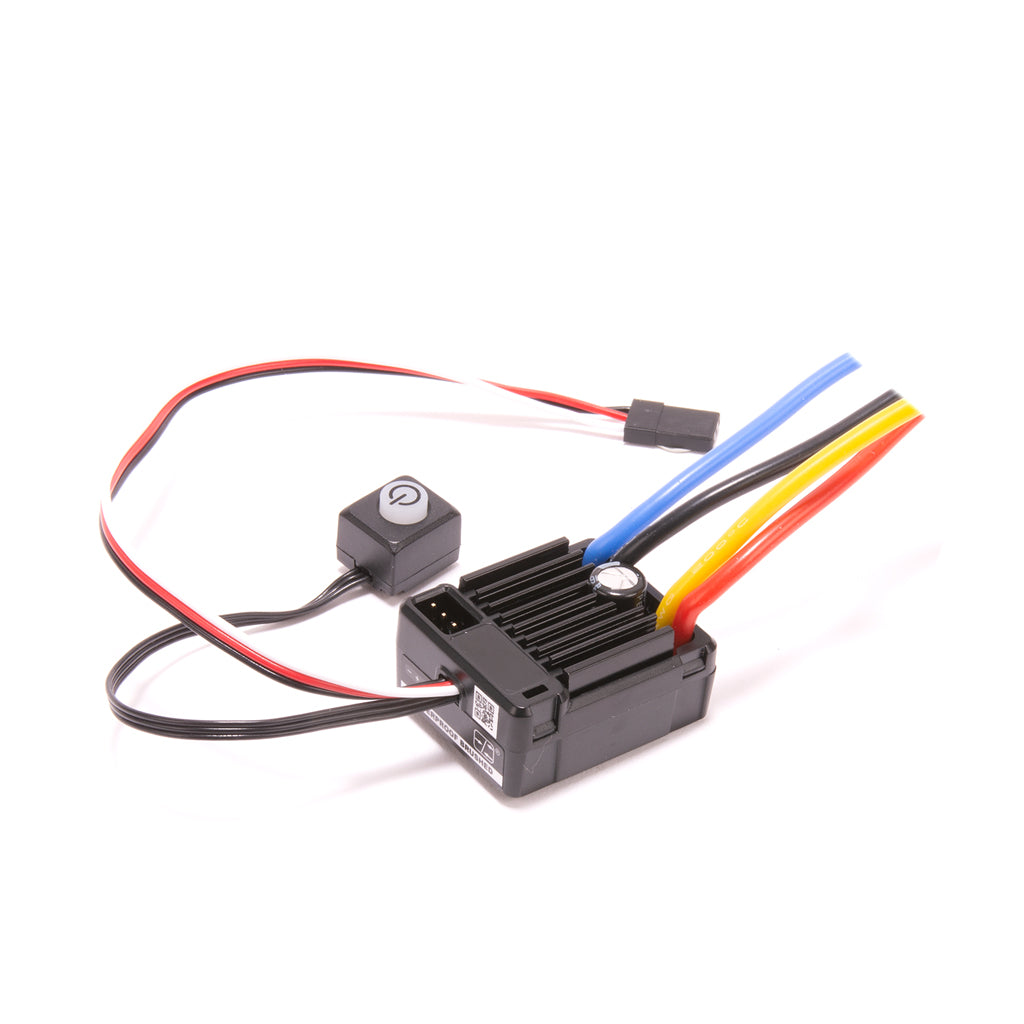

Hobbywing - 1/12th Mini GT12 Brushed ESC 1060 WP - 3.7v - 4.8v (1S or 4cell NiMh) (Deans) HW1060WPLV (Fully programable when combined with a Hobbywing Program Card)

Introducing the Hobbywing 1/12th Brushed Speed Control for 1S LiPo or 4 Cell NiMh.

Note: To turn on and off, you must remove battery plug. Button is for ESC Programming only. ESC comes set as standard with no brakes. You must turn on brakes and changed from Zero brake force to min of 25% for them to work. Standard setup is for Banger cars for instant reverse.

A collaboration between Schumacher Racing and Hobbywing !

Easy Operation
This ESC is specially designed to be easy to use, it not only carries forward the outstanding quality of HOBBYWING products but is simple in operation.

High Reliability & Durability
Reliable hardware combined with advanced software technology allows the 1060 WP 1S Brushed to not only provide high power output but also overload protection of the ESC circuit.

Easy to Use
This ESC features auto throttle calibration and further settings can be adjusted using the LED Program Box HW30501003.

Wide Application
This ESC is designed for 1/12th Scale cars using 1S LiPo batteries or 4 Cell NiMH.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the 1060 WP Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

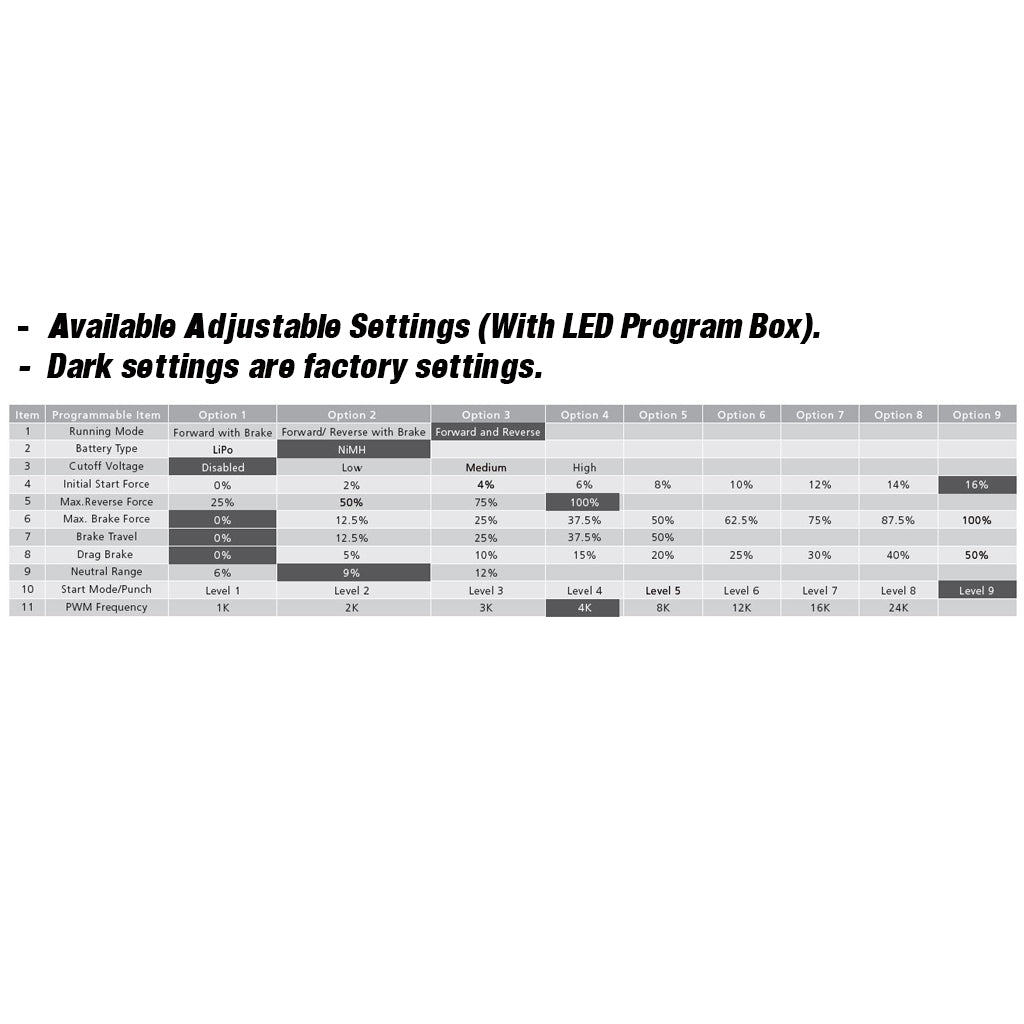

See image for factory default settings.

Instant reverse is a standard setting, highly suitable for 1/12th Stock Car class.

Specifications

Current Rating - 60A
Input Voltage - 1S LiPo or 4 Cell NiMh
Motor - Brushed Motors： ≥15T
Applications - 1/12th Racing
BEC Output - 6V，3A
Parameter Setting Method - LED Program Box HW30501003

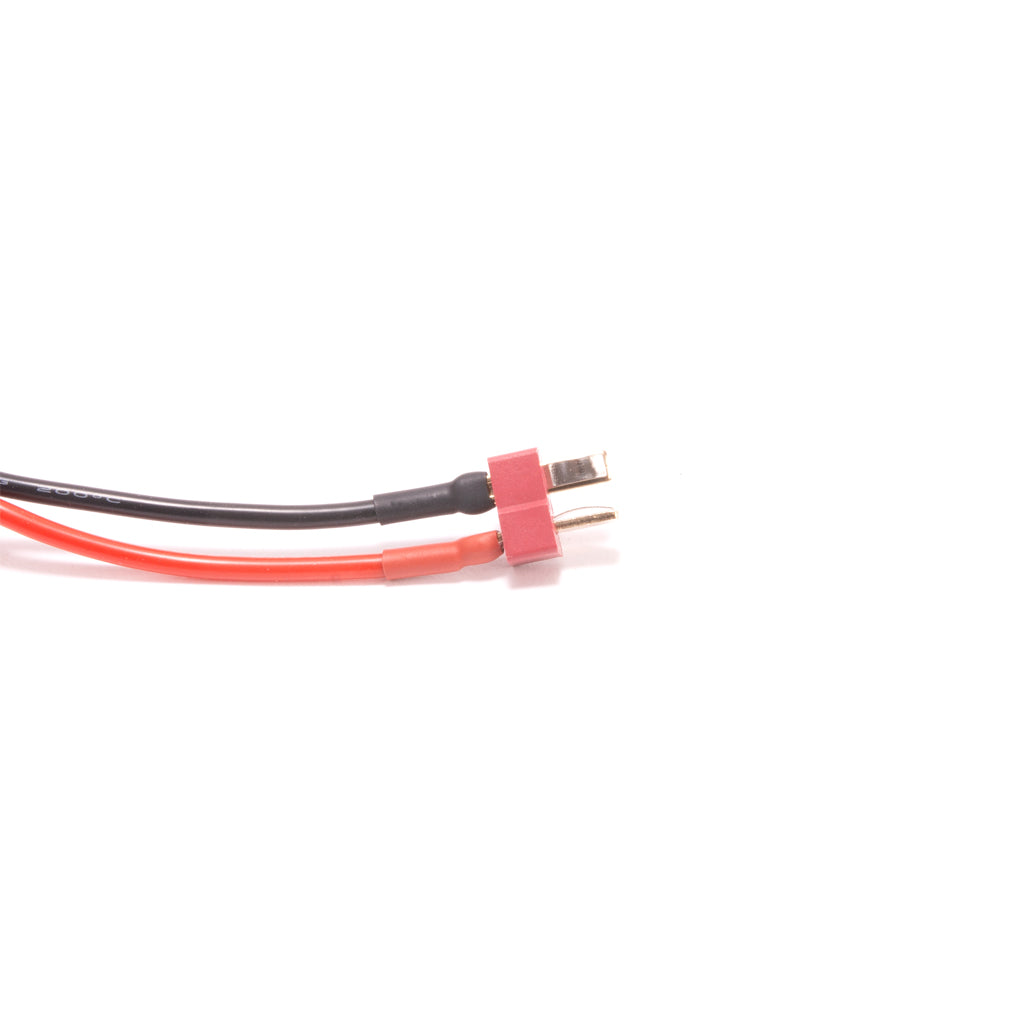

Connectors - T Plug & 4mm Bullets.
